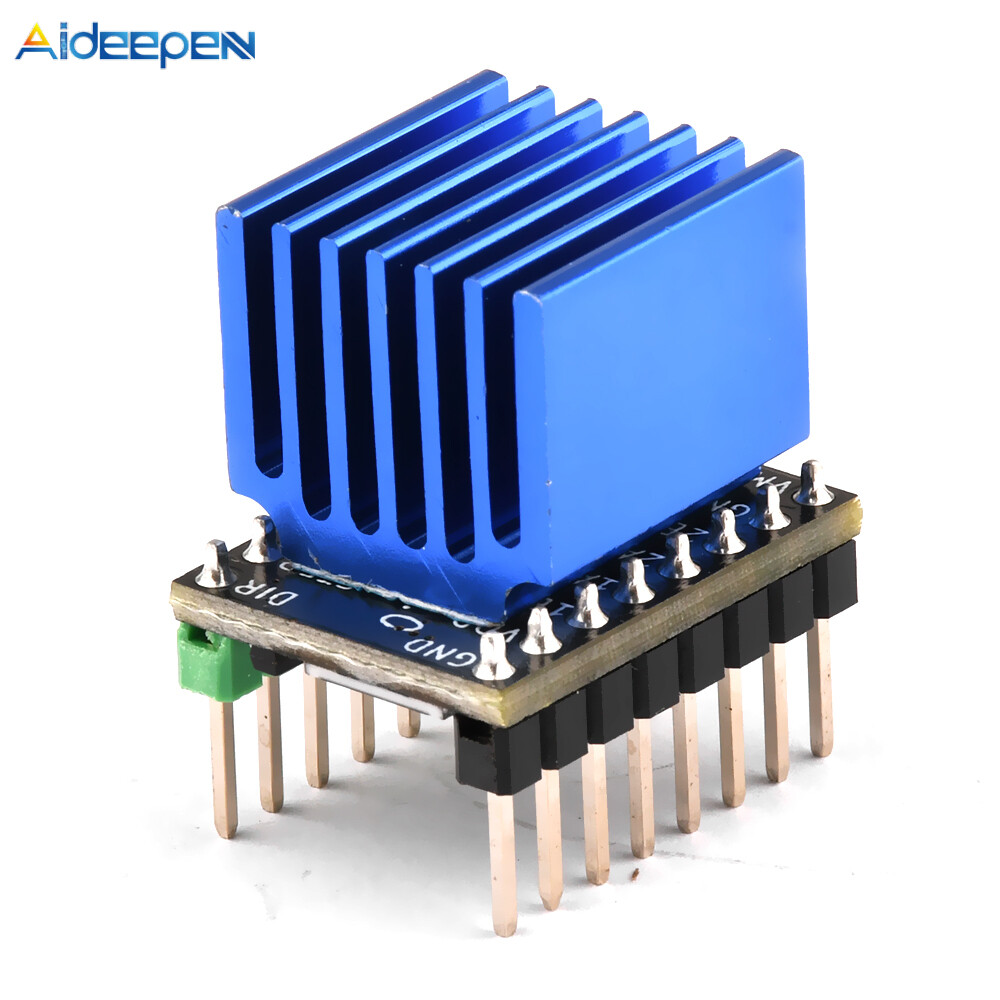

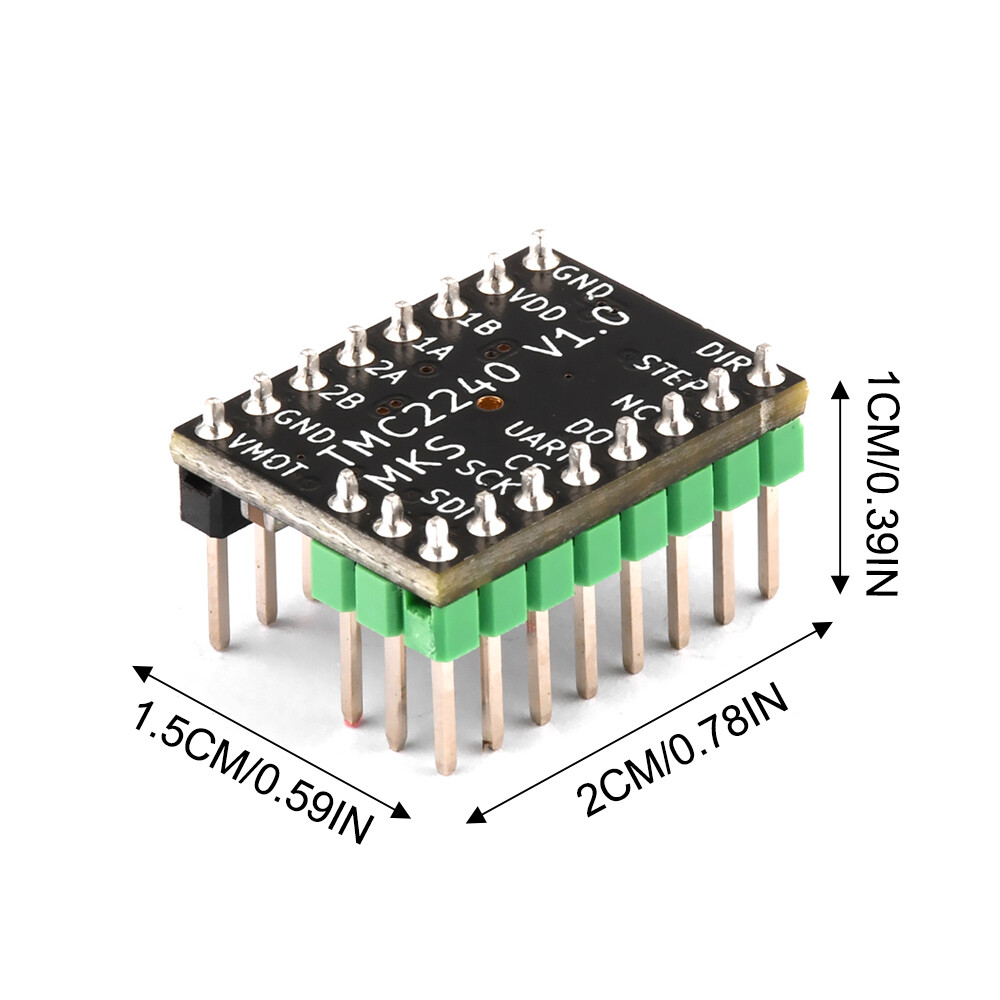

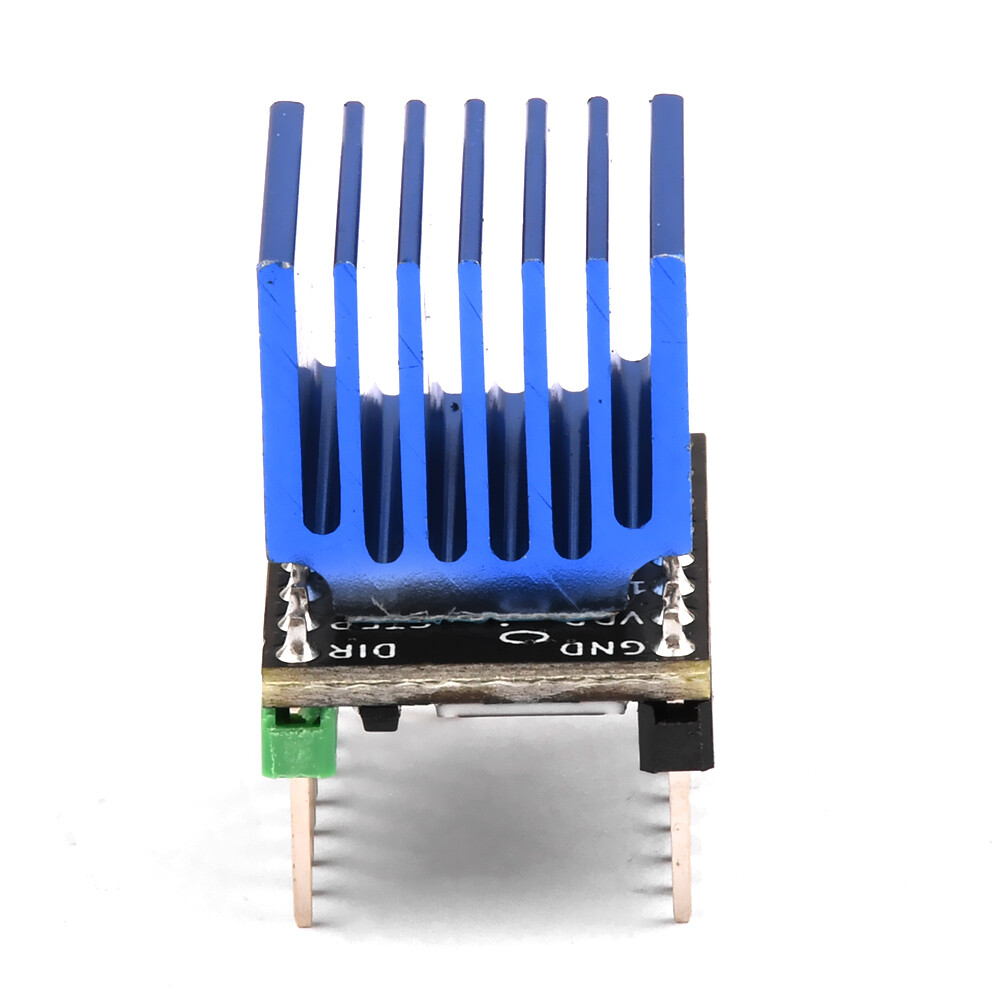

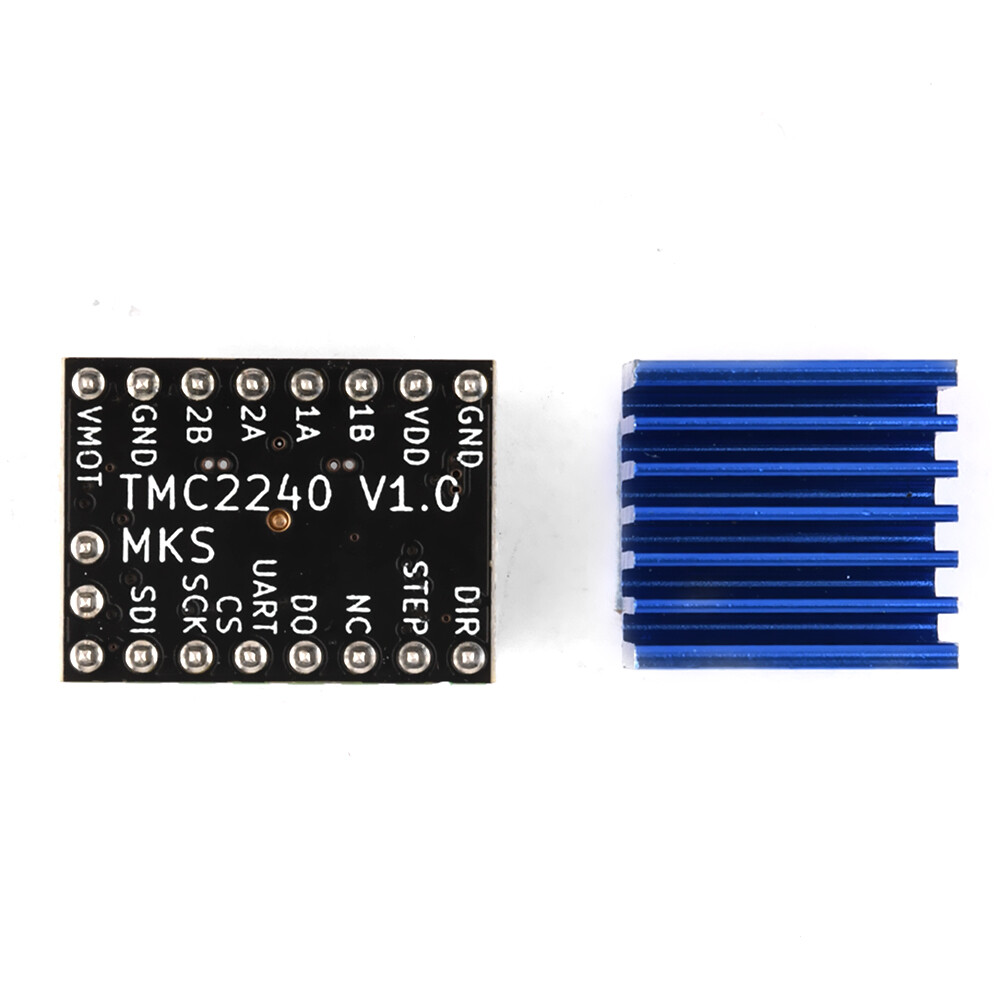

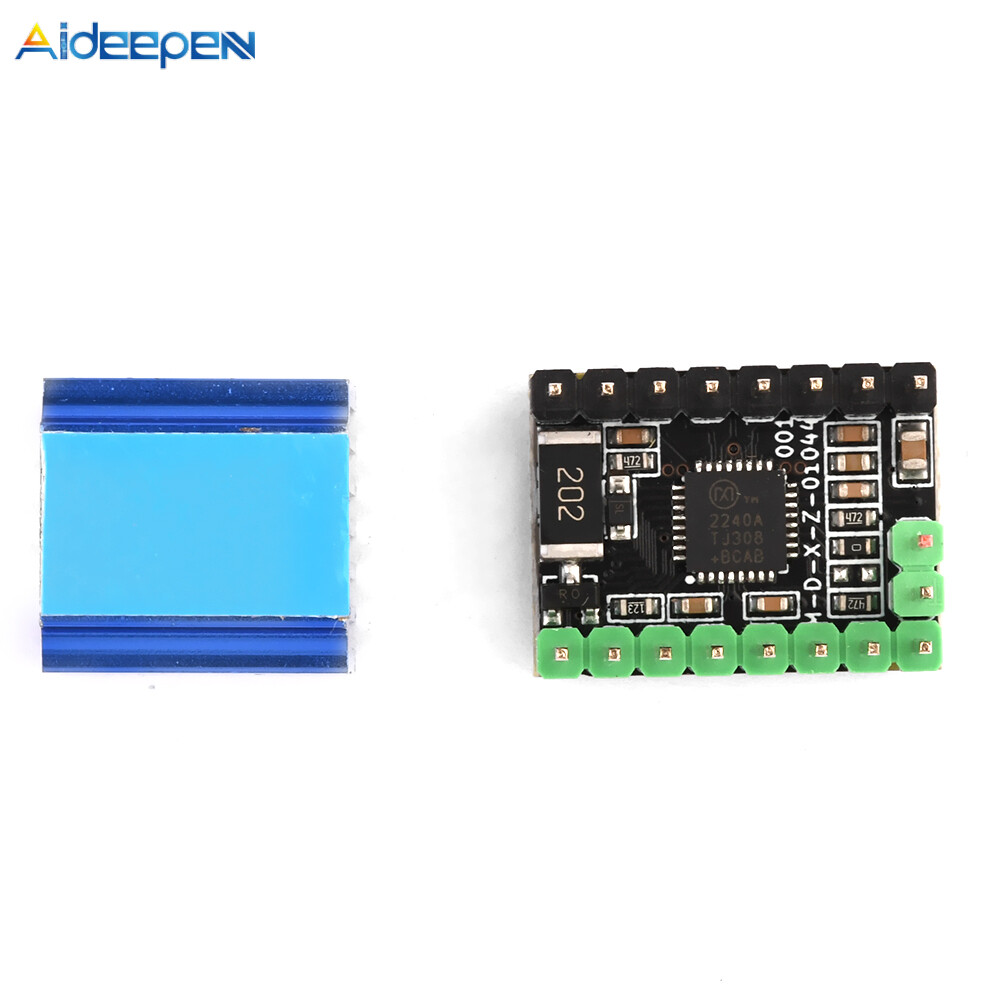

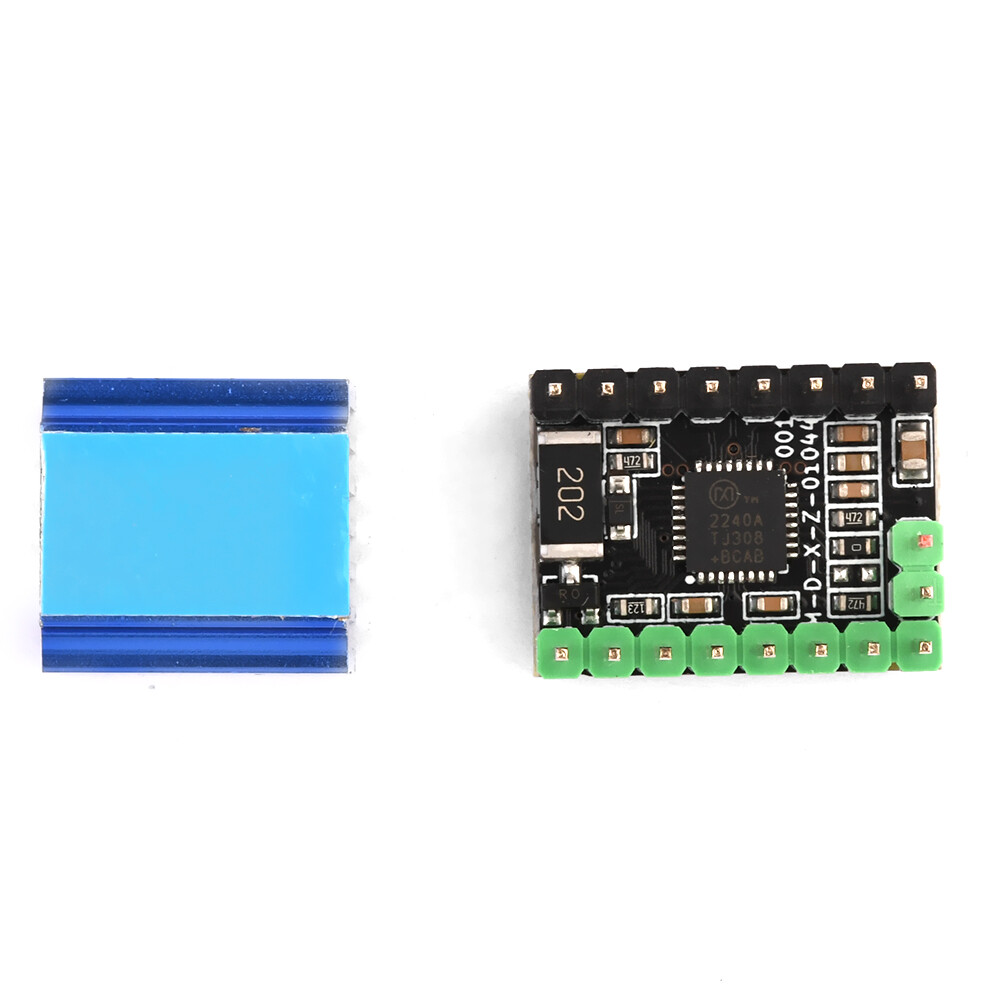

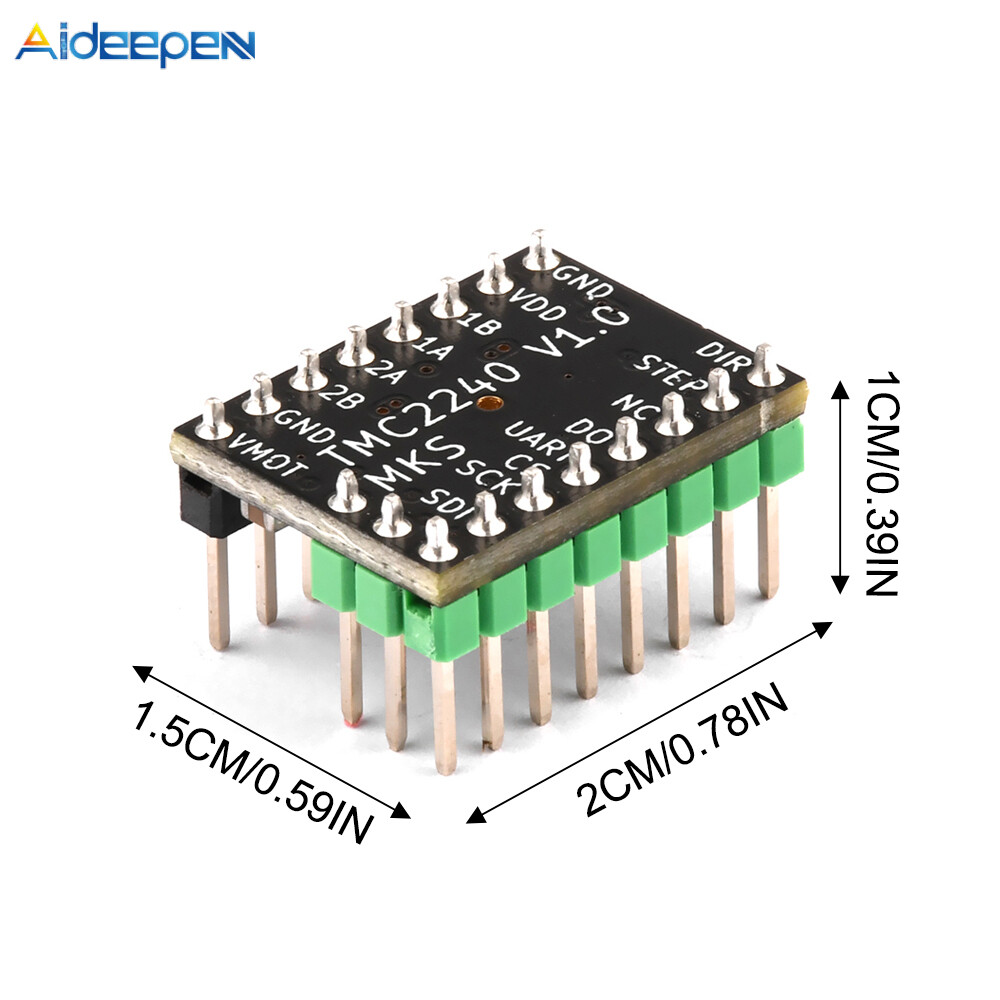

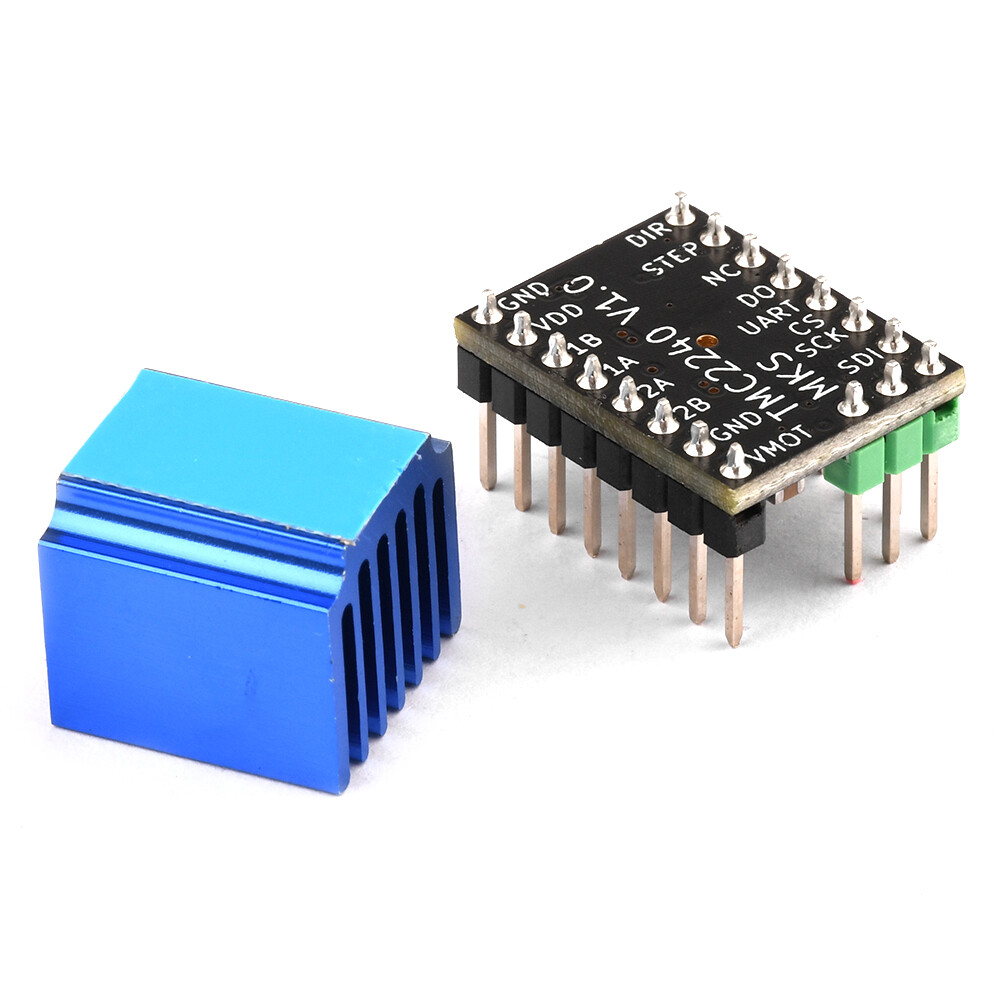

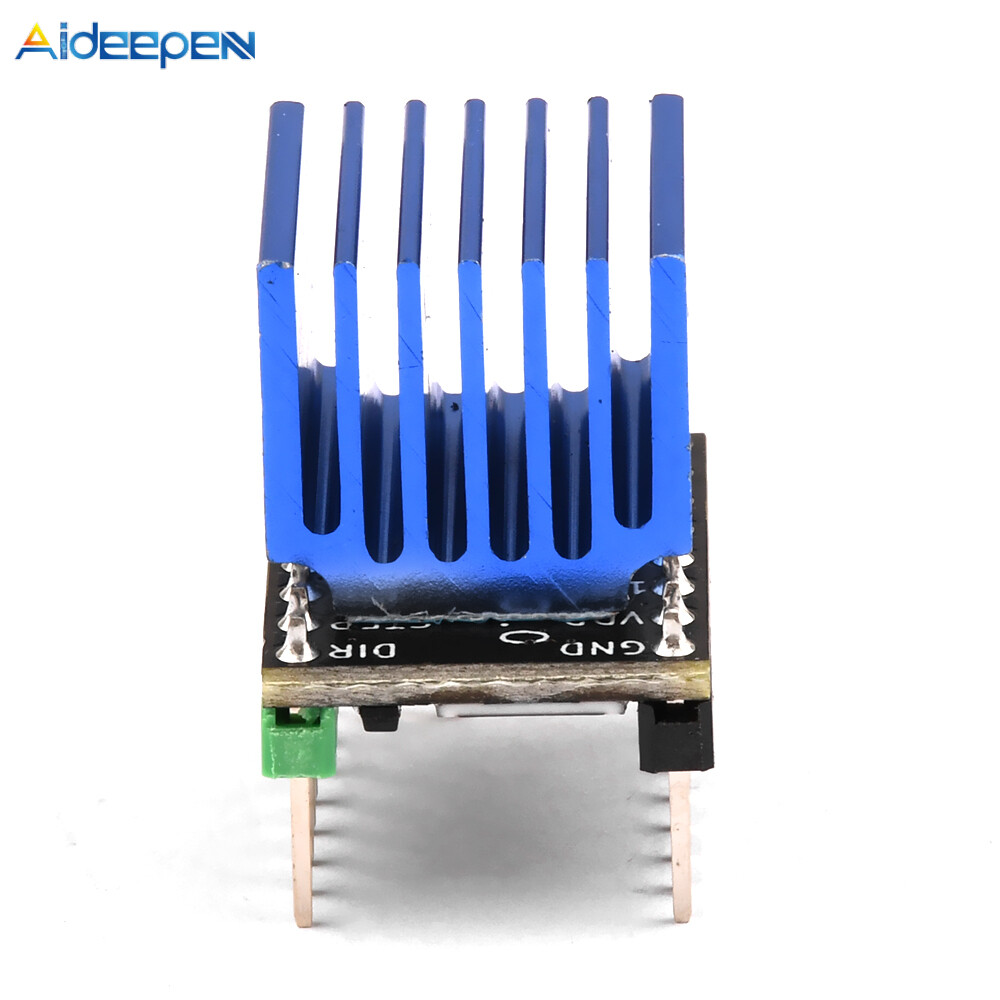

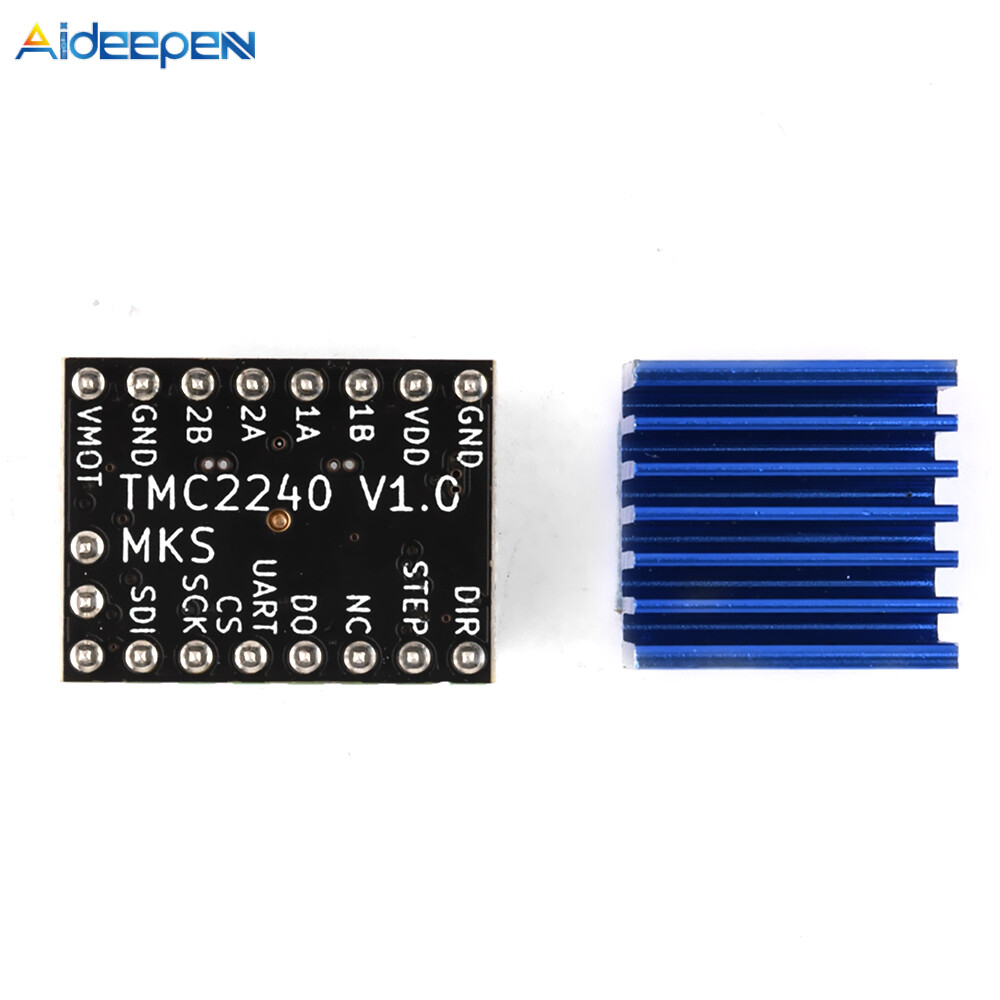

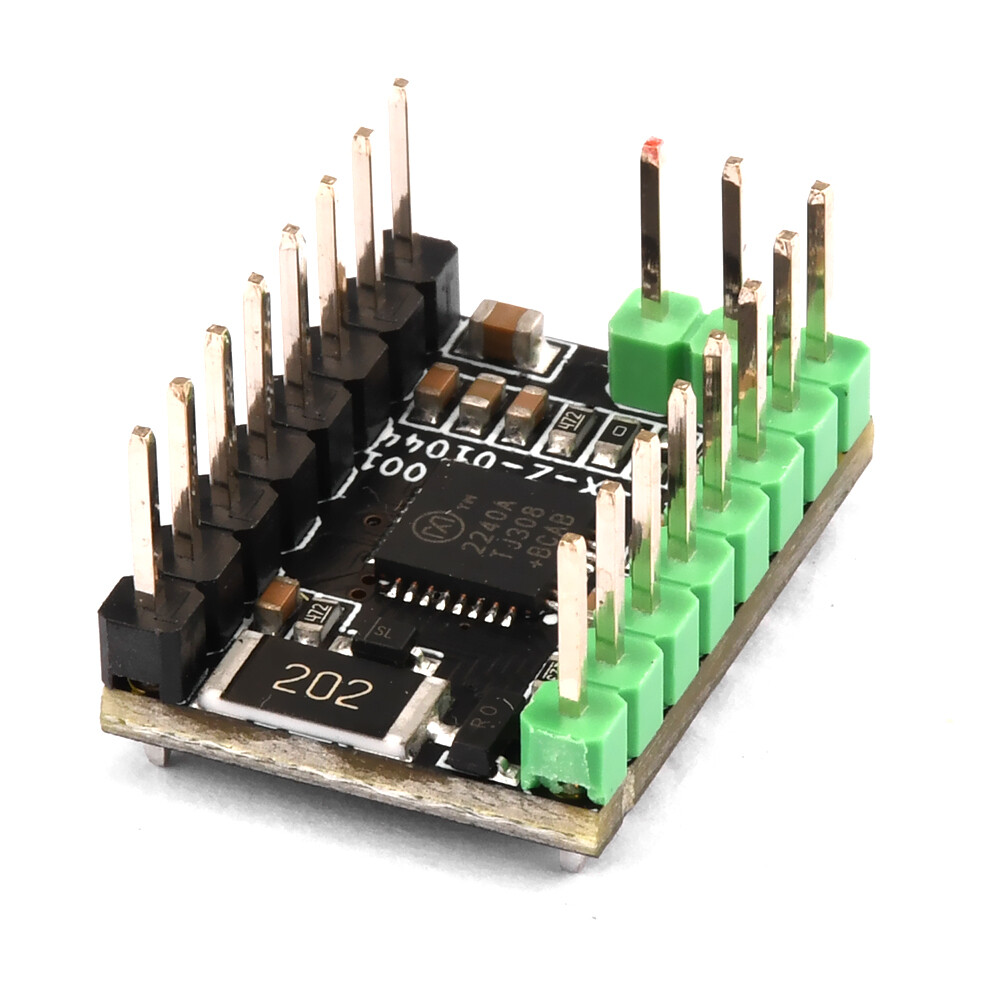

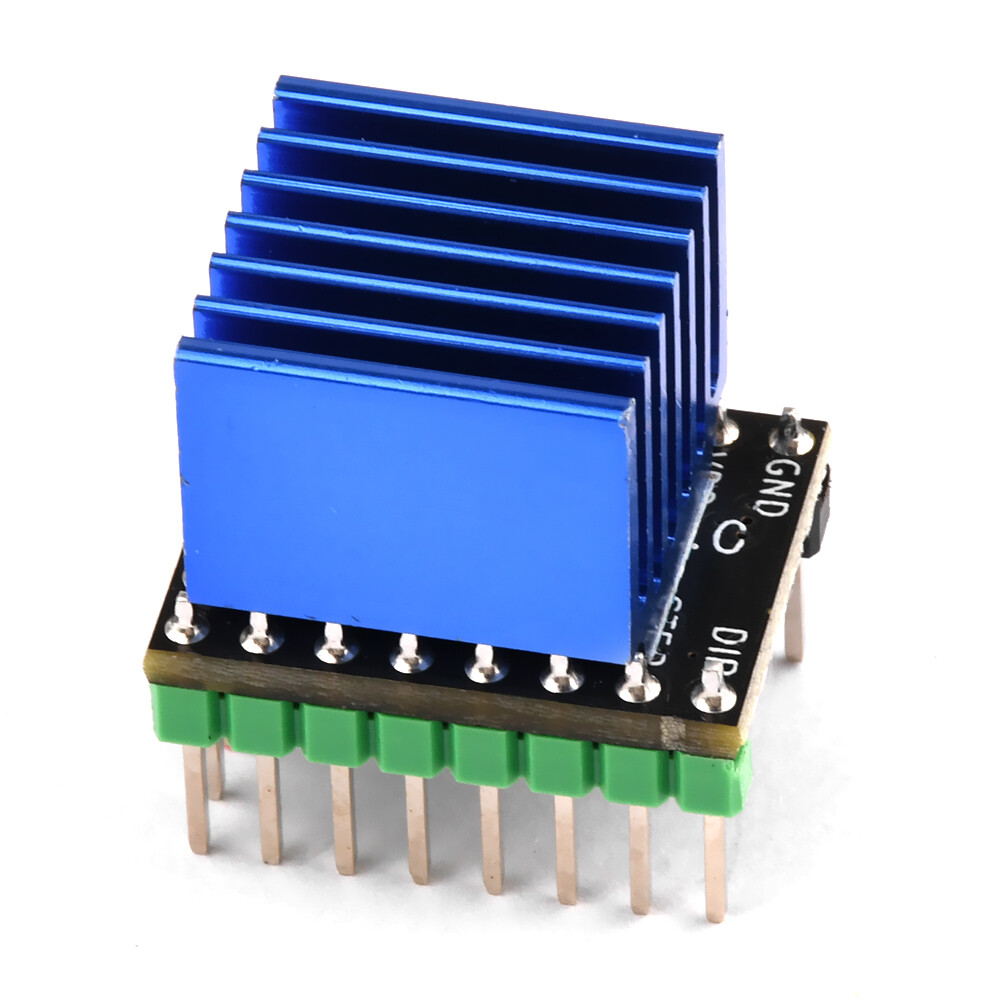

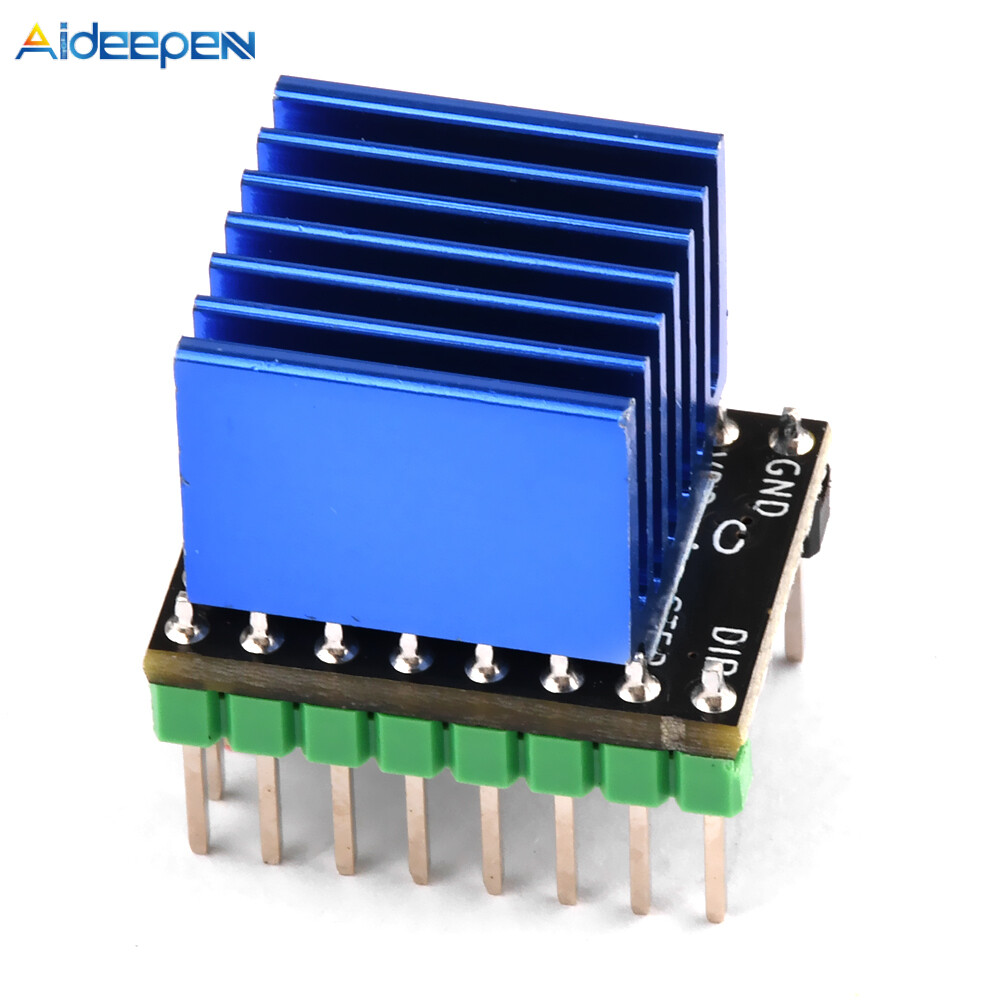

Aideepen TMC2240 3D Printer Stepper Motor Driver Stepper Driver Module with Heat Sink for 3D Printer Controller Mother Boards

Features:

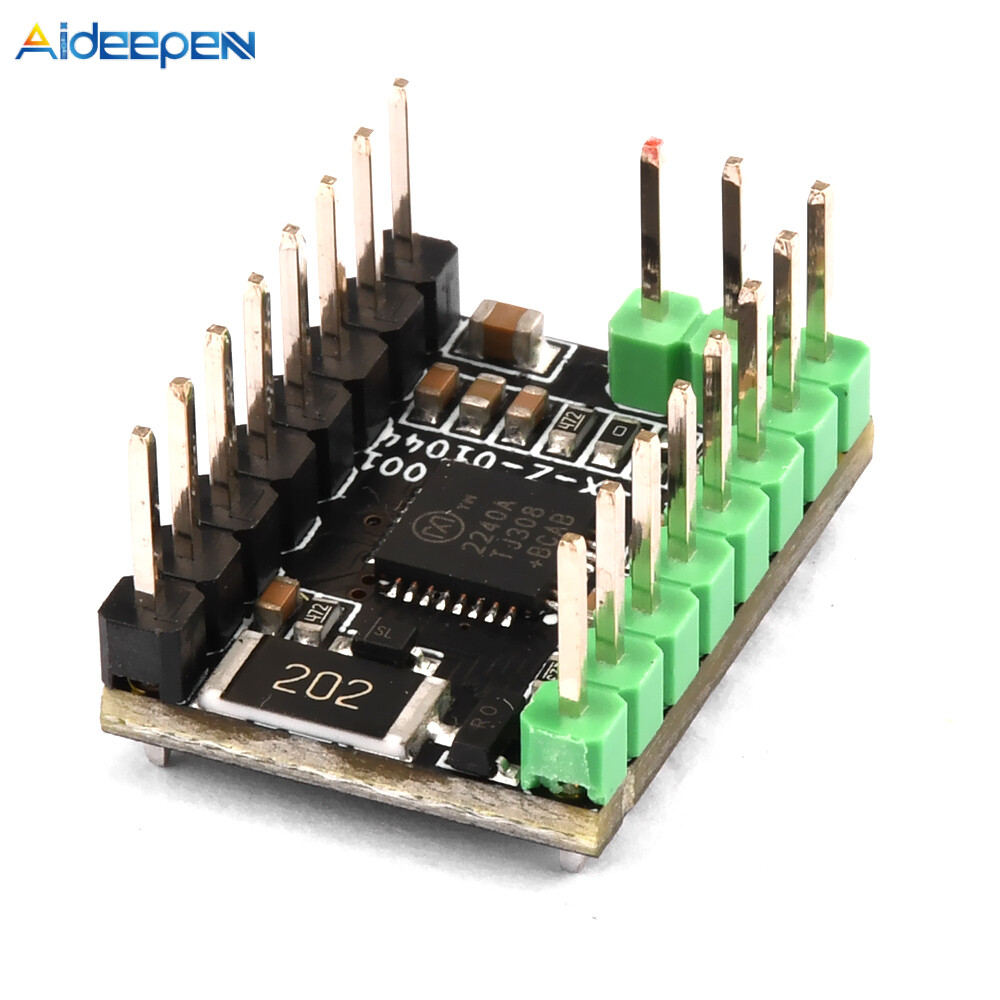

1.Chip model: TMC2240
2.Compared to the TMC2209 driver, the current is higher and the heat dissipation is better
3.In the case of high-speed printing (with the same current), compared to other TMC drives, the motor torque controlled by TMC2240 is greater and more powerful
4.This is an intelligent silent stepper motor drive module
5.The product is made of high-quality materials, with stable performance and long service life

Product Introduction:
TMC2240 is an intelligent silent stepper driver that defaults to SPI mode and supports a maximum effective current of 2.1A, peak current of 3A, and 4.5-36V DC power input.
It supports the infinite zero return function. In the high-speed mode, the current change amplitude is very small to maintain sufficient torque, and the Counter-electromotive force braking protection circuit is integrated, which can be used in Klipper firmware.

Parameters:
Input voltage: DC4.5-36V (recommended: DC12-24V)
Output current: Maximum effective current: 2.1A, maximum peak current 3A
Drive mode: SPI mode
Wiring method: plug-in drive
Logic voltage: 3.3V-5V
Unlimited bit function: support
Counter-electromotive force protection: Counter-electromotive force braking protection of resistance+MOS tube mode
Supported firmware: Klipper, Marlin
Adaptor board: Equipped with TMC SPI interface motherboard. For example: MKS SKIPR, Monster8, Nano V3, Gen_ LV2. x
Other functions such as driving current, subdivision, and infinite bit are configured through software

Package include:
Module X1

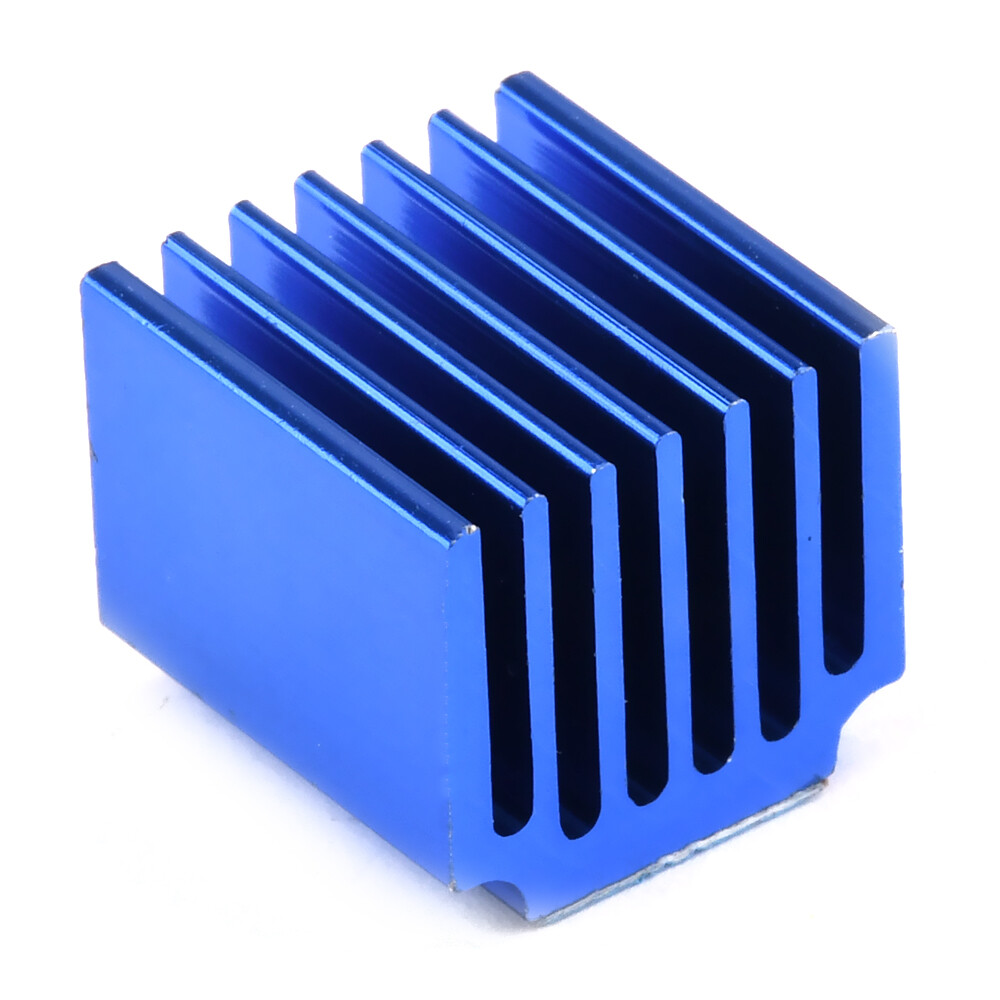

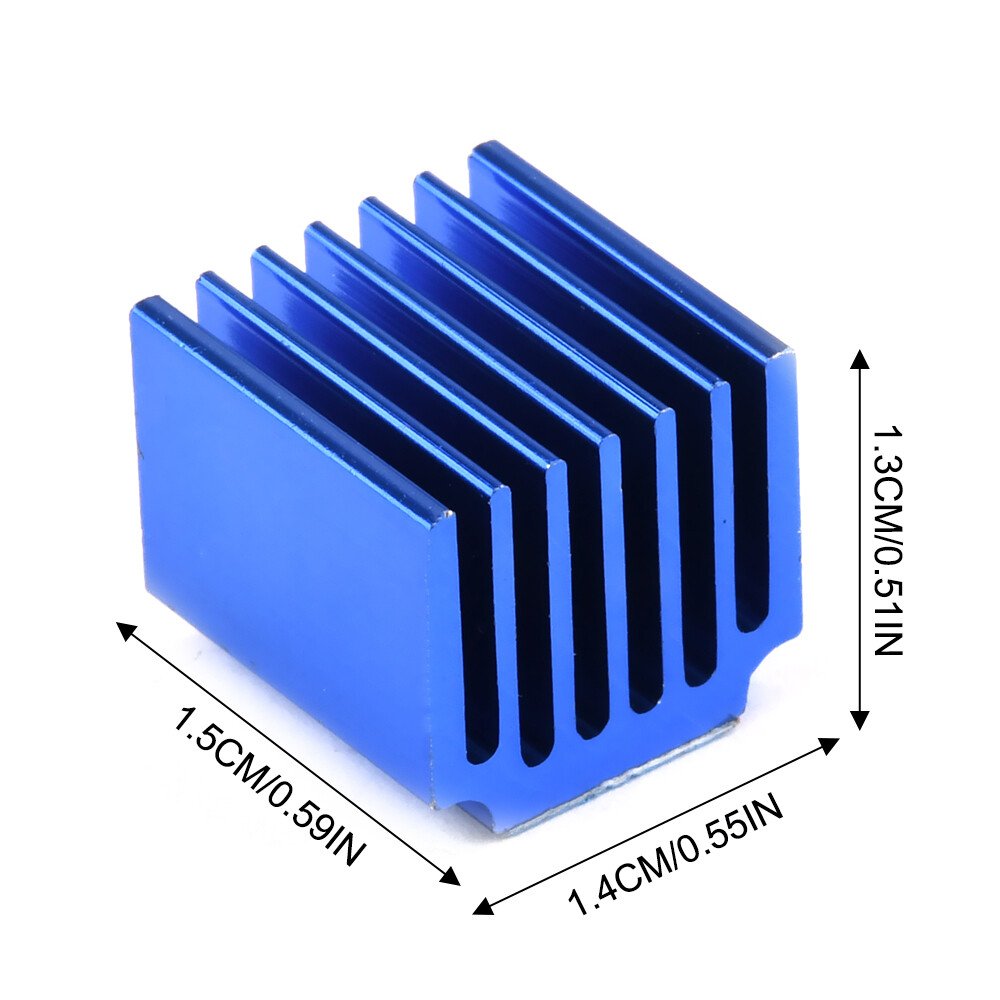

Accessory X1
