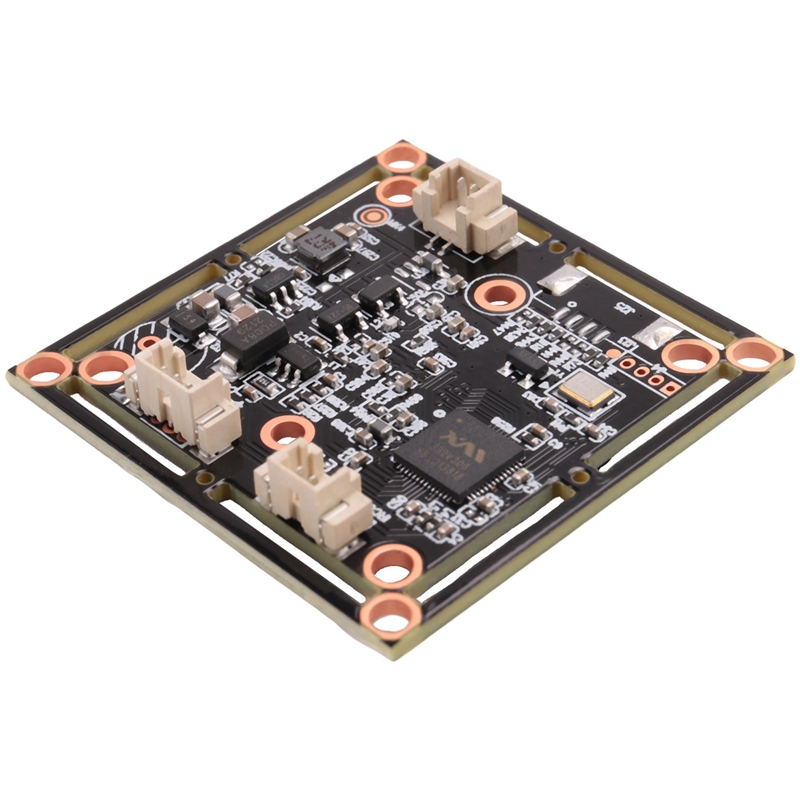

AHD 1080P CCTV Accessories Camera Board CMOS HD 2MP 200W Module for Surveillance Camera

1080P HD resolution, the image is more clear and delicate
Zero-latency data transmission, full real-time, high fidelity
Long transmission distance, coaxial transmission up to 500 meters
Support only AHD
High-definition quality products with competitive price

Sensor:1/2.9inch P20 sensor
Signal format:AHD
Video Resolution:PAL:1924x1084
Minimum Illumination:
Colour:0.01Lux@(F1.2,AGC ON),0Lux with IR
Black & White:0.01Lux@(F1.2,AGC ON),0Lux with IR
Photosensitive Resistance:
1 photosensitive resistance interface, support the photosensitive resistor input
signal and image, IR-CUT, infrared lamp linkage
Day and Night Function:Support IR-CUT
Lens Parameters:C/CS interface, M12 lens optional
Video output:1080P@25fps/1080P@30fps
Power:DC12V±10%
Temperature and Humidity:- 10 ℃ - 60 ℃, humidity is less than 90% (no condensation)
Consumption:less than 5W
Remarks:Auto
Just AHD model,no CVI TVI XVI,but Image quality is quite good
Using 2 million progressive scan CMOS to capture moving images
Illumination: 0.01Lux@(F1.2,AGC ON), 0LUX with IR
Support IR-CUT switching, CDS external control, realize day and night monitoring
Colour:As Shown
Material:PC+Metal
Size:Standard 32x32 positioning hole, compatible with 38x38 hole

Package Contents:
1 * CCTV Accessories Camera Board
