Adjustable angle gauge precision V-shaped pad grinder adjustable angle pad milling machine angle pad iron stainless steel

The data are all measured by hand, there may be an error of 1-3mm; it is normal that there is a slight discrepancy between different batches.

Adjustable angle gauge parameters

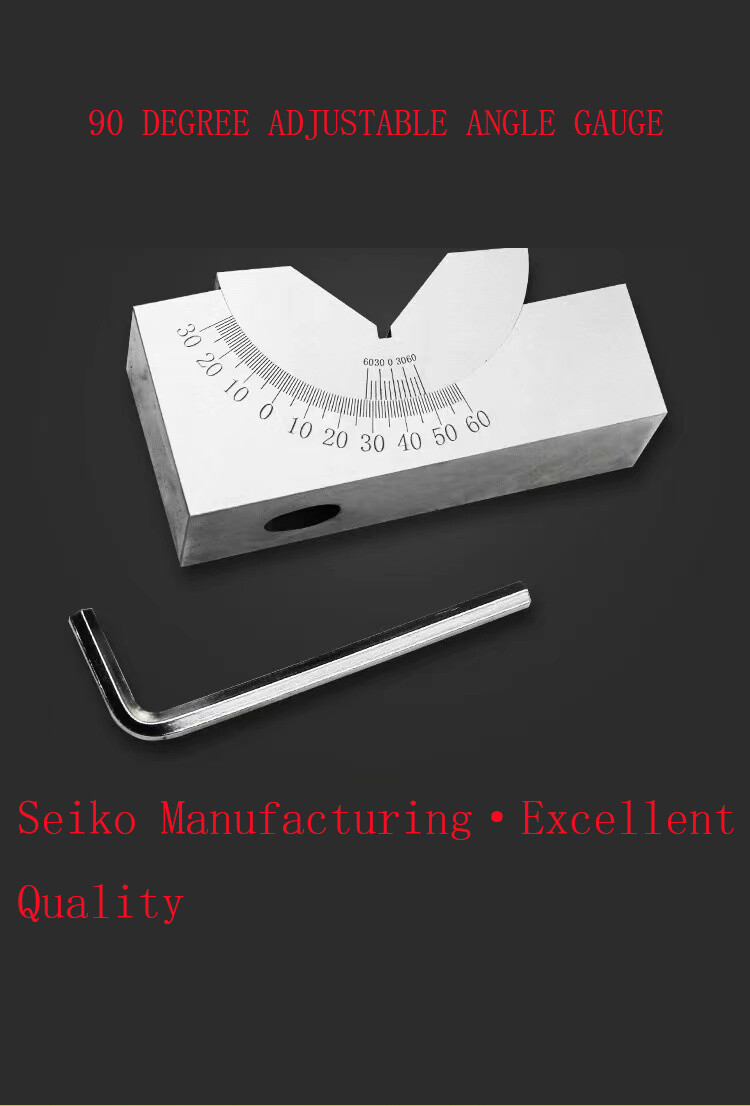

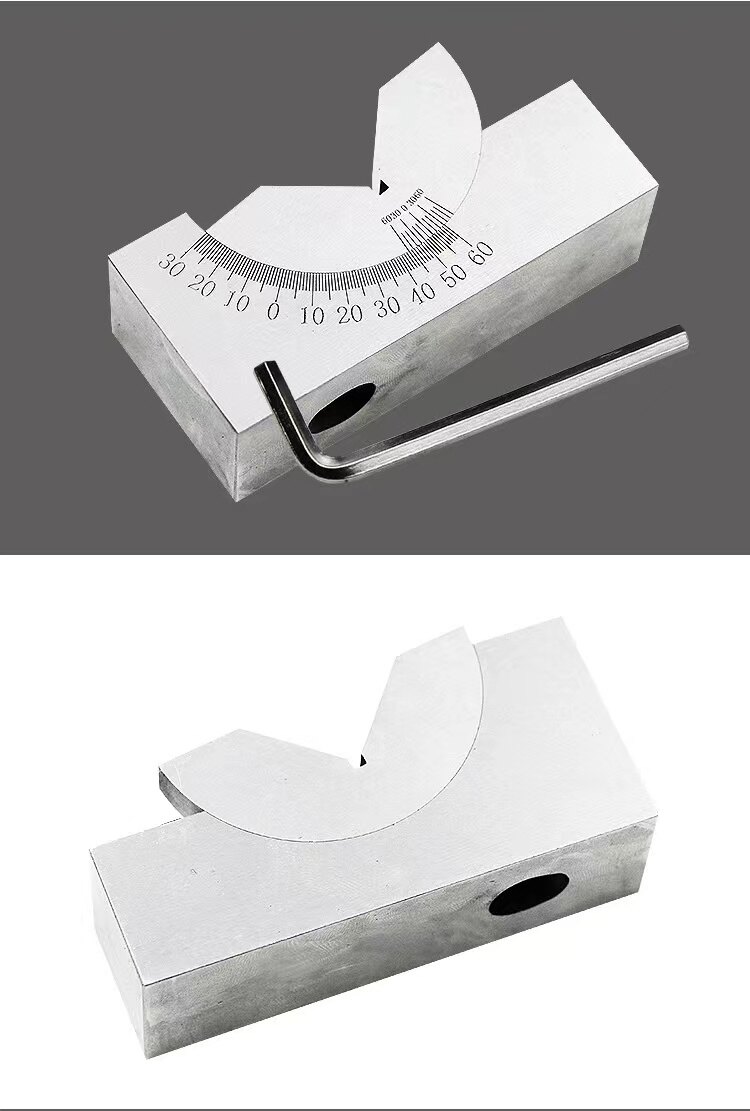

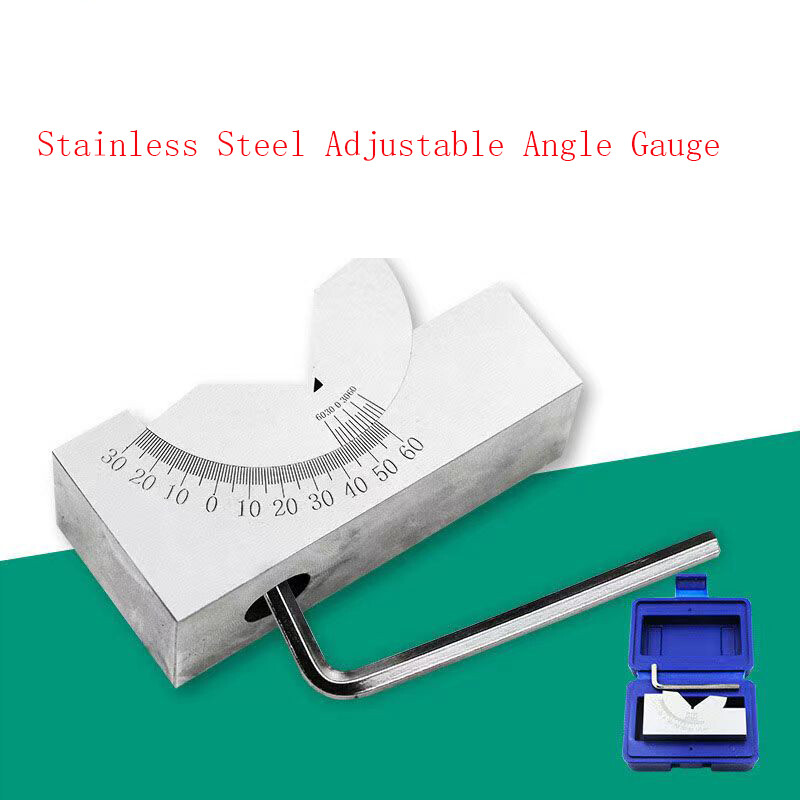

【Product Name】Adjustable Angle Gauge

【Material: Stainless steel

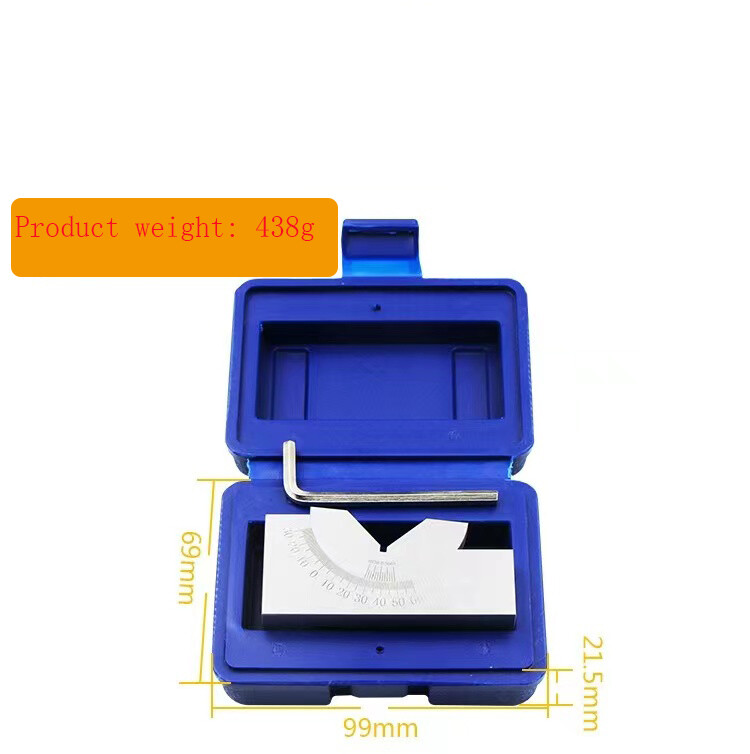

[Total product weight] 438g

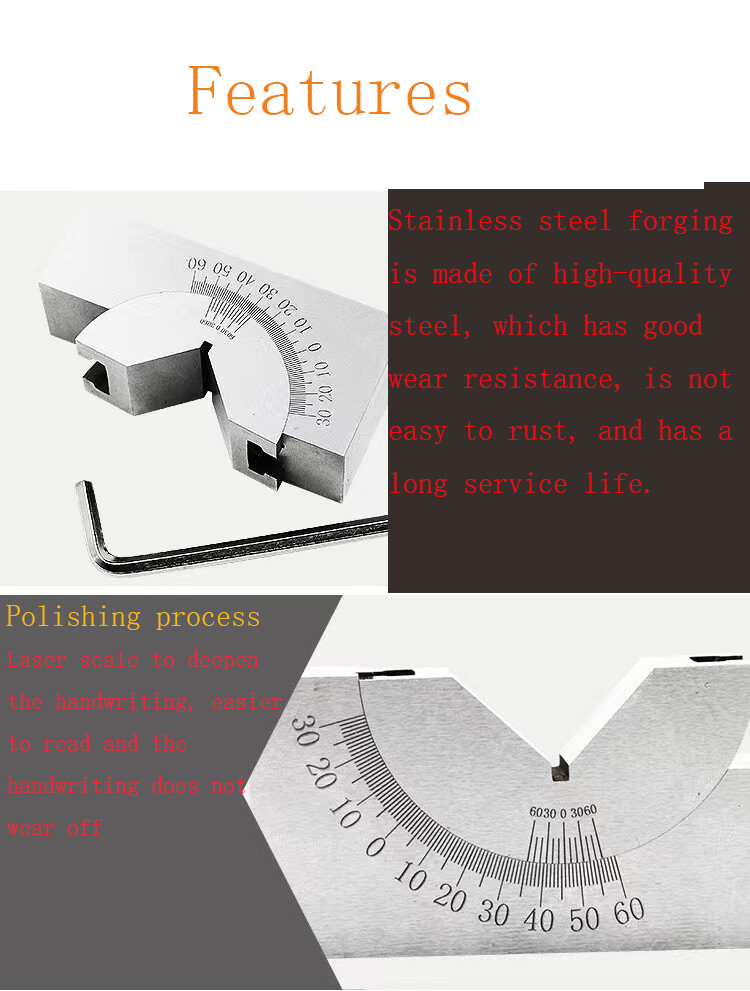

[Scale process] Laser scale [Packing method] Plastic box packaging

【Measurement Accuracy】±0.01mm

[Commodity use] Use adjustable angle gauges on milling machines, planers, grinding machines, and drilling machines to set the tool, mark the line, or cooperate with other fixtures to clamp the workpiece and then process the workpiece, such as processing inclined planes, drilling inclined holes, etc.

The division on the main scale is 1. , the vernier division is 10

Uses: On milling machines, planers, grinding machines, and drilling machines, use adjustable angle gauges to align, scribe, or cooperate with other fixtures to clamp the workpiece and then process the workpiece, such as processing inclined planes, drilling inclined holes, etc.

Instructions:

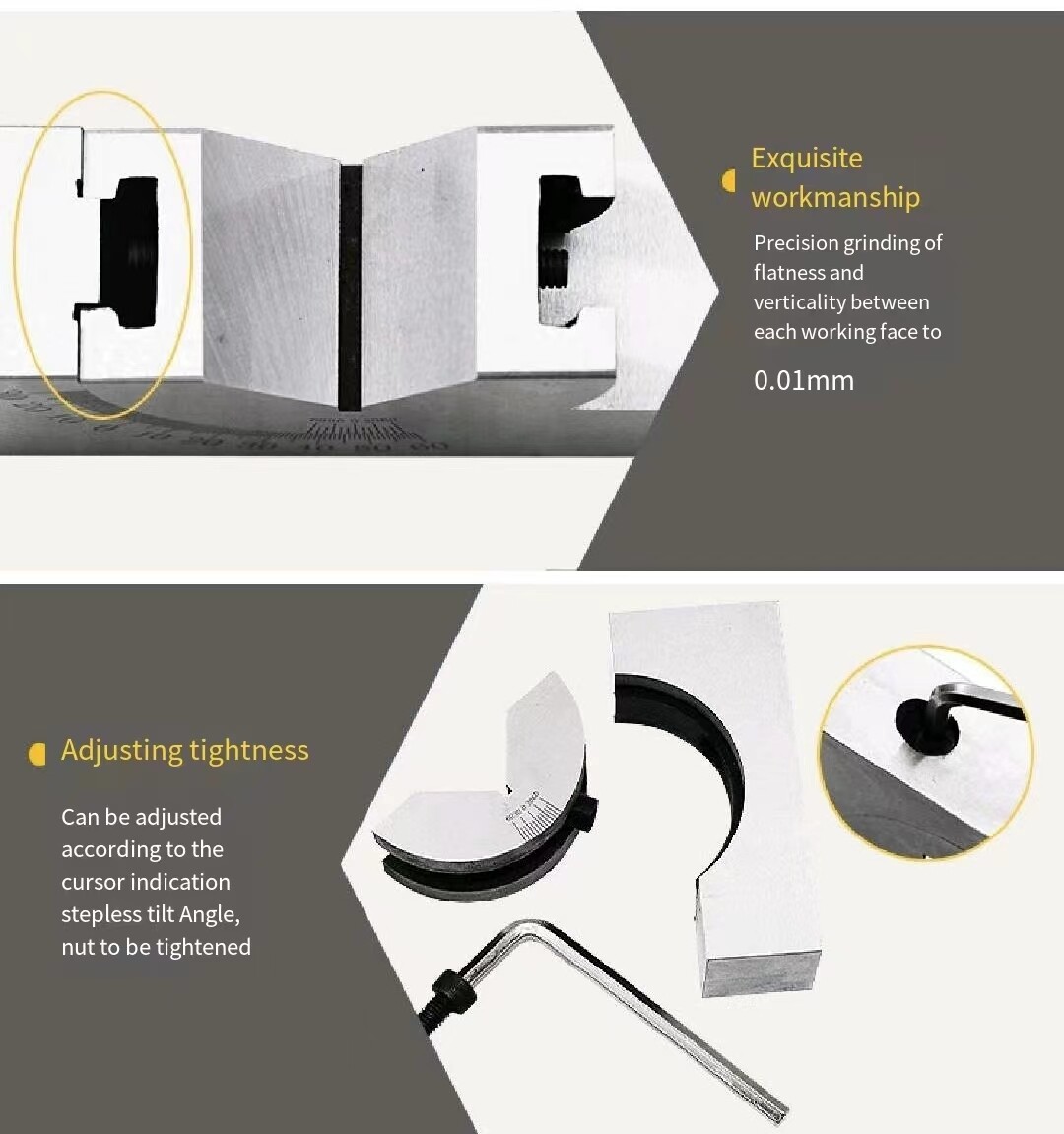

⑴ Loosen the screw, pull the V-shaped block to rotate along the guide rail on the base, and find the target angle.

⑵. Using the vernier principle to read, the division on the main scale is 1°, and the division of the vernier is 10'.

After the "0" line on the vernier is aligned with the "0" line on the main scale, it means that the A measurement plane is parallel to the reference plane, and the B reference plane is perpendicular to the reference plane.

① When the vernier "0" line is on the right of the main scale "0" line, read the degree with the vernier "0" line, and read the fraction with the scale to the right of the vernier "0" line (the reading method is the same as that of the vernier caliper). Degrees (°) and minutes (') represent the angles A and B measuring planes turn counterclockwise.

②When the "0" line of the vernier is on the left of the "0" line of the main scale, the degree is still read with the "0" line of the vernier, and the fraction is read with the scale to the left of the "0" line of the vernier. The degrees (°) and minutes (′) read out indicate

A and B measure the angle of clockwise rotation of the surface.

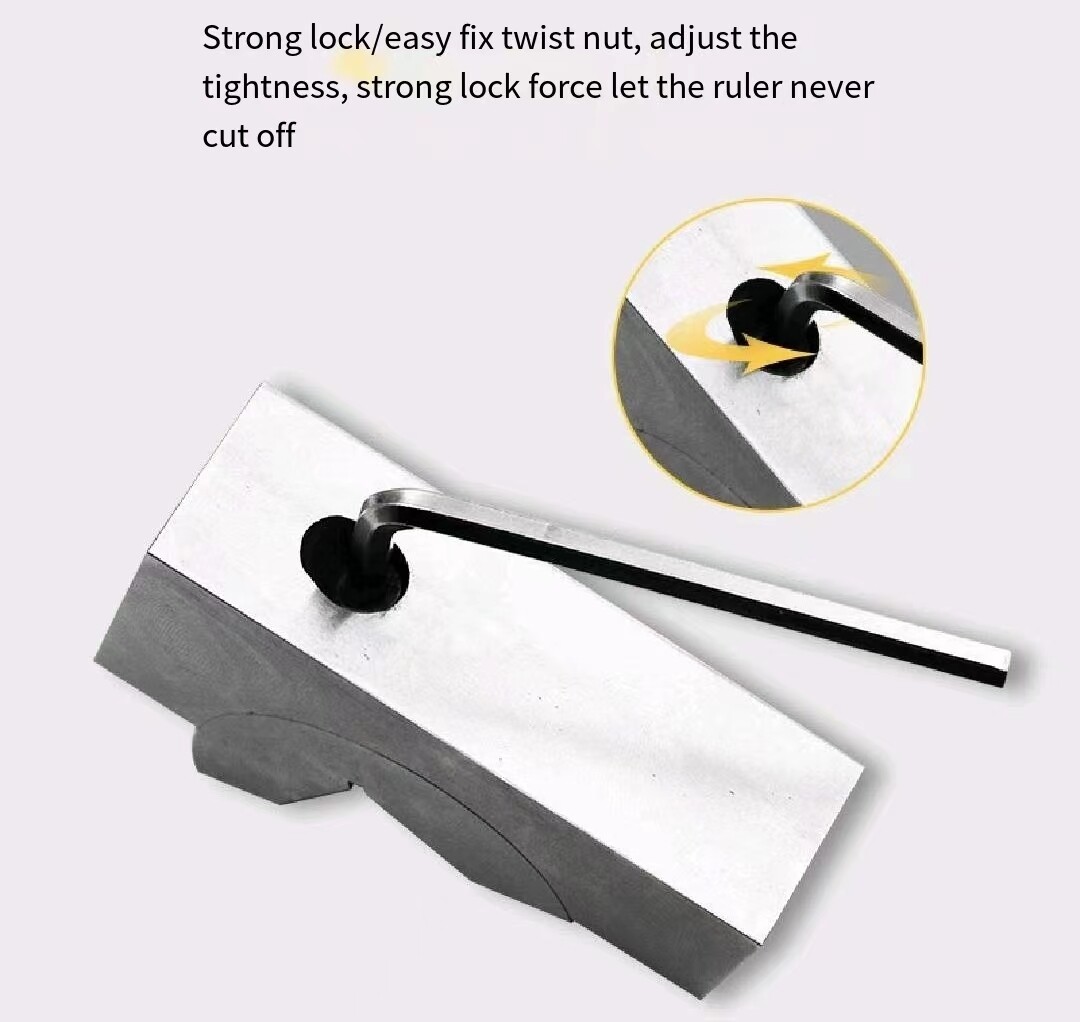

③ After the angle is adjusted to the target value, tighten it so that the V-shaped block and the base are tightly fixed.

Main technical indicators:

⑴When the measuring surface A is parallel to the base surface and the measuring surface B is perpendicular to the reference surface, the misalignment between the "0" line of the vernier and the "0" line of the main scale is greater than 3', and the difference between the scales at both ends of the vernier and the two 11° lines of the main scale The coincidence degree is not greater than 5'; on the contrary, after tightening the screw to align the 0° line of the main scale with the "0" line of the vernier, the parallelism between the A measurement surface and the reference surface is not greater than 0.01mm, and the perpendicularity between the B measurement surface and th
