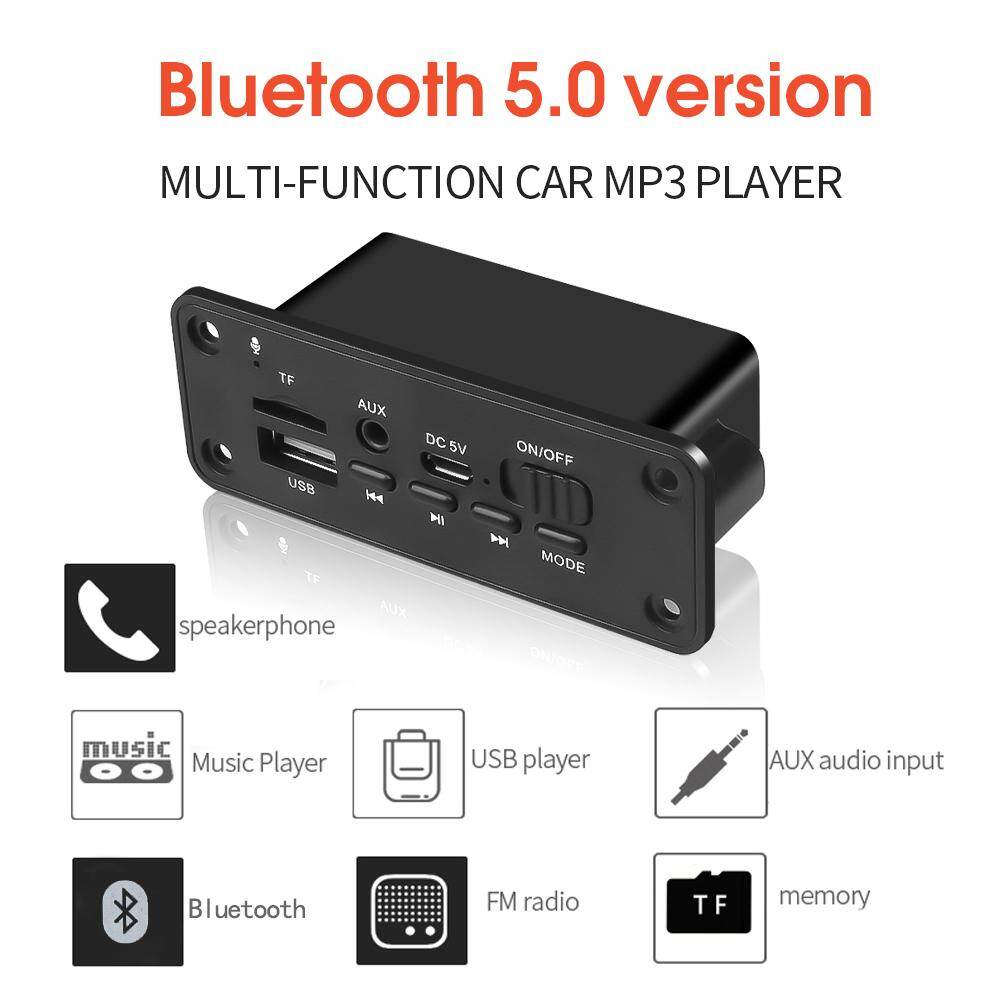

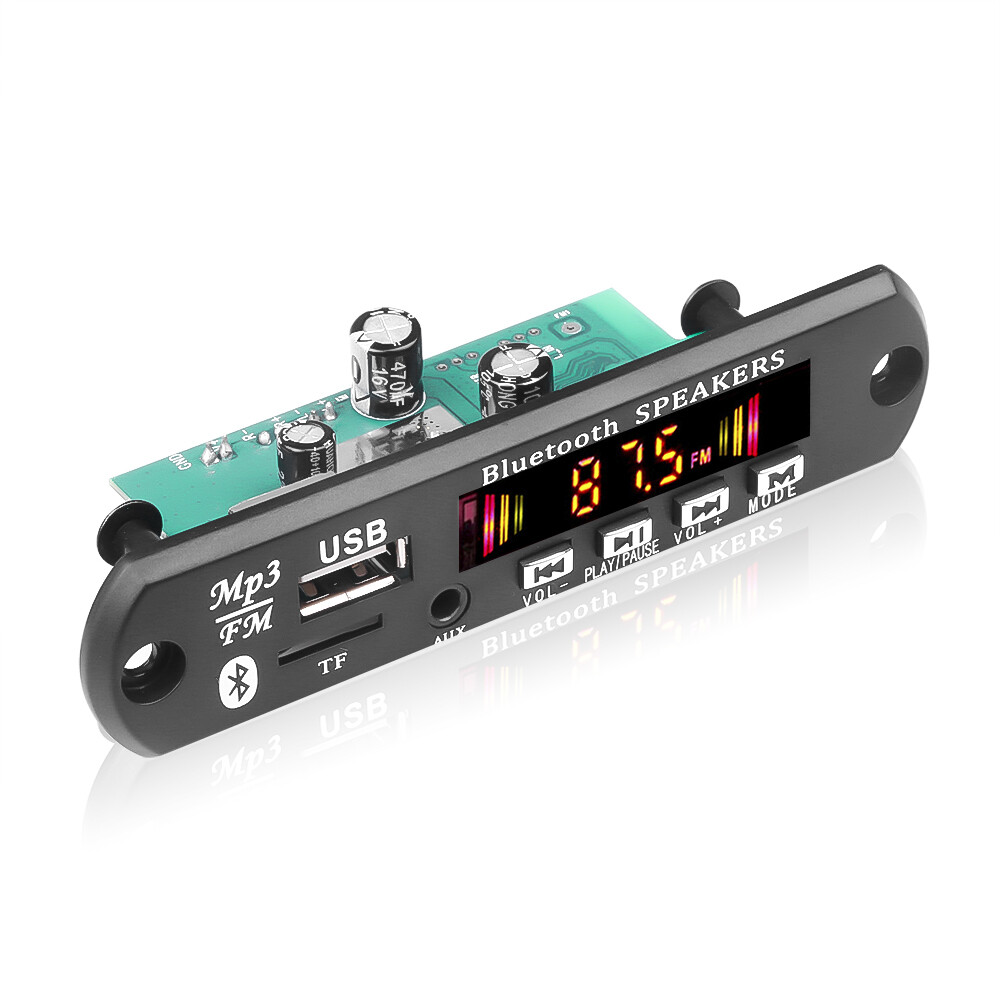

【6W Amplifier+BT 5.0+Recording】 DC 5V Wireless Bluetooth 5.0 MP3 WMA Decoder Board Audio Module USB FM Radio TF Record AUX Input For Car Home Audio

Specification:

Main control IC: AC5322B
Bluetooth IC: AC5322B Bluetooth version is version 5.0
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music

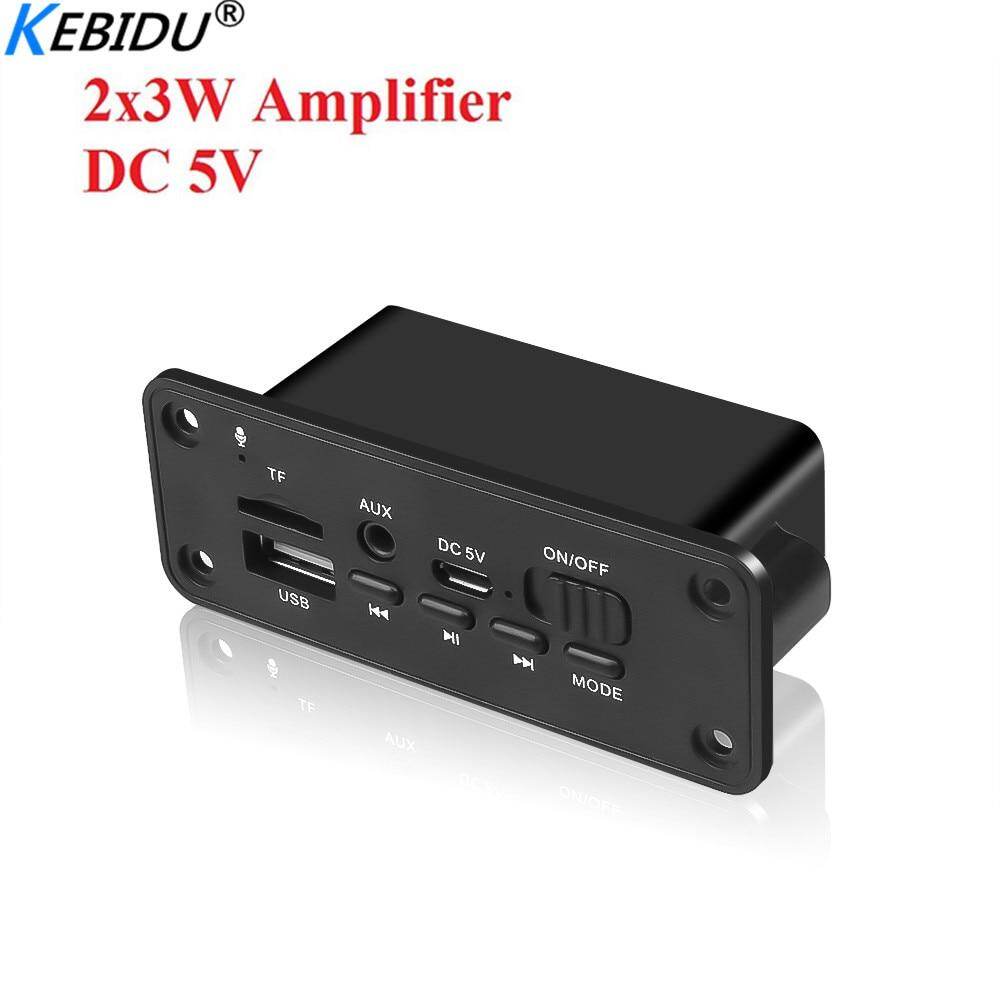

Power: 2*3W（connect 2 pieces of 3W speakers）
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / DC 5V

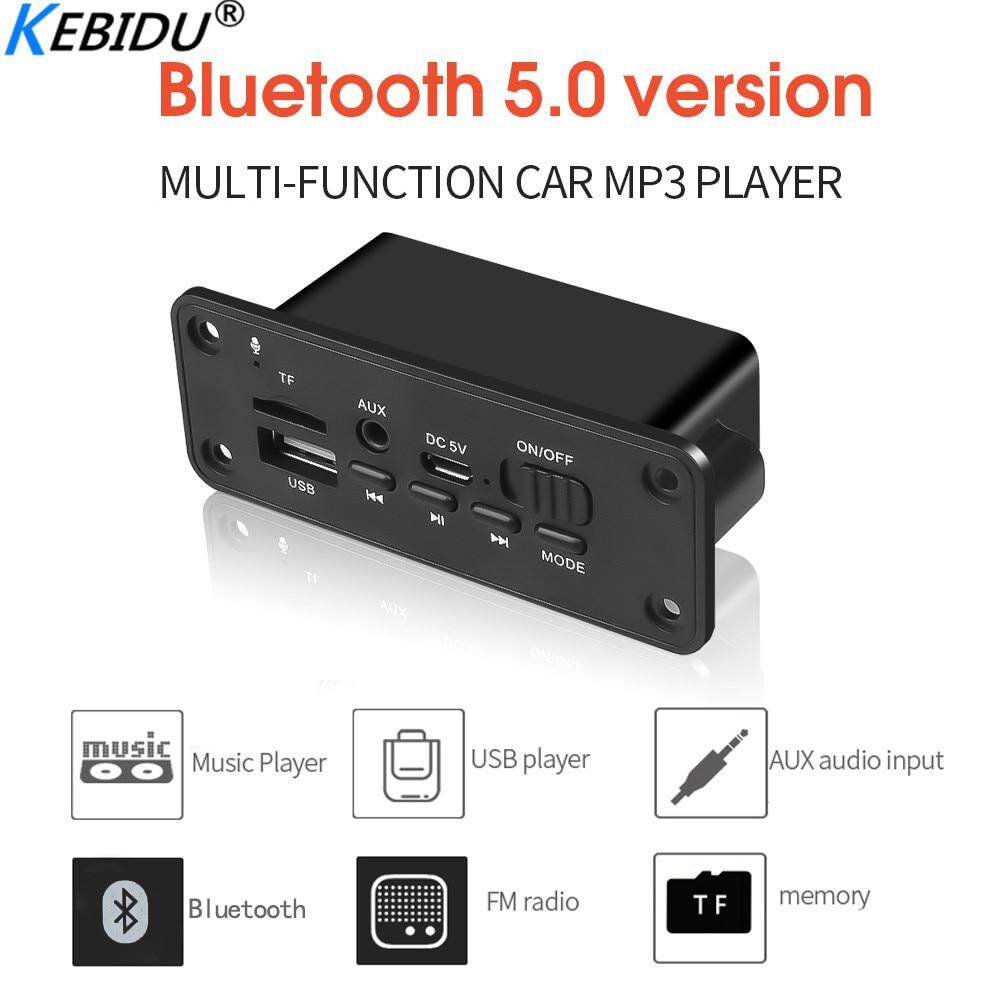

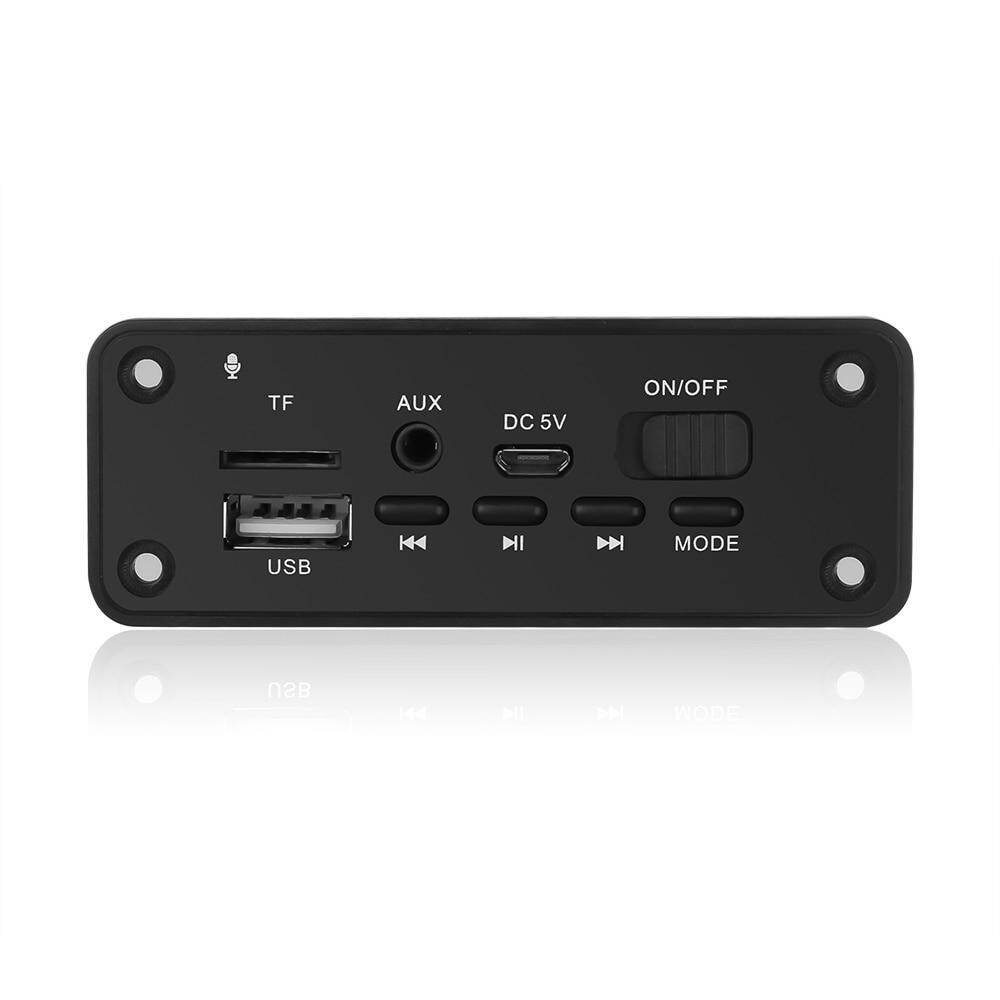

About the structure: panel size: 85 * 32 MM, the depth of the board is 33 MM

Packing List:

Bluetooth 5.0 DC 5V Amplifier Decoder Board * 1 (not including 32G card)
Cable *4

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!

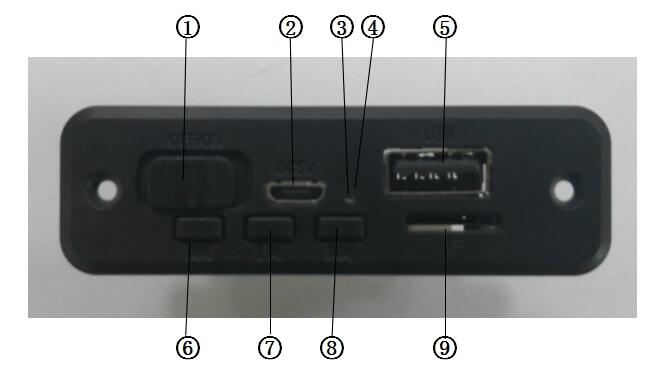

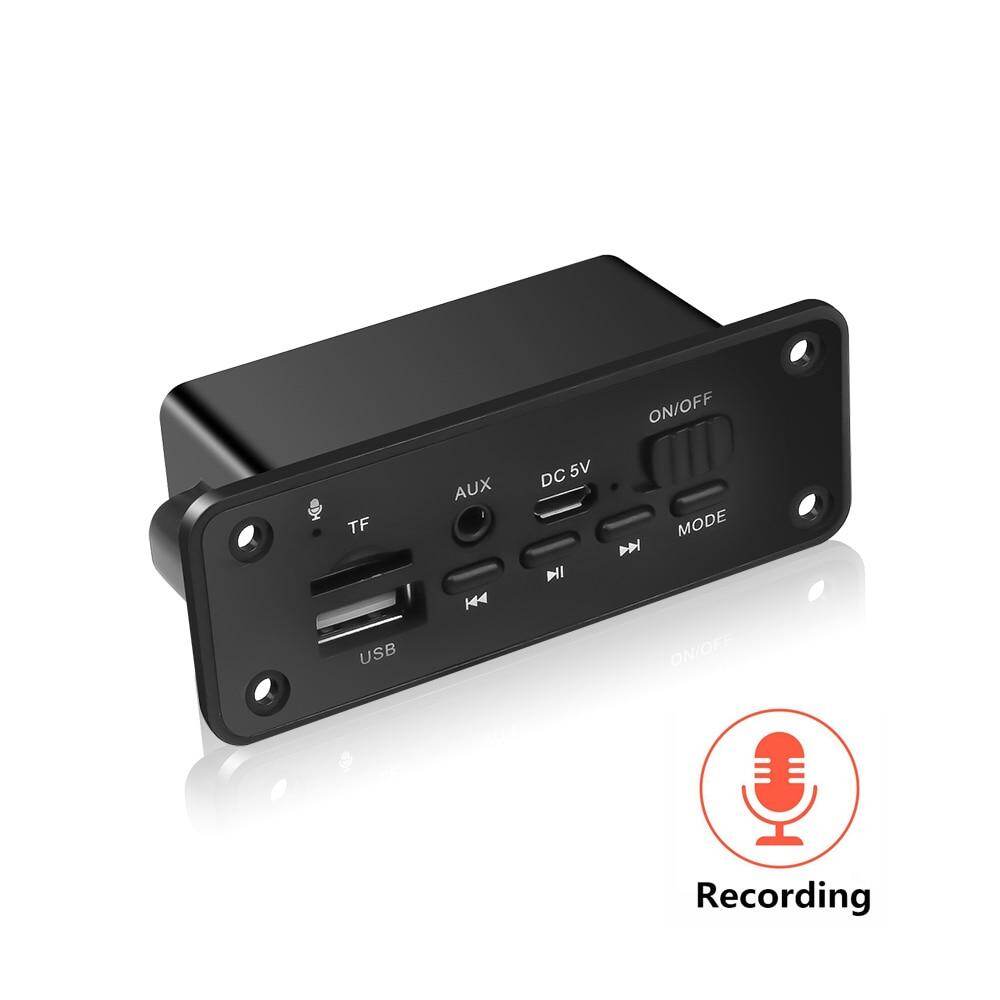

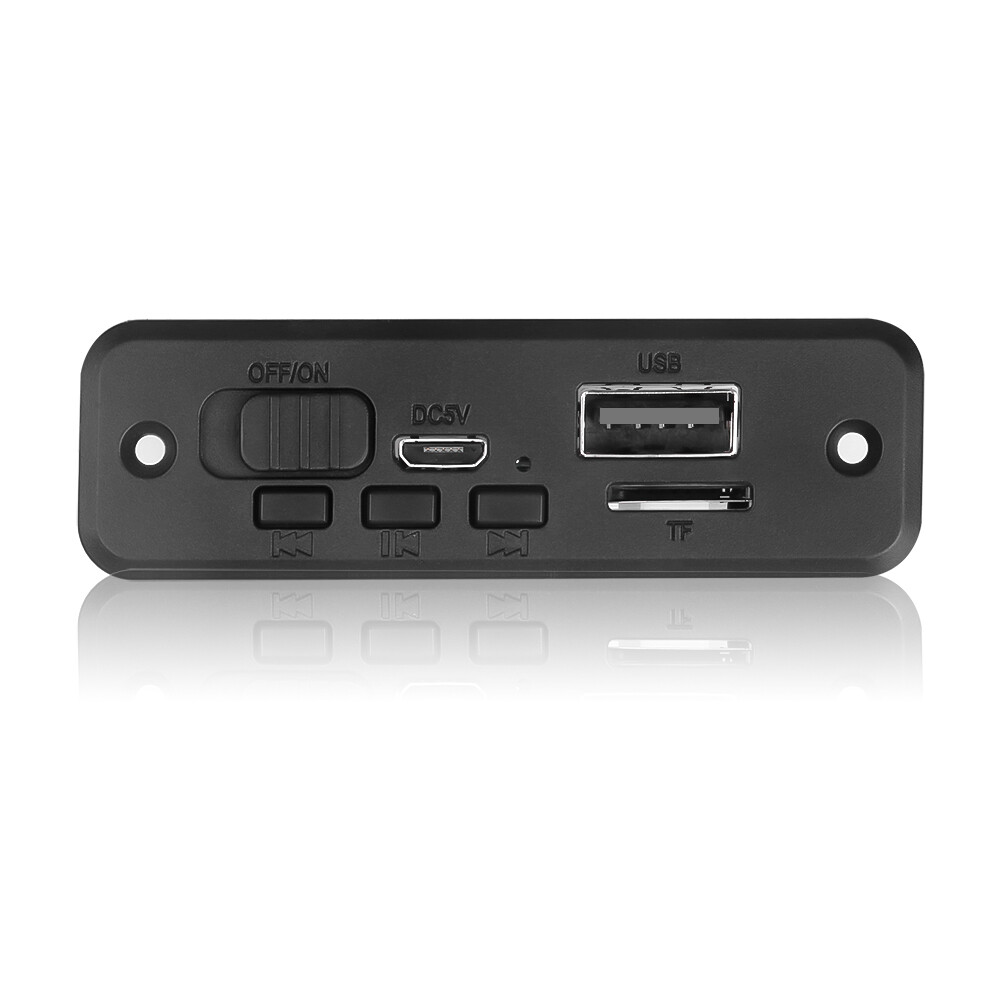

New Version:

1. ON/OFF: power switch;

2. DC 5V: charging interface;

3. Switch indicator;

4. Microphone: call function;

5. USB: Connect U disk (maximum support 32GB);

6. VOL-: Short press is to select the previous song; the long press is to decrease the volume;

7. PLAY/PAUSE: Short press is to switch between pause and play; the long press is to switch between USB / TF / FM / LINE IN / BLUETOOTH, short press is to automatically search channels in the radio FM state;

8. VOL+: Short press is to select the next song; the long press is to increase the volume;

9. TF: Connect TF memory card (maximum support 32GB);

Bluetooth version: Bluetooth 5.0
With Bluetooth call function, power supply voltage is 5V, current requirement is above 2A
Music format: MP3 / WMA / WAV / FLAC / APE lossless format music
Power: 2*3W, connect 2 3W speakers
Radio FM frequency: 87.5-107.5 MHZ
Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / DC 5V

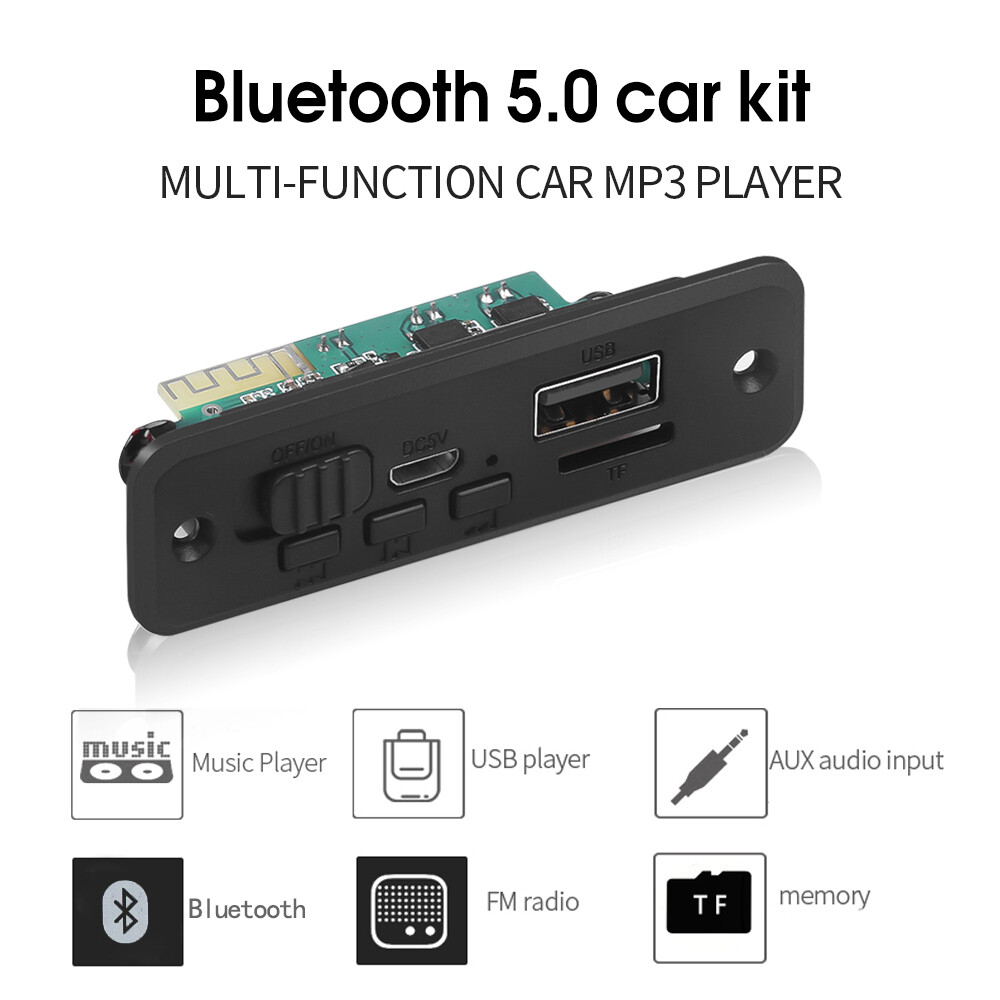

About the structure: Panel size: 71 * 22 MM, the depth of the board is 26 MM, the distance between the two screw positioning holes is 59MM

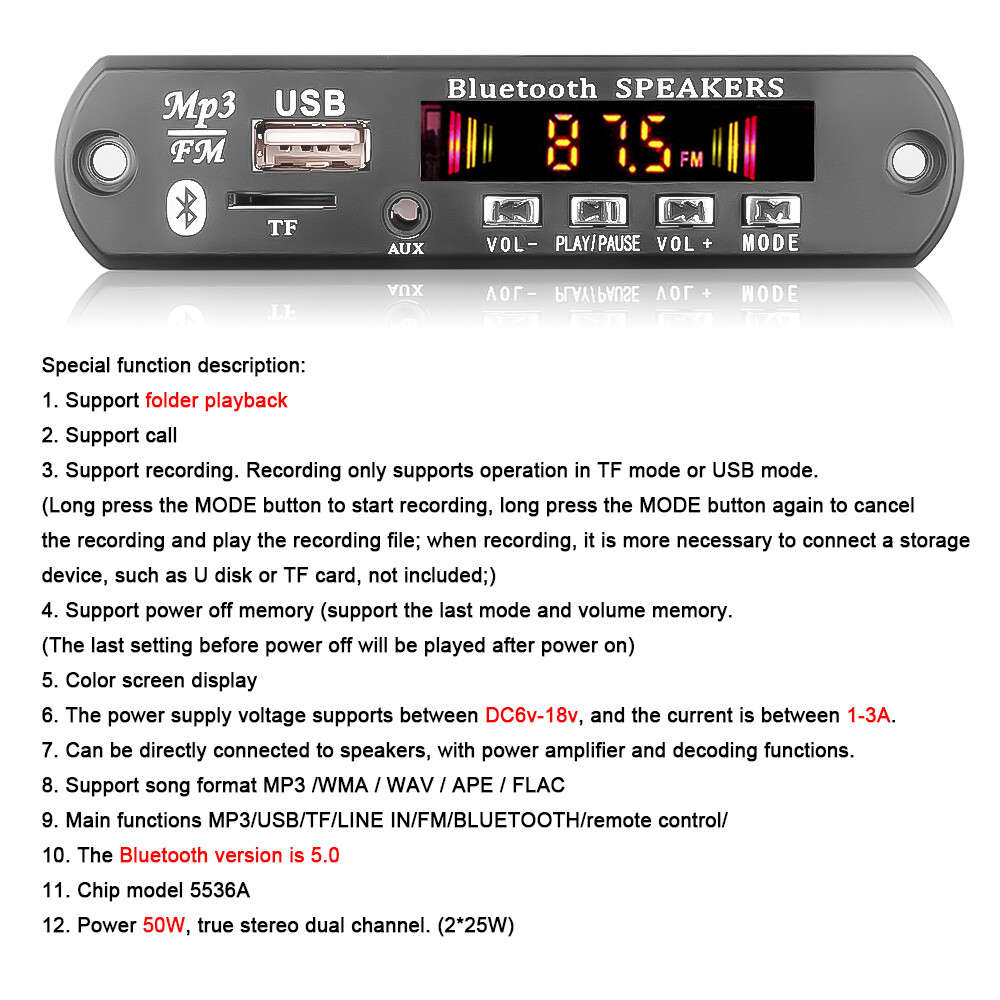

DC 6V-18V+50W Amplifier+Handsfree Mic+Recording+Color LCD
