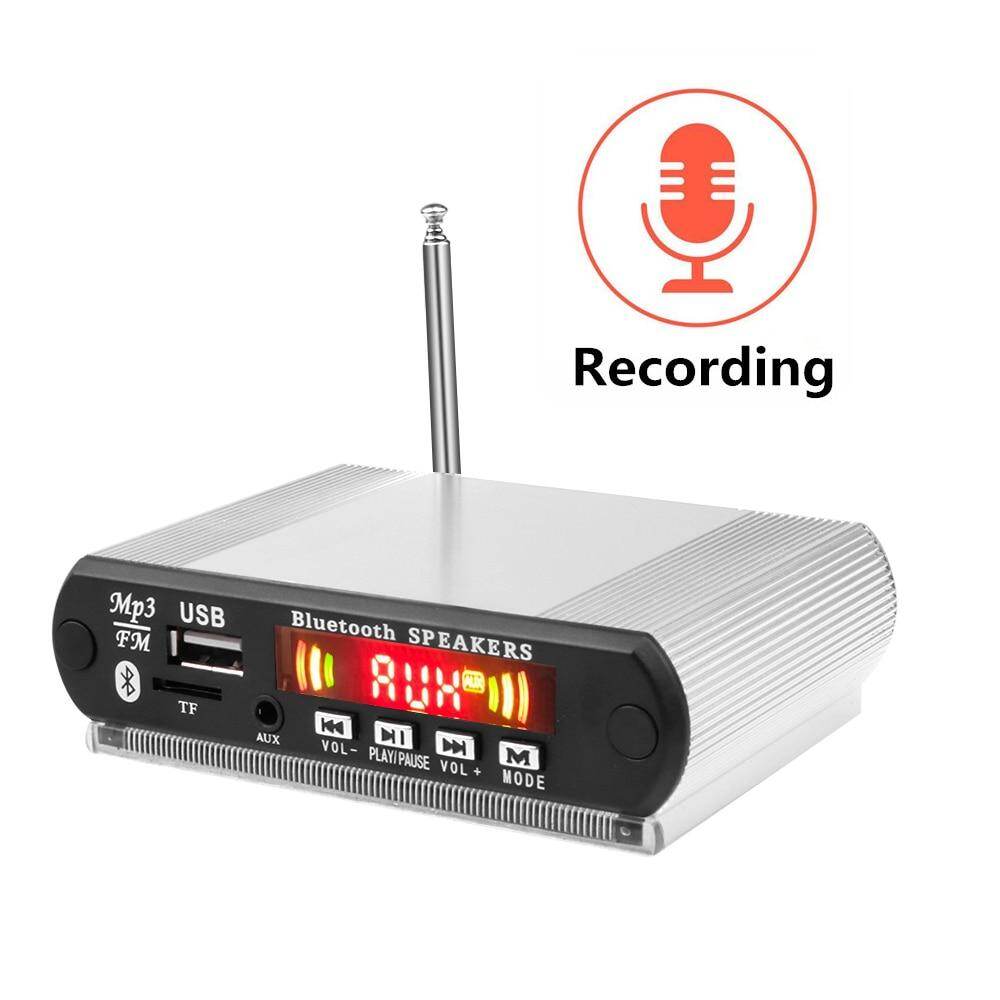

5V MP3 Player Wireless Bluetooth MP3 WMA Decoder Board Car Accessory with Recording Function Support USB/S D/FM Audio Module

Description:

Voltage 5V universal，12V may damage the product, please pay attention to use
FM radio: 87.5 MHz-108 MHz Auto-scan with memory Pre-set!
USB: Connect USB flash drive (maximum support 32GB)

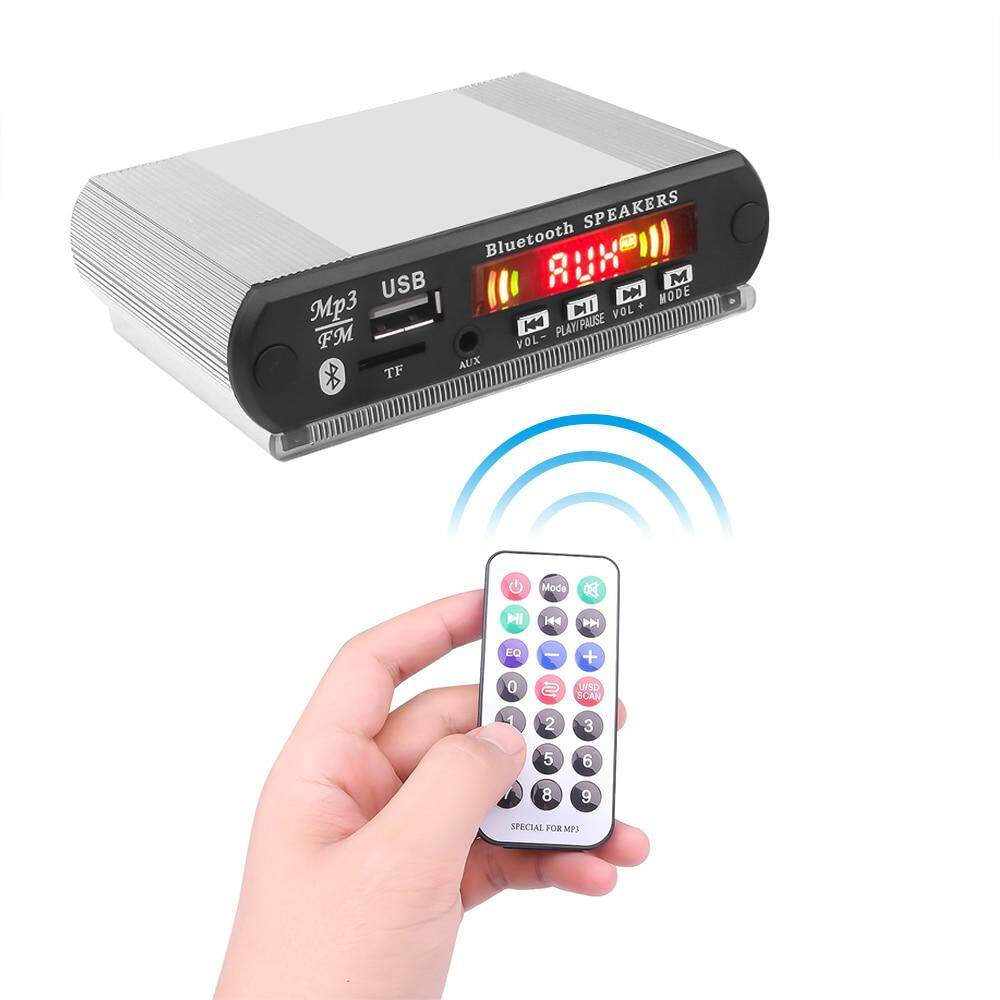

LED color screen: digital screen display, showing red
Infrared receiving module
TF: Connect TF memory card (maximum support 32GB)
AUX: an audio input interface
VOL-: Short press is to select the previous song; the long press is to decrease the volume
PLAY/PAUSE: Short press is the switch between pause and play; the long press is the FM FM automatic station
VOL+: Short press is to select the next song; the long press is to increase the volume
MODE: Switching of USB/TF/FM/LINE IN/BLUETOOTH

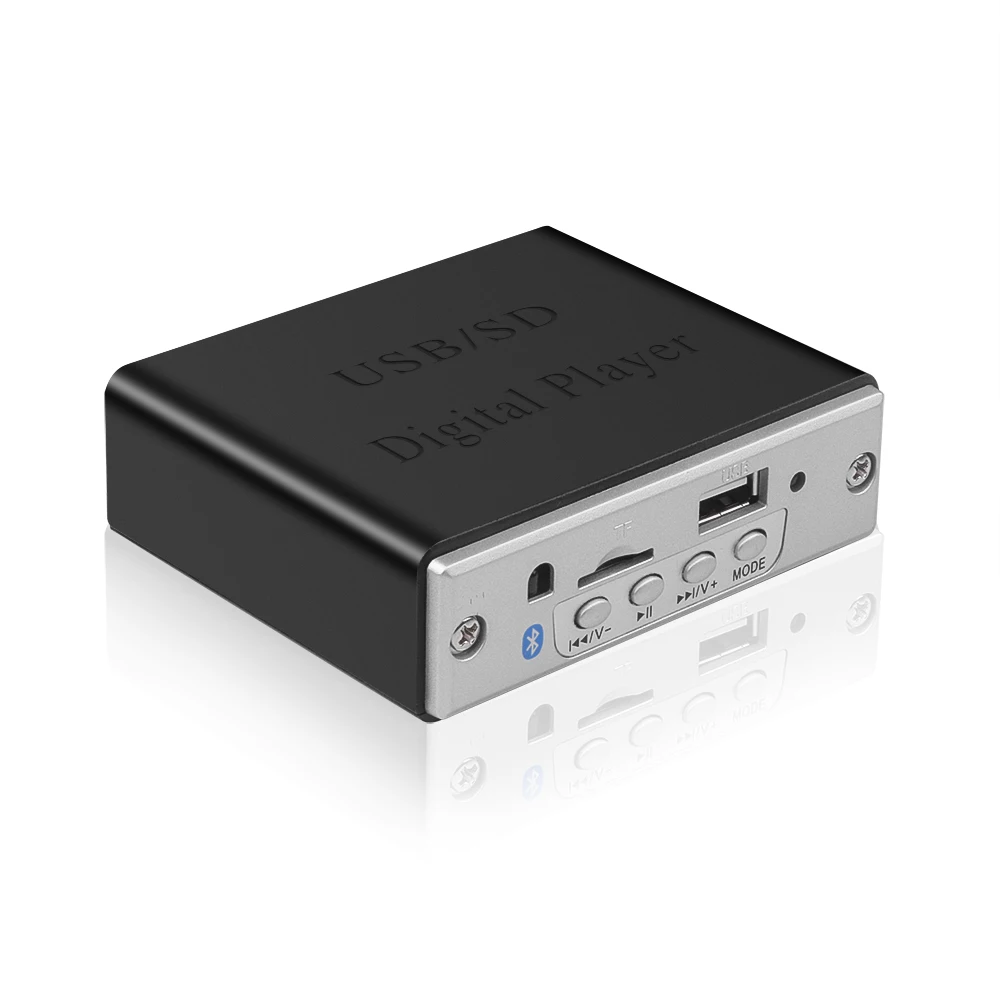

About the structure: panel size: 107 * 25 MM, the depth of the board is 32 MM

Main functions:
(1) Support led digital tube;
(2) Support USB, SD (TF), AUX, FM radio function;
(3) Support Bluetooth, compatible with Bluetooth 3.0 and below;
(4) Support the previous song, the next song, play/pause, mode conversion;
(5) Support FAT16, FAT32 file system;
(6) Support MP1 Layer3, MP2 Layer3, MP3 Layer3, version of the song;
(7) Support MP3 songs of 32-320 kbps;

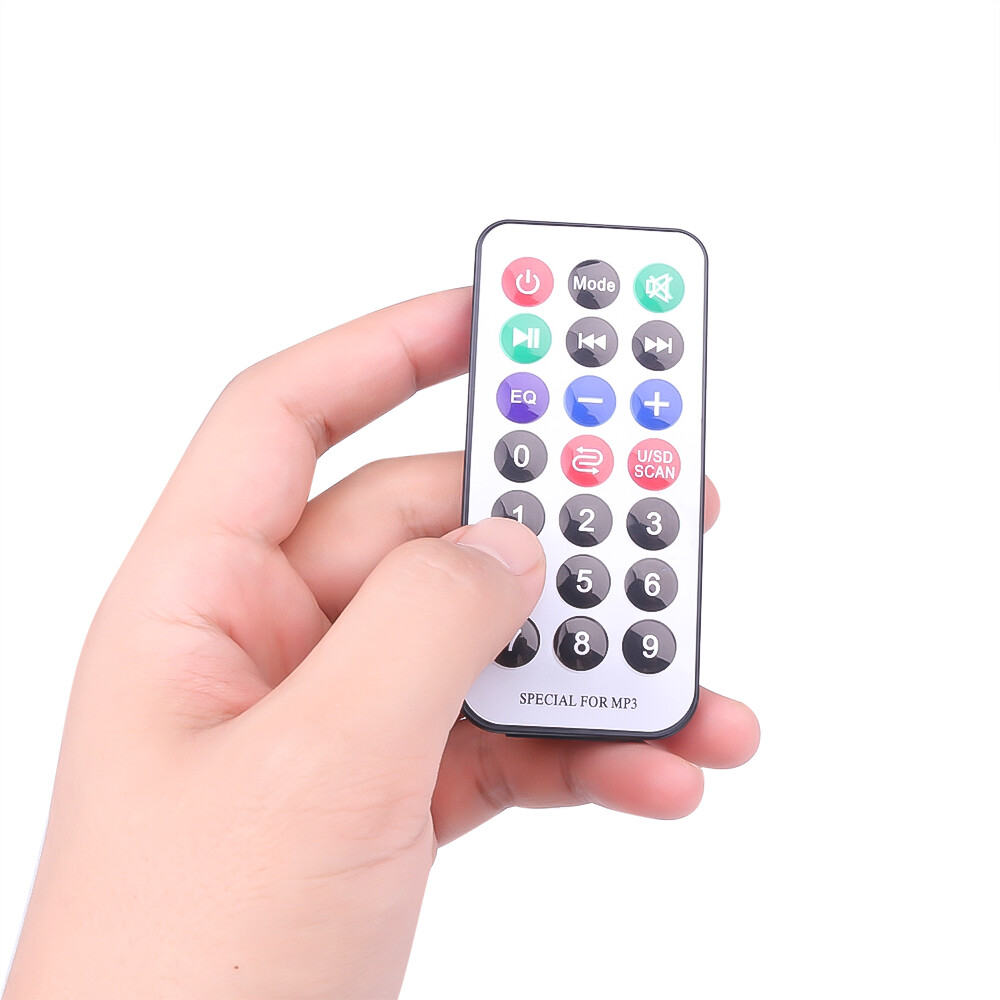

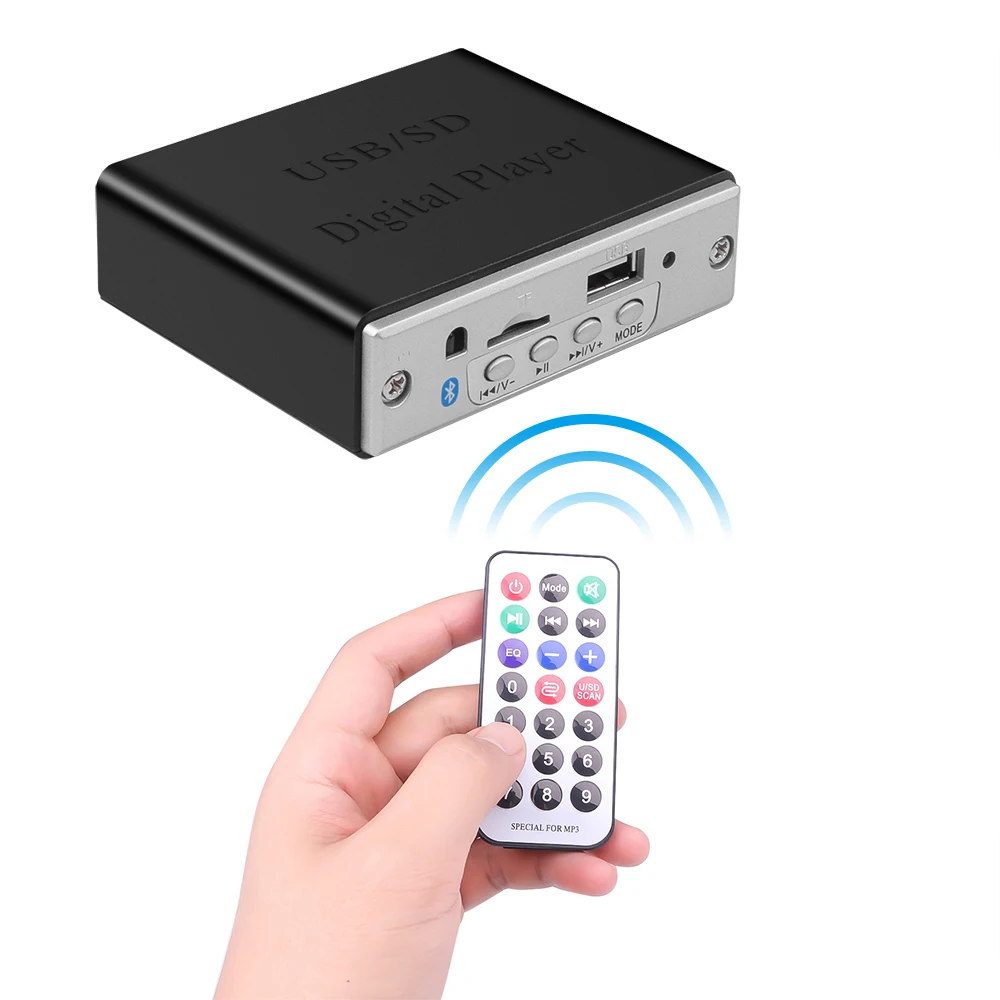

(8) Support infrared remote control reception
(9) The module contains an MP3 song decoding chip;

Host button:
1. ''PREV'': Short press the previous song in the USB/SD/Bluetooth state; short press the last station in the FM state, press and hold the volume down.
2. ''PLAY/PAUSE'' short presses play/pause in USB/SD/Bluetooth status, long press auto-scan station in FM state;
3. ''NEXT'': Press a short button in the USB/SD/Bluetooth state; press a station shortly in the FM state and press and hold the volume.
4. ''MODE'': When there are SD card and U disk: the switching sequence is USB→SD→Bluetooth→FM→AUX→USB; only U disk: switching sequence is USB→Bluetooth→FM→AUX→USB; only SD card Time: The switching sequence is SD→Bluetooth→FM→AUX→SD.

Package list:

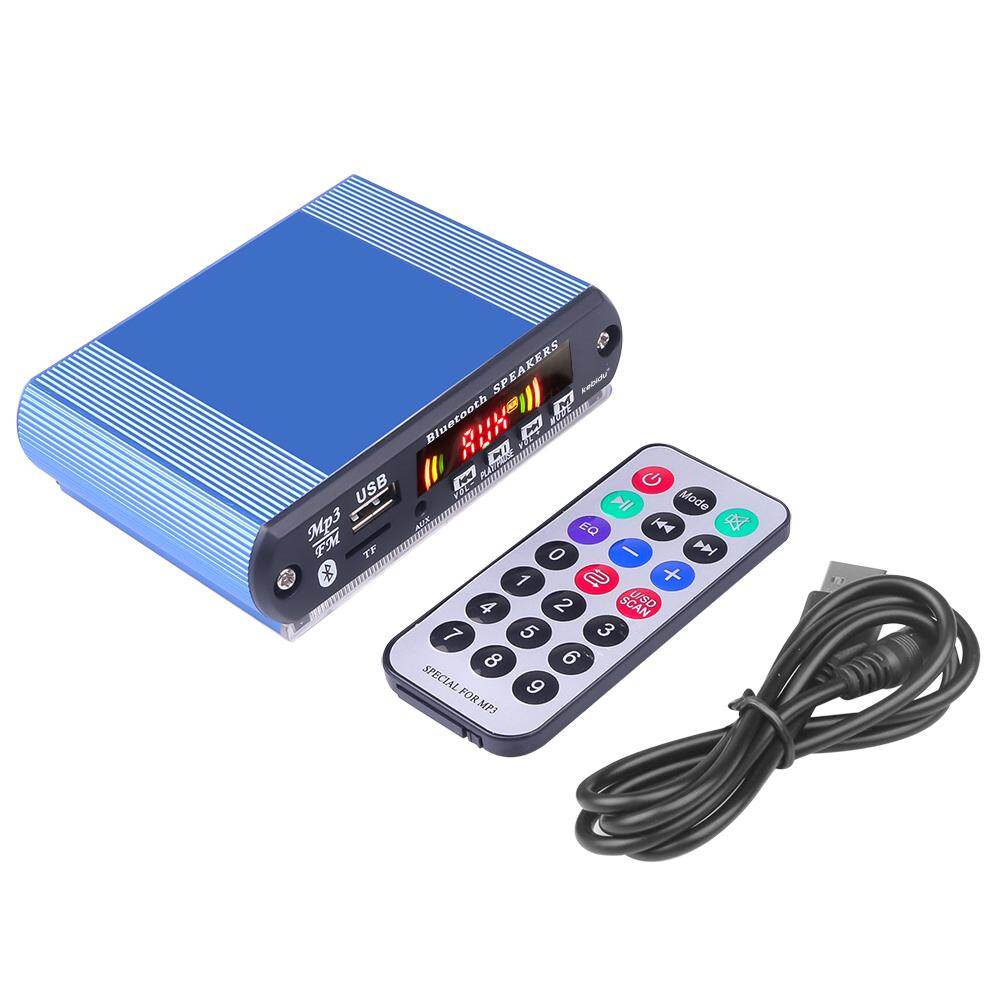

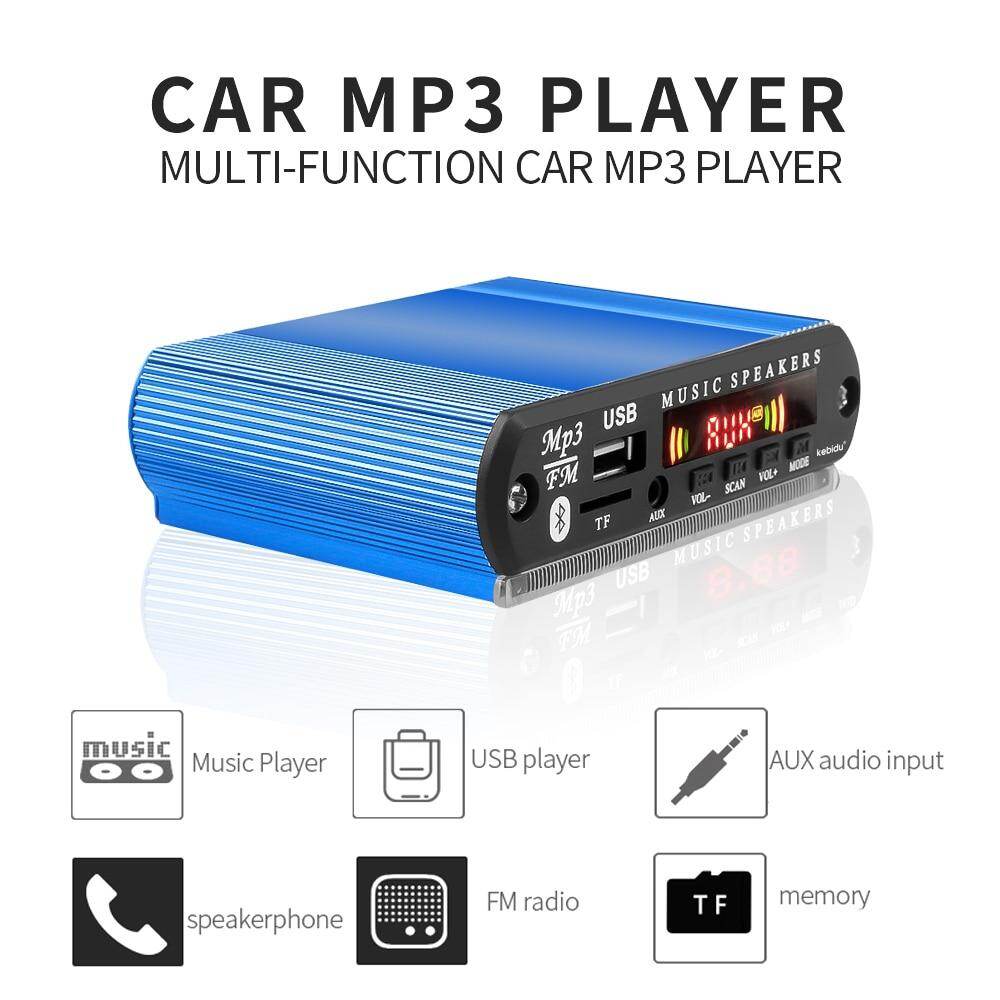

Type 1- 1* MP3 Decoder Board+1*Blue Aluminum Shell (Already Assembled)

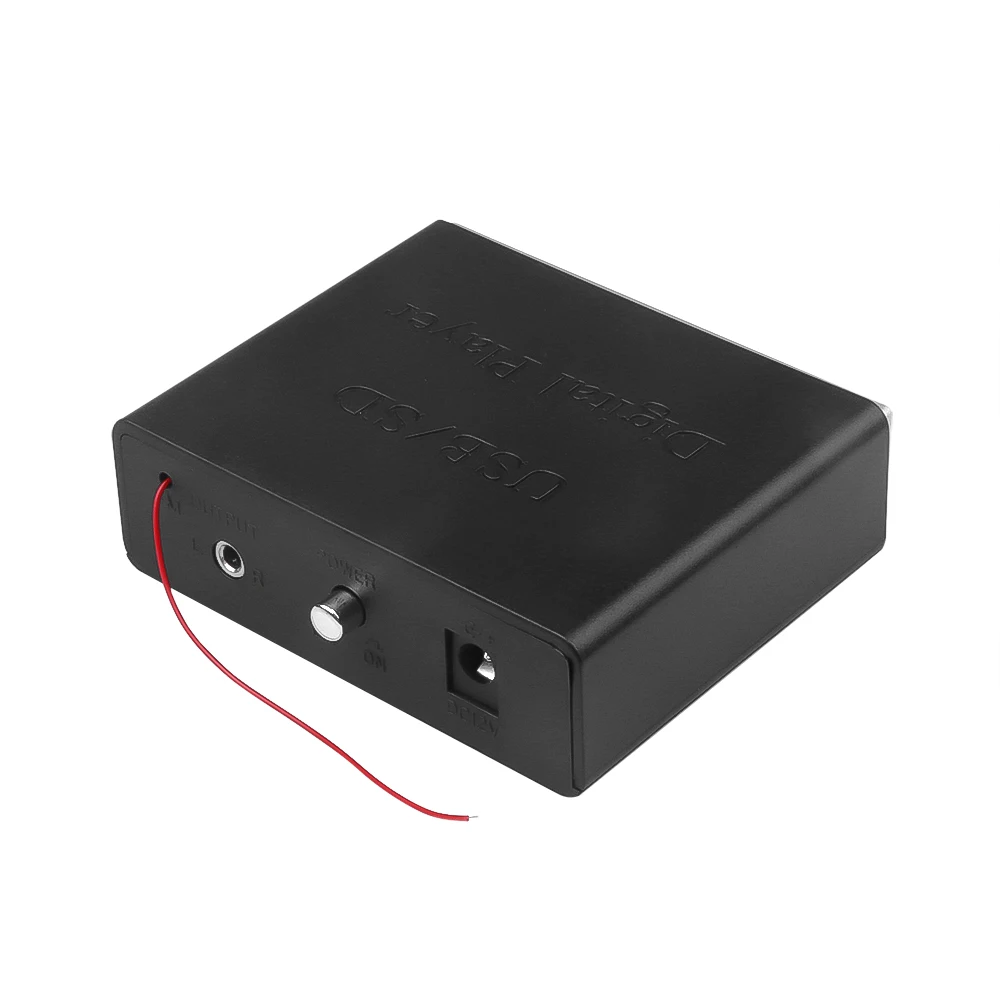

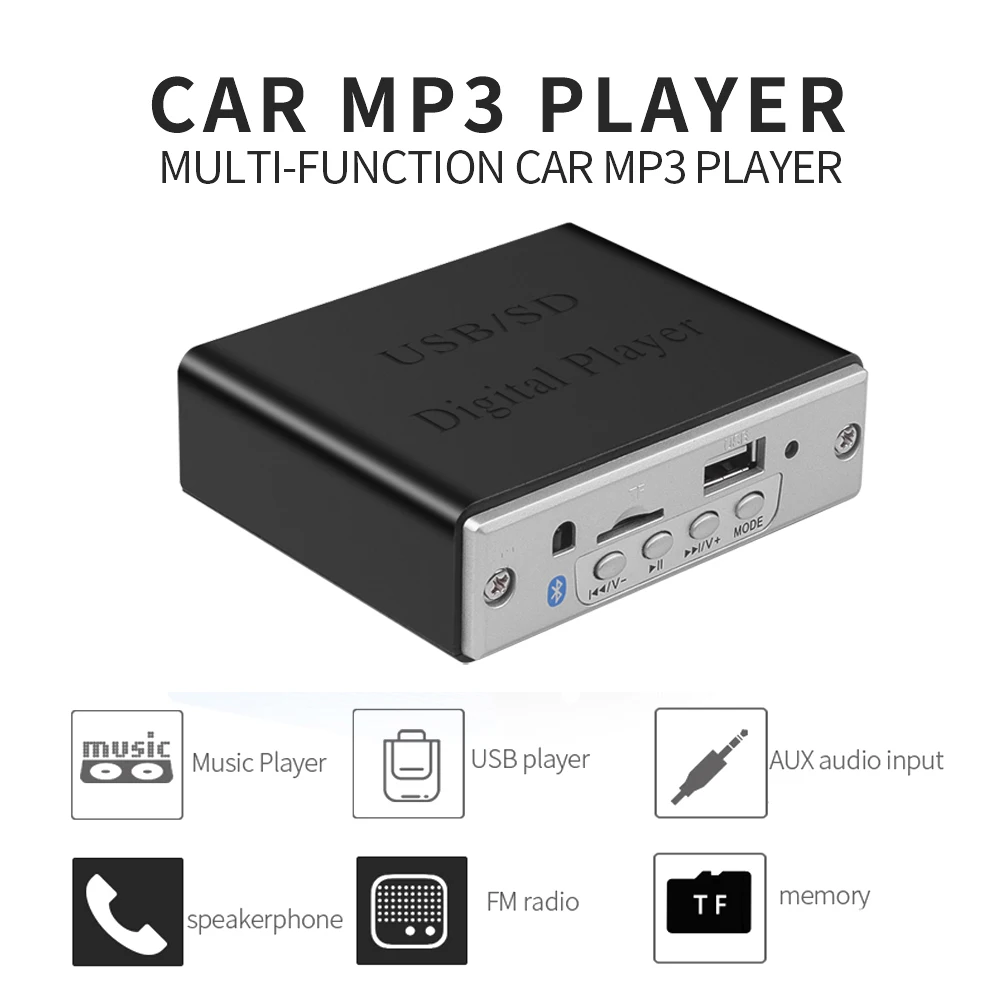

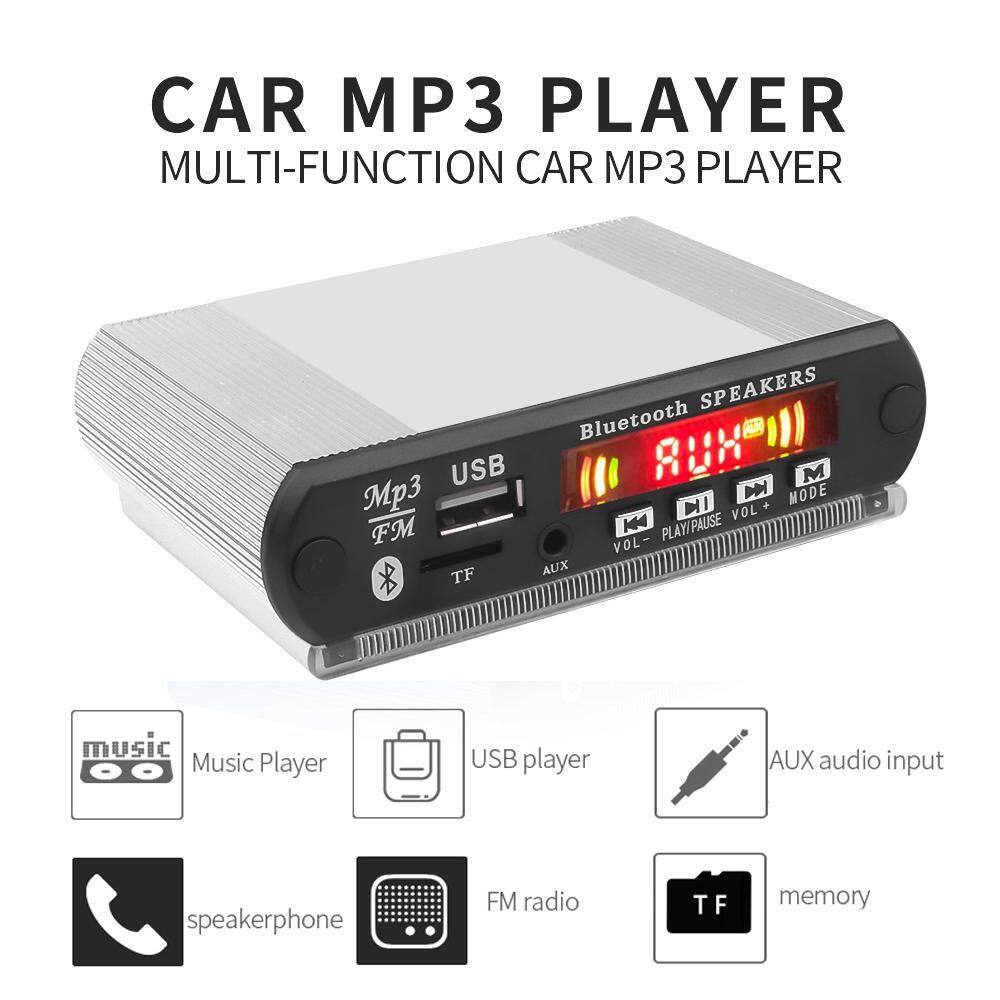

Type 2- 1* MP3 Decoder Board +1*Silver Aluminum Shell (Already Assembled)
Type 3- 1* MP3 Decoder Board

New Version:

Infrared receiving module;

TF: Connect the TF memory card (maximum support 32GB, not included);

USB: connect U disk (maximum support 32GB, not included);

LED INDICATOR;

VOL-: short press to select the previous song; Long press to decrease volume;

Play / PAUSE: short press is the switch between pause and play; Short press in FM radio state is automatic shutdown;

VOL +: short press to select the next song; Long press to increase volume;

MODE: USB / TF / FM / AUX / BLUETOOTH sound switch

Main control IC: AB5325B

Bluetooth integrated circuit: AB5325B Bluetooth version is 5.0

Music format: MP3 / WMA / WAV / FLAC / APE lossless format

FM Radio Frequency: 87.5-107.5MHZ

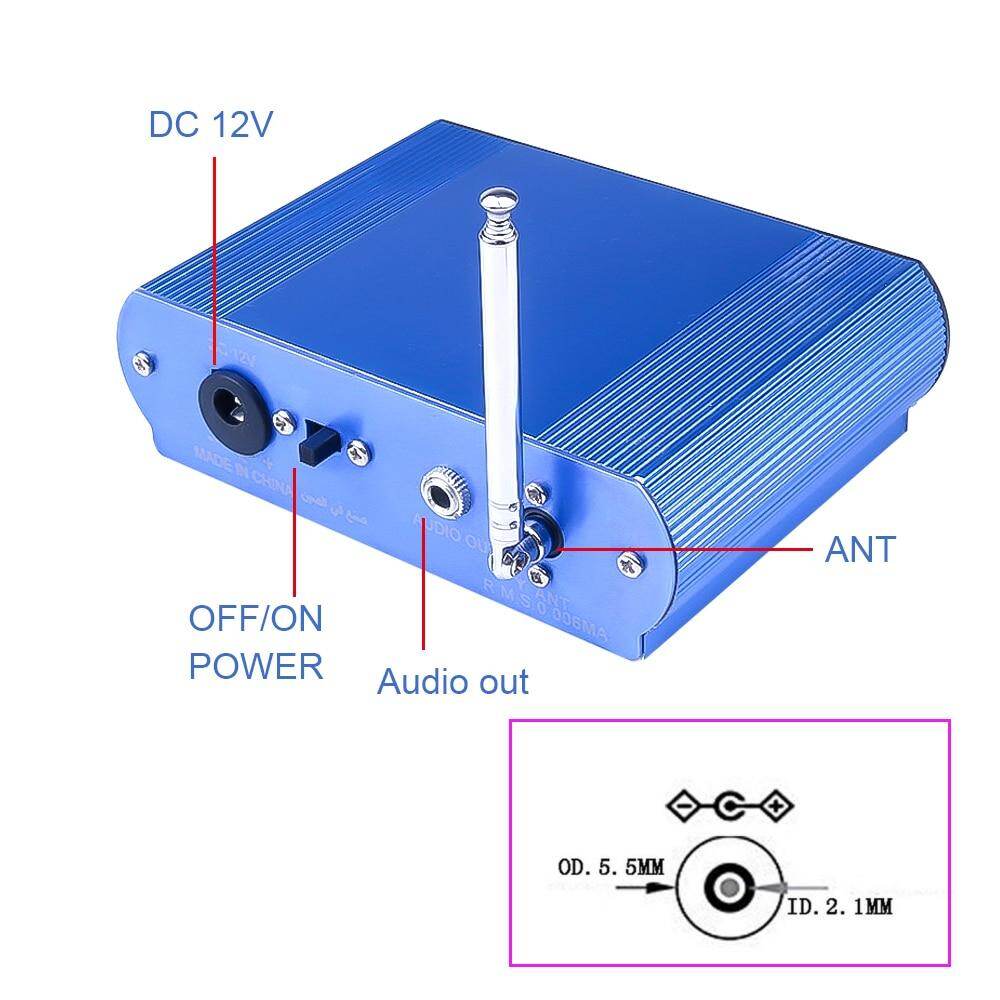

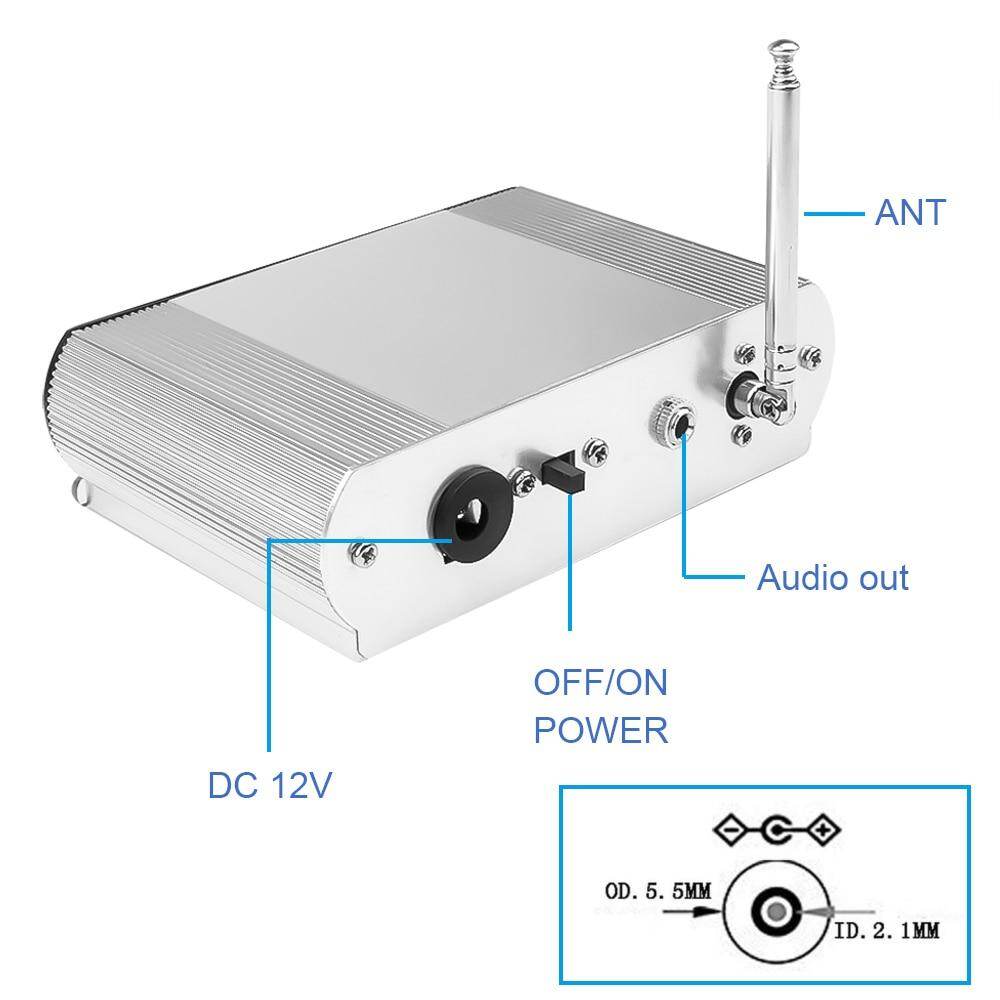

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control / DC 12V connection

About the structure: panel size: length 75 * 24MM, there are screw holes on both sides of the panel to fix the position, the depth of the panel is 23MM
