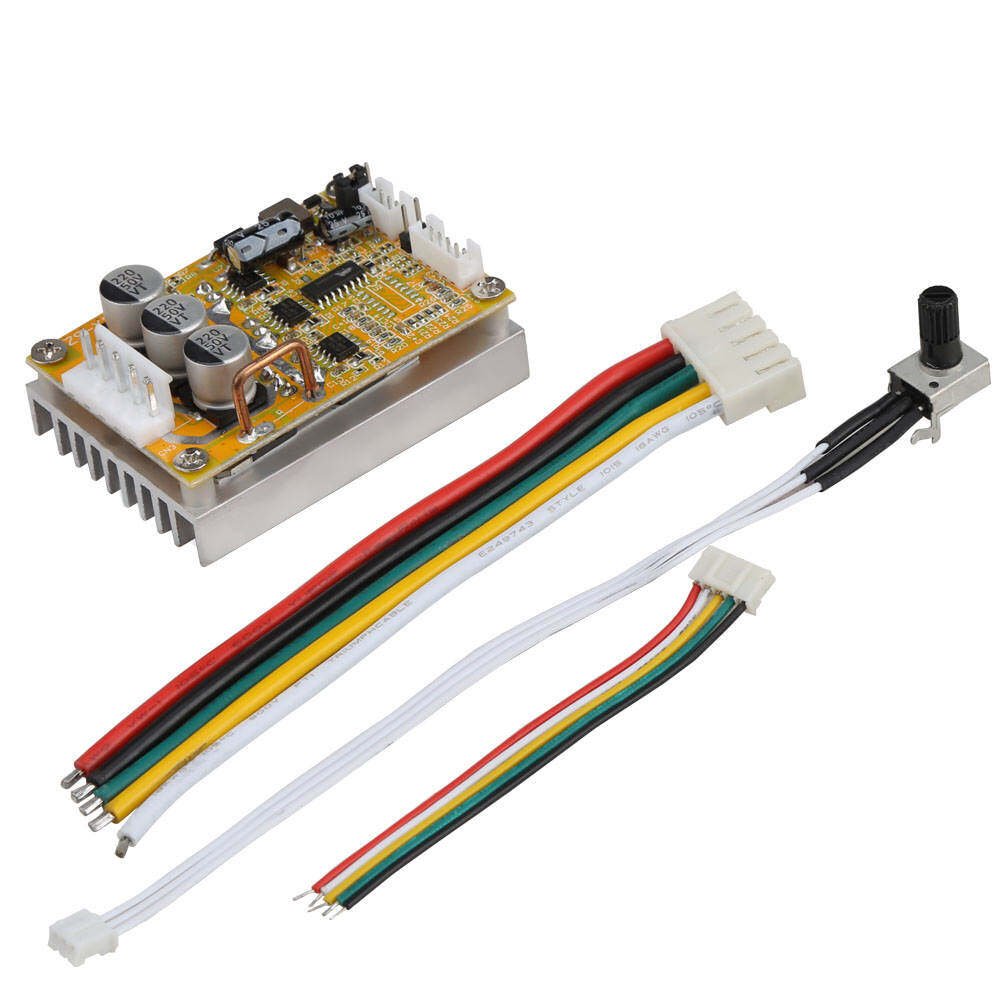

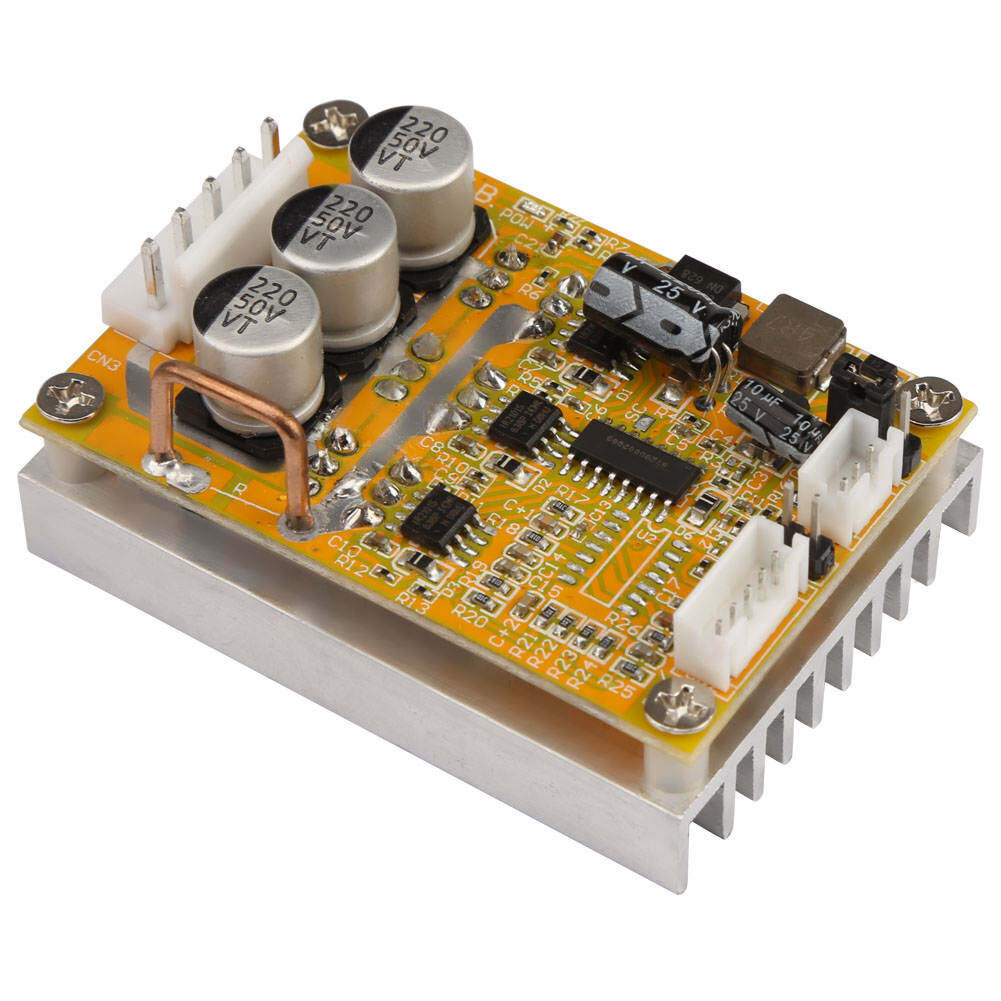

5V-36V Brushless Motor Controller 350W DC Brushless Motor Controller BLDC PWM Driver Board

Features:

• This driver board can be fit for DC brush less without hall sensor three-phase motors.
• It was with an heat sink,and also coming with speed controller and forward -reverse switch cable.
• This brush less motor controller features wide voltage high power, suitable for both small motor and large motor.
• This motor controller has the function of over-current protection.
• This item can be used directly, when you got it, wide voltage 5-36V, high power 350W, with heat sink, lead wire, control switch, so convenient.


Specifications:

Working voltage: 5-36V

Maximum current: 16A

Maximum power: 350W

Over current protection: yes

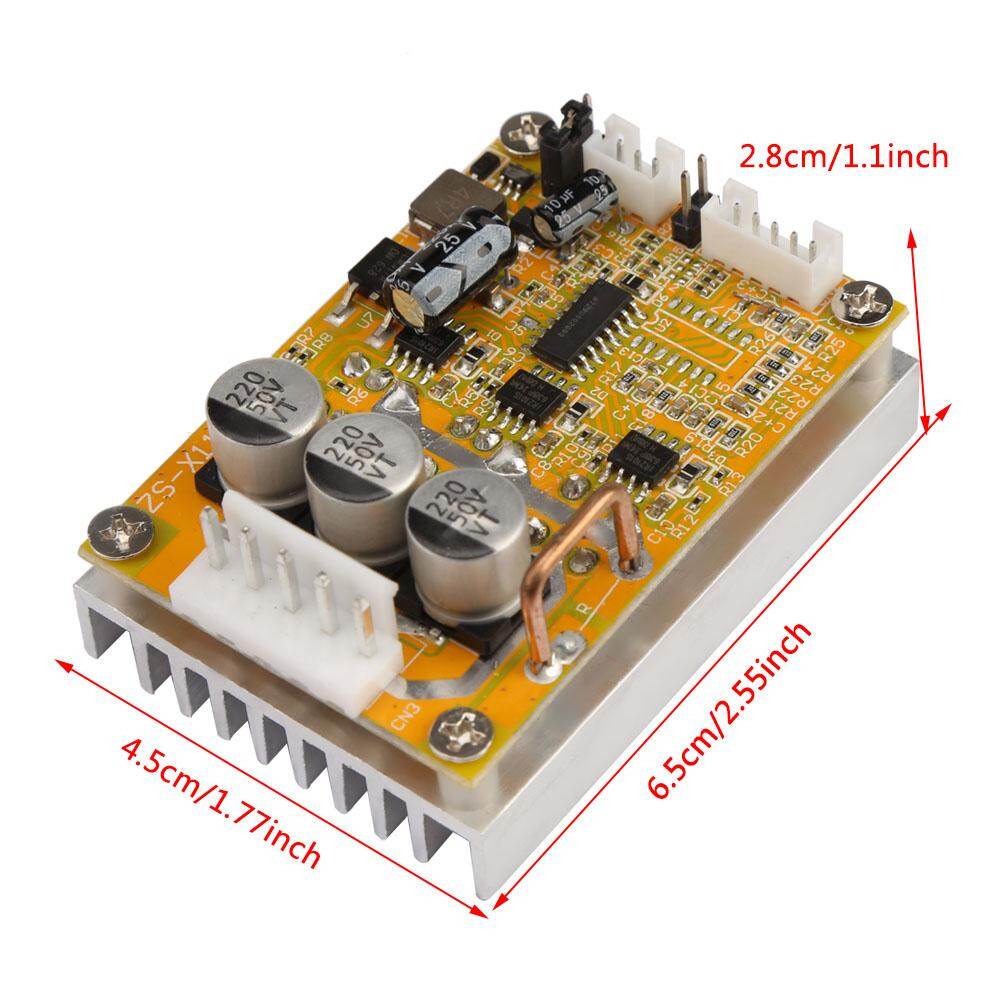

Size: length 63 x 45 x 27mm/2.48 x 1.77x 1.06inch

Weight:100g

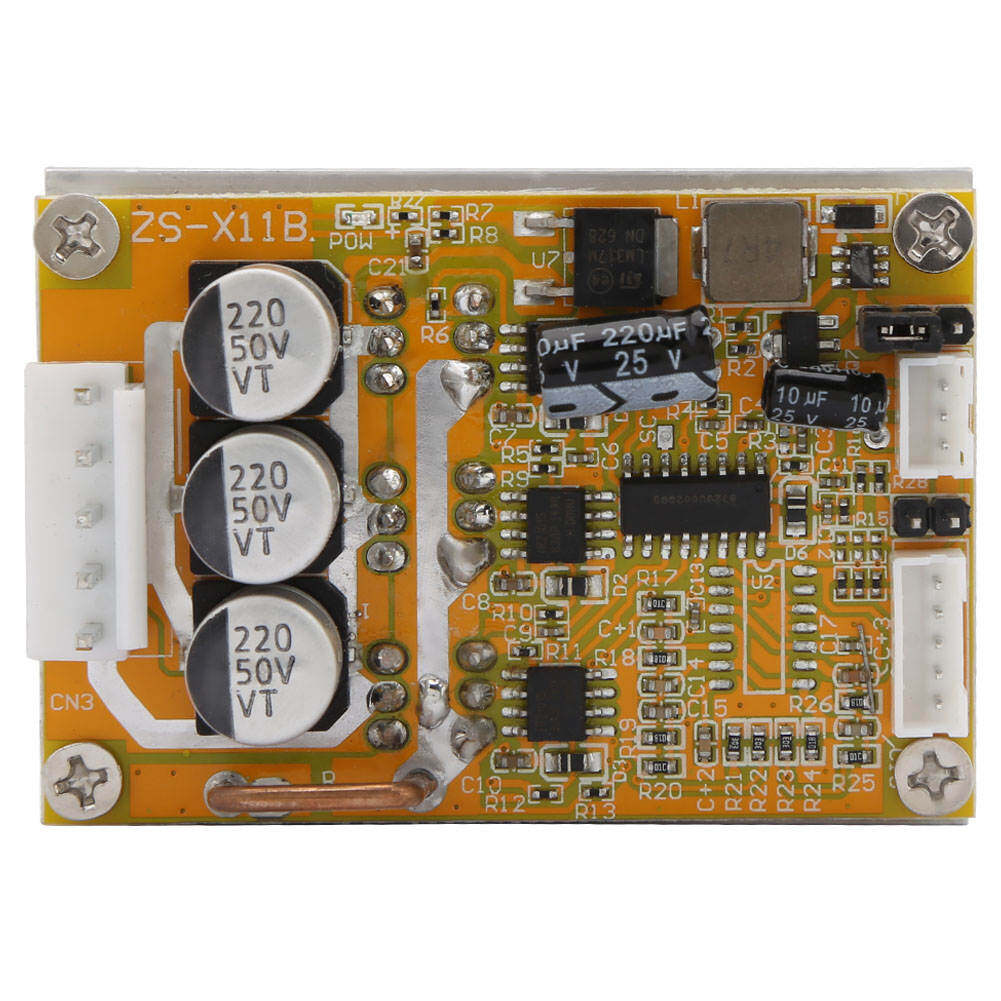

Interface instruction:

1.MA MB MC: phase line output connection motor

2 5V GND: motherboard comes with original

3.VCC GND: external DC power supply line

4.SC :pulse signal output

5.Z/F: positive inversion control line 5V or GND to achieve positive and negative inversion

6.VR: speed signal input, the general external 100K tripod middle pin potentiometer VR, the remaining two feet 5V and GND main board.

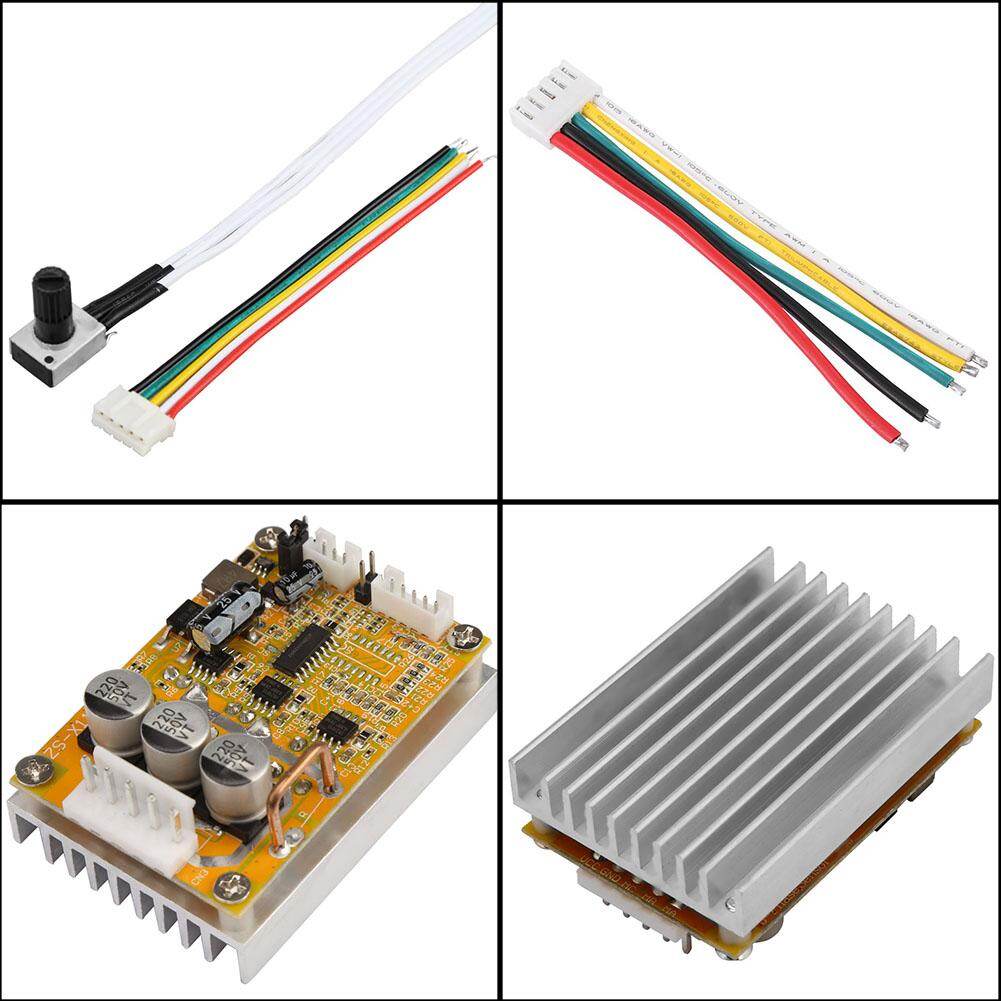

Package included:

1x brush less motor controller

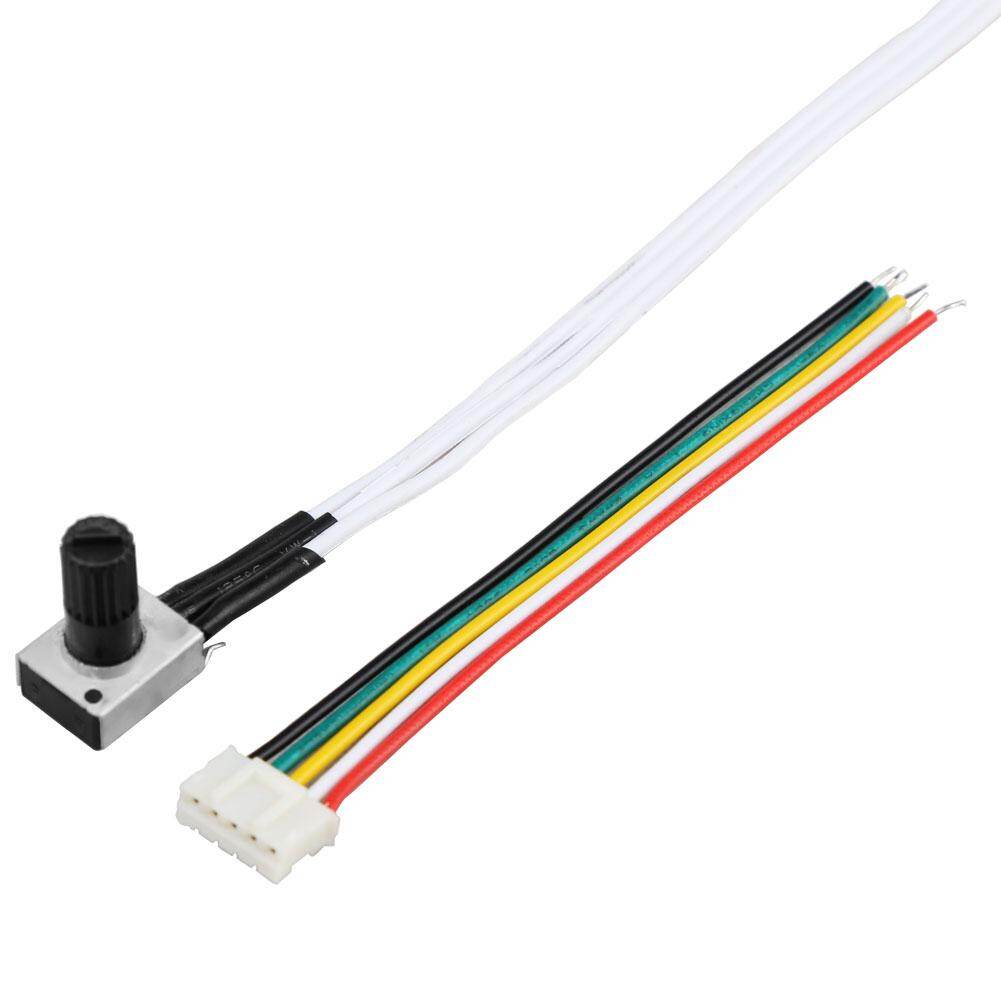

1x speed controller & forward-reverse switch cable

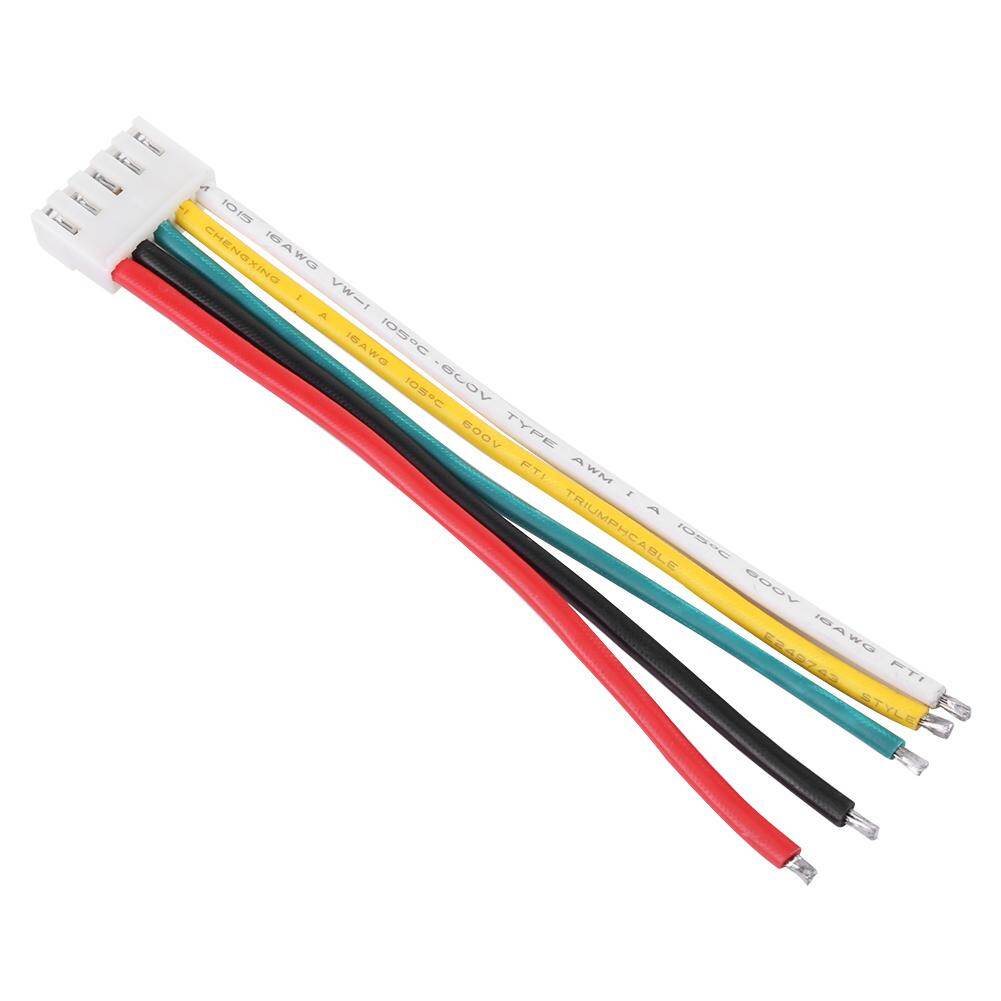

1x power cable
