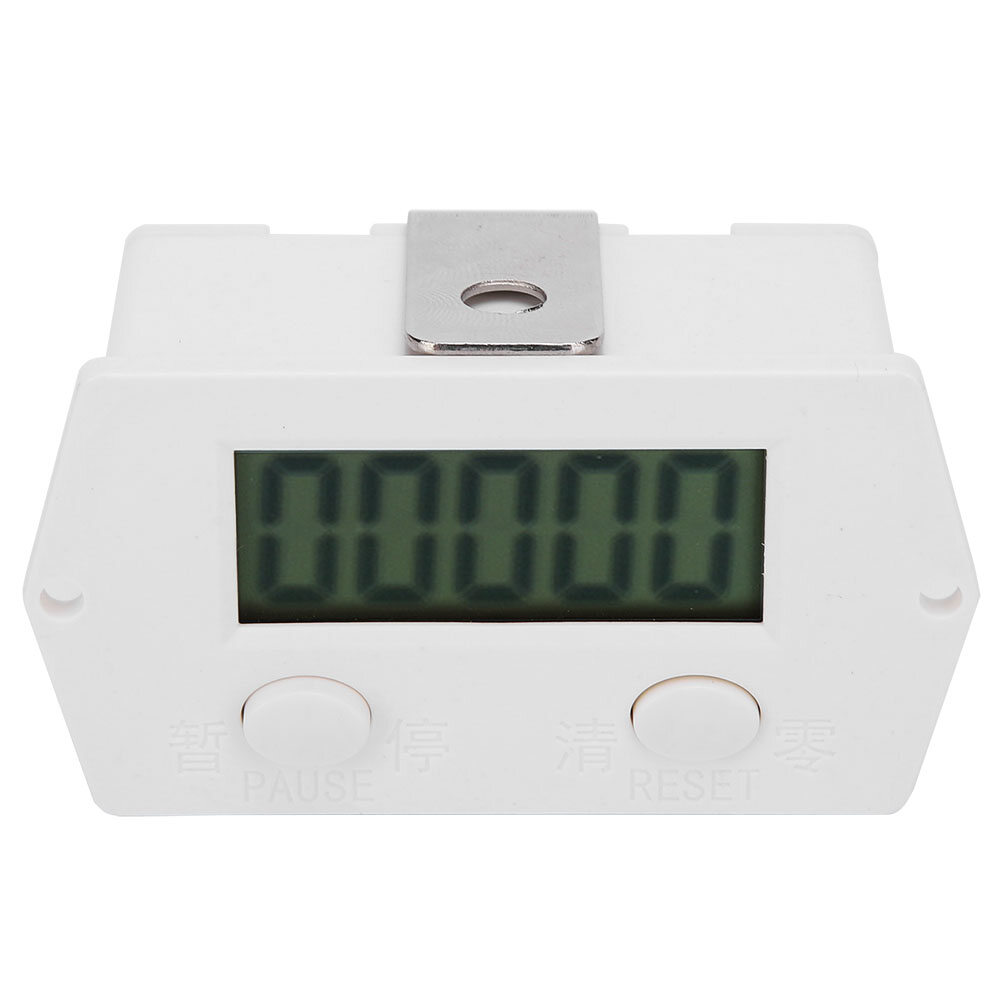

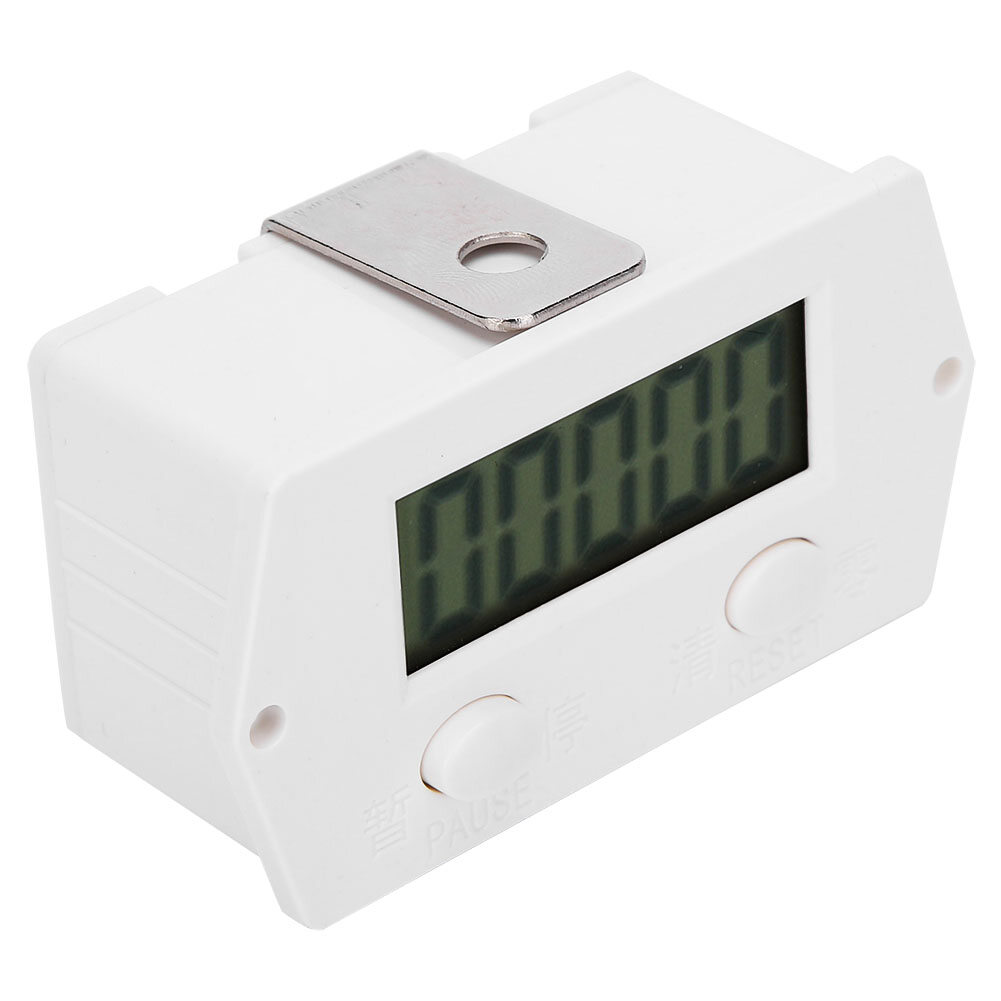

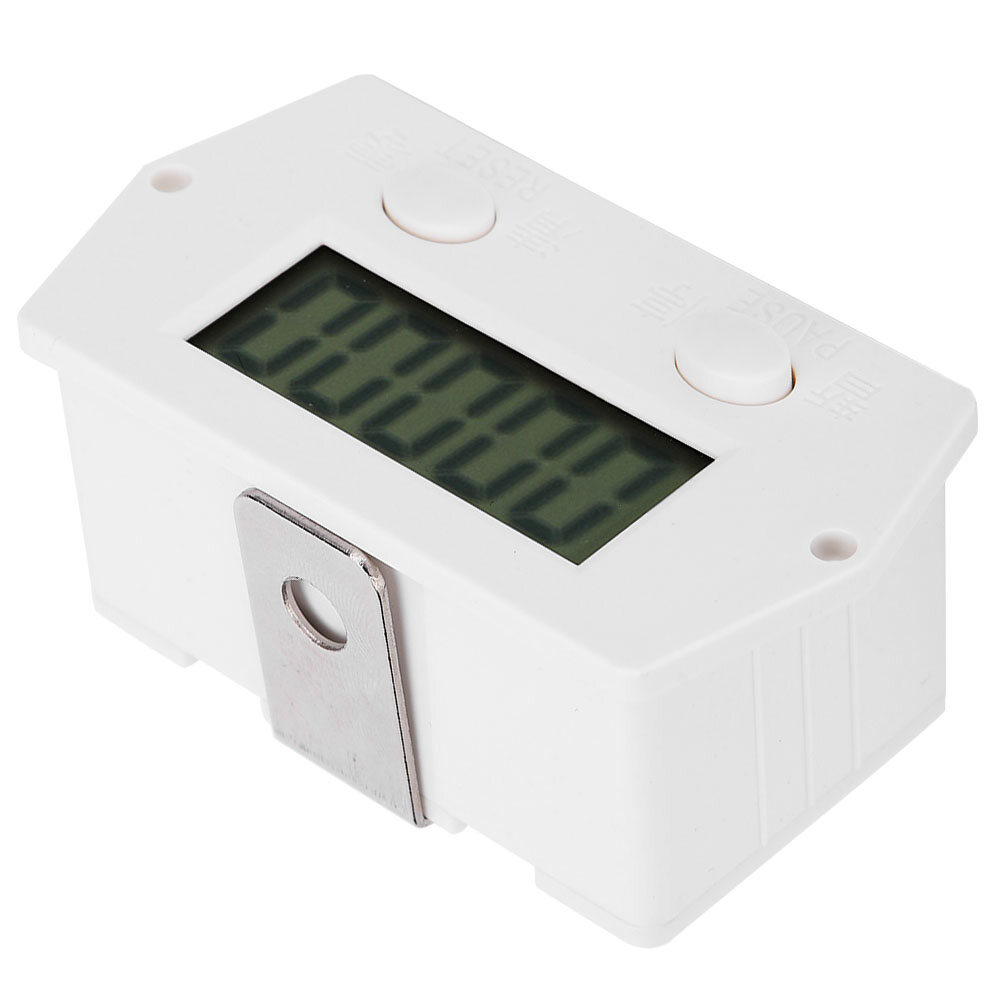

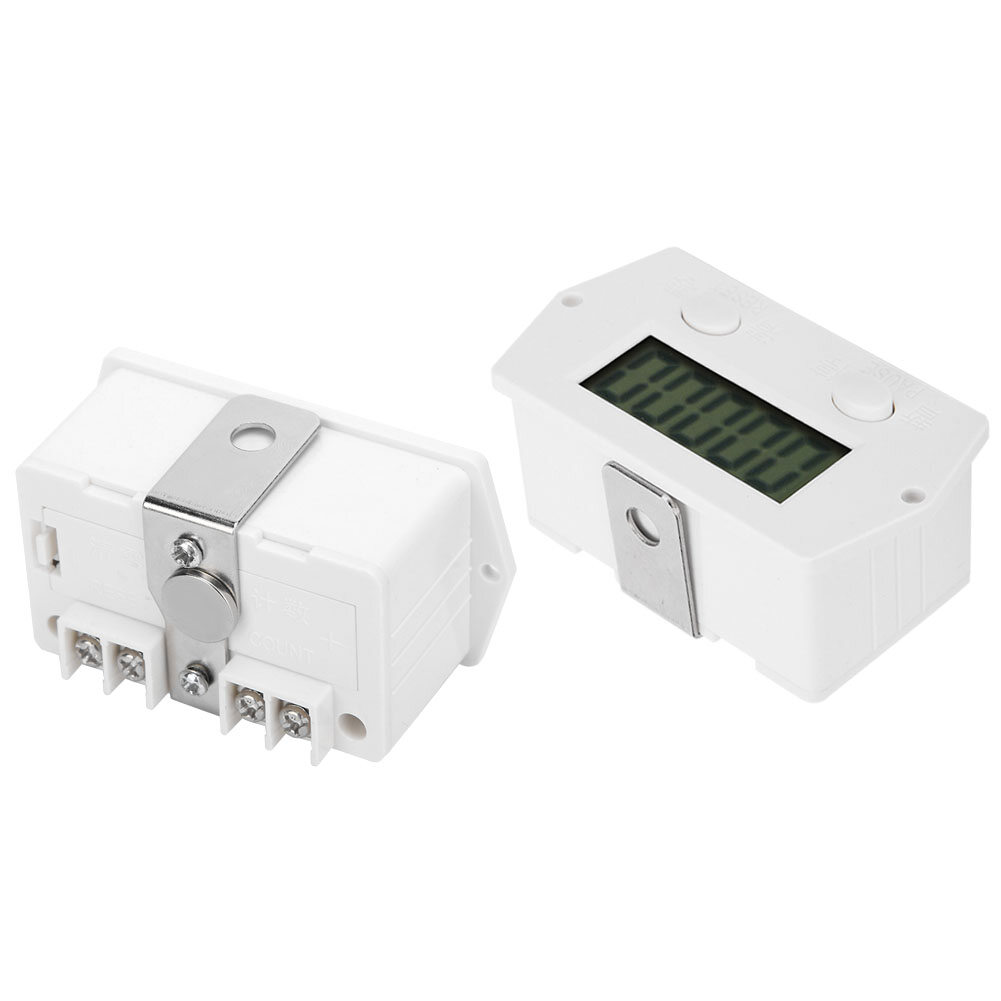

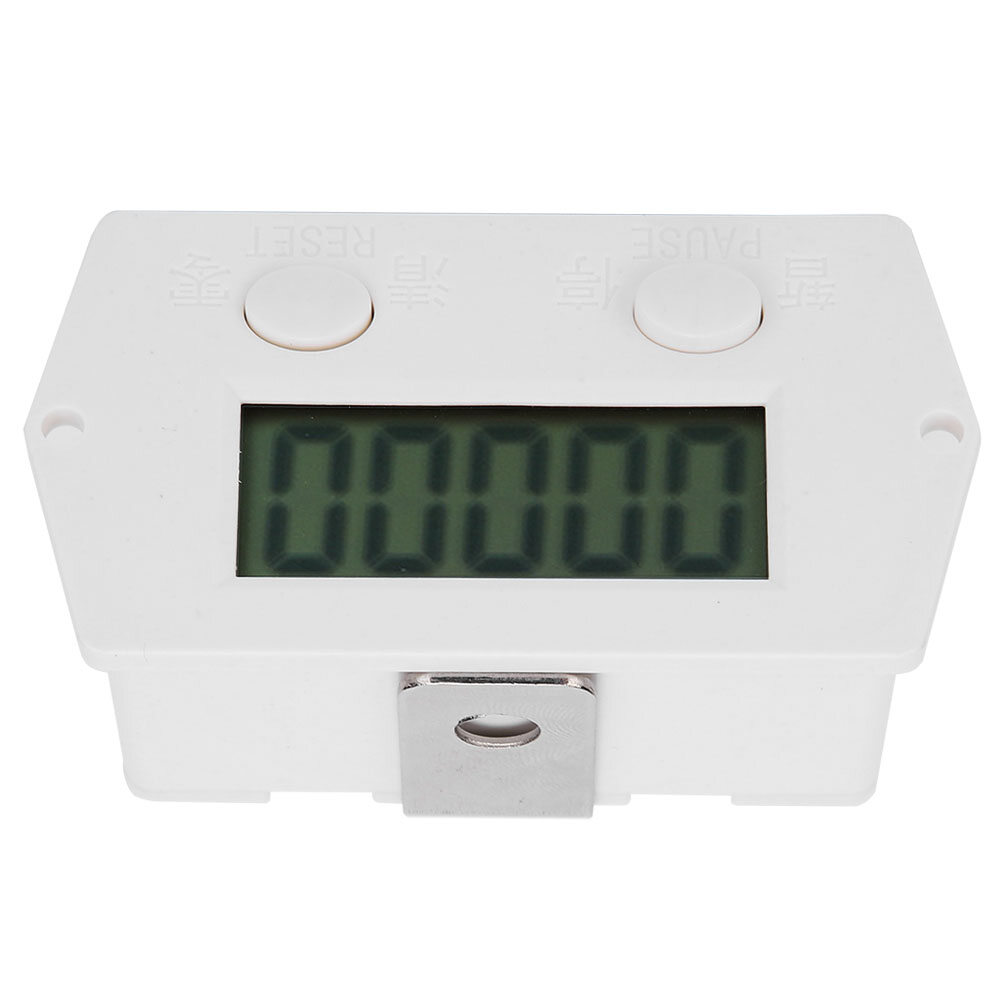

5‑Digit 0‑99999 Machine Tool Counter XJ‑5J Magnetic Induction Display Electronic Industry

Feature:

1. The product has a 5‑digit large‑screen LCD display, low power consumption, and extends battery life.
2. The product has an input that uses a metal magnetron to sense the switch signal, which makes the counting accurate and reliable.
3. The panel and the exterior of the product can be removed.
4. The product has the memory function of automatic data saving and pause.

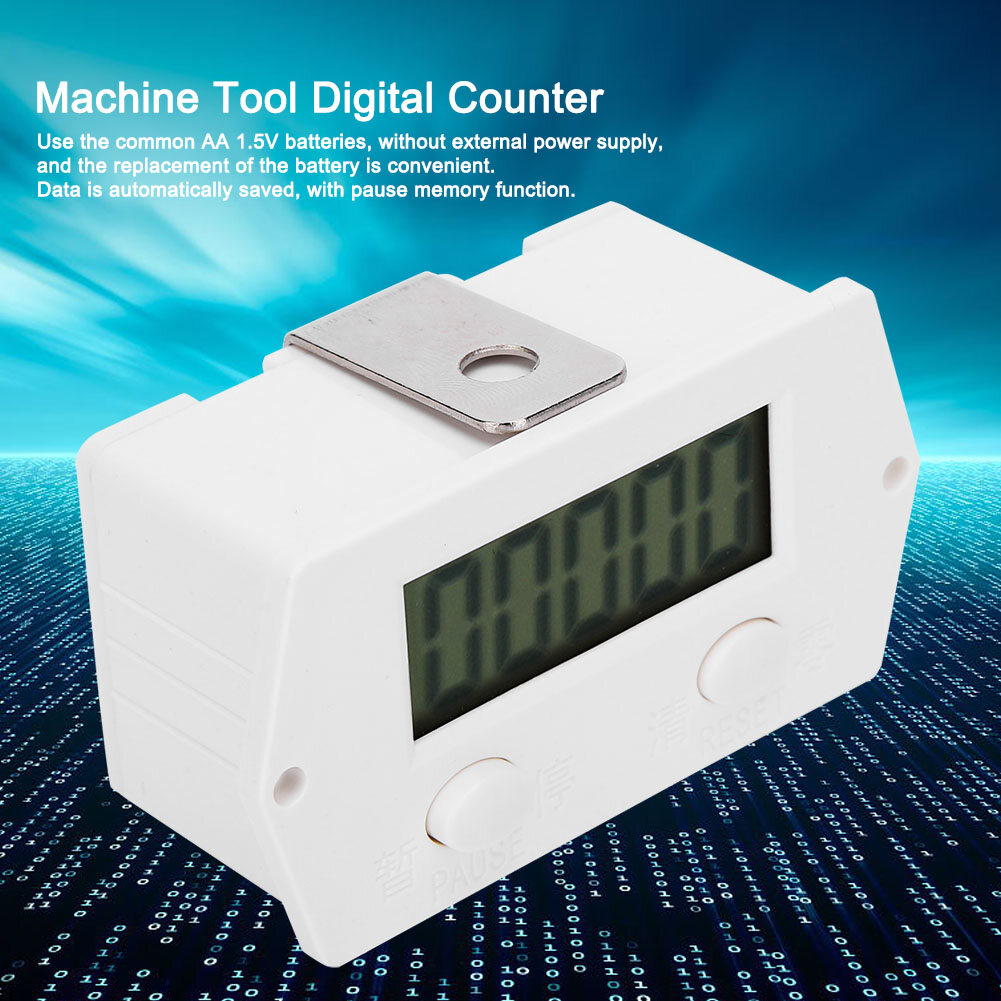

5. The product does not require an external power supply, greatly reducing the use of other power supplies, and use it with confidence.

Specification:

Item Type: 5‑Digit 0‑99999 Machine Tool Counter

Material: Plastic and iron

Counting Range: 0-99999 digits

Clear Way: Panel or External

Hole Size: Approx. 61 x 35mm/ 2.4 x 1.4in

Ambient Temperature: -5-40℃

Power Supply: 1.5V-AA AA battery (not included)

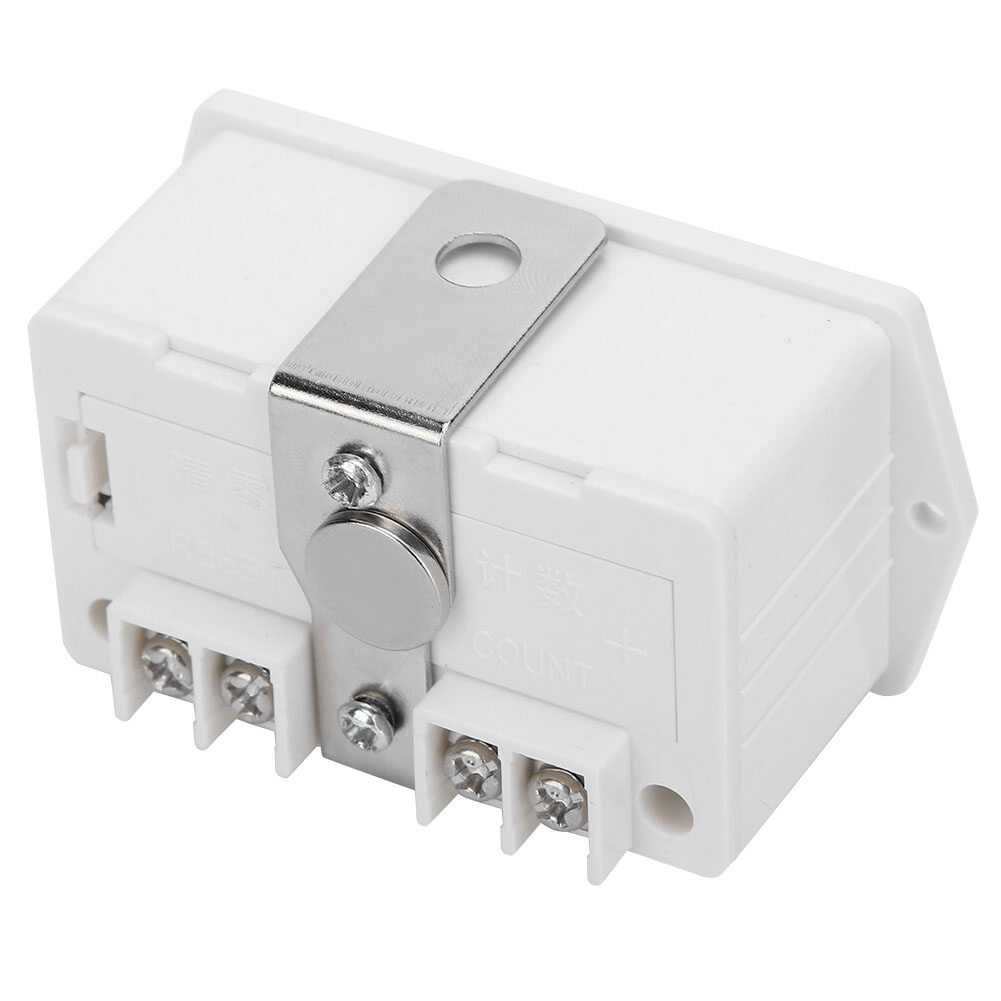

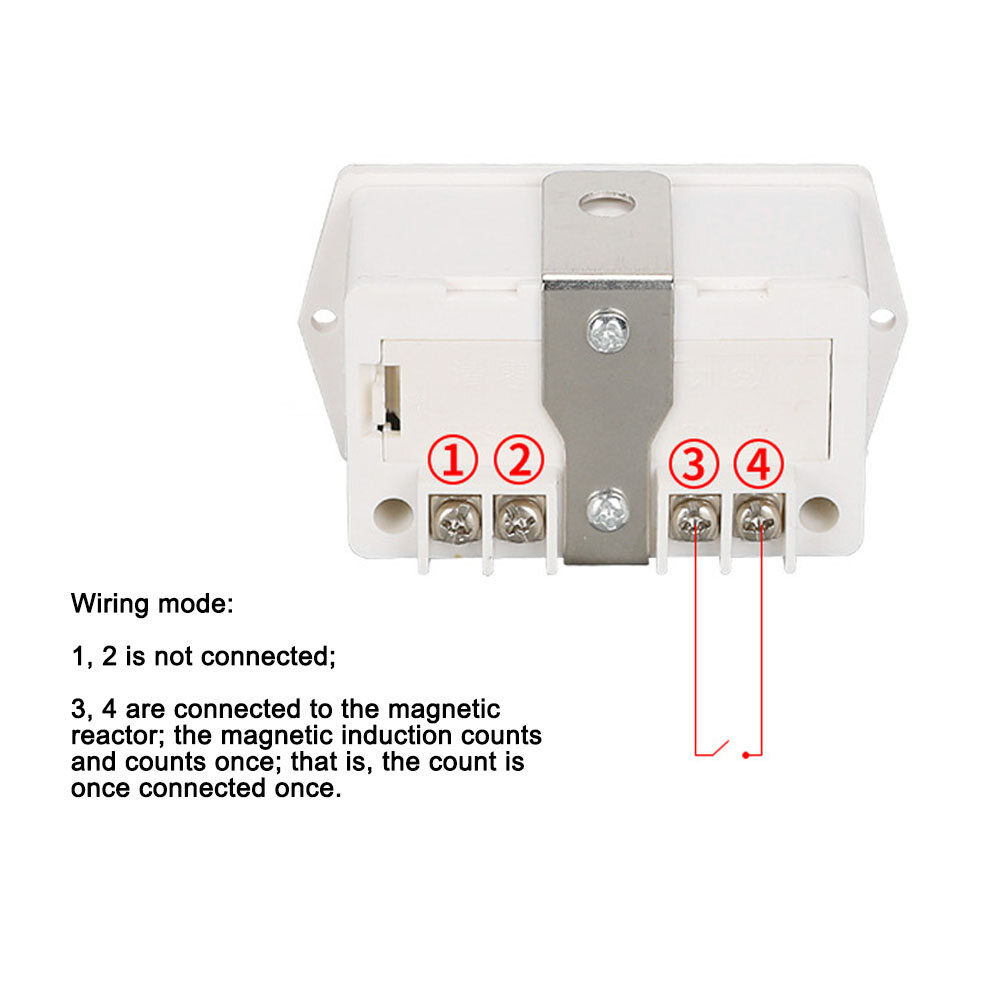

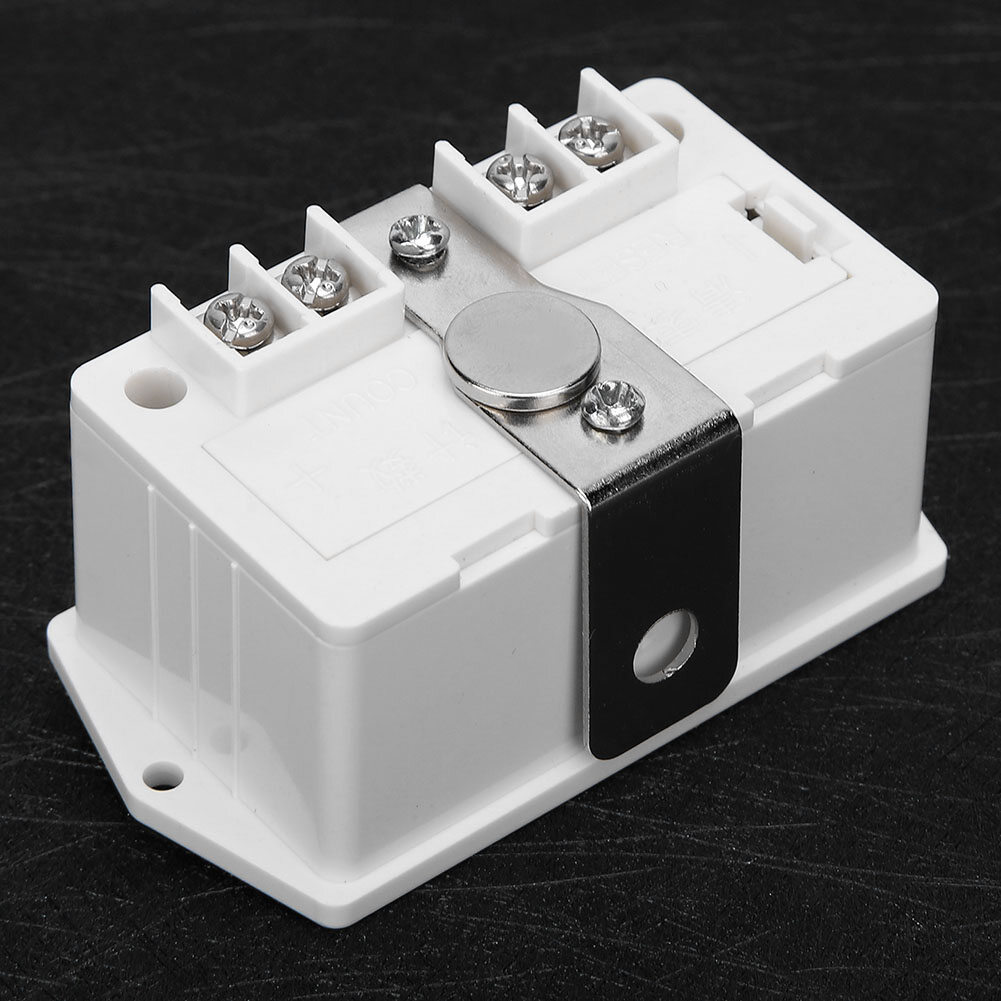

1. Connect the induction switch to the counting terminal, install the induction switch and the magnet in the corresponding position of the equipment according to the actual work needs, let the equipment that needs counting complete the process, and the magnet approaches the induction switch once to complete the work.

2. When working, let the magnet follow the device to move, approach the sensor switch about 1-2 cm away, and then let the magnet leave the switch more than 3-5 cm away, the counter will increment once and repeat the above process. (Adjust the distance and position of the magnet sensor switch during installation.)

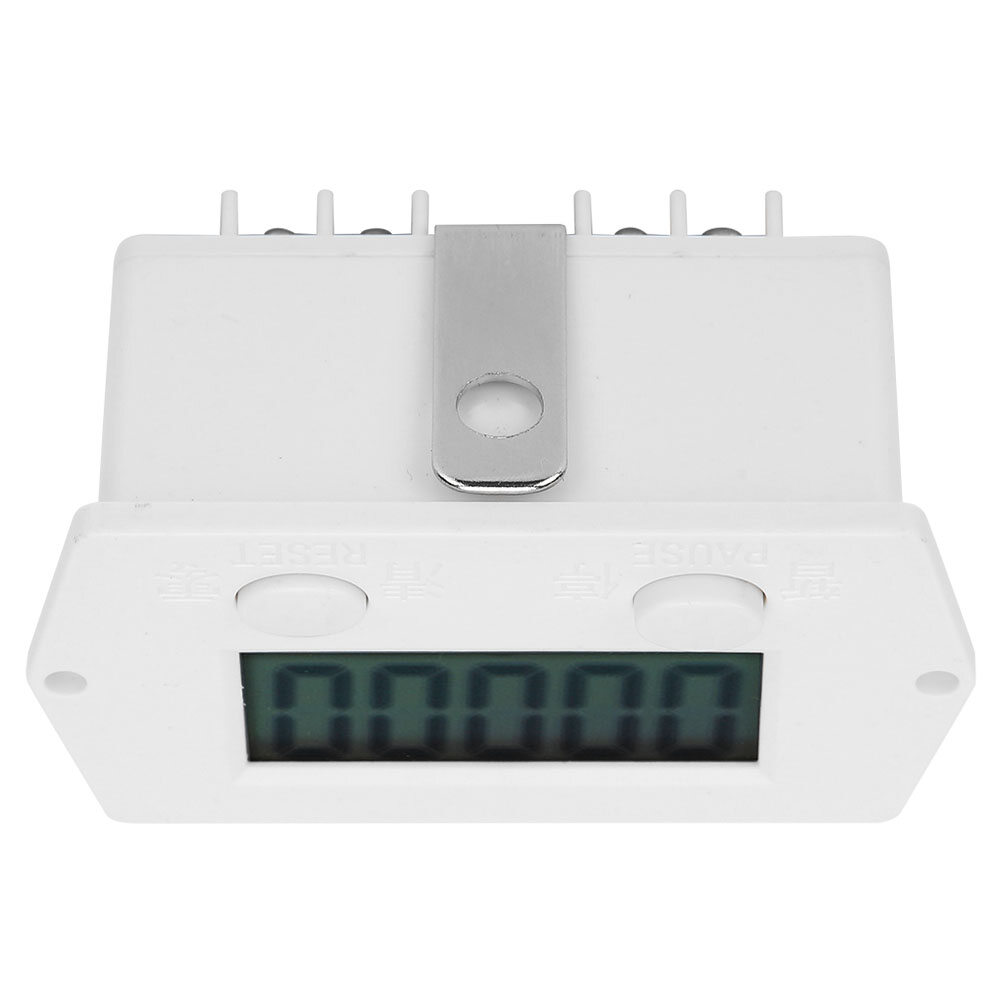

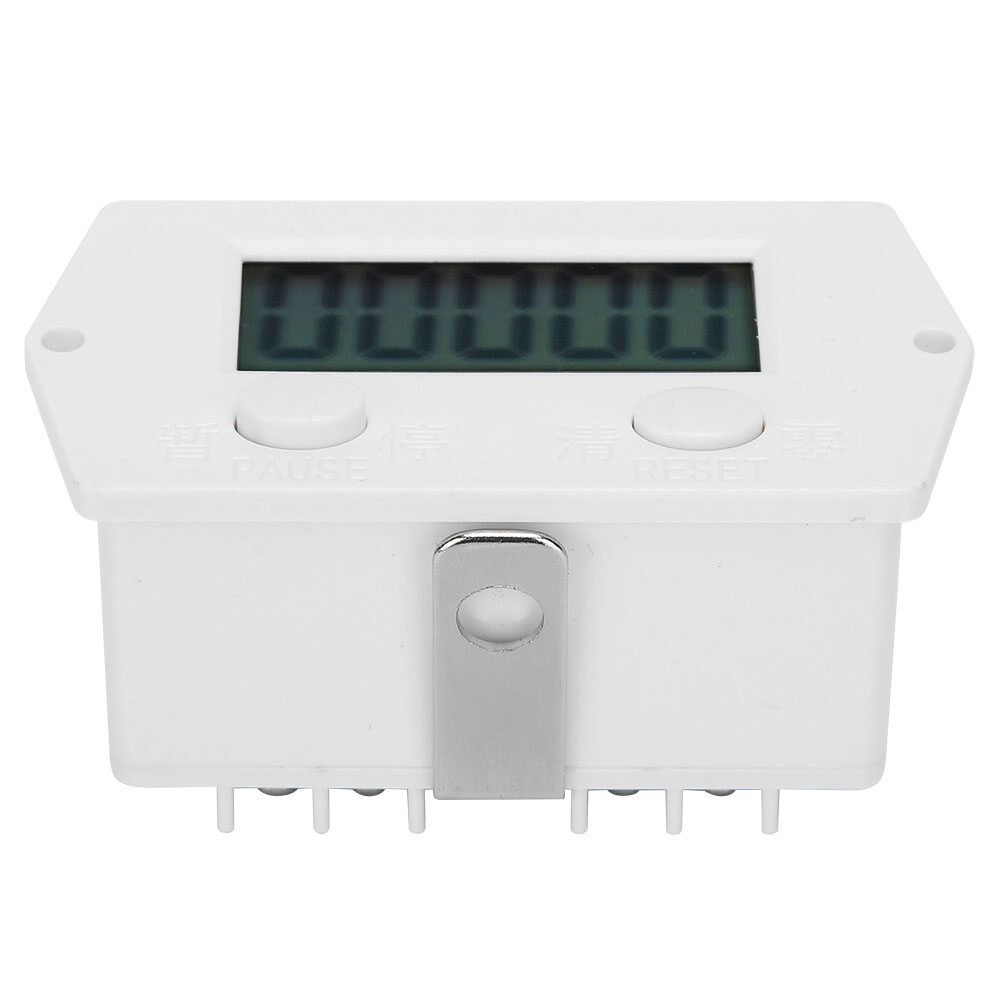

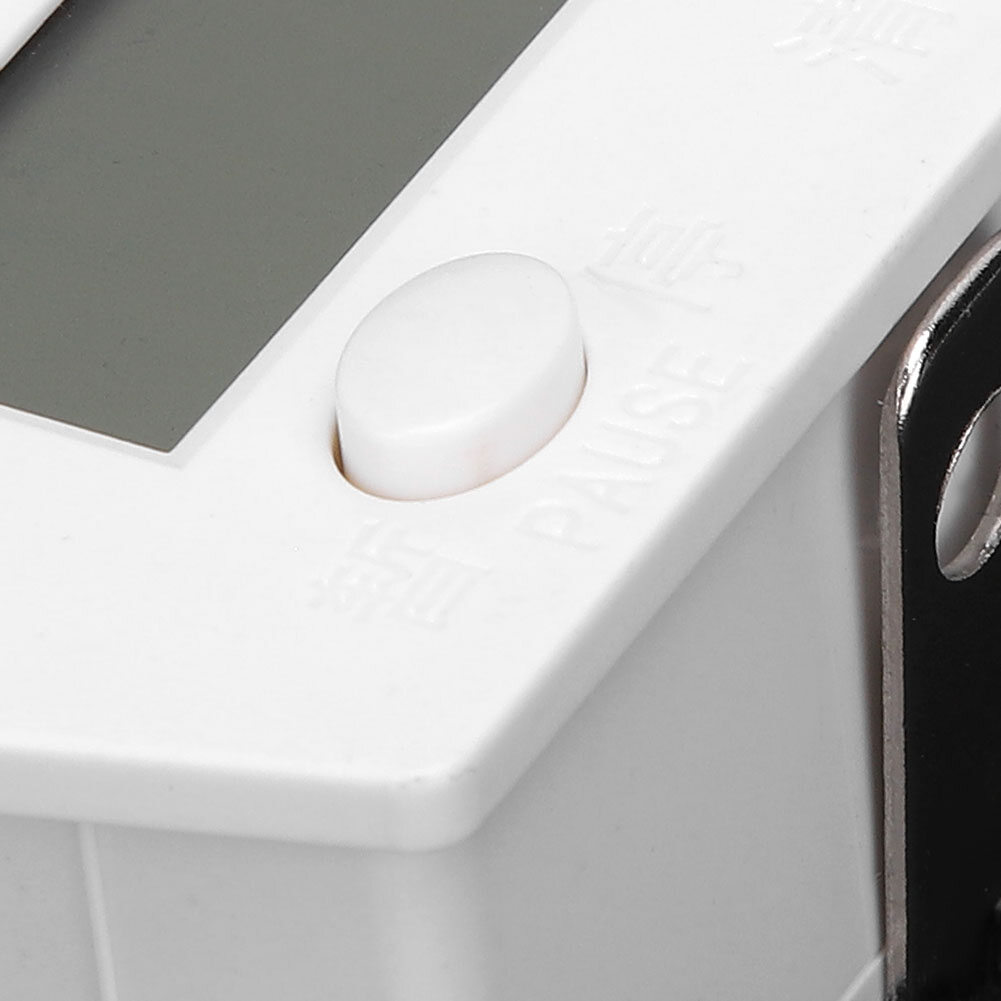

3. Pause counting: Press the PAUSE button (PAUSE) to pause counting. Press the pause button (PAUSE) once to resume counting.

4. Clear: First press the pause button (PAUSE) and then press the clear part (PESET) counter to clear, or an external button, the counter is cleared. (In other words, when the counter is in use, first press the pause button and then press the clear part. The product data will be reset.)

5. The counter signal and the reset signal can be input to the contact signal. For example, the relay limit switch cannot input the signal with voltage.

6. The temperature of the magnet cannot exceed 60 degrees. Too high a temperature will cause the magnet to fail and be counted.

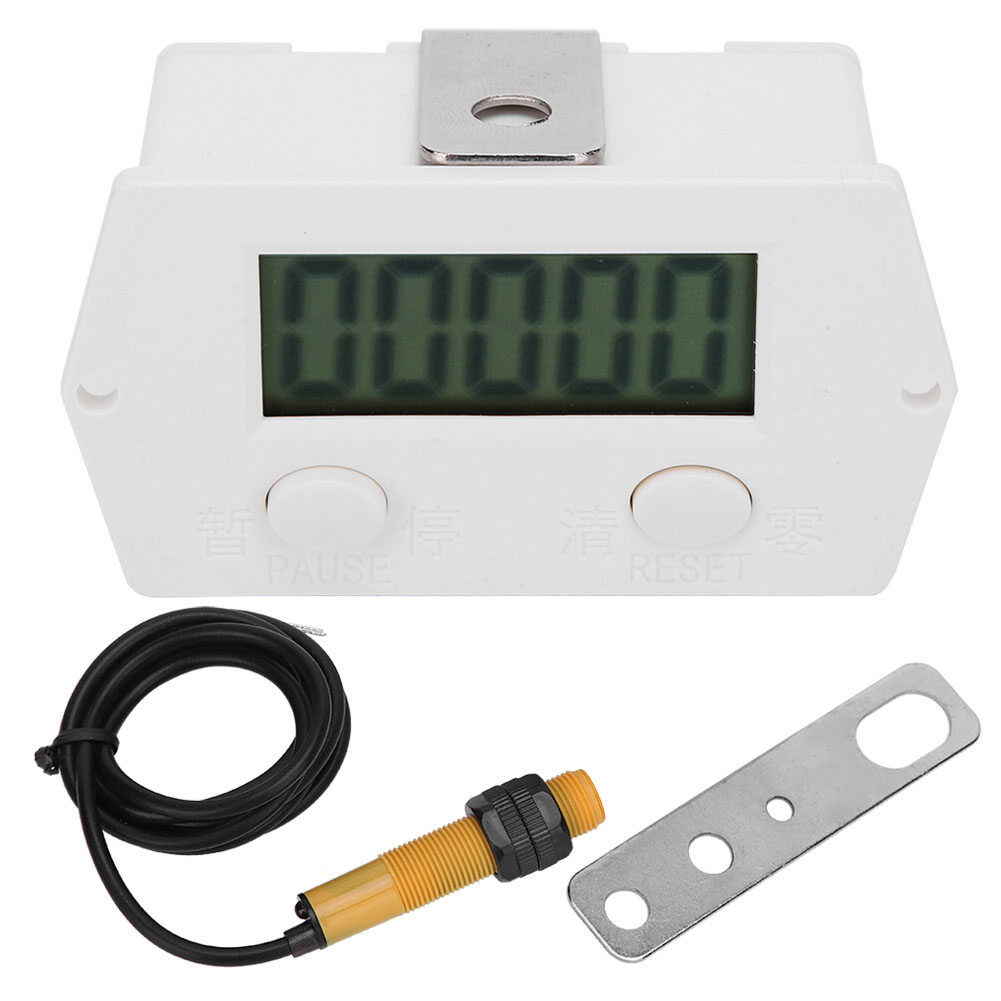

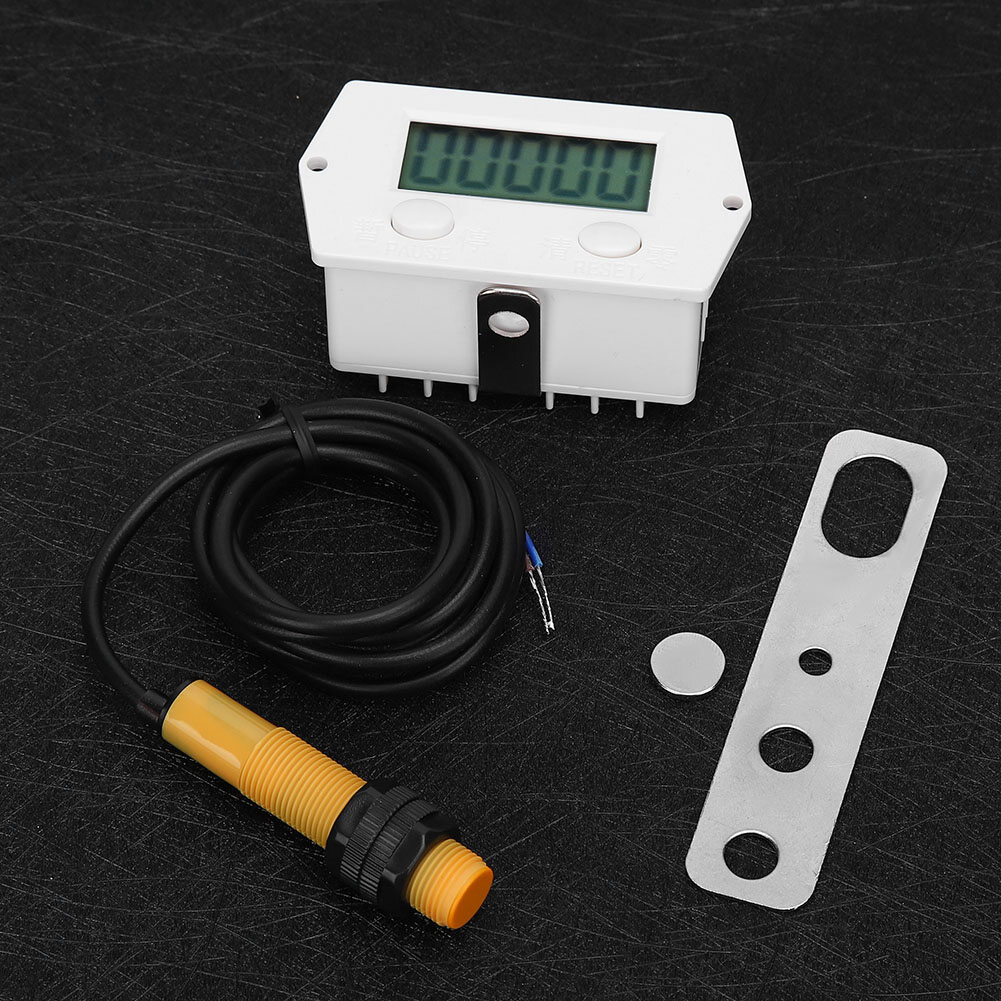

Package List:

1 x Digital Display Counter

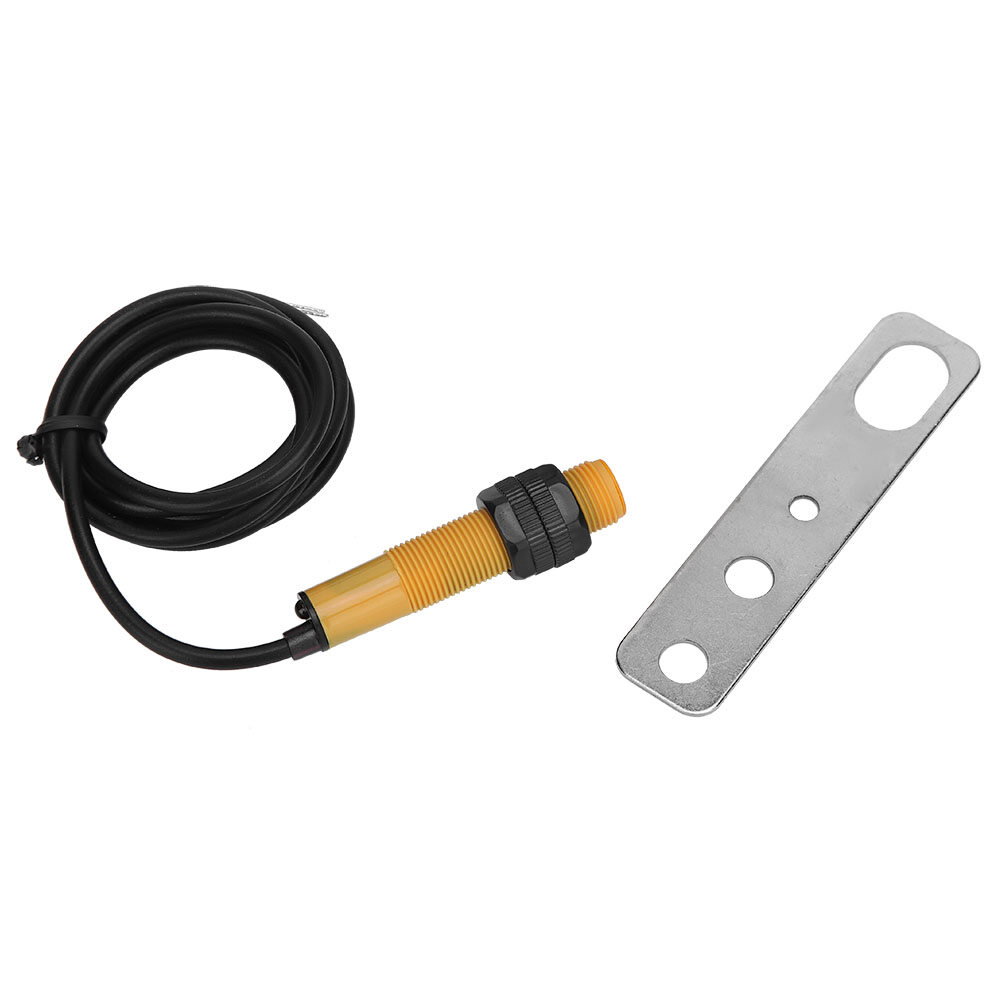

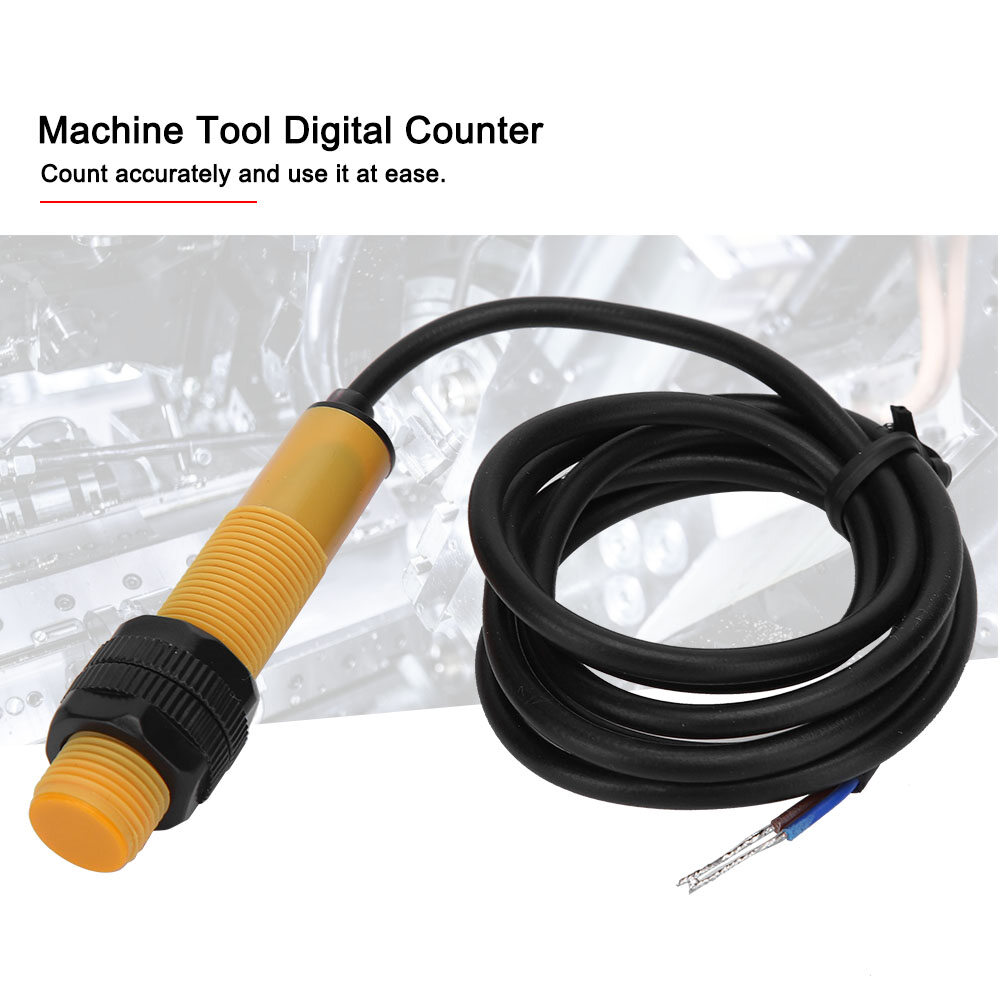

1 x Metal Magnetic Induction Switch

1 x Bracket

1 x Magnet
