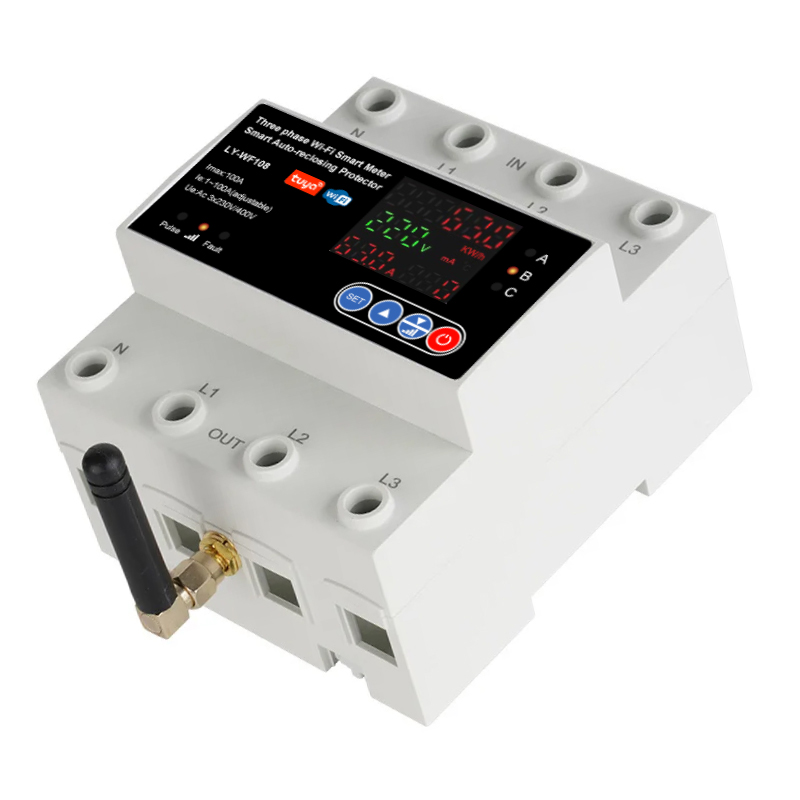

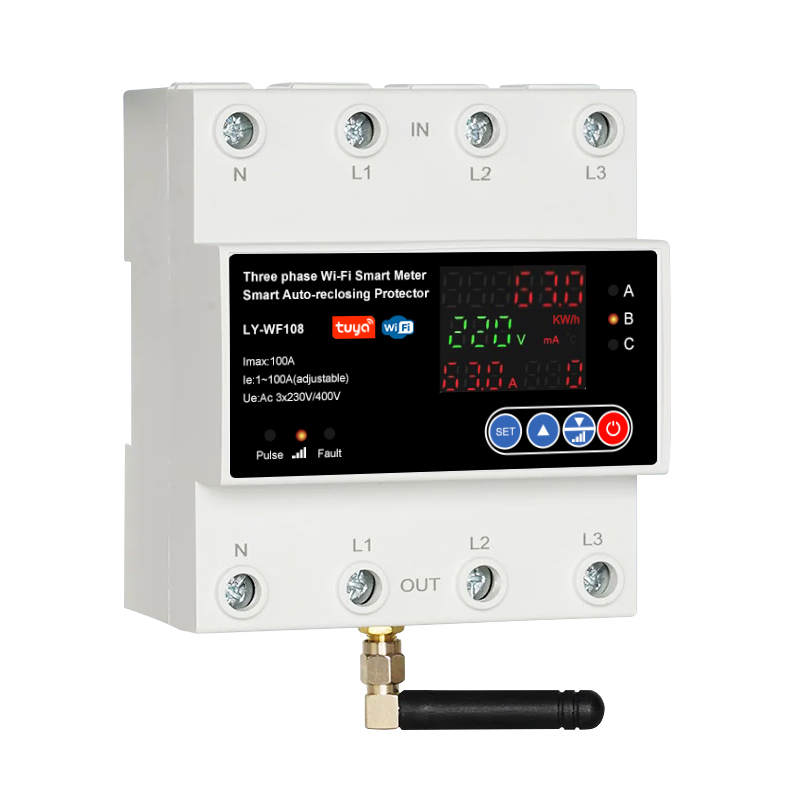

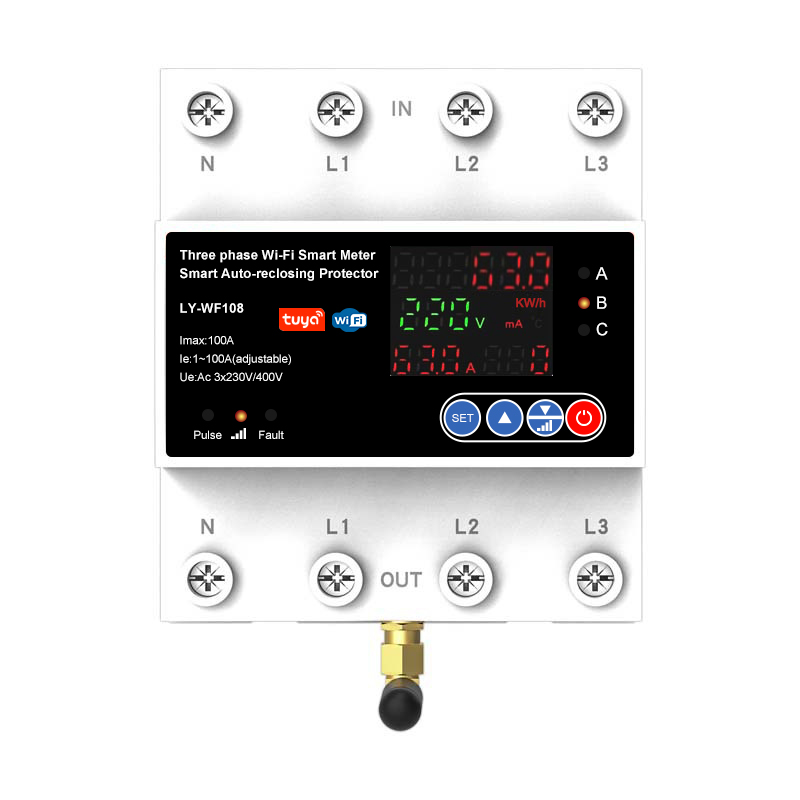

4P 100A Tuya Three Phase Art Life Auto-Reclosing Over Under Voltage Protector Art Meter Timer Switch Circuit Breaker

• Type:Circuit breaker
• Is art Device:YES
• Model Number: 63(108MM)
• Type:Conventional
• Origin:Mainland China
• Certification:CE

Note: The APP only displays active power, reactive power will not be displayed on the APP.

Since this product has many ftions, if you have any questions during use, please contact the store’s customer service.

Overview

This all-in-one design art IOT device applied to AC 230V/400V, 50/60Hz, rated current up to 63A/100A single or three phase

circuits in resident, commercial and industrial buildings with 2.4G , to measure electricity consumption and offer prepayment

as option; to control and set protections against over/under voltage, overcurrent, residual current(leakage), high

temperature via mobile App anytime anywhere; and auto reclosing after protected conditions recovery to achieve non-attended

management; programmable timing control to make your scheduled life efficiently and save electricity, and sharing device with

your family or persons concerned in your m. It also supports local manual control without , and voice control through

AI speaker, such as Amazon Alexa, Google Assistant, Yandex Alice, and etc.

Main specifications

Poles: single phase 2P, three phase 4P available;

Rated voltage: 2P AC230V, 4P AC3x230V/400V (over/under voltage protection adjustable);

Rated current: 1~63A/100A adjustable;

Frequency: 50/60Hz;

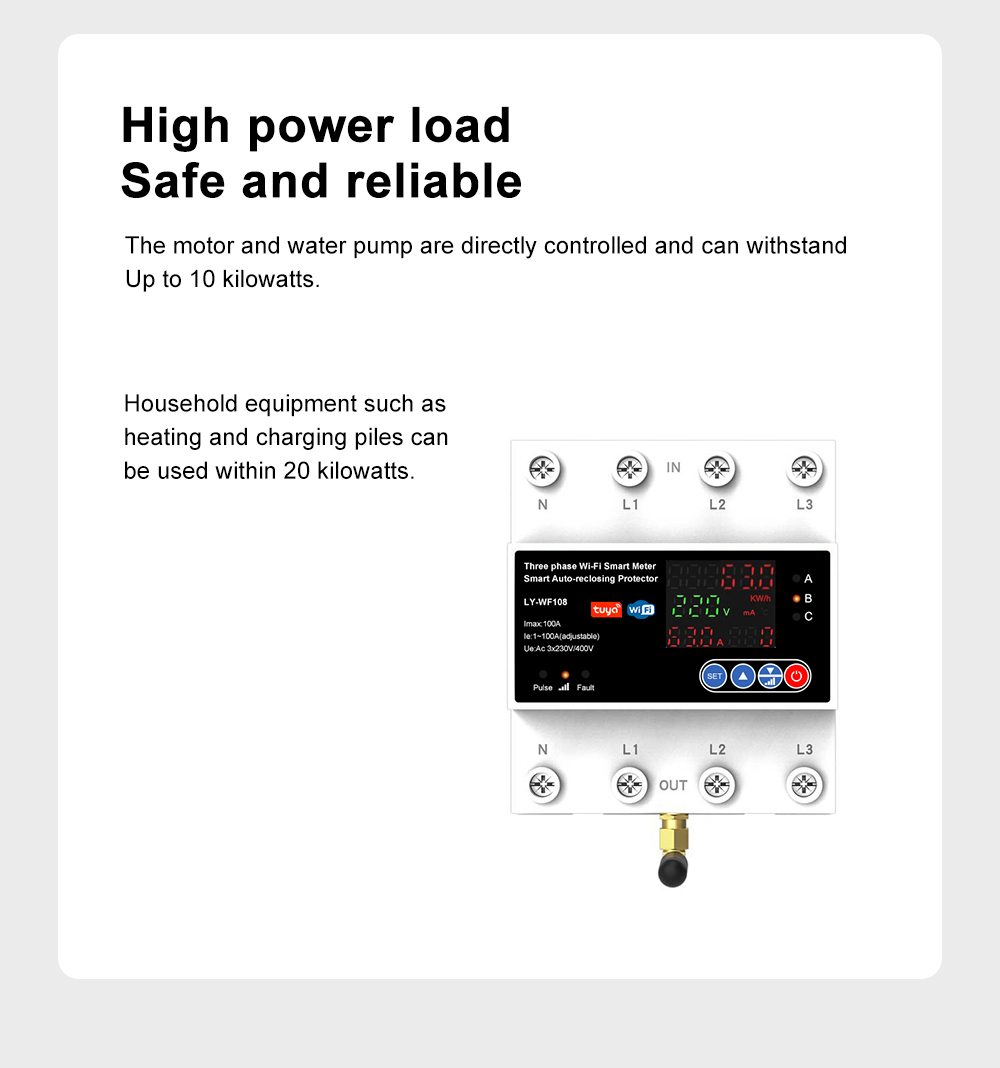

Capacity: resistive load≤13kW, inductive load≤6kW;

Self-consumption: <2W;

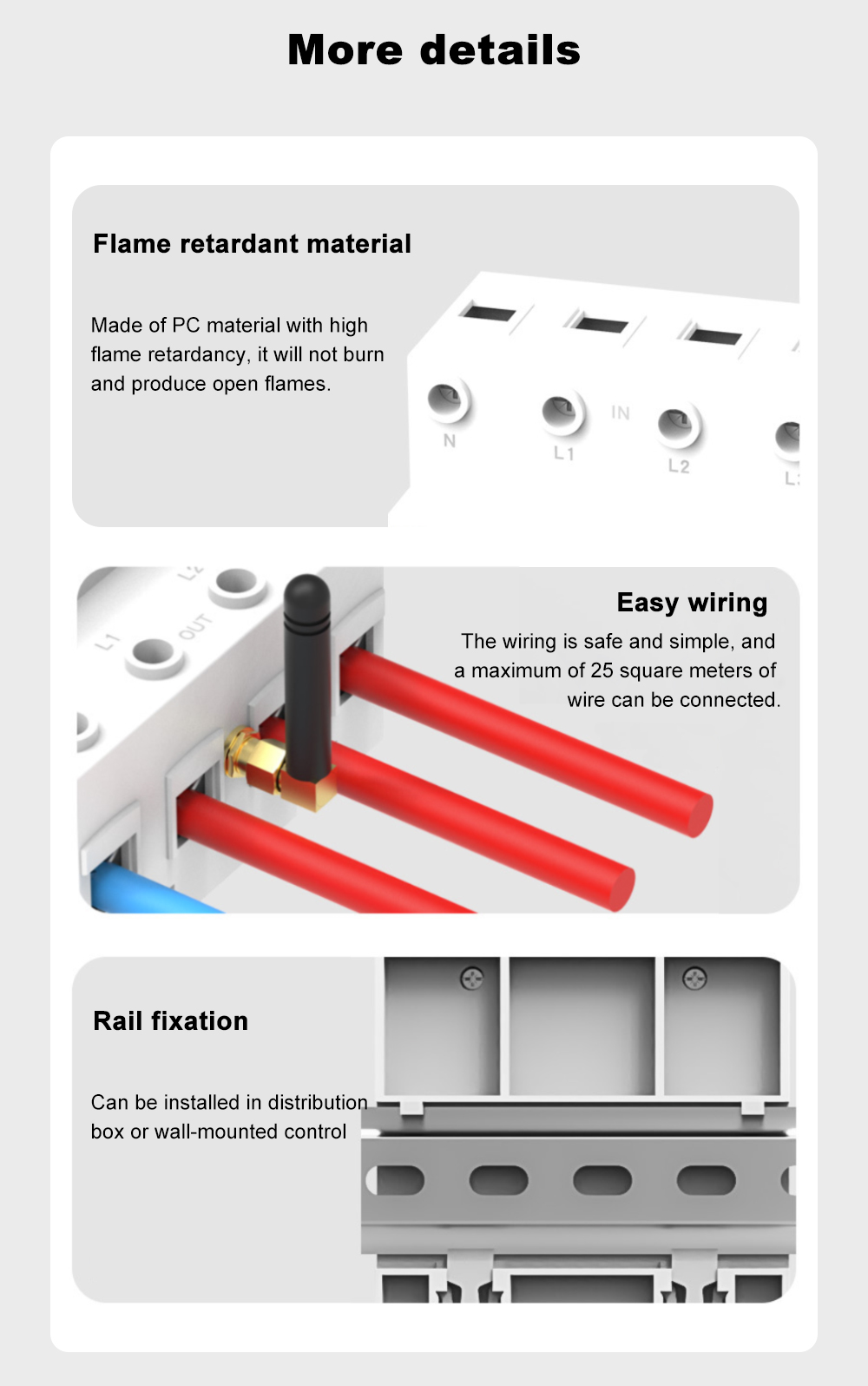

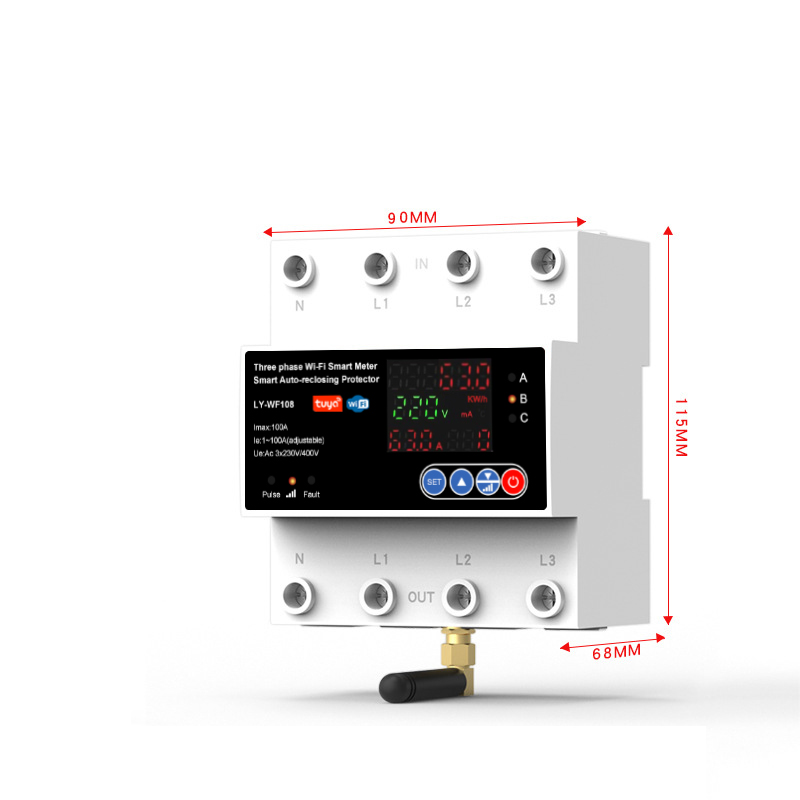

Mounting: 35mm din-rail;

Ftional features

01. Four options on control:

- control anytime anywhere (mobile app, Tuya art, art Life)

- Voice control (AI speaker, Alexa, Google, Alice, ...)

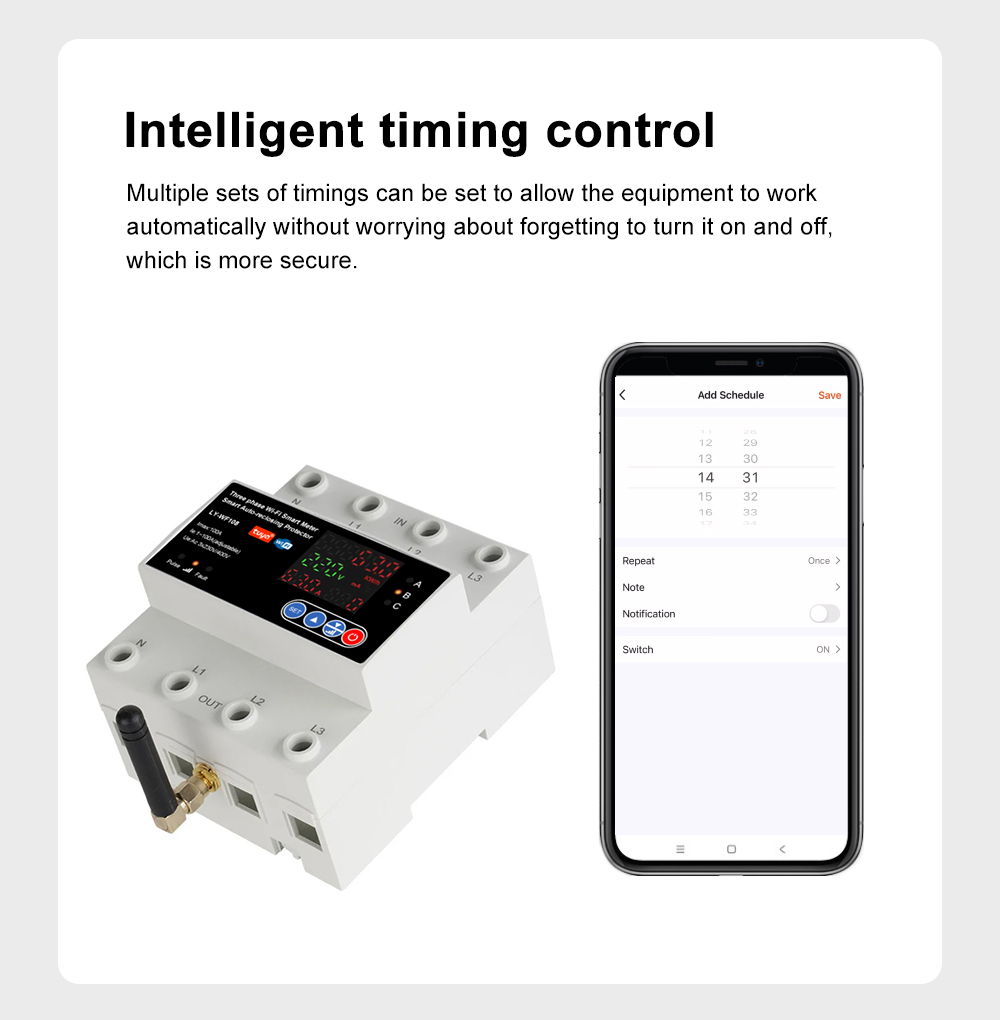

- Timing control (programmable Schedule)

- Manual control (by keys and handle)

02. Monitor real-time electricity consumption and statistics on phone (A, V, mA, kW, kW/h, ℃);

03. Prepaid metering mode available as option by switch;

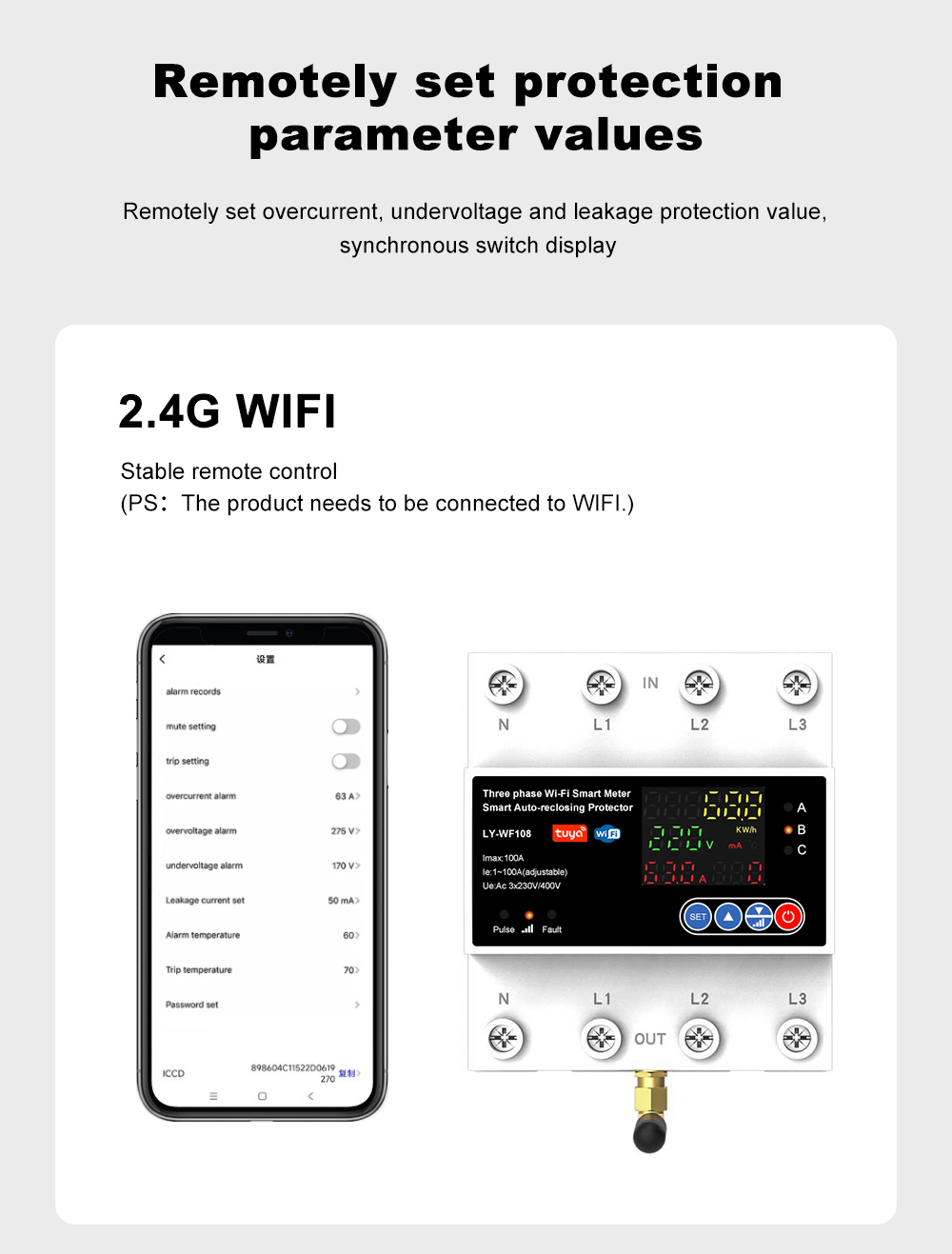

04. Adjustable protections against over/under voltage, overcurrent, residual current(leakage), high temperature;

05. Overcurrent protection: 1~63A/100A adjustable, 63A as default;

06. Over voltage protection: 250~400V adjustable, 275V as default;

07. Under voltage protection: 150~190V adjustable, 170V as default;

08. Residual current(leakage) protection: 10~100mA adjustable, 50mA as default;

09. Alarm temperature protection: 50~90℃ adjustable, 60℃ as default;

10. Tripping temperature protection: 60~100℃ adjustable, 70℃ as default;

11. Recovery on-delay time: 5~90s adjustable, 30s as default (manual setting on device by keys, not in app);

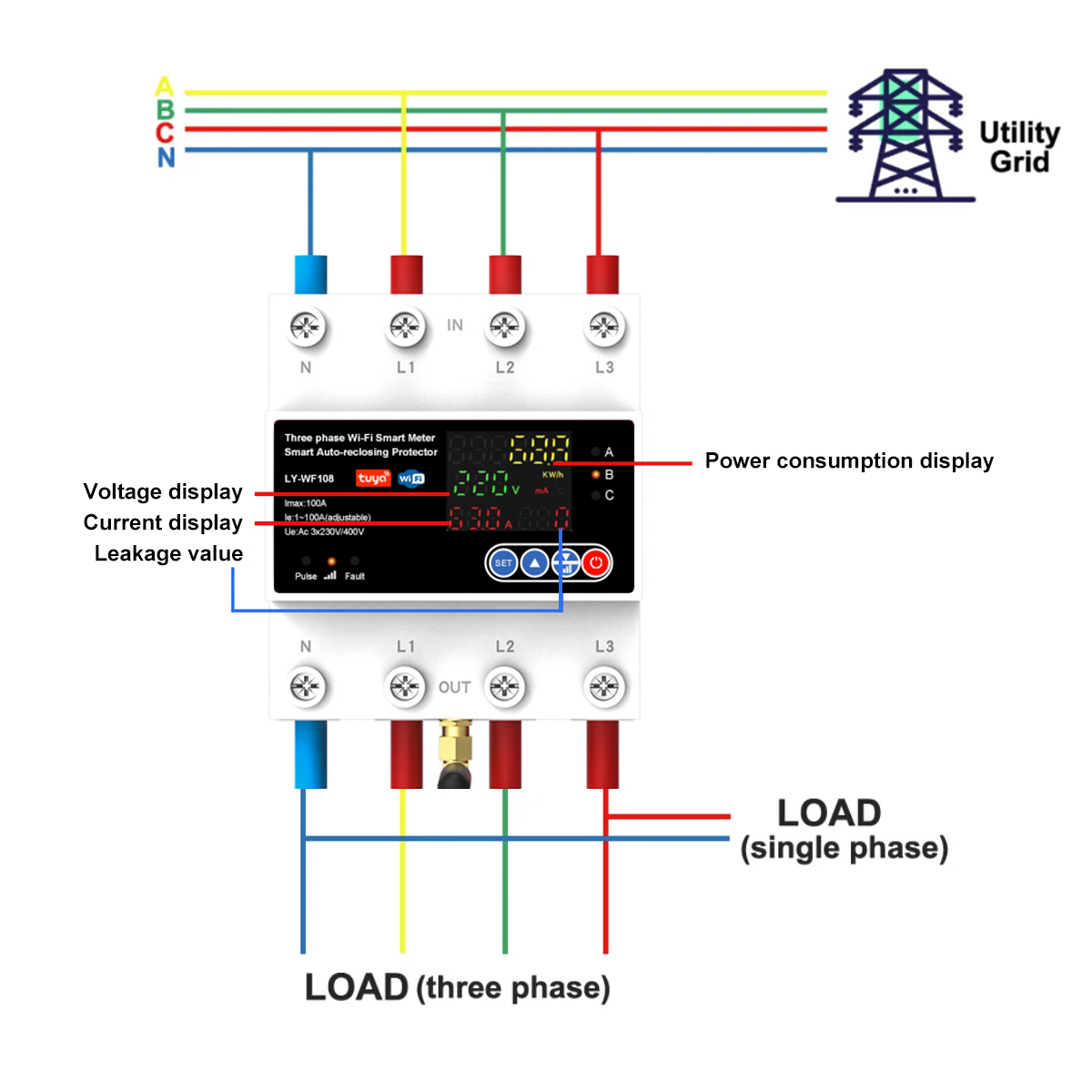

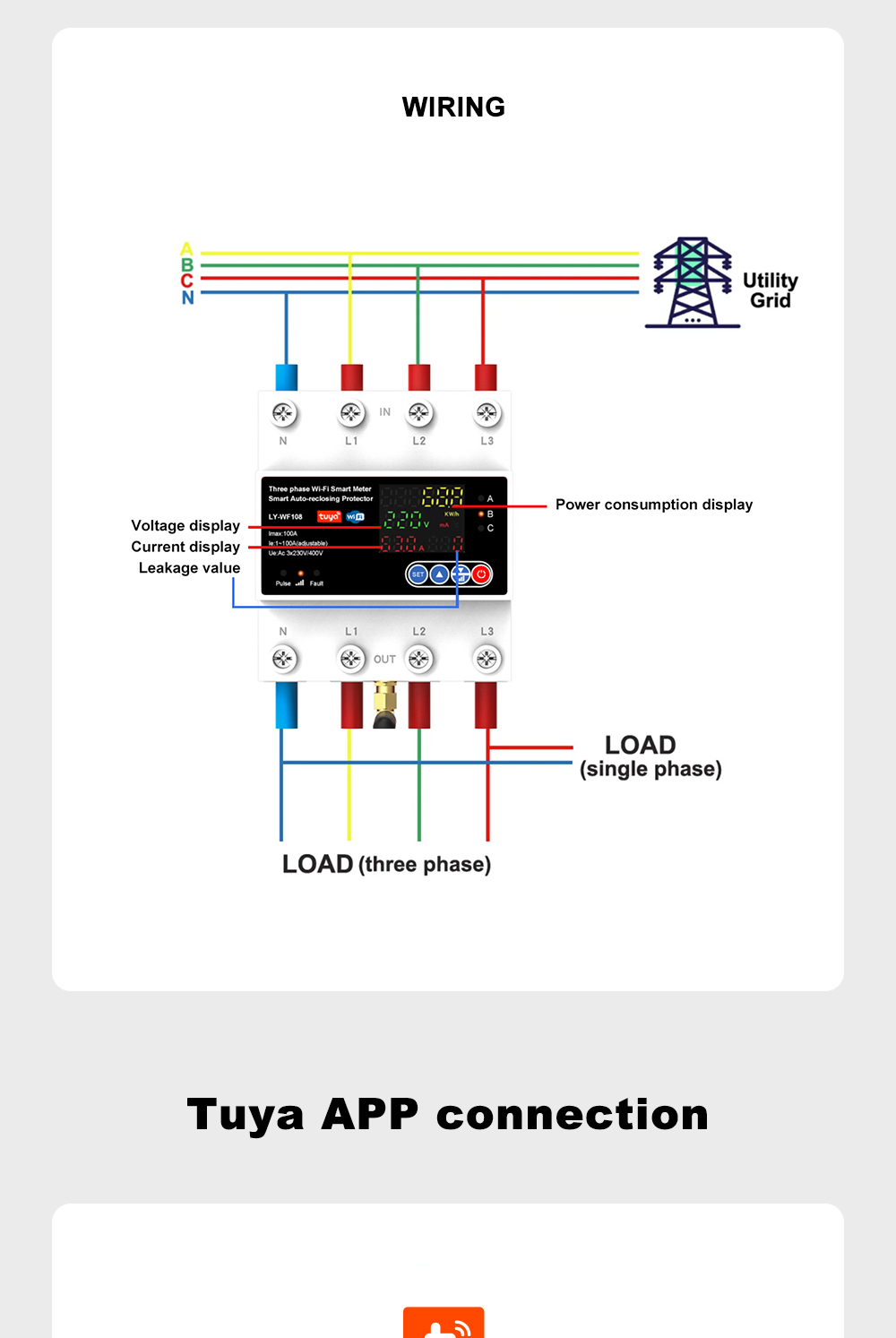

12. 2P ground wiring for surge protection, 4P three phase four wire solve three phase unbalance;

13. Local manual setting on device (no need support);

14. Auto-reclosing after protected conditions recovery;

15. Timing schedule programmable on App;

16. Device sharing among family or your m;

Note: If the protector trips 3 times due to leakage, it will not auto-reclosing until the fault fixed by user to ensure safety!
