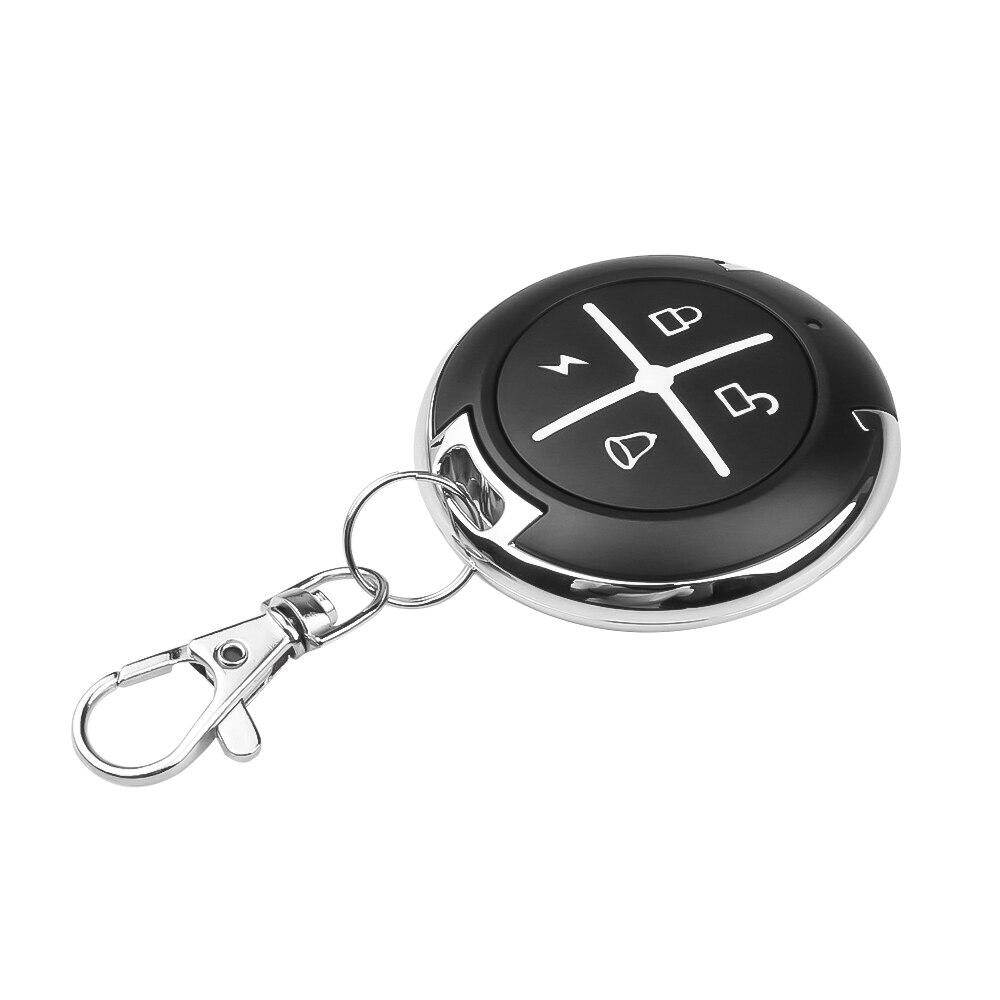

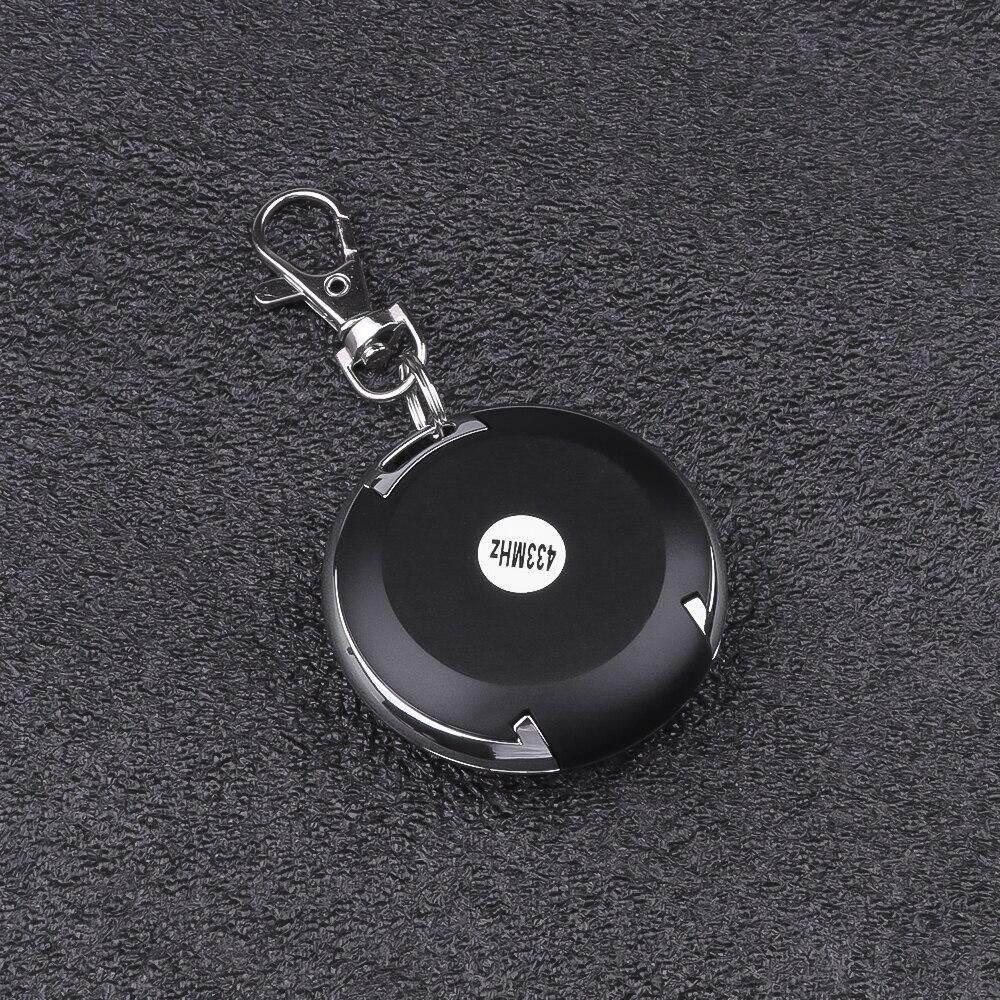

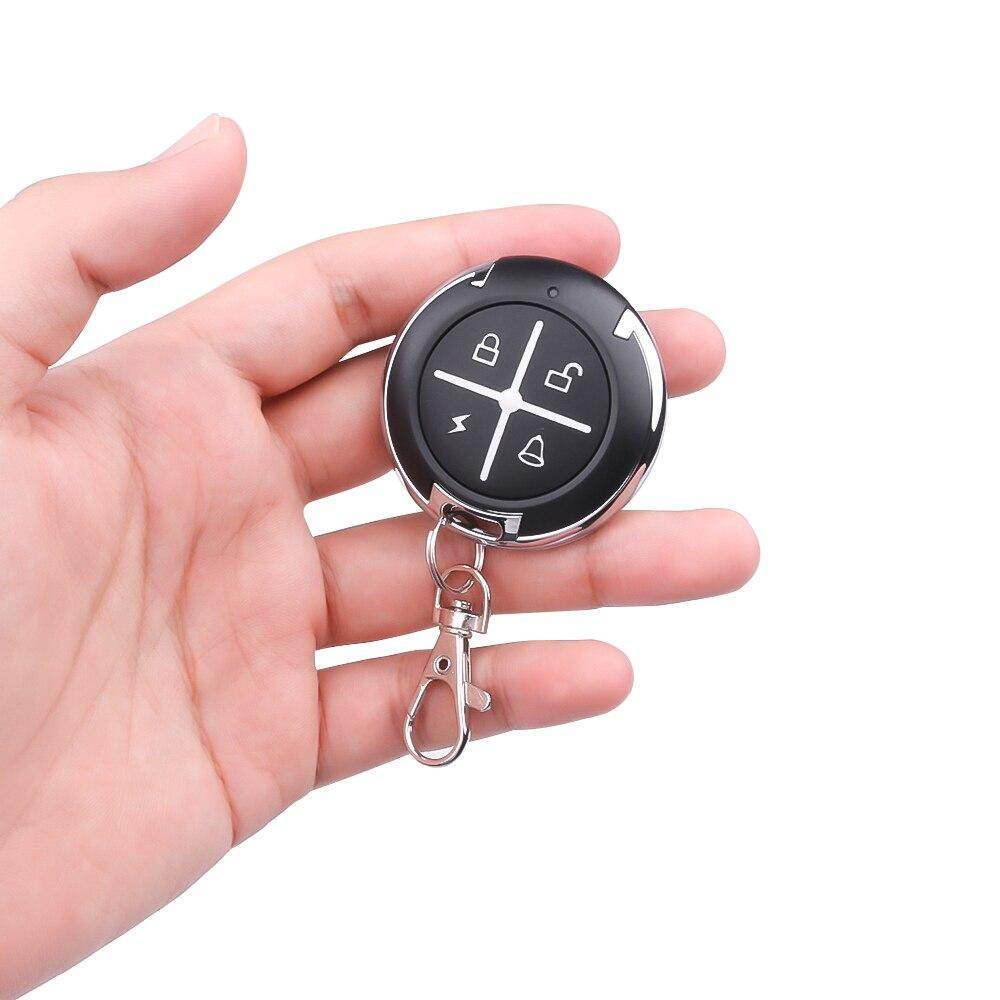

Điều Khiển Sao Chép Từ Xa 433Mhz Bộ Điều Khiển Sao Chép Điện Không Dây Cho Cổng Cửa Nhà Để Xe

Specifications:

1. Use for garage door, sliding door, gate, etc.

2. Easy to use, the 4 channel remote control system lets you take control of your gadgets, car, home, and garage.

3. Faster copy data speed, not easy losing code, far distance.

Features

Multi-functional and multi-variable, personalized and user-friendly simple design and fast to use.

This smart copy remote control is suitable for electric door remote control, telescopic door remote control, garage door remote control.

Cloning chip types:

2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.

Note: We usually do not recommend copying a rolling code chip, because there are many uncertainties when copying a rolling code chip. When copying a rolling code chip remote control, it is not possible to determine whether the original remote control chip is an encryption chip. Therefore, we do not recommend copying the rolling code remote control.

Code cleaning method:

1. Press the unlock button and lock button at the same time(some shells are the up button and down button)

2. after the LED indicator light flashes three times, loosen any one of the buttons while the other is kept pressing, then push the released button three times, the LED indicator will enter into the fast flashing status.

3. At this time all the memory data is cleared, the cleaned remote control will not have lighting LED indicator no matter which button you press.

Copy method:

One hand keeps the original remote controller, while another keeps the copy remote control, the two remote controls should be placed as closely as possible (the good situation is to put the two remote controls on the desktop side by side with zero distance), respectively press down the copy button, when the LED indicator light flashes quickly after three flashes, this copy is successful, other key operating methods are the same. Some remote control has a smaller transmitting power, so the original remote control should be placed back to the copy remote control to be operated. For the presence of noise, it should avoid interference to operate, If the copy is not successful, it should recopy after clearing code.

Package Includes:

1 x 433MHZ Remote Control （built-in battery)

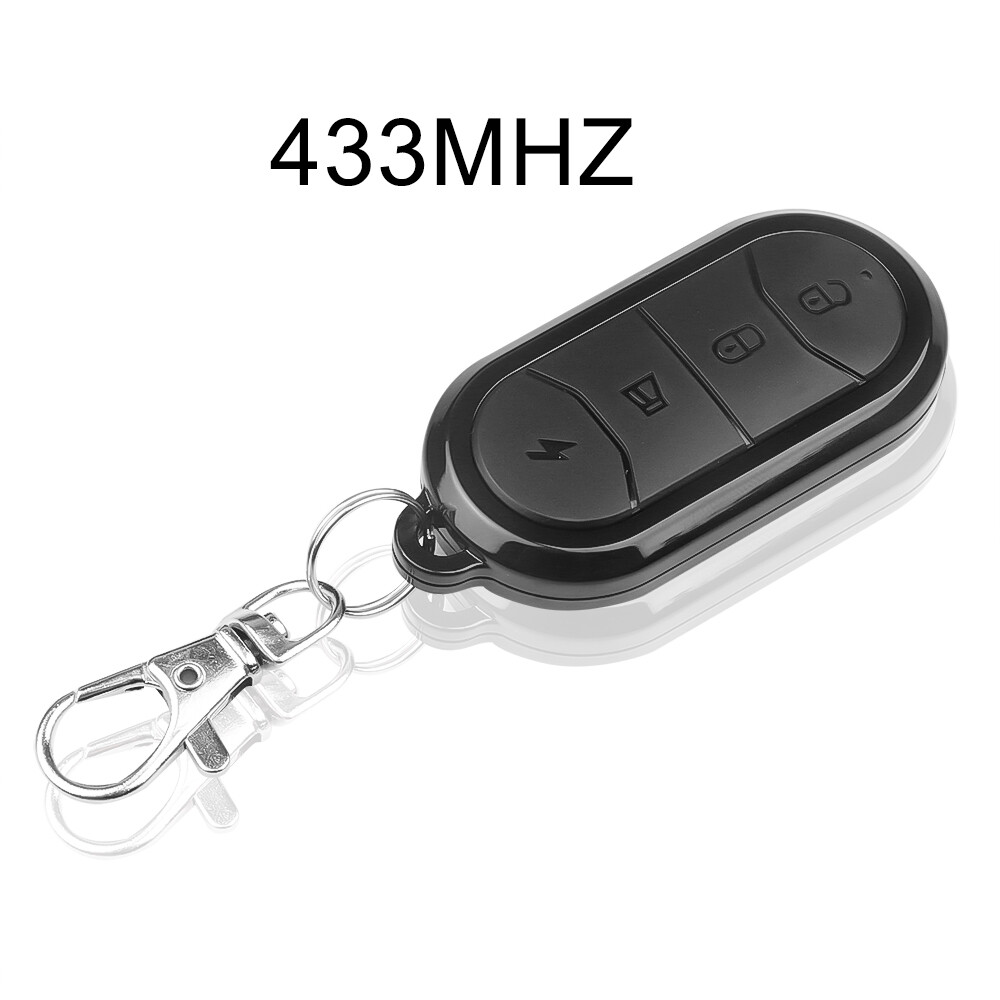

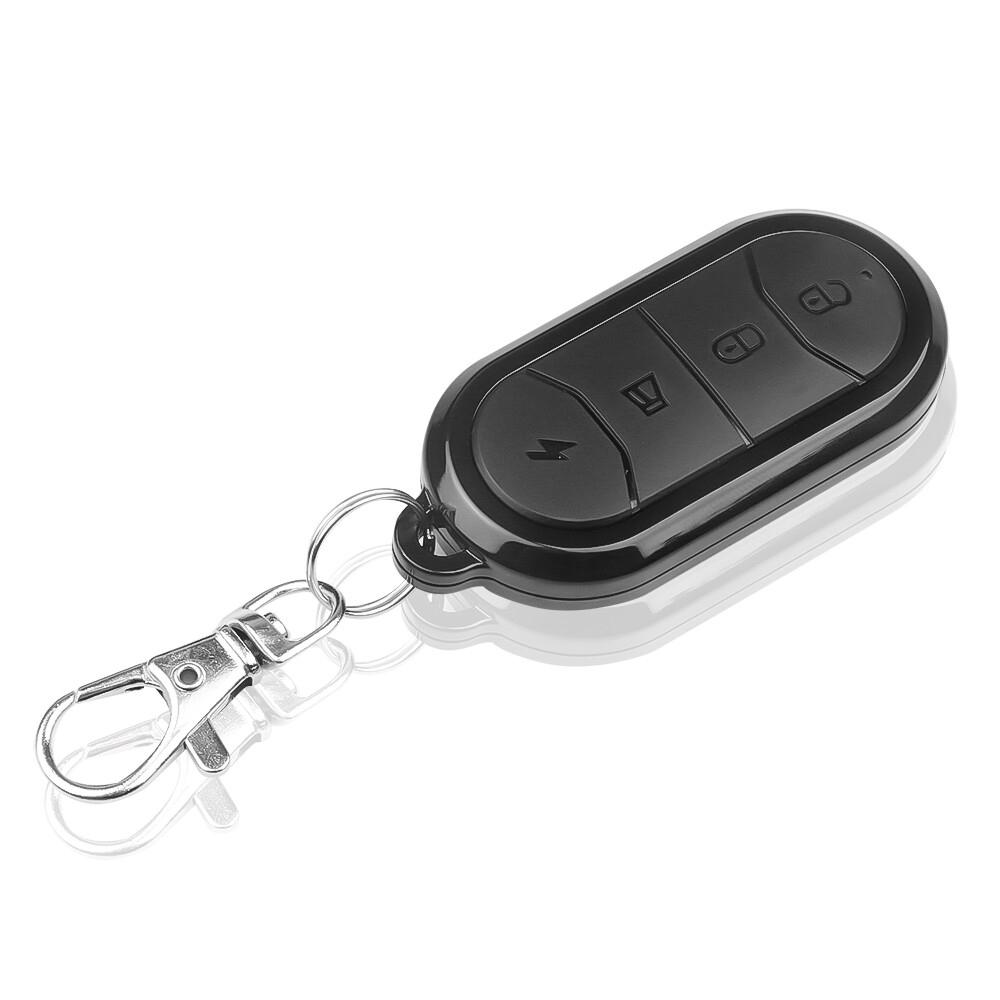

New Version

Copyable model:

1. PT2242. 2. PT2260. 3. PT2262. 4. EV1527. 5. 527. 6. PT2240. 7. SMC918. 8. HT-12E. 9.AX5326-3.10.AX5326-4 11.AX5026. 12. HT600 13. HT680.14. HT6207. 15. HT6010. 16. HT6012. 17. HT6014. 18. MC145026. 19. HT640. 20. SMC926. 21. HT12D and other fixed code and wireless remote control learning code.

Clear code method:

Press and hold the lock and unlock buttons at the same time when the LED indicator blinks 3 times, then release the right hand (don't let go of the left hand), press the right button three times with your right hand and see The indicator flashing continuously, the clear function is completed, which means all key storage data is erased.

After clearing the code, you can use the following operations to restore the last used data before copying the new data. When you press the two buttons on the remote control at the same time, wait three seconds to see the indicator flashing and the data recovery function is complete, which means all data is restored by pressing the.

Copy:

Once the code is cleared, place the remote control to be copied and the remote control on the same desk. Close together, press and hold the copy button and the remote control button at the same time, after seeing the light flashing five times, then it is always on, it proves the copy is successful.

Precautions:

1. When copying, the distance between the copy remote control and the copied remote control cannot be very far. Long distance will result in incomplete data copying and large copy oscillation resistance error. When copying, the copy remote control should be as close as possible to the copied remote control. Although this copy remote control achieves high field strength reception, this is to infinitely reduce copy data errors and oscillation resistance errors, and improve copy accuracy.

2. Do not place the remote control on a metal surface to copy, as this will reduce the copy distance and the accuracy of the copy settings.

3. Try not to copy when the battery is low, which will affect the copy accuracy to some extent.

4. When copying, try not to hold it in your hand and place it on the table for tight operation.

5. Do not open the remote control at will and do not store or use the remote control in high temperature, high pressure and high humidity environment.

6. When replacing the battery, please install the battery polarity correctly.

Package Included:

1 * 433MHZ / 315Mhz remote control duplicator (including battery)

Notes:

1. Please allow 1-3mm differs due to manual measurement.

2. Due to the different display and different light, the picture may not show the actual color of the item. Thank you for your understanding.
