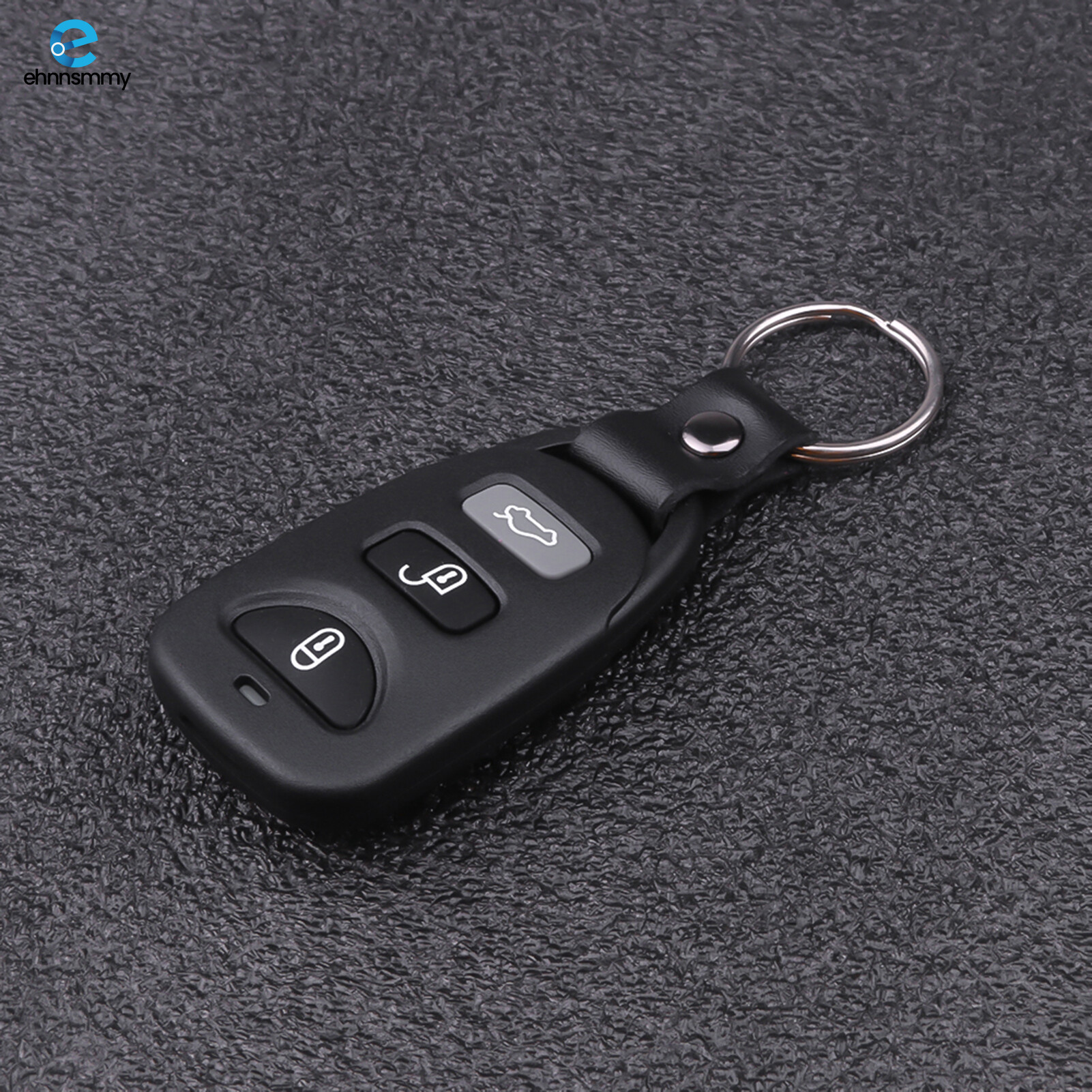

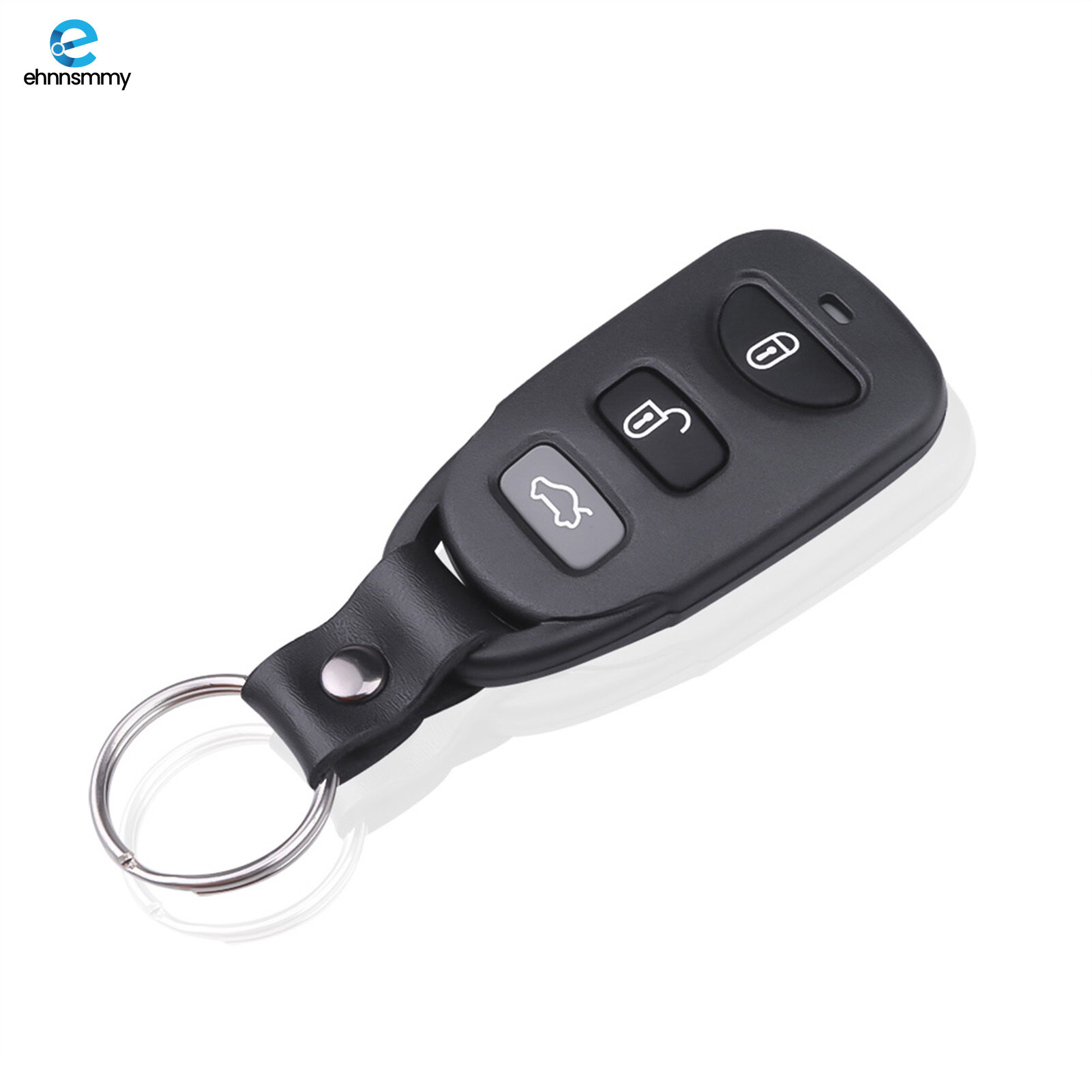

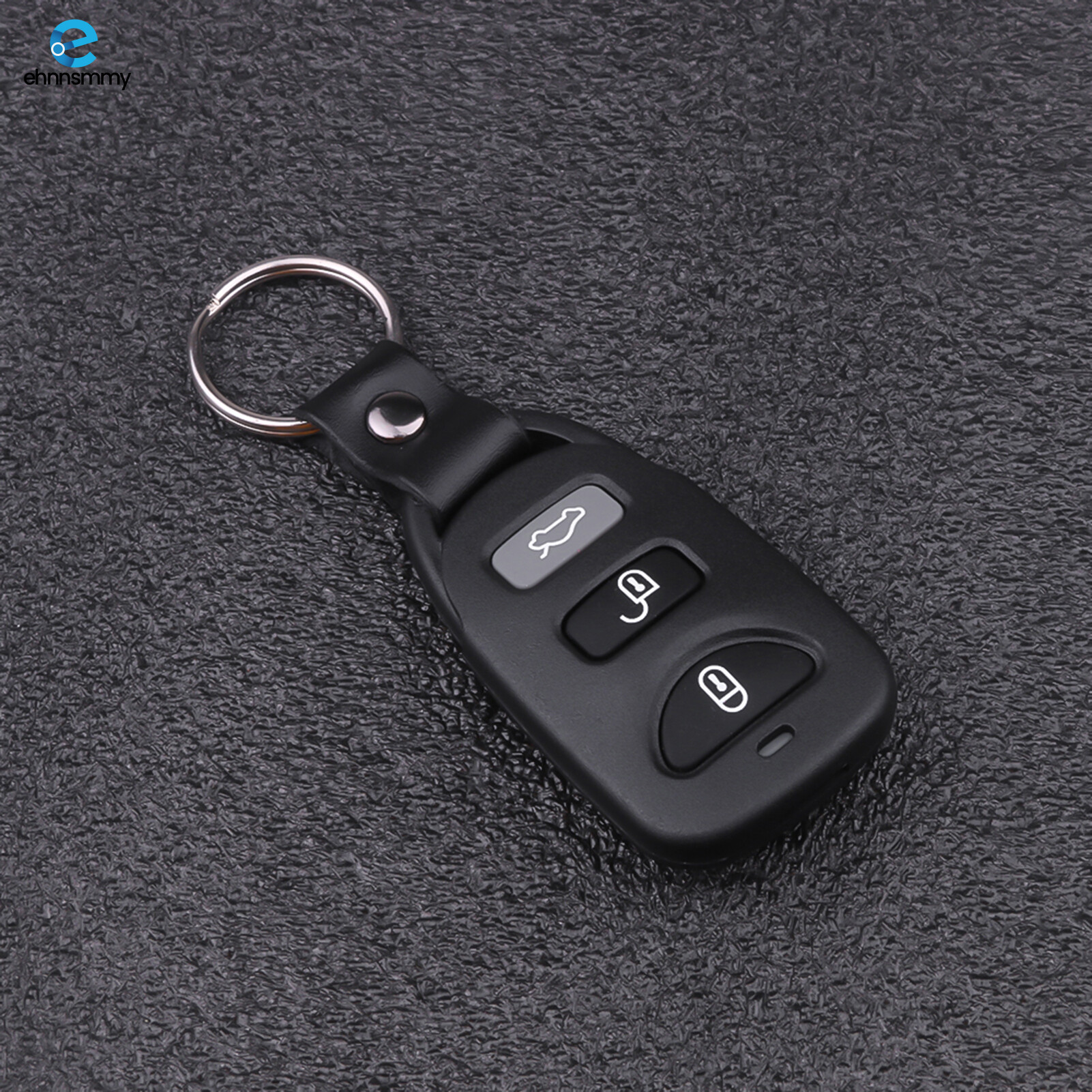

4-Button Learning Remote Control Clone Fixed Learning Code RF Transmitter with Key Ring for Cars Garage Doors Gates

Features:

High Compatibility: Most of the common remote control can be copied, the operation is simple, and it can be used immediately after copying.
Good Hand Feel: Smooth design rubber buttons, crisp feel and clear feedback. Slim and compact size, easy to carry.
Indicator Light: Built-in high brightness LED lamp beads, the working status is clear at a glance.
Wide Adaptability: It can be used in e-scooter, garage doors, gate access control, and auto parts modification fields.
Precondition: The original remote control's functionality is normal, its chip is identical or compatible, and its working frequency is the same.

Scope of application of remote control:
Ordinary fixed code (chip type 2260, 2262, 2264), learning code (1527, 2240) remote control.

Copyable chip
1. HT-12E, 2. AX5326-3, 3. AX5326-4, 4. AX5026, 5. PT2262, 6. PT2242, 7. HT600, 8. HT680, 9. HT6207, 10. HT6010, 11. HT6012, 12. HT6014, 13. MC145026, 14. HT640, 15.EV1527, 16.527, 17.PT2260, 18.SMC918, 19.SMC926, 20.HT12D, 21.PT2240B etc.

Notice:

Actual color may be slightly different from the image due to different display and light effect.
Please allow 1-3cm deviation due to manual measurement.
If you're not sure what chip it is, you can turn on the remote and send us the photo. We will contact our technicians to check if it can be reproduced.

Description:

Working voltage: DC 12V
Working current: 14mA
Quiescent current: 0mA
Working frequency: 315/433 (other frequencies can be customized)
Transmit power: 10mW
Launch distance: 100m (open environment)
Battery: included

Operation:
1. Pairing (learning)
Move the original remote control and the copied remote control as close as possible, first press and hold a button of the original remote control, and immediately after the indicator light is on, press and hold a button of the self-copying remote control for about three seconds, the LED will flash 3 times and then quickly Flashing, it means that the address code of the original remote control button has been successfully learned. The other keys are operated in the same way to learn.

2. Clear code
Press and hold the unlock button and the lock button at the same time for 2 seconds and then the LED light starts to flash 3 times. At this time, keep pressing the lock button and release the unlock button. Press the unlock button three or four times in a row within 5 seconds, and the indicator light flashes quickly, which means that code has been cleared.
Test whether the existing code of the remote control has been successfully cleared: When you finish the clearing operation, you can press any key of the copy remote control. If the LED does not flash immediately at this time, but will flash after 2 seconds, it means that The original code of the copied remote control has been completely cleared. If the LED still flashes quickly and immediately, it means that the code still exists and needs to be cleared again.

3. Restore the cleared code

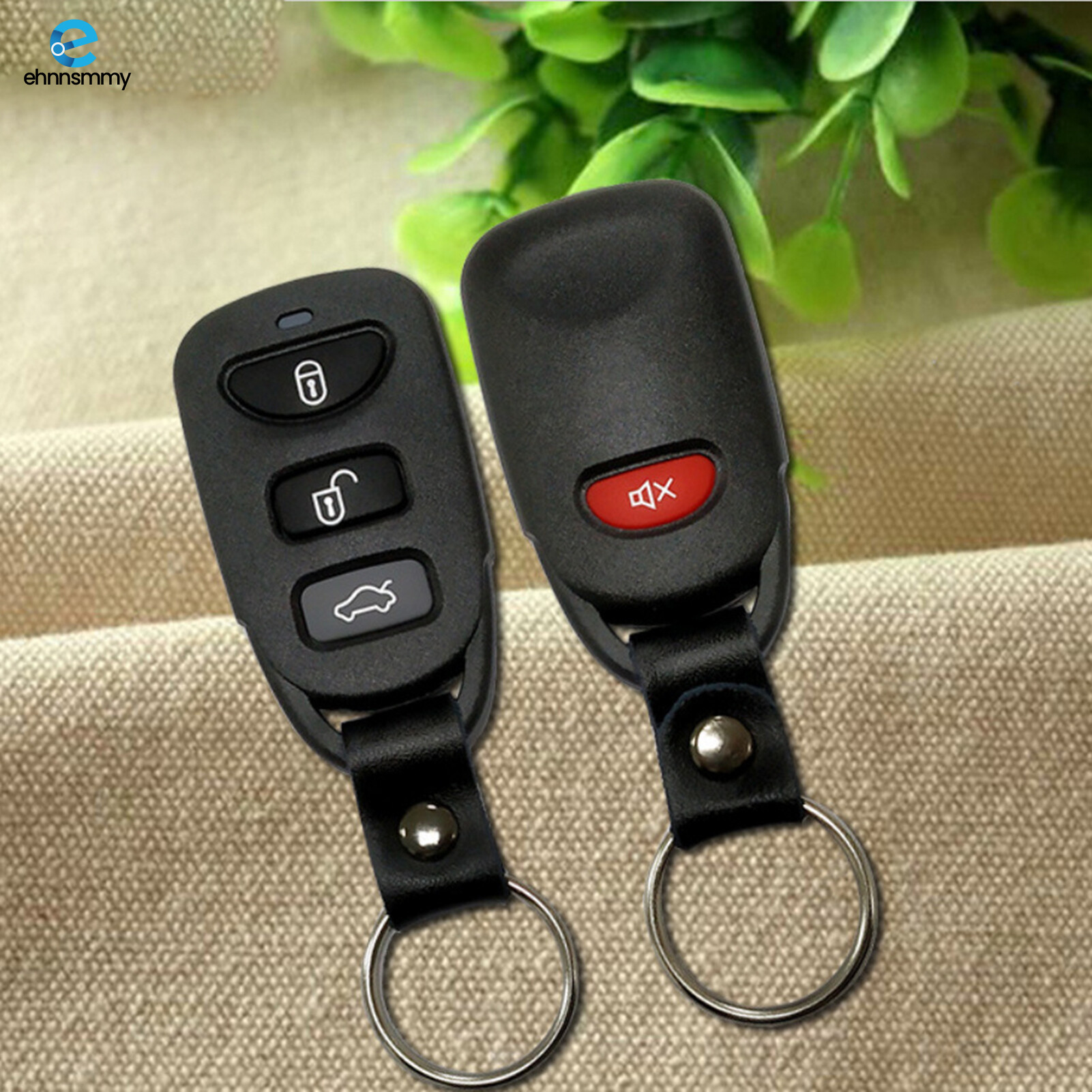

The copy remote control has a recovery function. If you accidentally clear the address code of the normal copy remote control during use, you can press the start and mute buttons (the bottom two buttons) on the remote control at the same time for about three seconds, and the LED will flash 3 times. It starts to flash rapidly, which indicates that the cleared address code has been successfully restored.

Include:

1 x Duplicator Remote
