Feature:

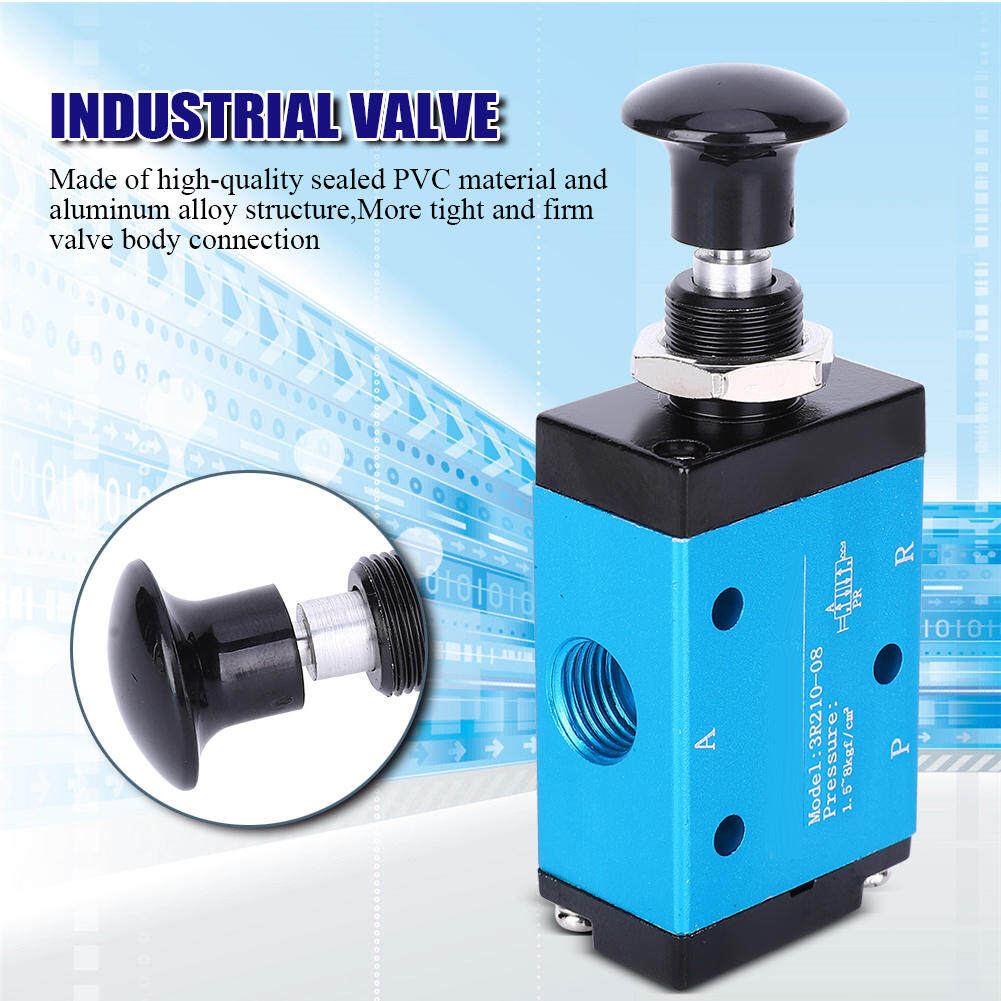

1. Valve body is made of high-quality sealed PVC material and aluminum alloy structure, making the whole valve body connection more tight and firm.2. Round control handle is in the same direction as the shaft, easy to operate for reliable and precise positioning.
3. High-precision valve rod and seal design keep good breathability, which is with high performance.
4. The inner hole is processed by a special process with low resistance for long service life.
5. Air valve is in small size, light weight with good sealing, which also supports easy installation.
Specification:

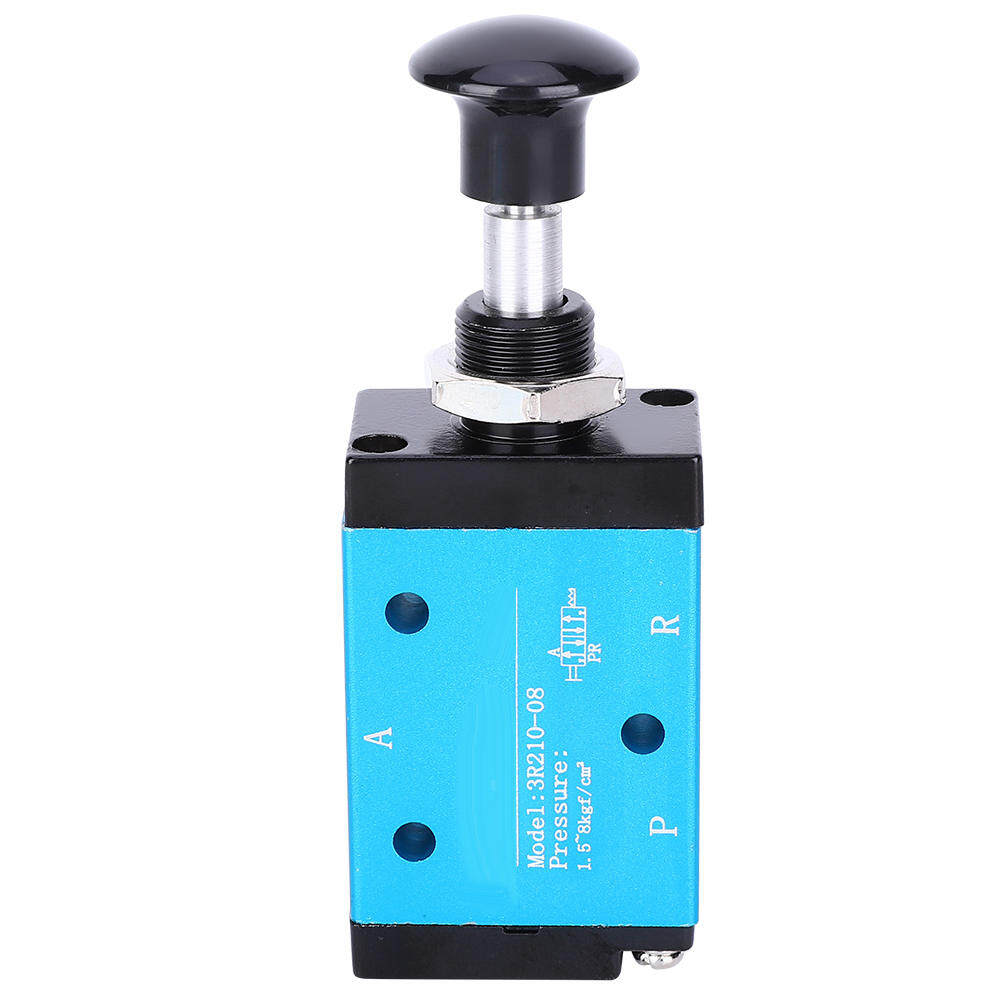

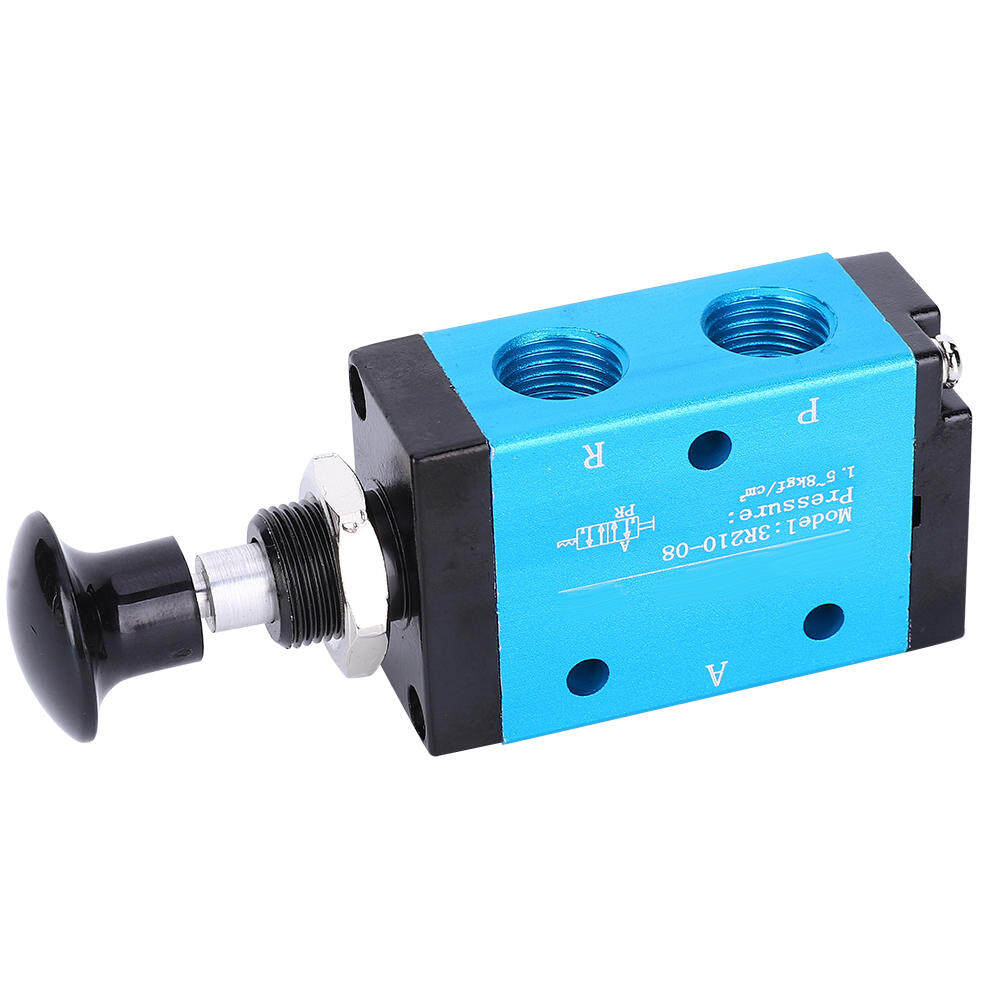

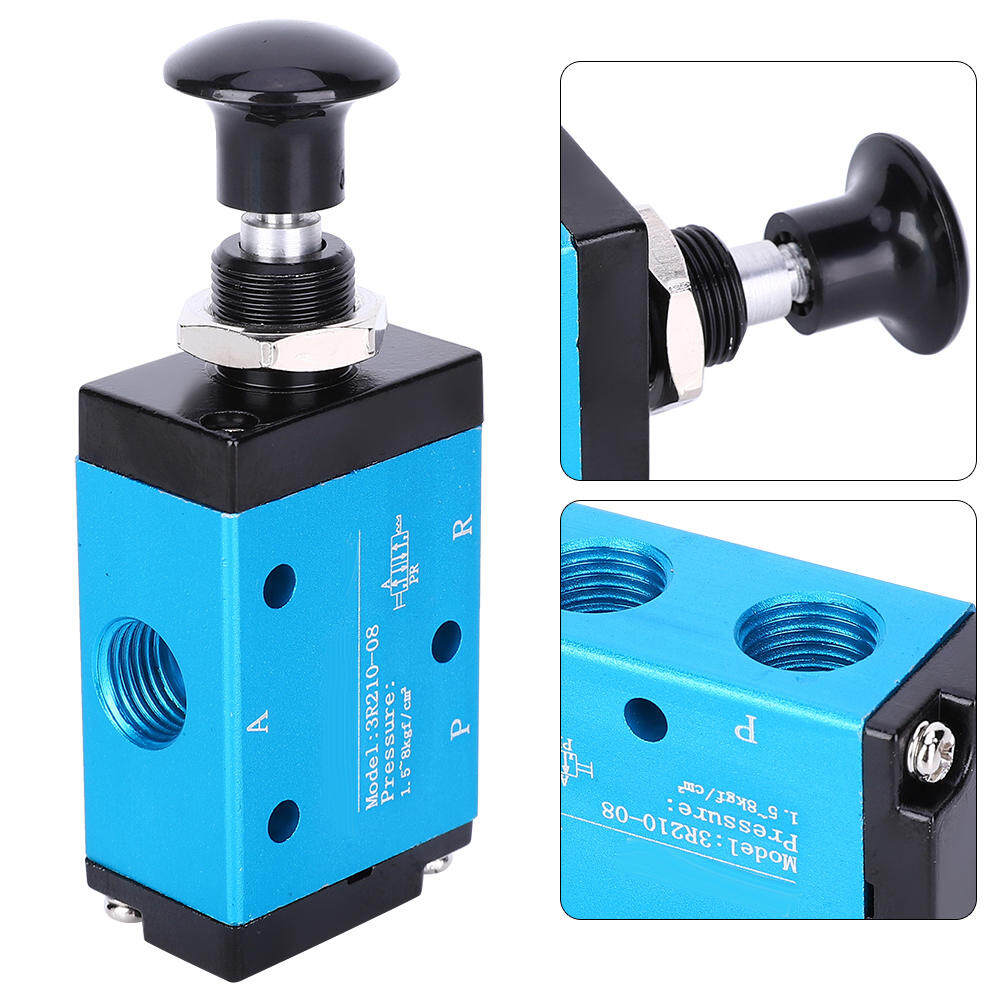

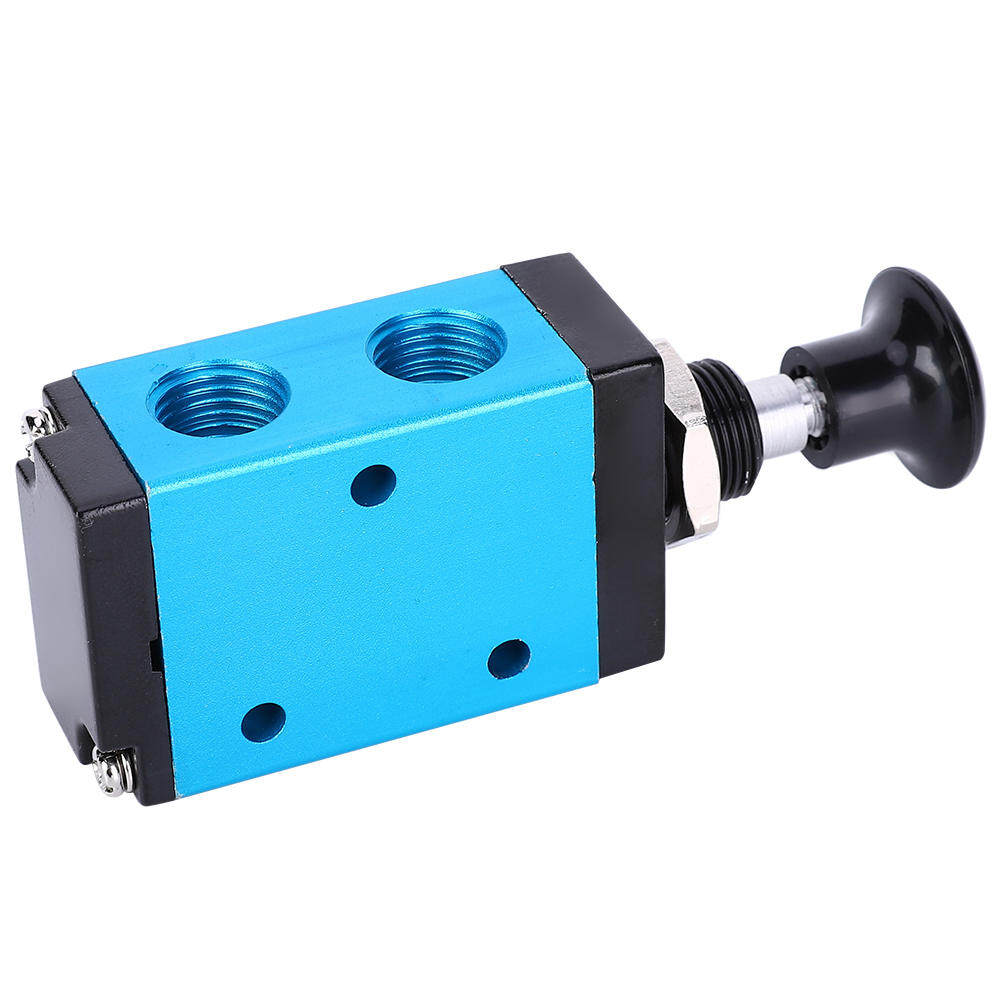

Item Type: Hand valve

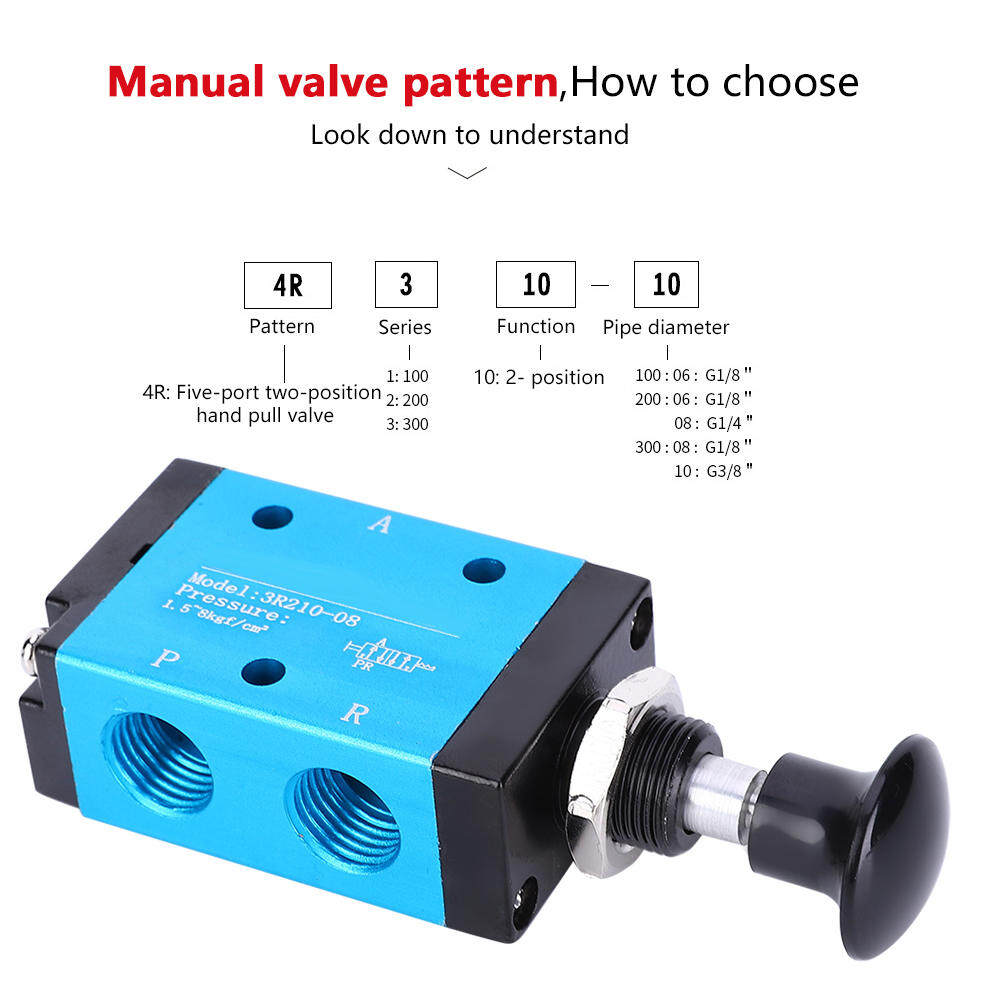

Model: 3R210-08
Working Medium: Compressed air
Action Mode: Manual control direct acting
Number of Positions: Two-position Three-way
Effective forCross-Sectional Area: 16.0mm² (Cv = 0.89)
Pipe Diameter: Intake = exhaust = G1 / 4, exhaust = G18
Lubrication: Not required
Working Pressure: 0-0.8MPa
Maximum Pressure Resistance: 1.0MPa
Working Temperature: 0-60 ℃
Body Material: Aluminum alloy
Seal Material: BNR
Model: 3R210-08
Working Medium: Compressed air
Action Mode: Manual control direct acting
Number of Positions: Two-position Three-way
Effective forCross-Sectional Area: 16.0mm² (Cv = 0.89)
Pipe Diameter: Intake = exhaust = G1 / 4, exhaust = G18
Lubrication: Not required
Working Pressure: 0-0.8MPa
Maximum Pressure Resistance: 1.0MPa
Working Temperature: 0-60 ℃
Body Material: Aluminum alloy
Seal Material: BNR
Package List:
1 x Hand Valve
