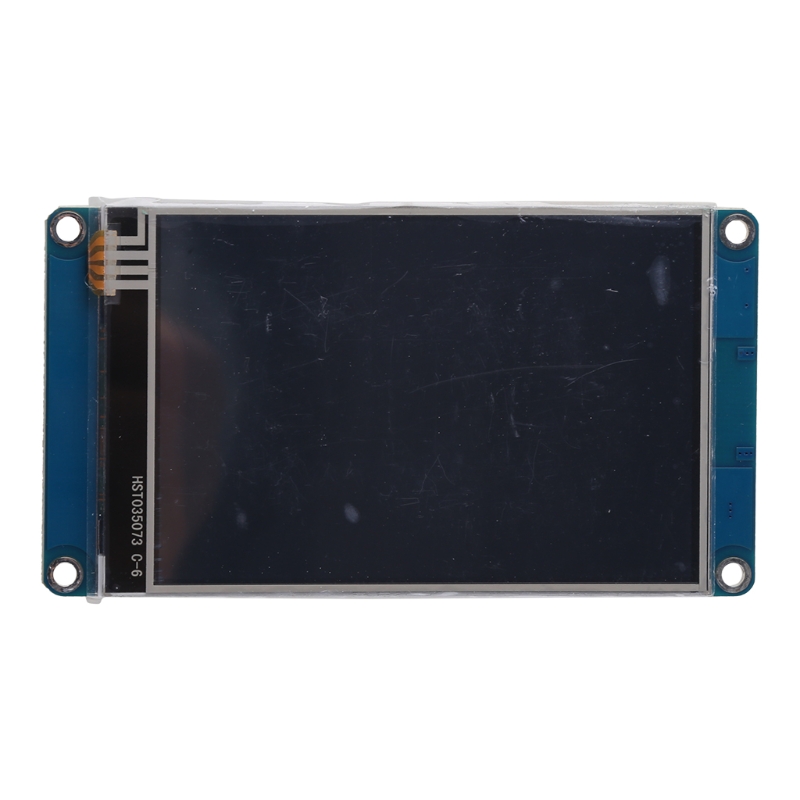

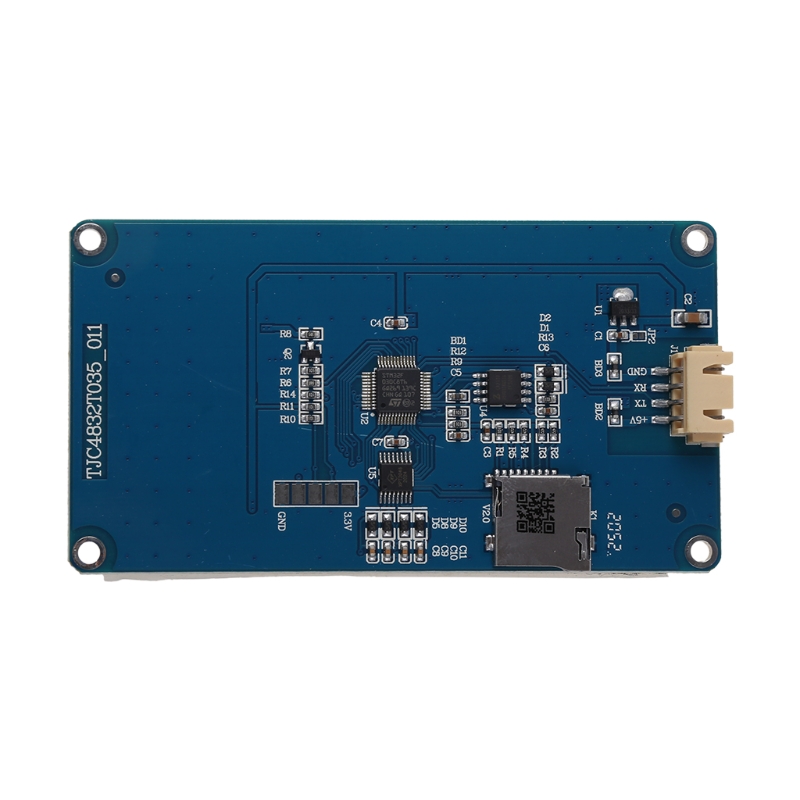

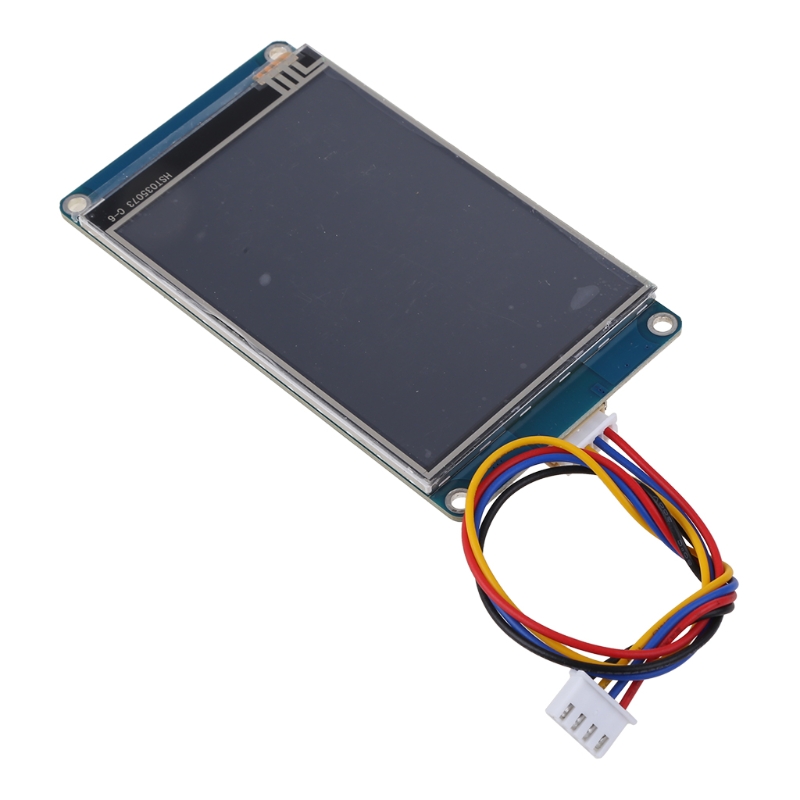

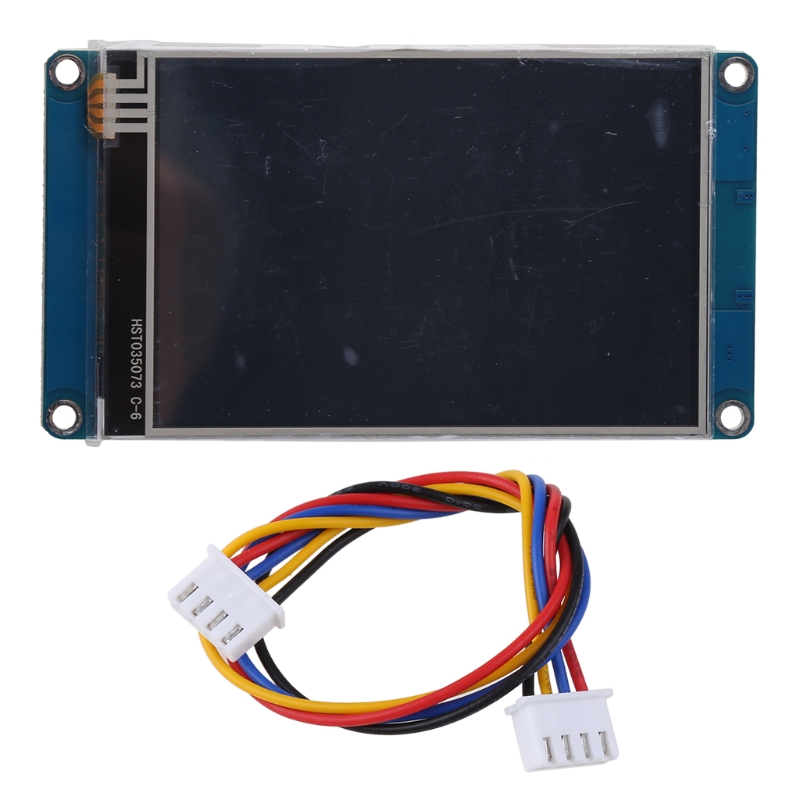

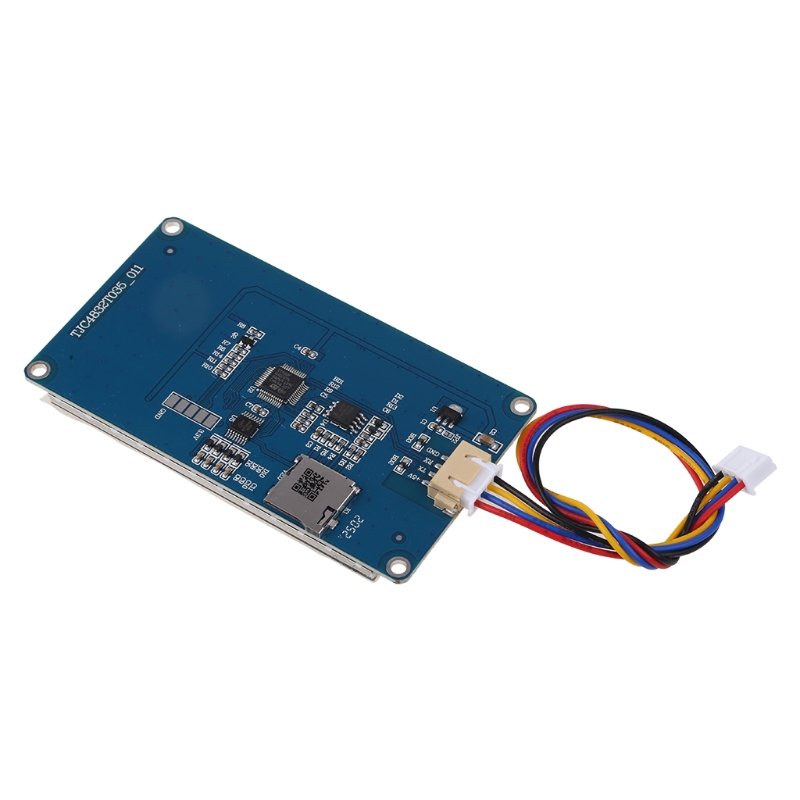

3.5" HMI TFT LCD Touch Display Screen Module 480x320 for Raspberry Pi 3 Arduino

Features:
16-bit True Color RGB display
Support a variety of configuration controls: button controls, progress bar controls, text controls, pointer controls
With font: You can customize any WINDOWS font
Support basic GUI instructions (drawing, drawing, drawing rectangle, etc.)
Support picture format BMP, JPG, JPEG, PNG
Support the host software automatically upgrade, the device firmware automatically upgrade
100-level backlight dimming, sleep mode, sleep current 20MA, support for wake-up function.
Support serial download and SD card download two ways to support PC-side analog debugging, support simulator and equipment synchronization debugging

Note: The LCD screen is Chinese version, buying carefully if you mind,thanks for your understanding.

Specifications:
Touch mode:Resistive touch
Resolution: 480 * 320
Display area diagonal size: 3.5INCH
Communication interface: USART serial interface
Interface level 3.3V / 5V TTL level
Working voltage: 4.75-7V
Working temperature: -20-70 ℃
FLASH space: 16MB
RAM space: 3584BYTE
Product size:10*5.5cm/3.93*2.17inch
Quantity：1Pc
Note:
Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.
And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package included:
1Pc x LCD Touch Display Module
