315/433Mhz Universal Wireless Copy Code Remote Control Controller 4 Channel Electric Cloning Gate Garage Door Auto Keychain

Description:
100% brand new and high quality.
Feature:
One to one key copy, Each key password alone save, Privacy is strong.
Can continuous repetitive copy use one million times.
Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products.
Works with the following remote control IC modules (please check your original remote control before ordering), and your remotes also should be Fixed code or IC of original remote control is PT2262 PT2264 SC2262 SC2260 HS2262 2260 LX2262 2260 EV1527 PT2240 or without code.
Remote Controller only, other accessories demo in the picture is not included!

Specifications:
Item Type: Remote Controller
Model Number: AK-KBK02
Material: Walnut+Metal

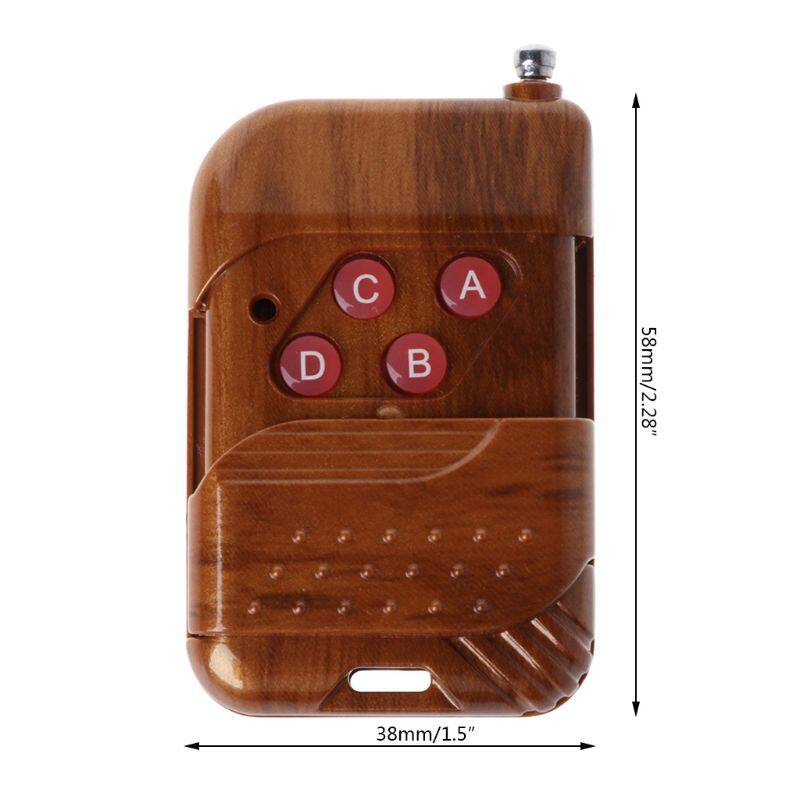

Size: 58x38mm/2.28x1.5in
Color: Wooden Color

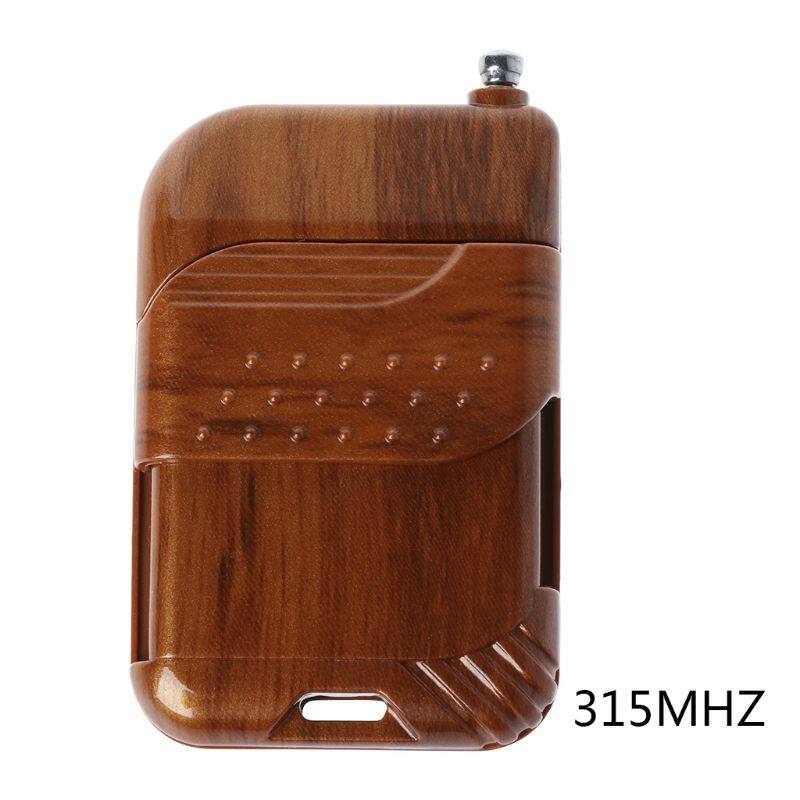

Working Frequency: 315MHZ, 433MHZ(Optional)
Working Voltage: DC12V
Operating Current: <=8mA
Modulation Mode: ASK(AM)
Transmission Power: <=100mW
Emission Distance: 50-100m (proof)
Encoding Type: Self Copy
Quantity: 1 Pc

How to Program:
1.Press the One and Three buttons until the LED flashes-it takes around 3 seconds.
2.Place the cloner remote and the original remote close together/side by side so that they are touching.
3.Press a button on your original remote in the same time and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. (The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily for successful cloning).
4.Now programming is successful! If you want to program more buttons just repeat steps 2-4. To reset the remote simply start again with step.

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
The essential condition for the selection of the remote control; the copied remote control operates normal,chip is compatible and frequency is correct.
Before buying, please make sure the copied remote control operating frequency or choose & buy the frequency adjustable type remote control.
Before buying, please confirm whether your remote control can be copyed or not.
Our remote control can copy the fixed codes and learning codes rather than stealth codes.It can't copy original car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly, such as HCS200, HCS201, HCS300, HCS301, etc.).

Package Includes:
1 x Remote Controller
