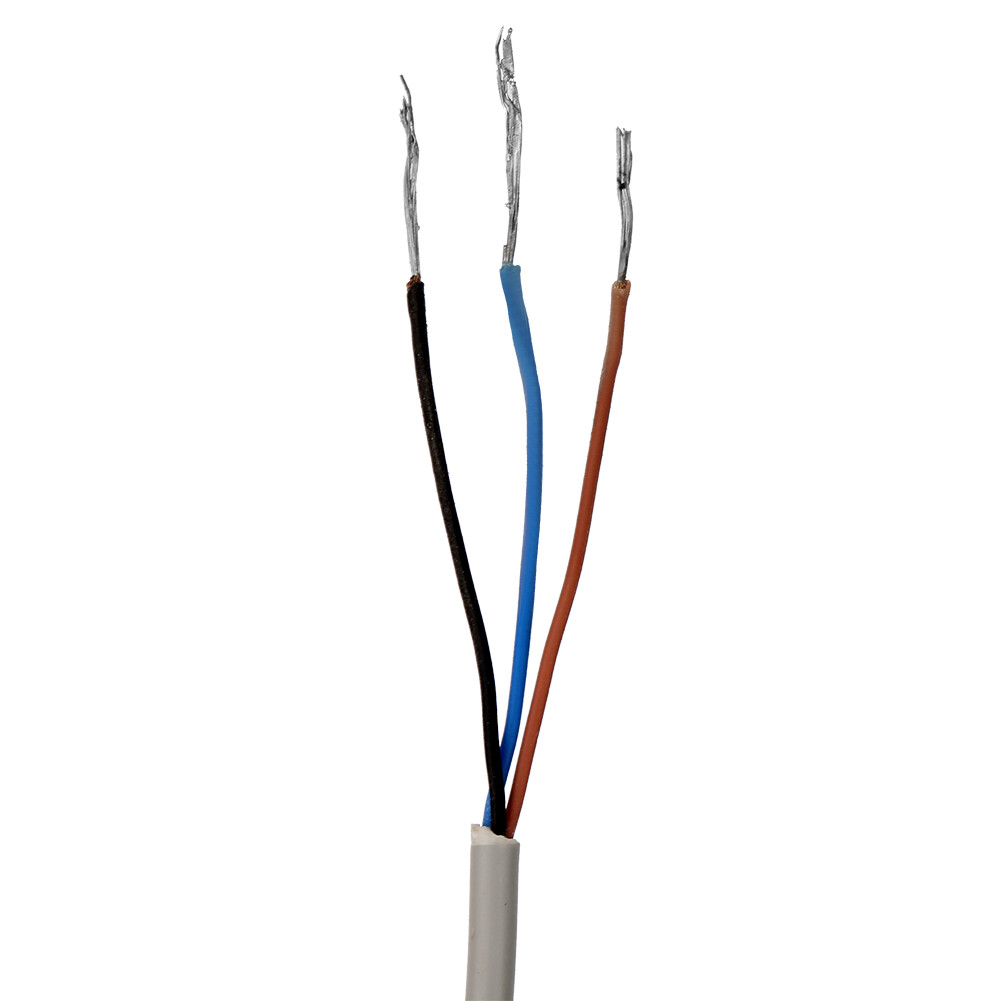

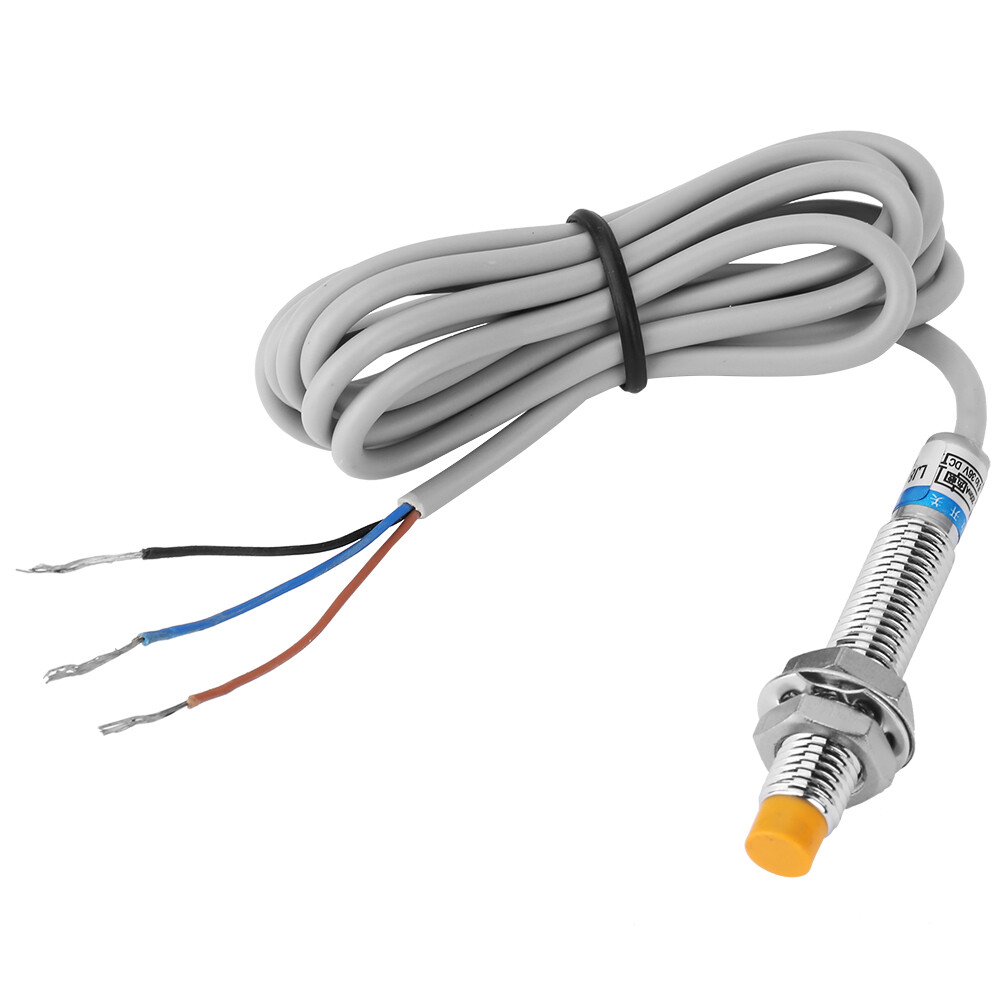

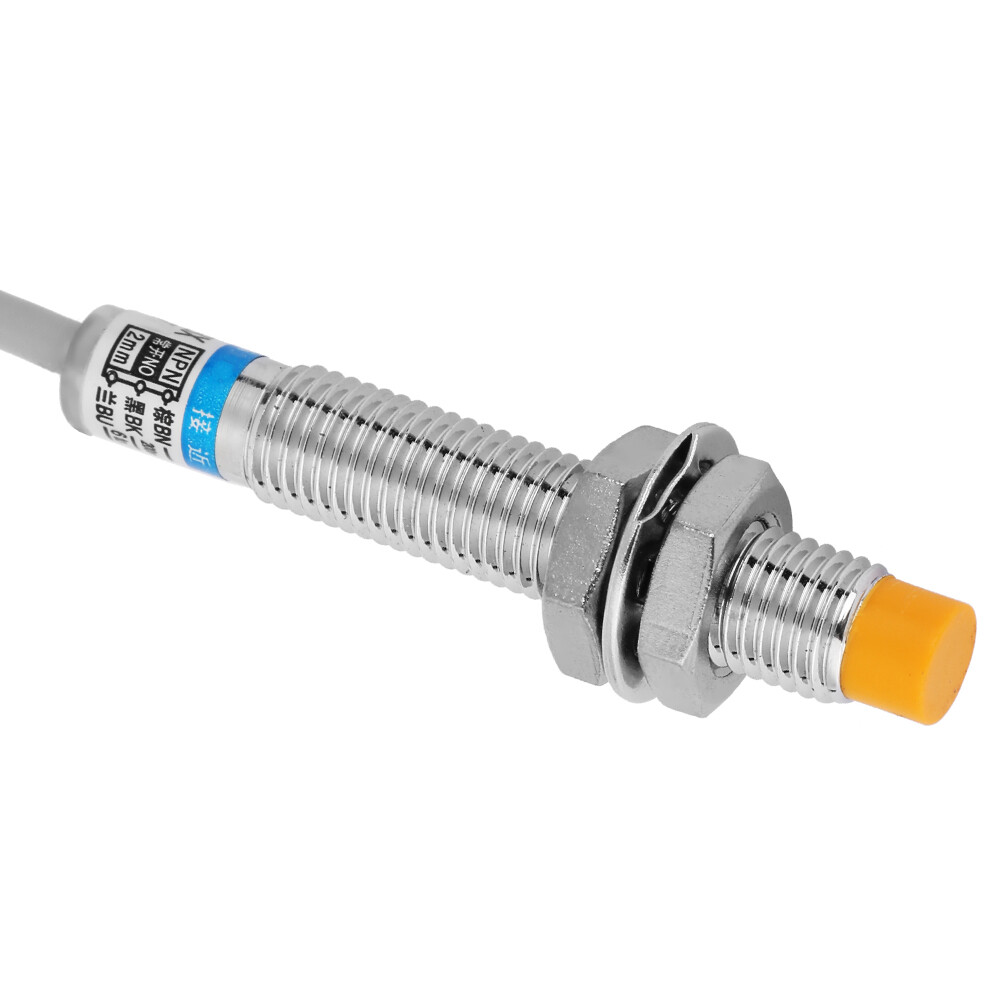

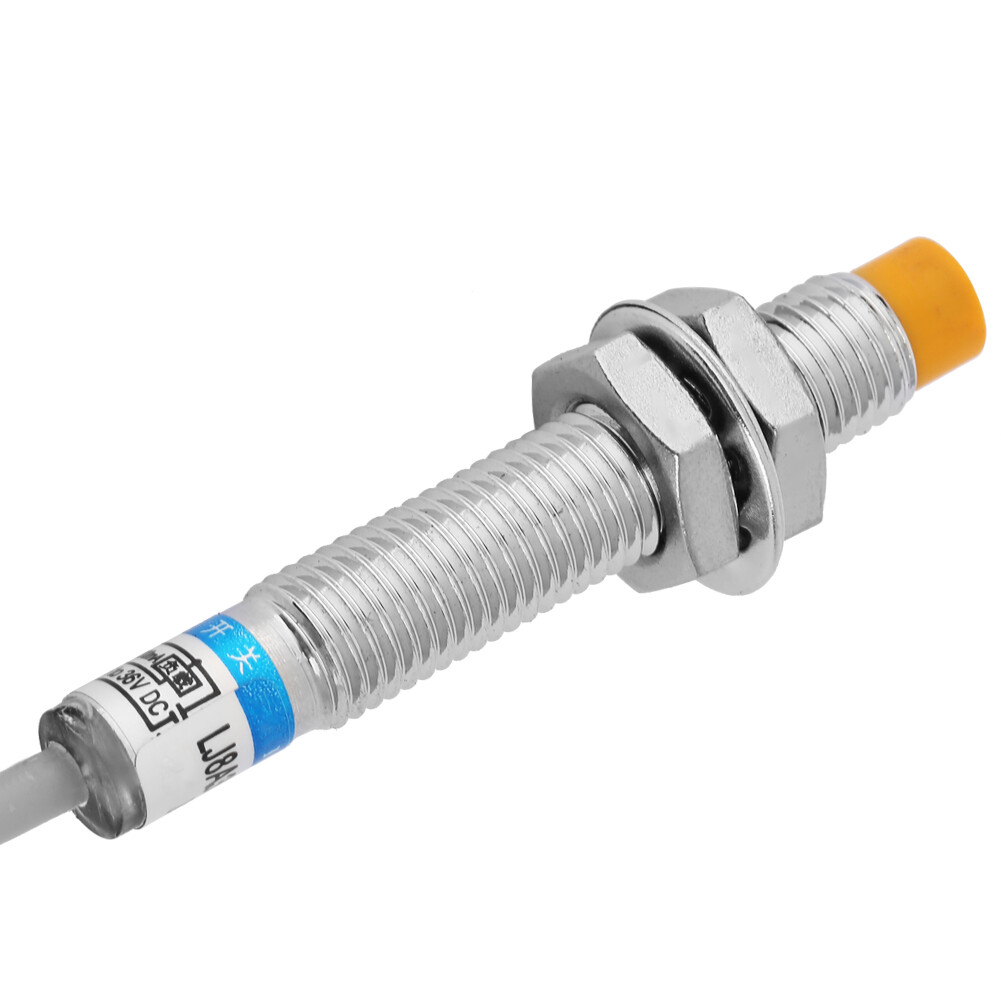

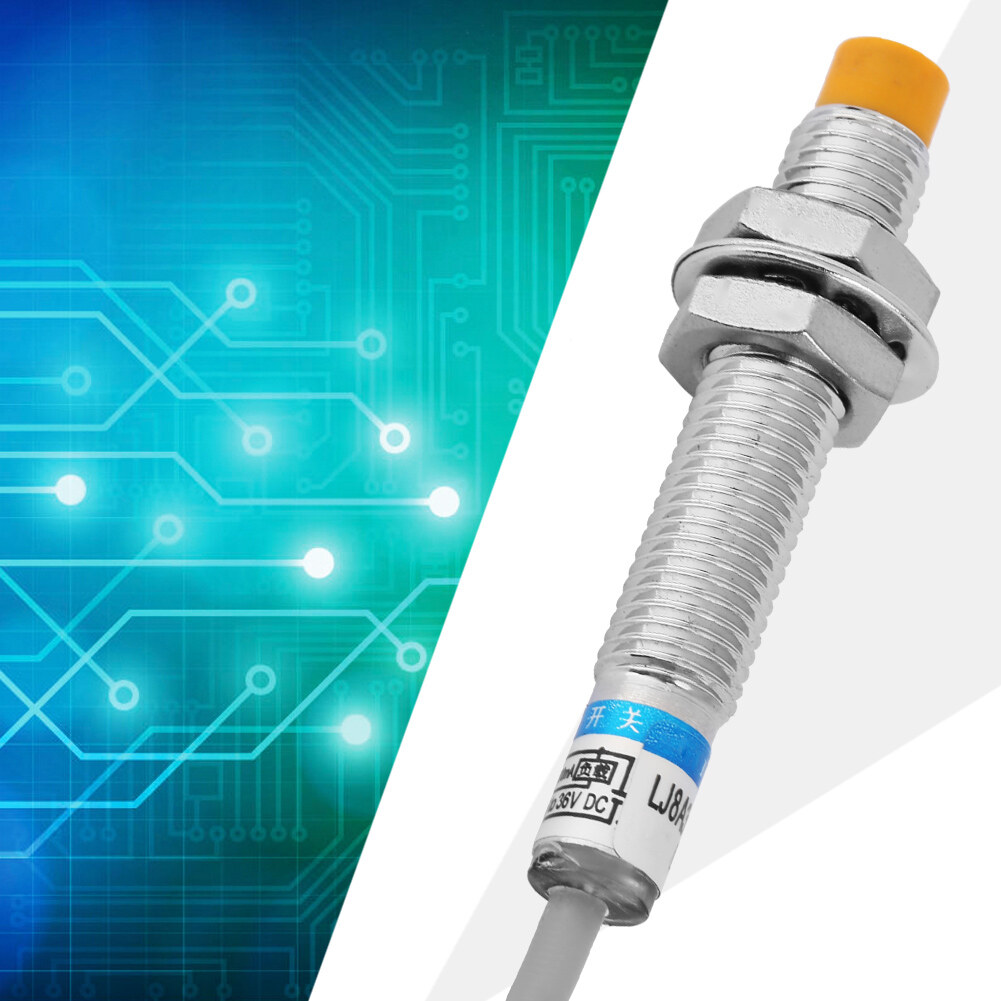

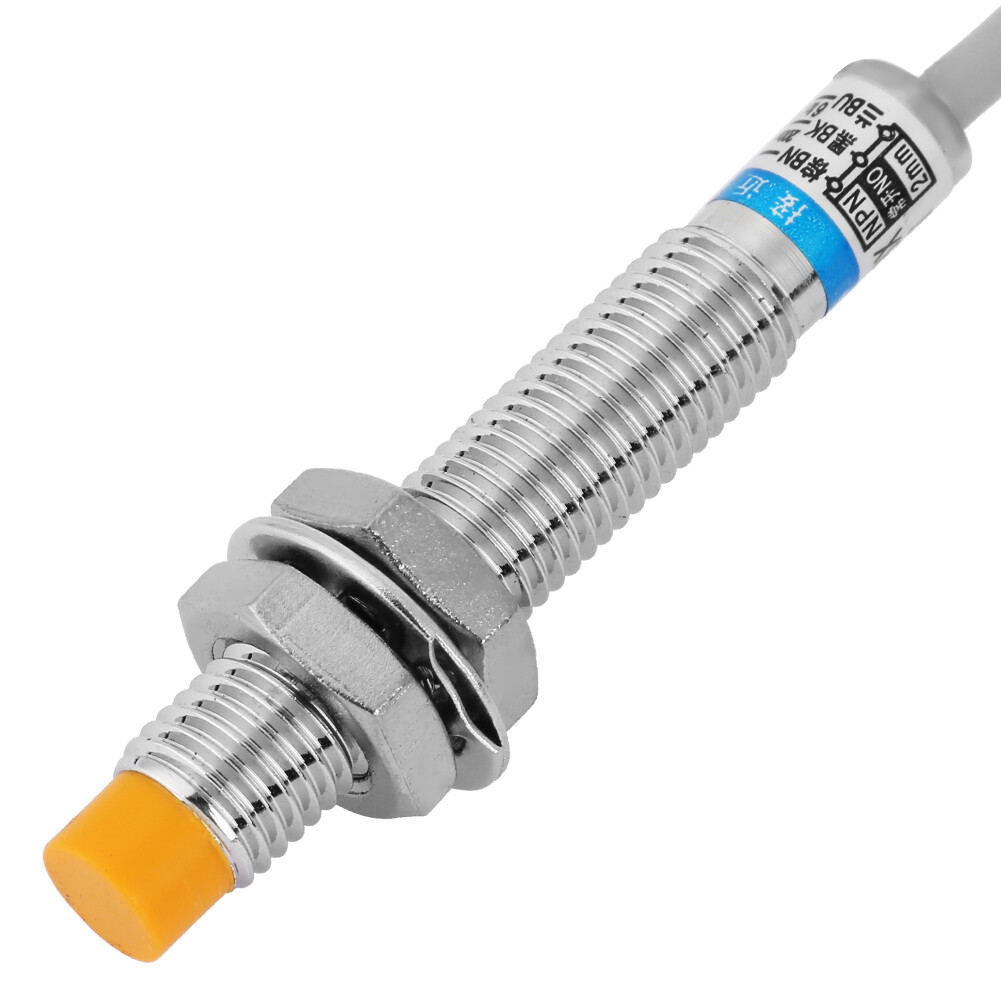

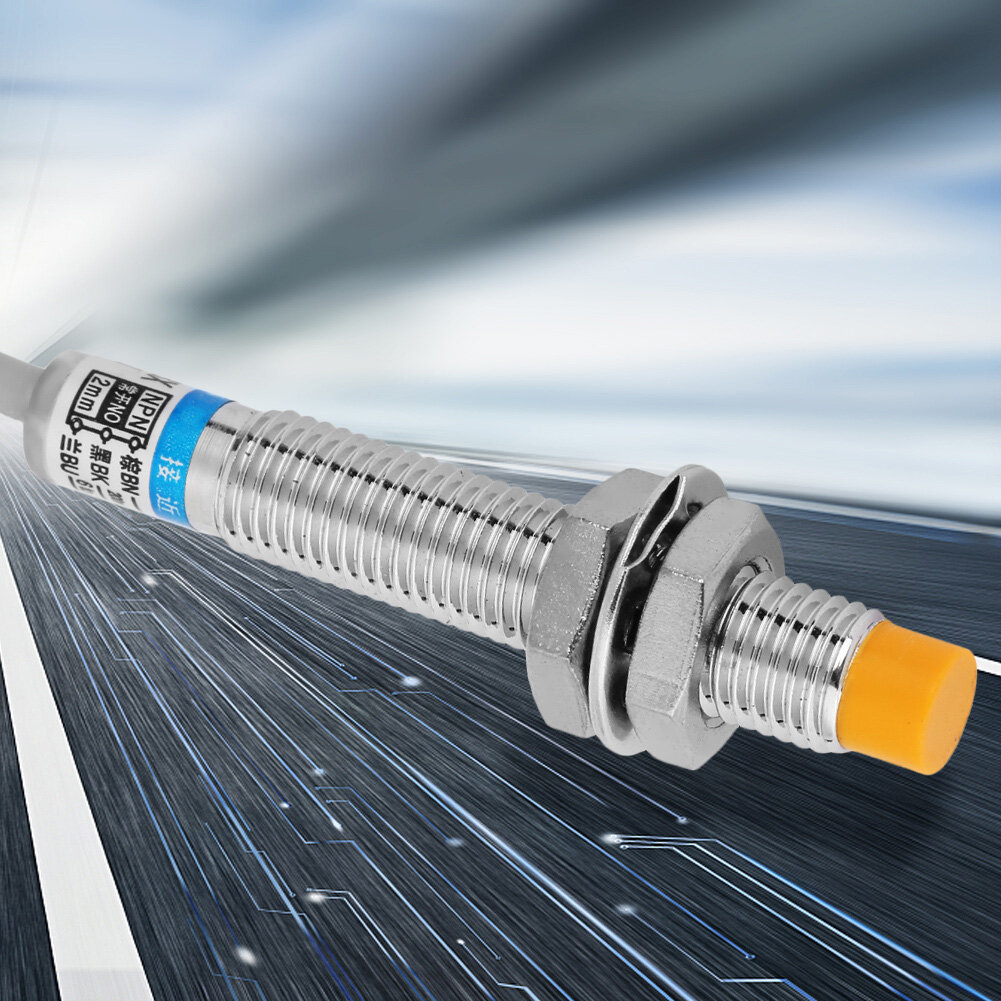

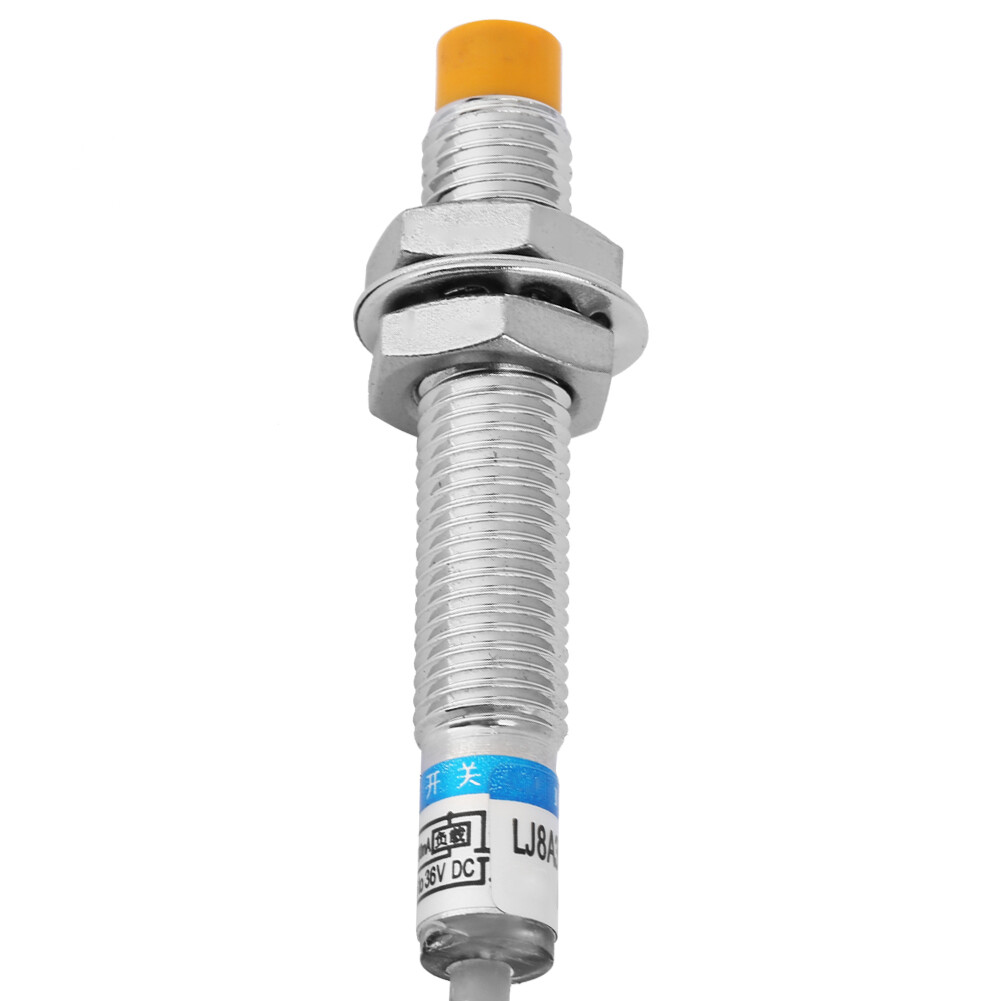

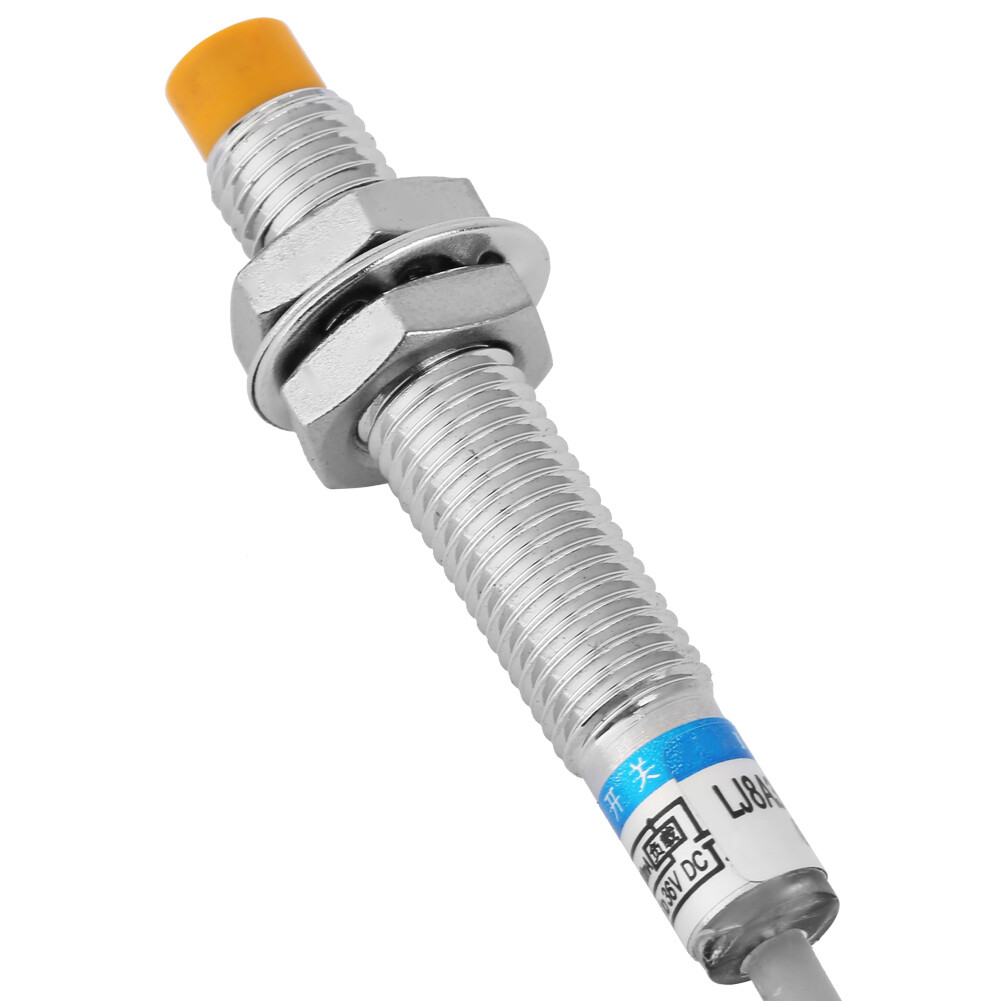

2mm Inductive Proximity Sensor Switch NPN Normally Open LJ8A3-2-Z/BX

Features:

• This isinductive proximity switch sensor with 2mm detection distance.
• The switch stays open, and closes when it detects object in detection distance.
• Quick response, high reliability, strong anti-interference capability.
• Non-contact detection avoids the sensor and the target object from damages.
• Widely used in automatic control industry for positioning control, counting, automatic protection and more.

Specification:

Model:LJ8A3-2-Z/BX

Detection range: 2mm, ±10%

Setting distance: 0-1.6mm

Hysteresis distance: <10% of detection distance

Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal)

Standard detection object: Iron 12*12*1mm

Response frequency: 0.5kHz

Supply voltage: DC12-24V (6-36V) impulse (P-P) <10%

Withstand voltage: AC1000V 50/60Hz 1min, between charging part and shell

Voltage Influence: ±10% detection distance (within ±15% supply voltage range)

Current consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA

Control output: N.P type: <300mA, D type: <200mA, A type: <400mA

Loop protection: N.P.D type: reverse connection protection, surge absorption, load short circuit protection; type A: surge absorption

Ambient temperature and humidity: -30~65℃, 35-95%RH

Temperature influence: Temperature range -30~65℃, at 23℃, ±15% detection distance; Temperature range -25~60℃, at 23℃, ±10% detection distance

Insulation impedance: >50MΩ (DC500 megohmmeter), between charging part and shell

Shell material: Nickel plated brass

Detection surface: ABS

Weight: 29g (approx.)

Package List:

1 x Proximity Switch
