2A Phase 3D Printer Big Easy Driver Board V1.2 A4988 Stepper Motor Driver Board Big Easy Driver Board V1.2 A4988 Stepper Motor Driver Board 2A/Phase for 3D Printer

Description:

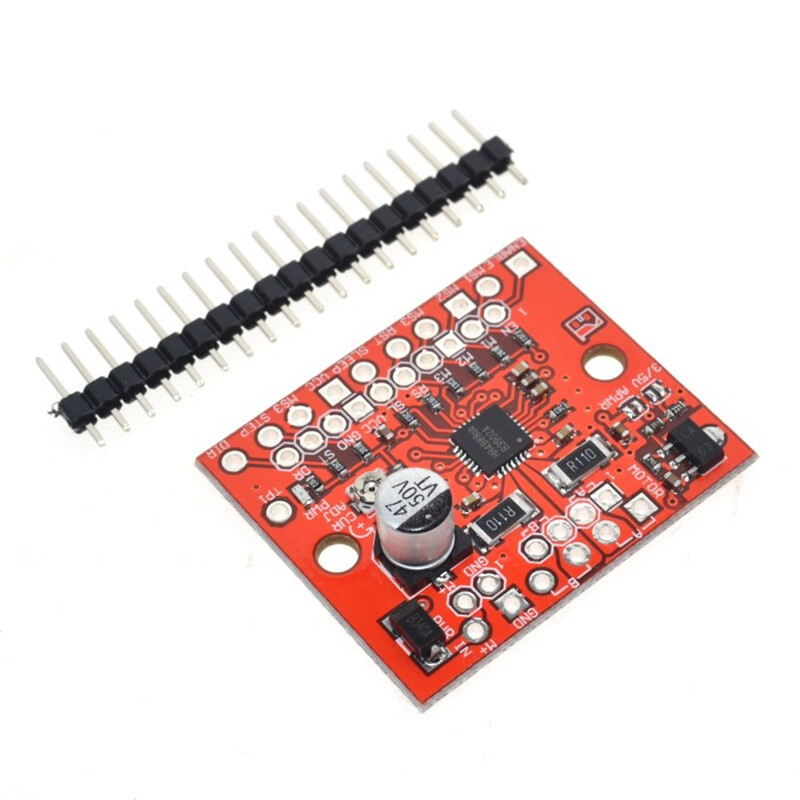

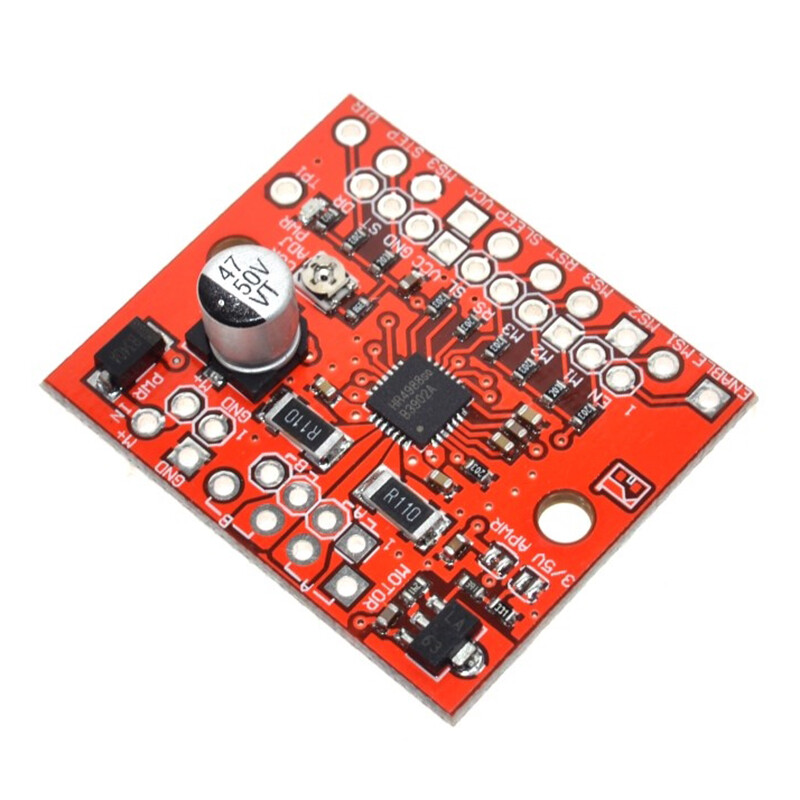

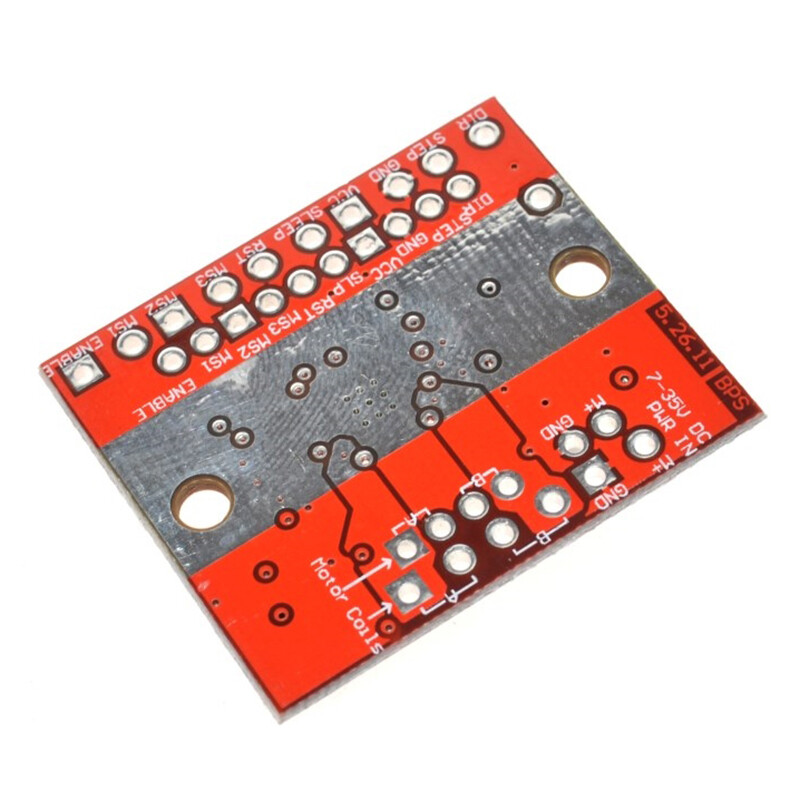

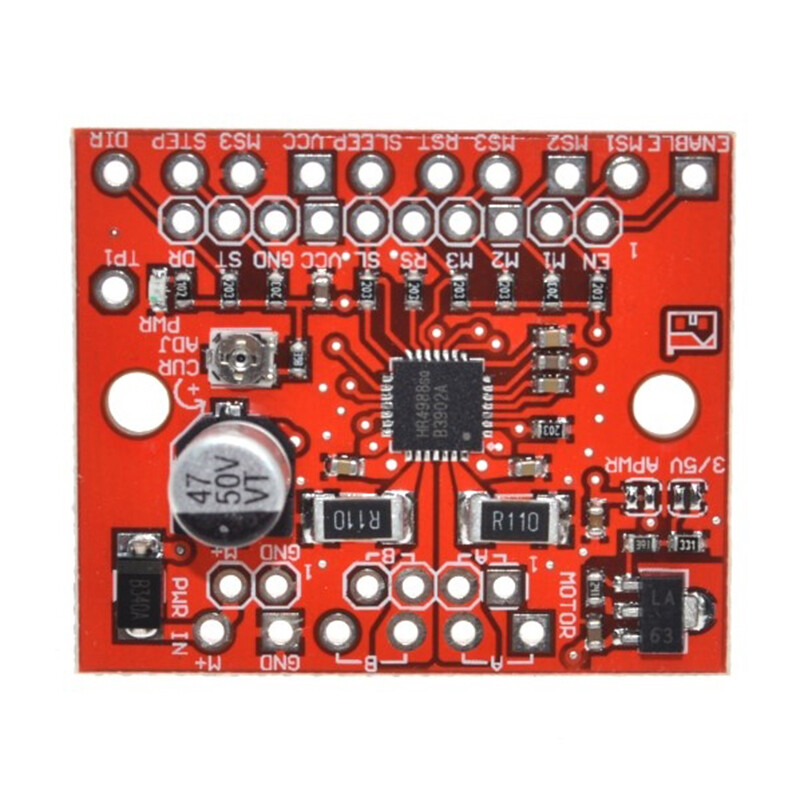

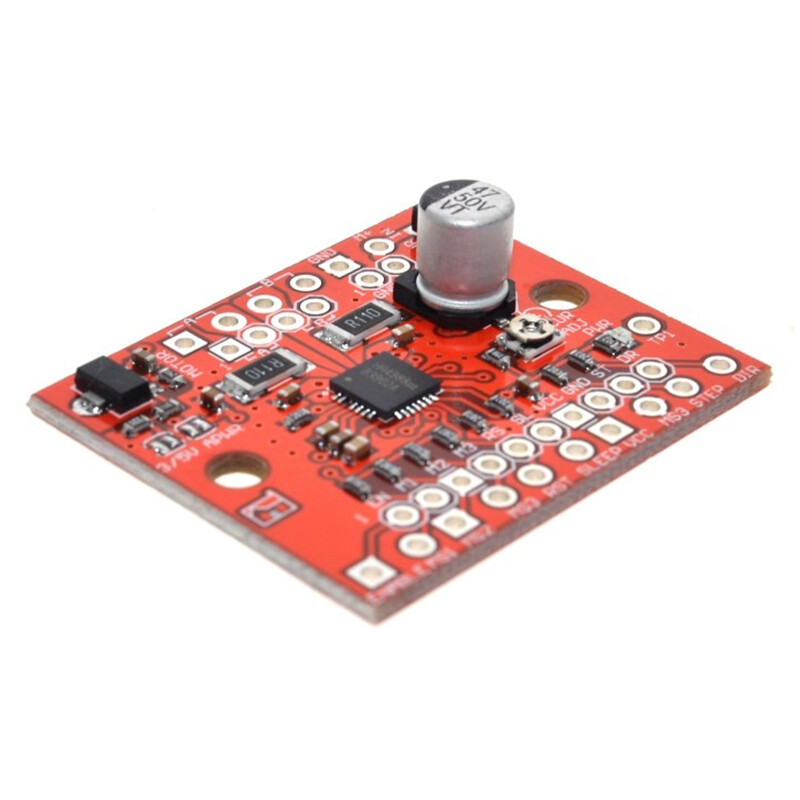

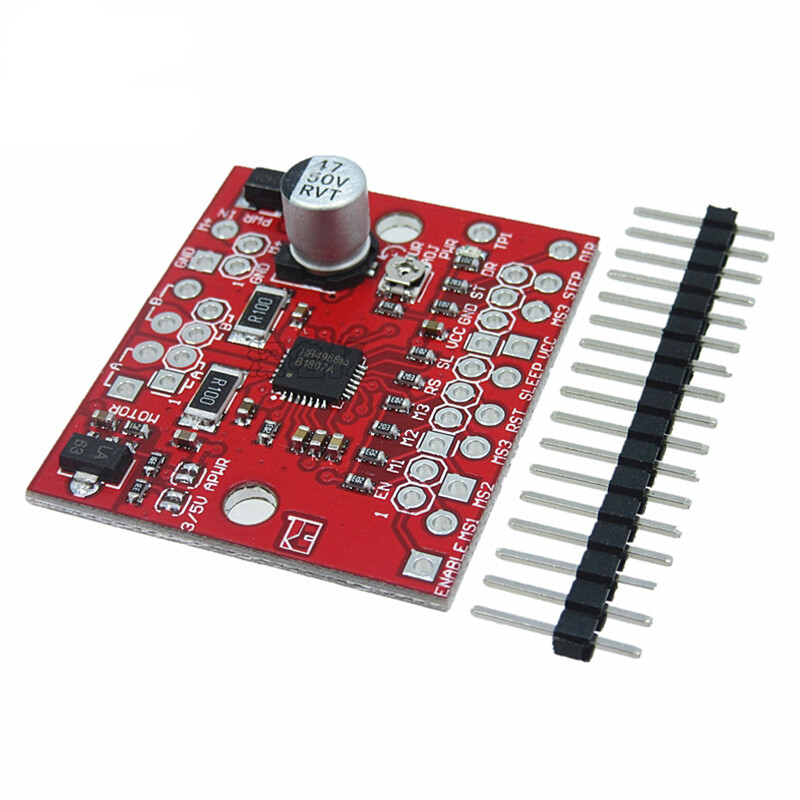

The Big Easy Driver, designed by Brian Schmalz, is a stepper motor driver board for bi-polar stepper motors up to 2A / phase It is based on the Allegro A4988 stepper driver chip It's the next version of the popular Easy Driver.. board.

Each BigEasyDriver can drive up to about 2A per phase of a bi-polar stepper motor. It is a chopper microstepping driver which defaults to 16 step microstepping mode. It can take a maximum motor drive voltage of around 35V, and includes on-board 5V /3.3V regulation, so only one supply is necessary. Although this board should be able to run most systems without active cooling, a heatsink is recommended for loads approaching 2A / phase. You can find the recommended heatsink in the related items below.

Note: The arrow indicators on the current adjustment potentiometer is backwards Keep this in mind if you're adjusting the current limits..

Note: This product is a collaboration with Brian Schmalz A portion of each sales goes back to them for product support and continued development..

Features:
Bi-polar Microstepping Driver
2A / Phase Max
Max Motor Drive Voltage: 35V
On-board 5V / 3.3V Regulation
It must be used in conjunction with a heat sink
