24GHz Microwave Radar Sensor Module For Speed Information Detection Close Target

Feature:

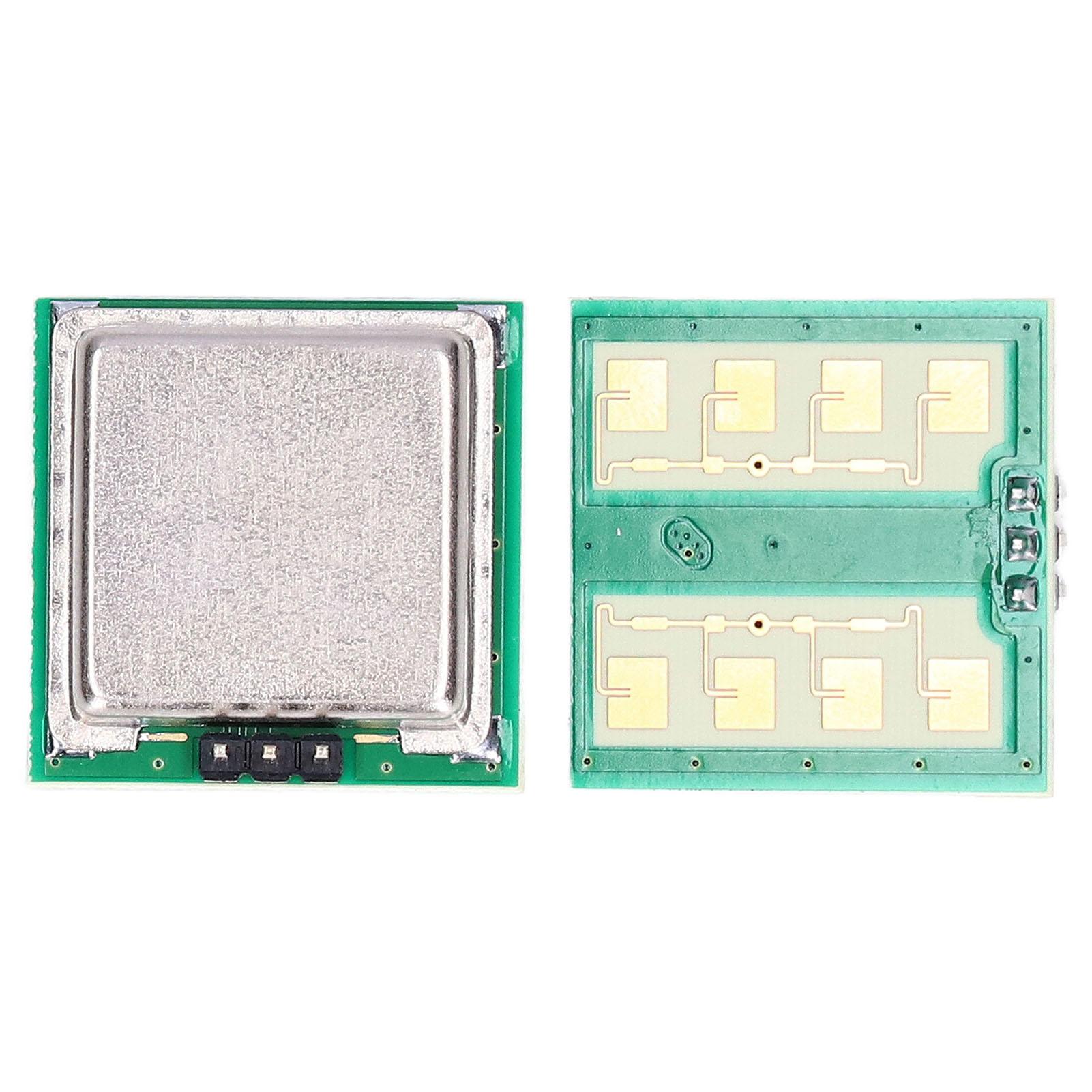

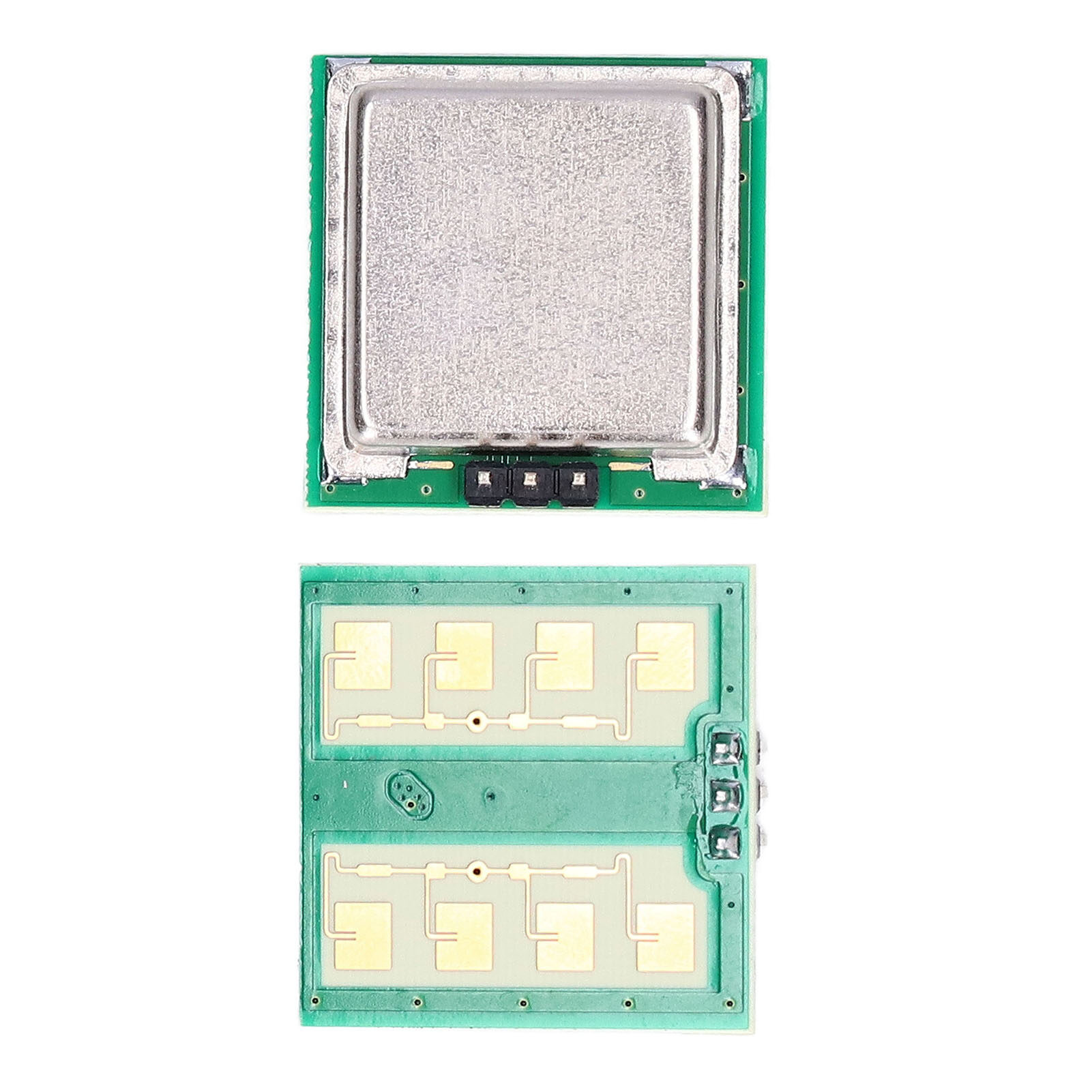

1. PLANAR MICROSTRIP ANTENNA: 24GHz band single channel radar transceiver adopt planar microstrip antenna structure, beam angle is 80°/32°
2. HIGH SENSITIVITY, HIGH FLEXIBILITY: Come with high sensitivity, high flexibility, low cost, operating distance is 15 meters
3. INDEPENDENT TRANSMITTING AND RECEIVING CHANNELS: With independent transmitting and receiving channels, and a single IF output, very stable
4. SPEED INFORMATION DETECTION: Mainly used for speed information detection of close targets, automatic door sensors, microwave induction switches, intelligent light control systems, and non intrusion detection
5. PENETRATE NON METALLIC OBJECTS: Can penetrate non metallic objects, such as plates, glass, plastics, fabrics, etc., unless blocked by concrete wall or metal plates

Specification:

Item Type: Microwave Radar Sensor Module
Material: PCB
Purpose: Speed information detection of close targets
Working Frequency: 24.00 ~ 24.25GHz
Output Power: +14dBm
Antenna Beam Width: 80°/32°
Power Consumption: +5V/29mA

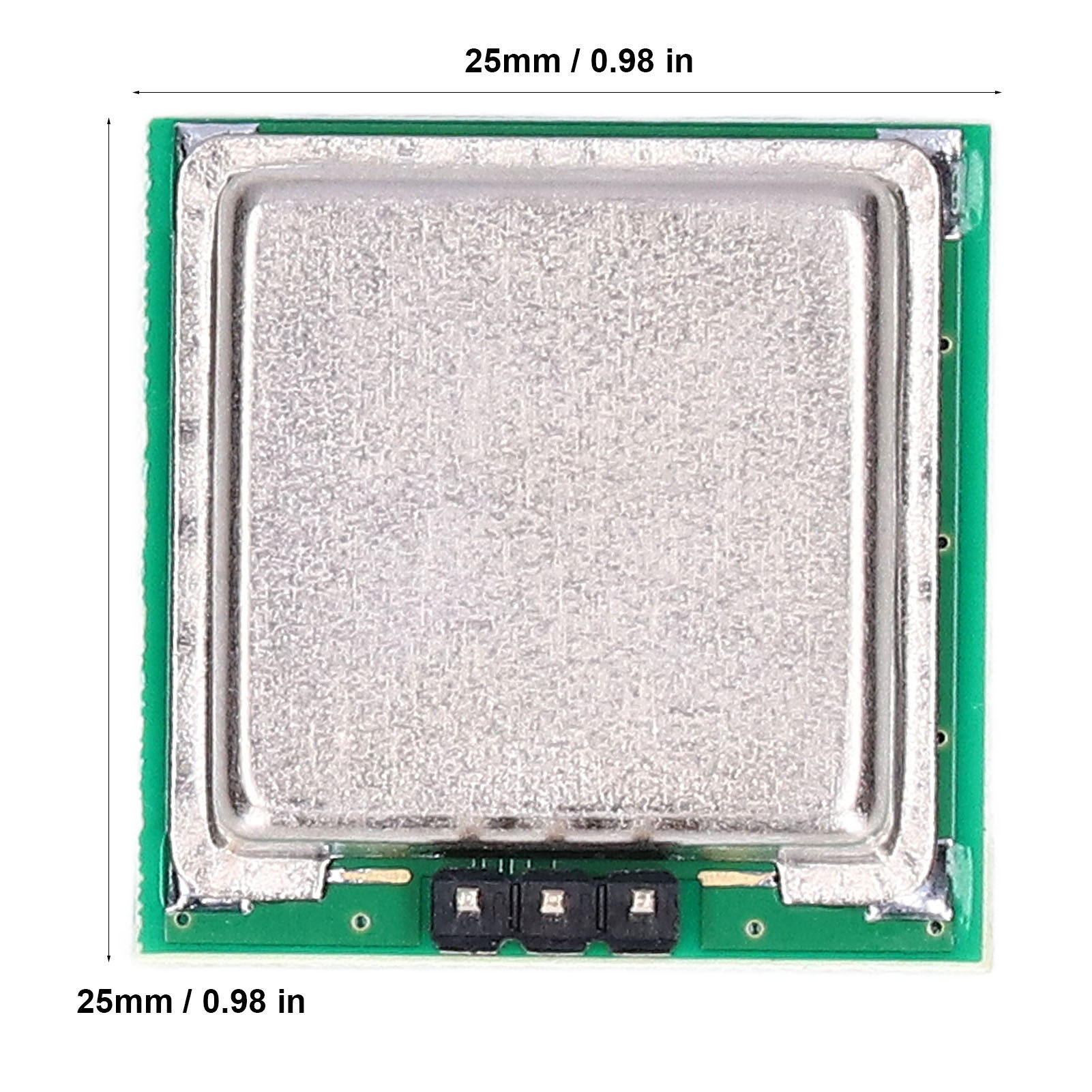

Product Size: Approx. 25 x 25mm / 0.98 x 0.98in
Operating Distance: Approx. 15meter / 49.2ft

How to Use:

No.	Pin Name	Description
1	VCC	Power supply
2	IF	Intermediate frequency signal
3	GND	Ground

Package List:

1 x Microwave Radar Sensor Module
