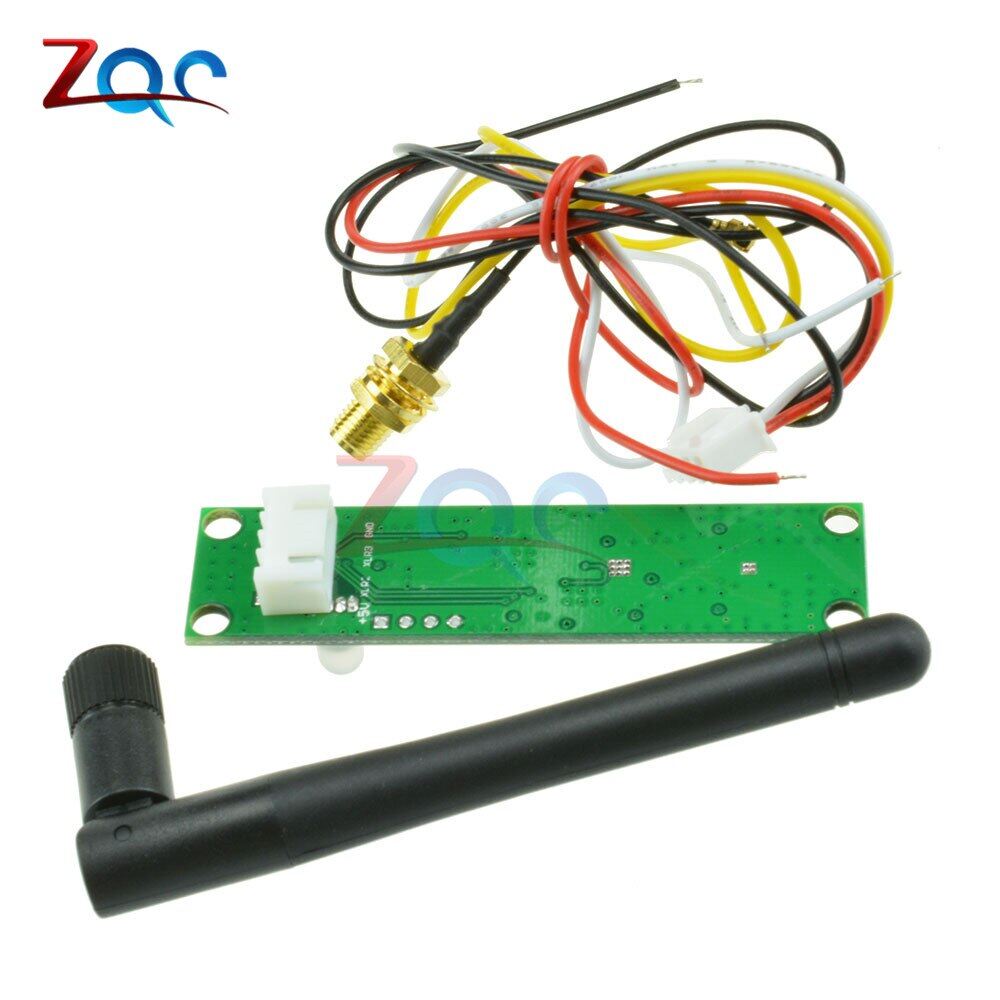

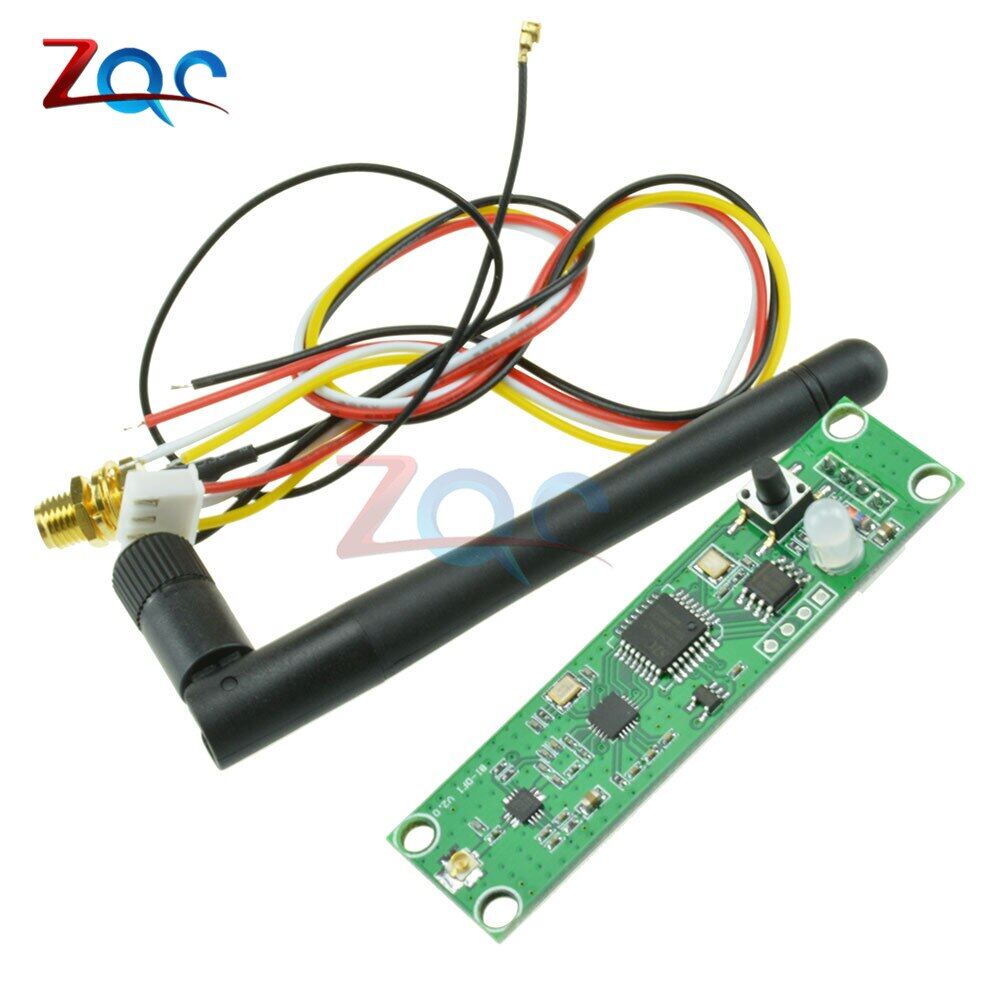

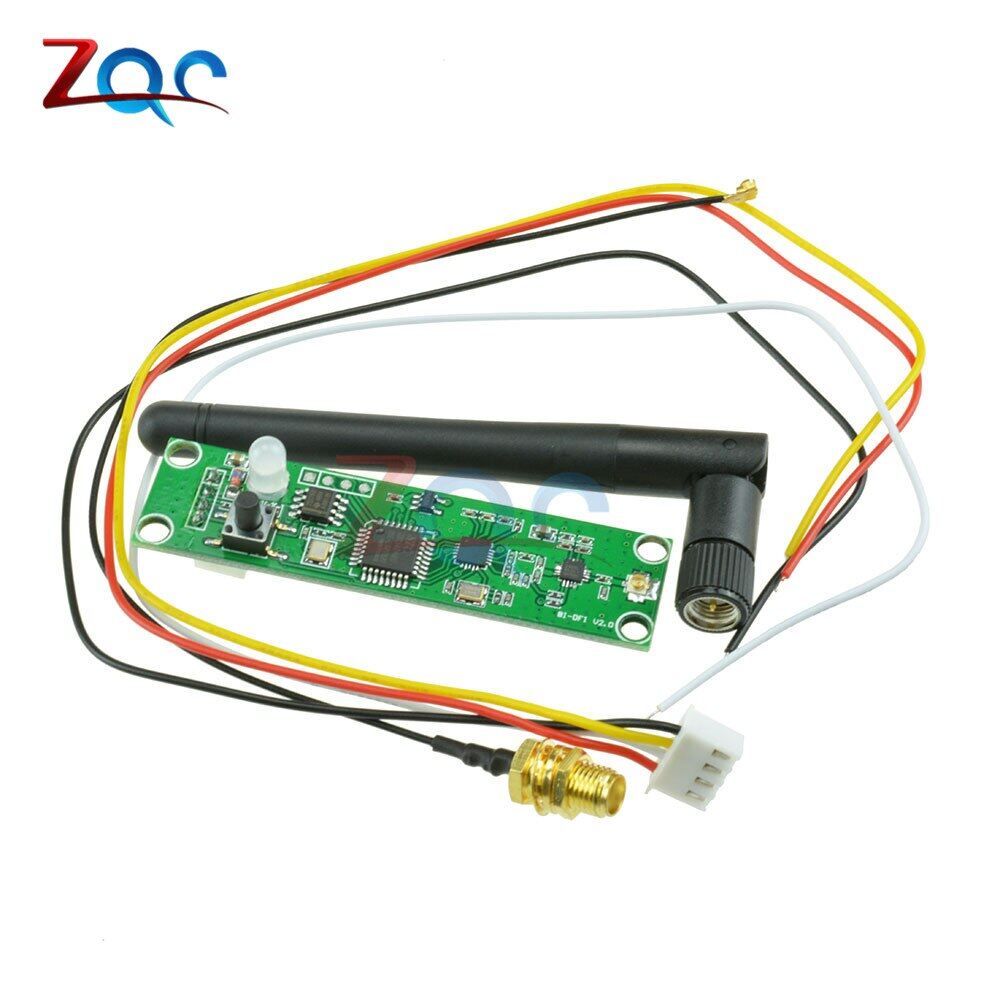

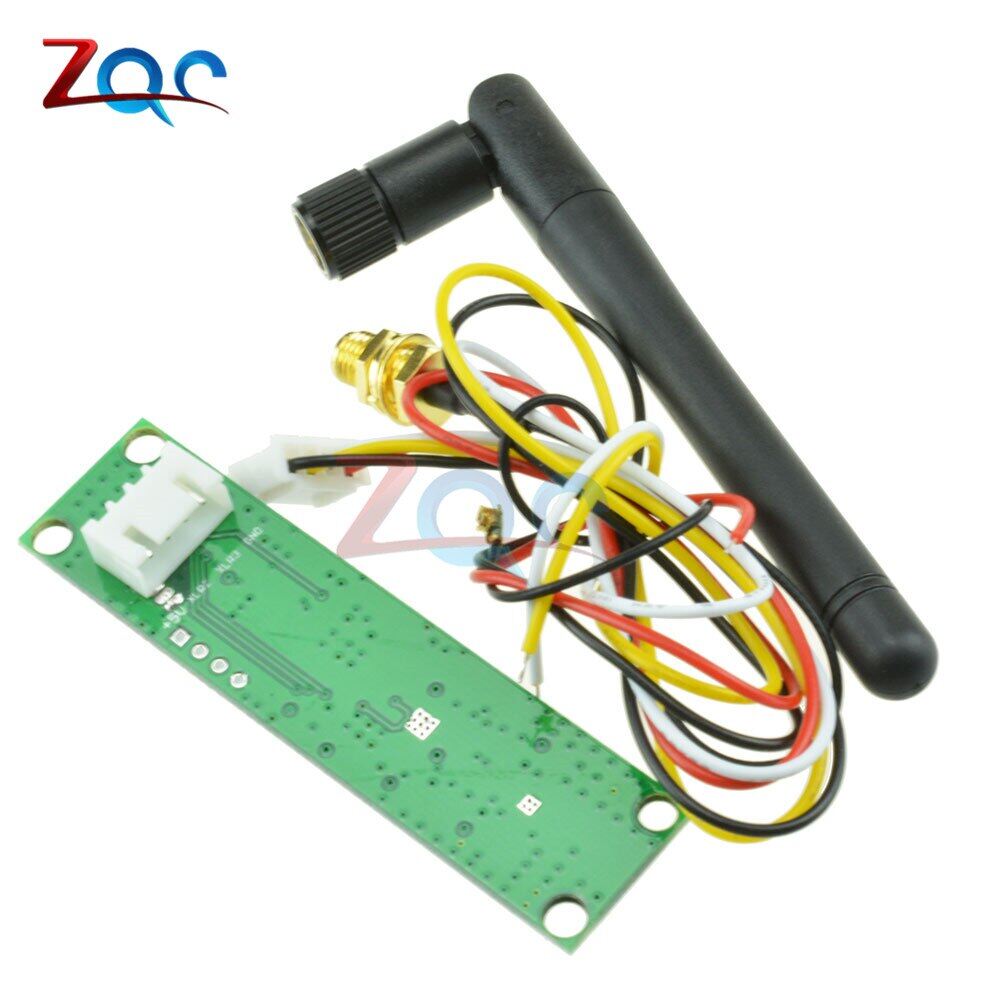

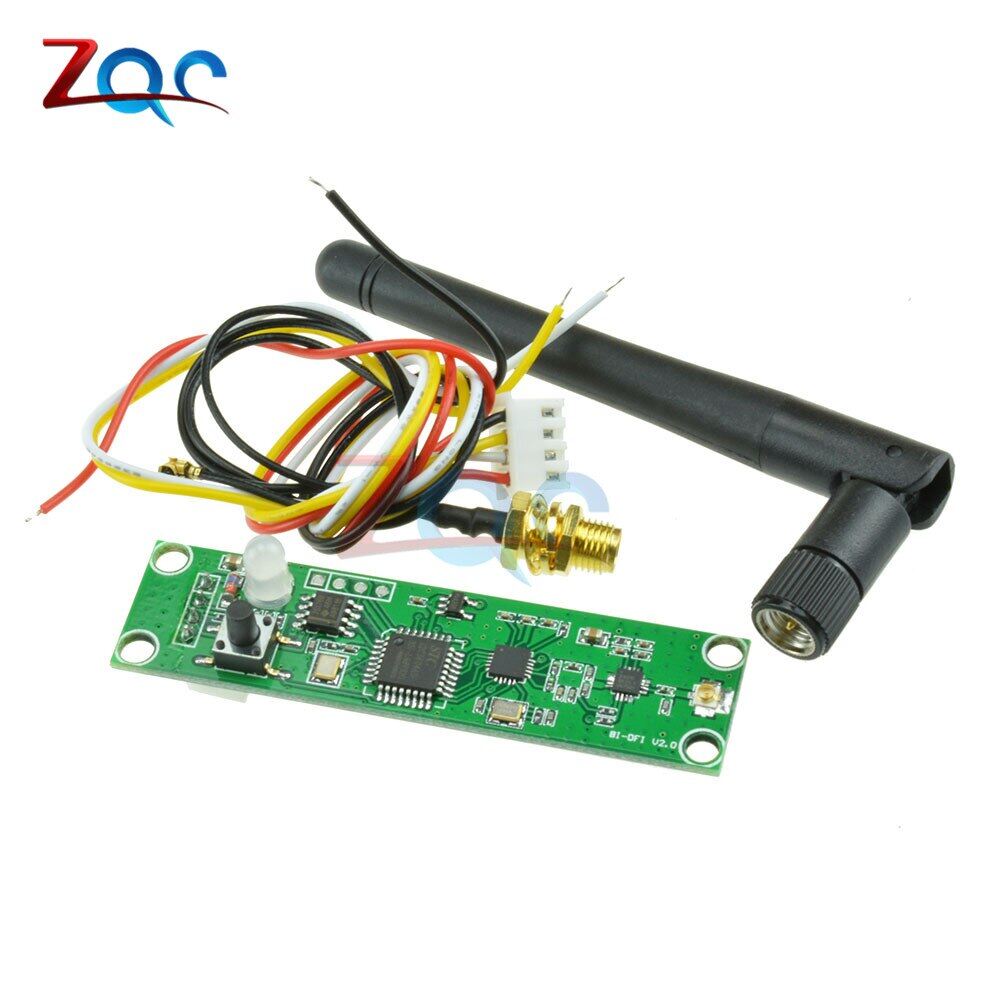

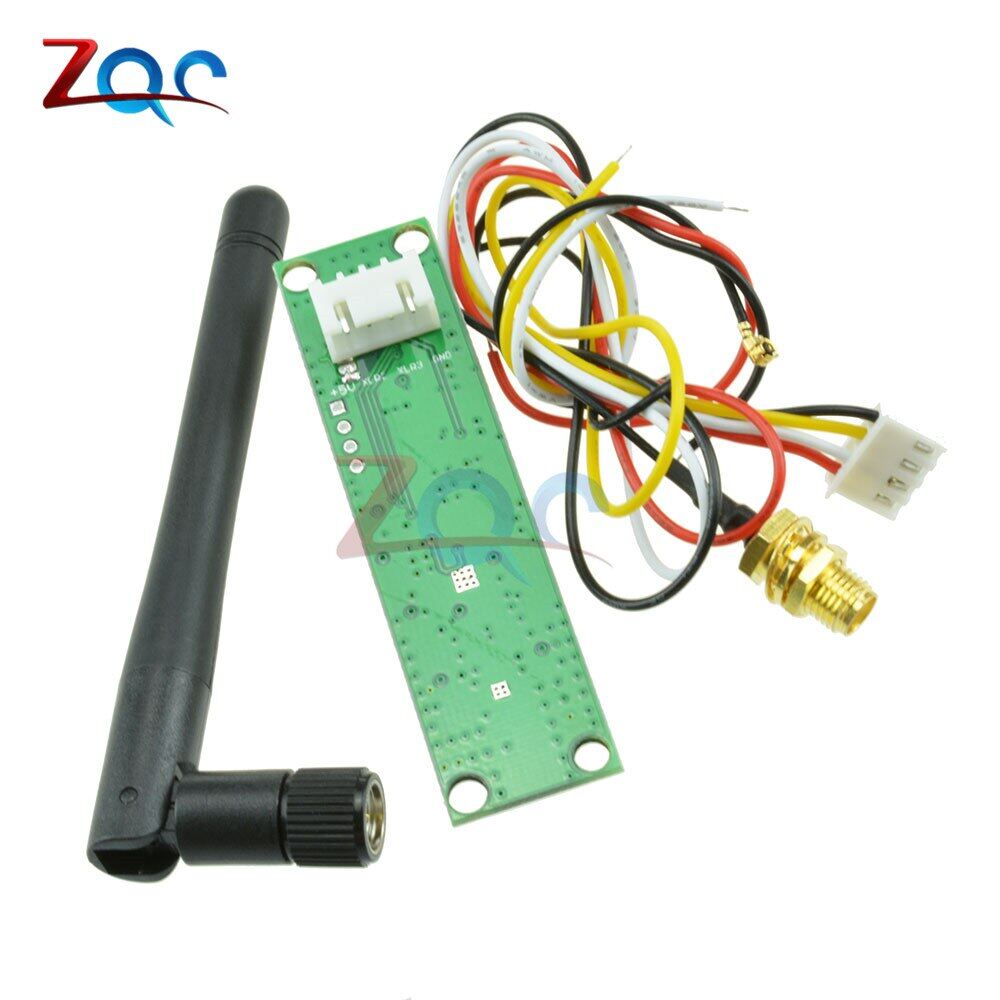

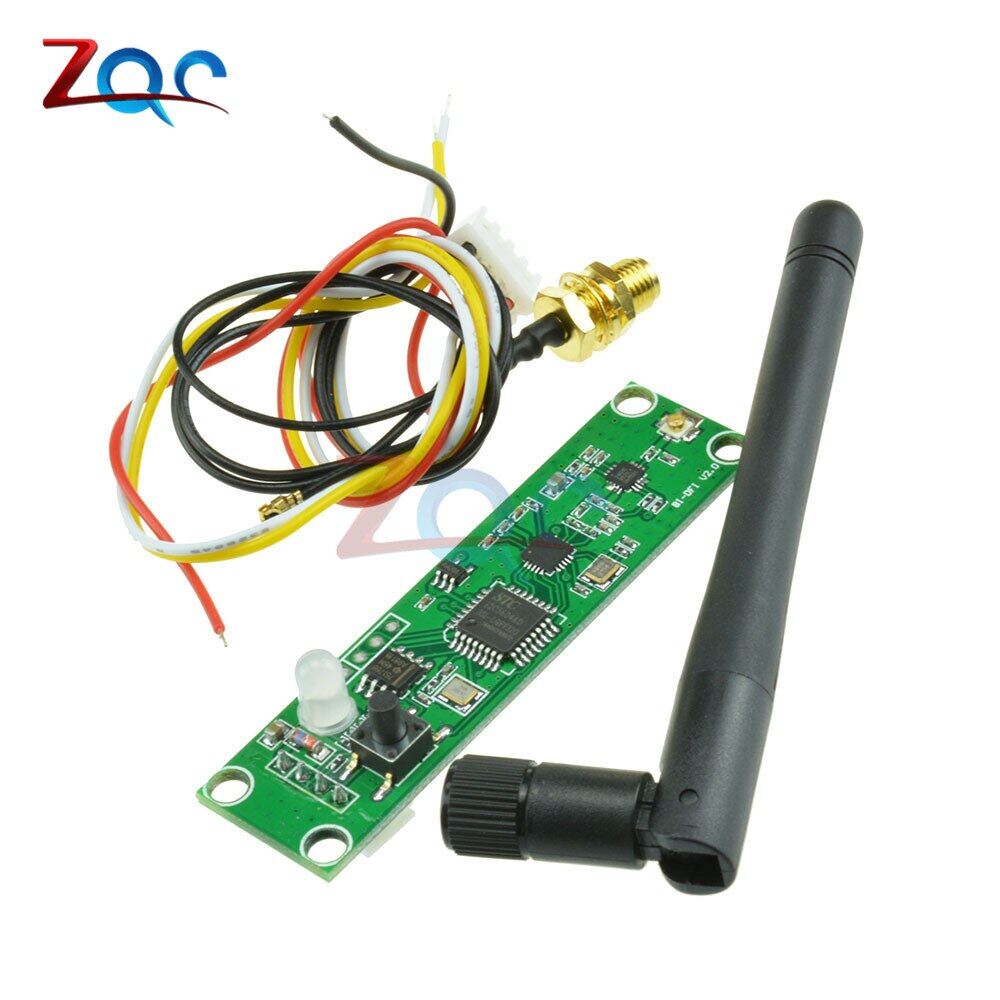

2.4G Wireless DMX512 Transmitter PCB Modules Board with Antenna LED Controller Wifi Receiver

Description:

Small in size easy to suit for interior of accessed lighting.
Single key to operate, tricolor LED displaying.
Transmitting standard DMX512 protocol data of controller, also can transmit lighting and lighting DMX512 protocol data.126 channels automatically jumping frequency,high anti-jamming ability to ensure working reliability.
7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

Input voltage: 5VDC
Work frequency section: 2.4GHz ISM band, 126 channels frequency section
Max transmitting power rate: 20dBm
Receiver sensitive: -94dBm
Signal port: RS485 or CPU series port AURT.

Operating manual:
ID code and LED color corresponding correlation:
1:RED
2:GREEN
3:RED+GREED = YELLOW
4:BLUE
5:RED+BLUE = PURPLE
6:GREEN+BLUE = CYAN
7:RED+GREED+BLUE = WHITE
Press key 1 time to indicate ID setting, Press again to set IC, then ID value adding 1 each time by press.

Working condition:

LED constant litght up: no DMX or wireless signal.
Red LED flash: transmitting.
Green LED flash: Receiving
RF frequency------2. 400-2. 525 G, total 126 channels, it is searching automatically.
ID Code-------"1-7" groups ID code, press "key" button for setting,

it only can work under same ID code of transmitter and receiver.

Establishing Communication:

Power on DMX512 wireless received board and transmitted board.
Press "key" button to set same ID value of transmitted board and received board,

please use different ID value if you need use more than 1 group wireless net at same time in same place.
The red LED flashes when transmitter transmits DMX data by no interfered frequency section,

then receiver changes communicated frequency section.

Green LED flash till received corrected same ID value, LED flash faster once DMX data faster.
Communication was established correctly then.

Package Included:

1 xWireless DMX512 PCB Modules Board LED Controller Transmitter Receiver
