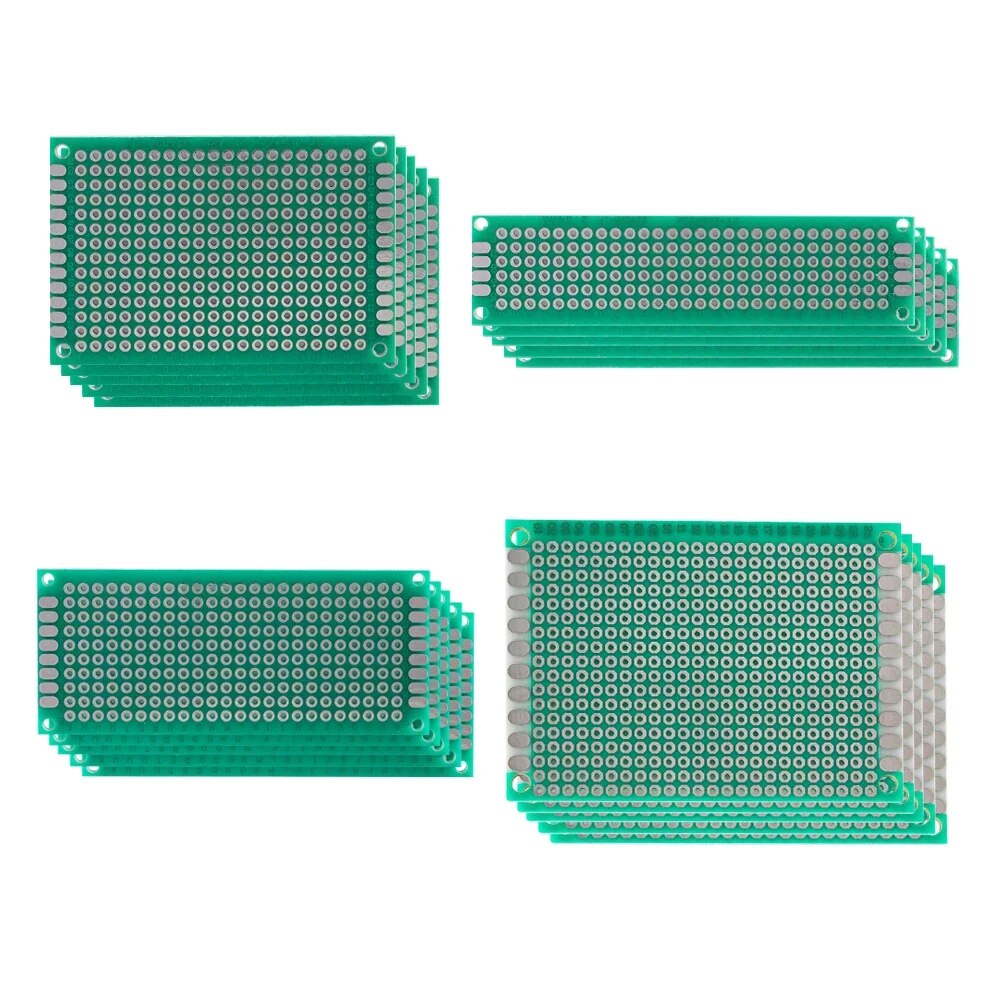

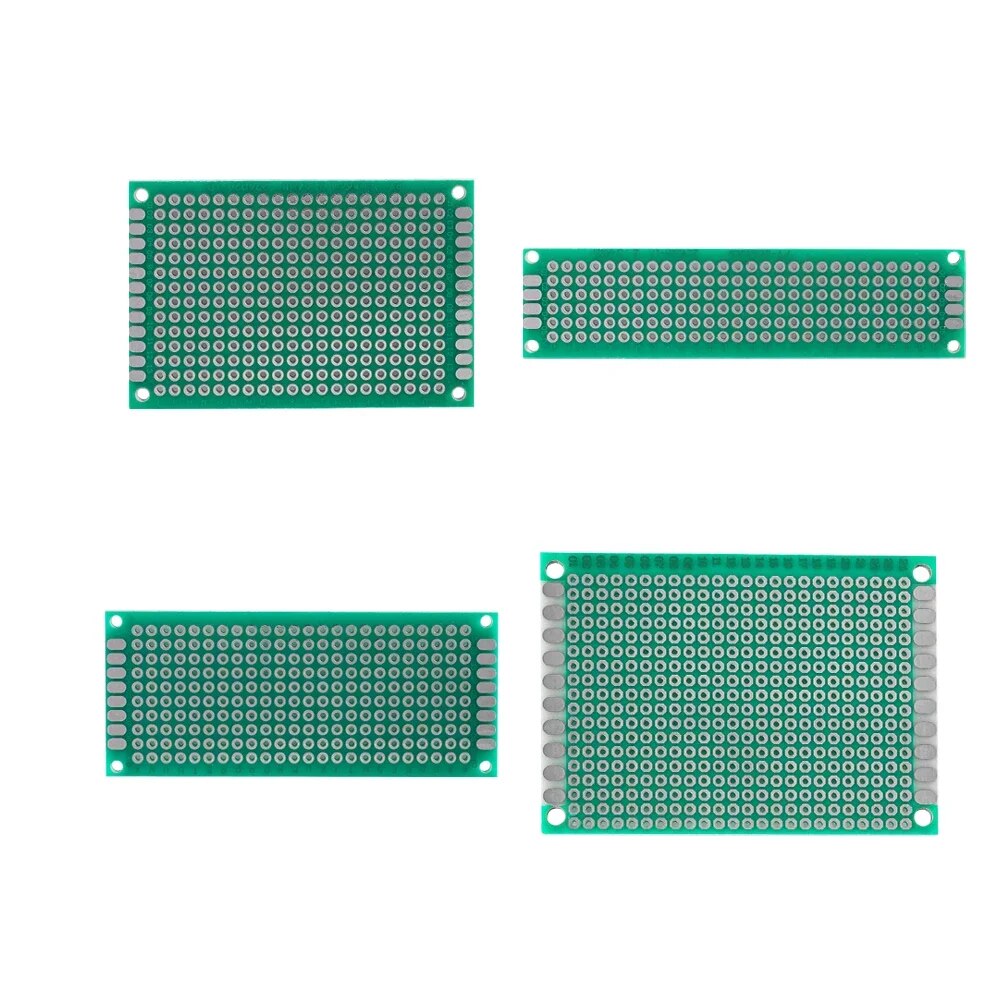

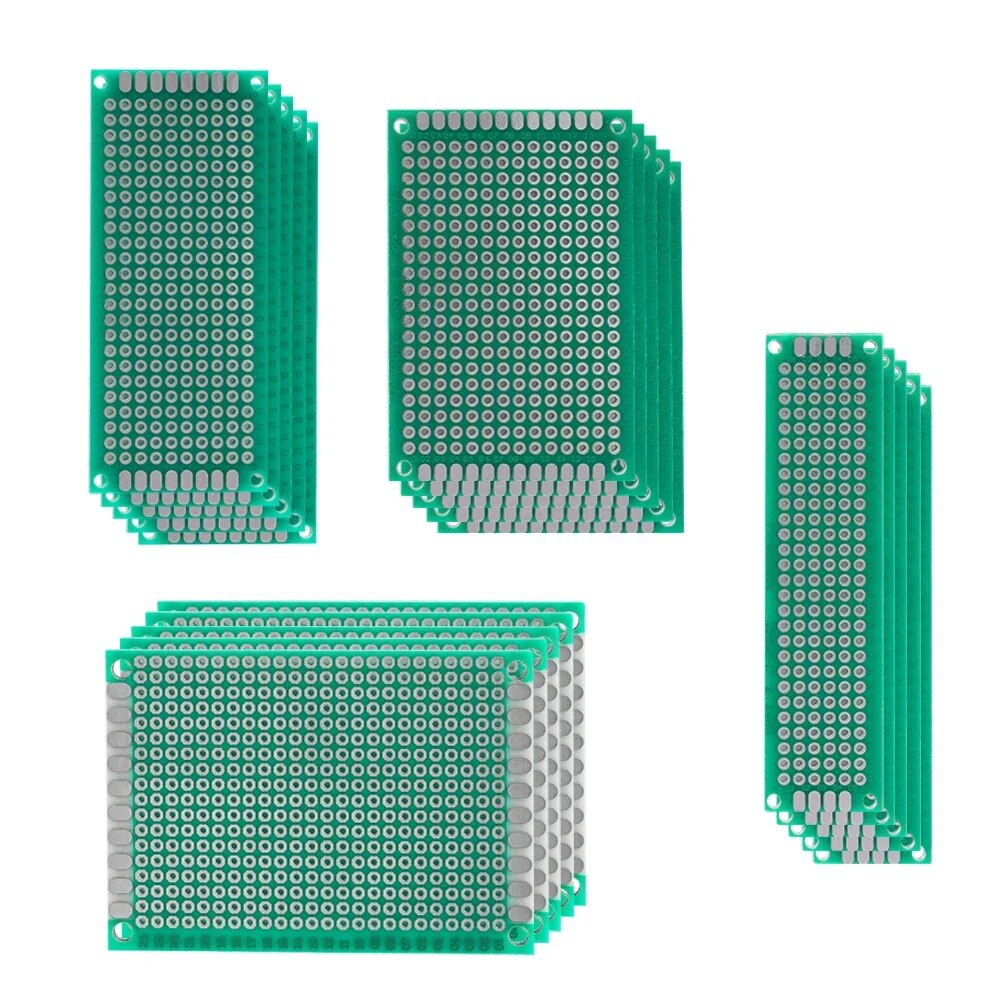

20PCS/Lot 5x7 4x6 3x7 2x8cm Prototype Single Sided Prototype PCB Diy Universal Printed Circuit PCB Board Prototype PCBs Kit Set

Features:
100% high quality and brand new
1. High temperature resistance, good quality, not easy to oxidize, not easy to deform, widely used, easy to use
2. Easy to weld, real material.

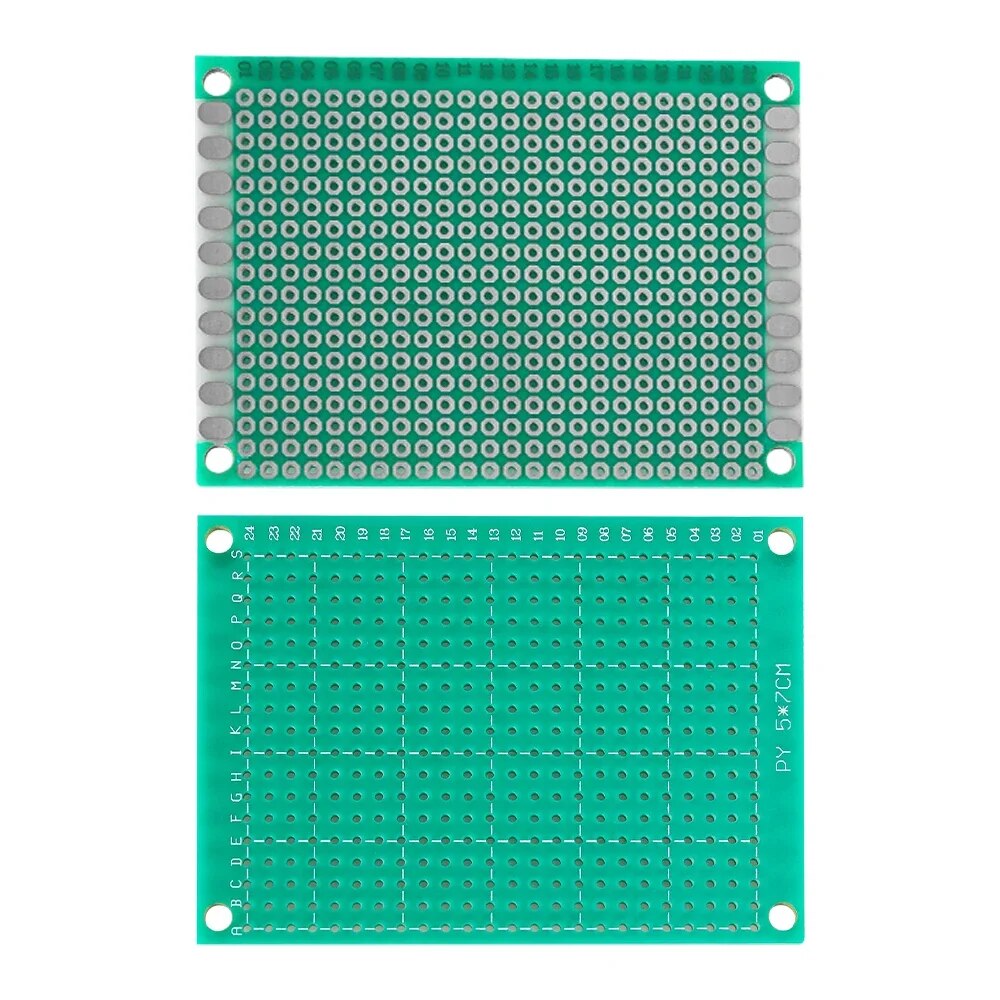

Name:Single Sided PCB board

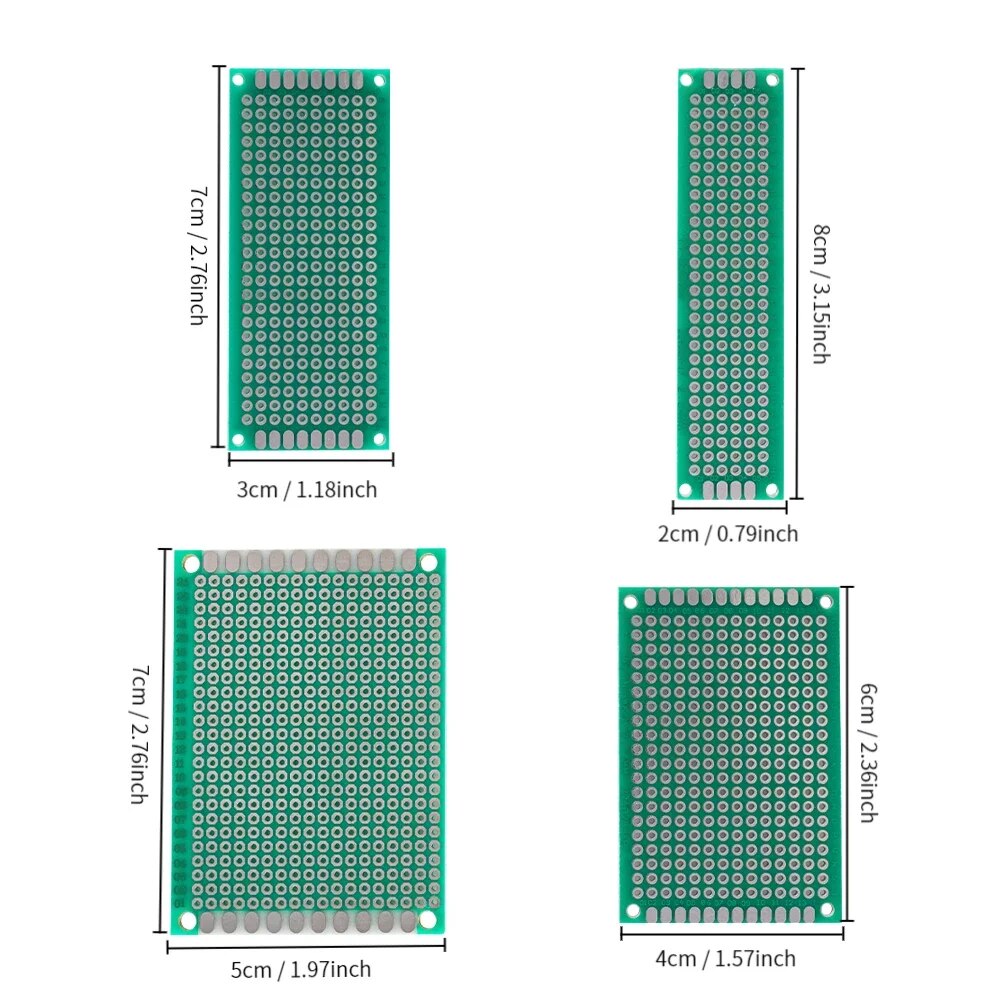

Size: 5x7cm 4x6cm 3x7cm 2x8cm
2x8cm-5pcs
5x7cm-5pcs
4x6cm-5pcs
3x7cm-5pcs


Color: Green
Hole pitch: 2.54mm
Aperture: 1.0mm
Thickness: 1.6mm
Material:standard

product description:
This is the general design of the board, and usually its board. It covers the standard IC pitch
(2.54MM) round independent pad, it seems that the whole board is full of holes,
So it is also called "hole plate". Compared with professional PCB printed circuit boards, hole plate
It has the characteristics of low cost, convenient use, and flexible expansion.
Alias: multi-purpose board, experimental board, learning board, orifice board, lattice board.

Product Features:
1. The development board is for learning, and the development board is for learners to design commonly used circuits. Learners do not need it
Make your own board without buying components and soldering transfers.
2. The development board is mostly related to the microprocessor, and the development board will be designed for various typical applications
Some typical programs that utilize learners for testing and learning.
3. The development board can effectively improve the learning efficiency and shorten the research and development progress.

Soldering skills:
1. Determine the preliminary layout of the power supply and ground wire.
2. Be good at using component pins.
3. Good at setting up the jump shot gun.
4. Be good at using pin row.
5. Cut off the copper foil when needed.
6. Utilize double panels.

packing list:
20pcs Single Sided PCB board
