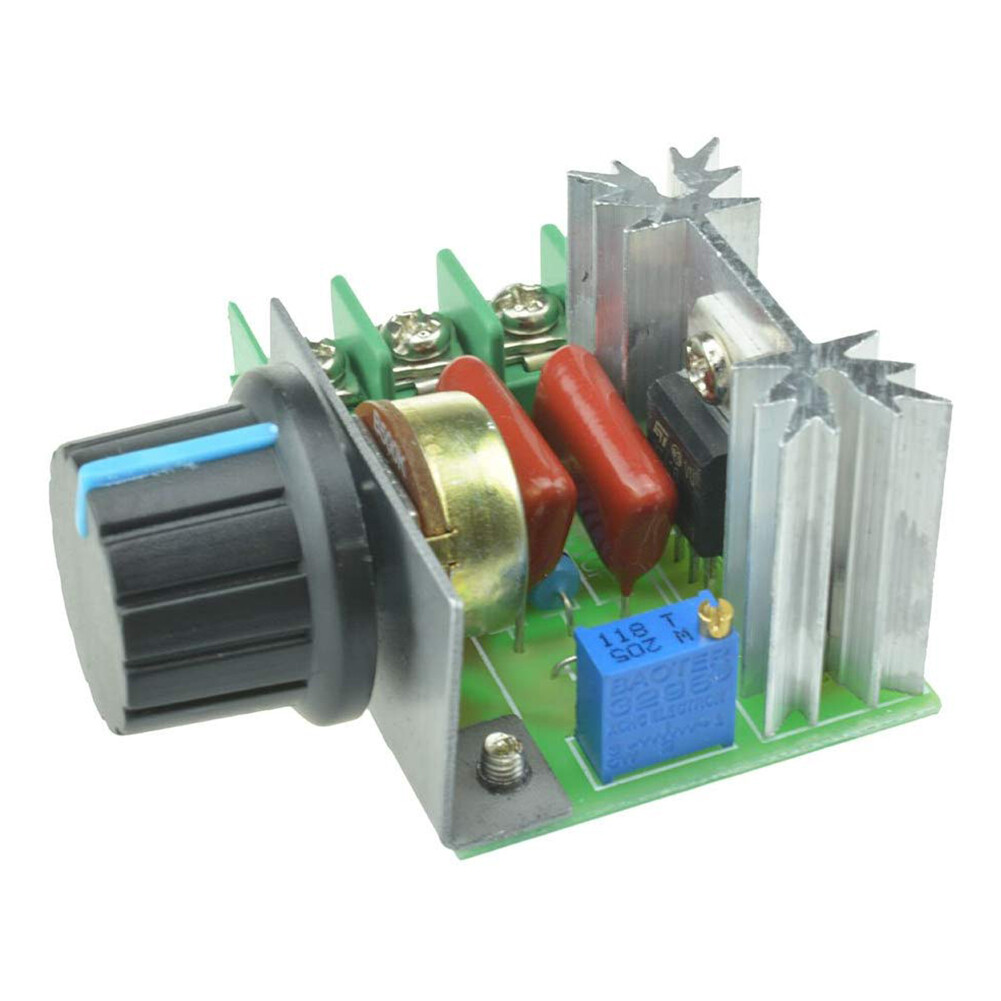

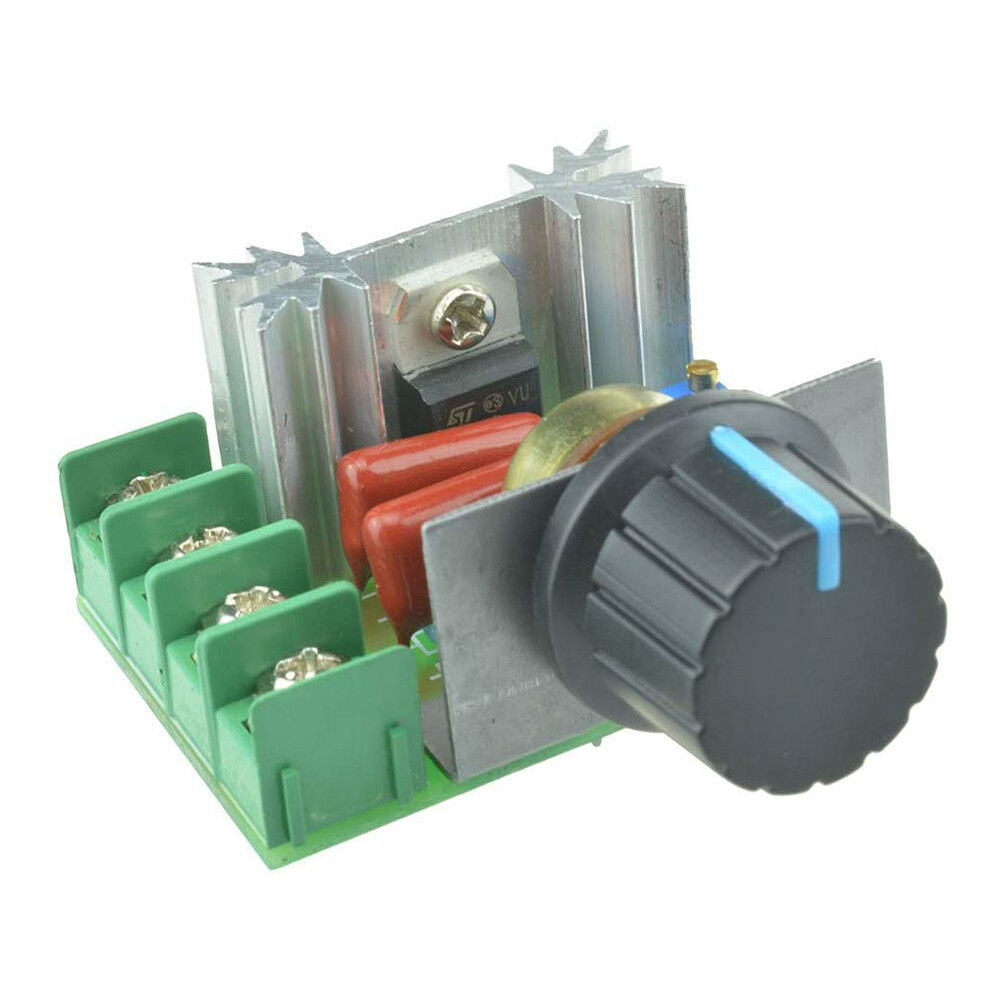

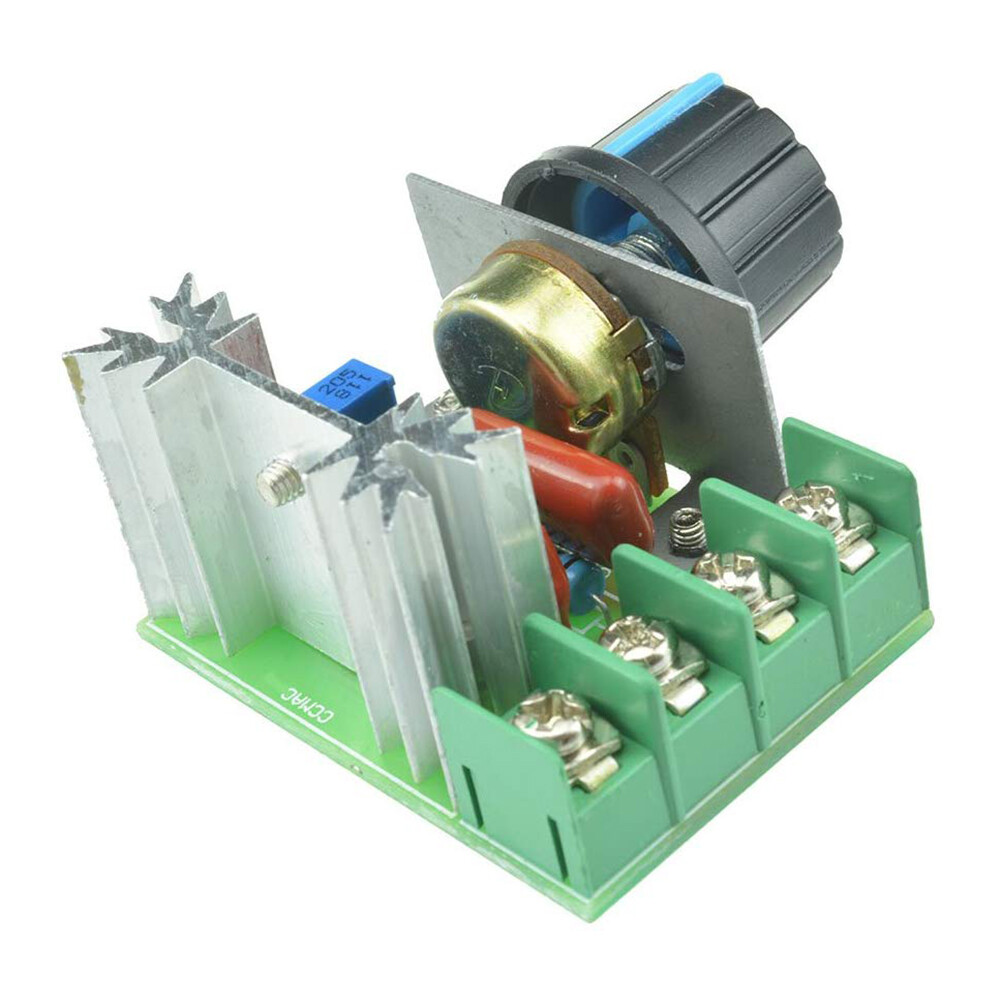

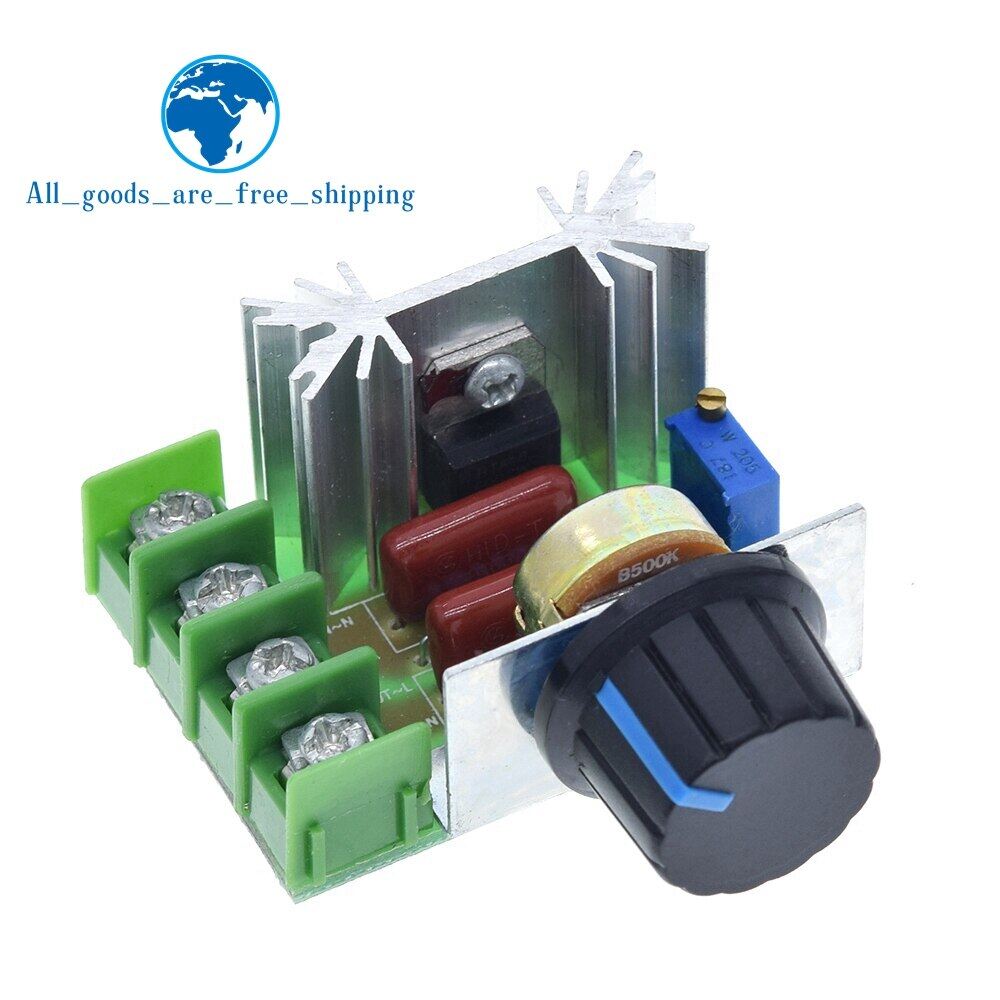

2000W SCR Electronic Voltage Regulator Dimmer Motor Speed Controller Module

2000W AC 220V SCR Electronic Voltage Regulator Dimmer Motor Speed Adjustable Controller Thermostat Module
Features:
SCR voltage is up to 1200V/current 25A.

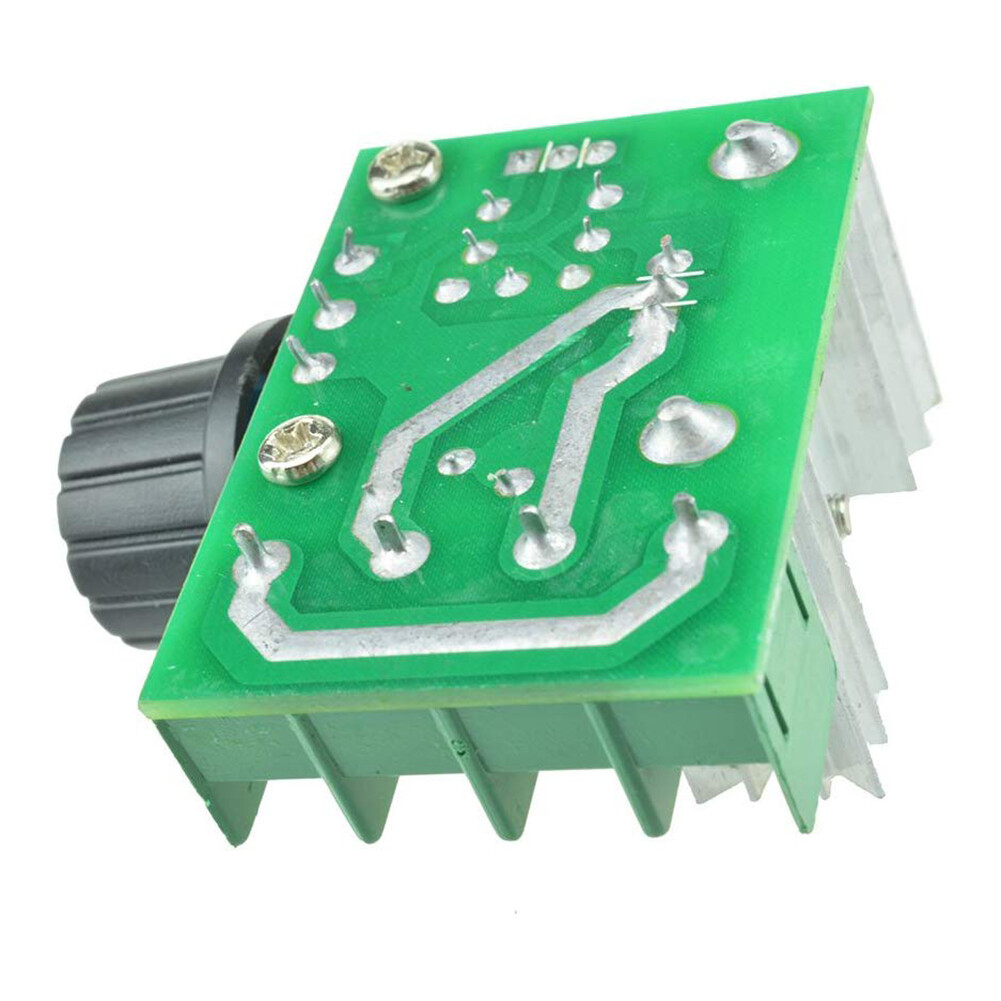

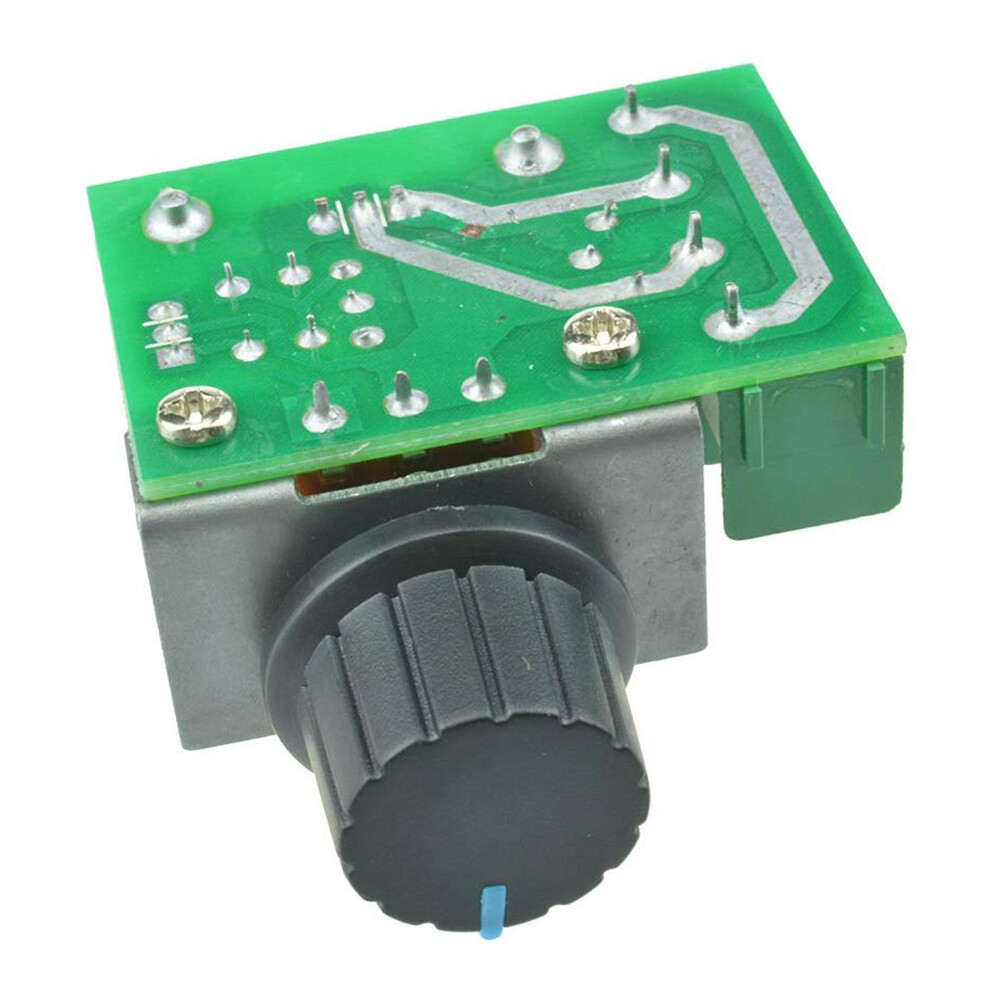

1.6mm thick epoxy copper clad laminate.

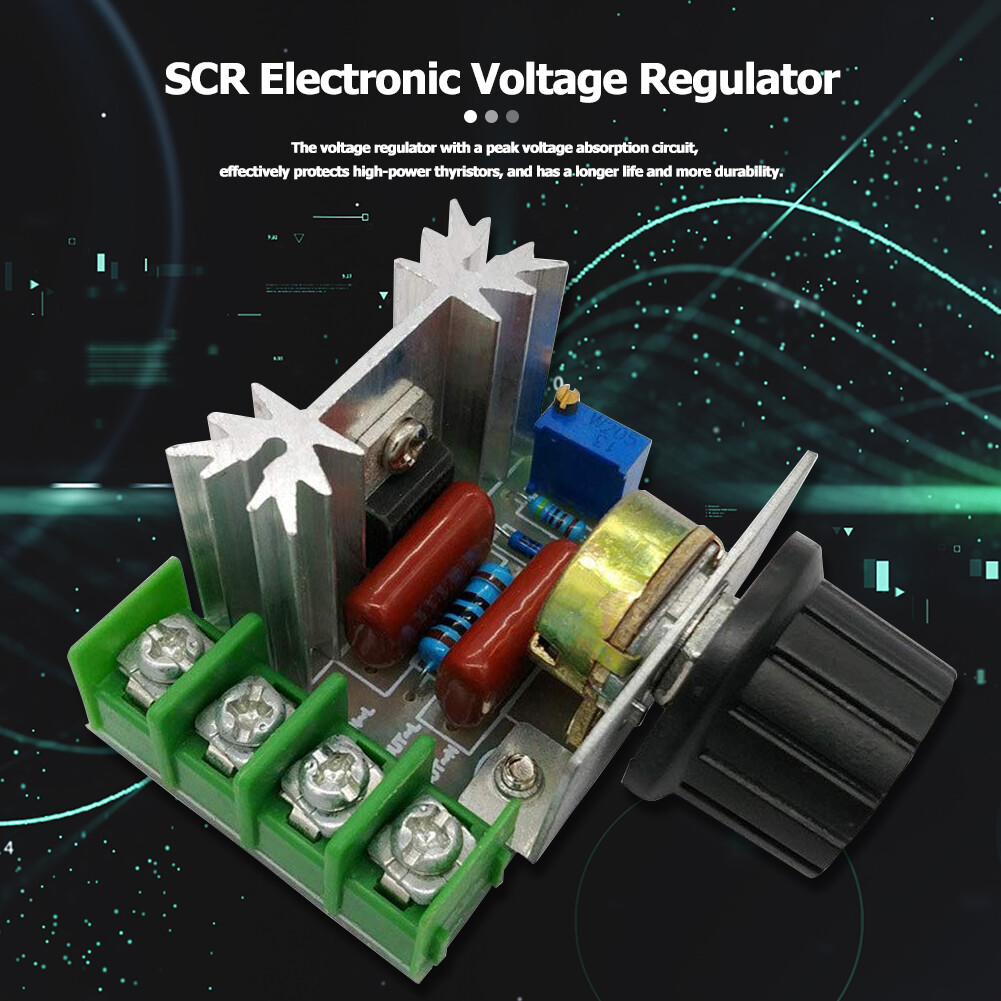

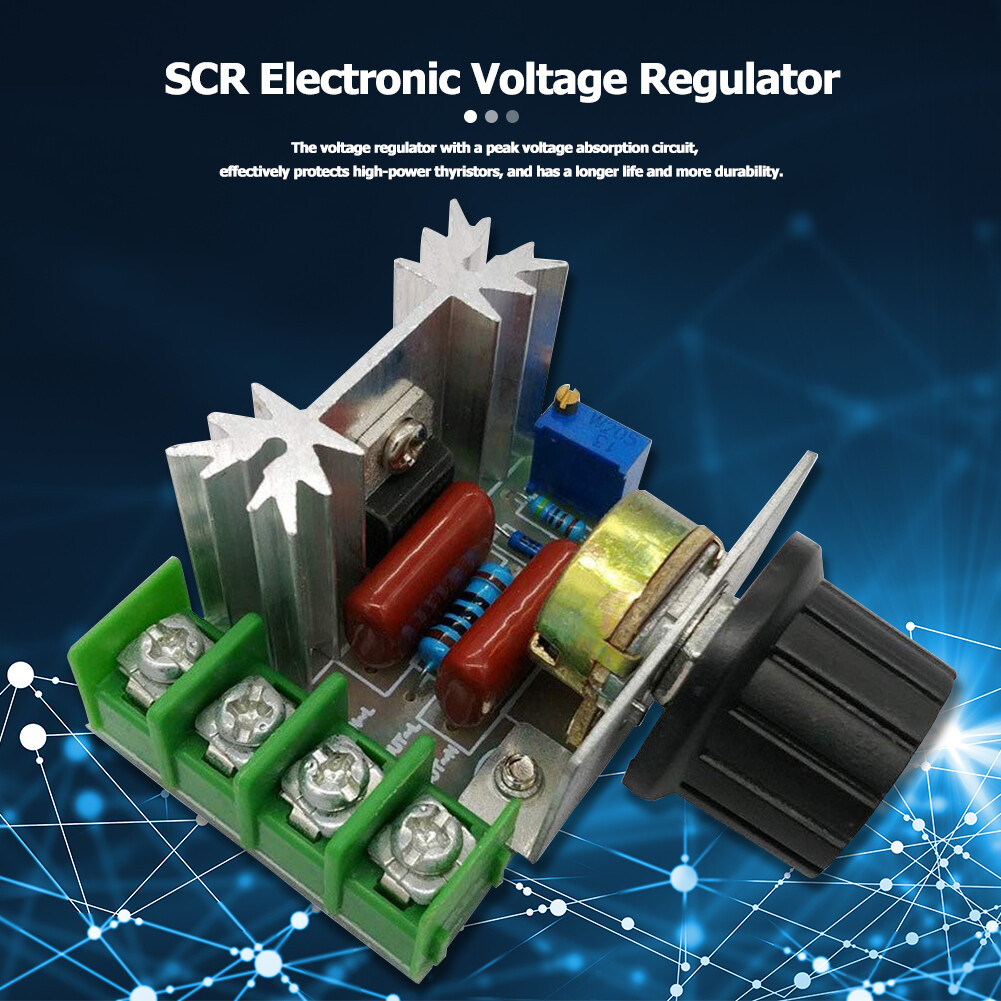

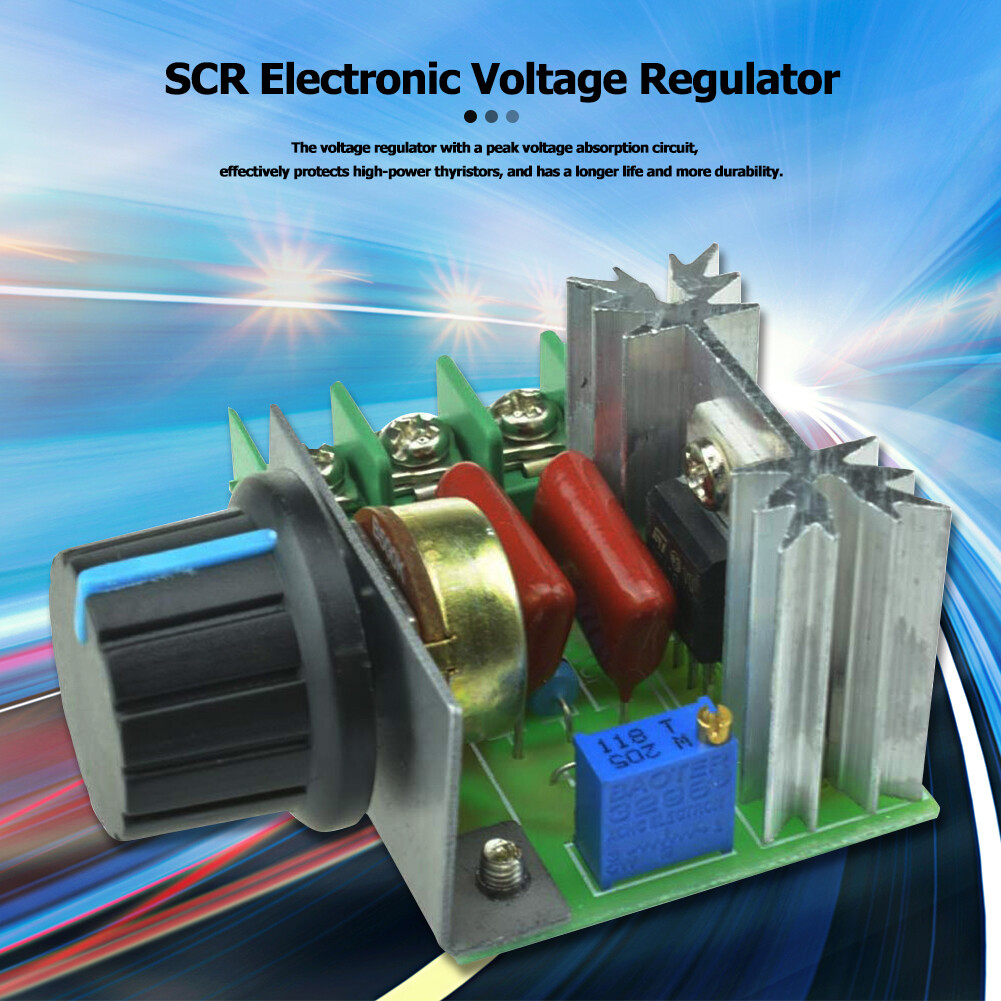

The voltage regulator with a peak voltage absorption circuit, effectively protects high-power thyristors, and has a longer life and more durability.

Specification:
Type: High Temperature Resistant FR-4 Circuit Board
Use Voltage: AC 220V
Maximum Power: 2000W
Voltage Regulation: AC 50-220V
Circuit Board Size: About 36 X 48mm/1.42 X 1.89"

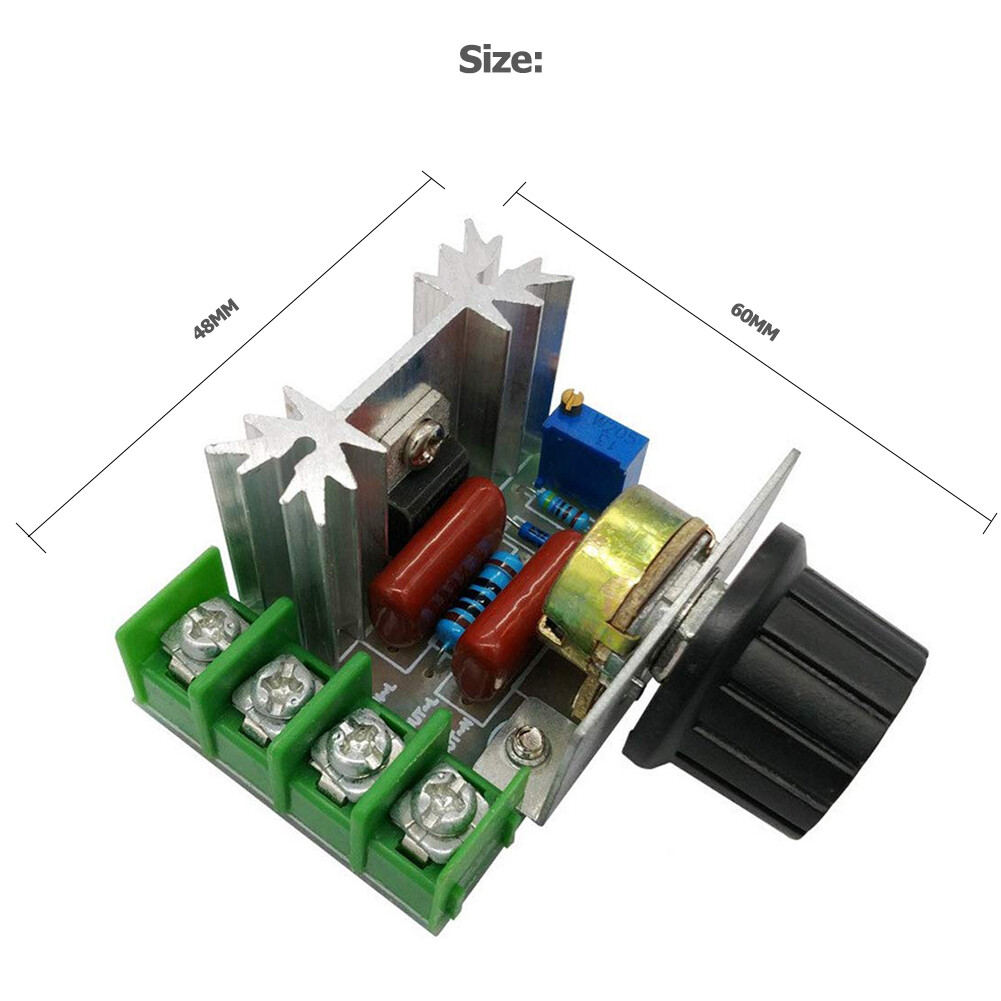

Outer Size: 48 X 60 X 28mm/1.89 X 2.36 X 1.1"

Instructions:

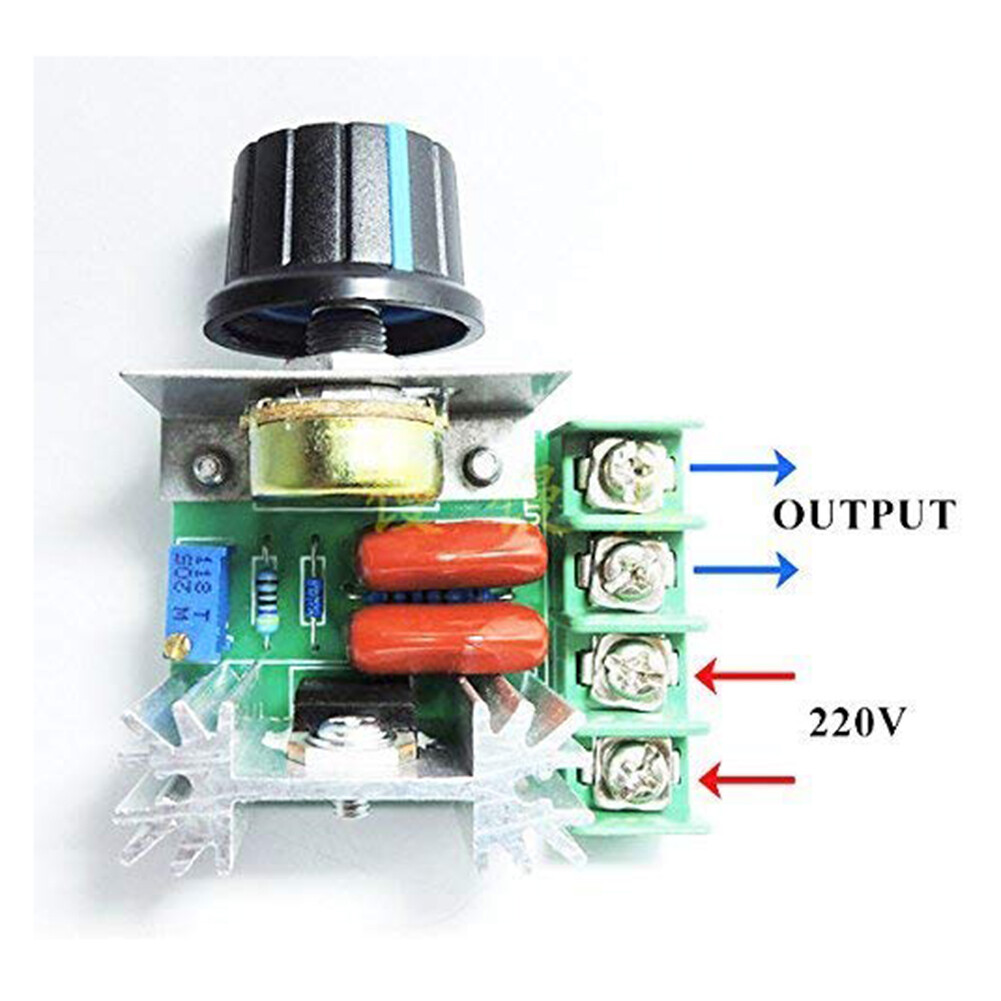

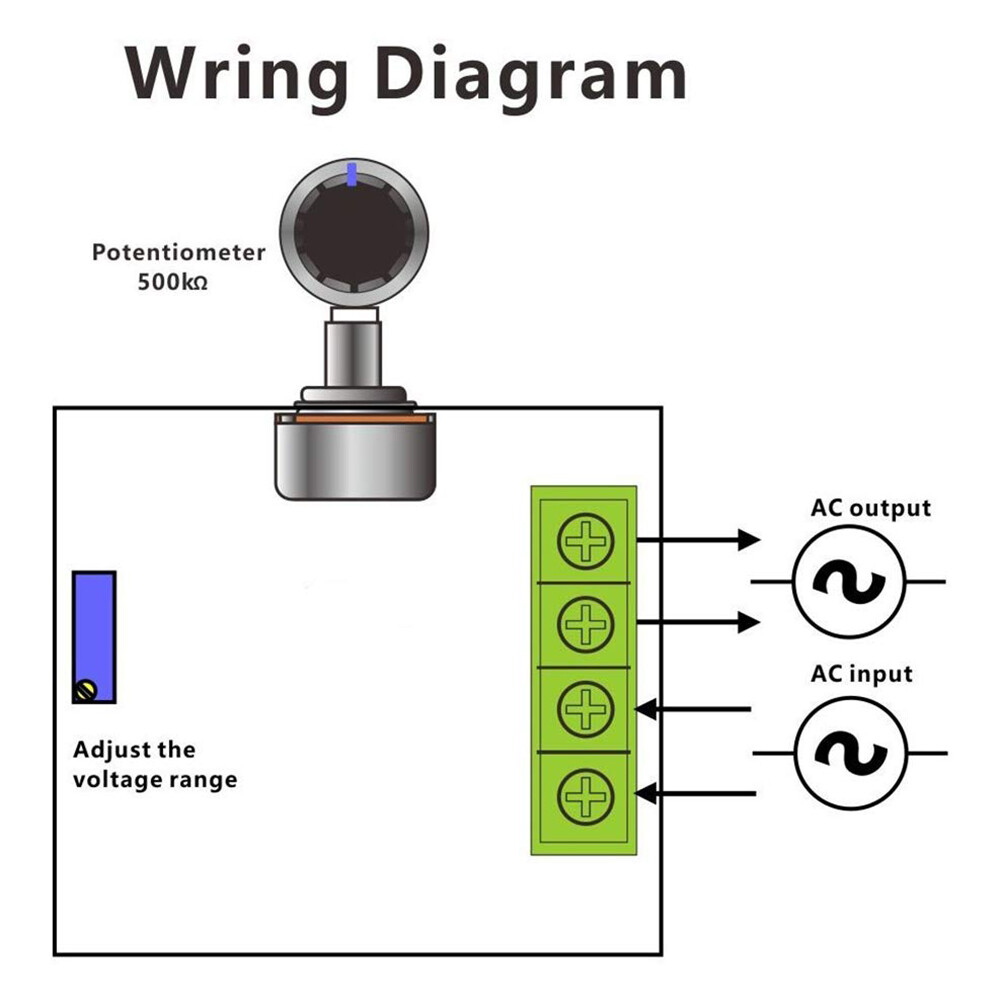

Connect this product in series with the circuit of the table lamp or consumer electronics (that is, disconnect any one of the live or neutral wires of the table lamp or consumer appliances, and connect the two wires of this product.) Turn the potentiometer lever. then it can an play the role of shading/speed/voltage/temperature adjustment, easy to use.

Suitable for:
Use the new bidirectional high-power thyristor, because the current can reach 25A, which solves the over-current problem caused by the resistance of the electric furnace wire being too small when it is cooled.
It can easily adjust the output voltage of the mains power in Adjust arbitrarily between 90-220V for electrical appliance, Such As: electric furnace, water heater, dimming of lamps, small motor speed, electric iron temperature. So as to achieve the effects of dimming, temperature and voltage.
Available for large appliances with an electric power of less than 2000W. Because the power is already large, ordinary household appliances or small factories are sufficient. (Inductive or capacitive load power should be reduced. This voltage regulator is equipped with bidirectional high-power thyristor. Potentiometers are equipped with screw caps, which can be used without adding any components. Very convenient and practical.)

Notes:
1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
2. Please allow 1-3mm measuring deviation due to manual measurement.
