2 x In, 3 x Out Digital Signal Processor Extension Board

DESCRIPTION

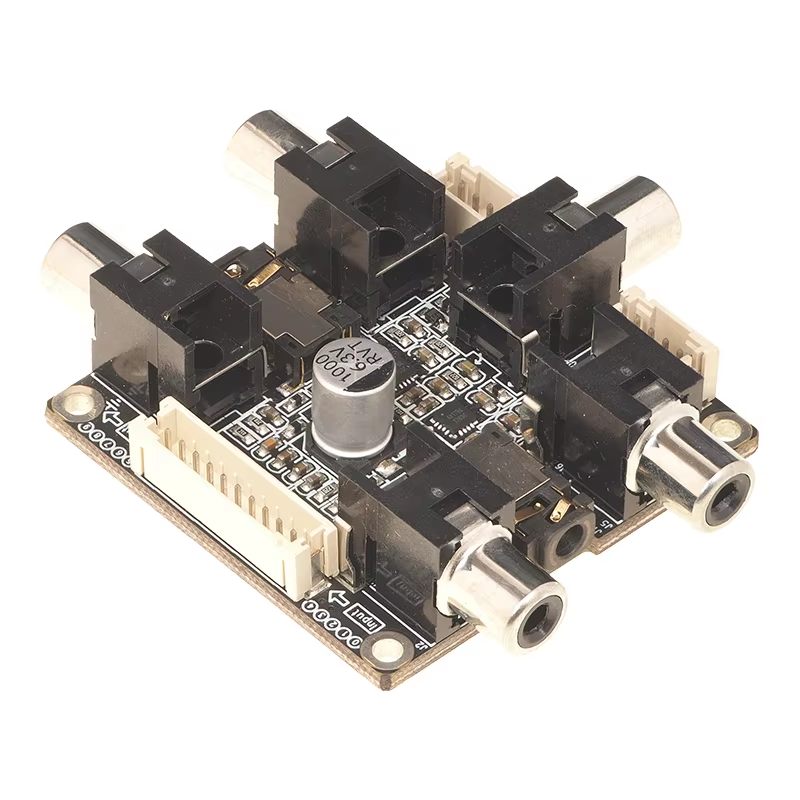

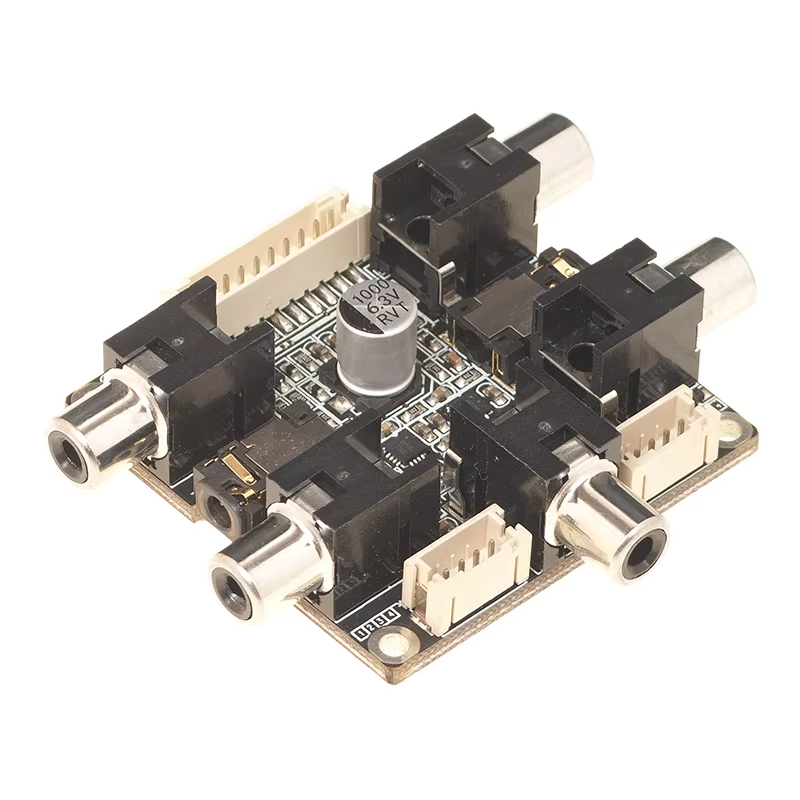

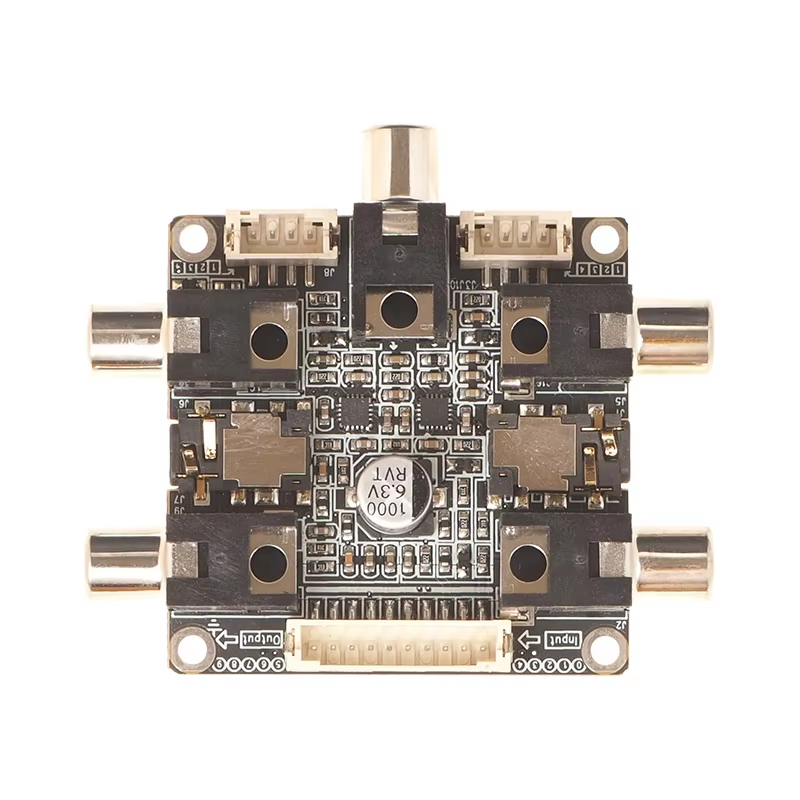

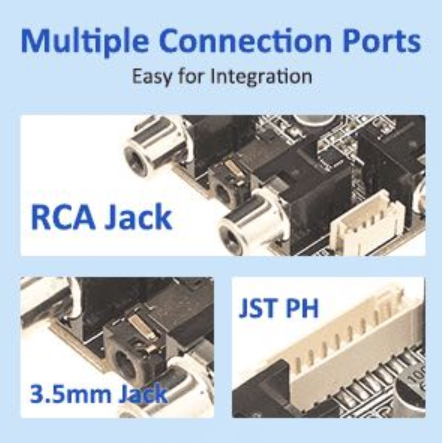

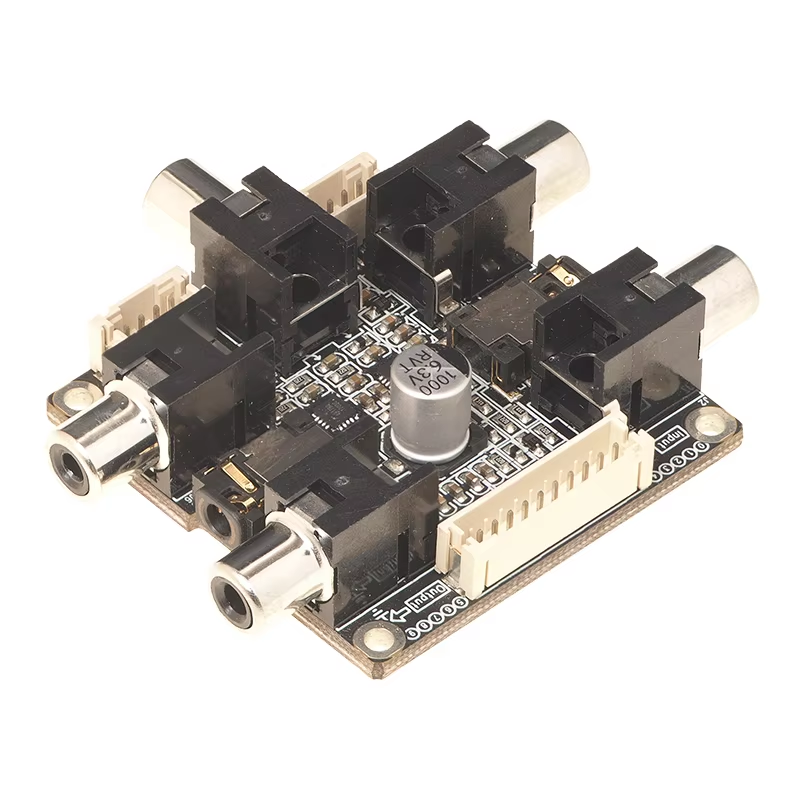

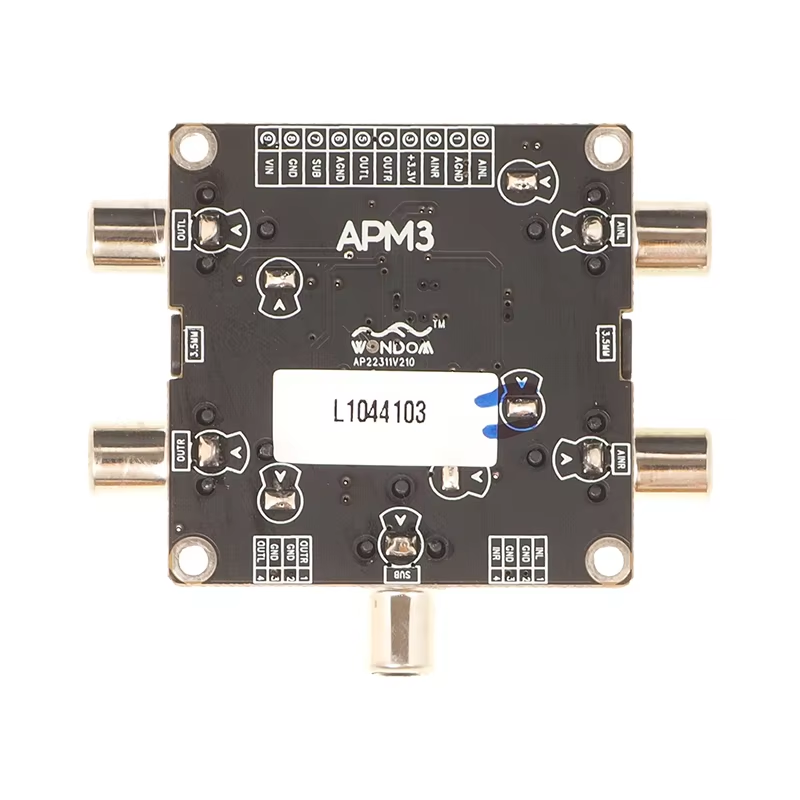

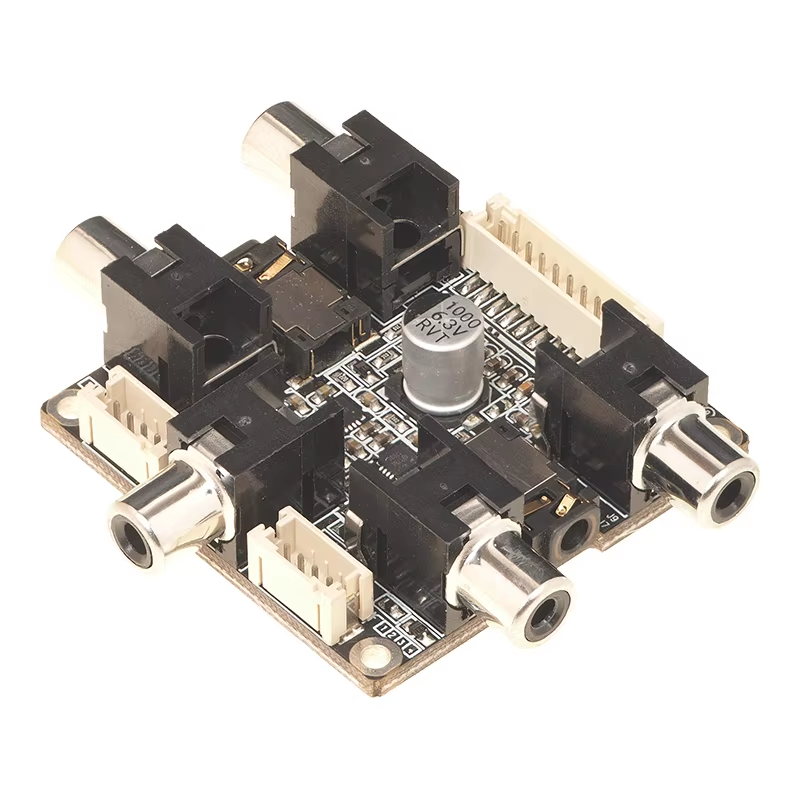

AA-AA11428 is the interface extension board specially designed to provide audio input and output interfaces for APM2. Taking customers’ common applications into consideration, APM3 works as a 2 x in, 3 x out extension board, suitable for audio 2.0 / 2.1 system. To maximumly satisfy different requirements of customers‘ projects, APM3 provides multiple kinds of interfaces, including 2 x RCA jacks, 1 x 3.5mm AUX IN jack, 2 x PH-4Pos connectors for audio input and 3 x RCA jacks, 1 x 3.5mm AUX IN jack and 2 x PH-4Pos connectors for audio output. ​ ​

Easy for Installation and IntegrationAs APM3 offers multiple interfaces for audio input and output, it’s easy and simple to integrate APM2 and APM3 to your audio systems through cables connection. In addition, APM3 is in 2'' x 2'' compact size, the same size as APM2, making them simple to be installed in any cabinet without occupation of too much space to leave enough headroom for other components.

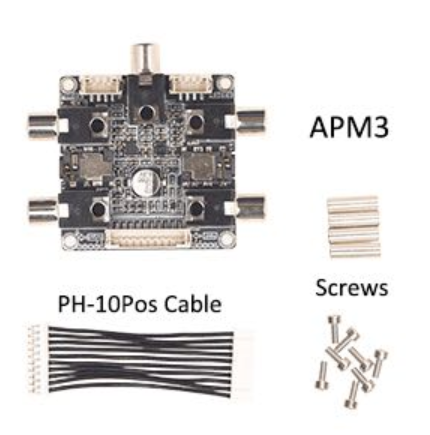

Package Include1pc AA-AA11428, APM3 ​ ​1pc PH-2mm-10Pos Cable, 5cm / 1.97'' ​ ​Screws

Features: 2 x 2 inches(50 x 50 mm) Compact PCB Size ​2 RCA input, 3 RCA output ​1 AUX input, 1 AUX output ​1 PH-4PIN-2MM input, ​1 PH-4PIN-2MM output ​Powered by DSP kernel board ​Suitable for audio 2.1 system

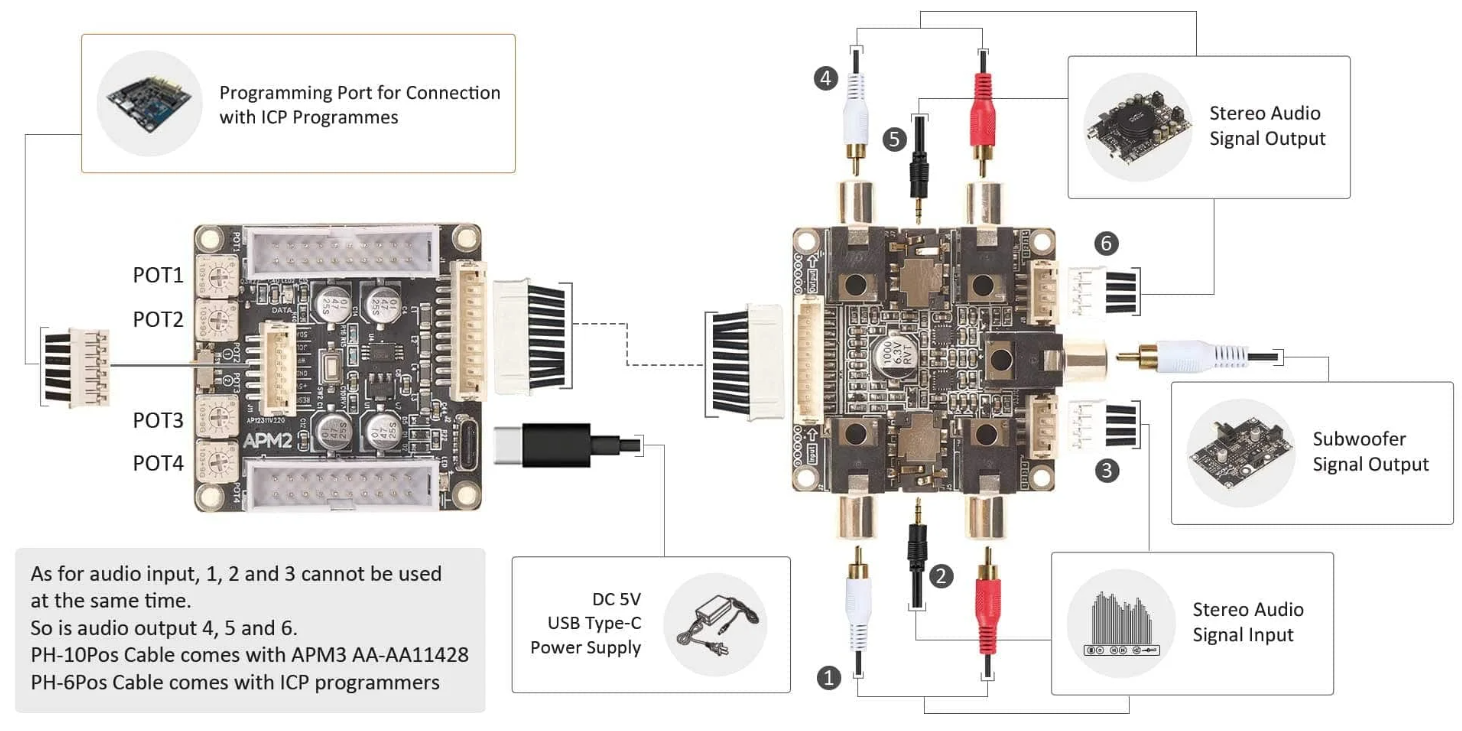

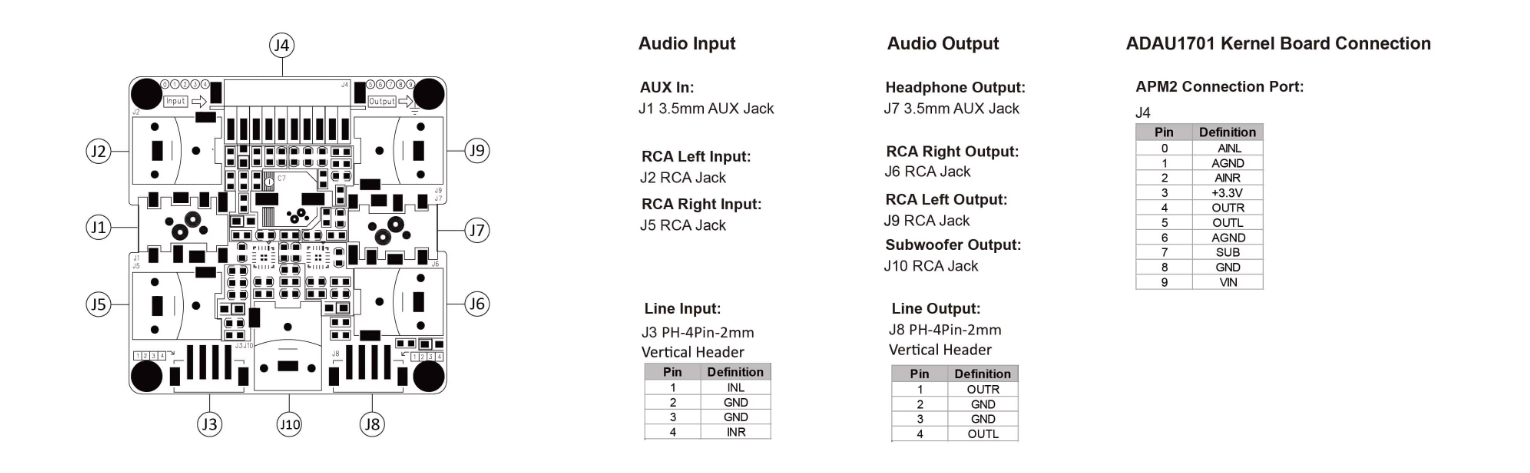

CONNECTION
