2 Position Valve Outstanding Safety Reliable Practical 5 Way Valve for Industrial Use

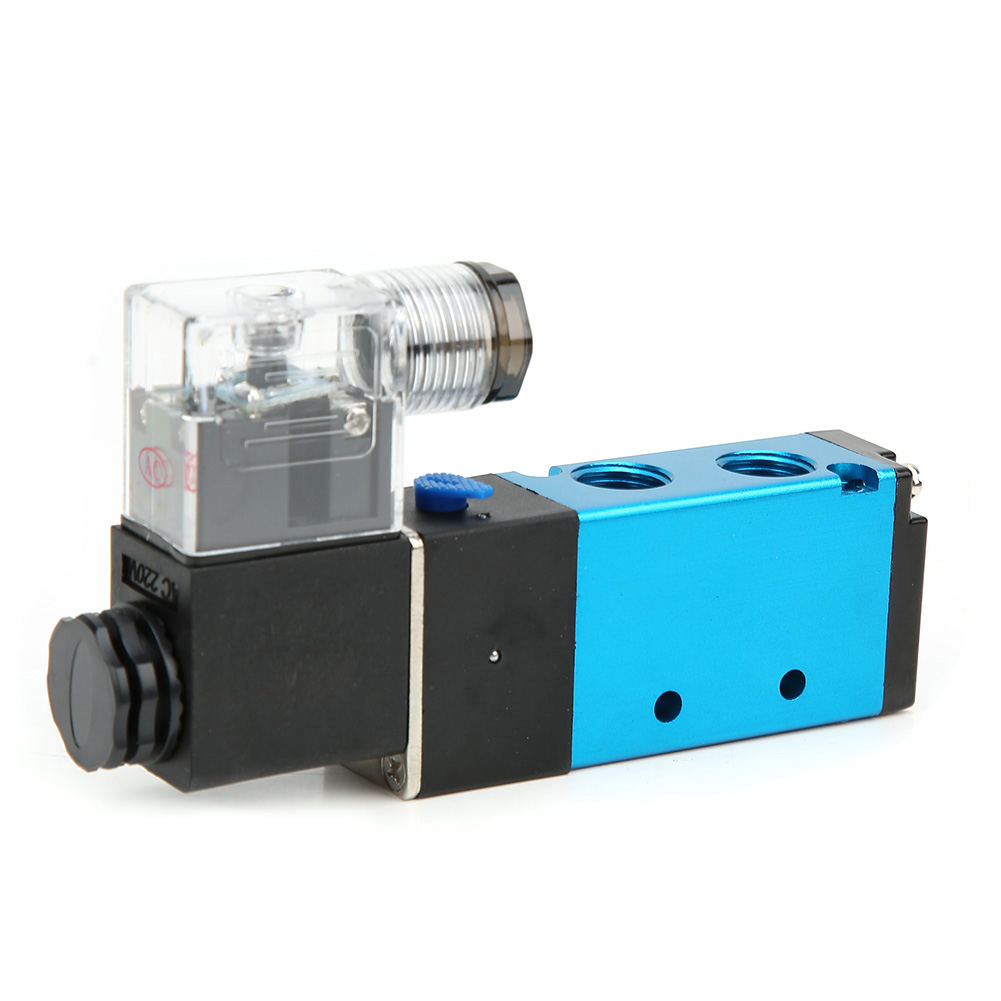

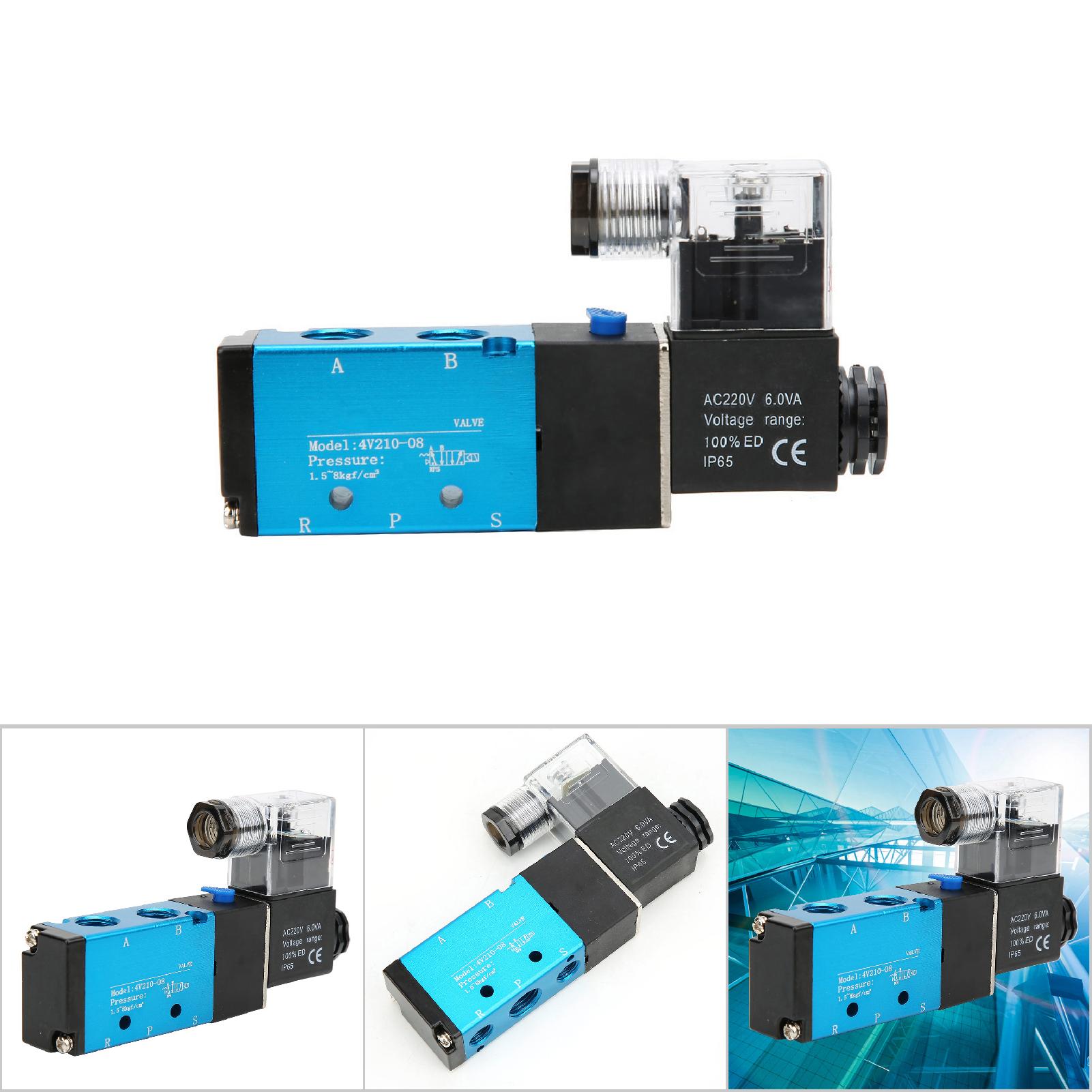

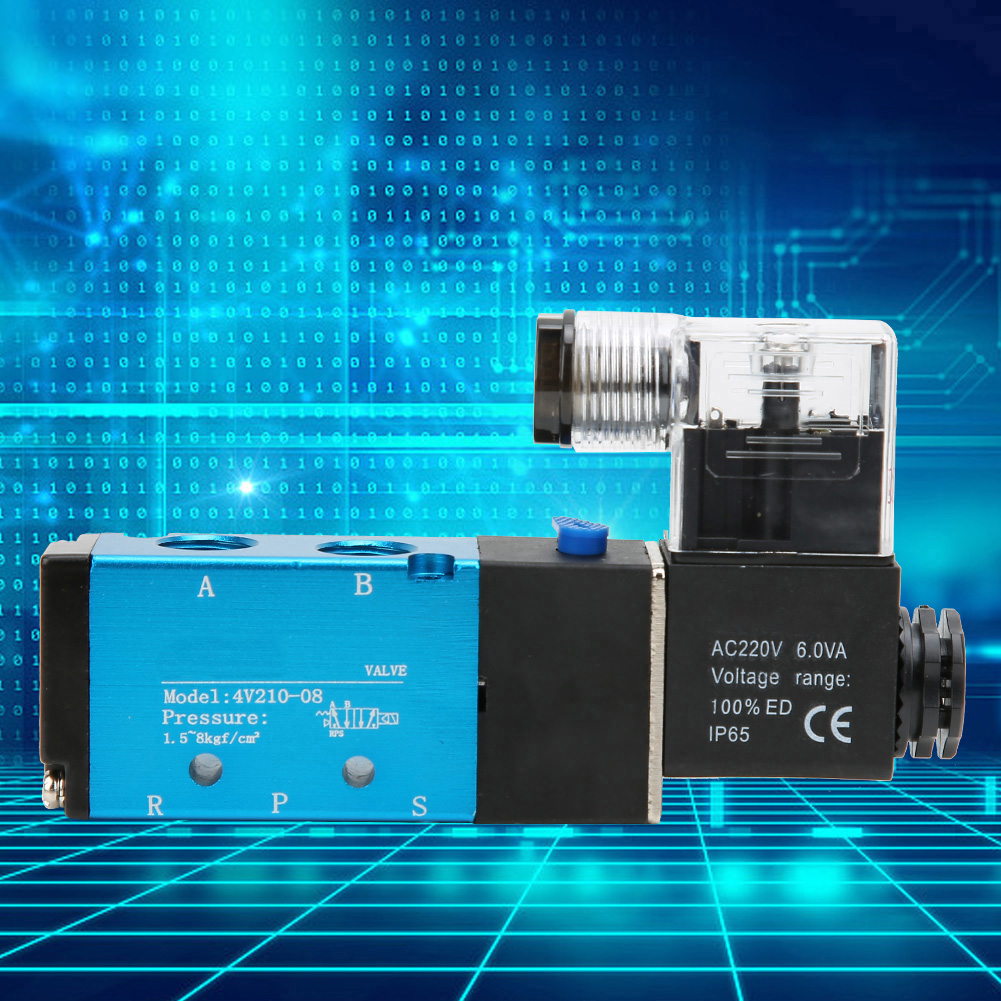

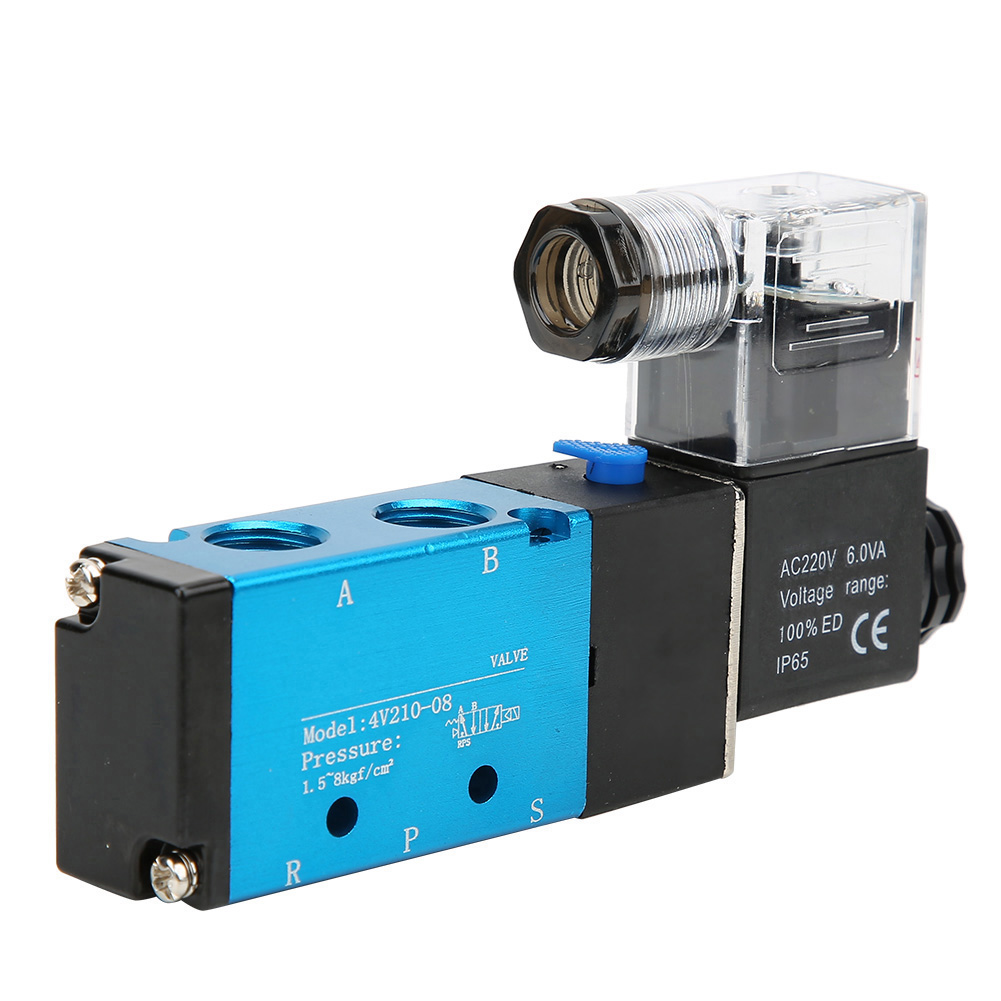

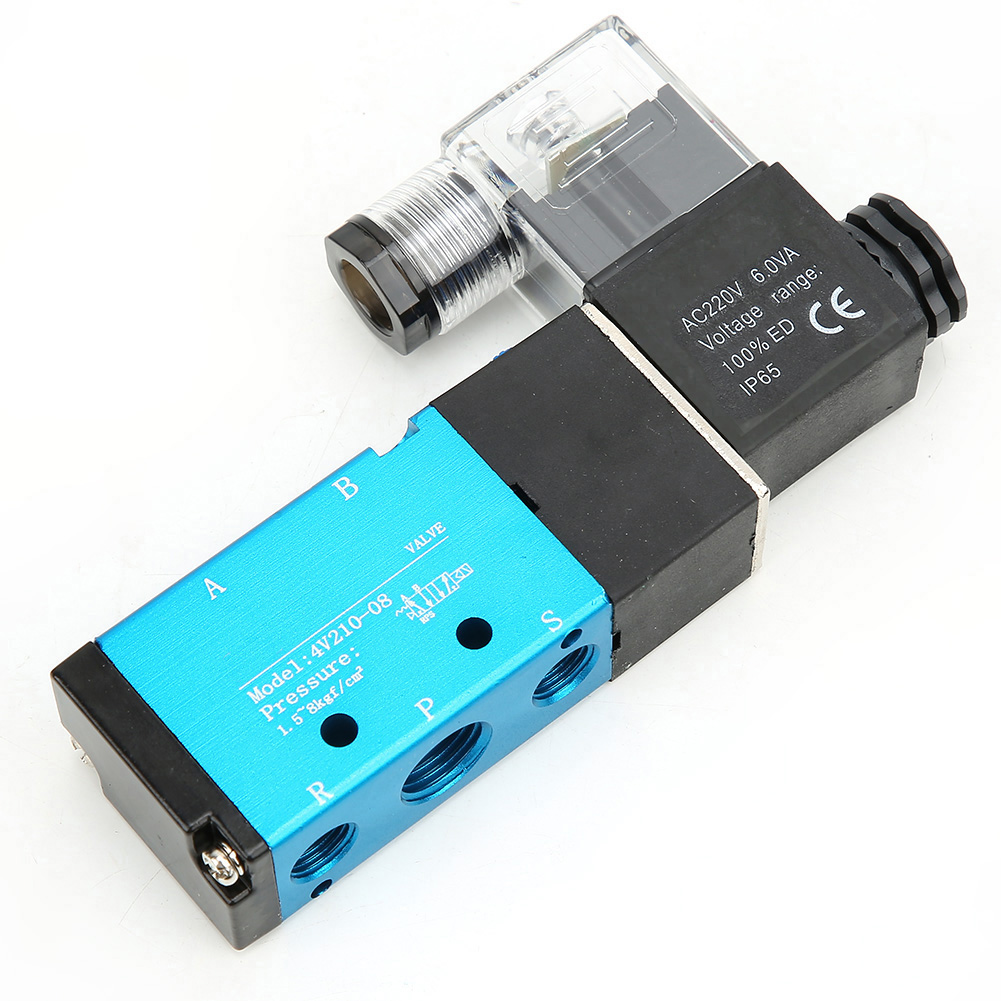

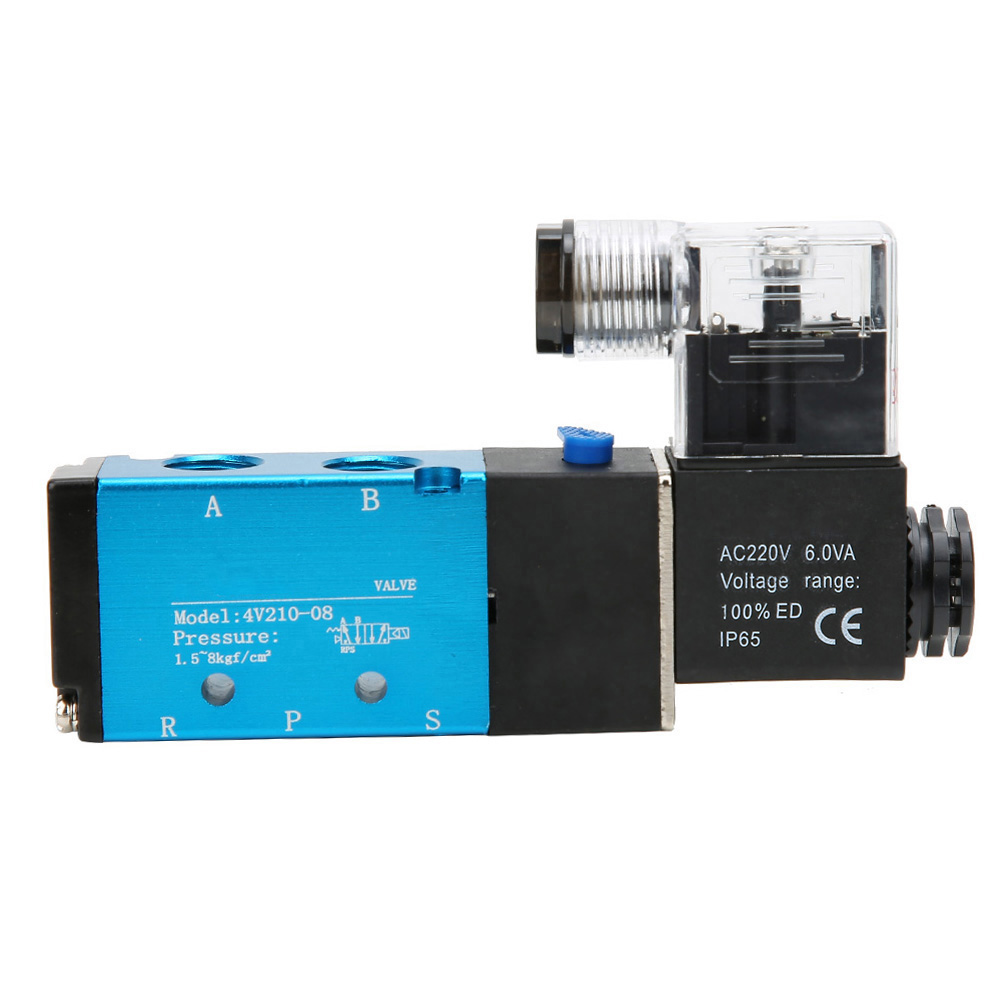

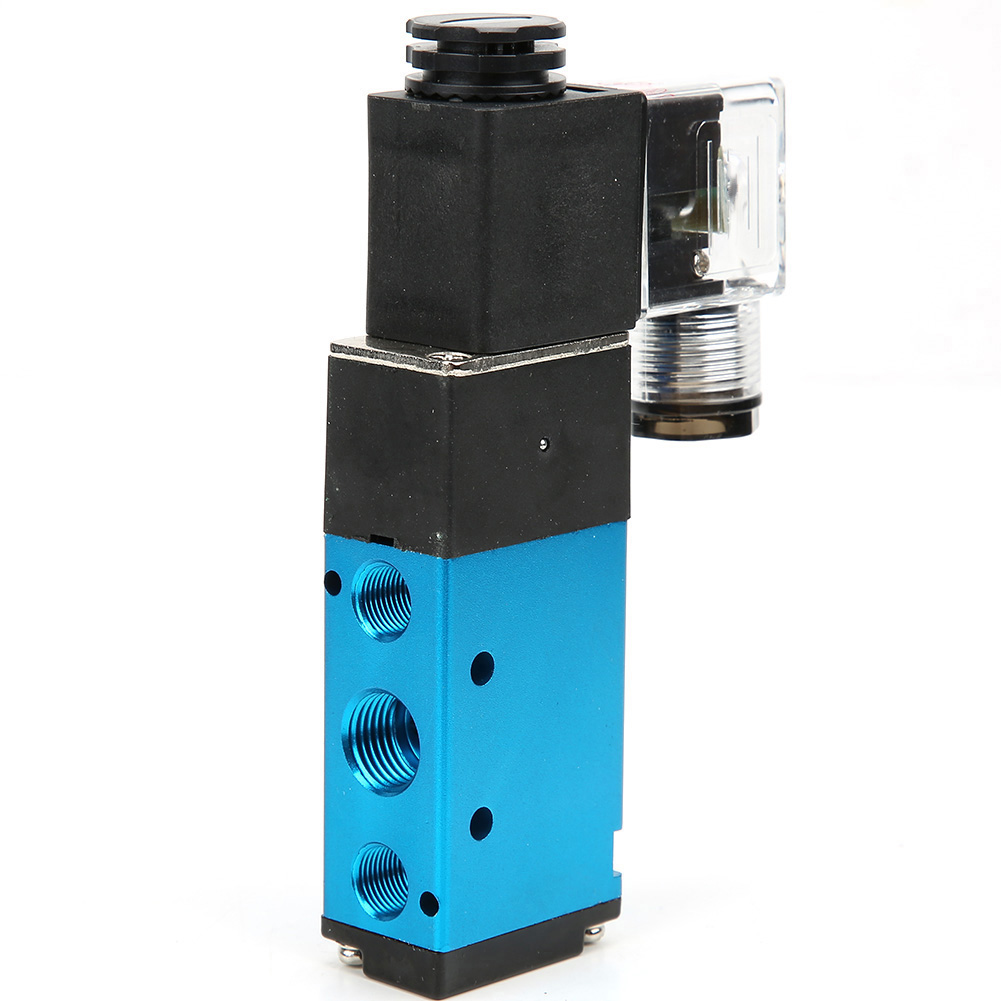

1. This is a 2 position 5 way solenoid valve whose working medium is air.
2. The effective area is 16mm²with a working pressure of 0.15~0.8MPa.
3. Outstanding safety grade of IP65 which makes it more safe to use.
4. The maximum pressure endurance is 1.2MPa(170PSi),very durable.
5. The air is filtrated by a 40μm filtration net to provide better working performance.

Specification:
Features:
This is a 2 position 5 way solenoid valve whose working medium is air.
The effective area is 16mm²with a working pressure of 0.15~0.8MPa.
Outstanding safety grade of IP65 which makes it more safe to use.
The maximum pressure endurance is 1.2MPa(170PSi),very durable.
The air is filtrated by a 40μm filtration net to provide better working performance.
Specification:
Working Medium: Air (40 Micron Filter)
Model: 4V210-08
Coil: DC24V DC12V AC110V AC220V(Optional)
Connection Diameter: Intake = Outlet = PT1/4"
Exhaust = PT1/8"
Effective Area: 16 Square Millimeters (CV = 0.89)
Working Temperature: -5~60 °C
Working Pressure: 0.15~0.8MPa (21-114PSI)
Power Consumption: AC: 6VA DC: 3W
Voltage Range: -15%~±10%
Insulation And Protection Rating: IP65
Frequency: 5 / S
Minimum Excitation Time: 0.05 Seconds or Less
Maximum Pressure Resistance: 1.2Mpa (170psi)
Package List:
1 x Solenoid Valve
