1Set DC12V-24V Wireless Remote Control Switch 2CH Relay Receiver Module RF Transmitter 315Mhz/433Mhz

Description:
100% brand new and high quality
Feature:
Remote programming
-Clearing the code :
Push the learning button on the receiver 8 times , the codes will be reset.
After clearing the code, remotes will be need to be recalibrated.
-Momentary mode
Please contact us for detailed use instructions.
-Learning the code: ( Toggle - Press remote button to turn on, press again to turn off.)
Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state.
-Push the learning key on the receiver 3 times , the LED (on the Receiver)will flash 3 times.

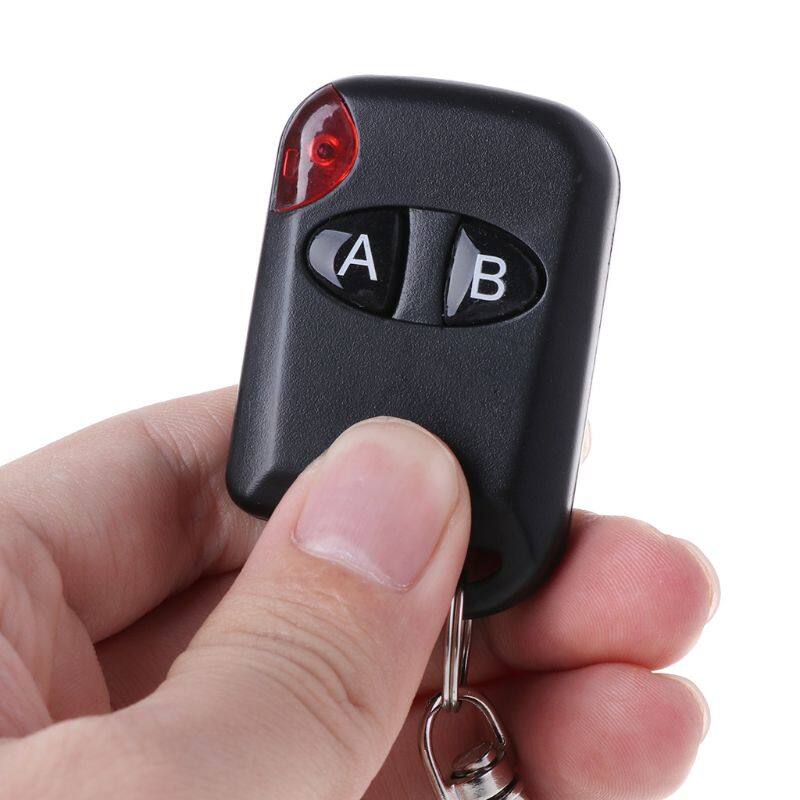

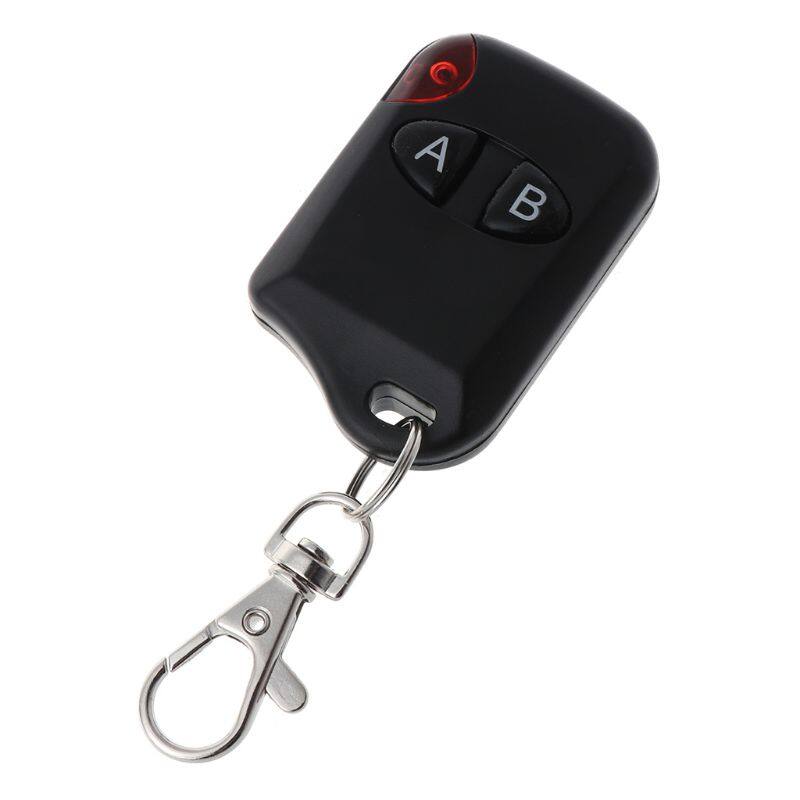

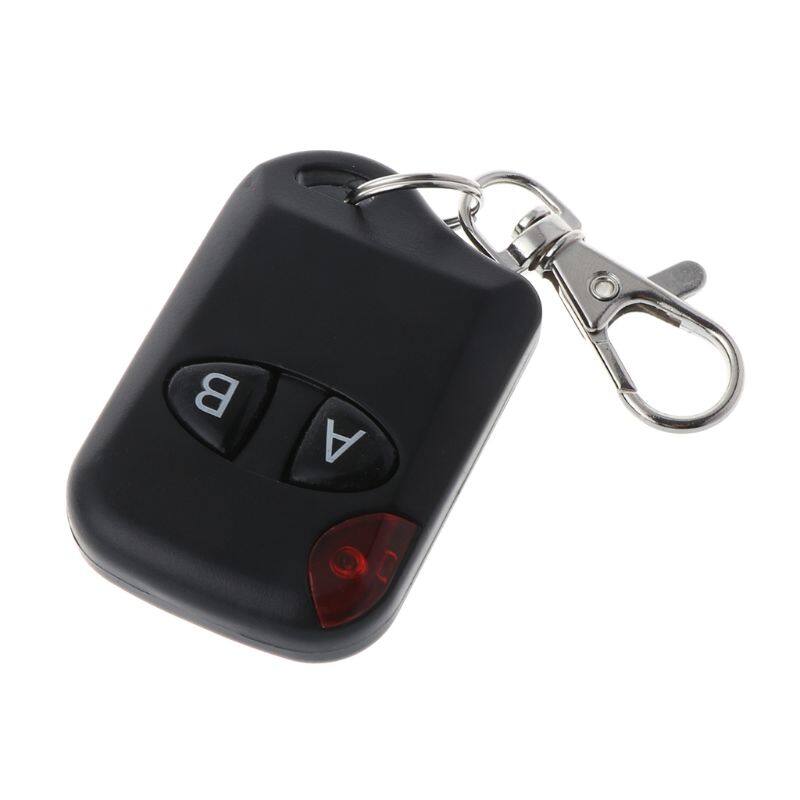

When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times.
Push the remote button B, Led flash for 3 times.
After 3 seconds, the LED indicator will be off, Learning to succeed.

Specifications:

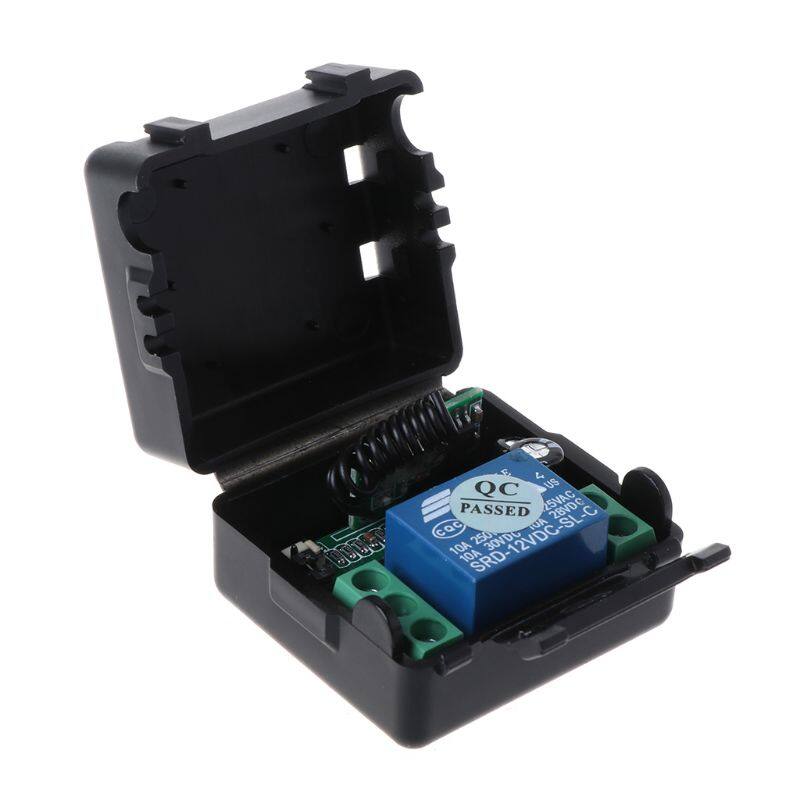

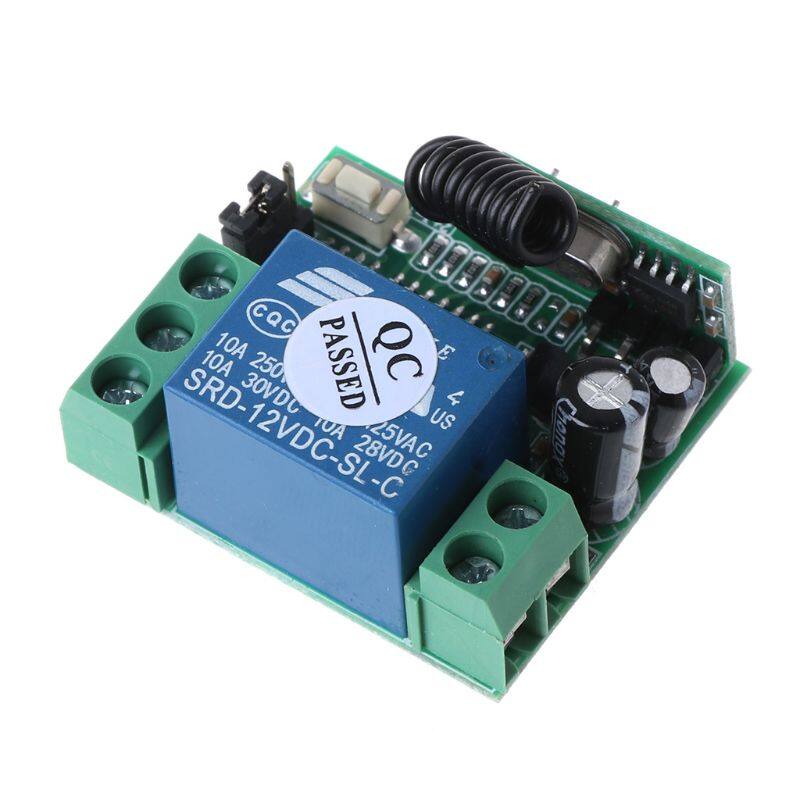

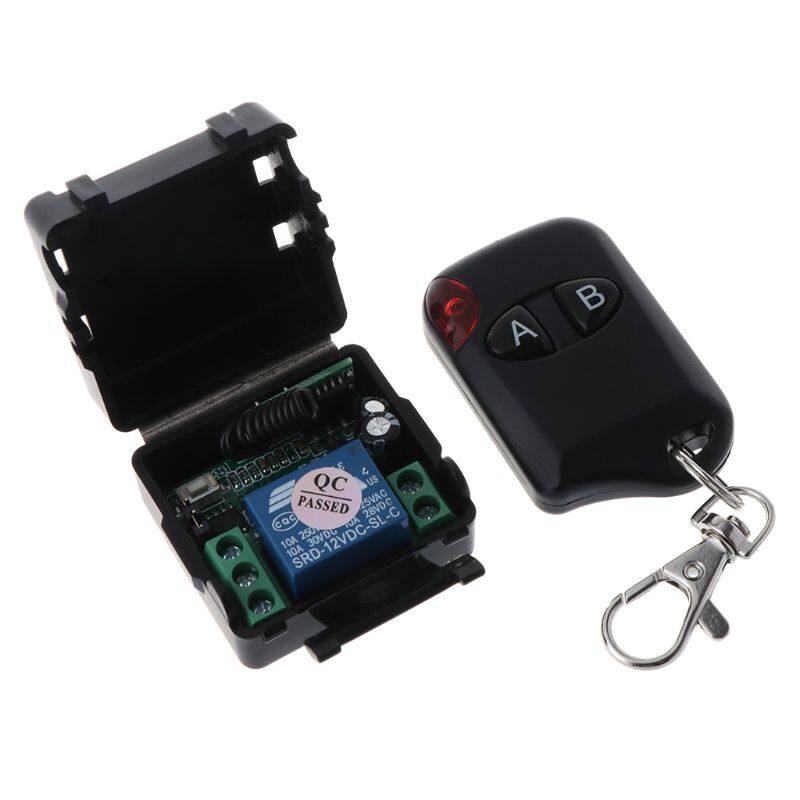

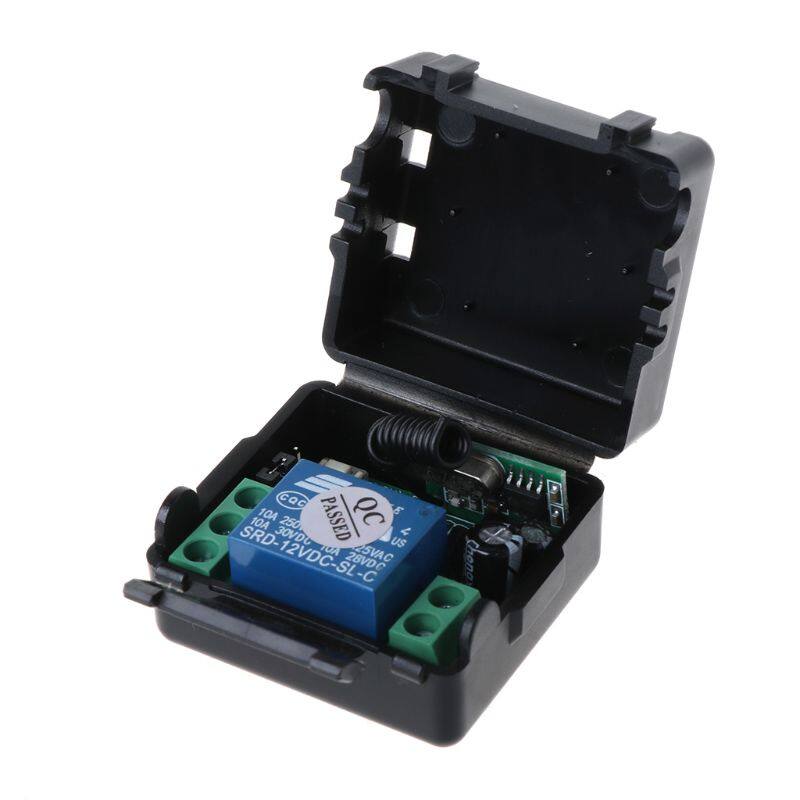

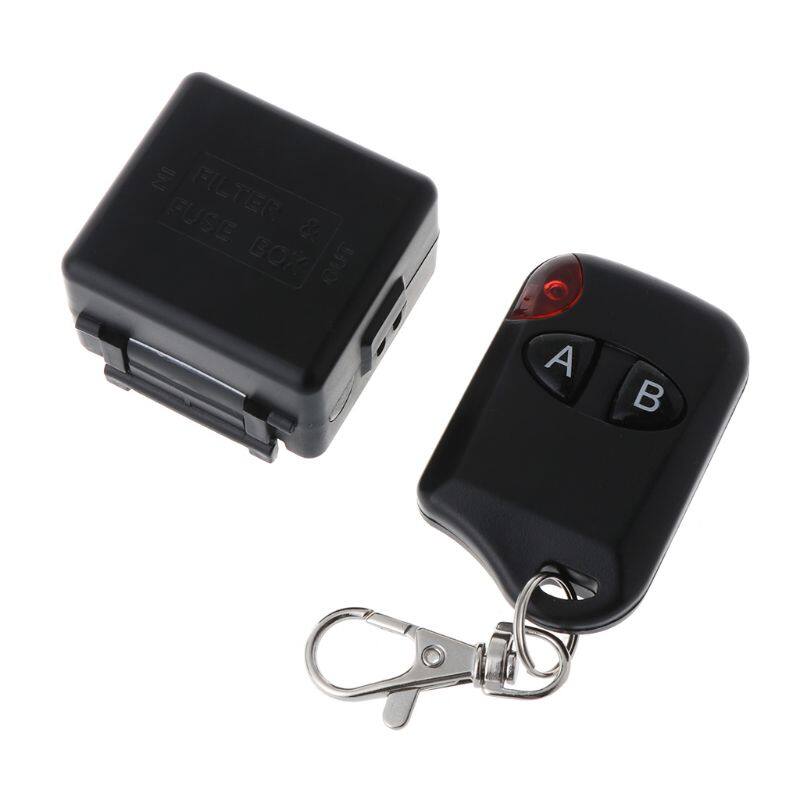

Item Type: Receiver+Remote Control
Material: Plastic+Metal

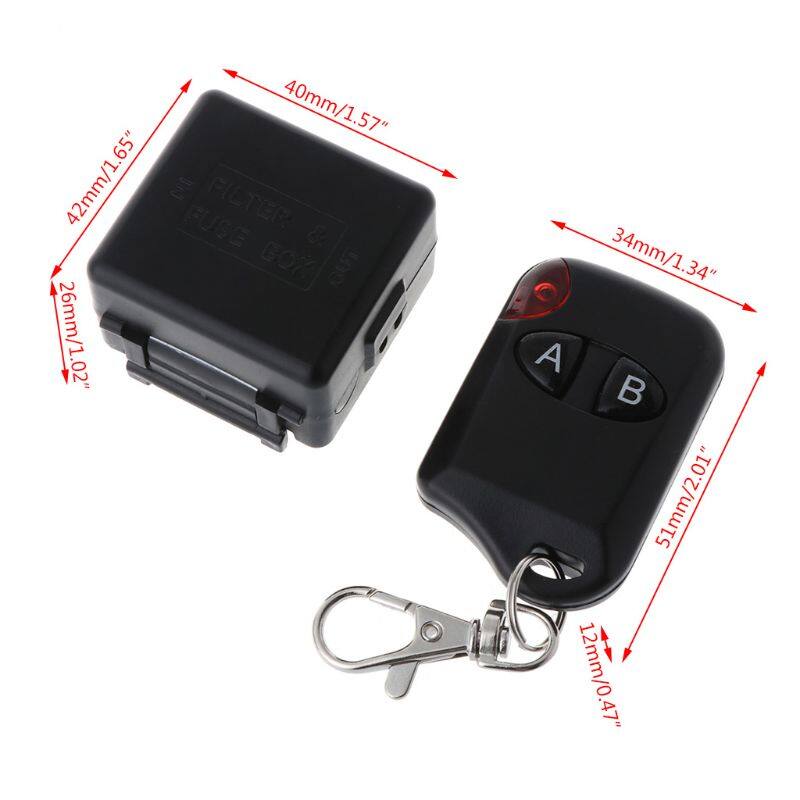

Size: Receiver: 42x40x26mm/1.6x1.5x1.02in, Remote Control: 51x34x12mm/2x1.3x0.4in
Color: Black

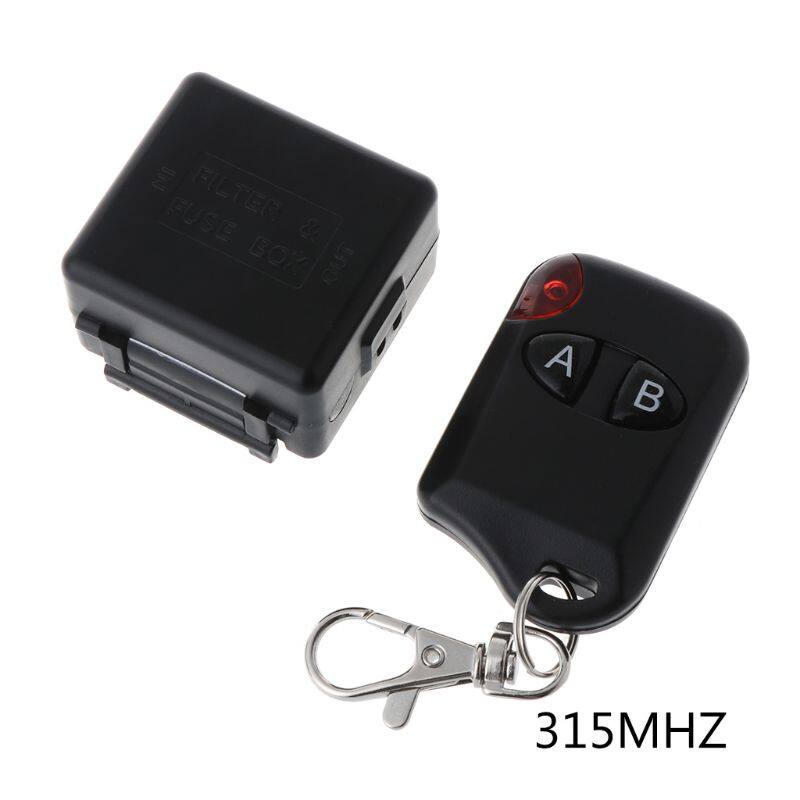

Frequency: 315Mhz, 433Mhz(Optional)
Channels: 2
Voltage: DC12V-24V
RF working mode: Superheterodyne
Receiver sensitivity: greater than 97dbm
Transmitting distance: greater than 100m (open space)
Decoding mode: MCU software decoding
Working mode: Momentary, toggle, latching time delay

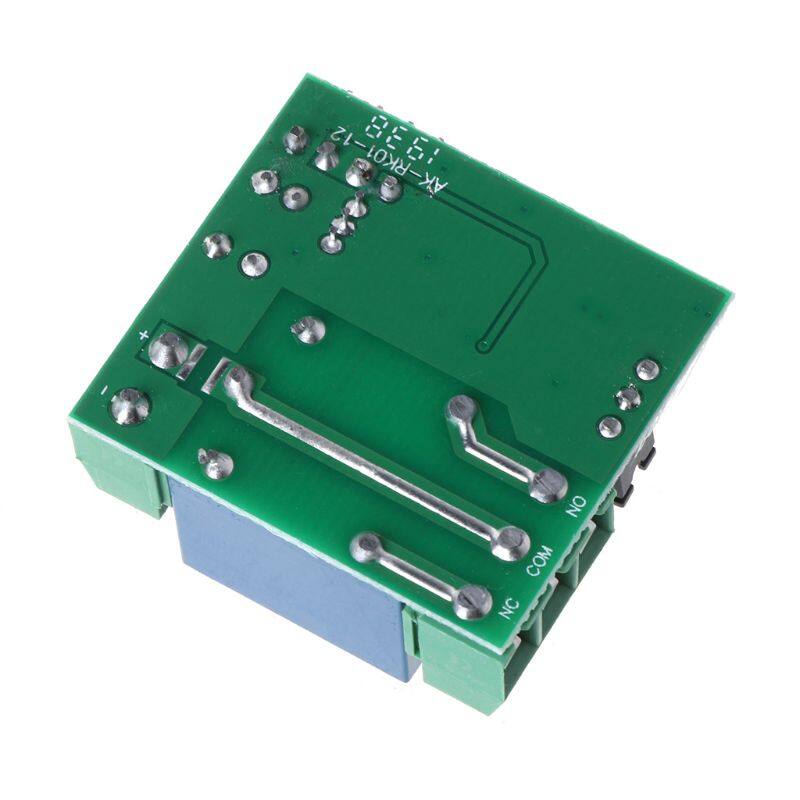

Output terminal: NO , NC , COM
Quantity: 1 Set

Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package Includes:
1 x Remote Control
1 x Receiver
