1PCS XH-W1412 Digital Display Thermostat Microcomputer Thermostat

product description

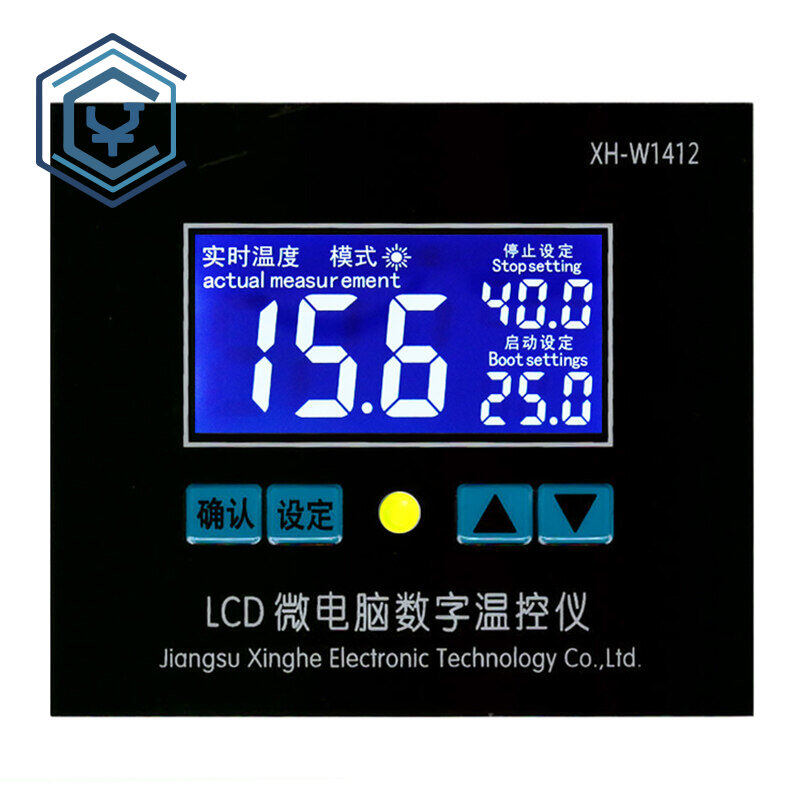

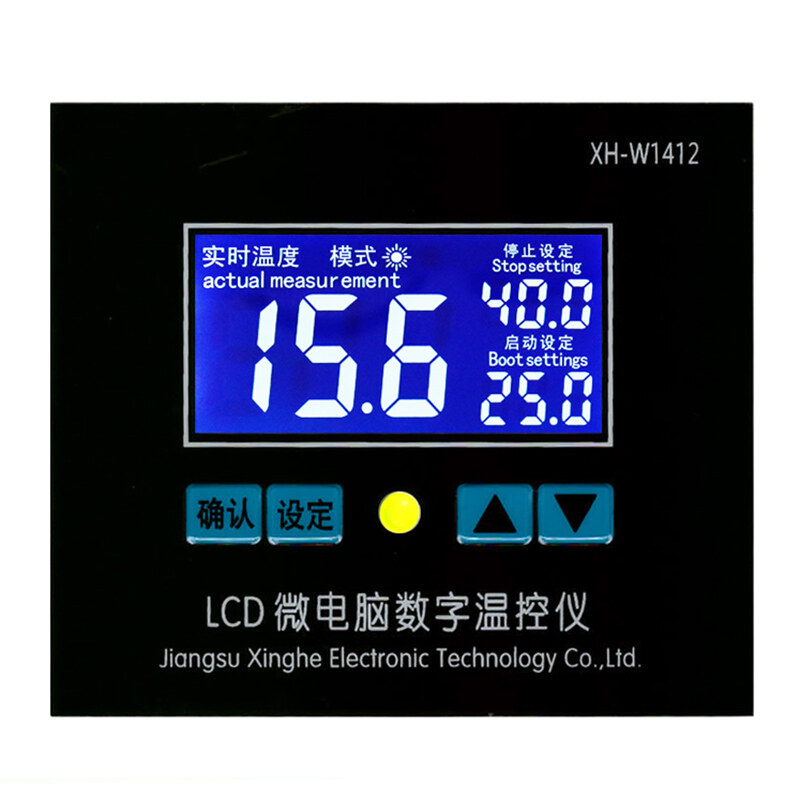

This product uses a high-end LCD screen display, embedded installation, full temperature control -50 ~ 110 degrees, measurement and temperature control are accurate to one decimal place. At the same time, the window can display real-time temperature and set value synchronously. The setting method is very simple and convenient, which is very suitable for use in cases such as cabinets, instruments, etc.!

The main parameters
Name: LCD microcomputer digital temperature controller
Model: XH-W1412
Main function: temperature control
Measuring range: -50~110°℃
Measurement accuracy: soil 0.1℃
Control range: -40~105°℃
Control accuracy: 0.1°℃
Measurement input: NTC10KL = 1 meter
Control method: position control
Input power: 12V/220V (optional)
Output type: relay output
Output capacity: maximum 10A
Appearance size: 92*80mm
Hole size: 77*70mm

Set up and use:
The product is divided into two control modes: high temperature start (cooling mode) and low temperature start (heating mode)
You can select the required functions according to your needs;
For example, to control the heat dissipation of the chicken house or the heat dissipation of the greenhouse, it is high temperature start. If we want the temperature to be higher than 35 degrees to start and 30 degrees to stop, we must press the set button to set the start value to 35 and the stop value to 30; The heating pipe booster pump, when the detection pipe temperature is higher than 40 degrees, the booster pump is started,
To turn off the booster pump when the temperature is lower than 38, it is necessary to set the start value to 40 and set the stop value to 38; for example, to control the hatching chicks to heat to 37.6 degrees to stop, and to start heating when the temperature is lower than 37.4 degrees, set the start value It is 37.4 degrees and stops to 37.6 degrees; for example, when controlling the heating of a water heater, when the water temperature in the furnace is lower than 80 degrees, it will start heating, and when heating to 90 degrees to stop, it is necessary to set the start to 80 degrees and the stop to 90 degrees;
