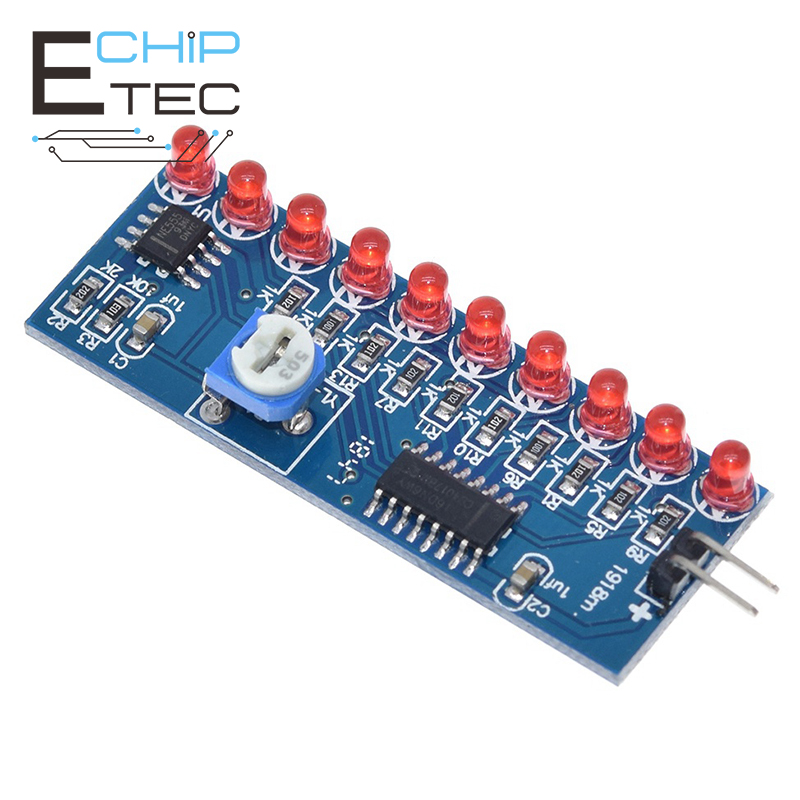

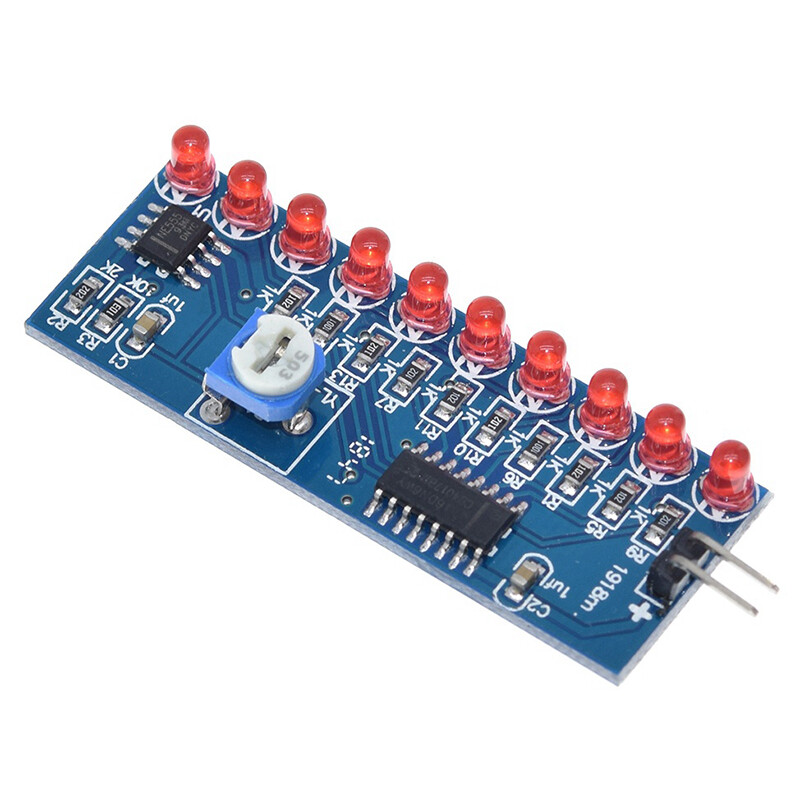

1PCS NE555 CD4017 Run LED Flow Light Electronics Production Kit Control Board Module Capacitor Oscillator Clock Signal DIY kit

Water lamp DIY electronic production kit NE555+CD4017 water lamp electronic DIY parts Electronic kit

Name: NE555+CD4017 water lamp kit/parts
Power supply voltage: 2.5-14.5V
PCB size: 5.4cm*2.1cm
PCB thickness: 1.6mm

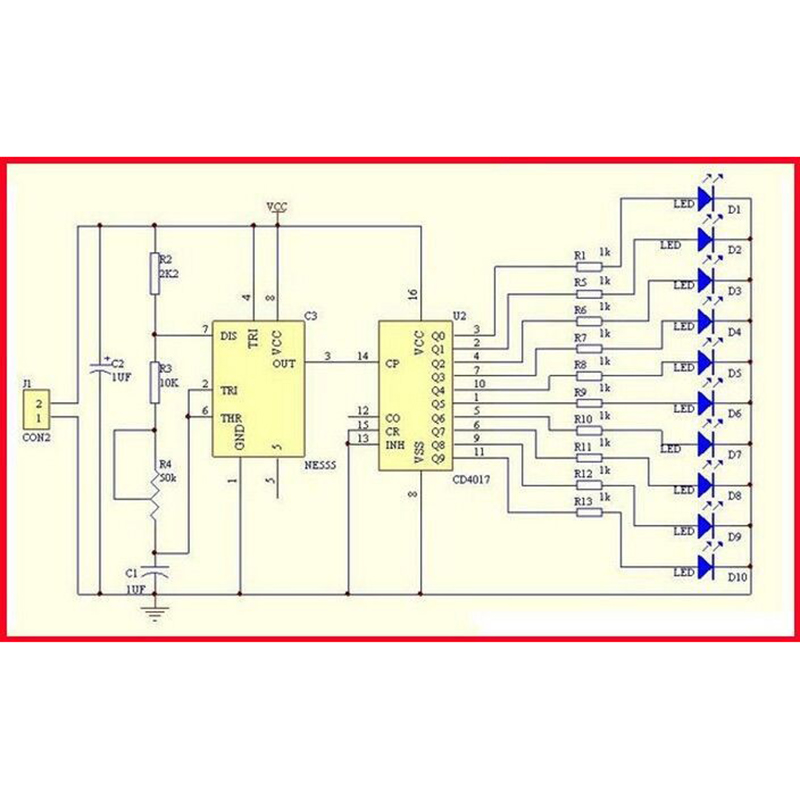

This kit is mainly composed of a clock generation circuit and a decimal counter circuit. It is a self-excited multivibrator with NE555 as the core. The power source charges capacitor C1 through R2, R3, and R4. When C1 just starts to charge, pin 2 of NE555 is still At a low level, the output pin 3 is at a high level. When the power is charged to 2/3 of the power supply voltage to C1 through R2, R3, R4, the level of the output pin 3 changes from high to low, and the internal discharge tube of NE555 conducts The capacitor C1 is discharged through R4, R3, and NE555 pin 7 until the voltage across C1 is lower than 1/3 of the power supply voltage, and the level of NE555 pin 3 changes from low to high again. C1 is charged again , This cycle forms an oscillation. The charging time is: 0.695 (R2+R3+R4) C1, and the discharging time is: 0.695 (R4+R3) C1. Adjusting R4 can control the output frequency of the oscillator. The clock oscillation signal of NE555 is continuously added to pin 14 of CD4017. 10 LEDs are connected to the 10 output terminals of the CD4017. When the 10 output terminals of the CD4017 generate high levels in turn under the action of the clock signal, D1--D10 will be lit in turn to form a water lamp effect.

Adjust R4 to adjust the flow speed of LED lights.

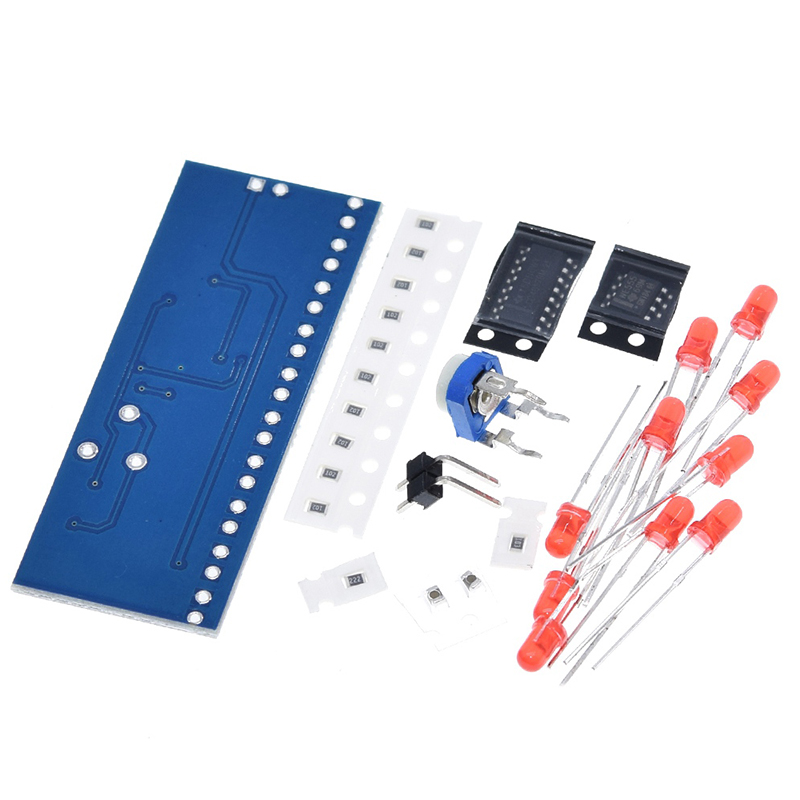

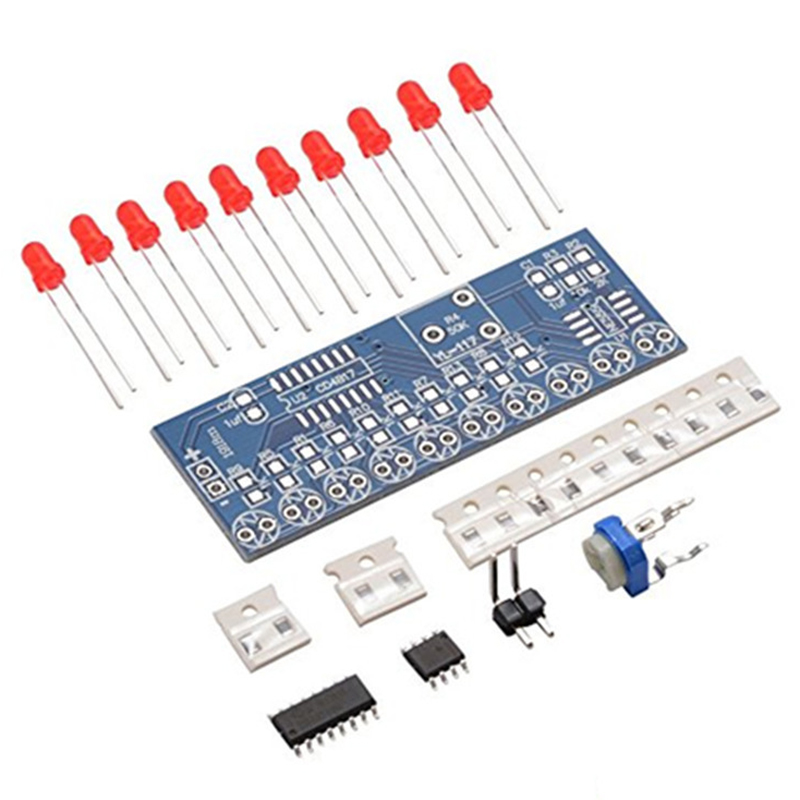

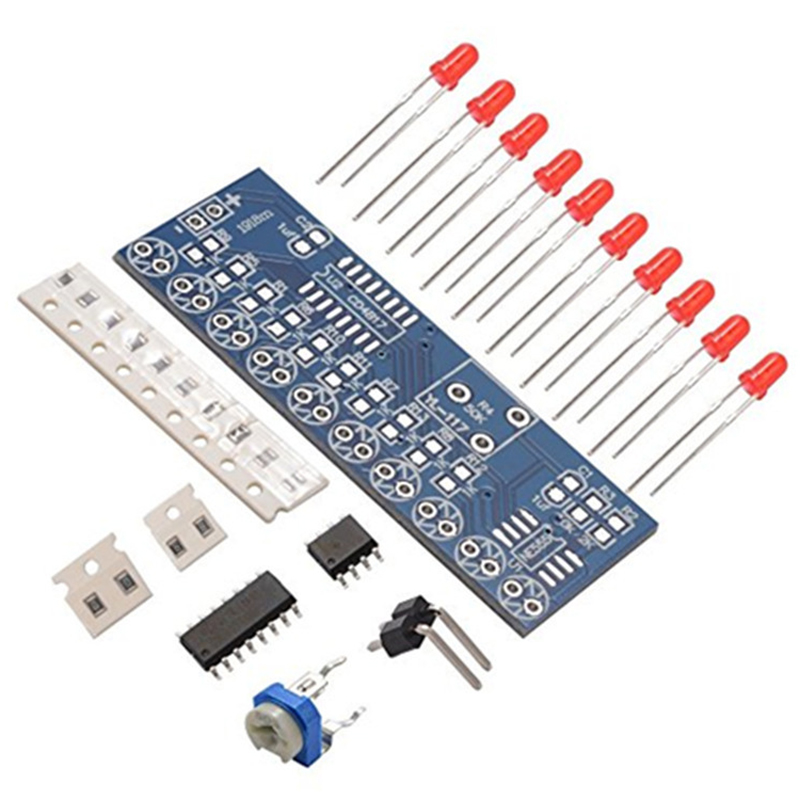

List of spare parts:
PCB board 1
2P curved pin 1
1UF capacitor 2
3mmLED red 10
1K resistor 10
2.2K resistor 1
10K resistor 1
50K blue white potentiometer 1
NE555 1
CD4017 1
