1Pc 433mhz rf receiver learning code decoder module 4 channel for 1527 encoding

Application environment

Remote control switch, receiver module, motorcycles, automobile anti-theft products, home security products, electric doors, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm host, alarm, remote control motorcycle remote control electric cars, remote control MP3.

Product Description

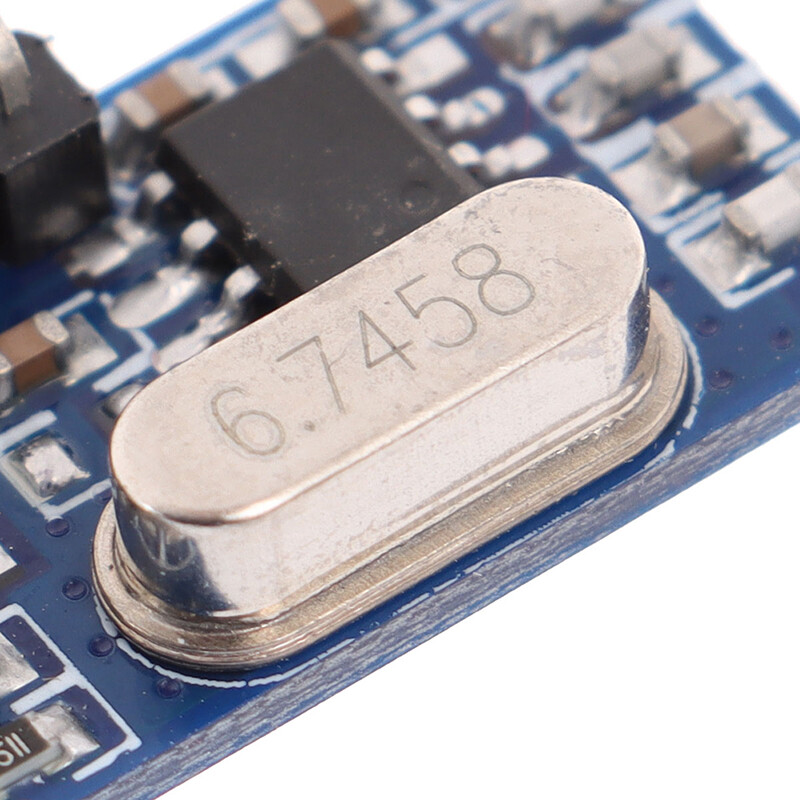

[Receiver module ] Product Model:? RX480-E4

Working Voltage : DC3.3~5V

Quiescent Current : ��5mA

Output current : 10 mA

Working Frequency: 433MHz

Receive Sensitivity: -108dB

Receive Distance:? 15 meters above

Frequency band: ��0.2MHz

Working Temperature : -25~75

Working mode: Momentary Mode , self-locking (Toggle-Mode of the 4 Channels) , interlocking

The output: 4 channel CMOS level signal Corresponding to the remote control ABCD 4 buttons.

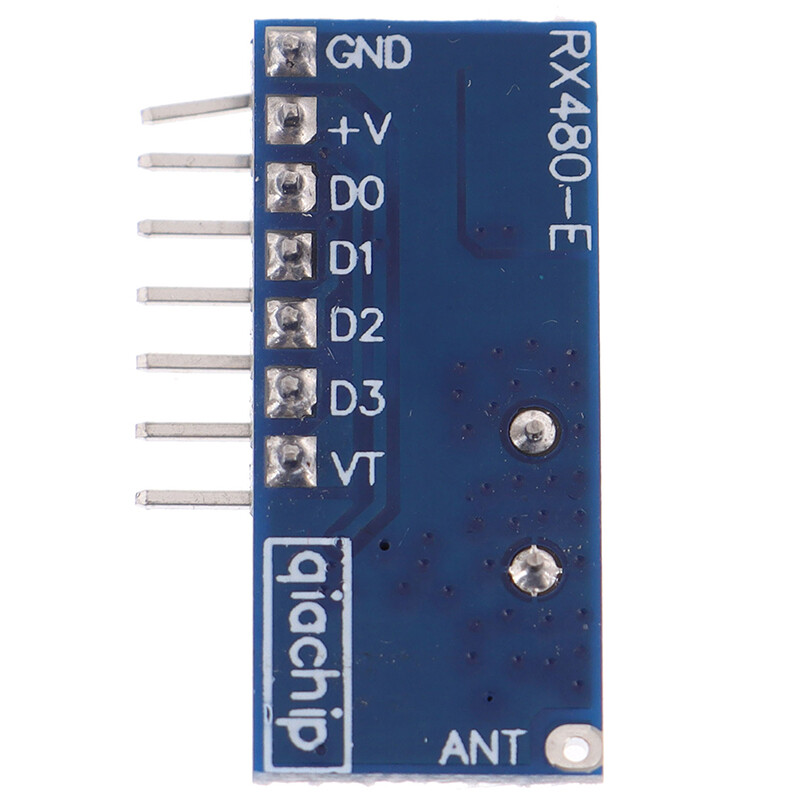

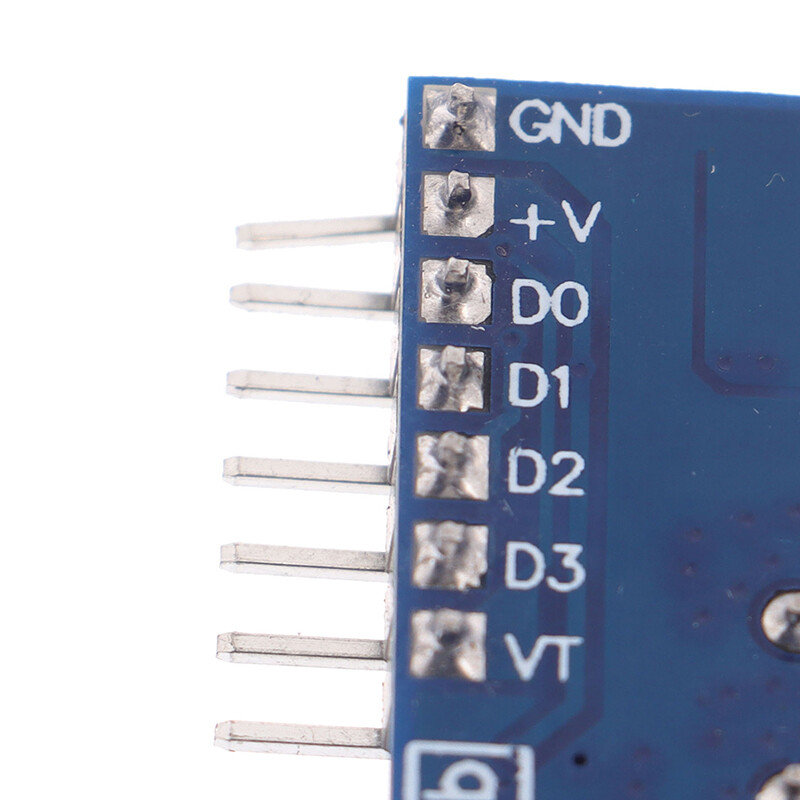

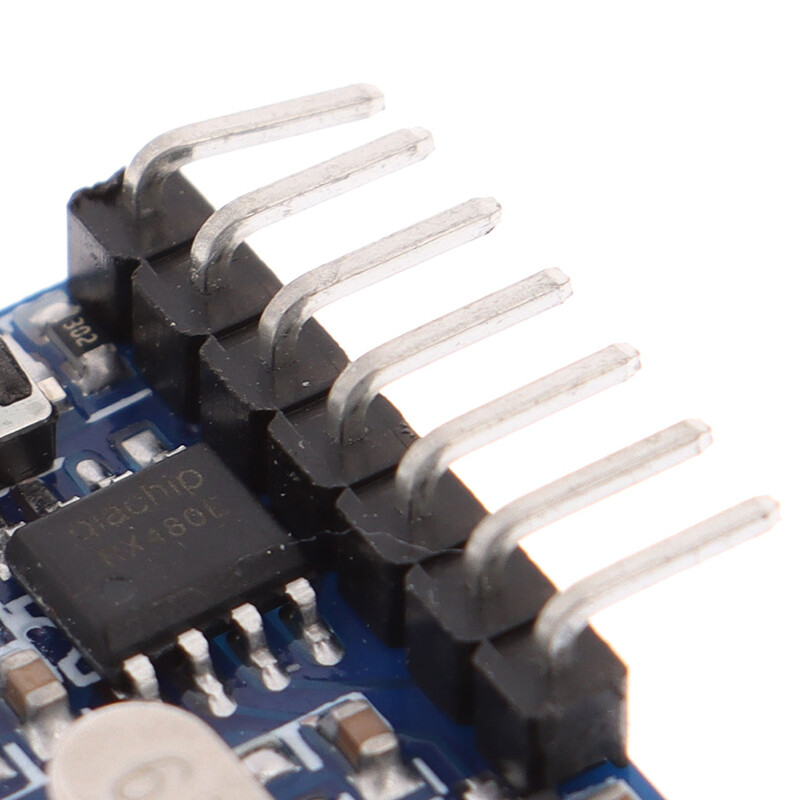

Pins Instruction

GND : ground or negative pole

+V : DC3.3~5V input

D0: Data output

D1: Data output

D2: Data output

D3: Data output

VT: Output

Package included:1pcs

How To Programming:

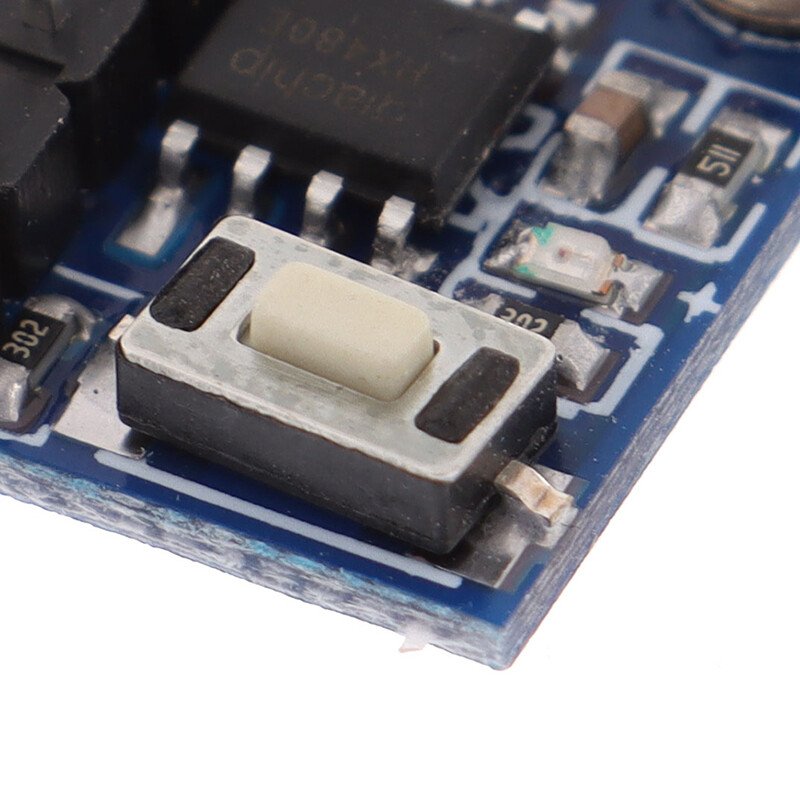

1. Delete existing data: Press learning button 8 times (on the receiverﾣﾩ. Response: LED flashes 7 times.

2. Learning remote code: press learning key? (on the receiverﾣﾩ? once, twice or three times (see below).

LED turns on: learning mode is active. Press any button of the remote control.

LED indicator flashes three times: learning successfully completed.

3. Test: after the above operation , the receiver board can be controlled by the remote control .

More transmitters with different IDs can be learned and stored additionally, starting with step 2.?

A mixture of different modes is possible.

Button usage (sets mode and starts pairing process):

Press once? (on the receiverﾣﾩ? : Inching mode (Momentary Mode)

Press twice? (on the receiverﾣﾩ? : self-Lock Mode (Toggle-Mode of the 4 Channels)

Press three times? (on the receiverﾣﾩ? : interlocked mode (selected channel active and be cleared, if another channel becomes active)

(This instructions is provided by Manfred, thanks to Manfred)
