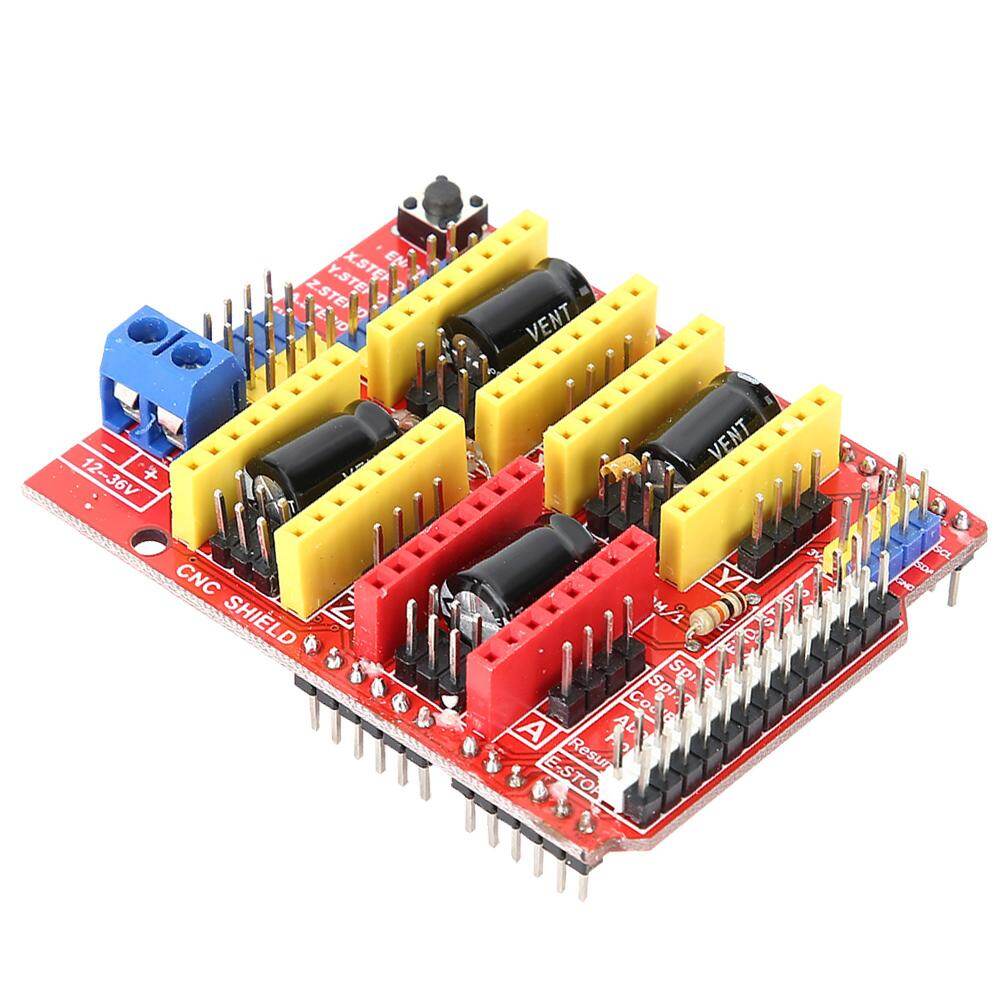

1pc 3D Printer CNC Shield V3 Engraver Expansion Board + 4pcs A4988 Driver Module

Features:

• The expansion board can be used as engraving machine, 3D printer and other drive expansion board.
• Compatible with GRBL 0.8. Open source firmware running on for Arduino UNO that converts G code commands into stepped signals.
• PWM spindle and direction pins, support 4-axis (X, Y, Z, A - you can copy X, Y, Z or use the pin of D12 and D13 to custom firmware to perform the complete axis 4).
• Compact structure, stepper motors can be connected to 4 pin connectors or soldered.
• This is a set of disassembled parts and you need basic soldering techniques to solder them together.

Specification:

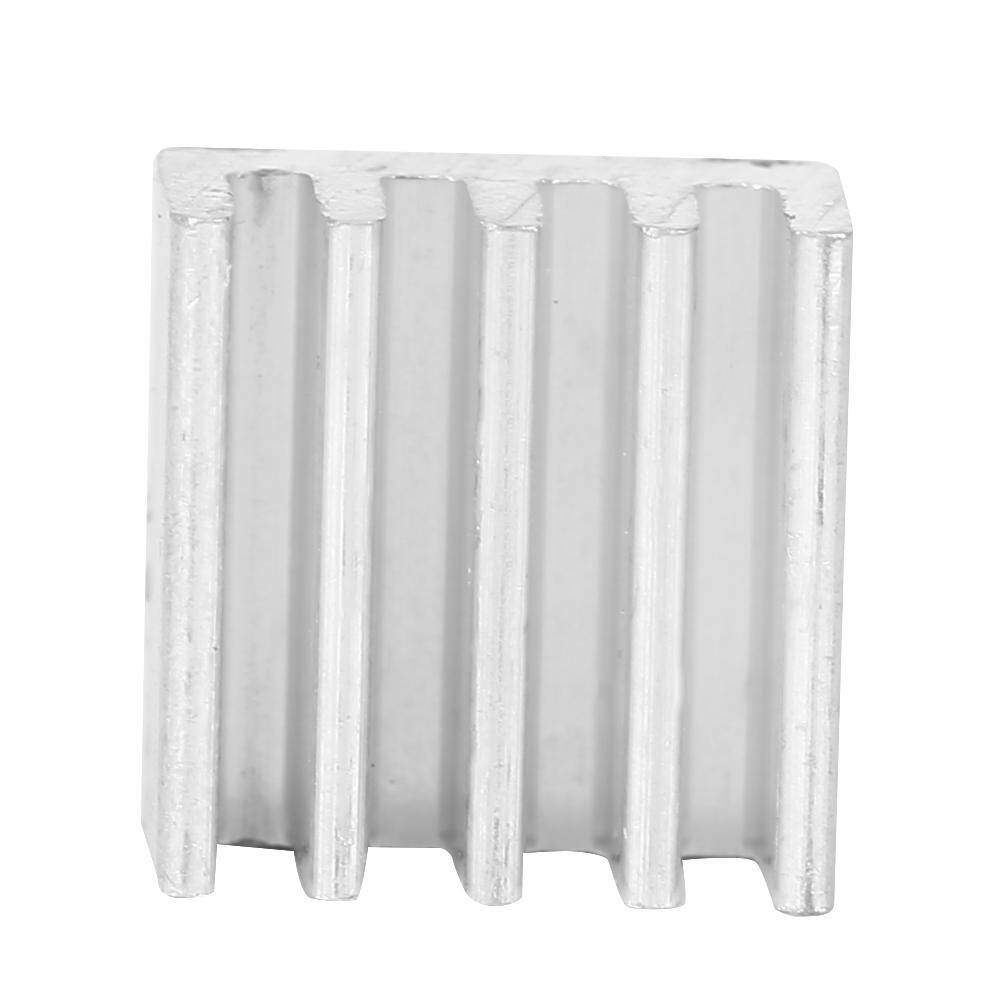

Radiator Size: Approx 8*8mm

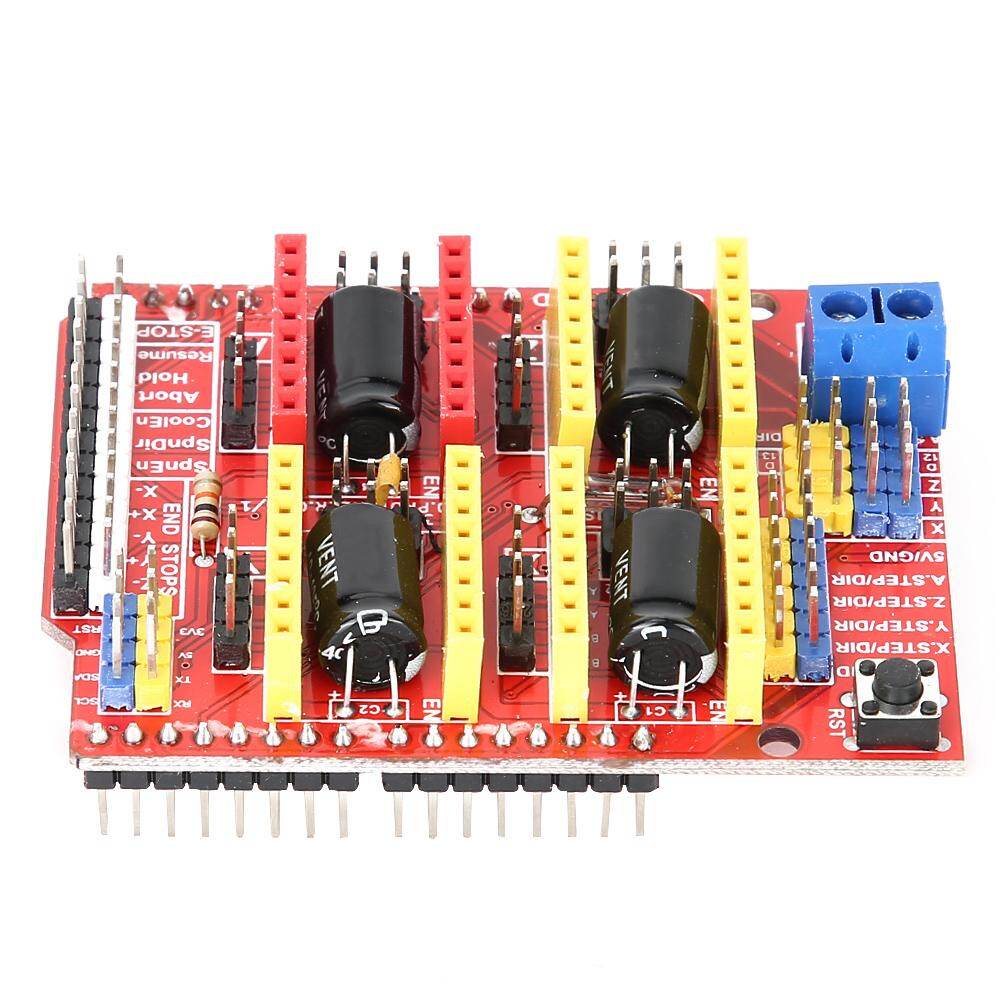

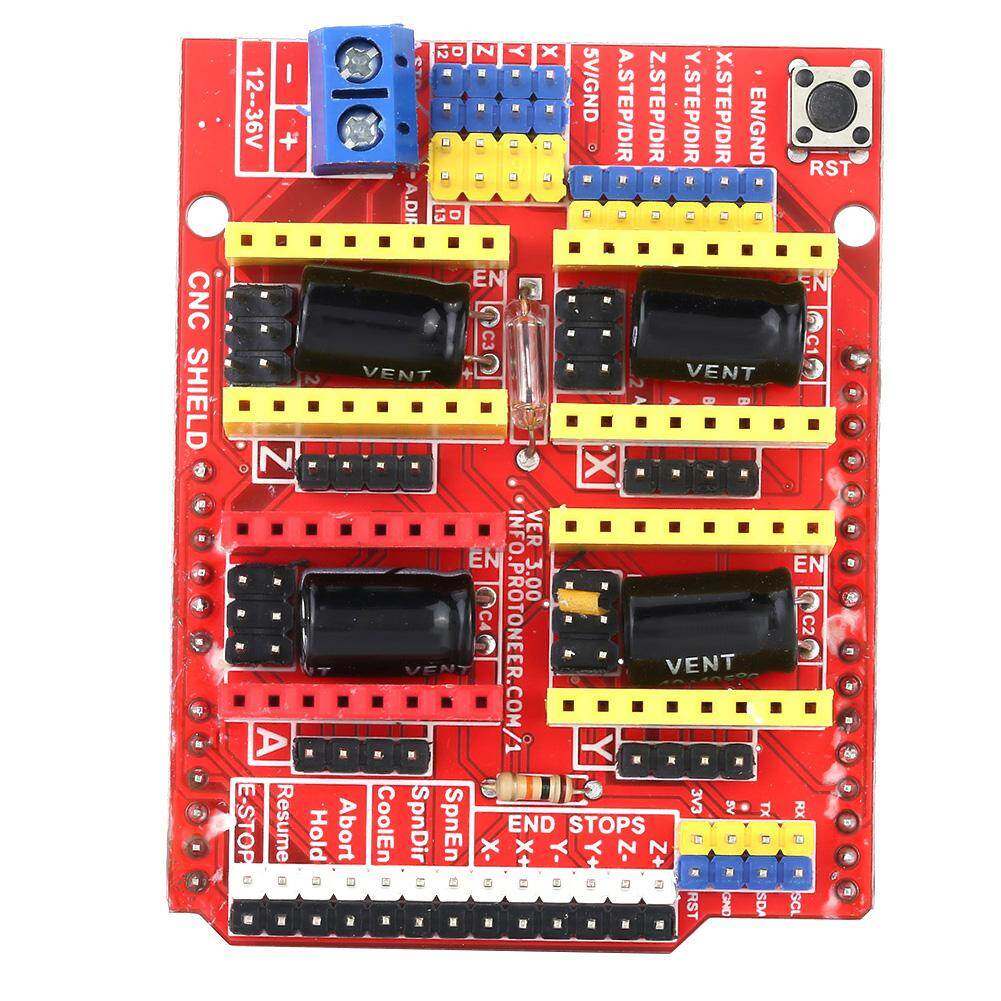

CNC Expansion Board:

Version: V3.0

Voltage: DC 12V-36V (only DRV8825 driver can handle voltages up to 36V, so please consider the power supply voltage)

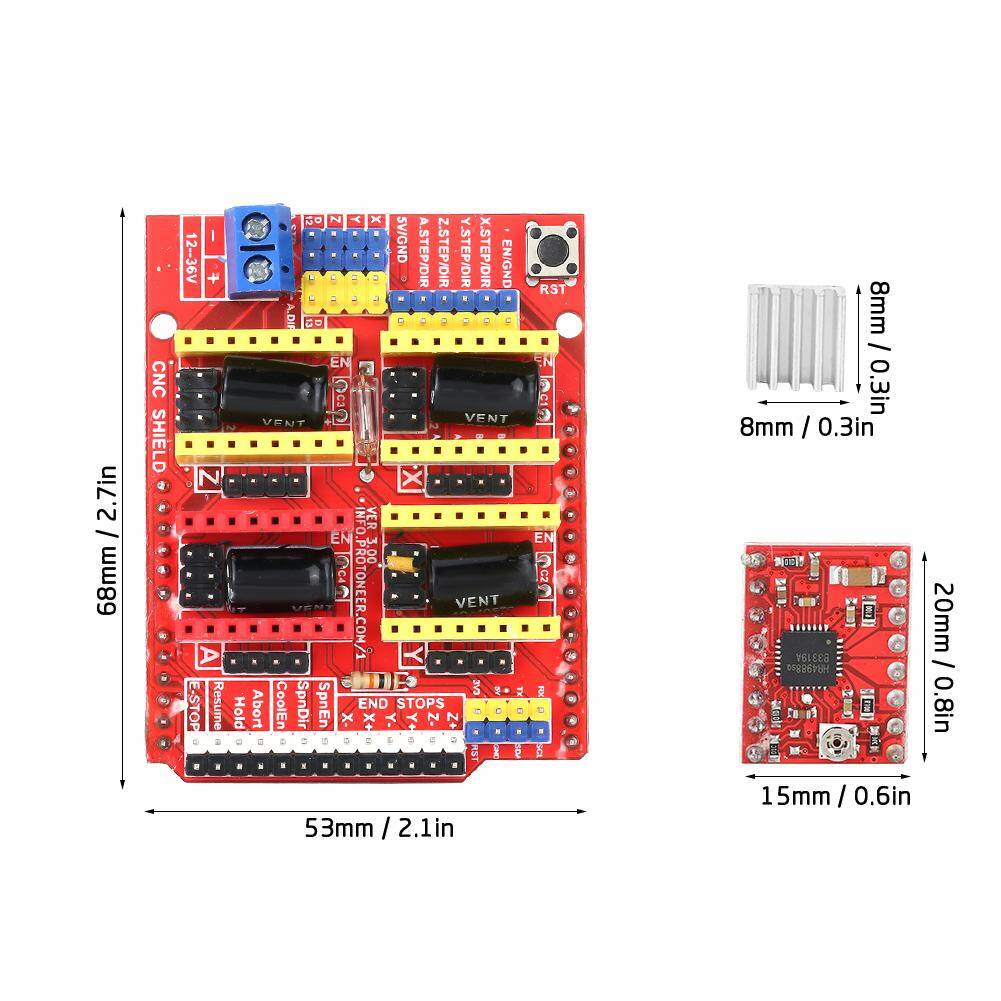

Board Size: Approx. 68 x 53mm / 2.7 x 2.1in

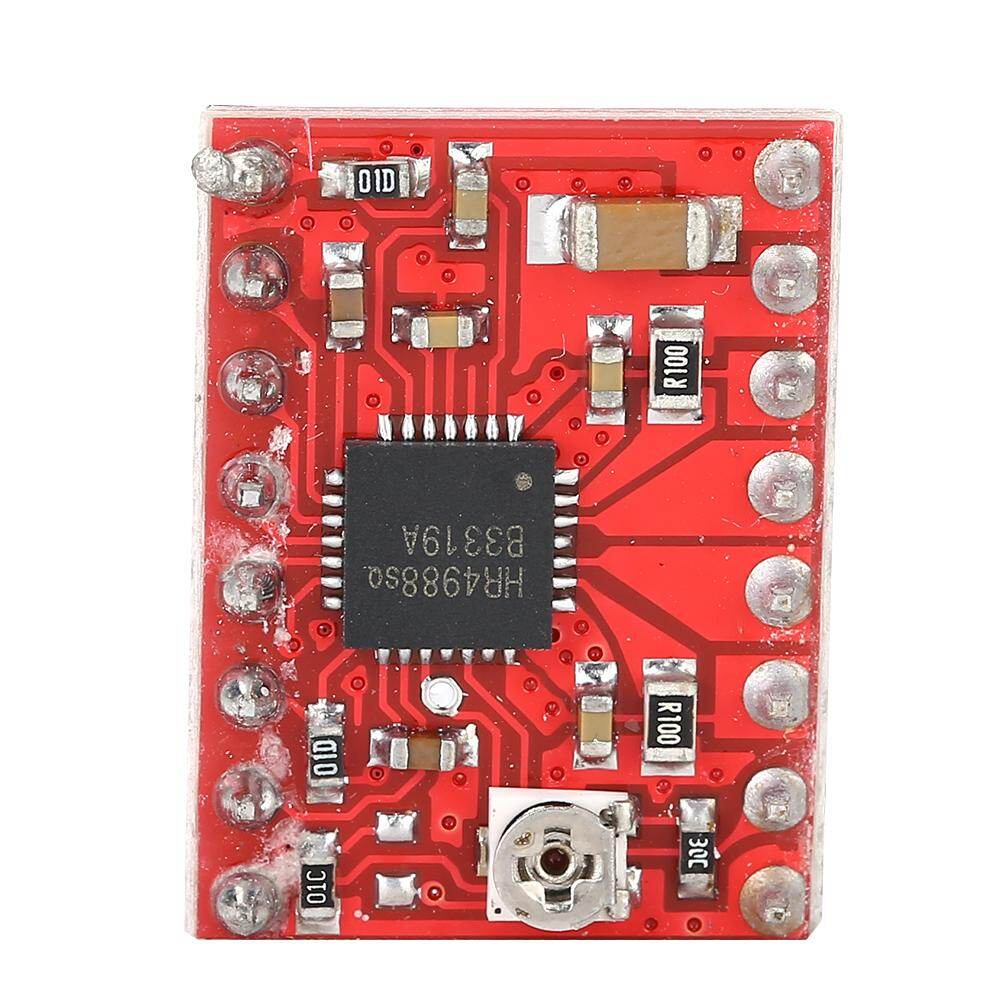

A4988 Driver Module:

Thermal Shutdown Circuit: Yes

Crossover Current Protection: Yes

Ground Fault Protection: Yes

Short Circuit Protection: Yes

Compatible Logic Voltage: 3.3V, 5V

Five Modes: full, 1/2, 1/4, 1/8 and 1/16

Size: Approx. 20 x 15mm / 0.8 x 0.6in

Mix use the slow current decay model.

Internal UVLO and low RDS (on) output.

Current decay mode automatically detected/selected.

Three-phase rectification, low power consumption.

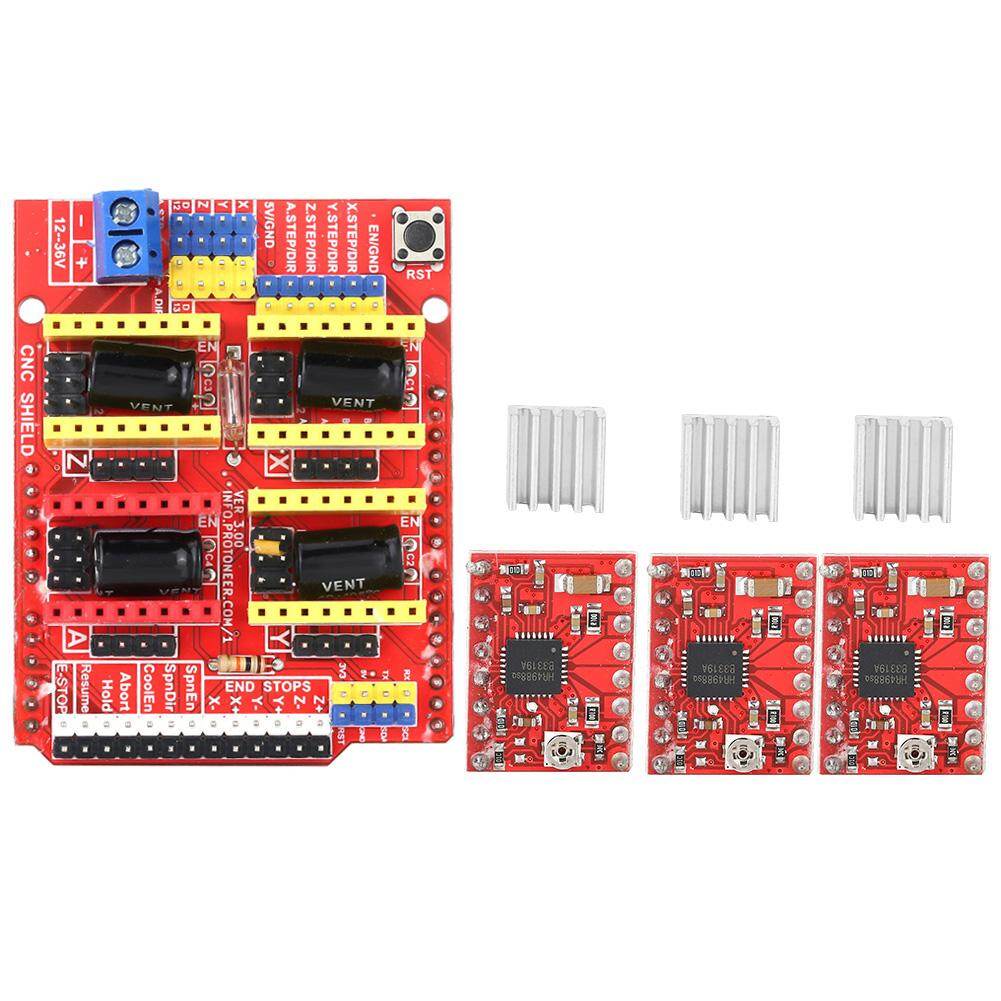

Package List:

1 x CNC Shield V3 Expansion Board

4 x A4988 Driver Module

4 x Radiator
