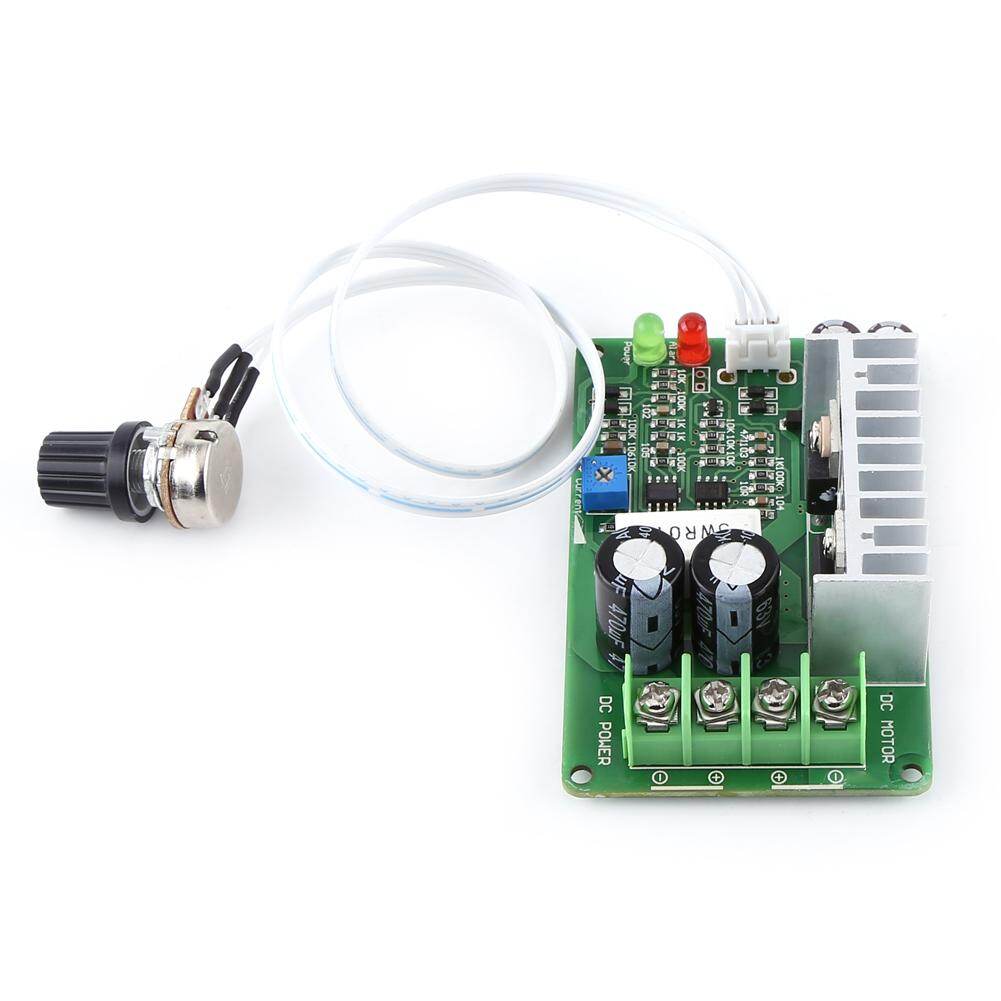

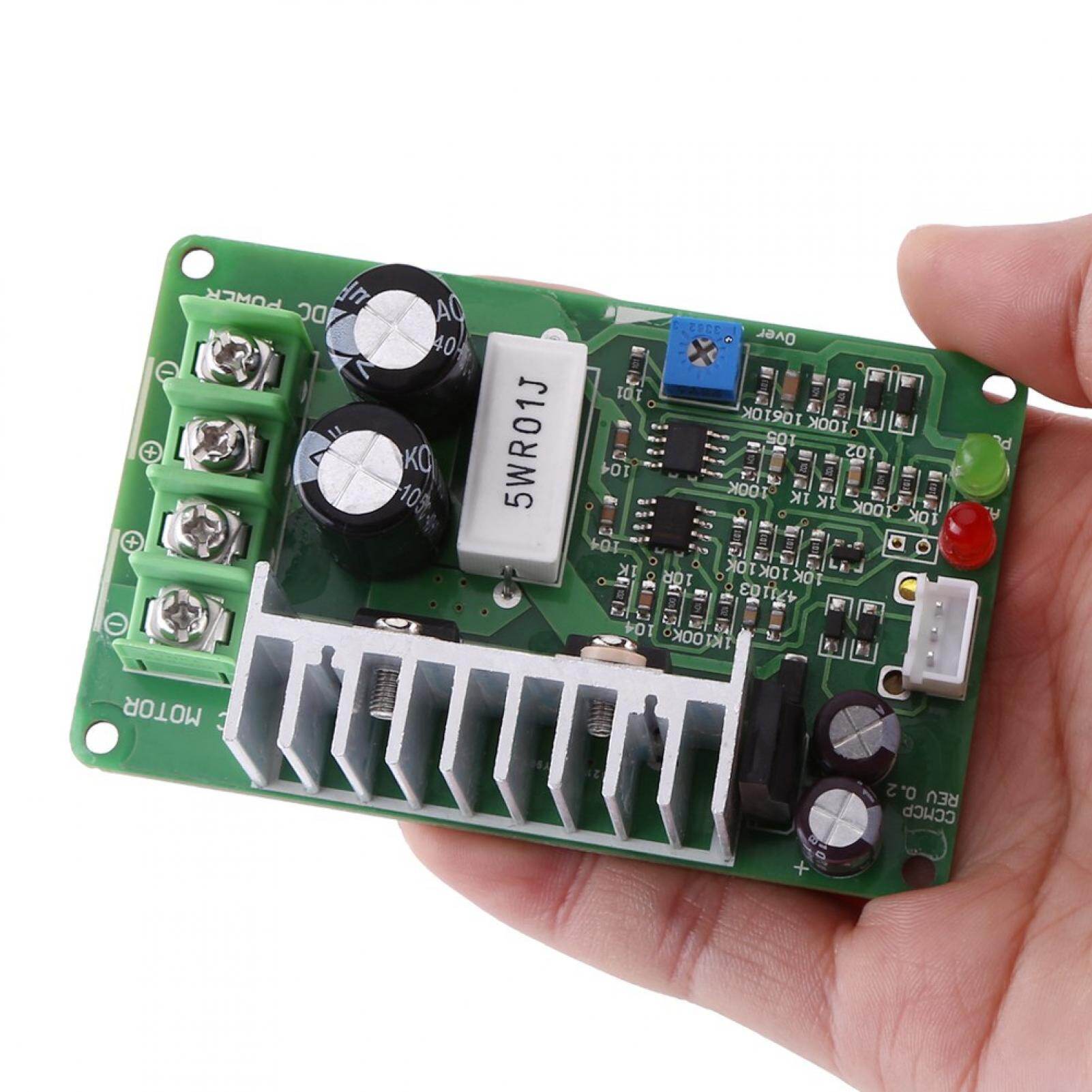

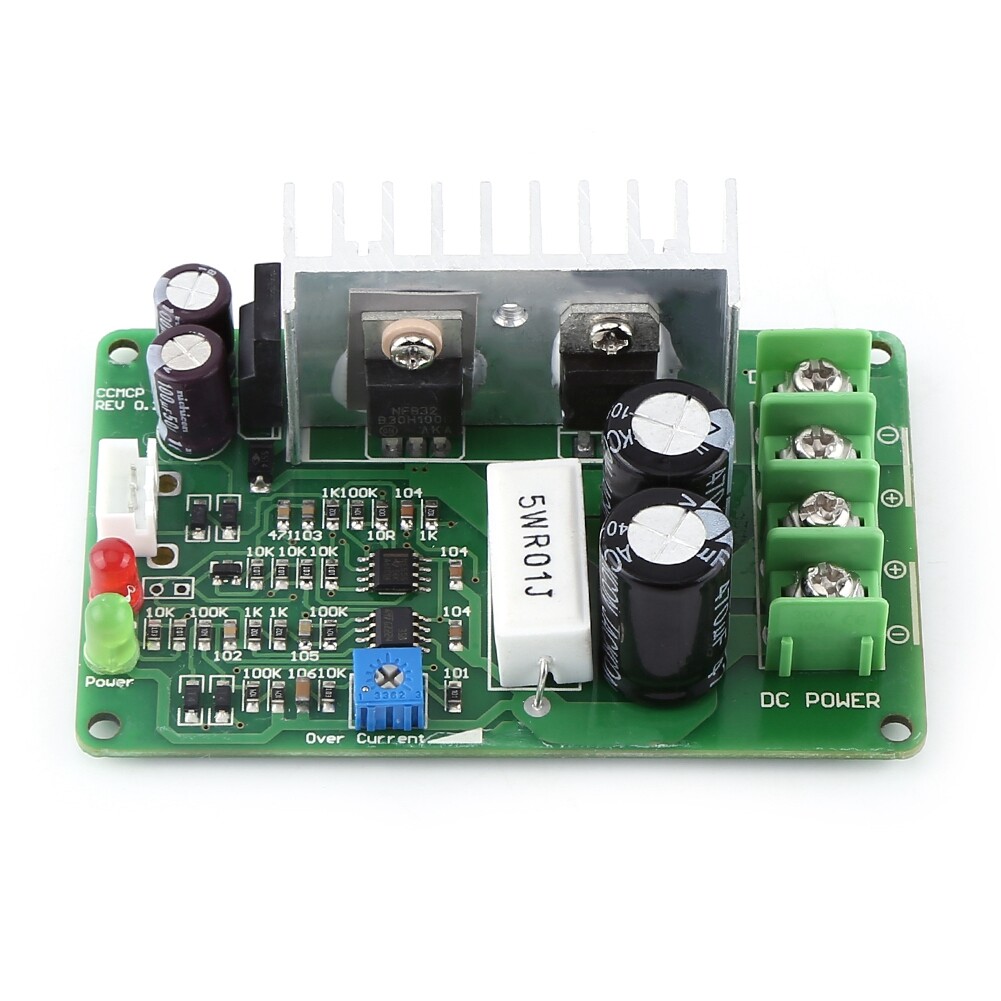

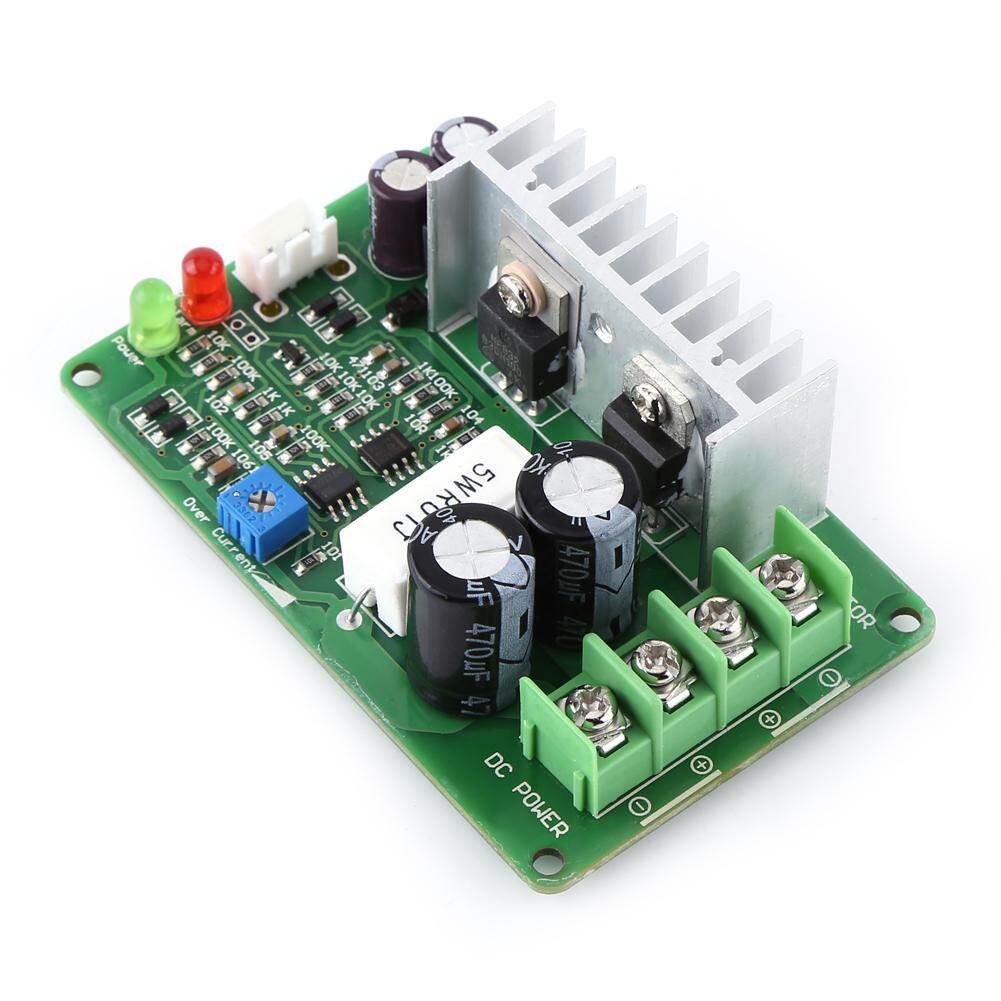

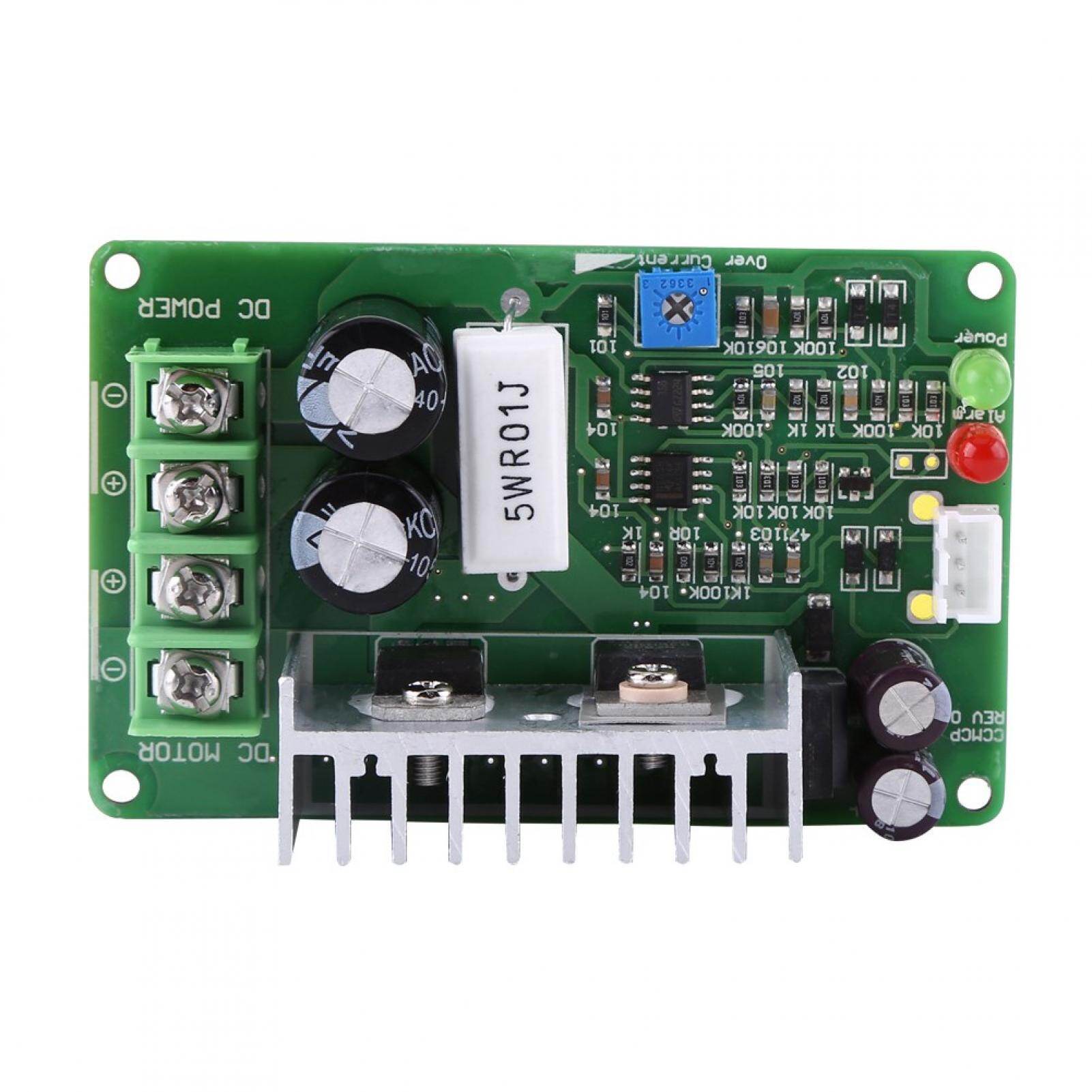

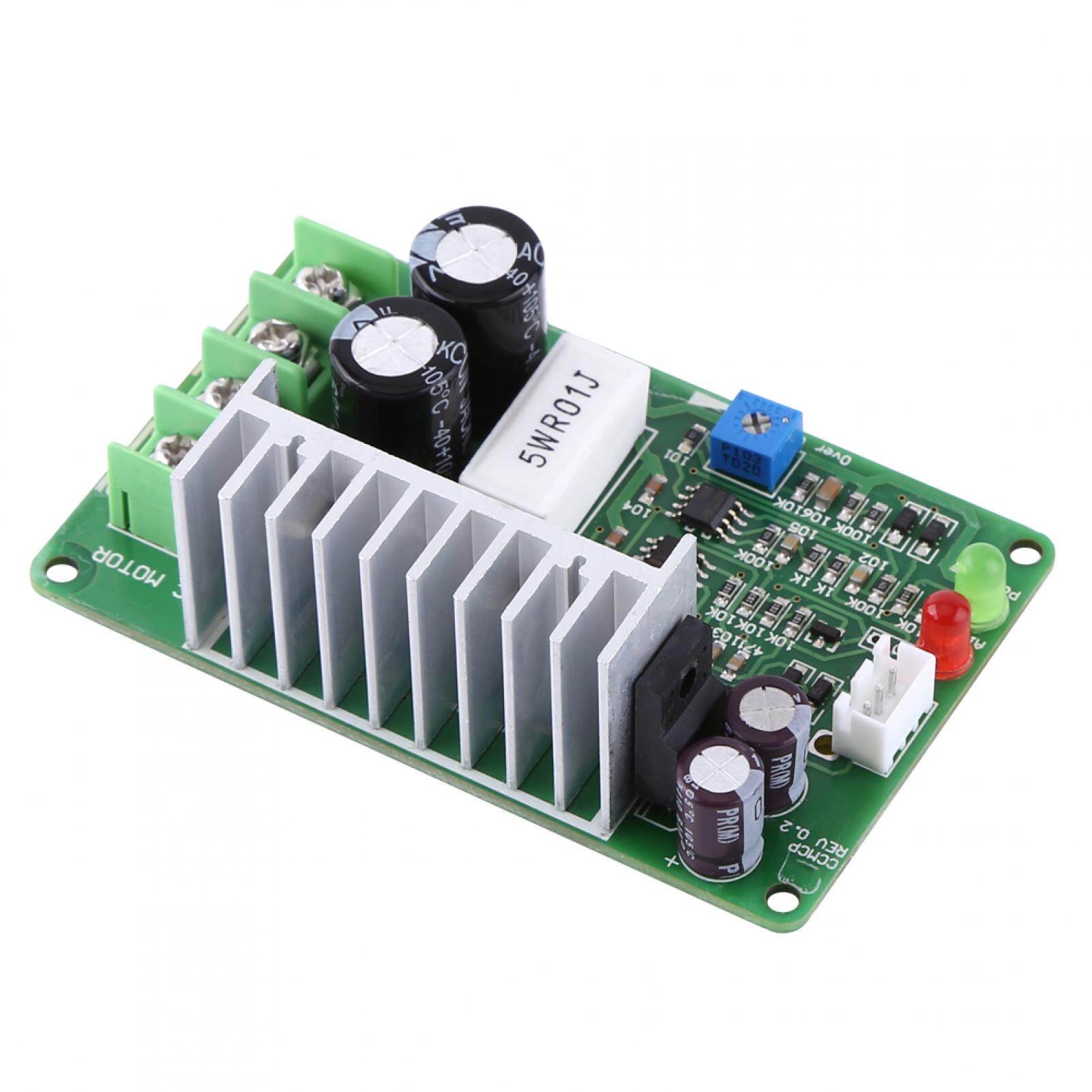

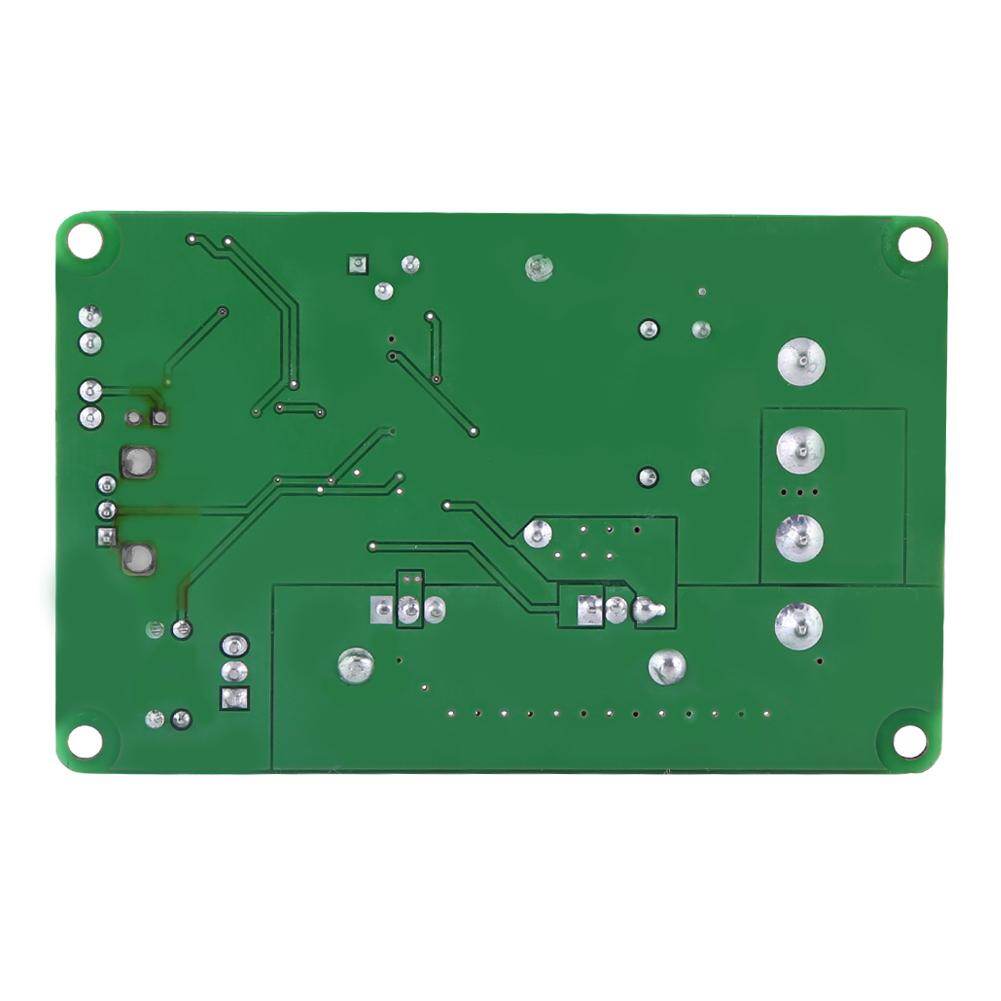

12V/24V/36V 15A DC Motor Speed Controller PWM Regulator Overload Protector

Description:

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The current can be adjusted from 1A to 10A which is quite convenient to set.

Features:

• The current of this motor speed controller can be adjusted from 1A to 10A, and it is simple to set.

• Suitable for motors of which voltage is 12V with power less than 120W and that is 24V with power less than 200W.
• The positive and negative pole of motor can be connected one way or another. Exchange the pole when the rotation direction is not as expected, exchange the pole.
• Rotate the knob to change output so to change the revolving speed of motor.
• This controller can not be connected to alternating current, or it will be burnt.
• Please make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.

Specifications:
Resistance: 100K
Wire Length: 40cm
Voltage Range: DC10V~40V(DC12~36V suggested)
Power: 12V*10A=120W;24V*10A=200W,.....36V*10A=360W
Current: 10A(rated), 15A(Max.), adjustable from 1A to 10A
Speed Adjustable Range: 0-100%
PWM Frequency: 21kHz
Size: 85.5mm x 54mm x 27mm / 3.36 x 2.12 x 1.06"

Package Includes:

1 x Motor SpeedController
