12V Car Auto Remote Central Kit Door Lock Locking Vehicle Keyless Entry System with Remote Control Car Alarm System

Turning Light: 7.5 A x 2

Static Current: 8.5 mA

Working Frequency: 433.92MHz

Type: Anti-Theft Device One-Way

Type Of Remote Control: Without LCD Remote Control

Working Voltage: DC 12 +/- 3V

Remote Controlled: Yes

Type Of Accessory: Alarm Key Mold

Feature: Remote Central Lock

Central Locking: 10A

Features:
- Direction light flashing.
- Remote car location.
- Remotely lock and unlock your car.
- LED indicator.
- Remote trunk release.
- Rising power window.

Specification:
- LOCK: Press the"Lock" button of remote once, parking light will flash once, siren sounds once, central door lock automatically. LED indicator flash once per second. (Default no siren no sound)
- UNLOCK: Press the "Unlock"button of remote, parking light will flash twice, siren sounds twice, central door unlock automati-cally, LED indicator will be closed.
- CAR SEARCH: Press"Bell"button of remote once, parking light will flash 30s, the siren sounds, press the same button again will stop; If no this button press lock button many times.
- ELECTRONIC DOOR LOCK/PNEUMATIC DOOR LOCK : The main unit default electronic lock.
- CODE LEARNING: Press learning switch once, turning light flash once, after press remote any button, the code was learned, if need to learn more remote ,repeat it again.
- CLEAR CODE: Press the learning switch 3 seconds turning light flash 3 time it was cleared.
- POWER WINDOW OUTPUT (-25s): Press" Lock " button once, turning lights flash once and door lock, now the power window signal output negative trigger 25s ,the function depend on the car circuit delay.
- TRUNK RELEASE (-3s,50mA): Press the button "Unlock/ Trunk /Mute" on the remote transmitter 3 seconds to release the trunk while the parking lights will flash three times. it assisted by an actuator & a relay.

Installation:
- The car burglar alarms need installed by the professionals with car electrician certificated.
- For 12V DC car which have central door lock.The item without actuator of central door lock.

Place of Application: 12V Car

Note:
- NO mute and locate function.
- (IMPORTANT) Professional Installation Is Highly Recommended.
- Please check the size measurement chart carefully before making payment.
- The color of the actual items may slightly different from the listing images due to different computer screen.

Product Weight: 209 G / 7.37 Ounces

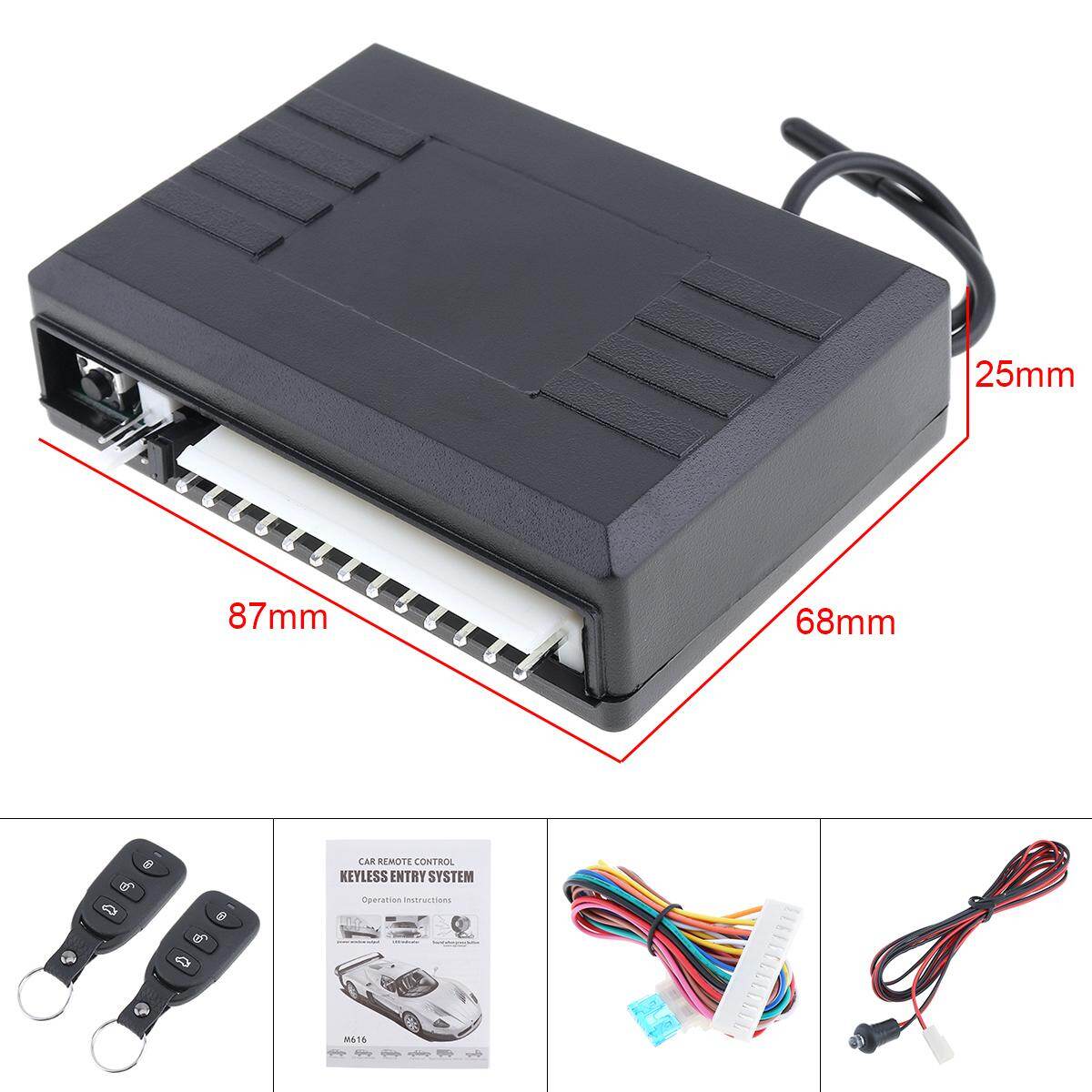

Product Dimensions (L*W*H): 120*80*60 MM / 4.72*3.15*2.36 Inches

Package Weight: 209.0 G / 7.37 Ounces

Package Dimensions (L*W*H): 124*90*75 MM / 4.88*3.54*2.95 Inches

Retail Packaging: Yes, Colored Box

Package Including:

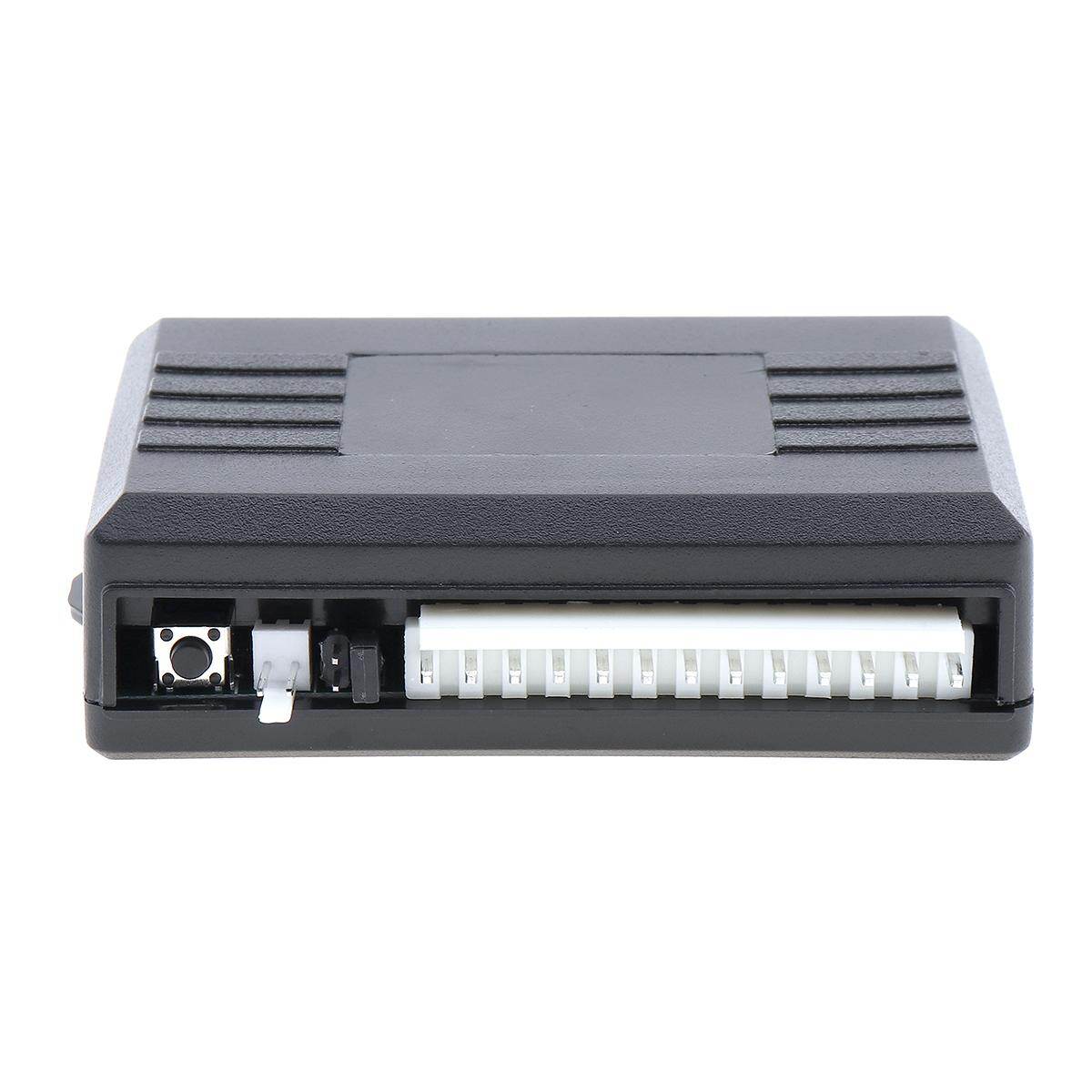

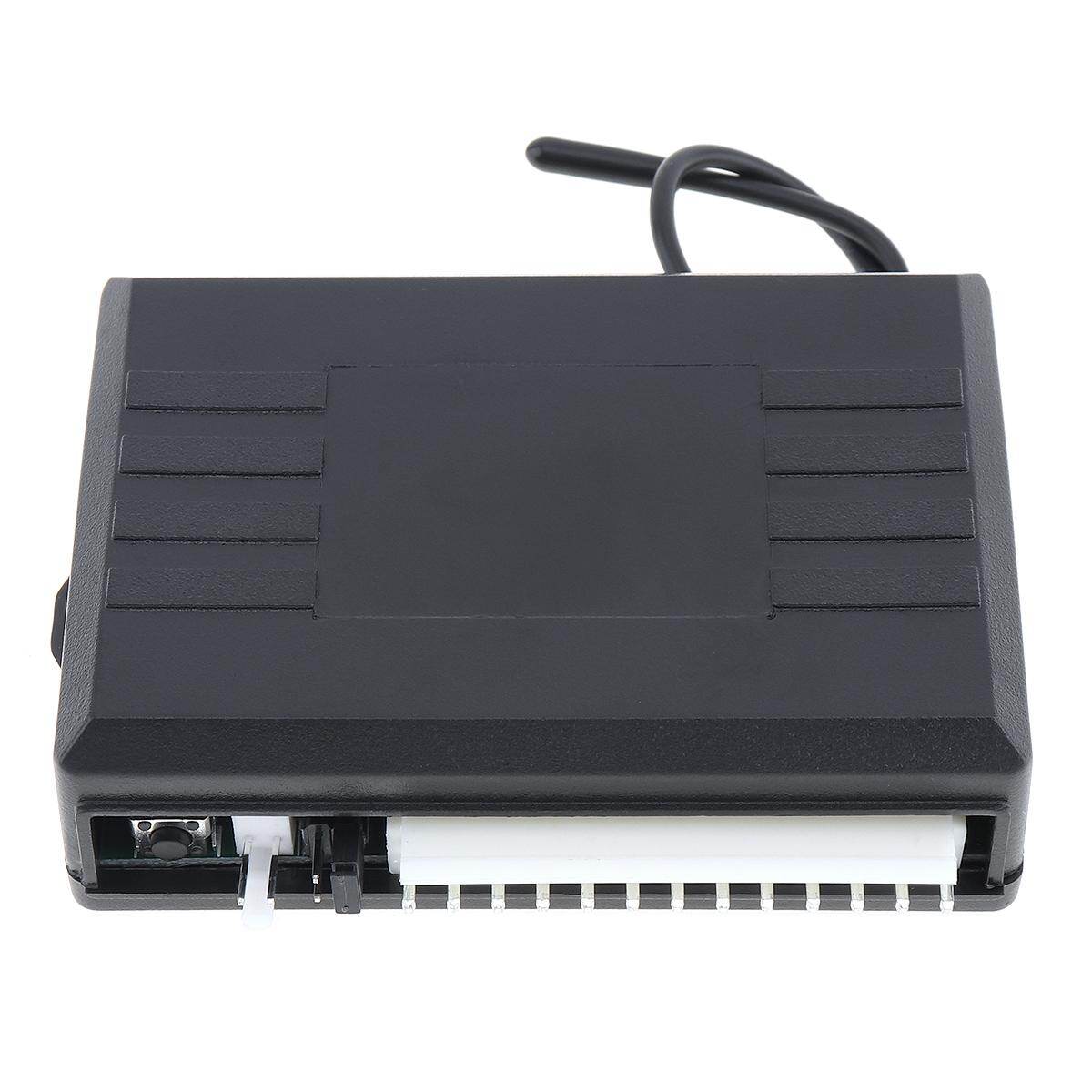

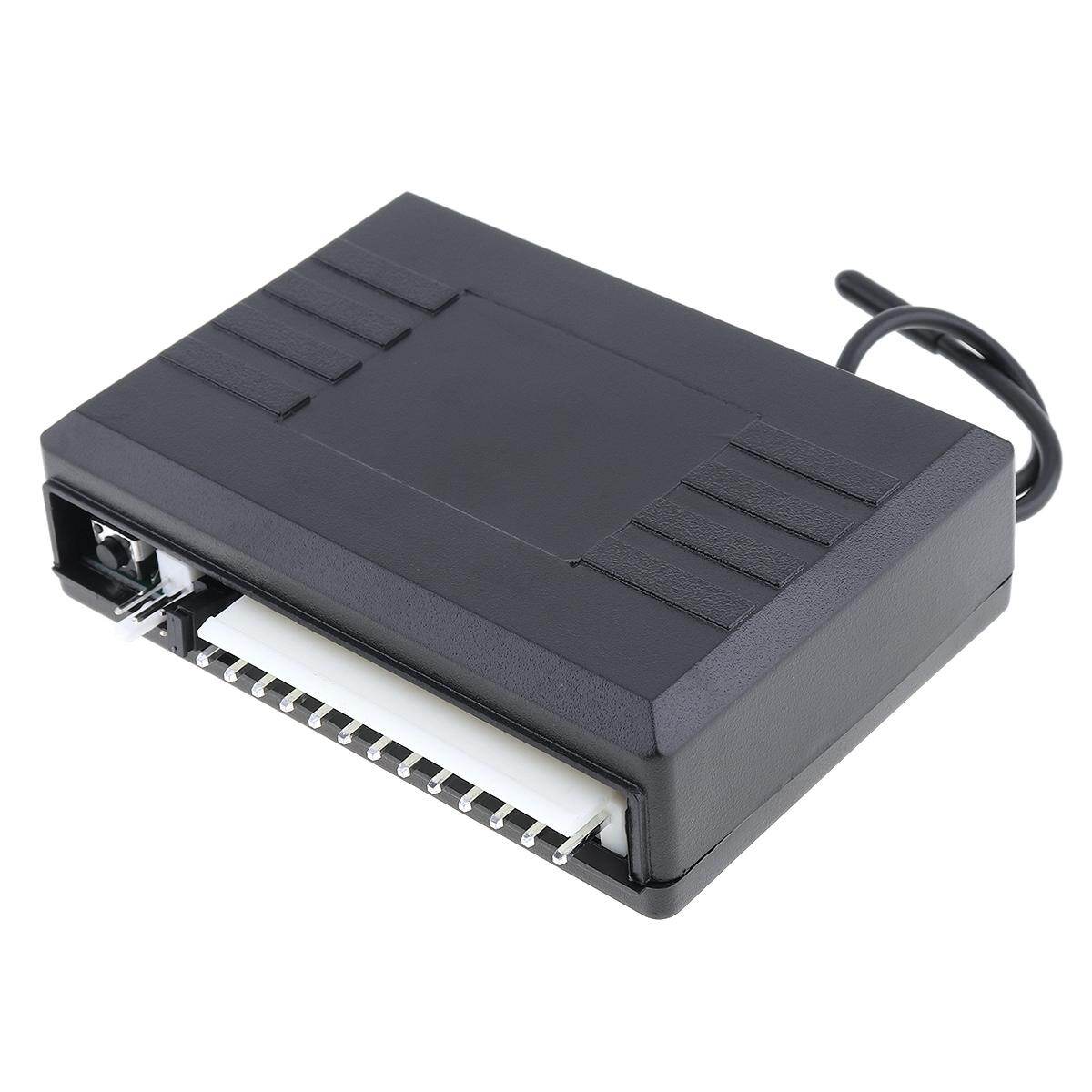

1 x Main Control Unit

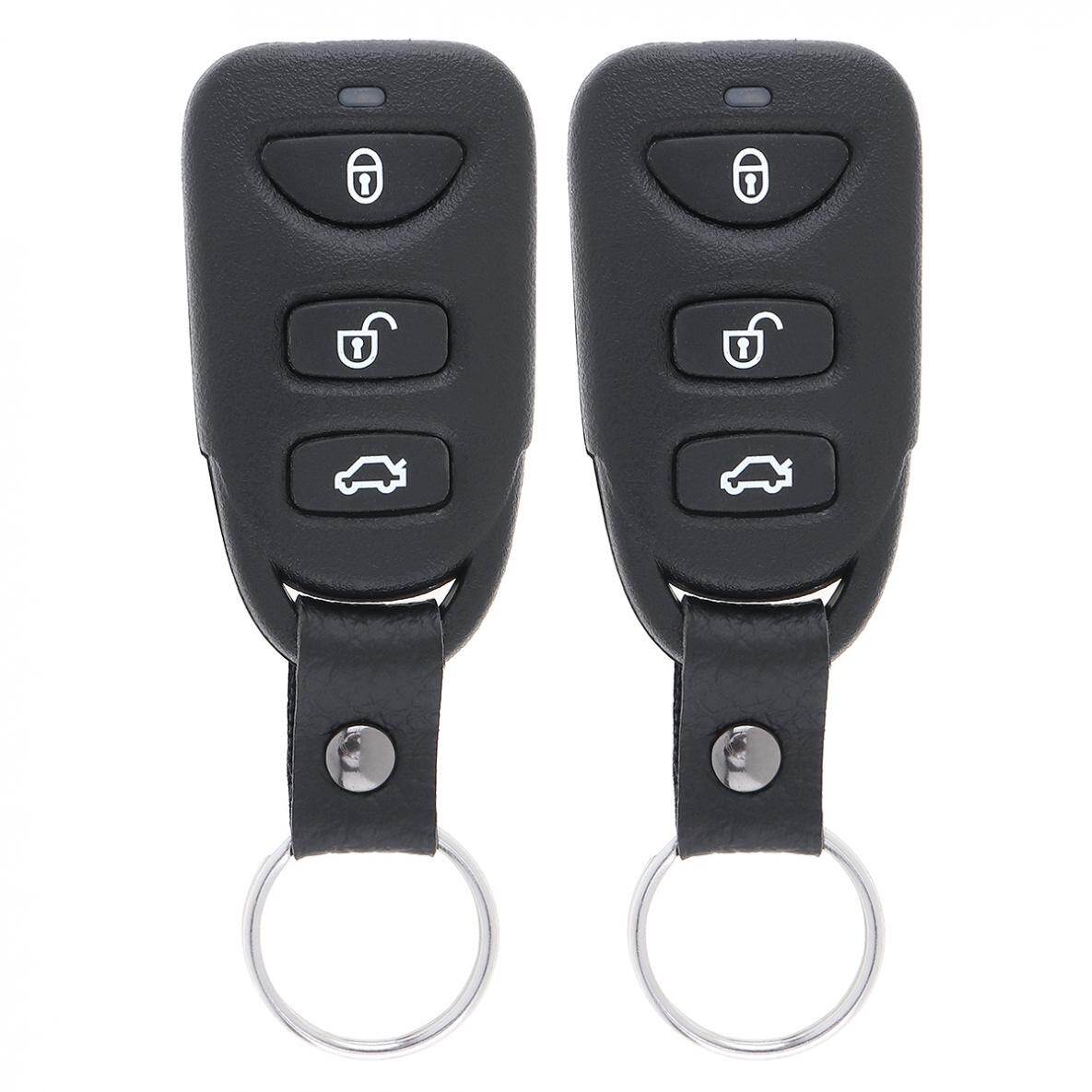

2 x Remote Control

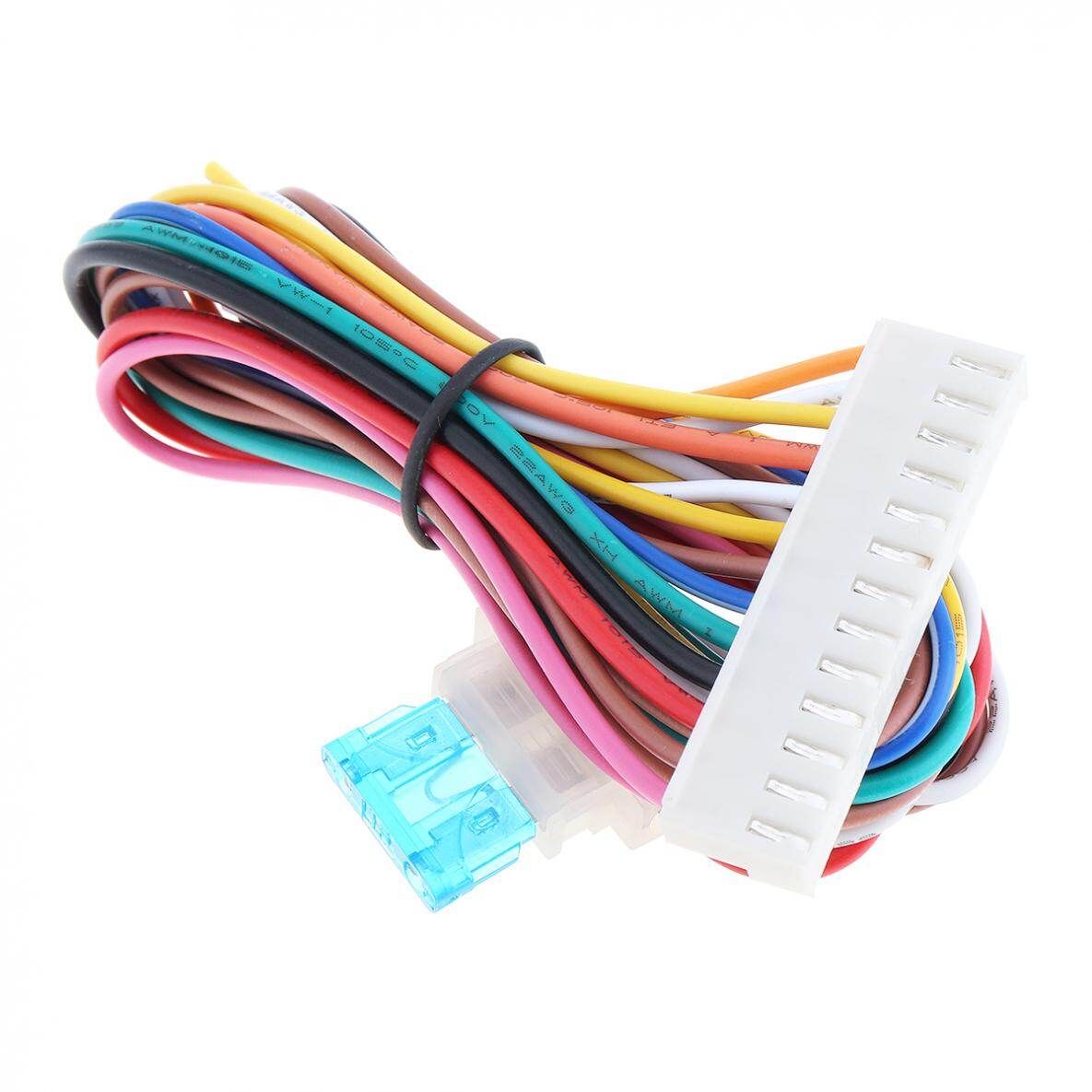

1 x Wiring Set

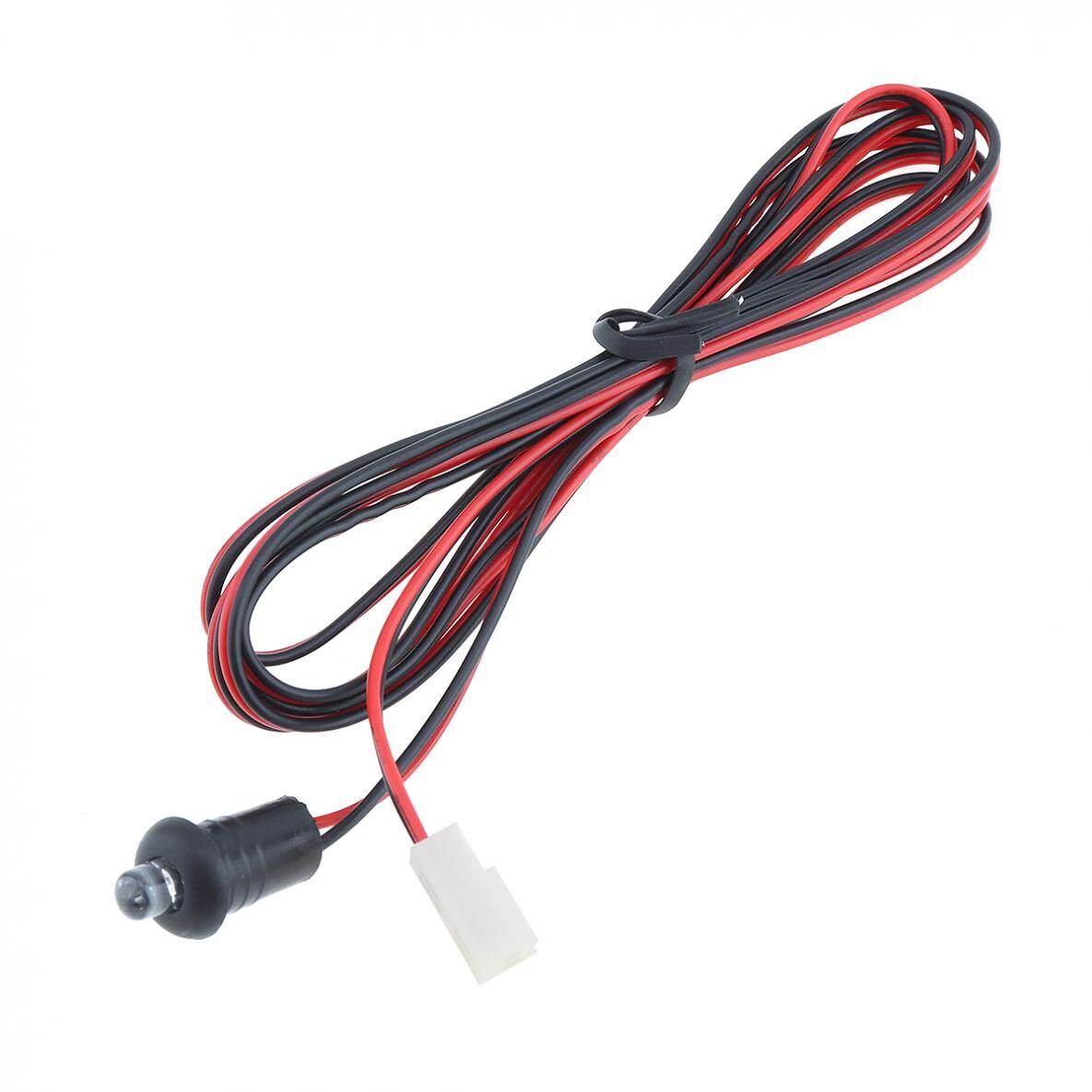

1 x LED Indicator

1 x English User Manual
