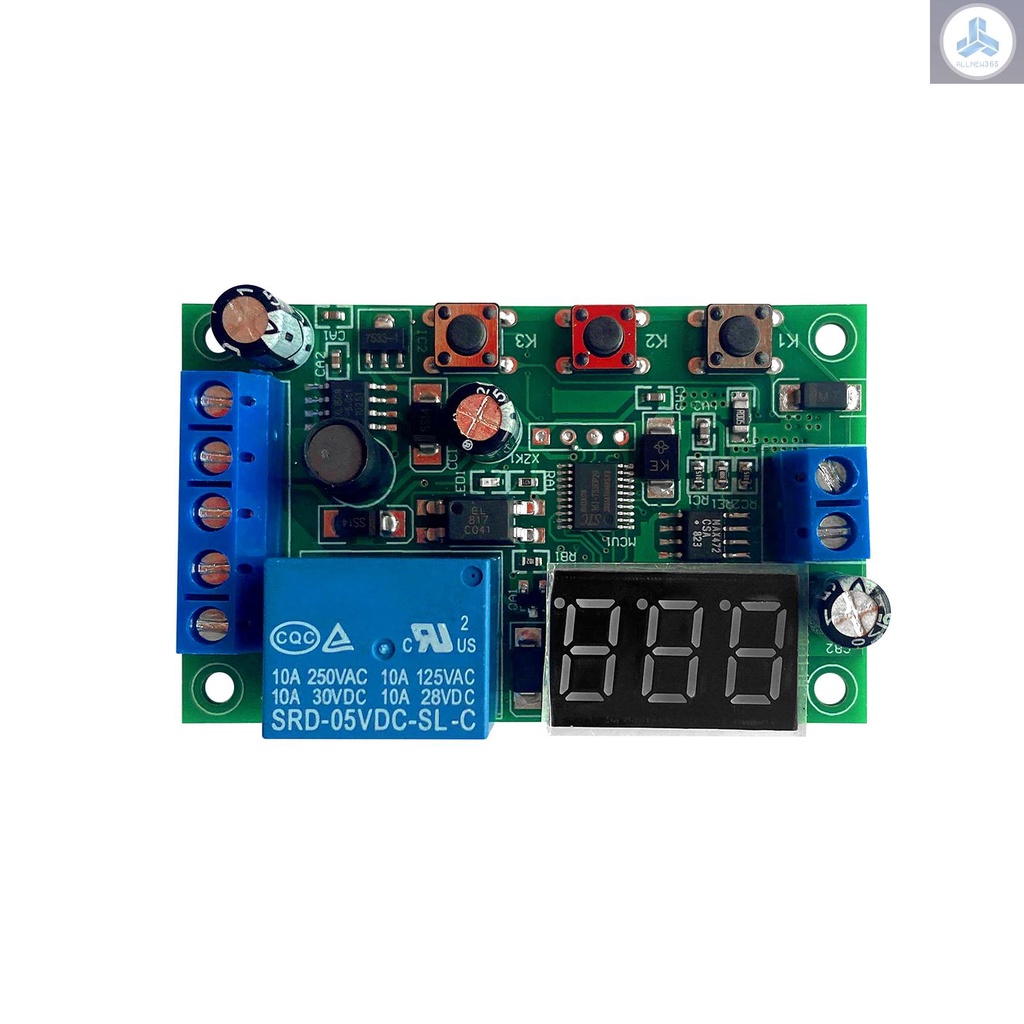

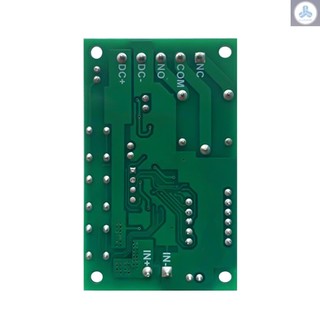

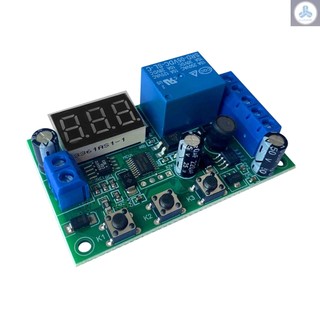

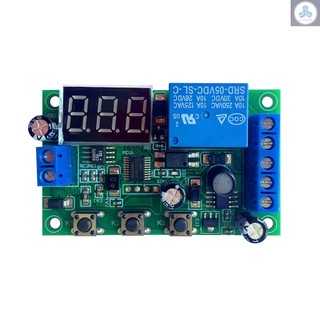

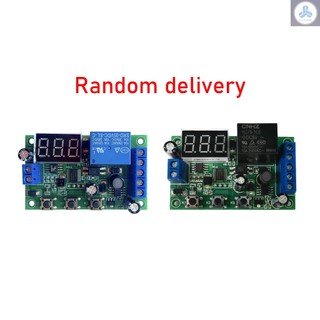

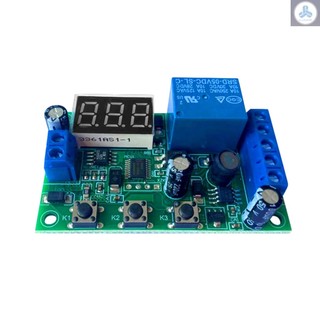

12V 0-10A DC Current Detection Module Current Sensing Detecting Delay Relay Control

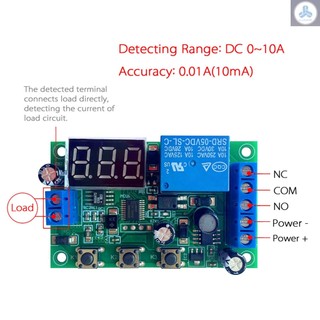

[{"t":"12V 0-10A DC Current Detection Module Current Sensing Detecting Delay Relay Control\n"},{"t":"This module can detect DC current in the range of 0-10A, the accuracy is 0.01A.\r\n"},{"t":"\r\n"},{"t":"Features:\r\n"},{"t":"Detecting range: DC 0~10A; accuracy: 0.01A(10mA).\r\n"},{"t":"Detect the current to control the relay then control the circuit on/off.\r\n"},{"t":"Set delay time to prevent output shock so as to protect the circuit.\r\n"},{"t":"With error calibration function.\r\n"},{"t":"Can turn off the LED display to reduce power consumption.\r\n"},{"t":"Functions Description:\r\n"},{"t":"P-1: Over-current Detection: when the detecting current\u003cI1(low limit setting), the relay closes; \u003eI2(high limit setting), the relay opens.\r\n"},{"t":"P-2: Under-current Detection: when the detecting current\u003eI2, the relay closes; \u003cI1, the relay opens.\r\n"},{"t":"P-3: Close in the Range: when the detecting current is between I1 and I2, the relay closes; relay opens in other situation.\r\n"},{"t":"P-4: Open in the Range: when the detecting current is between I1 and I2, the relay opens; relay closes in other situation.\r\n"},{"t":"P-5: Error Calibration and Delay Time Setting: the relay would not operate.\r\n"},{"t":"Buttons Description:\r\n"},{"t":"K1: Modes Selection;\r\n"},{"t":"K2: \"+\"\r\n"},{"t":"K3: \"-\"\r\n"},{"t":"Long press K1 for 2s into modes selection; short press K1 to select function and K2 to enter the mode.\r\n"},{"t":"Note:\r\n"},{"t":"After power on, the LED digits would pulse if the detecting current terminal is none.\r\n"},{"t":"\r\n"},{"t":"Specifications:\r\n"},{"t":"Voltage: DC 12V\r\n"},{"t":"Detecting Range: DC 0~10A\r\n"},{"t":"Accuracy: 0.01A(10mA)\r\n"},{"t":"Standby Current: Approx. 20mA\r\n"},{"t":"Display: LED Digital Display\r\n"},{"t":"Item Size: 65 * 40 * 18mm\r\n"},{"t":"Package Weight: 29g / 1.04oz\r\n"},{"t":"Packing List:\r\n"},{"t":"1 * DC Current Detection Module"}]
