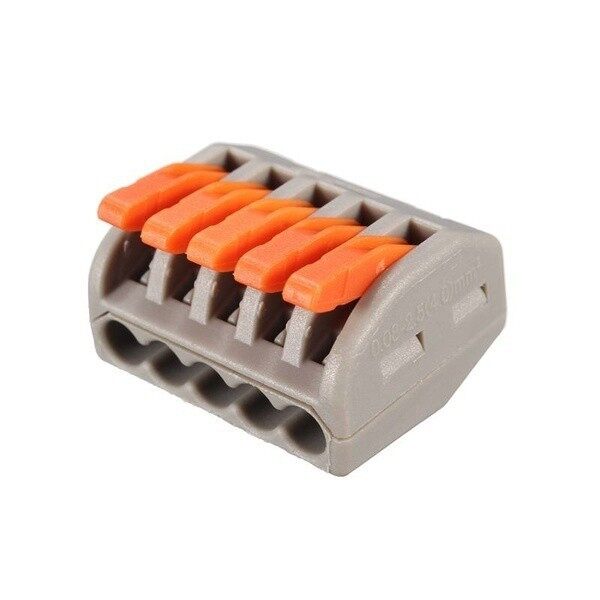

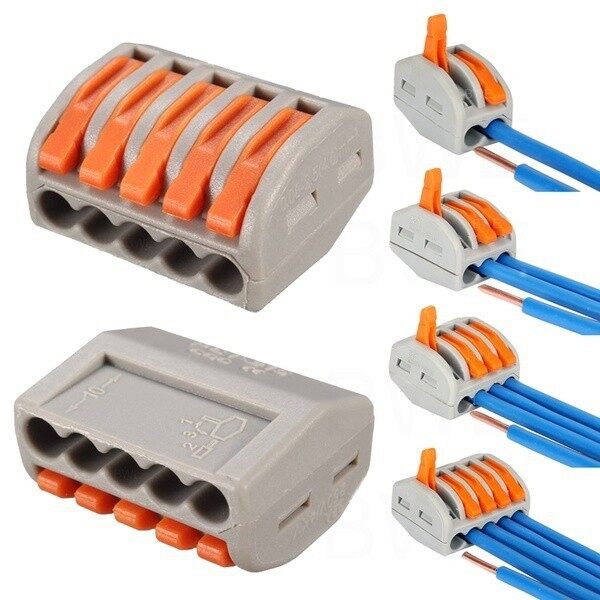

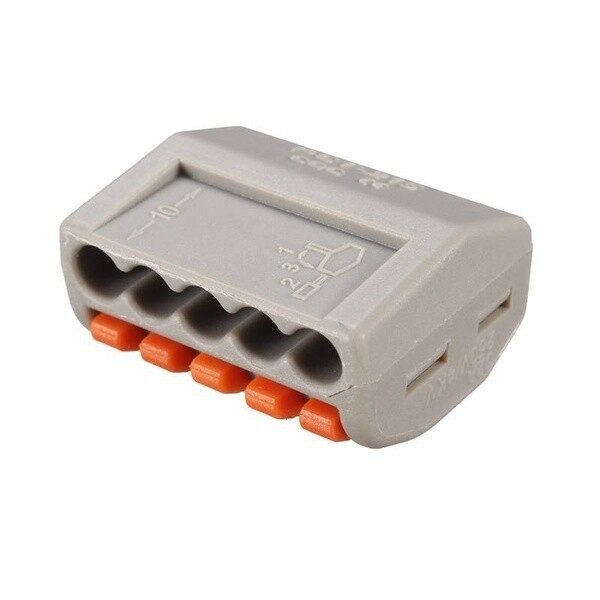

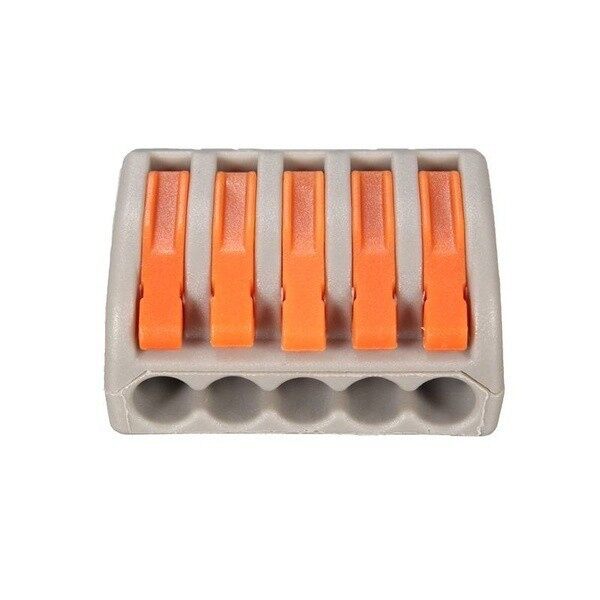

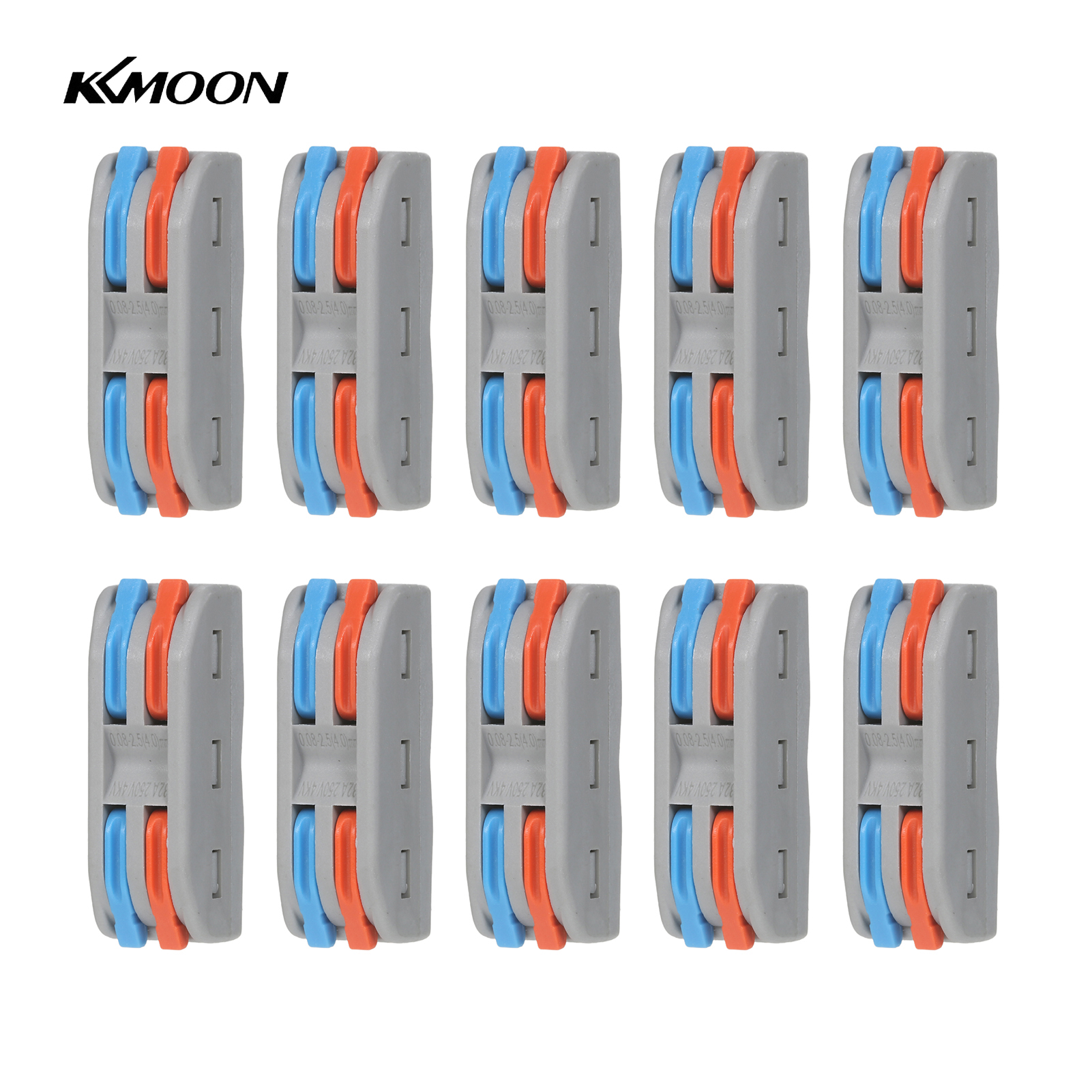

10pcs 2/3/4/5/8 Way Fast Electric Wire Connector for Universal Cable

Safety advice:
We have to use a secure wire connector to avoid unsafe electrical that may cause a fire. It can completely help you eliminate the electrical connection security risks. It is safe and transparent visible, and easy to use, just plug directly.

Features:
1. The conductive body uses pure copper copper ore with good electrical conductivity, low resistivity, 99.99% copper content, special electroplating treatment on the surface, and elimination of oxidation.

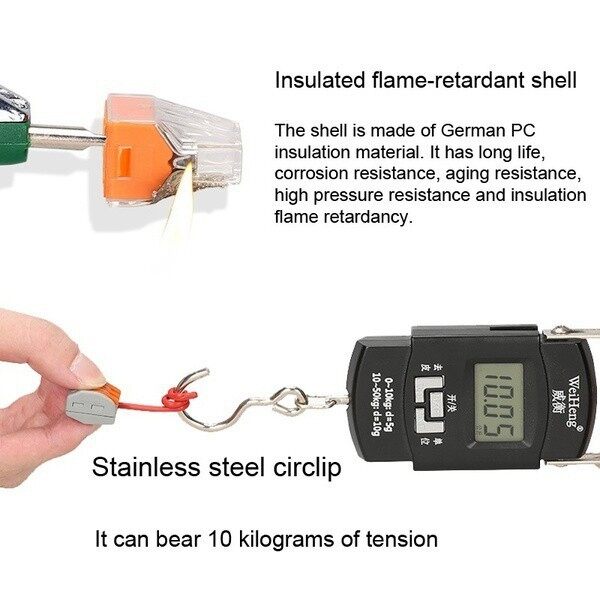

2. The shell adopts the best German PC insulation material, which has long life, corrosion resistance, aging resistance, high pressure resistance and insulation flame retardancy.
3. The stainless steel circlip, bearing 10 kilograms of tension is completely without problem.
4. The connector tip portion with a test hole, can be used to test whether the electric pencil.
5. No loose wires, tape embrittlement danger, safe and transparent visible.
6. A test hole, measure the voltage without removing tape.
7. The voltage range of the connector is wide, it is very practical in practice.
8. Each contact shrapnel independent, fits different wire diameter, safety shorting.

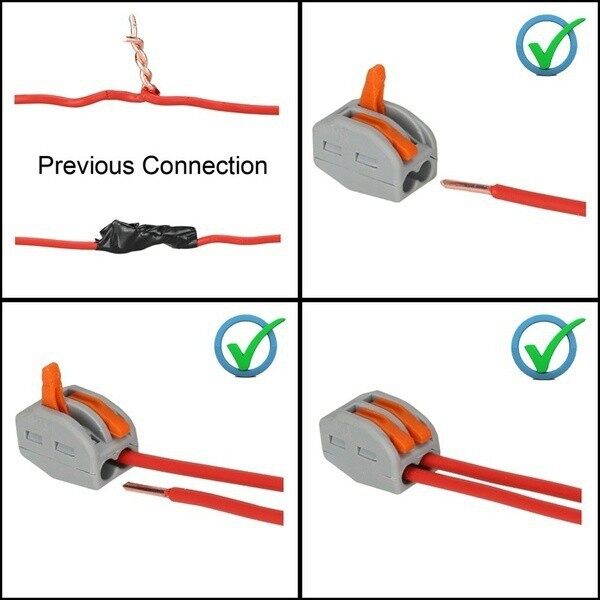

9. In the use of no tools, anyone can operate, a plug can greatly reduce the wiring work time.
10. It not only solve the inconvenience caused by high-altitude operations, but also solve the technical problems of soft and hard wire connection.

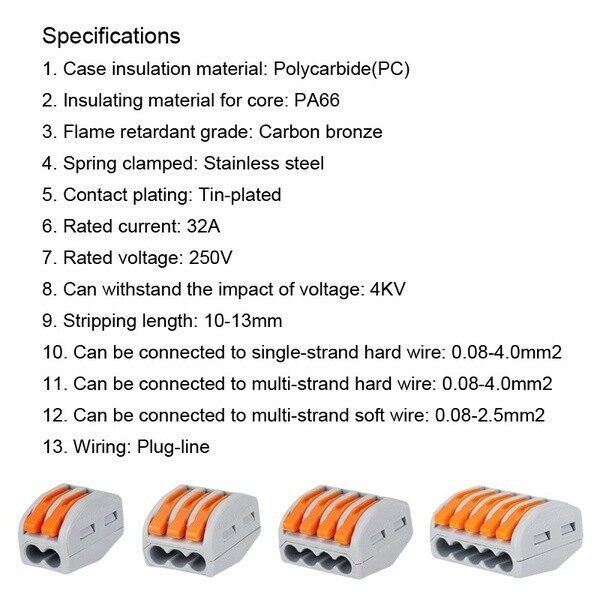

Specifications:
1. Case insulation material: Polycarbide(PC)
2. Insulating material for core: PA66
3. Flame retardant grade: Carbon bronze
4. Spring clamped: Stainless steel
5. Contact plating: Tin-plated
6. Rated current: 32A
7. Rated voltage: 250V
8. Can withstand the impact of voltage: 4KV
9. Stripping length: 10-13mm
10. Can be connected to single-strand hard wire: 0.08-4.0mm2
11. Can be connected to multi-strand hard wire: 0.08-4.0mm2
12. Can be connected to multi-strand soft wire: 0.08-2.5mm2
13. Wiring: Plug-line

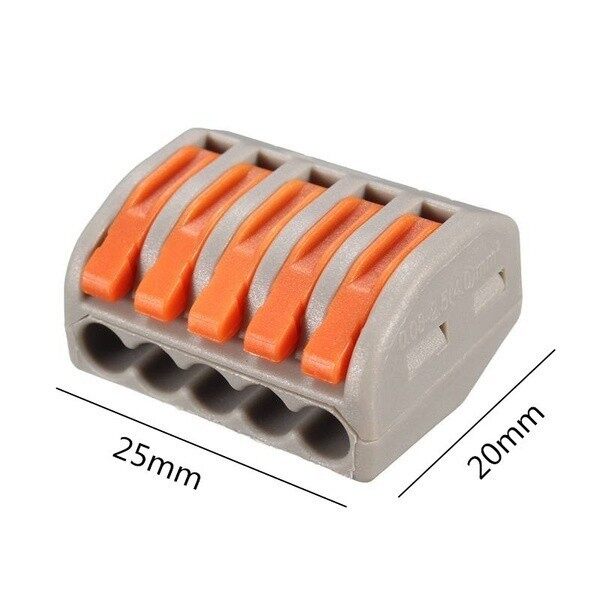

PCT connector size:
1) 2 way: 2.05 X 1.24 X 1.45 cm / 0.80 X 0.48 X 0.57 inch ( L X W X H )
2) 3 way: 2.05 X 1.70 X 1.45 cm / 0.80 X 0.66 X 0.57 inch ( L X W X H )
3) 4 way: 2.05 X 2.15 X 1.45 cm / 0.80 X 0.84 X 0.57 inch ( L X W X H )
4) 5 way: 2.05 X 2.66 X 1.45 cm / 0.80 X 1.04 X 0.57 inch ( L X W X H )
5) 8 way: 2.05 X 4.05 X 1.45 cm / 0.80 X 1.59 X 0.57 inch ( L X W X H )
