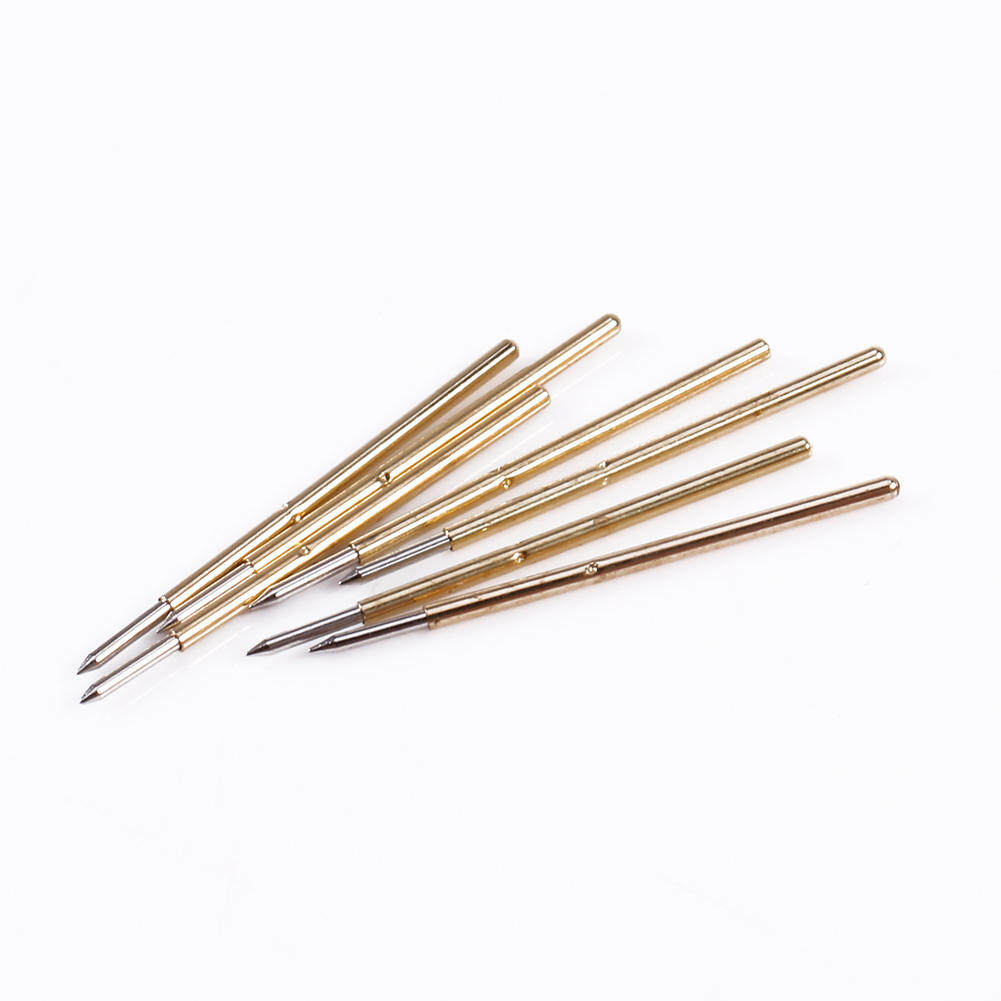

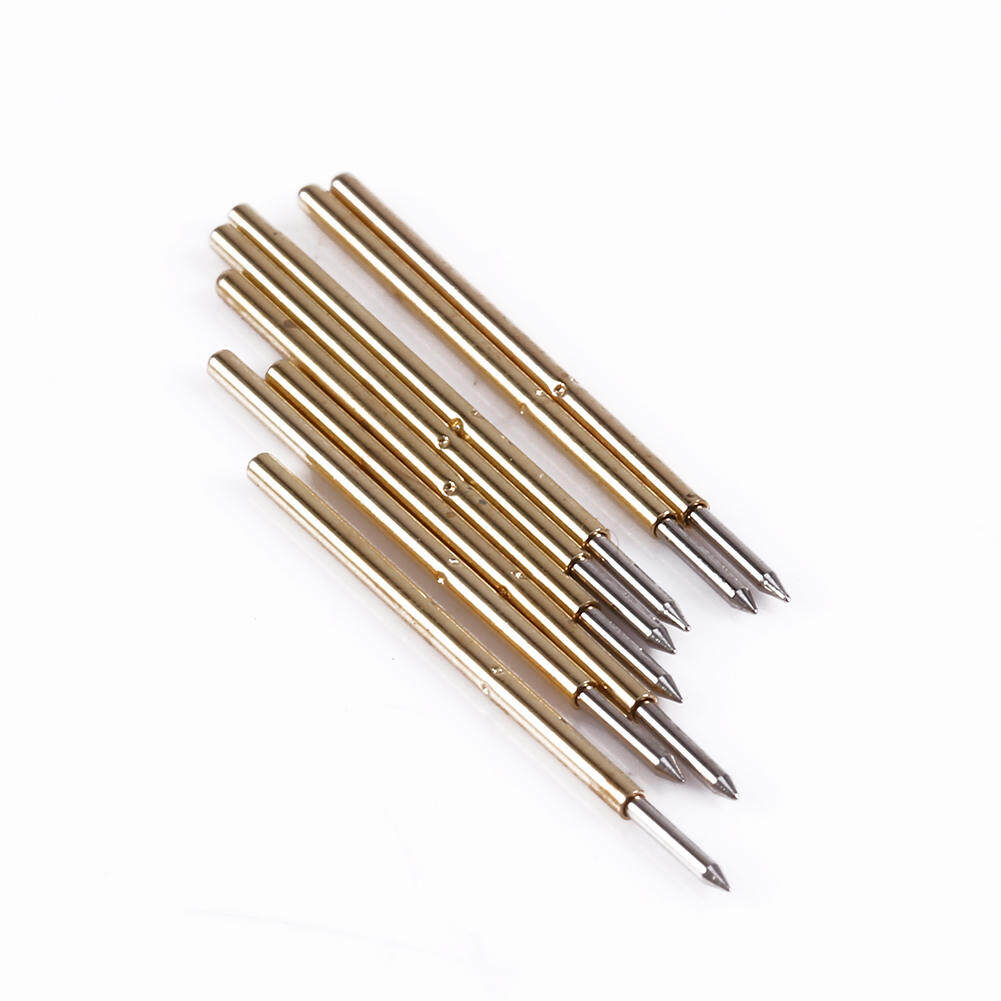

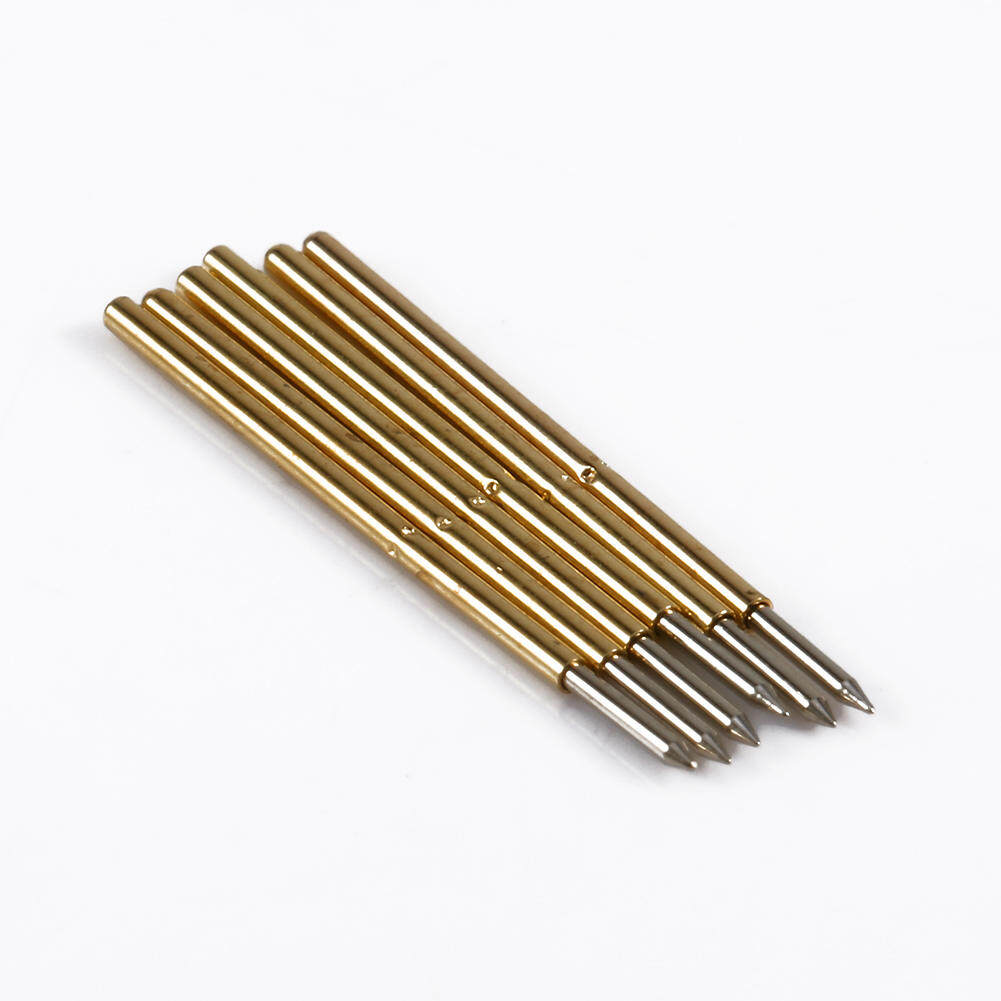

100x P50-J1/P50-B1/P75-B1/P75-E2/P100-E2 Spring Test Probe Round Pogo Pin Tools

Features:

• Spring test probes are necessary parts for PCB testing to access components on printed circuit assemblies.

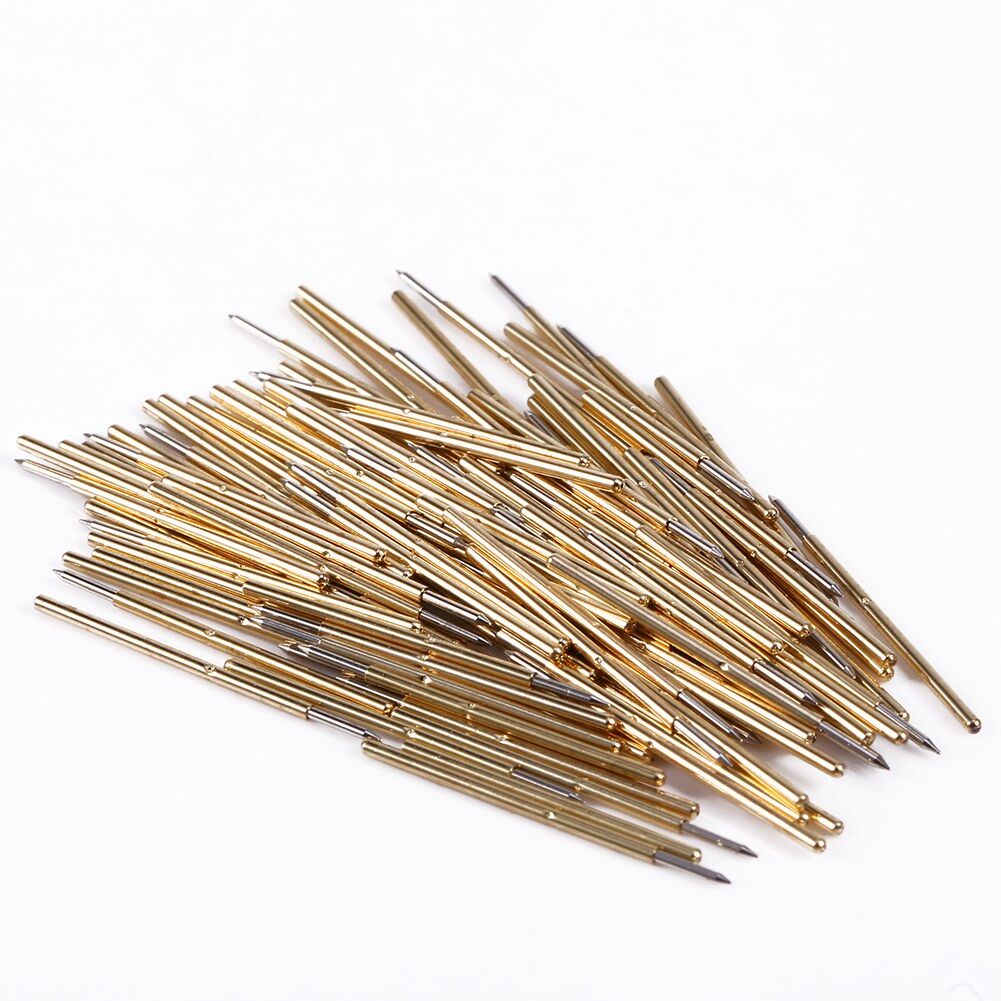

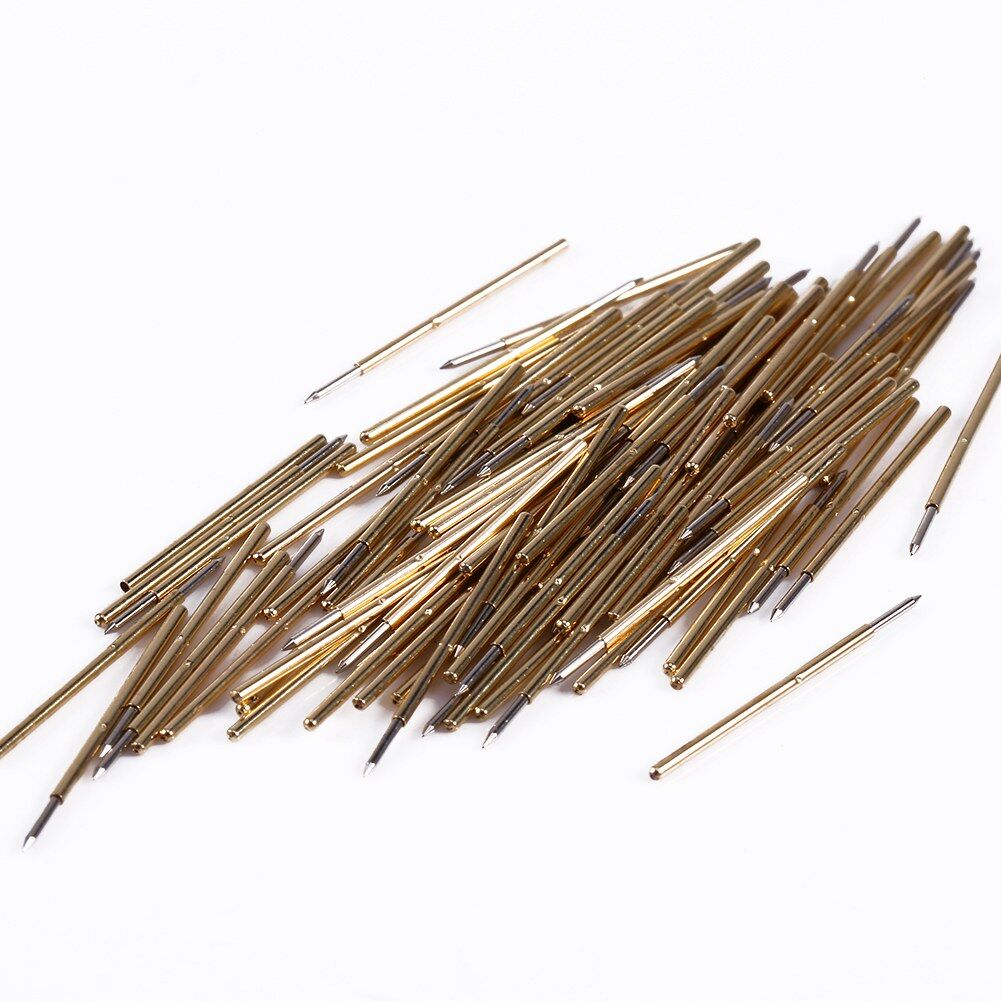

• There are total 100 pieces spring test probes in one set that you can use for a long time.

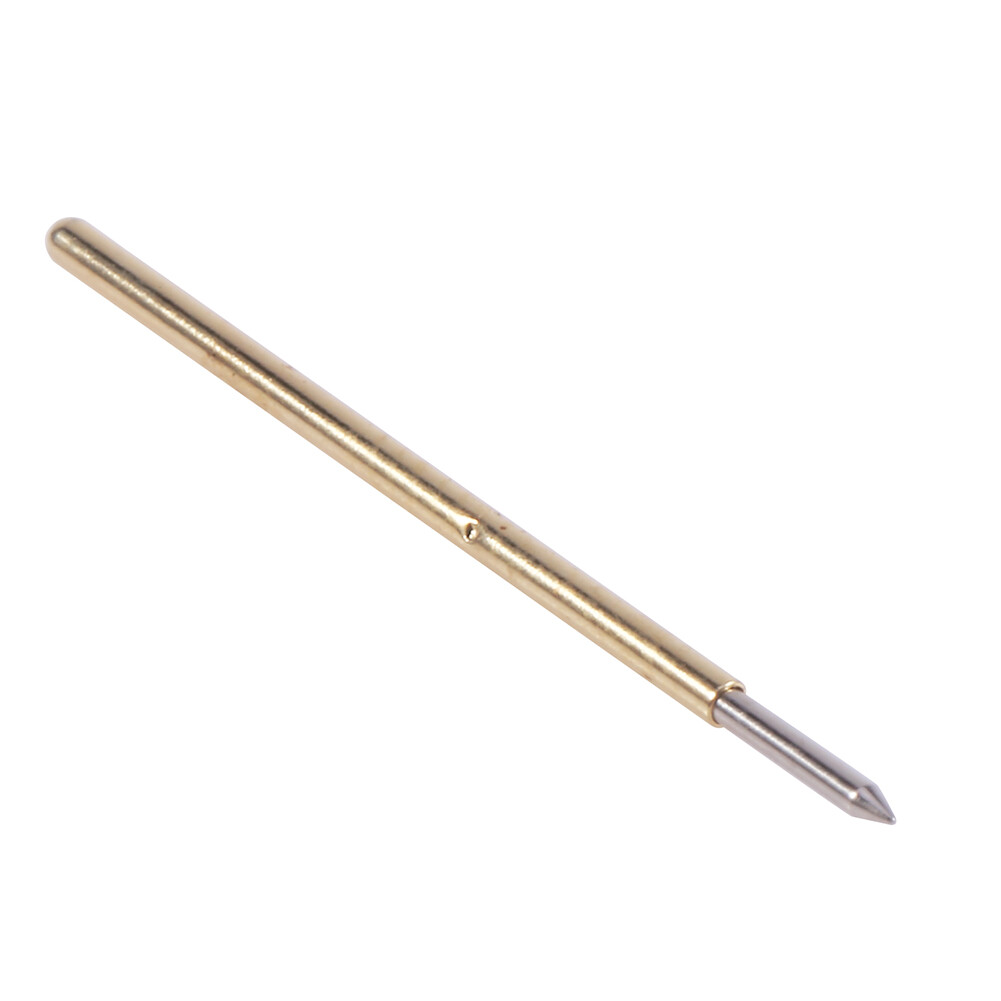

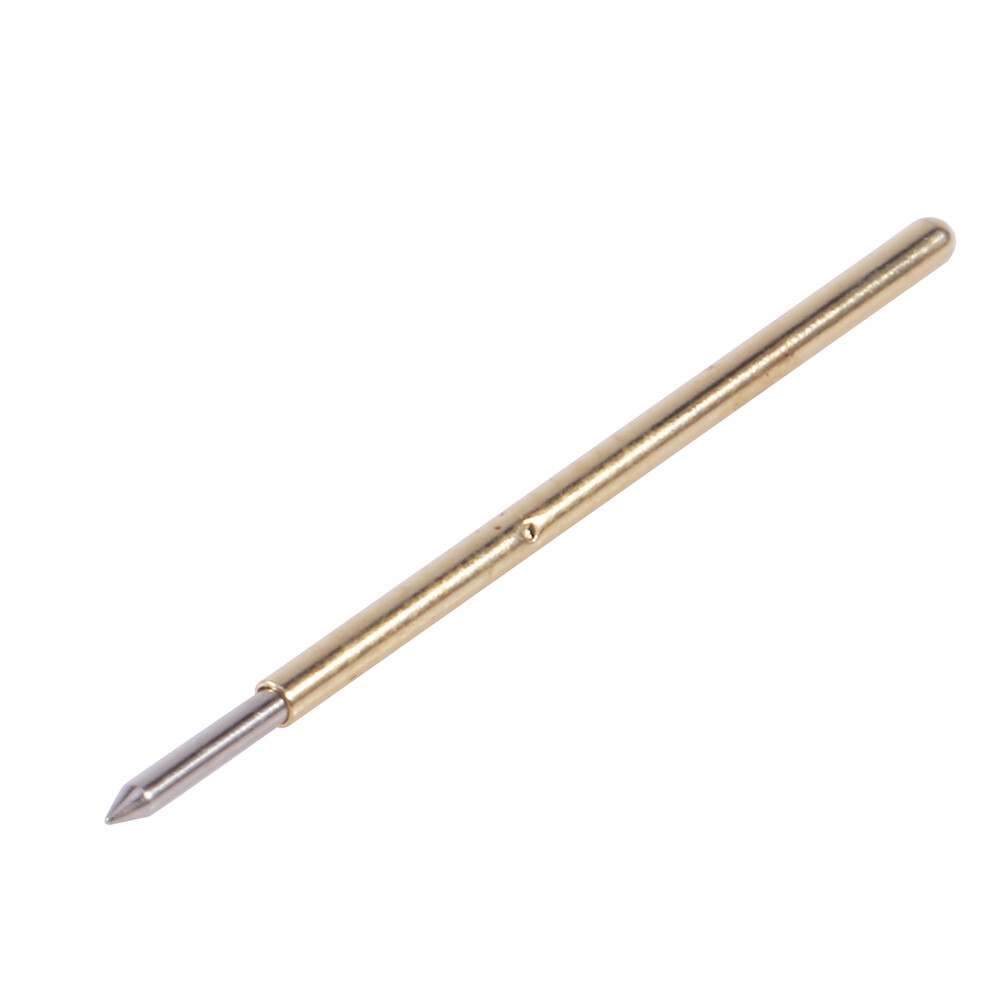

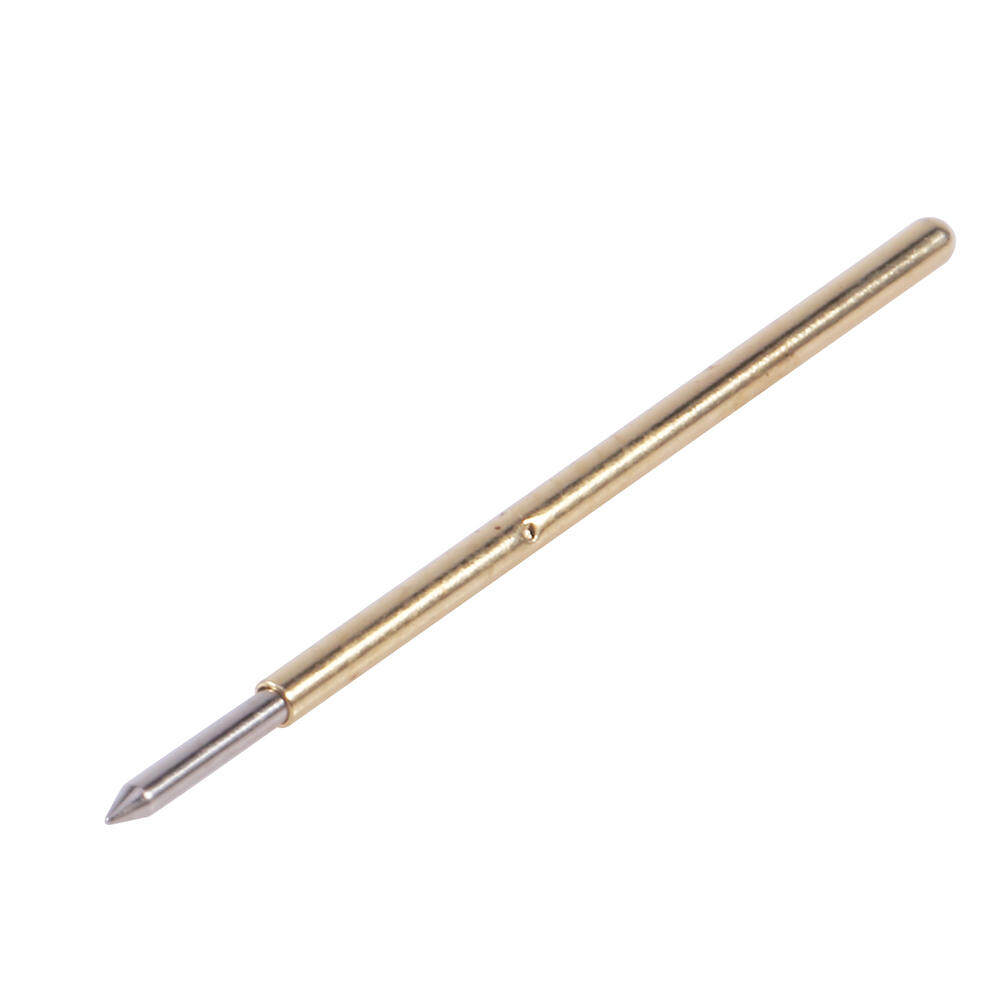

• Cone shape head can be used for testing through-hole components.
• Widely used for testing PCB gold fingers(edge connectors) and pads.
• They are great replacement probes if you need to change broken or old test probes.

P75-E2:
Head Shape: Cone
Current Rating: 3A
Resistance: 50mΩ
Stroke: 6.5mm
Head Diameter: 1.5mm
Probe Tube Diameter: 1.36mm
Probe Rod Diameter: 0.99mm
Probe Length: 33.3mm
Boring Size: 1.7mm
Min. Test Interval: 2.54mm
Quantity: 100pcs


P50-J1:
Head Shape: Round
Current Rating: 3A
Resistance: 50mΩ
Stroke: 2.6mm
Probe Tube Diameter: 0.68mm
Probe Rod Diameter: 0.48mm
Probe Length: 16mm
Boring Size: 0.9mm
Min. Test Interval: 1.27mm
Quantity: 100pcs


P100-E2:
Head Shape: Cone
Current Rating: 3A
Resistance: 50mΩ
Stroke: 6.5mm
Head Diameter: 1.5mm
Probe Tube Diameter: 1.36mm
Probe Rod Diameter: 0.99mm
Probe Length: 33.3mm
Boring Size: 1.7mm
Min. Test Interval: 2.54mm
Quantity: 100pcs

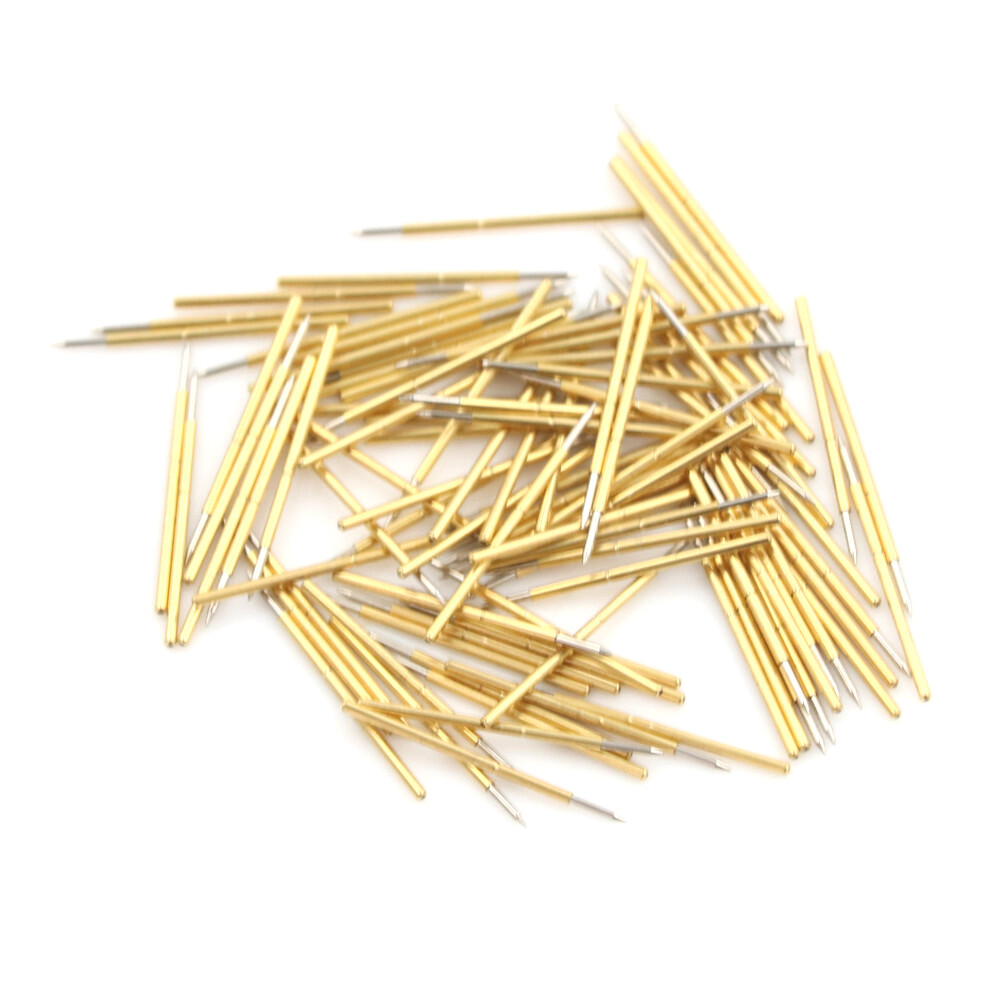

P50-B1:
P50-B1 - 16mm
Pin Centre: 0.68mm
Min test distance: 1.27mm
Spring Pressure: 75g
Full Stroke: 2.65mm
Current Rating: 3A
Current Resistance: 50mm
Plunger: Heat Treated Beryllium Copper
Barrel: Phosphor Bronze . Gold Plated
Spring: stainless steel

P75-B1:
Specification:spring thimble
Needle tube diameter: 1.02mm
Needle bar diameter:0.74mm
Pin Total Length: 15.8mm
Drill size: 1.4mm;
Minimum distance between test: 1.91mm


Package Includes:
100 x Probes
