100A LCD Digital Panel Wattmeter Energy Power Meter Voltmeter Ammeter Frequency Indicator AC 110V 220V 380V

• Power Supply:AC
• Model Number:Digital Voltmeter
• Dimensions:79*43*48mm
• uracy Class:High
• Display Type:Digital Only
• DIY Supplies:ELECTRICAL
• Origin:Mainland

Measure:

1. AC80V-300V,300V-450V

2. AC0-100A

3. Active power0-45000W

4. Electric energy0.000-99999kwh

5. Power factor0.00-1.00PF

6.Frequency45-65Hz

Parameters:

1.uracy: 1% 2 words

2.Range:

AC : AC 80.0-300.0V/300.0-450.0V(You should select the suitable type of

meter when your making order)

AC : AC 0-99.99A, minimum resolution is 0.01A

AC : AC 0-40.00A, minimum resolution is 0.01A

power frequency:45.0Hz-65.0Hz

power factor :0.00-1.00PF

active power:0-45000W when the active power between 0 and 9999.9W, the display uracy is 0.1W

Electric energy:0-9 99999kwh,when the electric power between 0 and 999.99kwh, the display uracy is 0.01kwh, when between 10000.0-9999.9kwh, the display uracy is0.1kwh,when between 10000.0 and 999999kwh, the display uray is 1kwh.

3.Speed: 2 times per second

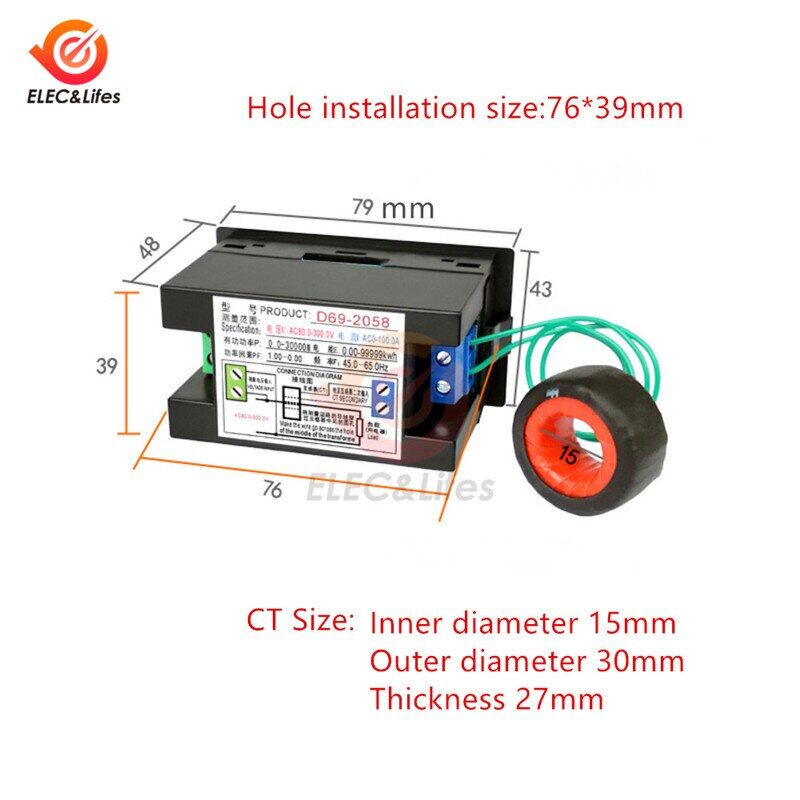

4.Size: 79*43*48mm

5.Installation Size: 76*39mm

6.Auto-saving: when power off, the electric energy will be saved. The saved electric energy will be umulated continue when the meter power-on next time.

​

Application:

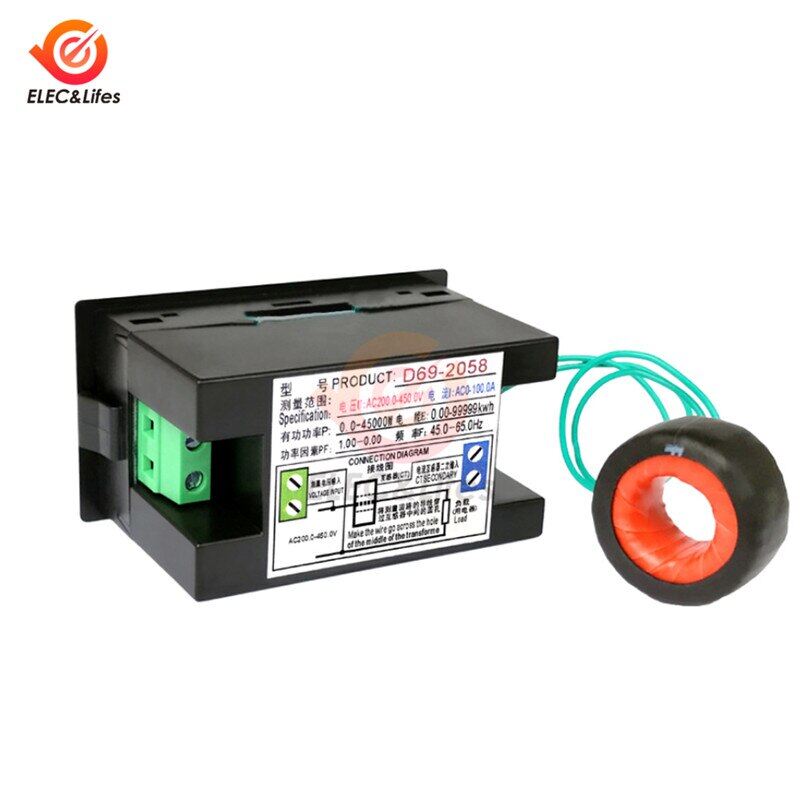

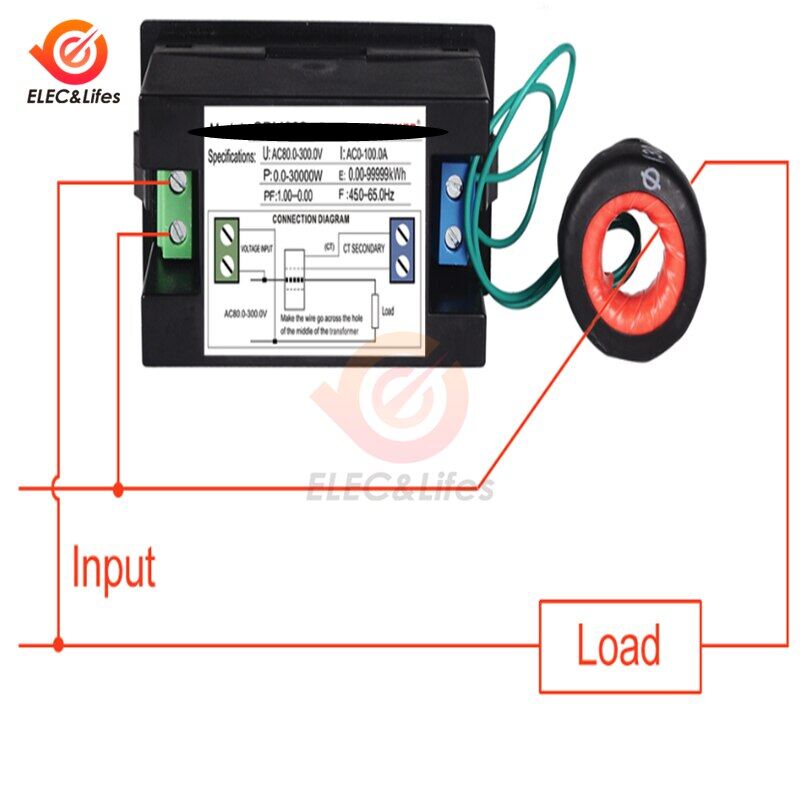

1.ording to connection graph, connect the green wire of secondary transformer to the blueterminal of meter and make the wire of measurement circuit through the hole in the transformer.

2.Supply power and start to measure and display the result.

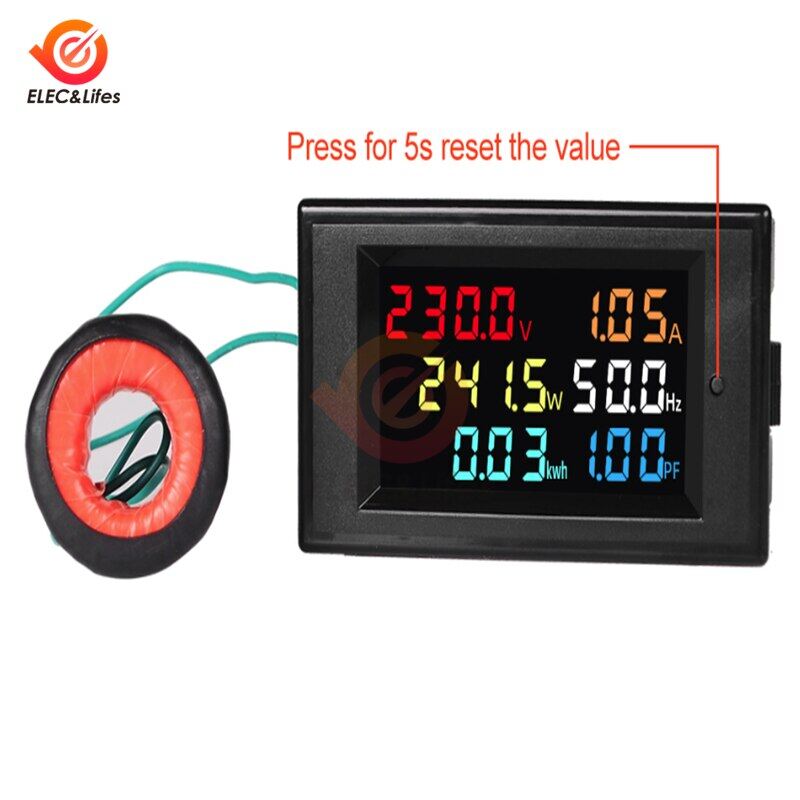

3.Press down the button last for 5 second, the electric energy will to be zero.


Note:

1.The meter will be destroyed when you make wrong connection method with

2.The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input(green terminal) and secondary transformer(blue terminal).measure square wave, output of inverter and correction sine wave.

Package:

1 x Voltmeter Ammeter Power Energy Frequency Meter

1 x CTtransformer
