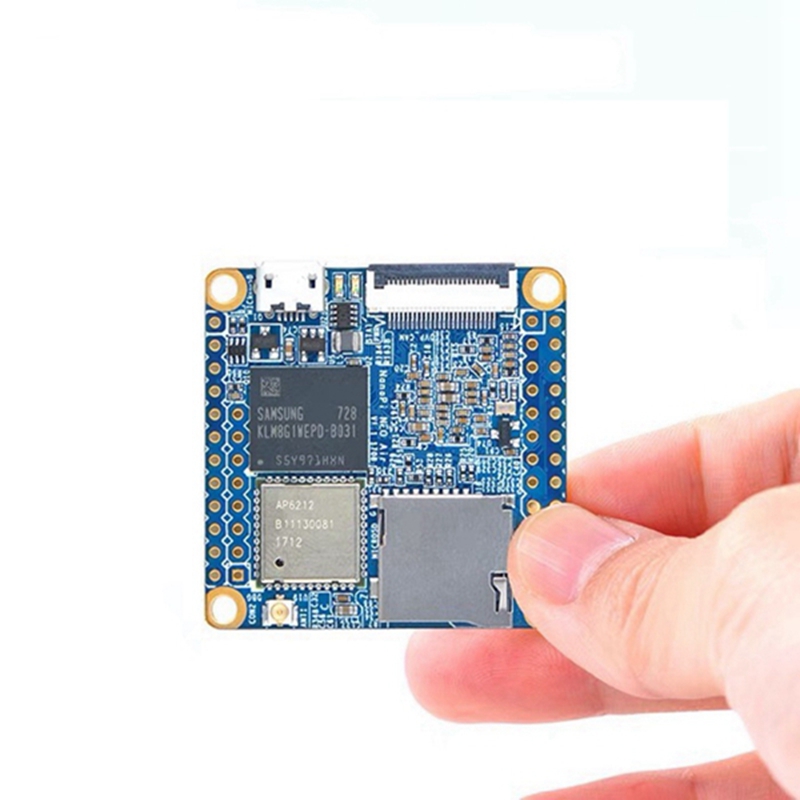

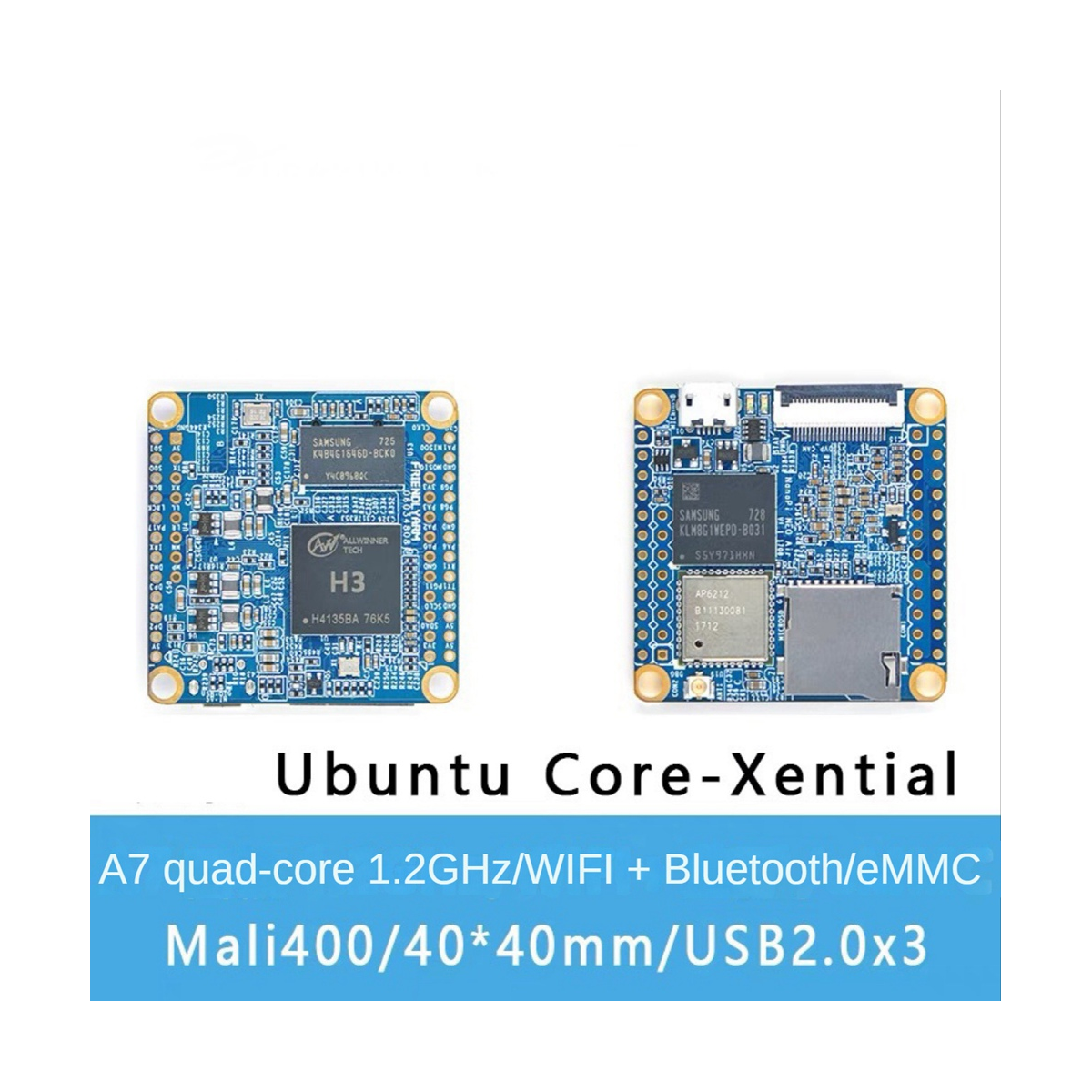

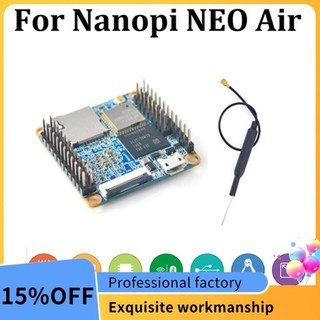

1 Set Development Board for Nanopi NEOAir Development Board IoT Development Board 512Mb RAM Wifi & Bluetooth 8Gb Emmc Allwinner H3 -Core -A7 Ubuntucore

1 Set Development Board for Nanopi NEOAir Development Board IoT Development Board 512Mb RAM Wifi & Bluetooth 8Gb Emmc Allwinner H3 -Core -A7 Ubuntucore

Details

CPUModel: Allwinner H3; Number of Cores: Quad-core; Frequency: 4*Cortex-A7 Up to 1.2GHz; MemoryRAM: 512MB; StorageeMMC: 8GB

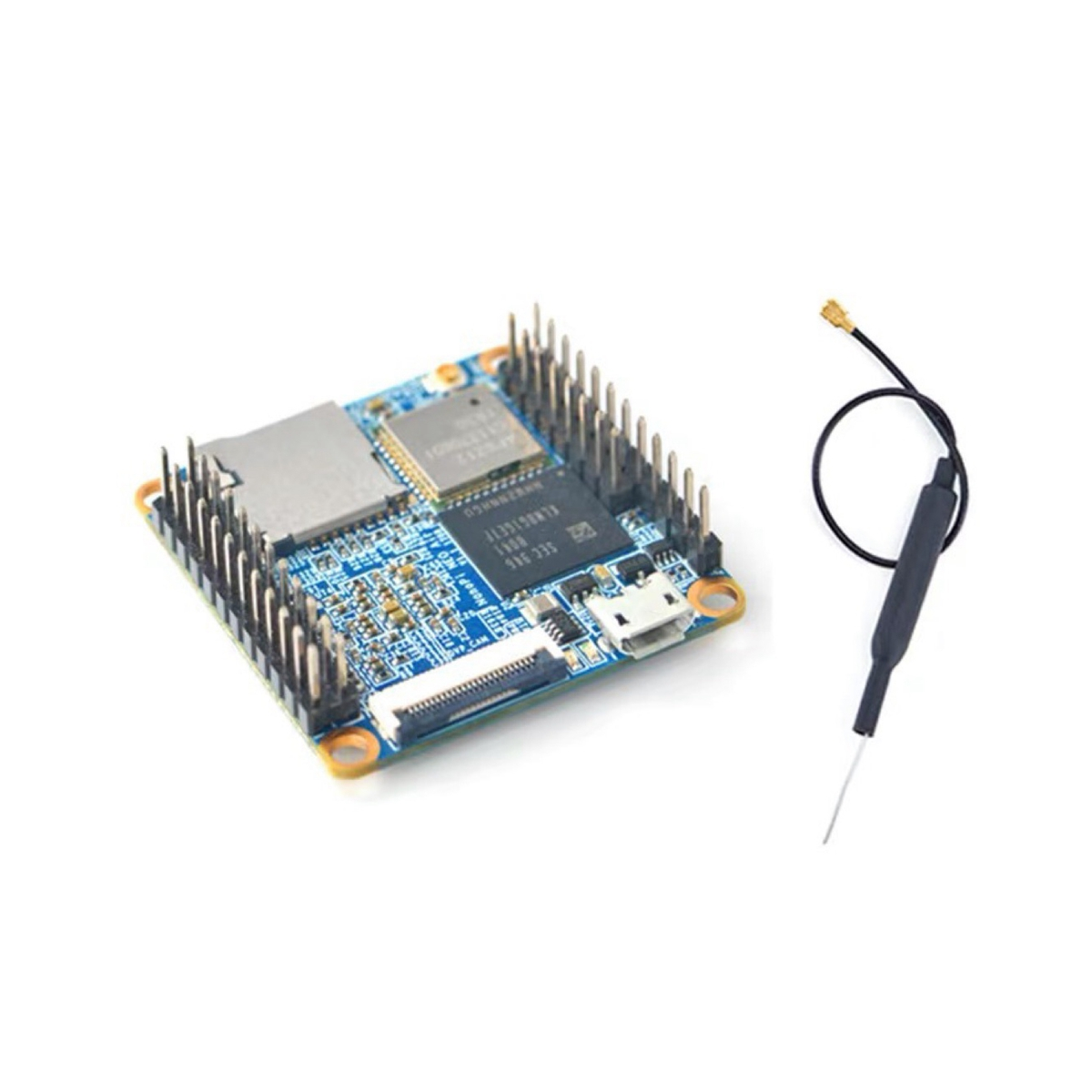

MicroSD Slot: MicroSD*1 for external storage up to 128GB; Connectivity WiFi: 802.11b/g/n; Bluetooth: 4.0 dual mode; Antenna*1: IPX Connector

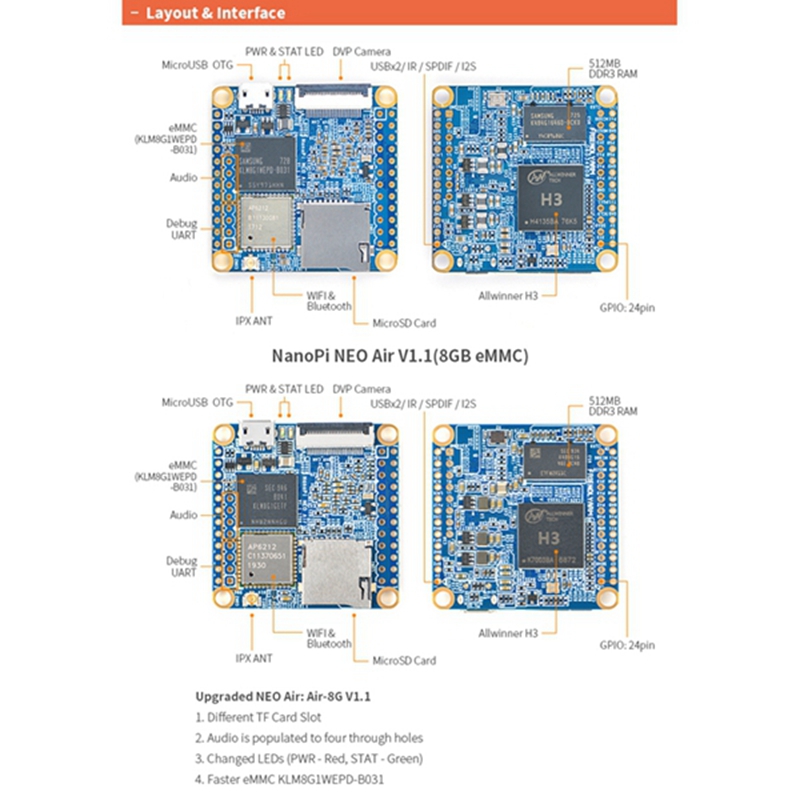

Audio Audio input/output Port: 2.0mm pitch 4-pin header; Video DVP Camera: 0.5mm pitch 24 pin FPC seat; USB MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A; USB Host: 2.54mm pin*2

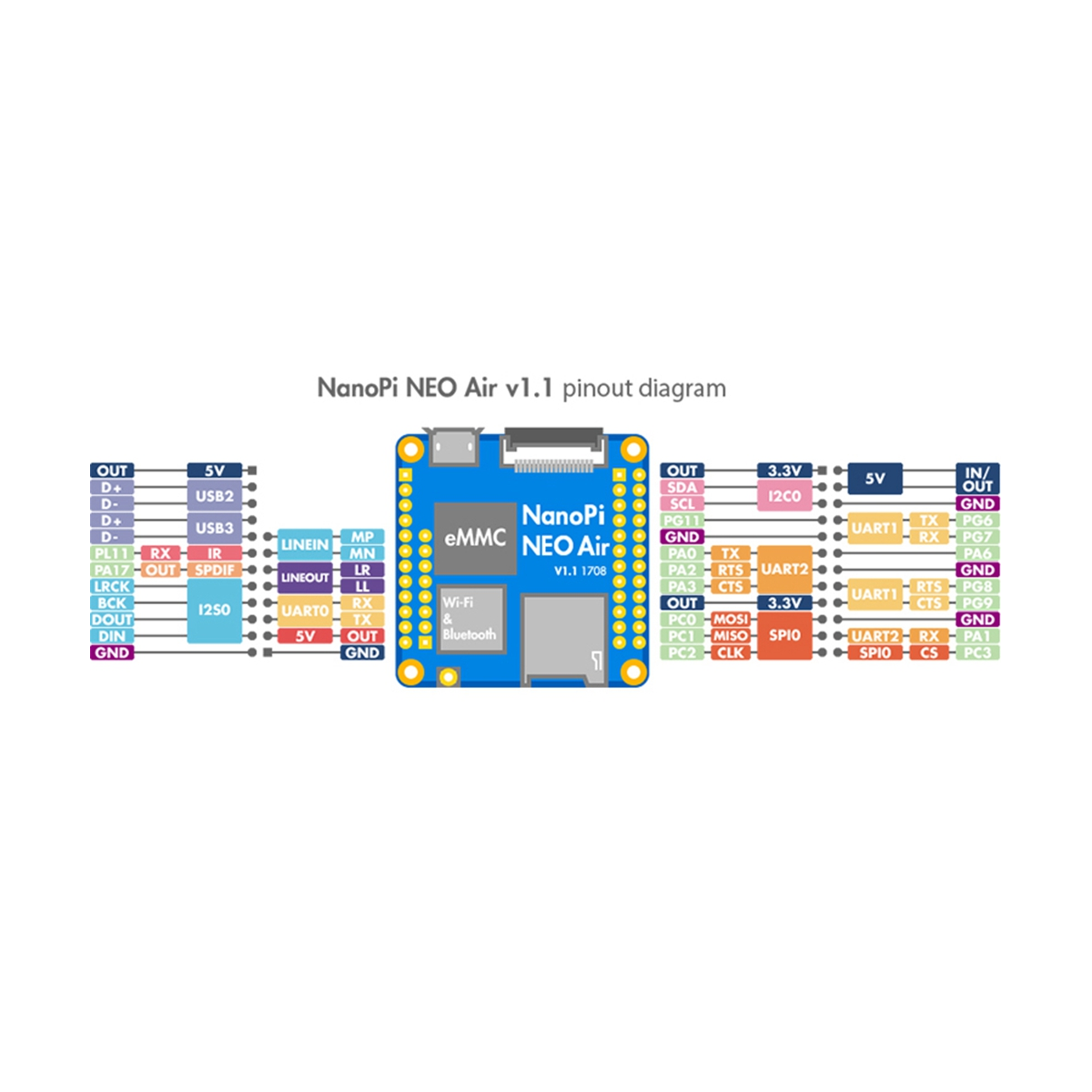

Pin-header GPIO1: 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO; GPIO2: 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,I2S; Serial Debug Port: 2.54mm pitch 4-pin-header; Audio input/output Port: 2.0mm pitch 4-pin header
LED Power LED(Red)*1; STAT LED(Green)*1; Others Working Temperature: -20℃ to 70℃; Power DC 5V/2A; OS Support: FriendlyCore 16.04(based on UbuntuCore-16.04); FriendlyCore Focal (Base on Ubuntu 20.04)

Kernel version Linux-4.14-LTS
U-boot-2017.11
uboot supports fastboot to update uboot
FriendlyCore
rpi-monitor: check system status and information
npi-config: system configuration utility for setting passwords, language, timezone, hostname, SSH and auto-login, and enabling/disabling i2c, spi, serial and PWM
NetworkManager: manage network
software utility: RPi.GPIO_NP to access GPIO pins
welcome window with basic system information and status
auto-login with user account "pi" with access to npi-config
on first system boot file system will be automatically extended
supports file system auto check and repair on system boot
supports FriendlyElec's NanoHat-PCM5102A
supports FriendlyElec's Matrix_-_2.8_SPI_Key_TFT
supports file transfer with Bluetooth
supports FriendlyElec BakeBit modules
supports dynamic frequency scaling and voltage regulation
Ubuntu OLED supports FriendlyElec's OLED module
Eflasher
