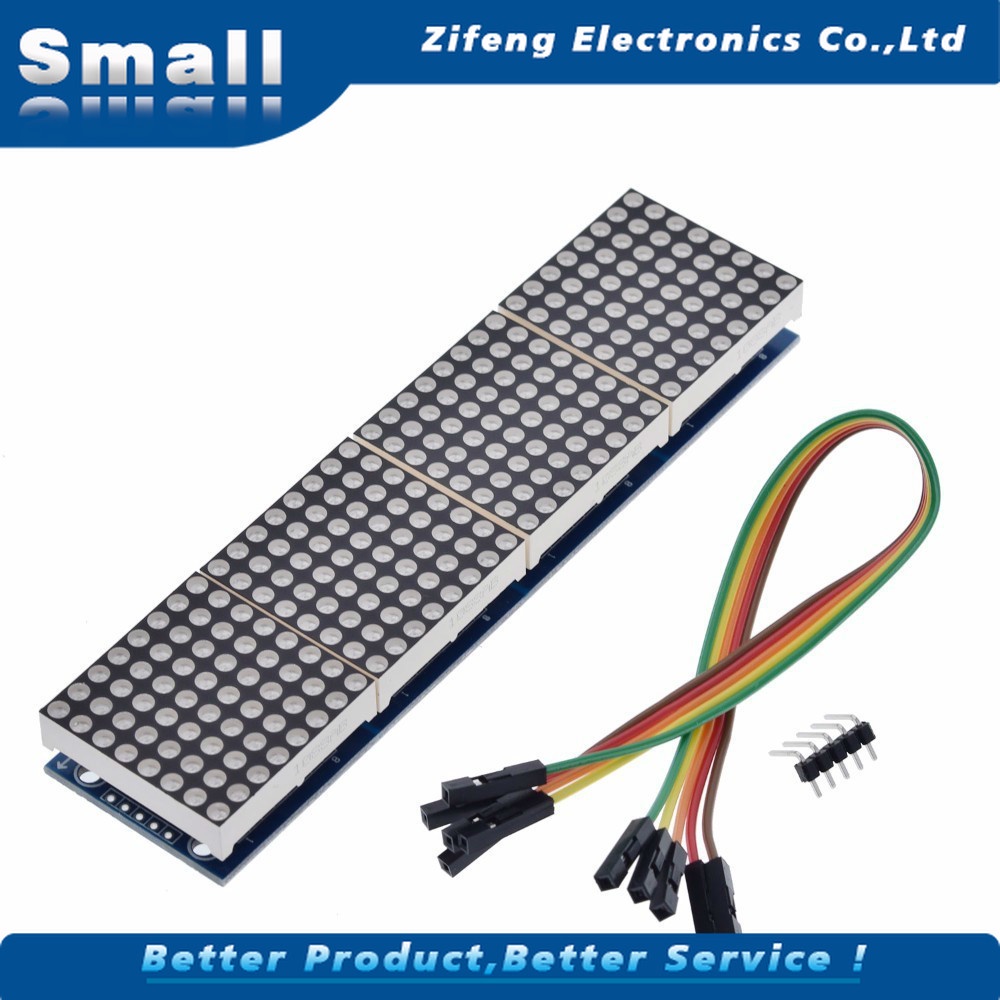

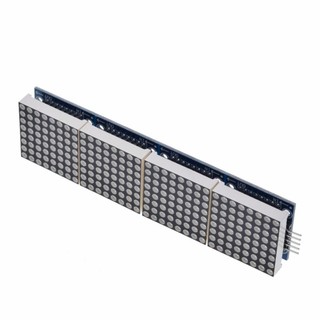

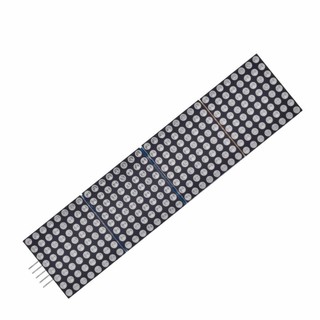

1 Mô Đun Max7219 Dot Matrix Với 4 Dây 5p Line

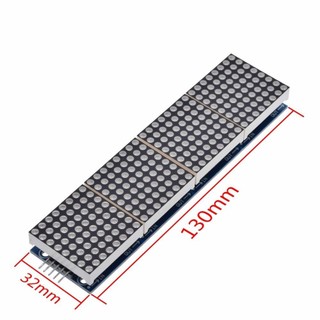

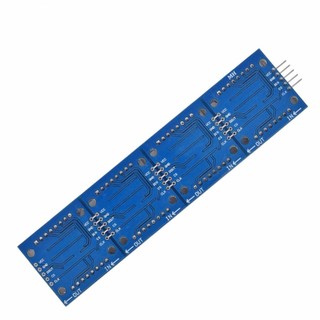

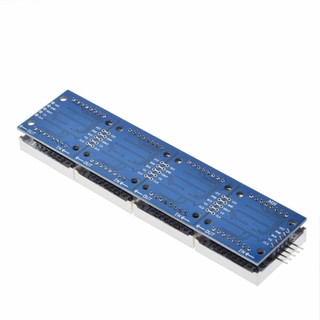

Wiring Instructions: Note: A single module can drive a 8x8 dot matrix common cathode Operating Voltage: 5V A single module can drive a 8x8 dot matrix common cathode Operating Voltage: 5V Dimensions: 12.8X12.8X1.3cm/ Fixing screws with 64 holes with a diameter 3mm Module with input and output interfaces, support for cascading multiple modules Quality:1Set Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon. And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! The left side of the module to the input port, the right to an output port When the control of a single module, simply input port connected to CPU When a plurality of cascaded modules, input and output termination CPU, an input terminal of the second output end of the first module a module, the first two modules of the input terminal of the three termination modules, and so on... 51 microcontrollers, for example: VCC 5V GND GND DIN P2.2 CS P2.1 CLK P2.0
