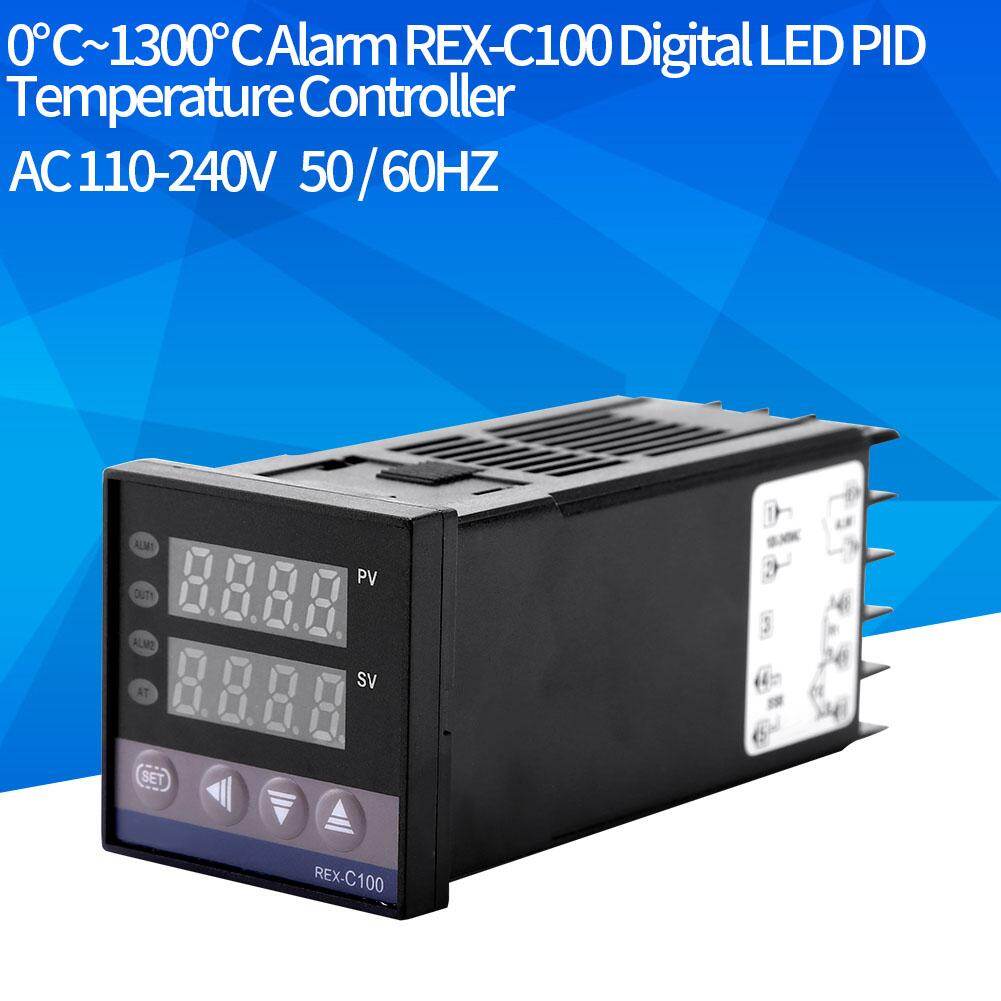

0℃~1300℃ Alarm REX-C100 Digital LED PID Temperature Controller Kits AC110V-240V

Features:

• Adopts industrial-grade professional self-tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision.
• Reliable performance, powerful function and simple operation.
• This multi-functional controller has special microprocessor switching power supply and SMT.
• Self diagnosis function, self-tuning function and high intelligent control function help the operator get good effect by simple operation.
• Self-tuning control; output, alarm and self-tuning can be indicated by LED.
• Process Value (PV), Setting value (SV).
• PIN control (including ON/OFF, step-type PID and continuous PID.
• Environment with no corrosive gas 30~85% RH.
• Widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment.

Specifications:

Temperature Controller

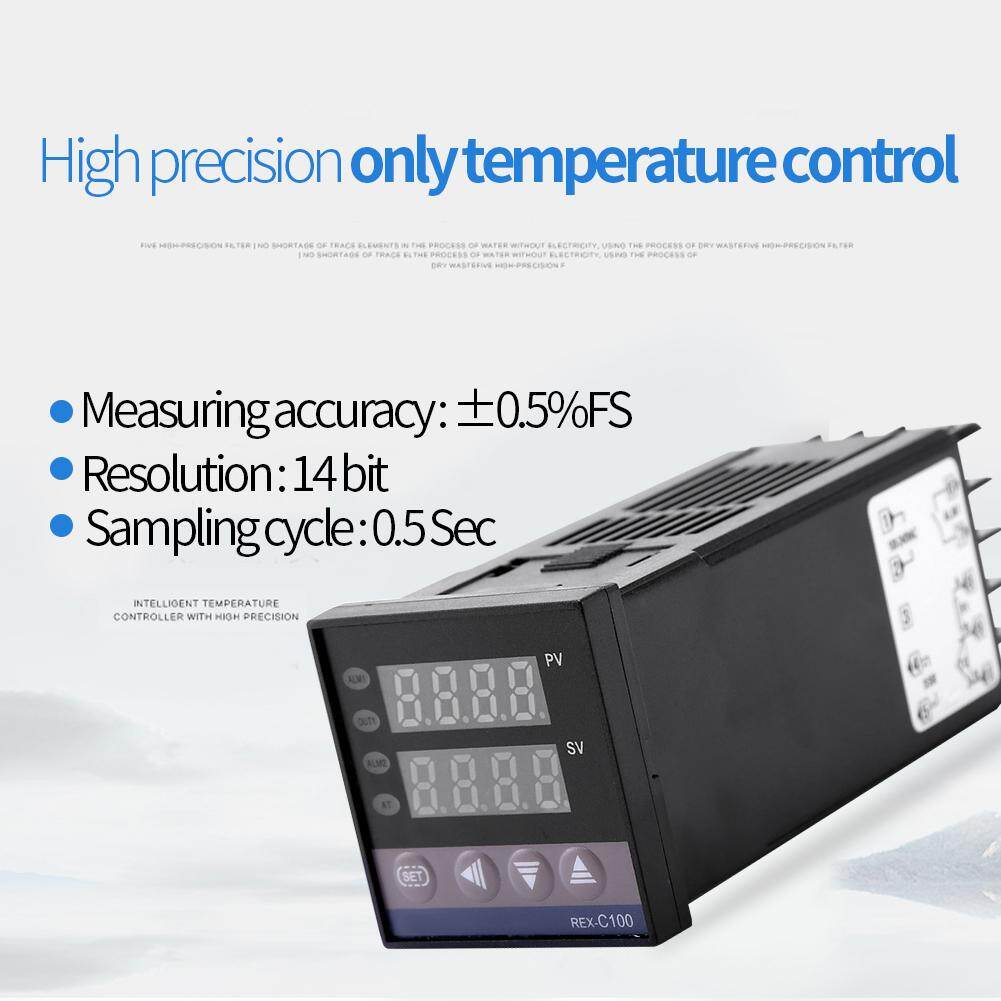

Measuring Accuracy: ±0.5%FS

Cold-end Compensation Tolerance:

Resolution: 14 bit

Sampling Cycle: 0.5 Sec

Power: AC 110V-240V 50/60HZ

Relay Output: Contact capacity 250V AC 3A (resistive load)

Alarm Function Output: 2 ways

Proportional Band (P): 0~full range (ON/OFF control when set to 0)

Detecting Temperature Range: 0℃~1300

Insulation Resistance: >50M ohm (500V DC)

Insulation Resistance: 1500V AC/min

Insulation Resistance: Power Consumption <10 VA

Service Environment: 0℃~50

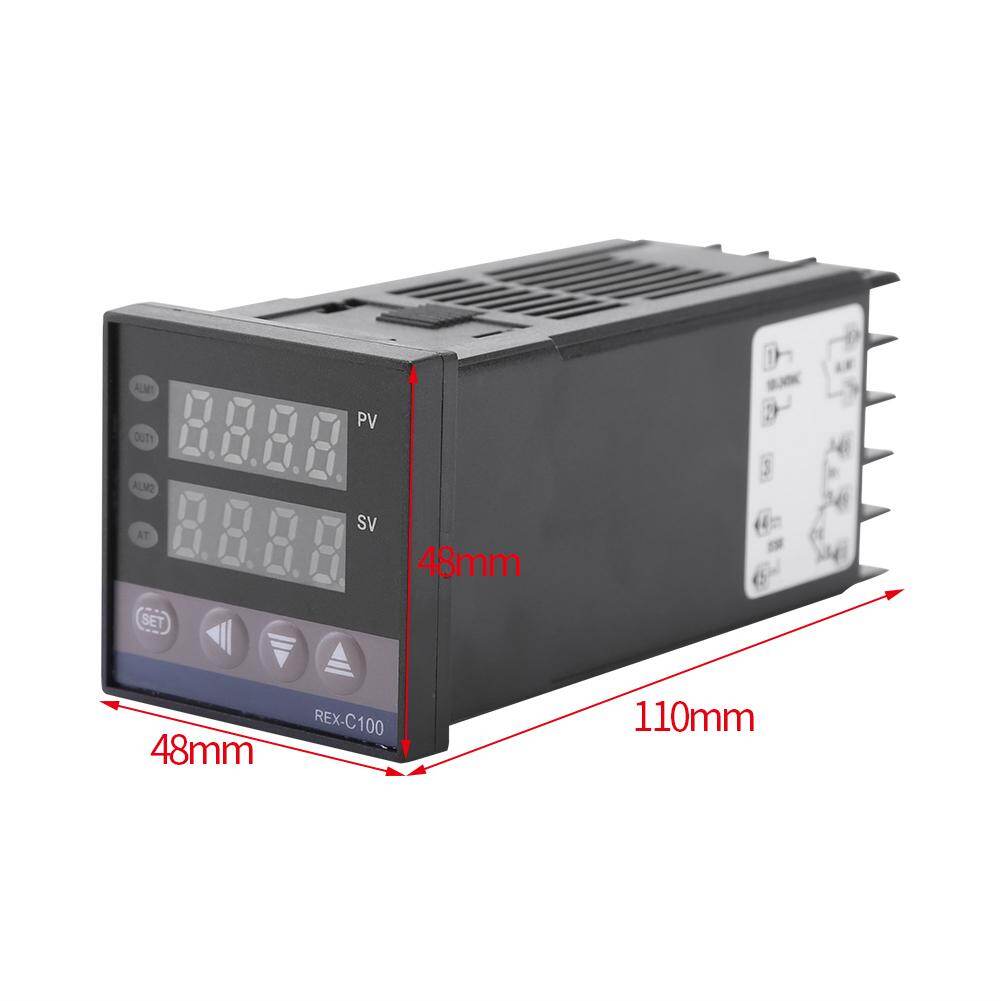

Size: 48*48*110mm / 1.89*1.89*4.33"

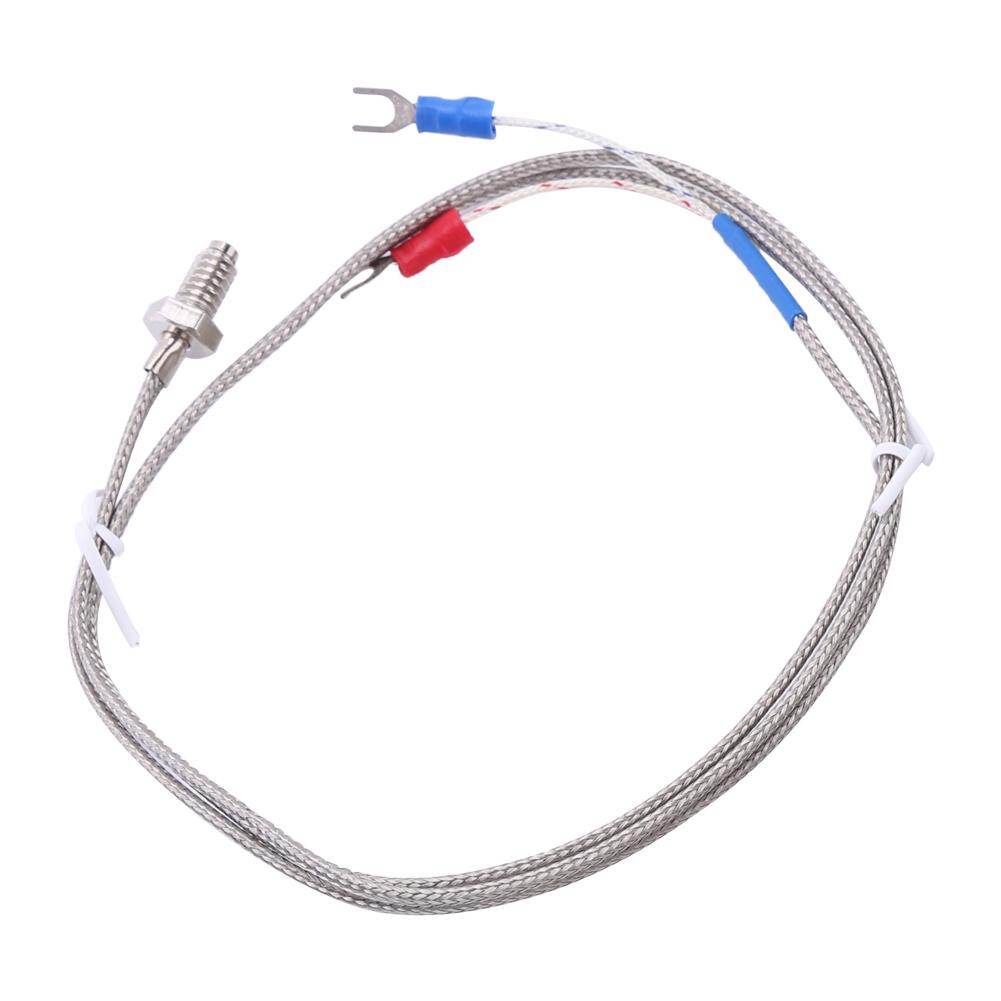

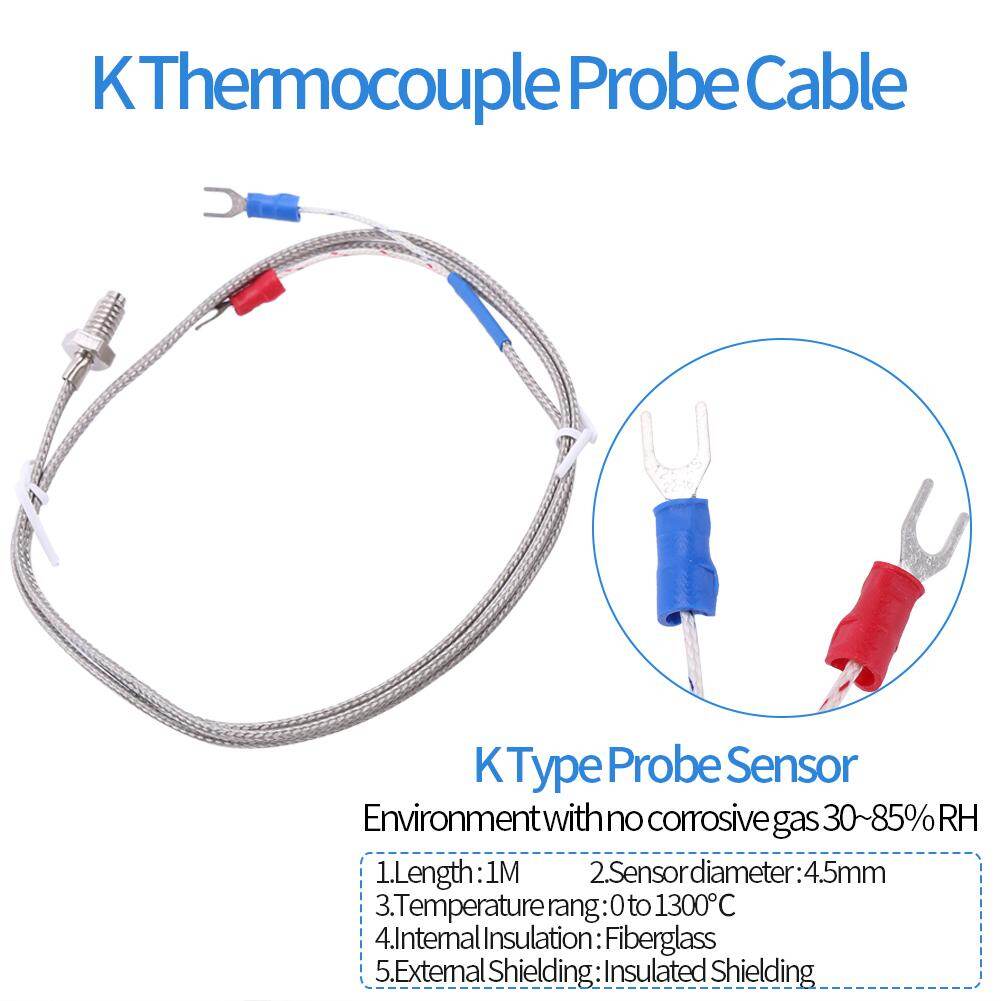

K Thermocouple Probe Cable

Length: 1M

Sensor Diameter: 4.5mm

Temperature Range: 0 to 400

Internal Insulation: Fiberglass

External Shielding: Insulated Shielding

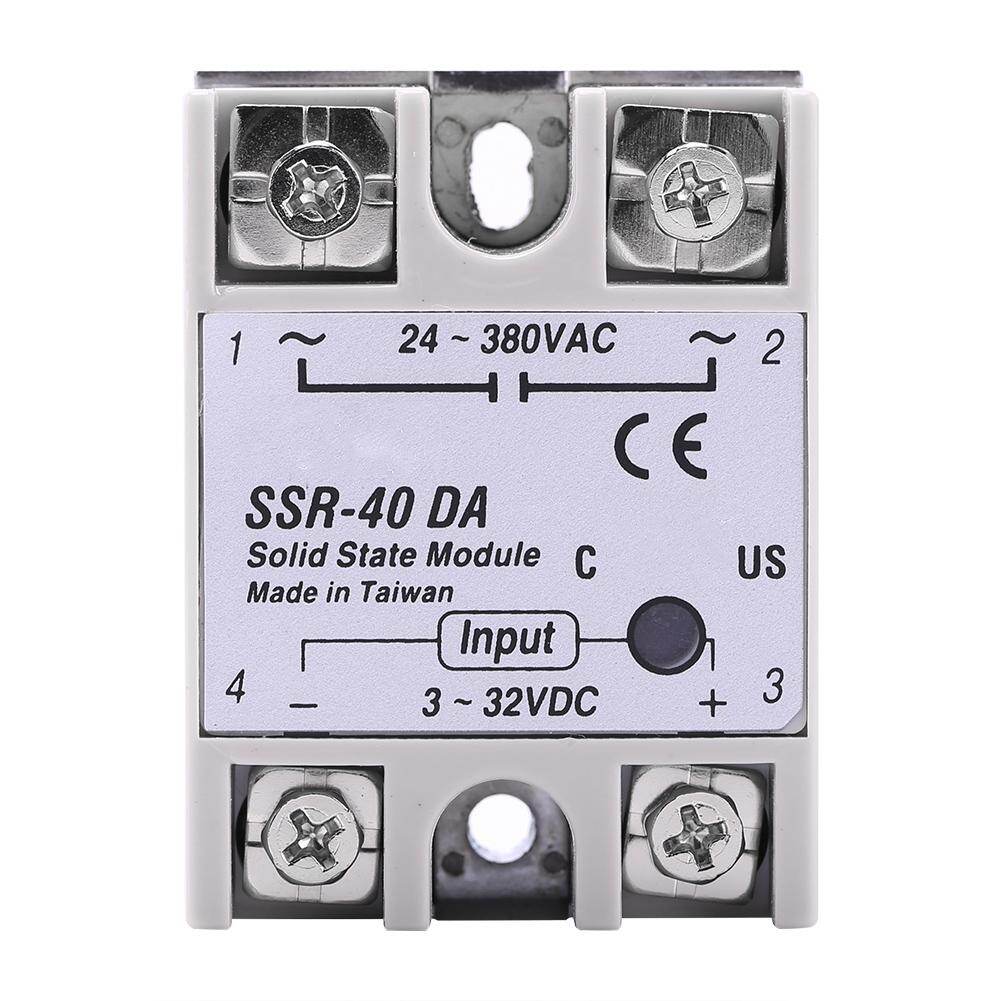

Max.40A SSR

Output Voltage Range: Standard Type

Output Current: 40A

Input Voltage: DC 3V-32V

Output Voltage: 24V-380V AC

Note:This K type probe sensor in this set is only 400℃; you will need to install a 1300℃ probe sensor(not included) to reach 1300℃.

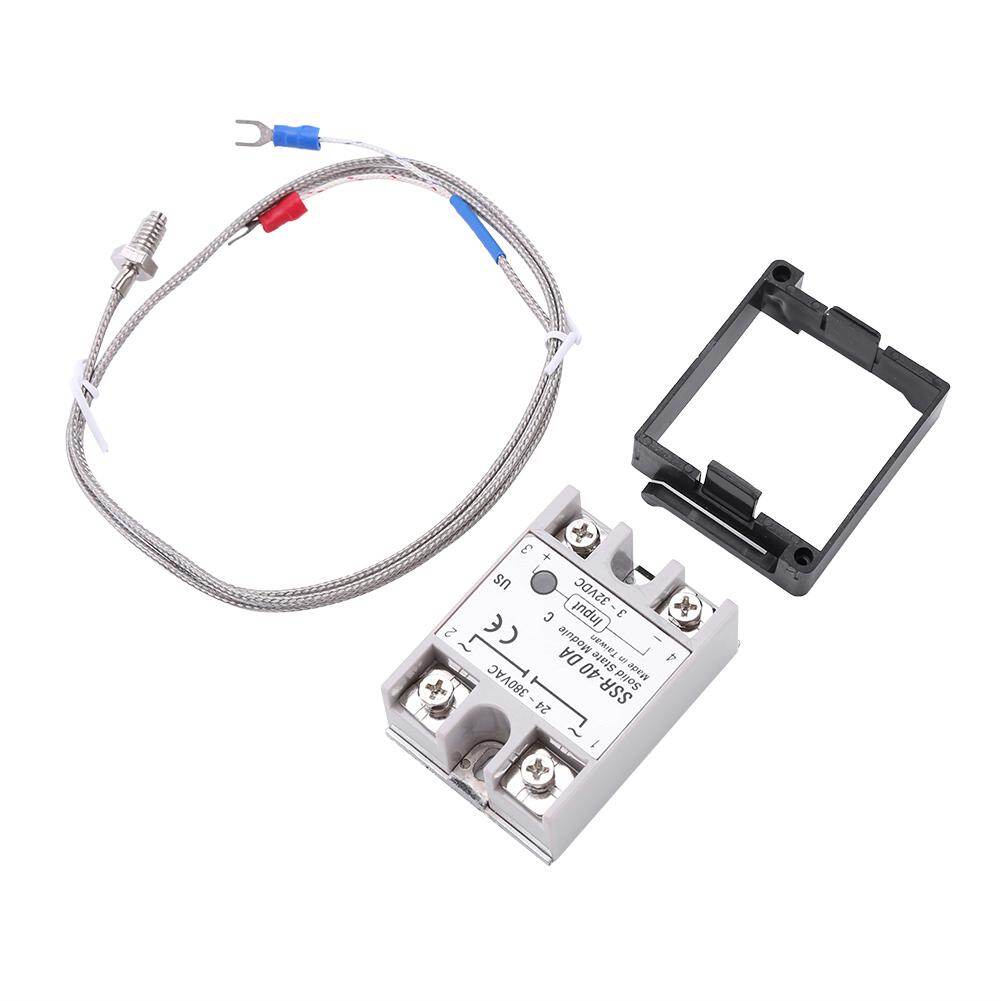

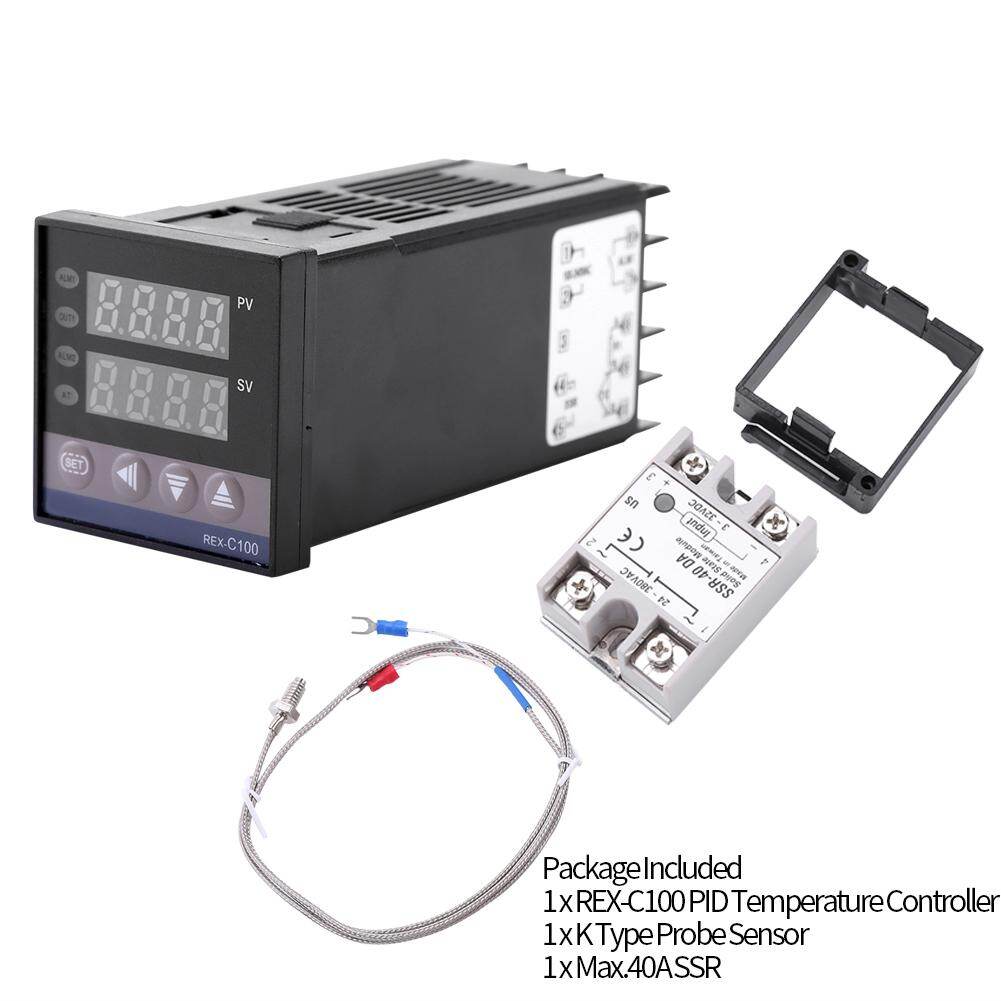

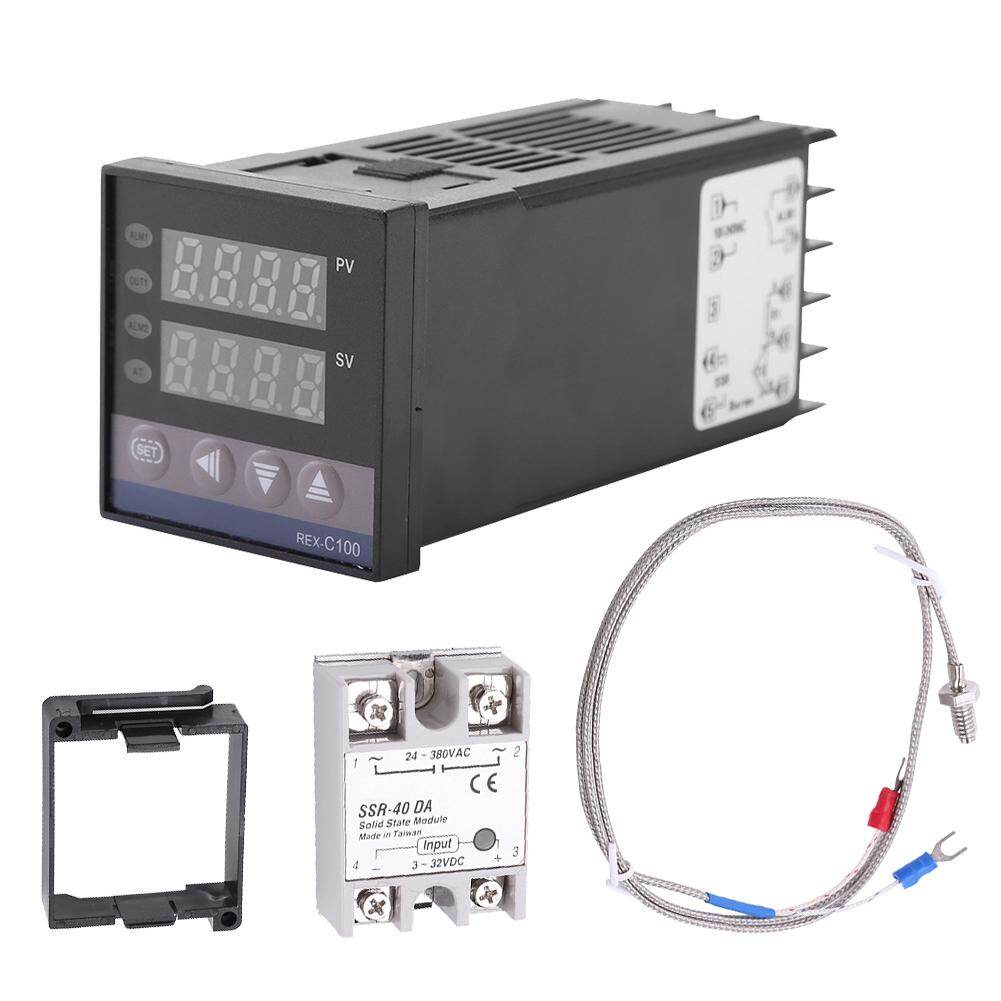

Package Includes:

1 x REX-C100 PID Temperature Controller

1 x K Type Probe Sensor

1 x Max.40A SSR
