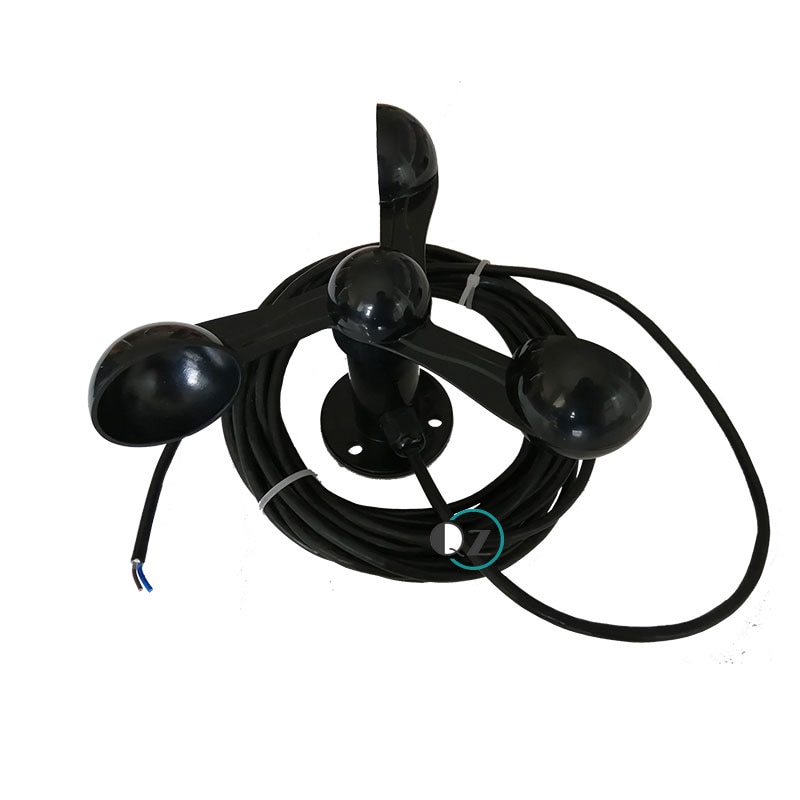

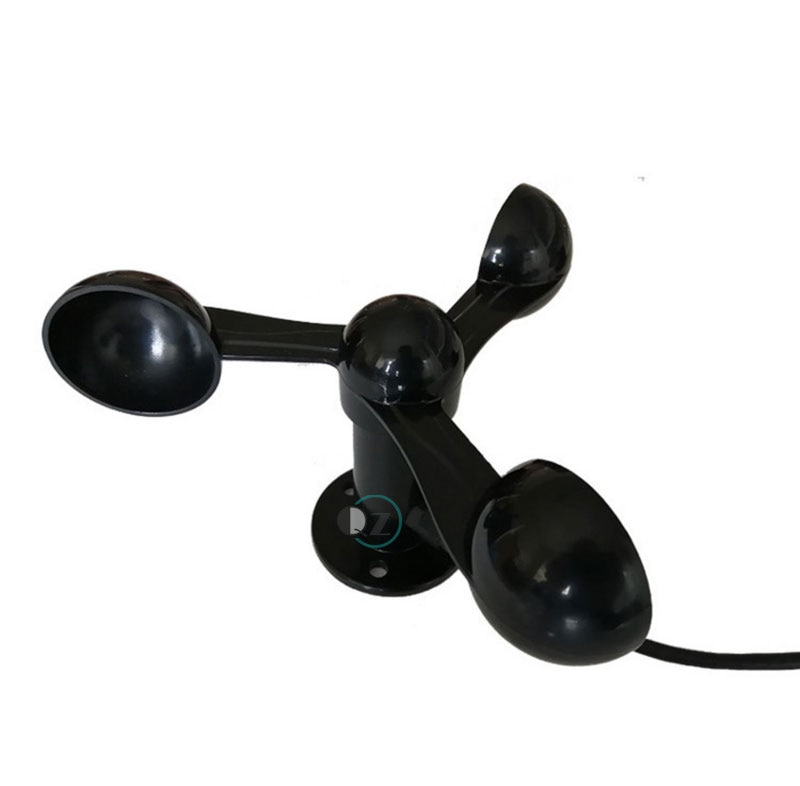

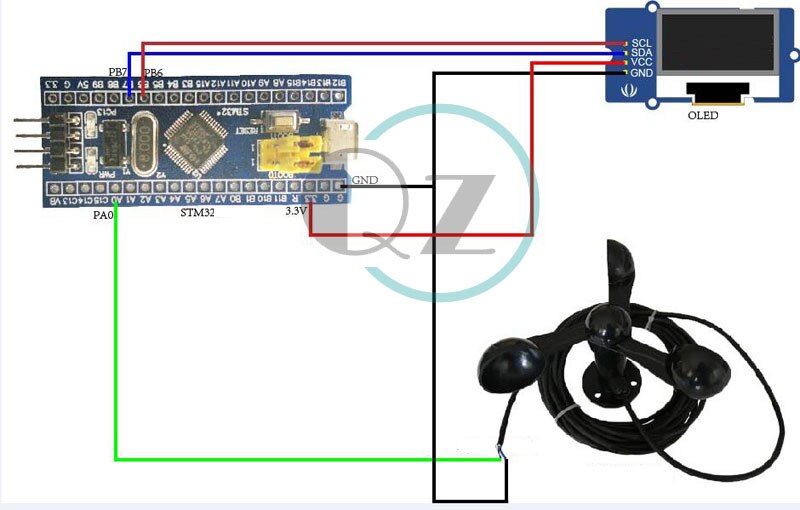

01- 56M/S Wind Speed Sensor Three Cup Anemometer Wind Speed Measurement Meteorological Wind Sensor For Single Chip STC89 STM32

• Usage:Pressure Sensor
• Material:Mixture
• Origin:Mainland

About Information, send English information by e-mail, if necessary, please contact us

Introduction:

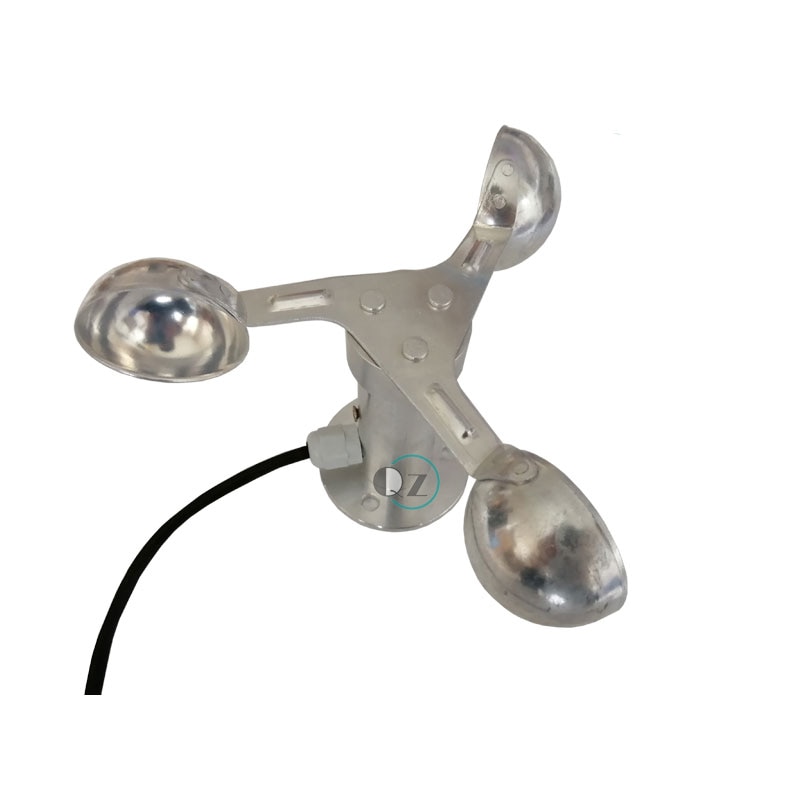

The wind speed sensor is assembled with a small DC brush motor and a three-cup type rotating wind cup. Its working principle is that when there is horizontal flow of wind in the environment, the rotating wind cup can generate rotation and drive the small motor to generate a . The rotational speed is basically proportional. Using this signal , the ambient wind speed can be measured.

This wind speed sensor adopts the high-precision measurement wind speed sensor used by the marine military, which is different from traditional products and has higher precision; It is an indispensable wind speed detection device in the fields of power generation, power plant, meteorology, ropeway, environment, greenhouse, aquaculture, etc. It can realize the digitization and automation of wind speed indication of equipment, and is an indispensable wind speed detection device for related equipment.

Specification:

Measuring range: 0~56m/s 0~16 level

Cable length: 10 meters

Dimensions: length (180mm), width (180mm), height (105mm)

Accuracy: <56m/s ±0.55V

≥56m/s ±5%

Wind speed sensor start wind speed: <0.7m/s

Working environment temperature: -30℃~65℃

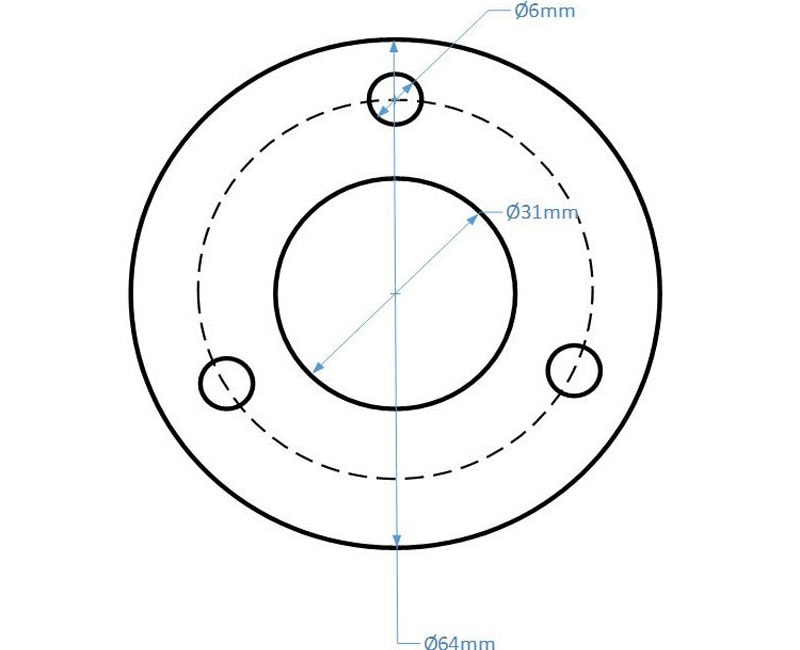

Installation size:
