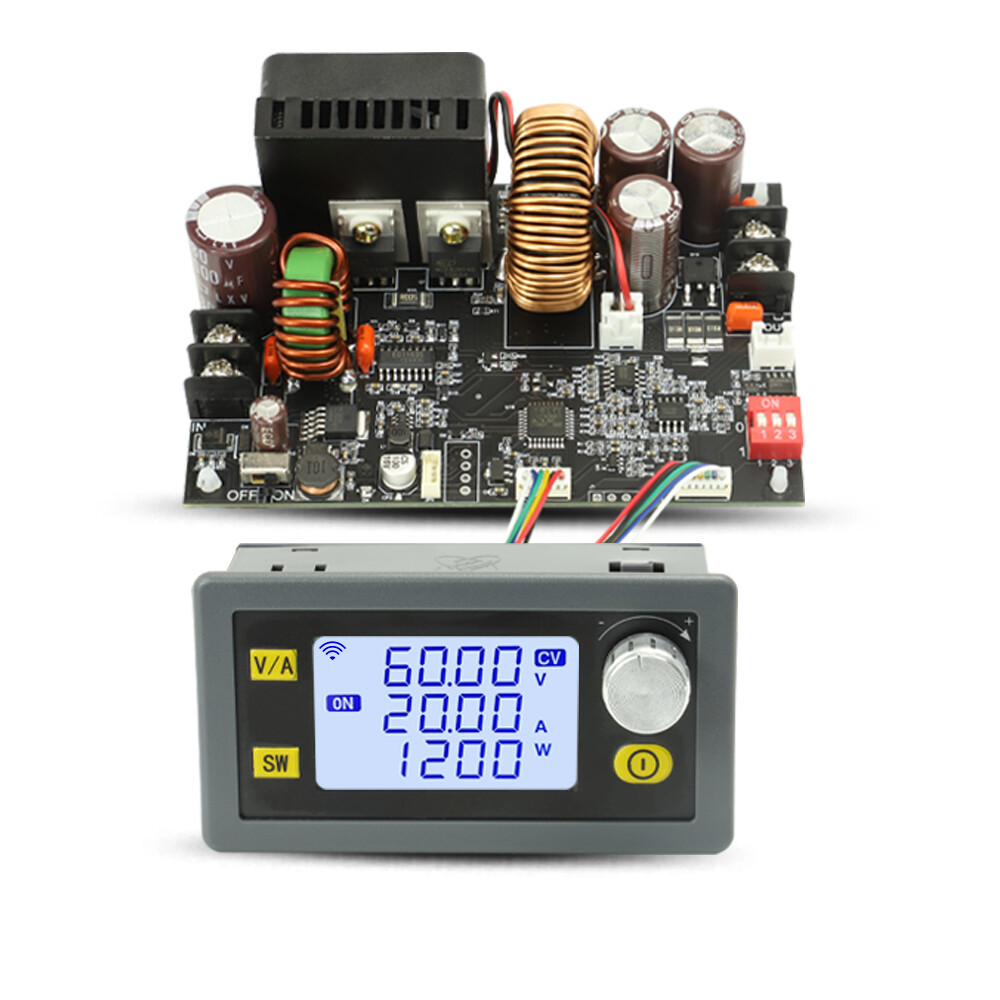

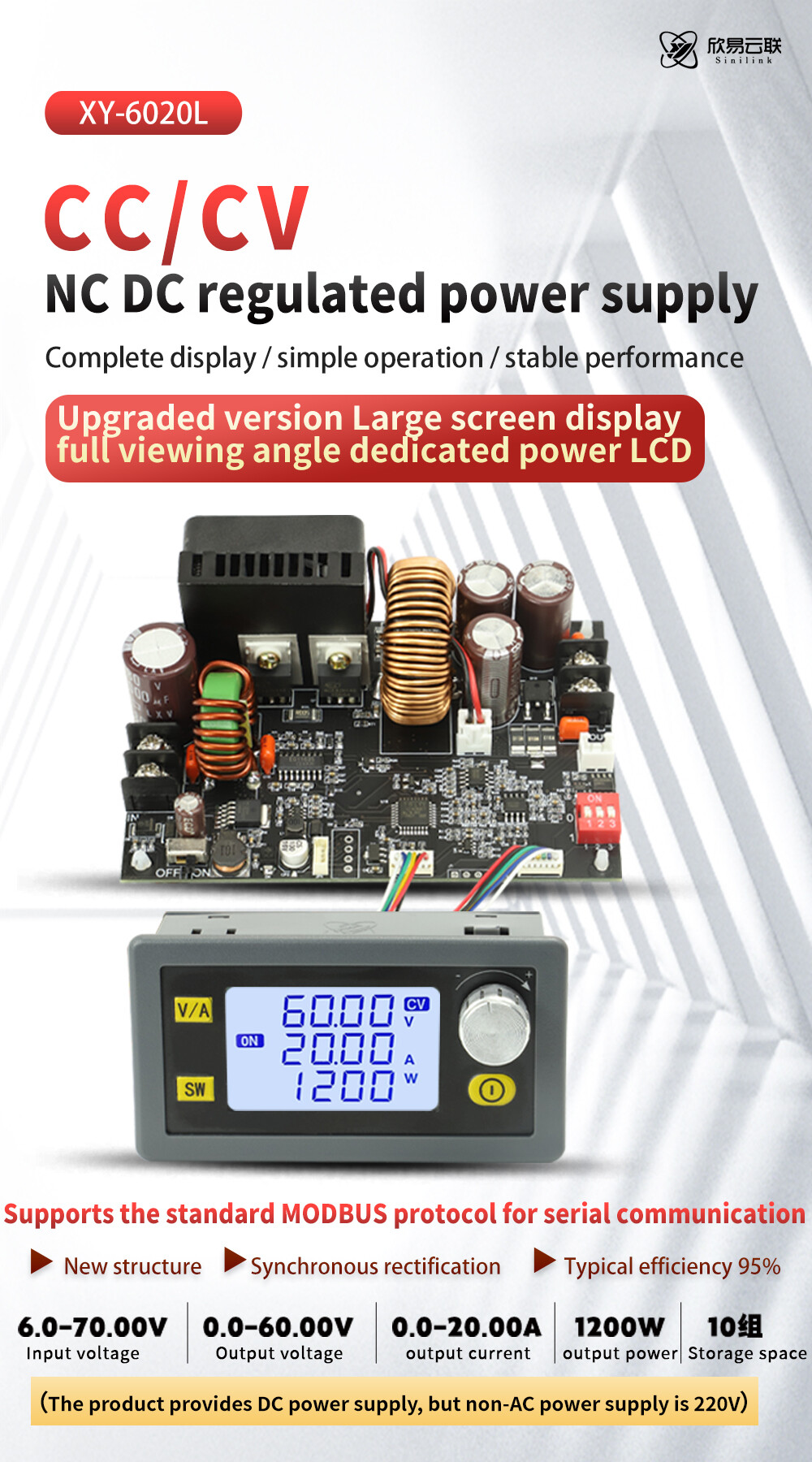

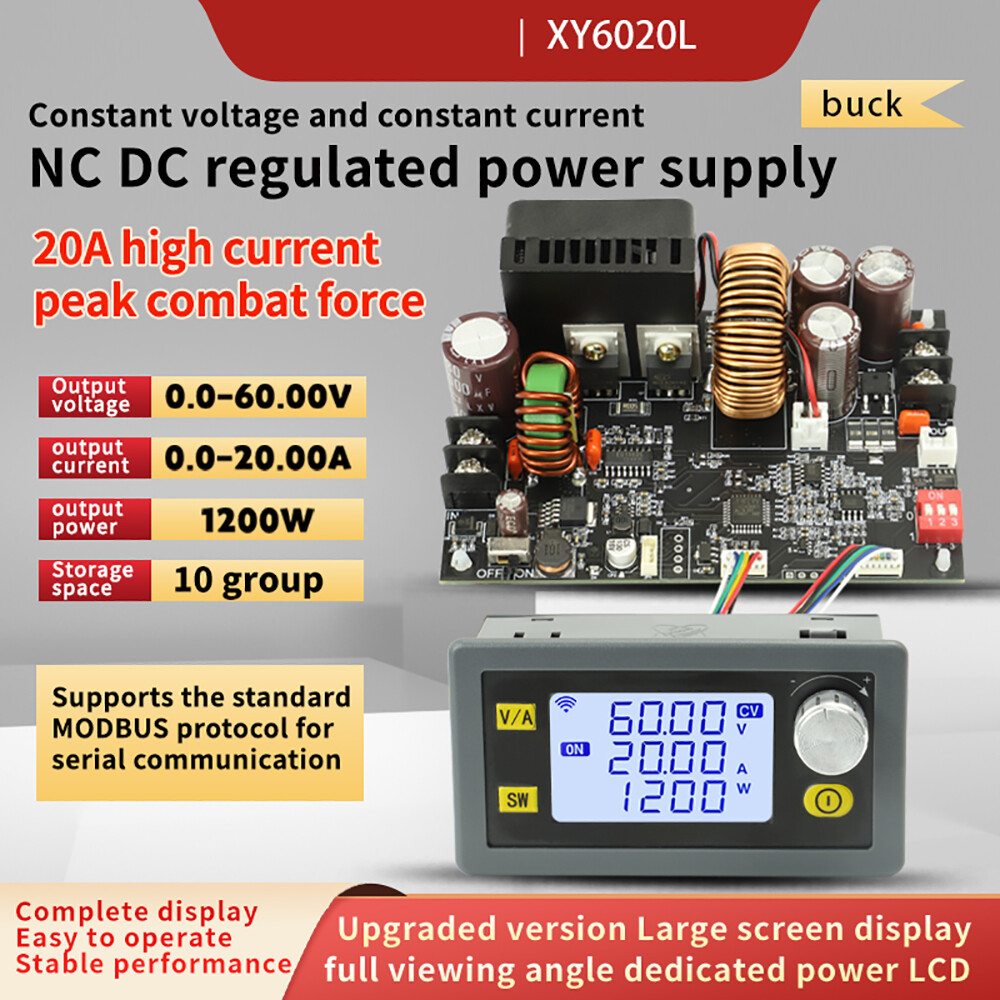

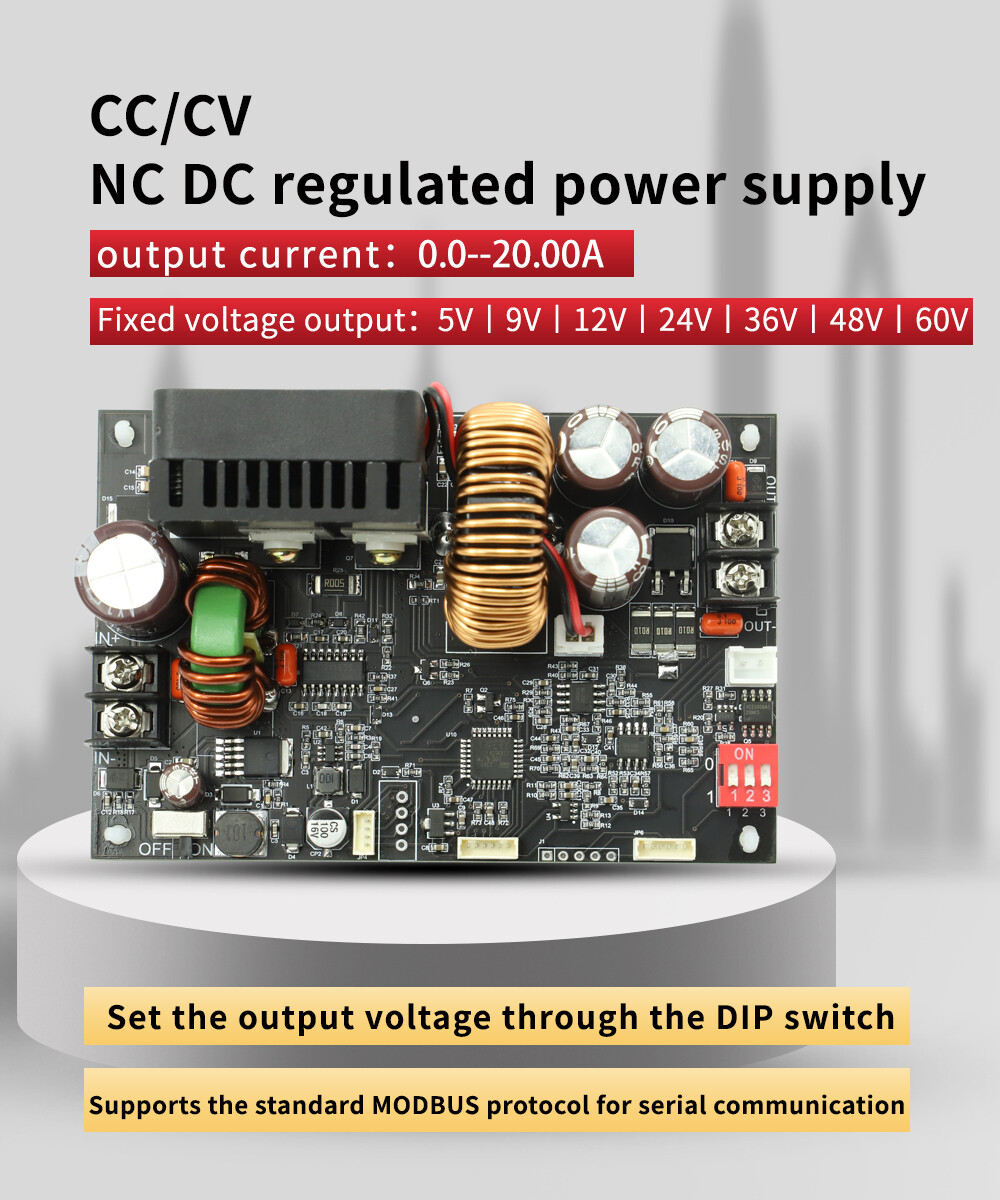

XY6020L 20A/1200WCNC Bộ Nguồn DC Điện Áp Ổn Định Điện Áp Không Đổi Và Dòng Không Đổi Bước Xuống Bảng Mô-đun Có Thể Điều Chỉnh

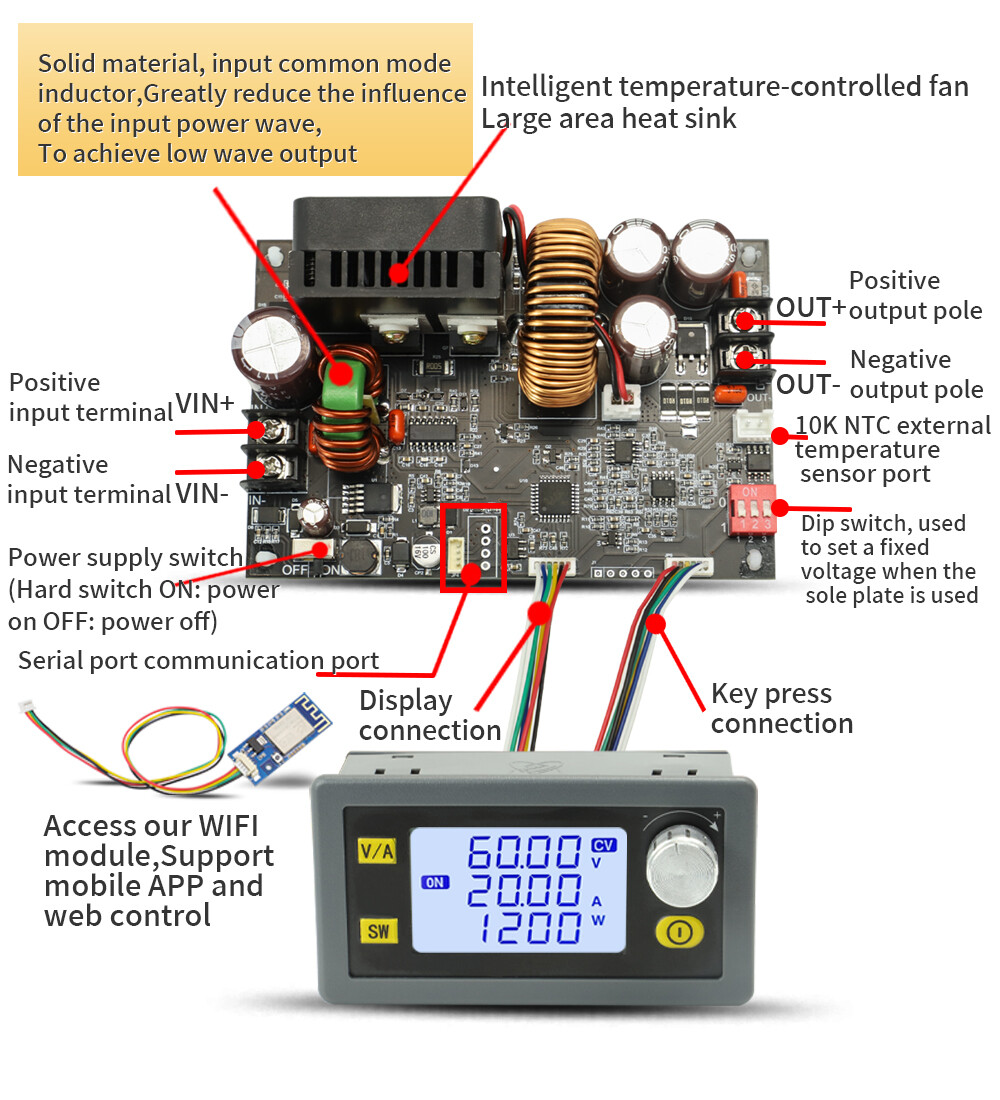

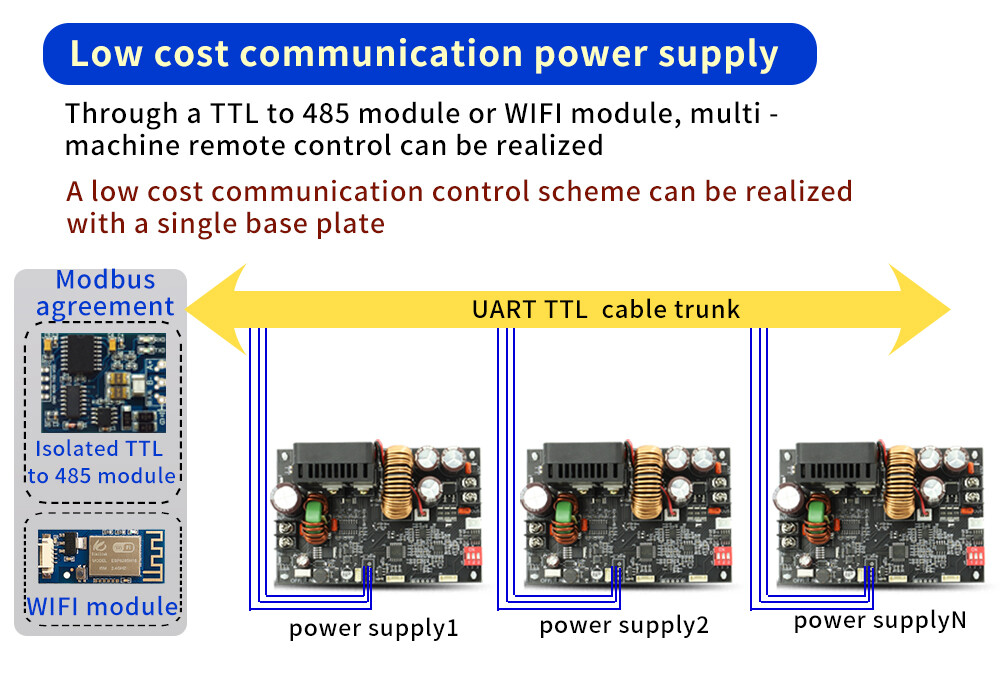

Feature: 1. Use high-quality materials for durability 2. Constant voltage constant current NC DC regulated voltage power supply 3. Large screen display, full view special power LCD 4. Support serial communication, standard MODBUS protocol 5. Complete display, simple operation and stable performance

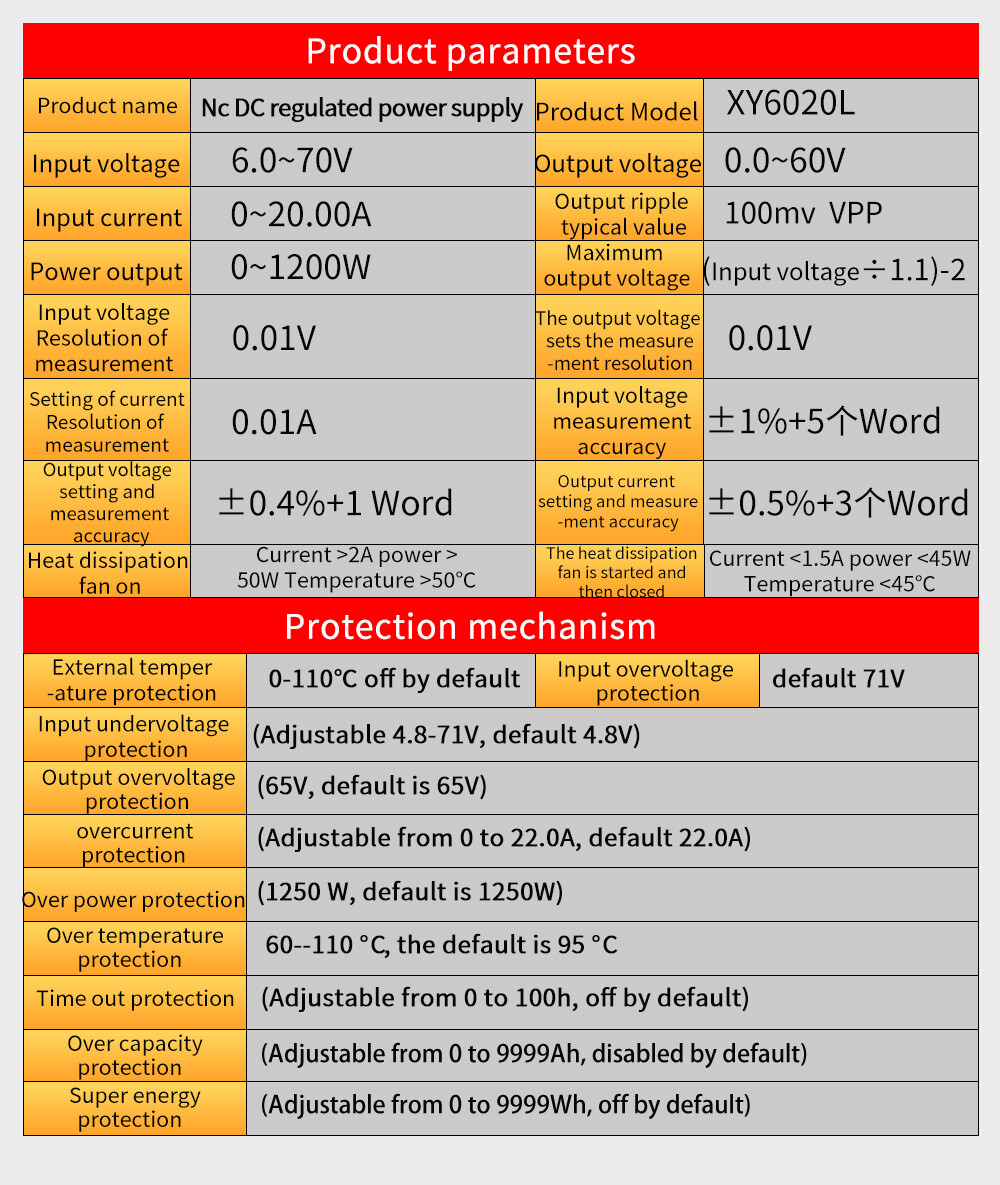

Parameters: Input voltage: 6.0~70V Output voltage: 0.0~60V Output current: 0~20.00A Output ripple Typical value: 100mv VPP Output power: 0~1200W Maximum output voltage: (input voltage +1.1)-2 Input voltage measurement resolution: 0.01V Output voltage set measurement resolution: 0.01V Current setting measurement resolution: 0.01A Input voltage measurement accuracy: ±1%+5 words Output voltage setting and measurement accuracy: ±0.4%+1 word Output current setting and measurement accuracy: ±0.5%+3 words Heat dissipation fan on: Current > 2A Power >50W Temperature >50 ° C Cooling fan on and off: Current <1.5A power <45W Temperature <45°C

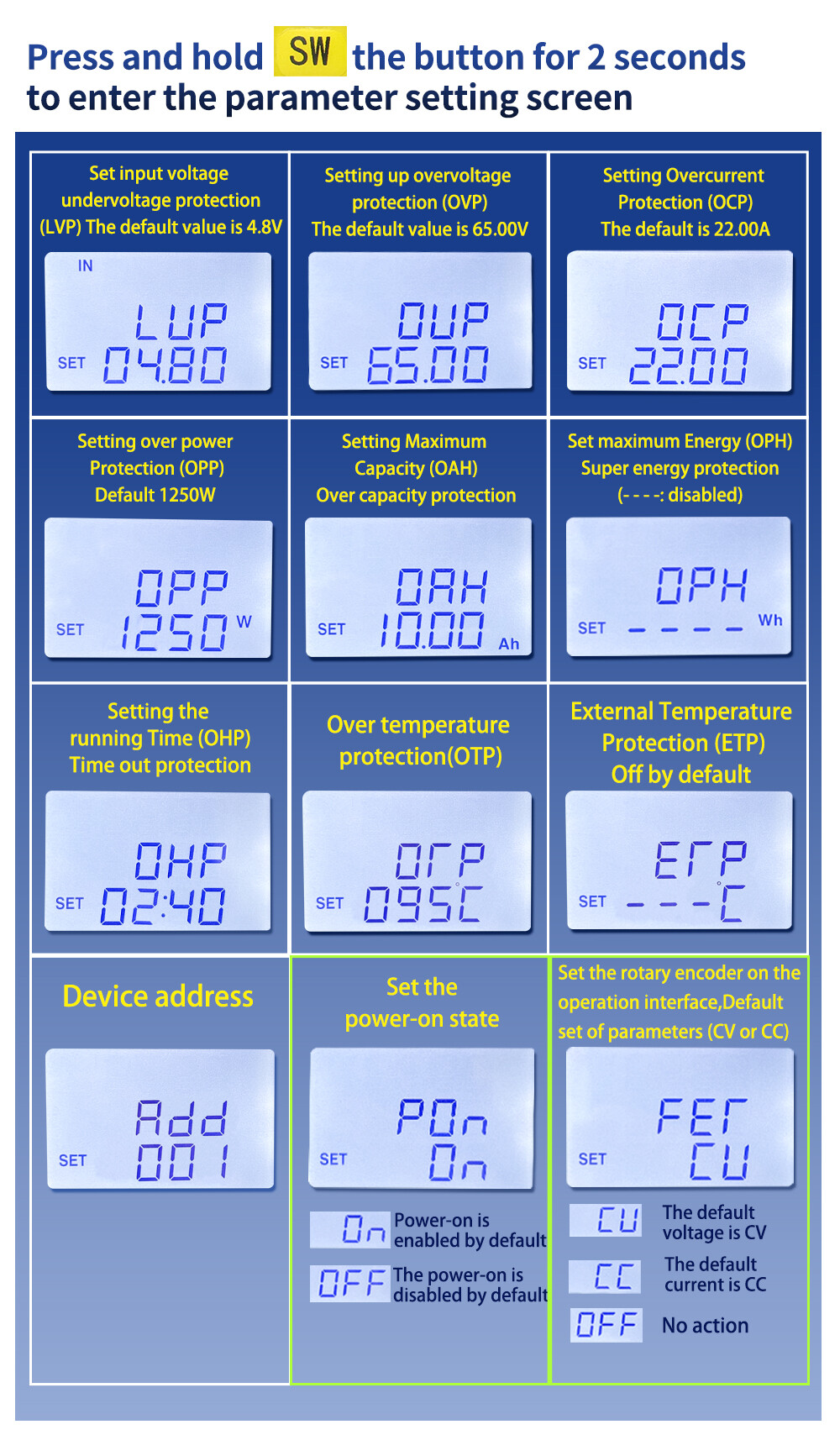

Protection mechanism: External temperature protection: 0--110°C Off by default Input overvoltage protection: 71V Default Input undervoltage protection: 4.8-71V adjustable Default 4.8V Output overvoltage protection: 0-65V 65V By default Output overcurrent protection: 0-16A The default value is 16A Output overpower protection: 0-950W 950W By default Overtemperature protection: 60--110°C 95°C by default Timeout protection: Adjustable from 0 to 100H Disabled by default Overcapacity protection: 0 to 9999AH is adjustable. This parameter is disabled by default Super power protection: 0~9999WH adjustable off by default

Package List:

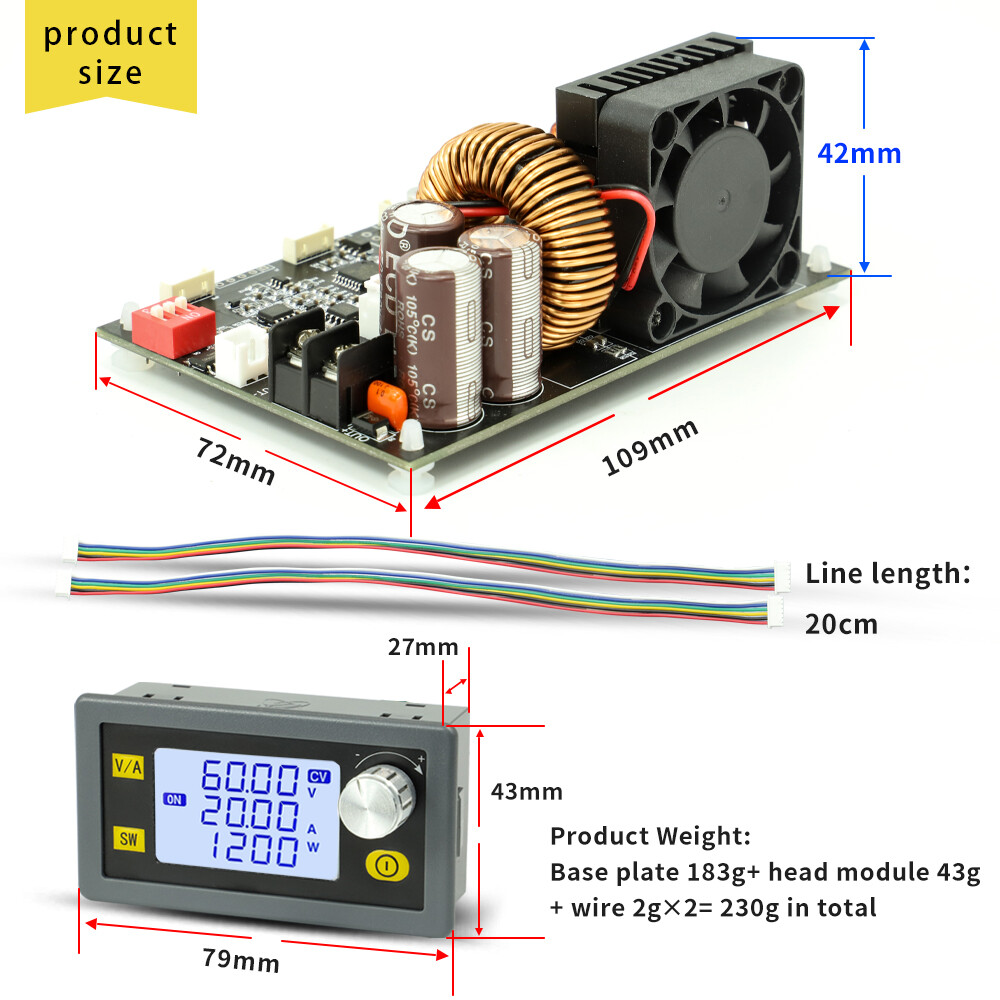

Step down Module Board *1
