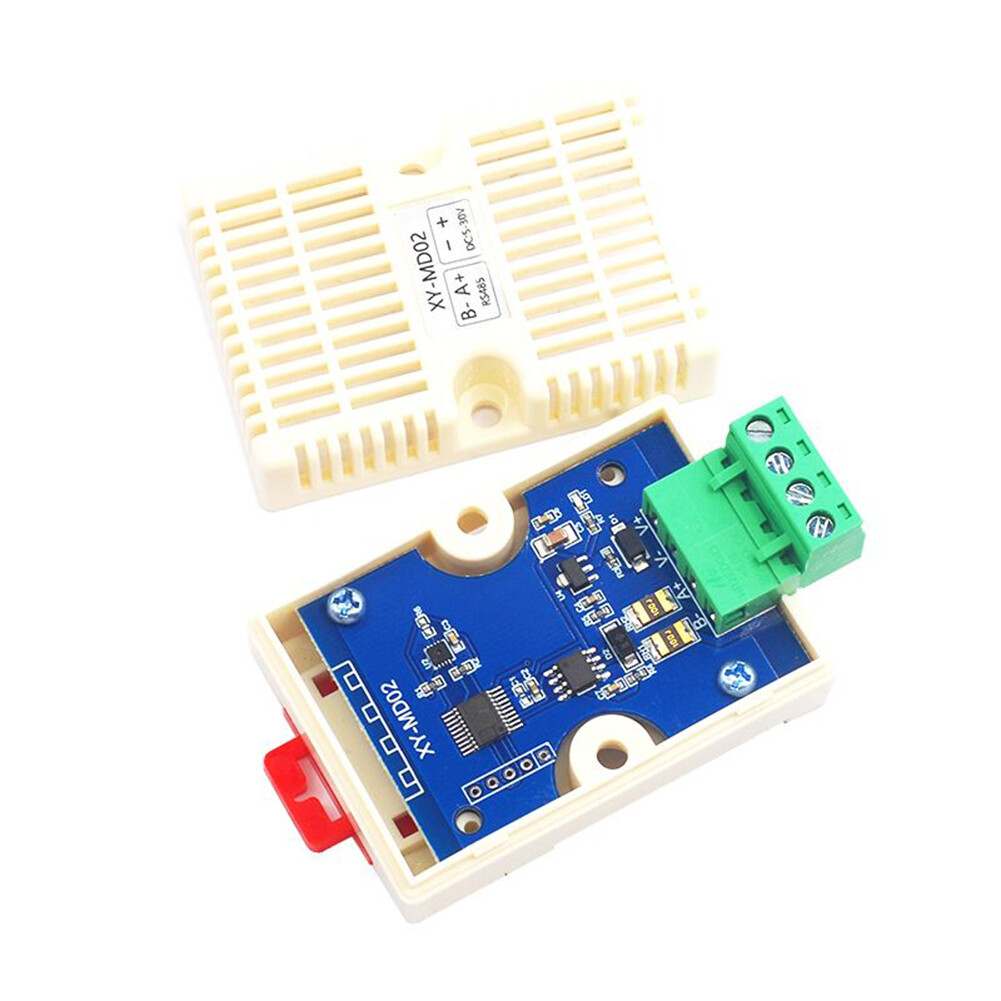

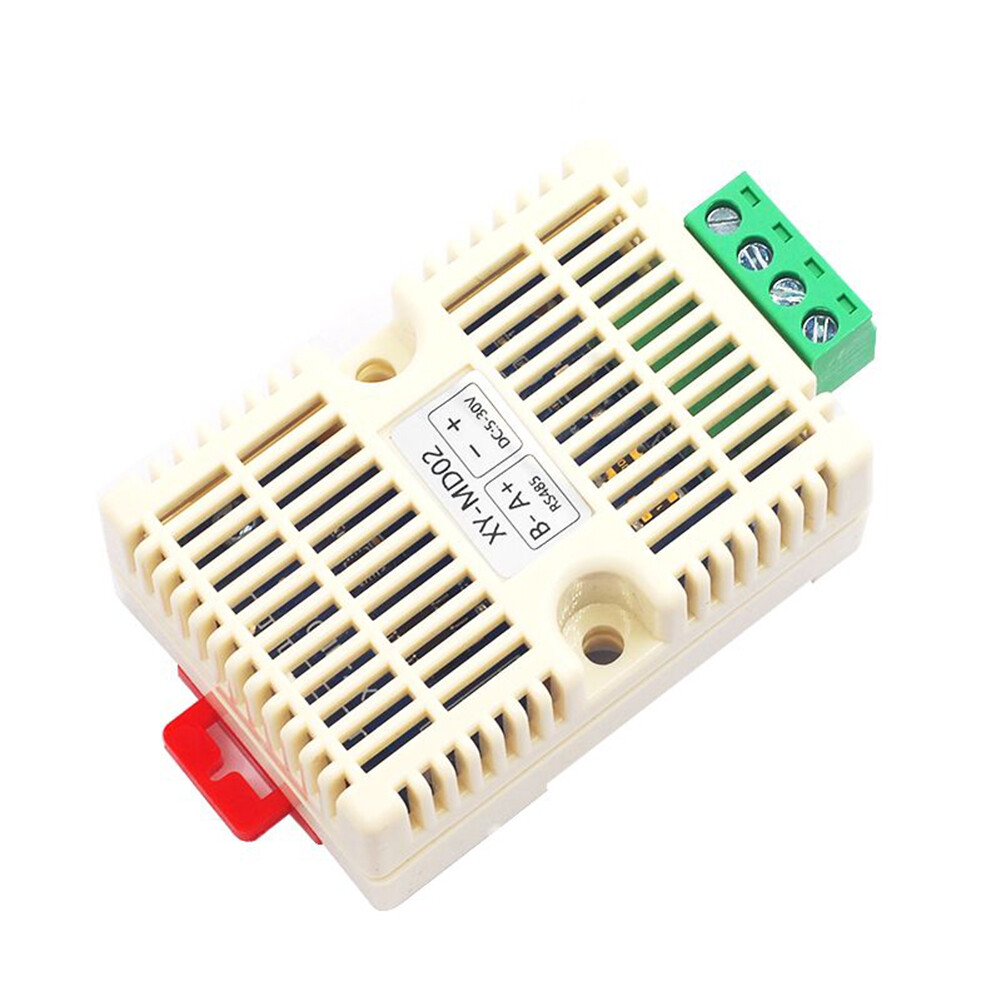

【ANENG】XY-MD02 Temperature Sensor Module High Precision DC5-30V Temperature-Humidity Sensors 1000M RS485 Signal Modbus-RTU Protocol Standard 35mm Rail Mount

XY-MD02 Sensor Module 1000M RS485 Signal DC5-30V Temperature Monitoring Senors Modbus-RTU Protocol Standard 35mm Rail Mount
Feature:

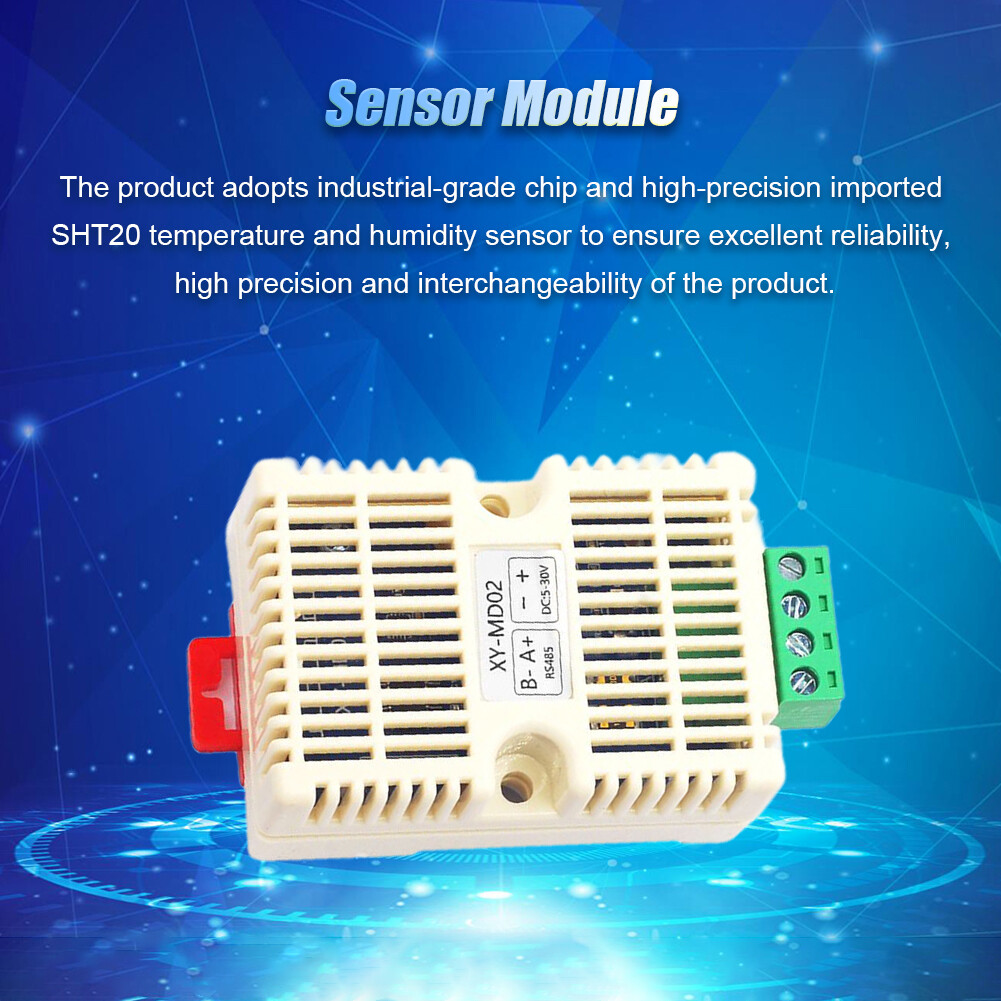

1.Industrial-Grade Chip and High-Precision Sensor: This temperature and humidity transmitter use industrial-grade chips and high-precision imported SHT20 temperature and humidity sensors to ensure excellent reliability, high precision, and interchangeability.
2.RS485 Hardware Interface and Modbus-Rtu Protocol Compatibility: This temperature and humidity sensor uses RS485 hardware interface (with mine protection design) and is compatible with standard industrial Modbus-Rtu protocol at the protocol level.
3.Flexible Communication Protocols and Automatic Upload Functionality: The sensor module integrates MODBUS protocol with ordinary protocol, and users can choose the communication protocol according to their needs. The ordinary protocol comes with automatic upload functionality (connect via RS485 and transmit temperature and humidity data automatically).
4.Standard DIN Rail Installation: This temperature monitoring senor has a compact and elegant appearance and can be installed directly on a standard DIN rail (35mm), providing a convenient installation and maintenance solution.
5.Long Communication Distance: The temperature humidity detection sensor module's RS485 communication distance can reach up to 1000m, making it suitable for a wide range of applications, such as environmental monitoring, HVAC systems, and industrial control systems.


Specification:
Model Number: Temperature and Humidity Transmitter
Temperature accuracy ±0.5°C (25°C)
Product Name: Temperature and Humidity Transmitter
Humidity accuracy: ±3%RH
DC power supply: DC5-30V
Temperature range: -40°~+60°C
Output signal: RS485 signal

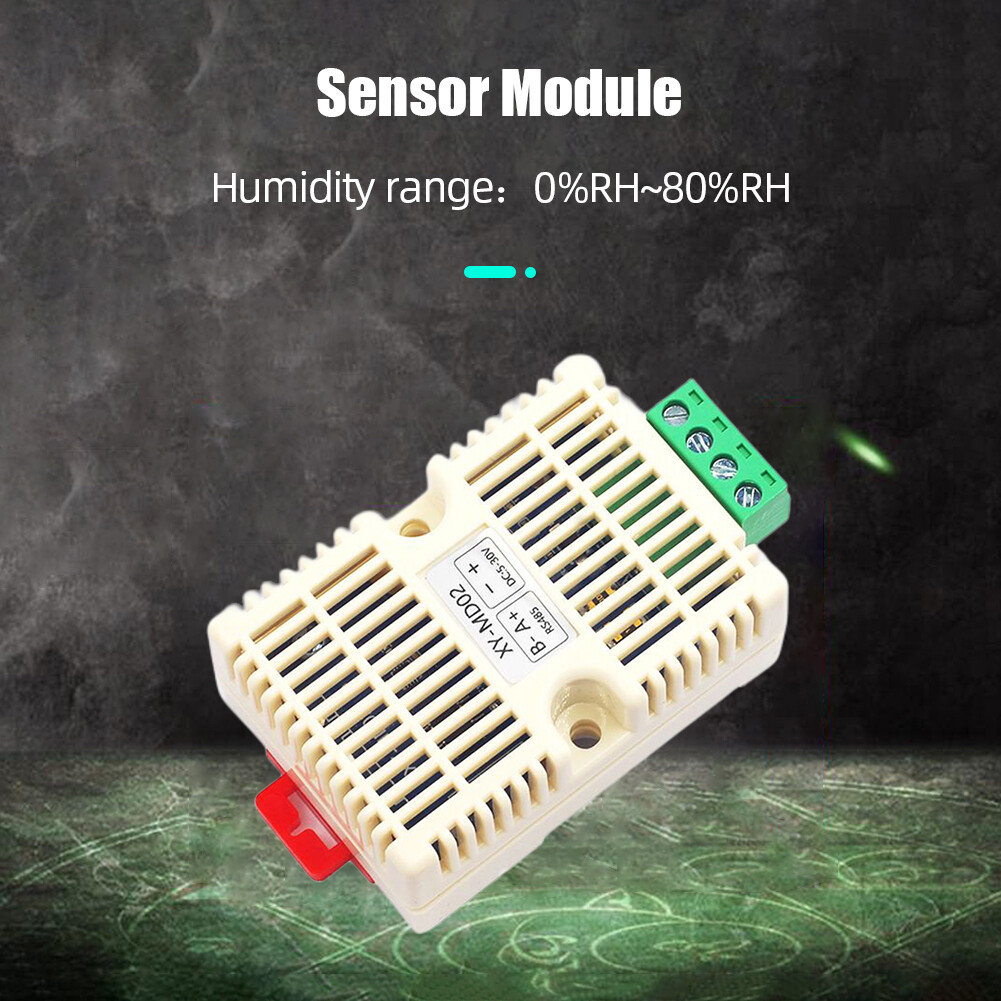

Humidity range: 0%RH~80%RH

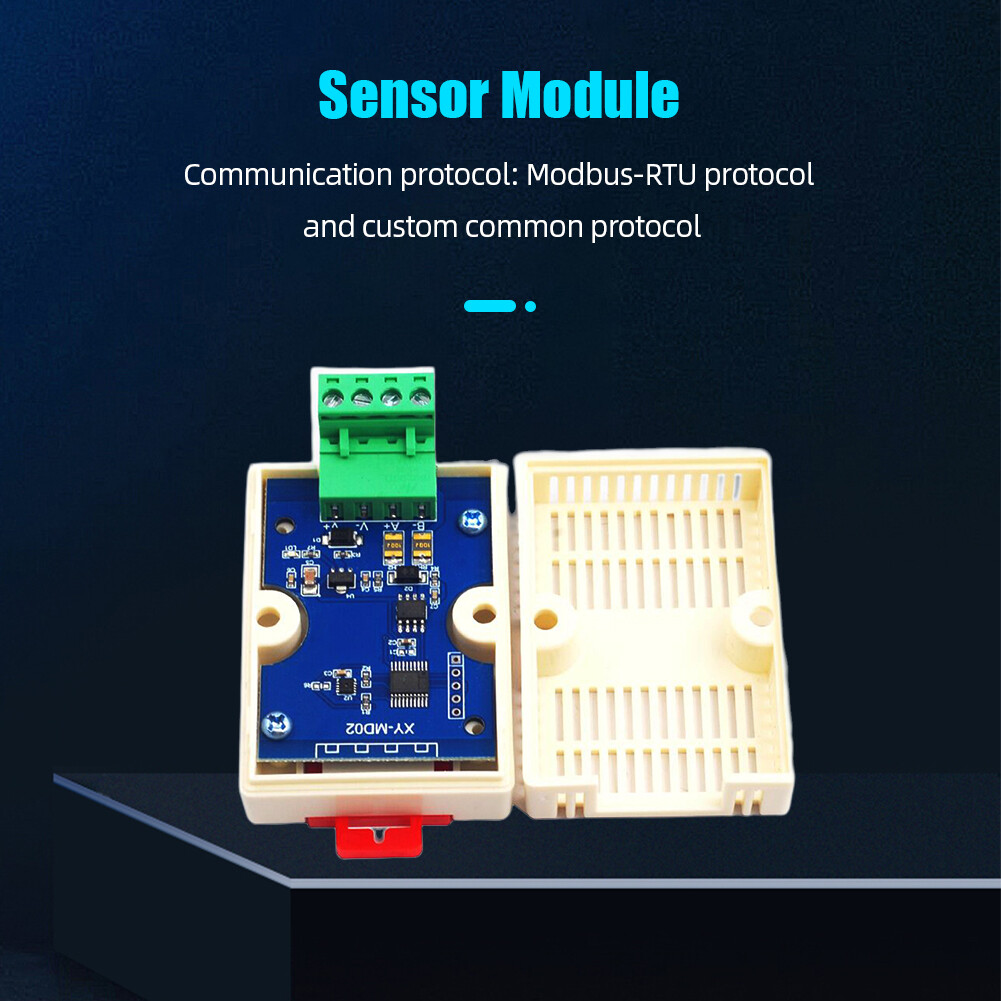

Communication protocol: Modbus-RTU protocol and custom common protocol
Temperature resolution: 0.1°c
Communication address: 1~247 can be set, the default is 1
Humidity resolution: 0.1%RH

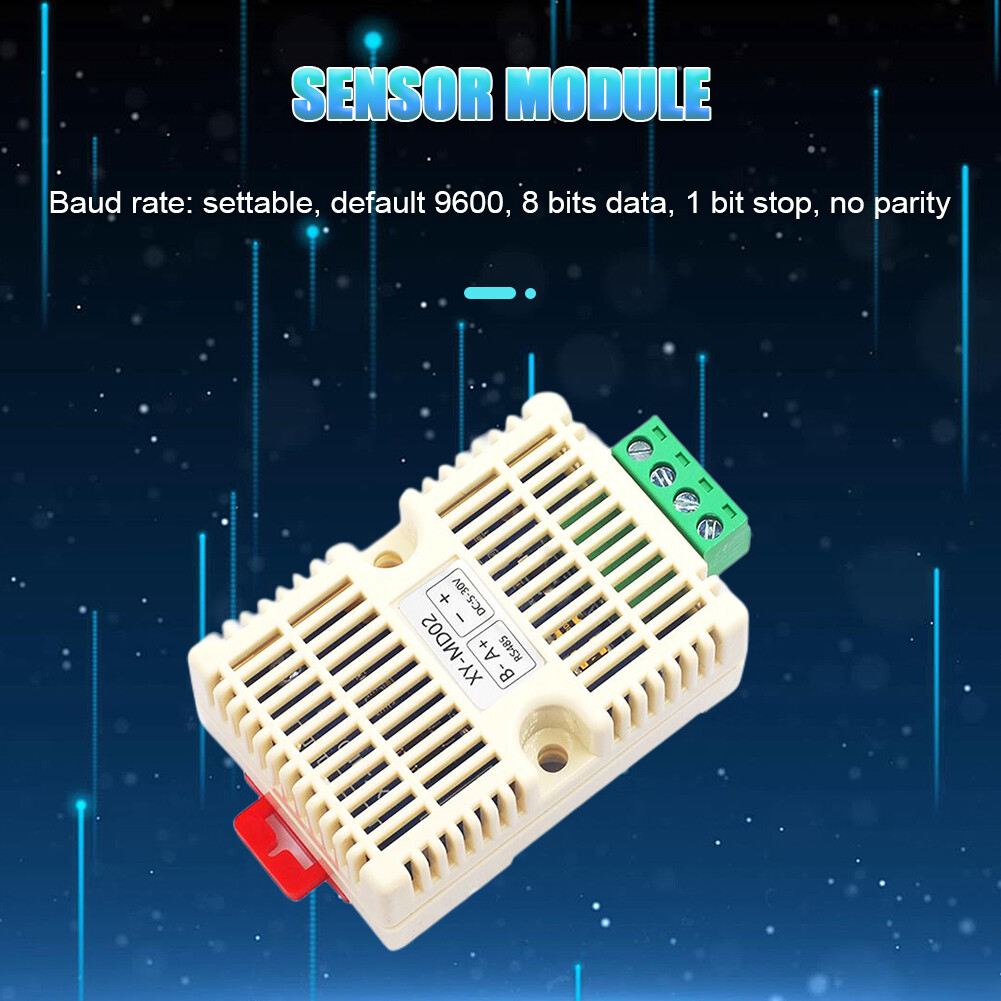

Baud rate: configurable, default 9600, 8-bit data, 1-bit stop, no parity
Equipment power consumption: ≤0.2W
Product weight: 42g

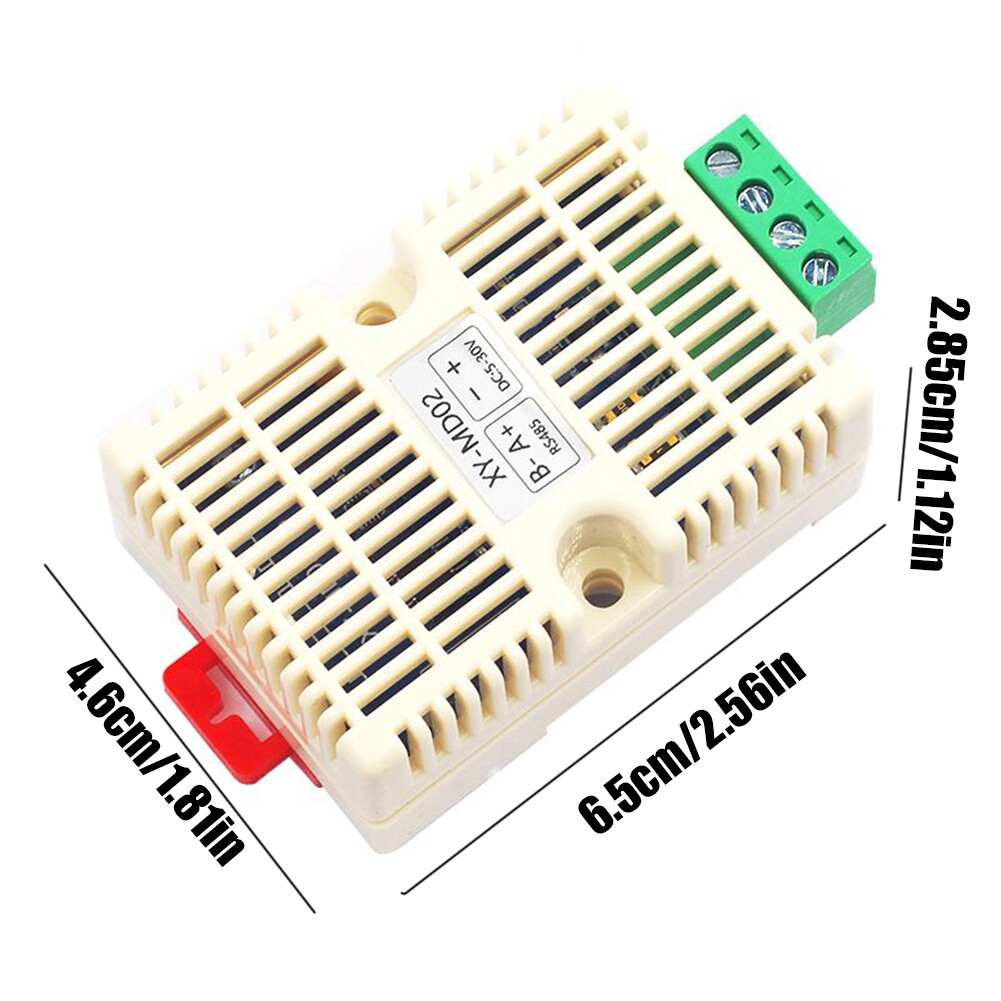

Product size: About 65x46x28.5mm/2.56x1.81x1.12in

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
