Specification:

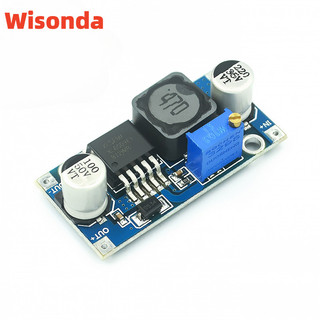

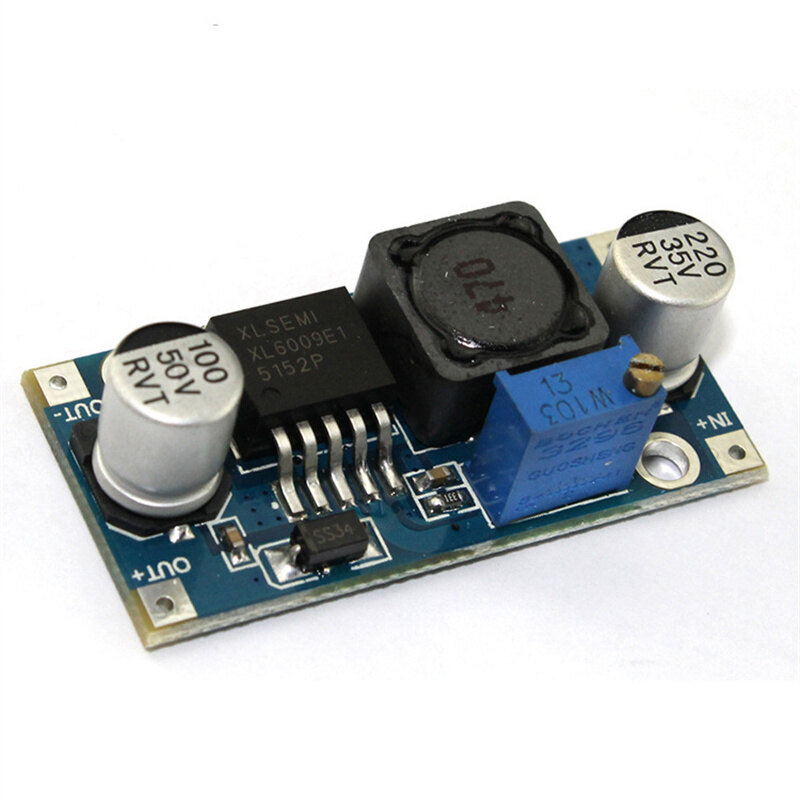

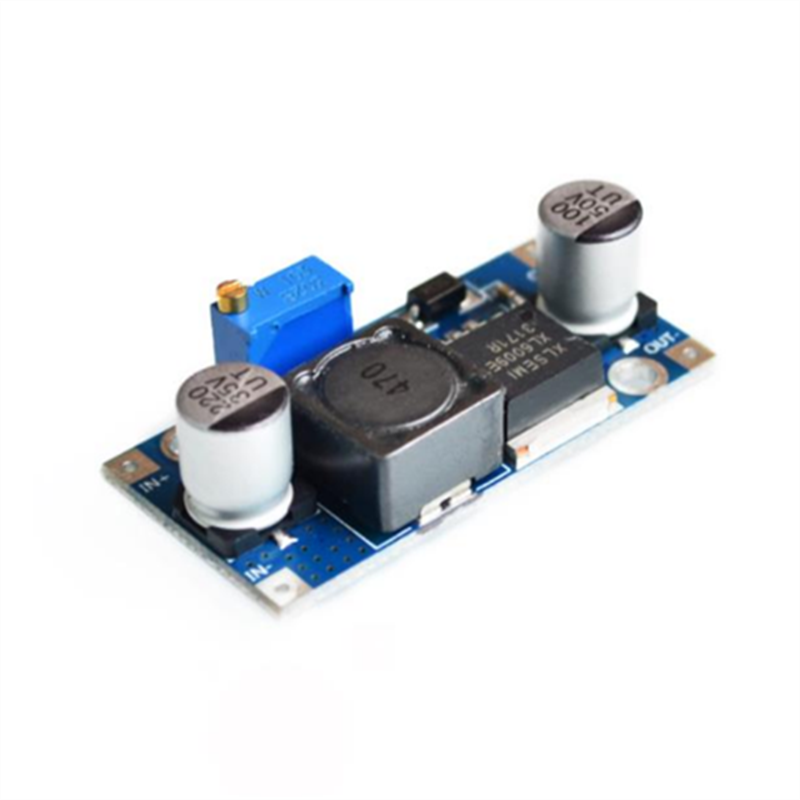

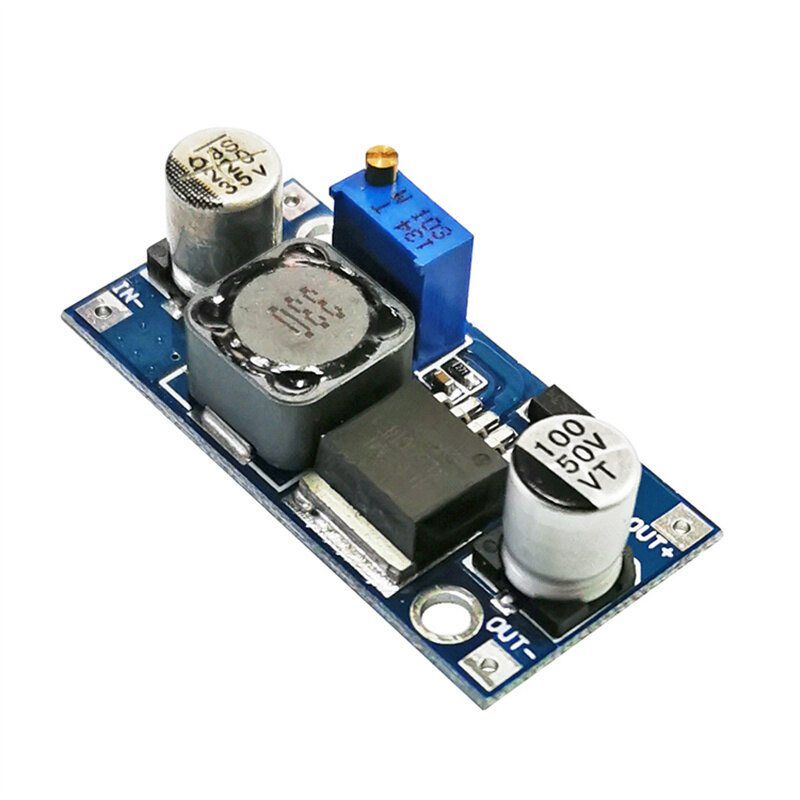

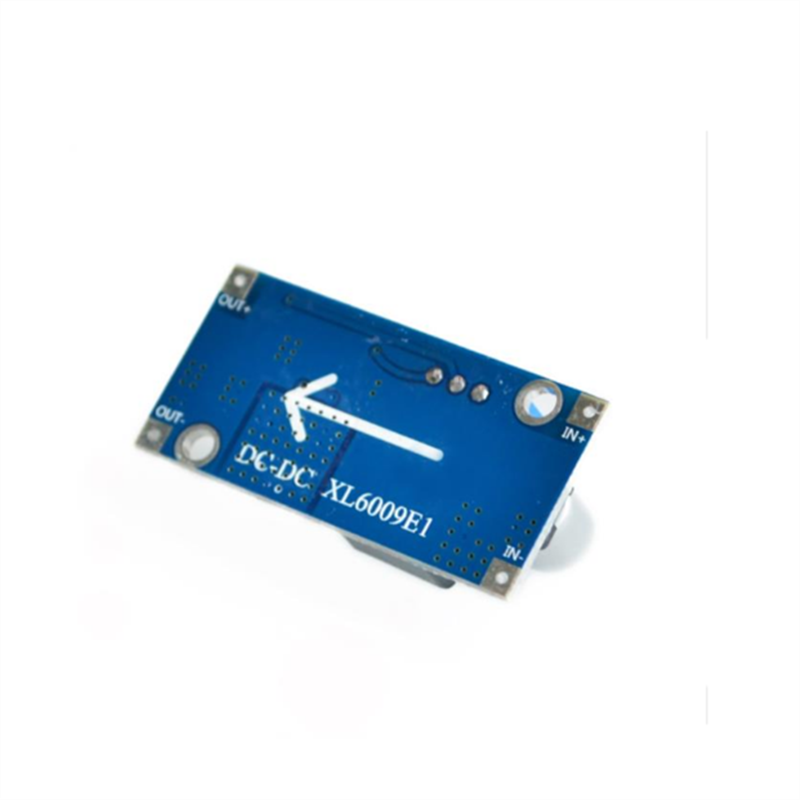

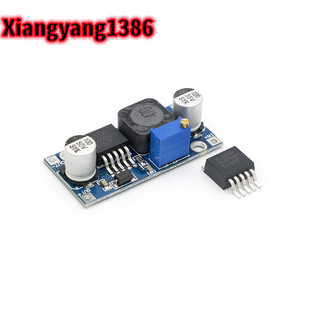

Model: DSN6009 boost module
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range: 3V ~ 32V
Output Range: 5V ~ 35V
Input Current: 4A (max), no-load 18mA (5V input, 8V output, no-load is less than 18mA. Higher the voltage, the greater the load current.)
Conversion efficiency: <94% (greater the pressure, the lower the efficiency)
Switching frequency: 400KHz
Output Ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load Regulation: +/-0.5%
Voltage Regulation: +/-0.5%
Operating Temperature: -40 degree to +85 degree
Body Size: 43 x 20 x 12mm/1.7" x 0.8" x 0.47"(L*W*T)
Input way: IN+, IN-;
Output way: OUT+, OUT-
