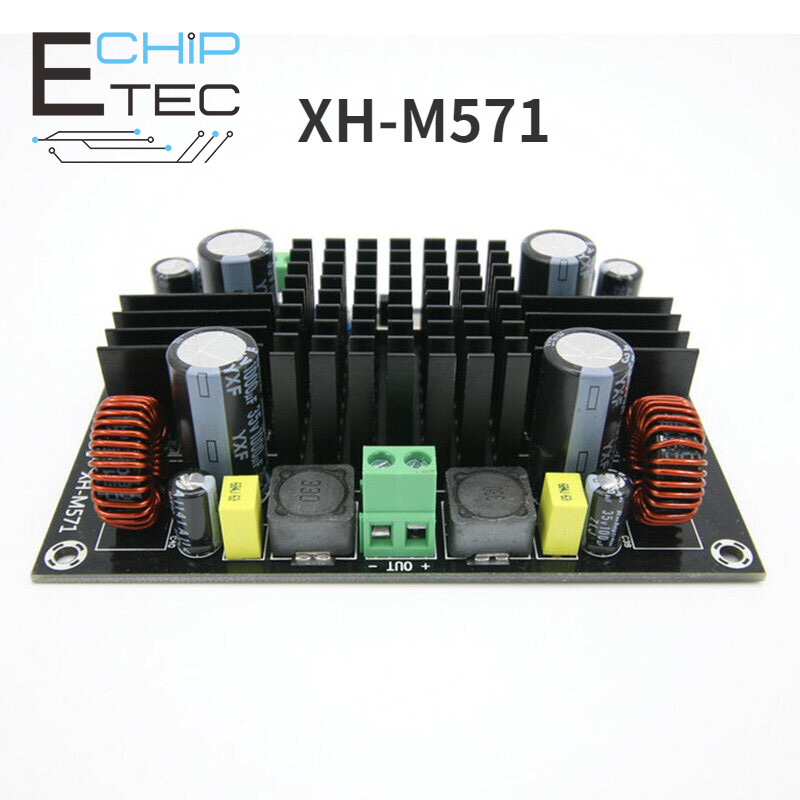

Bảng Mạch Khuếch Đại Công Suất Kỹ Thuật Số XH-M571 150W Mô Đun Bộ Khuếch Đại Âm Thanh Tăng Cường Công Suất Cao Đơn Âm Loa Siêu Trầm

12V input
24V input
Max 150W
Bass/full tone switch
Onboard automatic boost circuit
Trolley case high-power built-in power amplifier board

A 12V battery pushes a 10-inch loudspeaker easily without stress
Power supply 12V can also output 150W
Switchable full range or subwoofer mode

Name: Digital Audio Power Amplifier Board
Model: XH-M571
Input voltage: DC12-24V
Input current: 12V 10A/24V 5A
Number of channels: mono
Magnification: XX times
Output power: 150W
Input impedance: 1kΩ
Output matching: 2-8Ω
Appearance size: 104*96mm
Net weight: 130g

Features:
This model uses 2 sets of automatic boost systems, that is, regardless of whether the power supply is 12V or 18V, the system will automatically rise to 24V to power the amplifier, so it can get more power under the power of a single battery. It is often used in outdoor trolley cases and DIY subwoofers. Wait for a switch on the motherboard to switch between subwoofer mode or full tone mode. If you use 2 Allegro, one for full tone and the other for subwoofer, the effect is really cool! There are independent total gain and subwoofer gain next to the corresponding switch The adjustment is more user-friendly and more suitable for free combination! Gain is the meaning of volume adjustment
