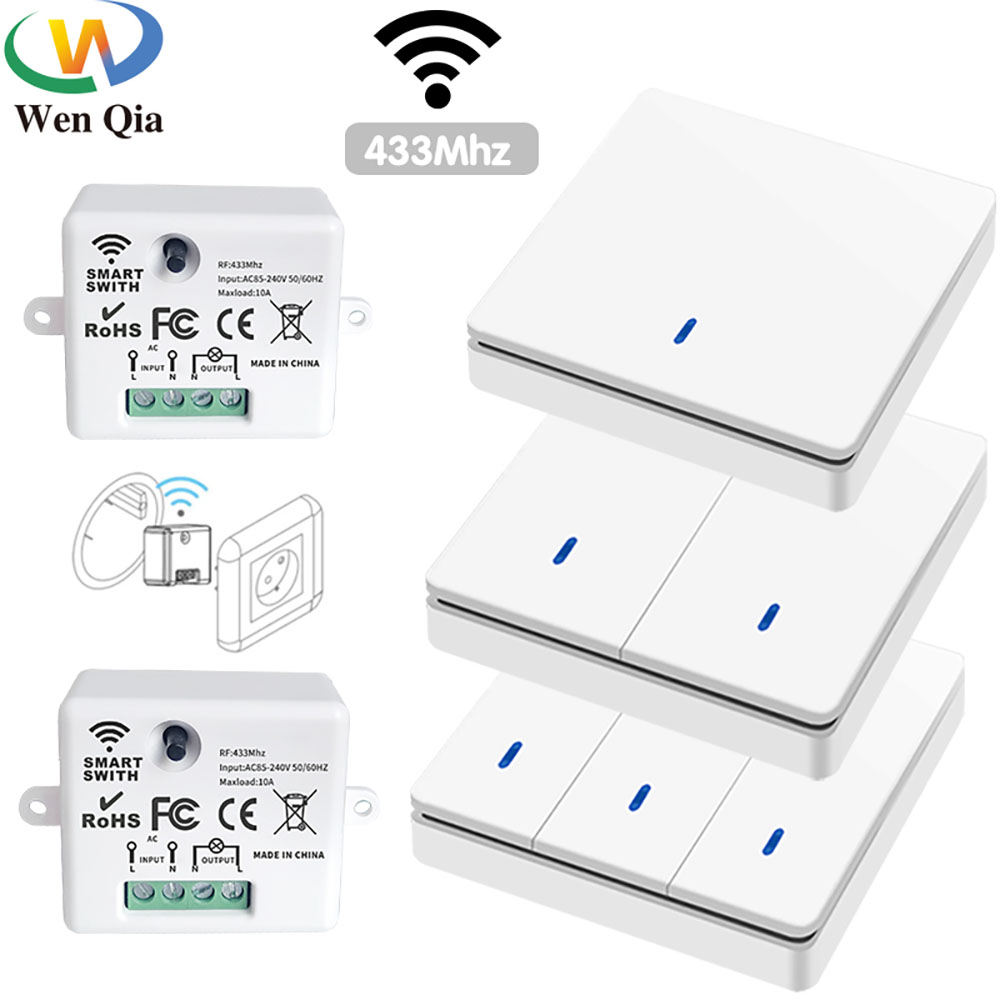

WenQia Công Tắc Đèn Không Dây Mô-đun Mini 110V 220V 230V 10a Bộ Điều Khiển Từ Xa Rf 433MHz Bảng Điều Khiển Gắn Tường Cho Nhà Cửa Đèn LED Bật Tắt

There are various combinations in the options, which are convenient to use, please purchase according to actual needs.

Simple to use

simple wiring

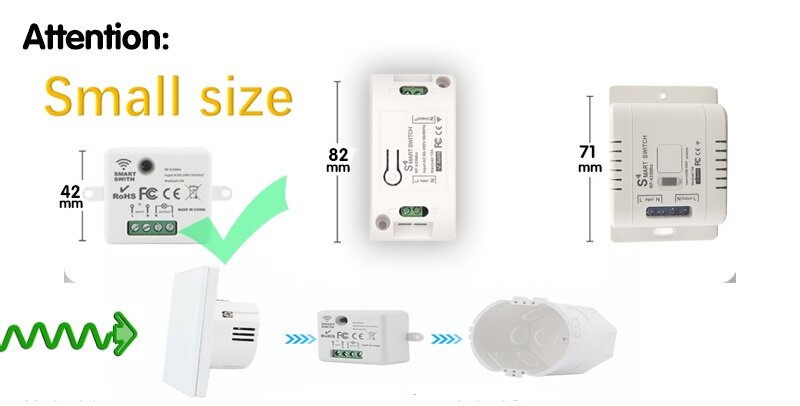

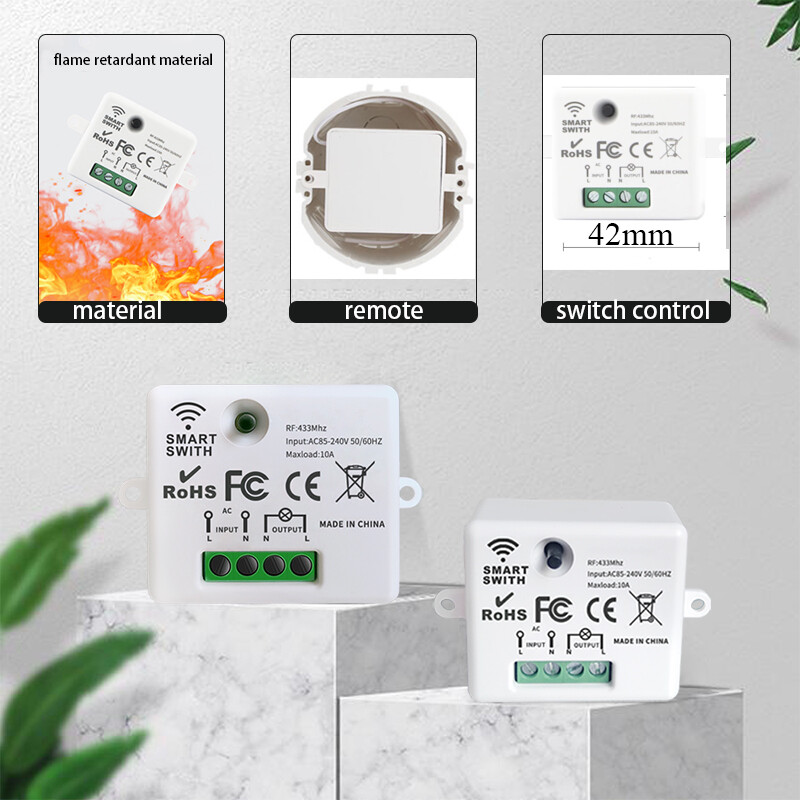

Perfect small size

Features:
1:Perfect small size (Note: Package included Screw anddouble-sided tape.)

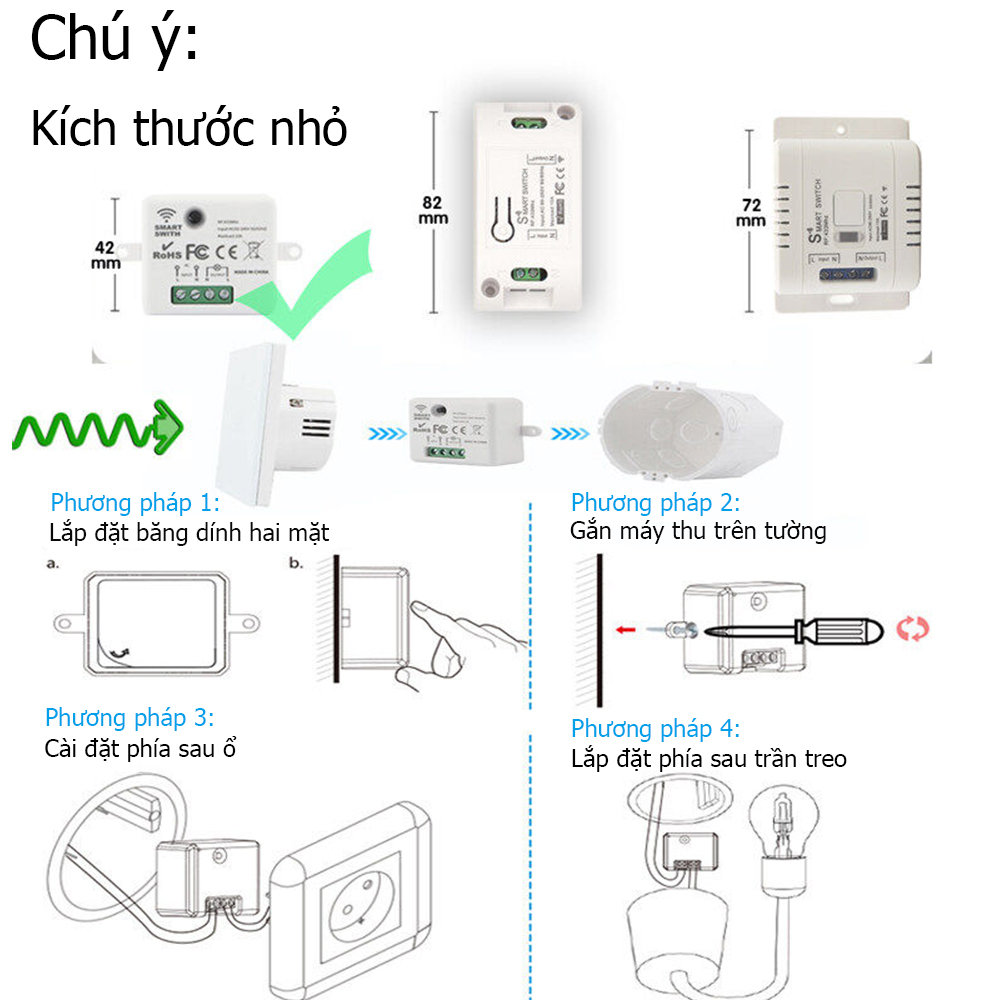

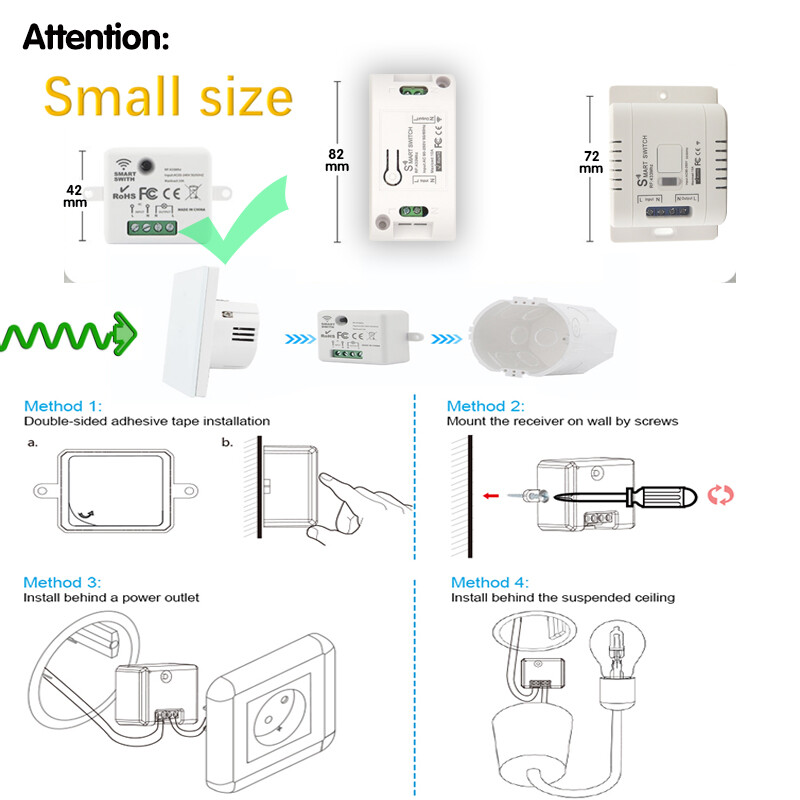

Four different installation scenarios:

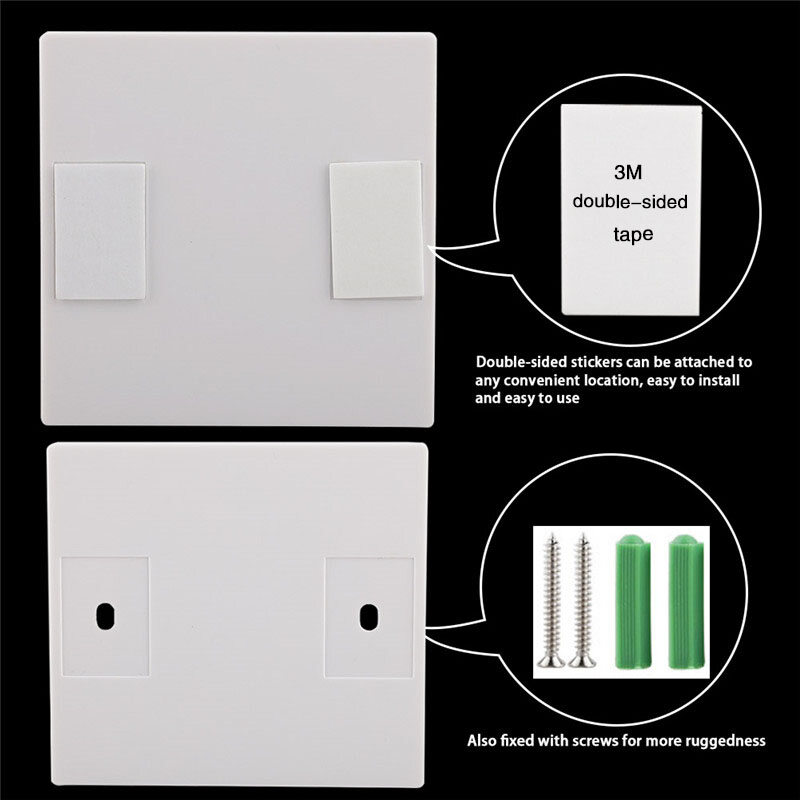

--Use double-sided tape to directly install and fix the receiver on the surface of the object;
--Use screws to fix the receiver on the surface of the object;

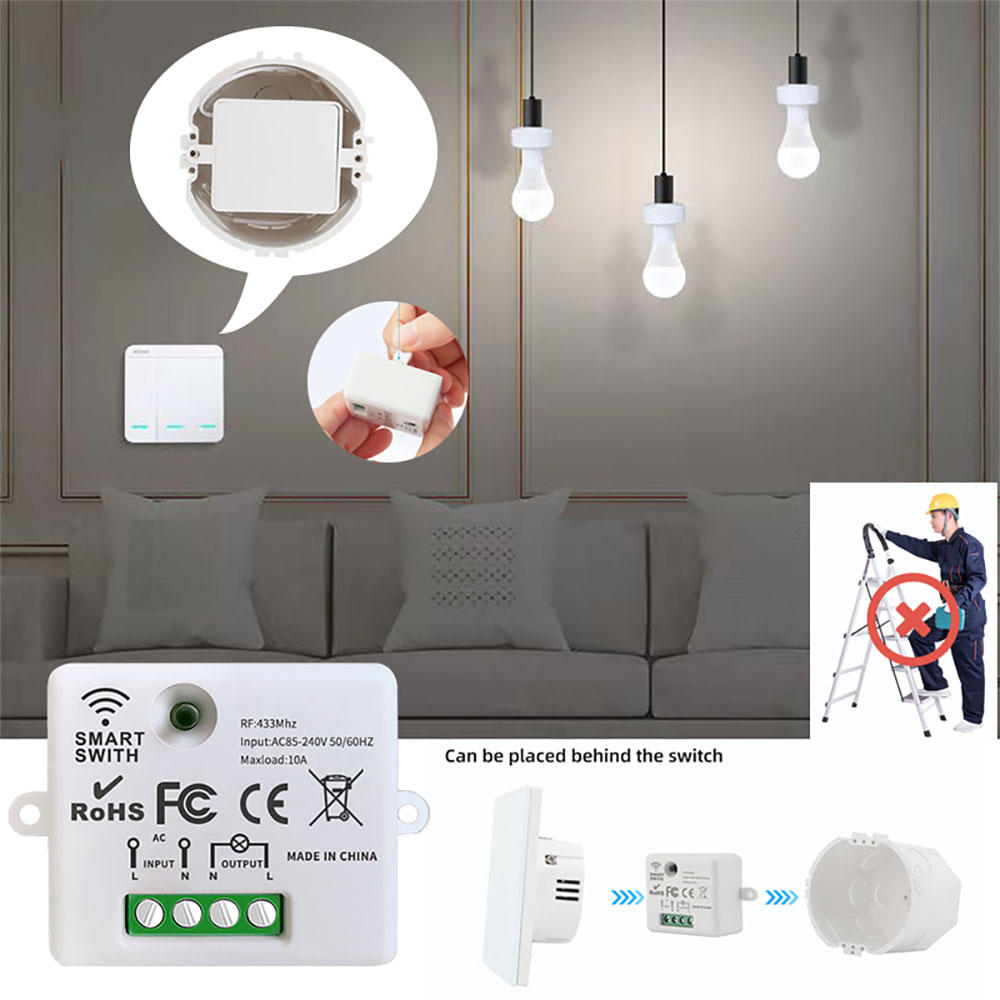

--Put the receiver install behind a power outlet;

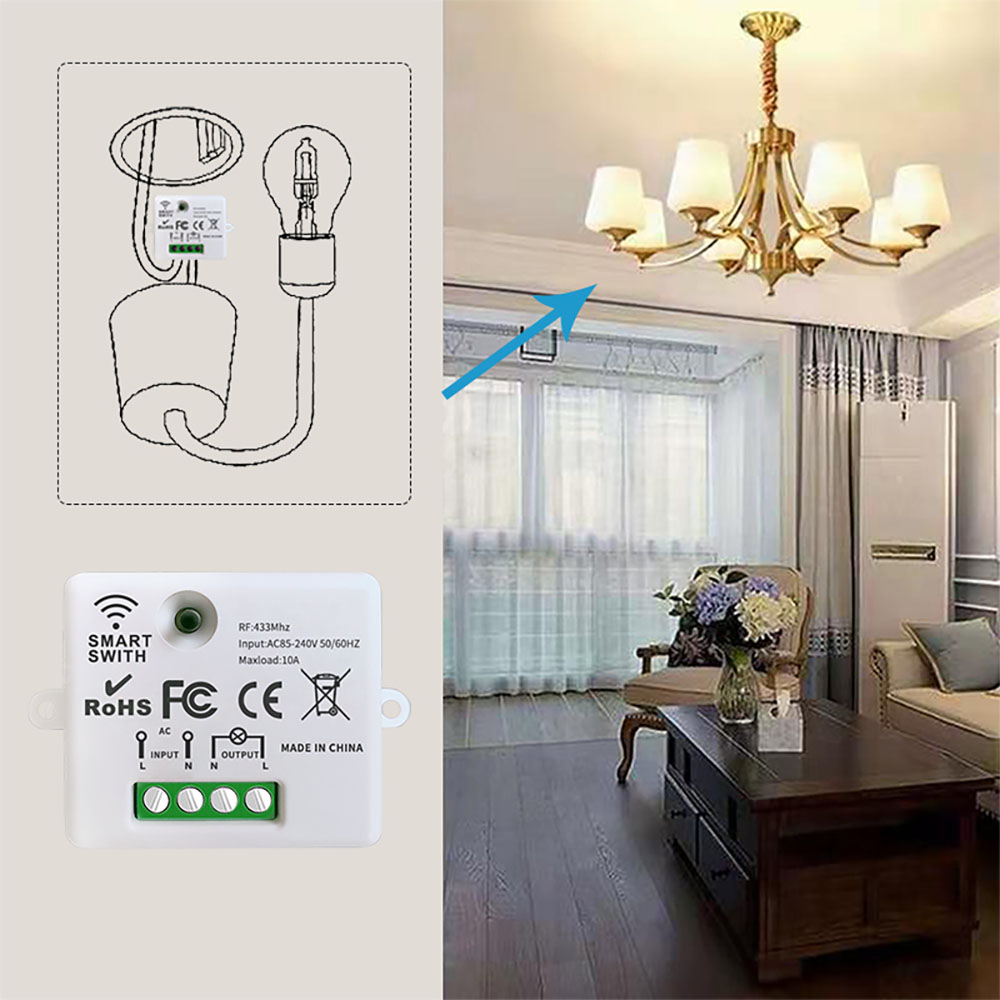

--Install behind the suspended ceiling.

2:Flexible DIY control method

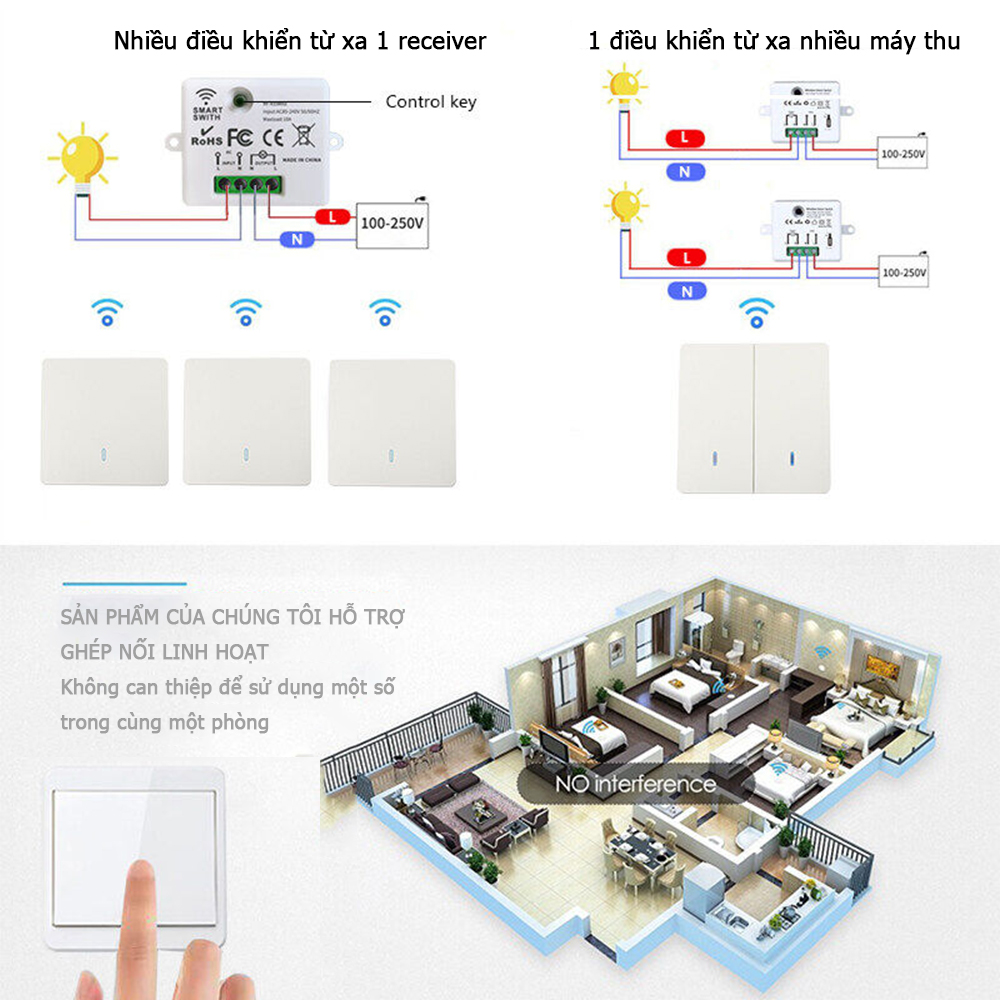

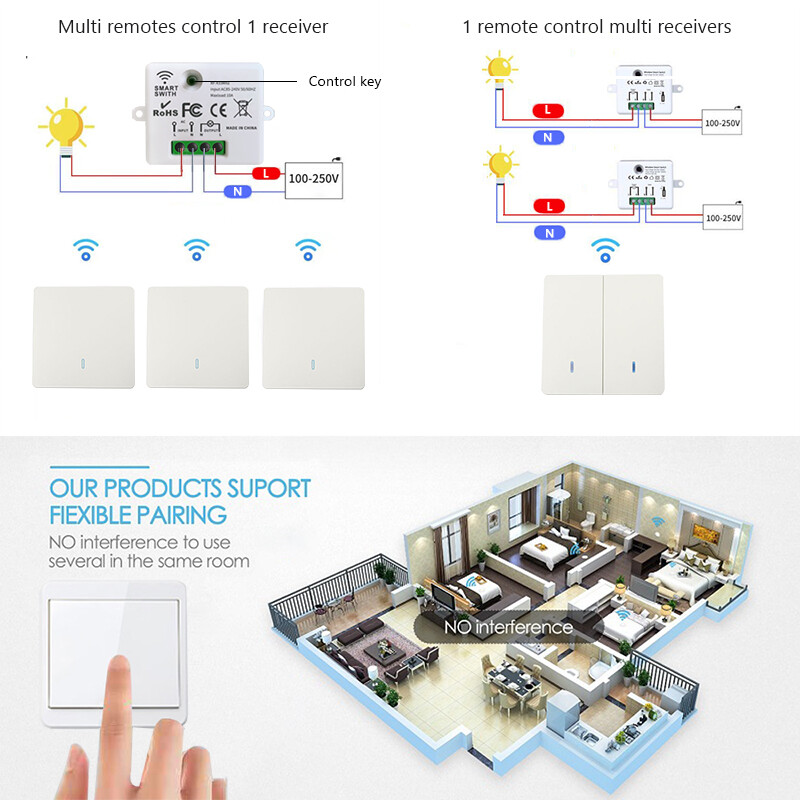

--Multi switches Control One/Multi Lights Receiver in the meanwhile

3:Multiple control modes to Save electricity
--At any time, you can either use the front panel or remote control.
--Set the remote control at different locations to quickly turn on or off the lights.
--Turn the lights on in advance to avoid darkness,
--Turn off the lights after leaving, save energy.

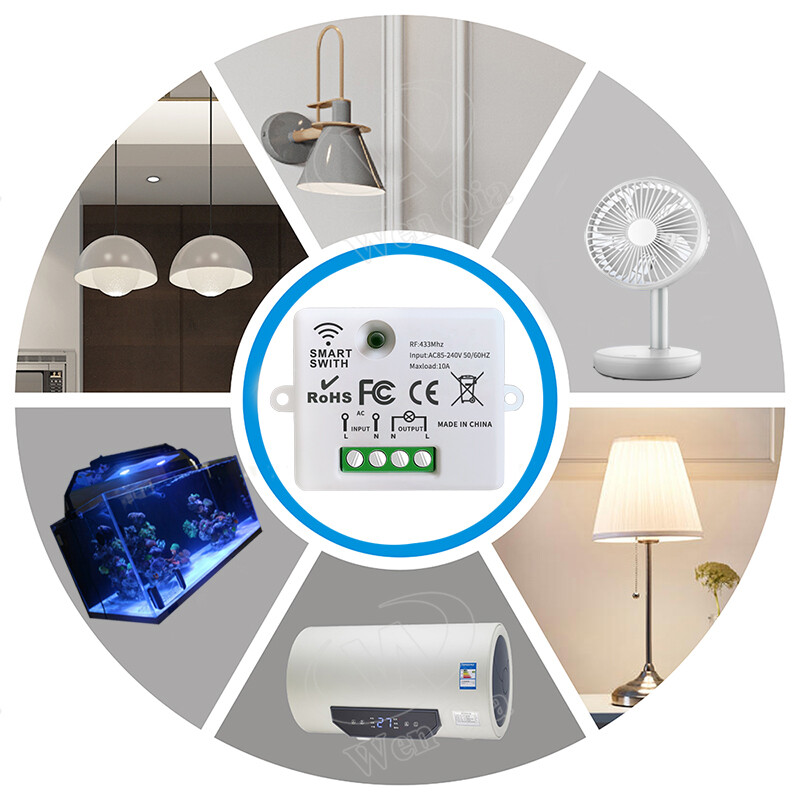

Product Application AreaProducts can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children

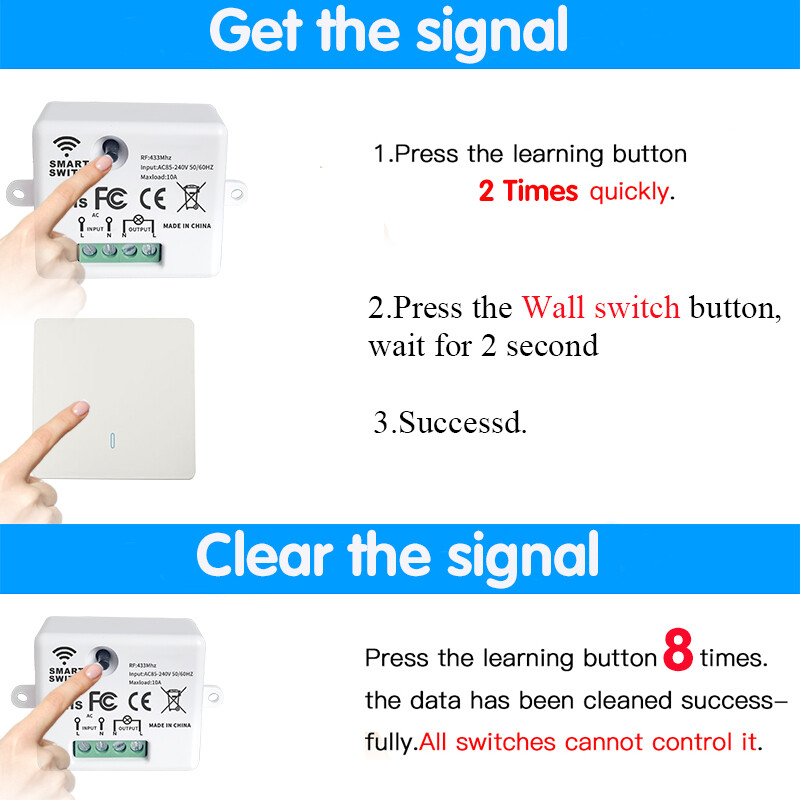

How to get the signal
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press one button on the remote control. Wait for 3 seconds. Succeed.
How to clear the signal
Only one step :Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

Relay Receiver Board Parameter

Encoding Type: Intelligent Learning Code 1527

Modulation Mode:ASK

RF Frequency: 433MHz

Input Voltage: AC 85V~240V
Max current:10 Amp

Remote distance : up to 50m (theoretical distance)

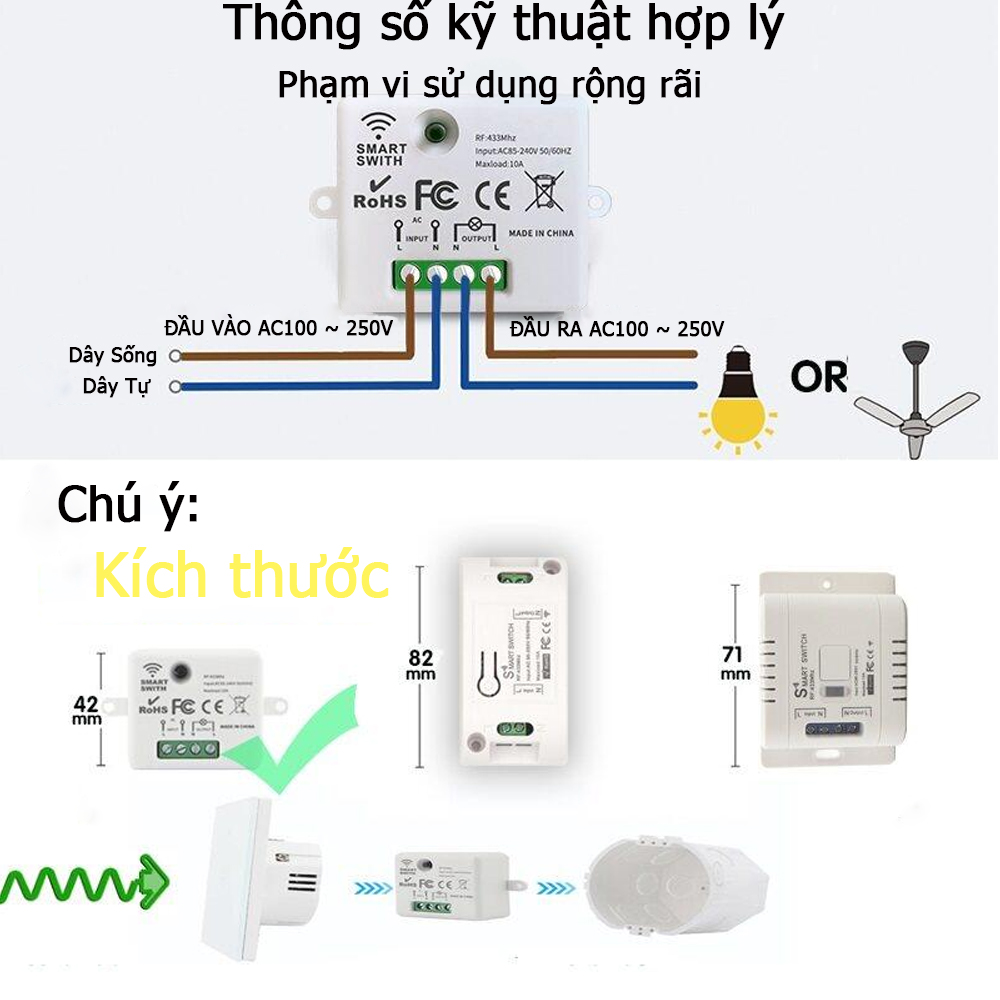

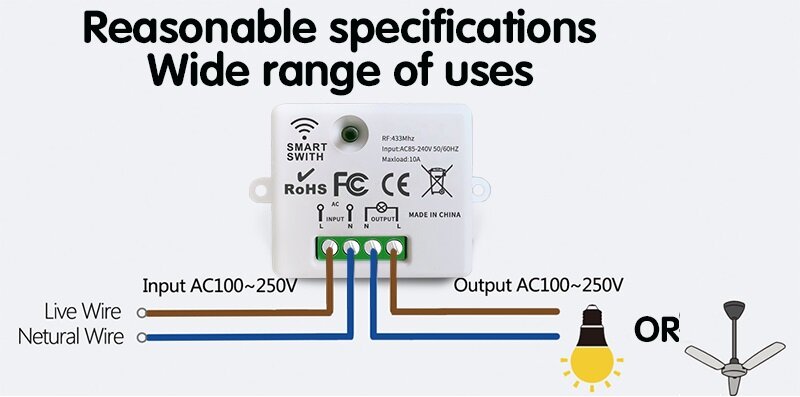

Wired Connection Way: Fixed Wiring Pillar

Output Terminal: L /N

L :Living line

N : Neutral line
Size:42*48*23mm

Color:White (Outside Shell)
--Screw:Include
-- double-sided tape :Include

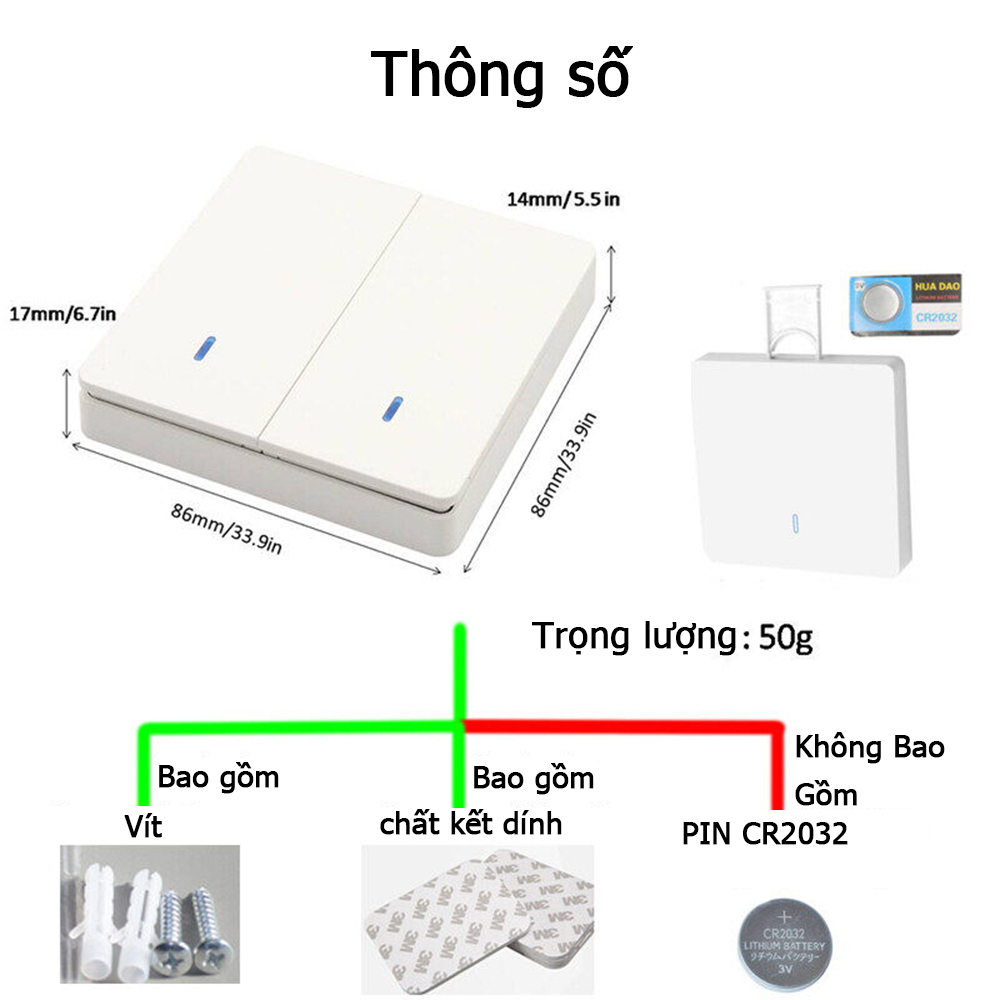

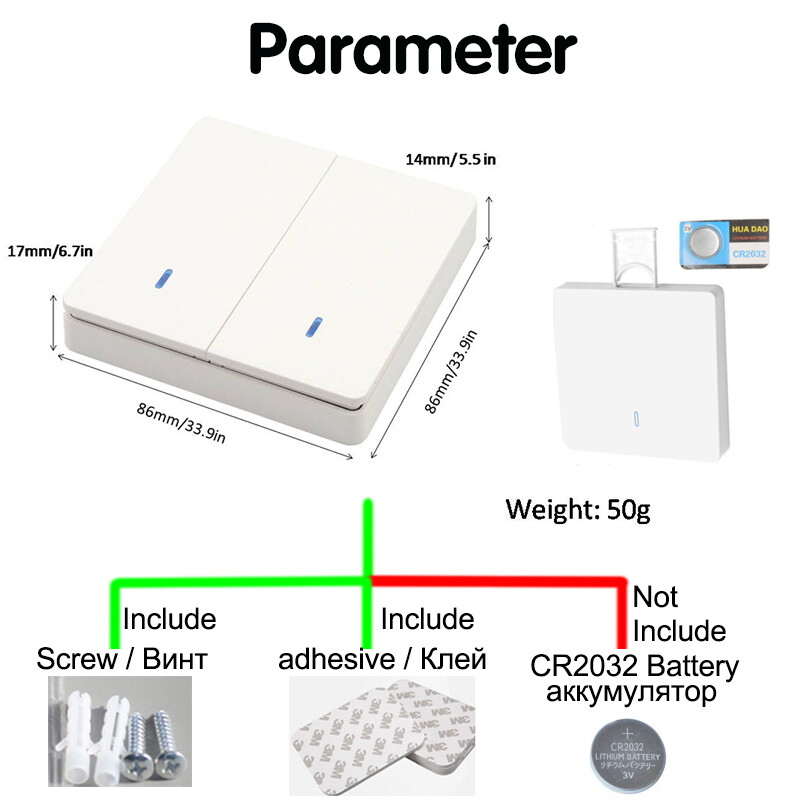

Wall panel Transmitter Parameter

--RF frequency : 433MHz
--Support encoding : 1527 Leaning code
--Remote distance : up to 50m (theoretical distance)

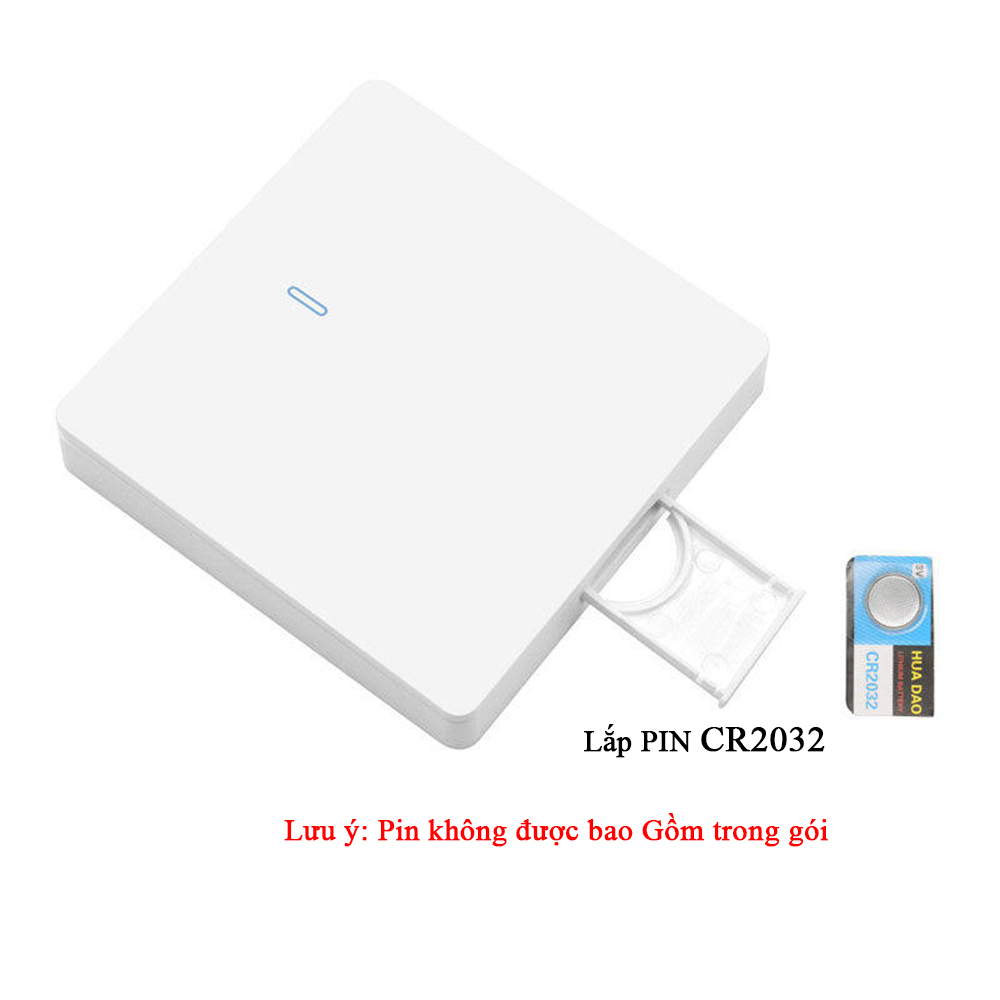

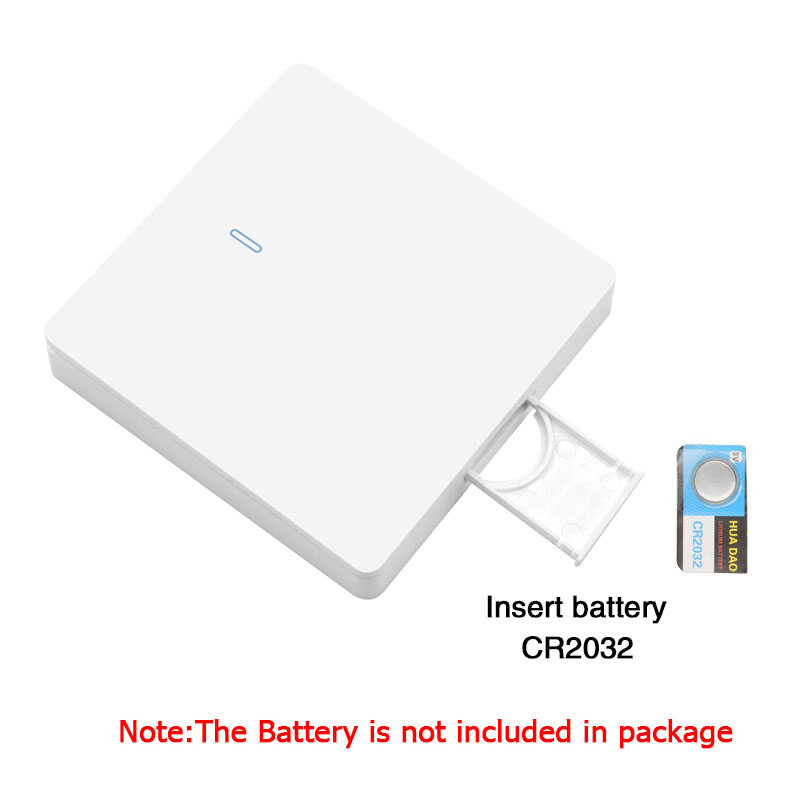

--Battery:CR2032(NO Battery include )
--Screw:Include
--double-sided tape:Include

Questions and Answers

1.What kind of battery does wall switch need?
--1pcs CR2032 ,sir.

2.Can i use my own remote to control this relay?
--We suggest that not.Not only the frequency,but also the code(1527) and modulation(ASK) should be same.

3.Do you have a wholesales price?
--Of course ,sir.Please contact with us.I will get you the best price

4.Do you have fast shipping method?
--Of course ,sir.Please contact with us.

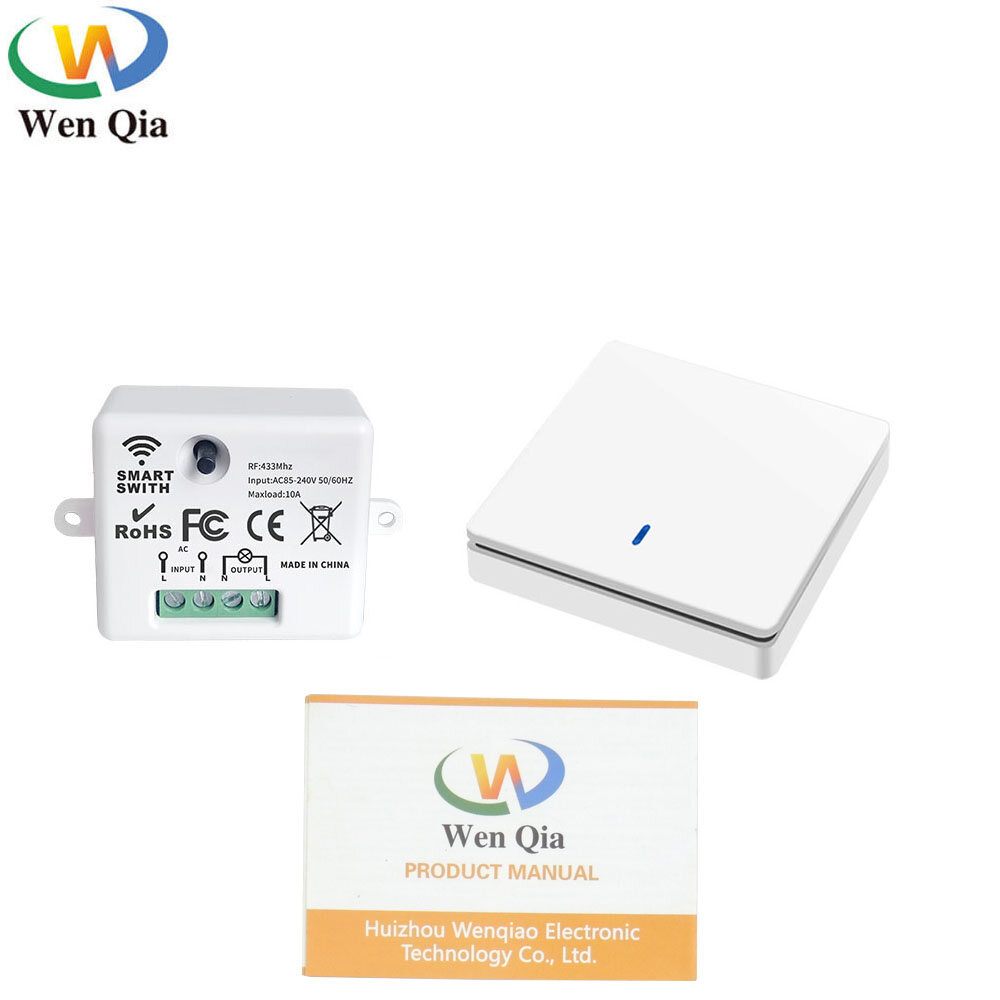

Package include
In this link, there are different options.Each option has a picture .Please according to the picture to select what you need.Products have product manual.
