Waveshare Pi Hat Pcb Board Expansion Board PoE HAT(E) Ethernet Power over Expansion Board for Raspberry Pi 3B+/4B for IEEE 802.3Af 1PCS

Waveshare Pi Hat Pcb Board Expansion Board PoE HAT(E) Ethernet Power over Expansion Board for Raspberry Pi 3B+/4B for IEEE 802.3Af 1PCS

Details

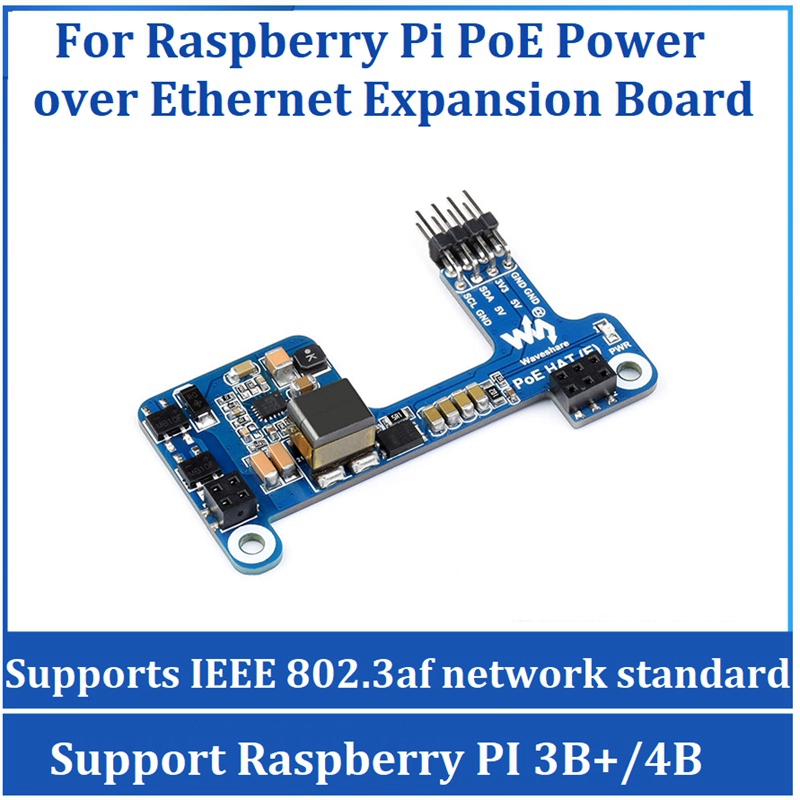

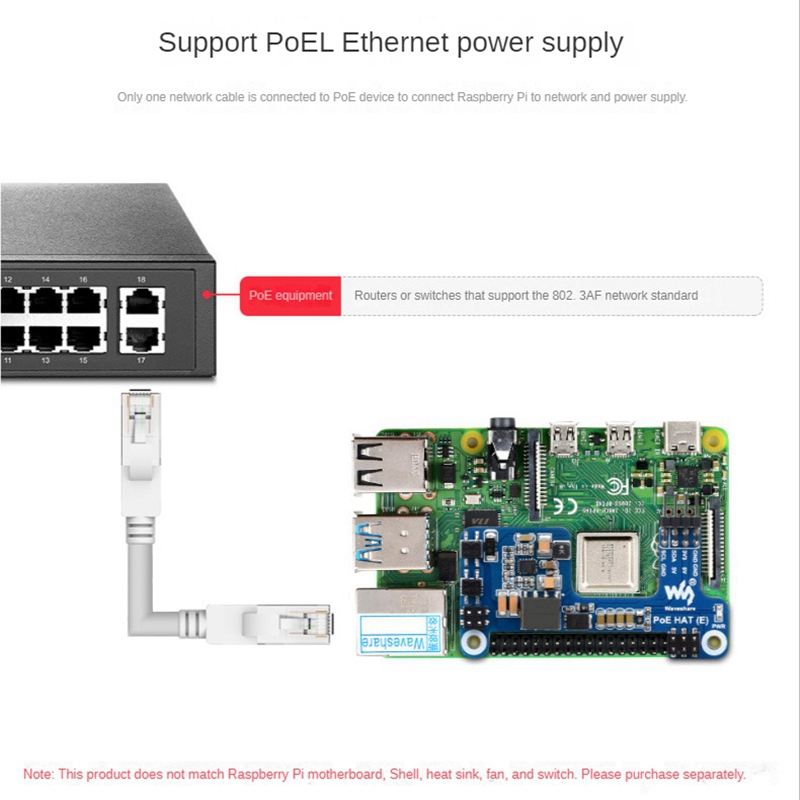

This is a Power over Ethernet (PoE) expansion board for Raspberry Pi 3B+/4B that supports the IEEE 802.3af network standard. If you already have a PoE router or switch that supports the IEEE 802.3af network standard, with this expansion board, you can connect the Raspberry Pi to the network and power supply with just one network cable.

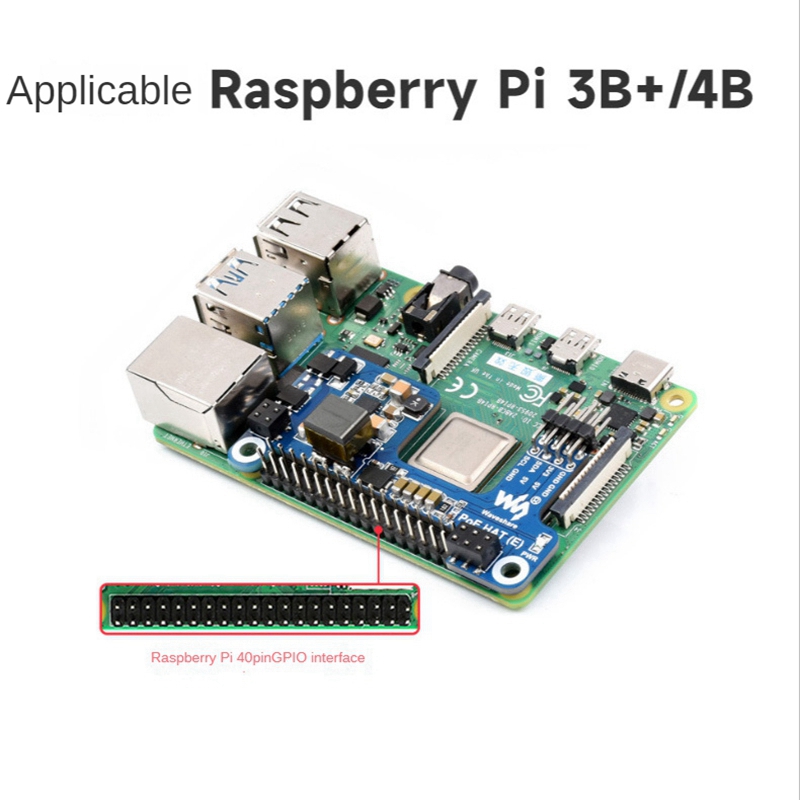

Suitable for Raspberry Pi 3B+/4B, can be used together with Raspberry Pi shell, does not take up more space
Support PoE Power over Ethernet, support IEEE 802.3af PoE network standard
Fully isolated switch mode power supply (SMPS).
Adopting a more compact component layout scheme, the overall volume is smaller and the use is more flexible
PoE power input: 37V ~57V DC input
Power output: 5V 2.5A DC output
Network Standard: Support IEEE 802.3af PoE
Colour:blue/blue + gold
Material:PCB/PCB+Metal

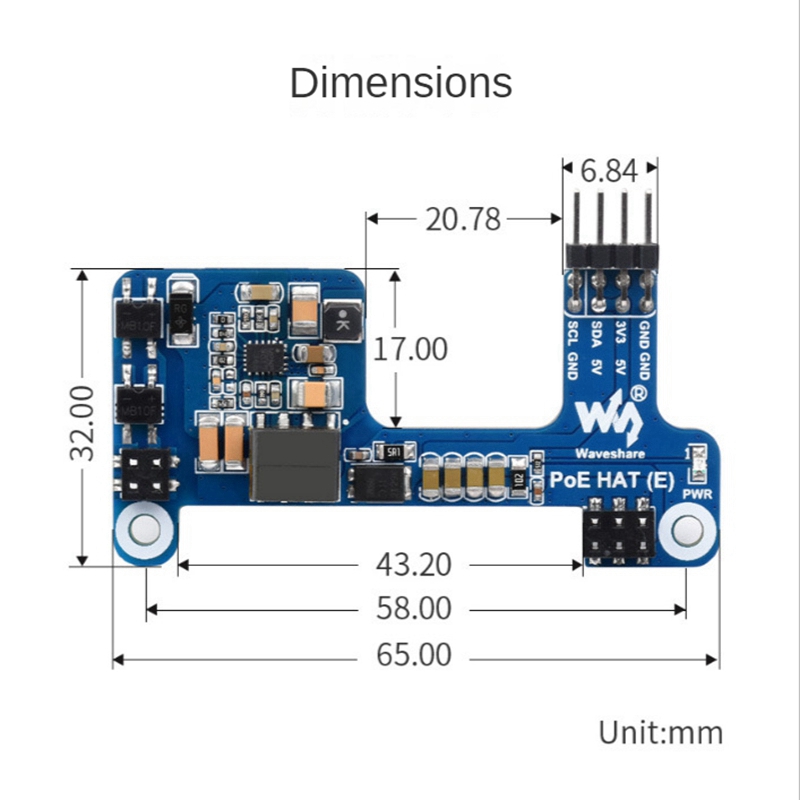

Size:65 x 32MM

Package Contents:
1 x Poe HAT Expansion Board
/
1 x Poe HAT Expansion Board
1 x Heatsink
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
