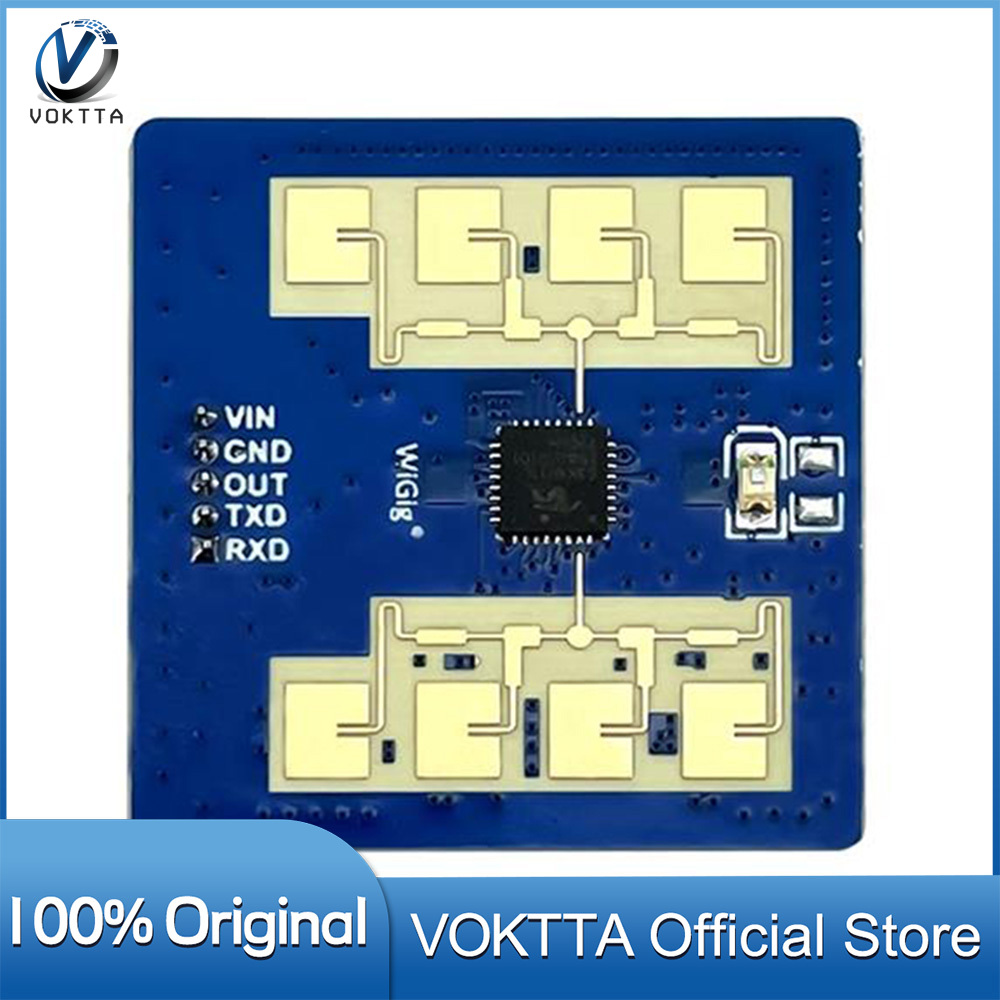

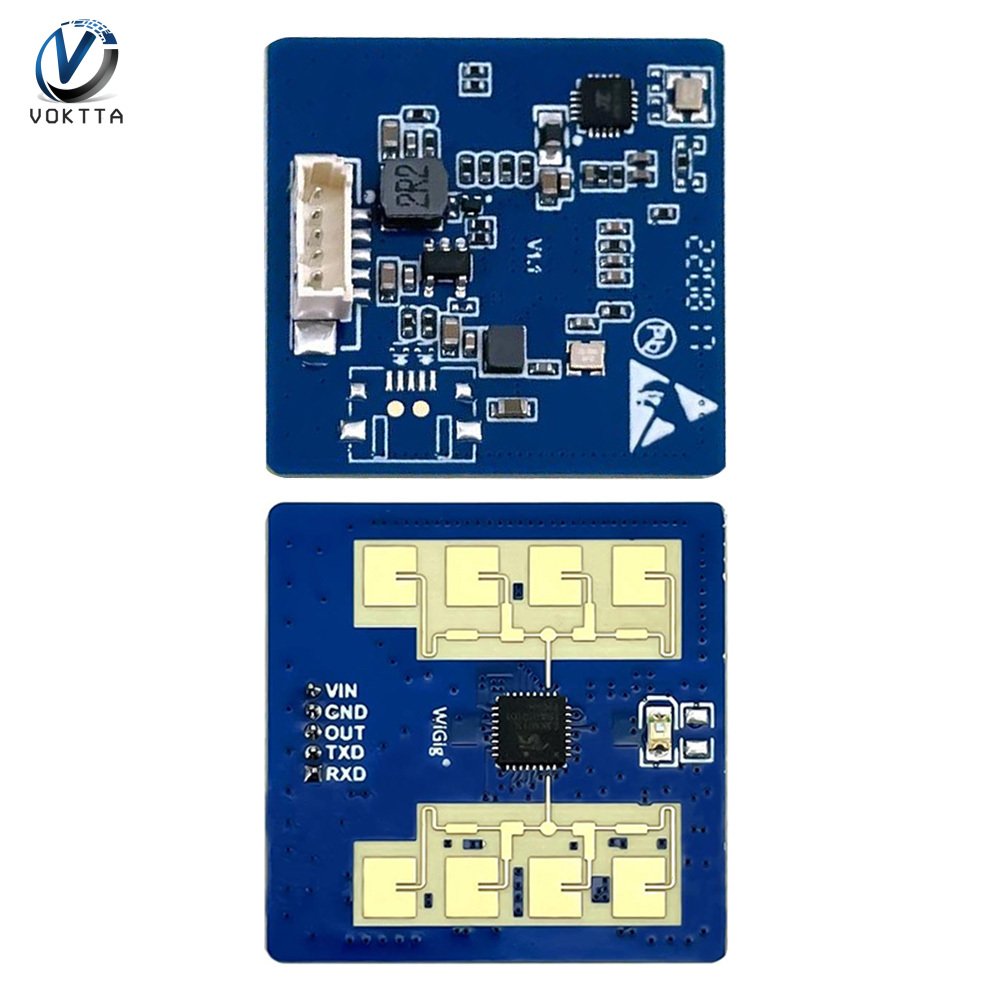

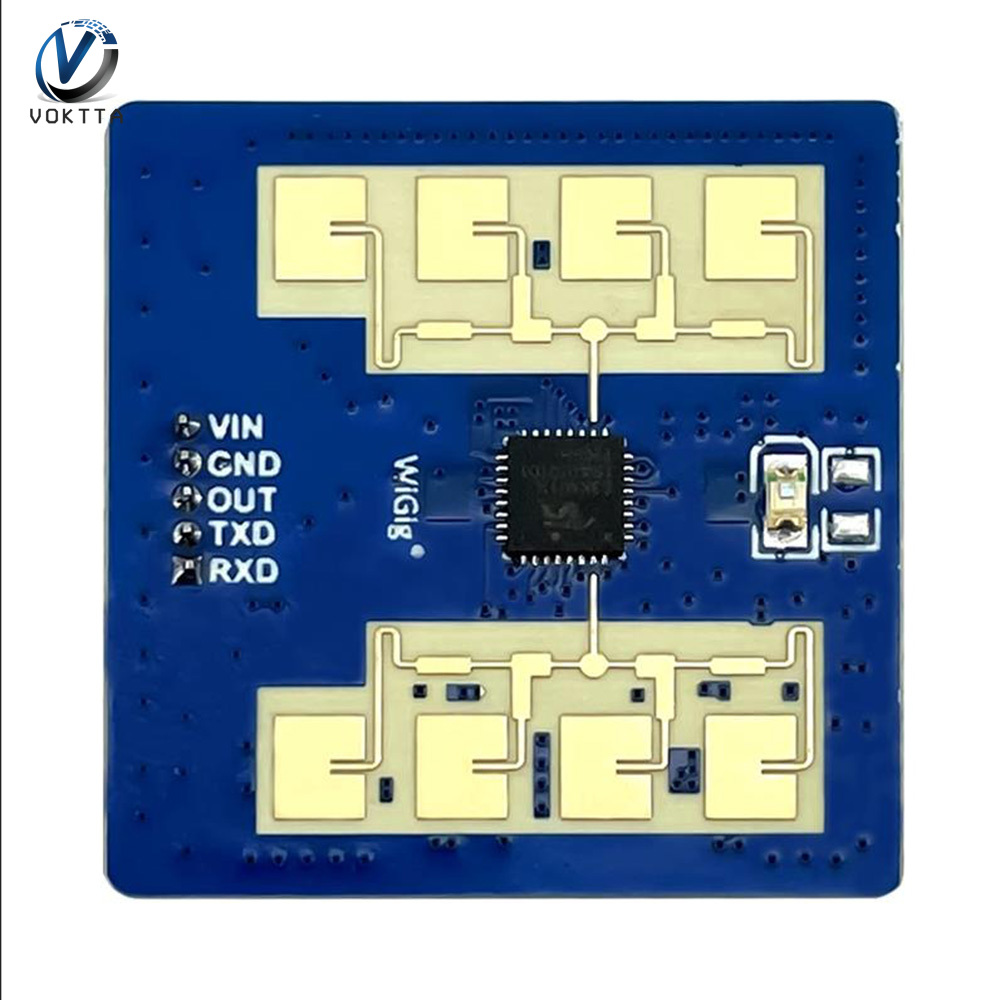

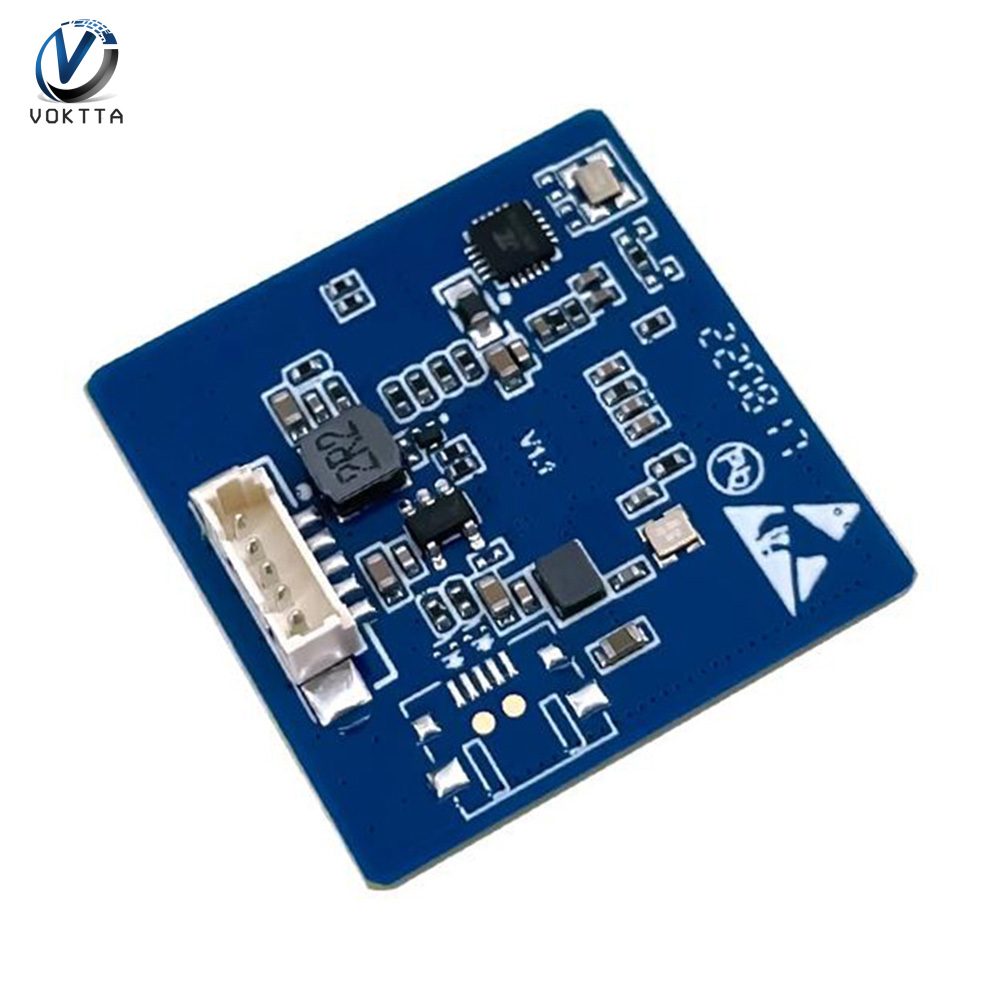

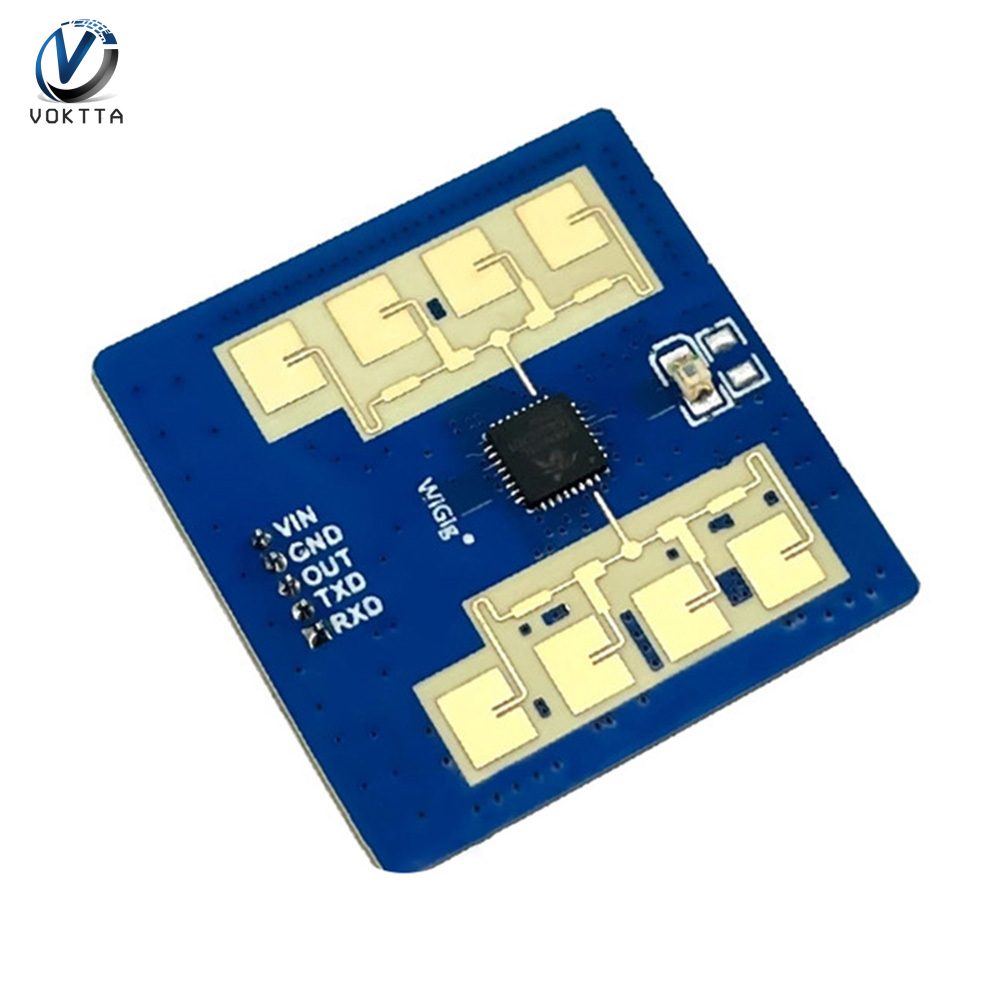

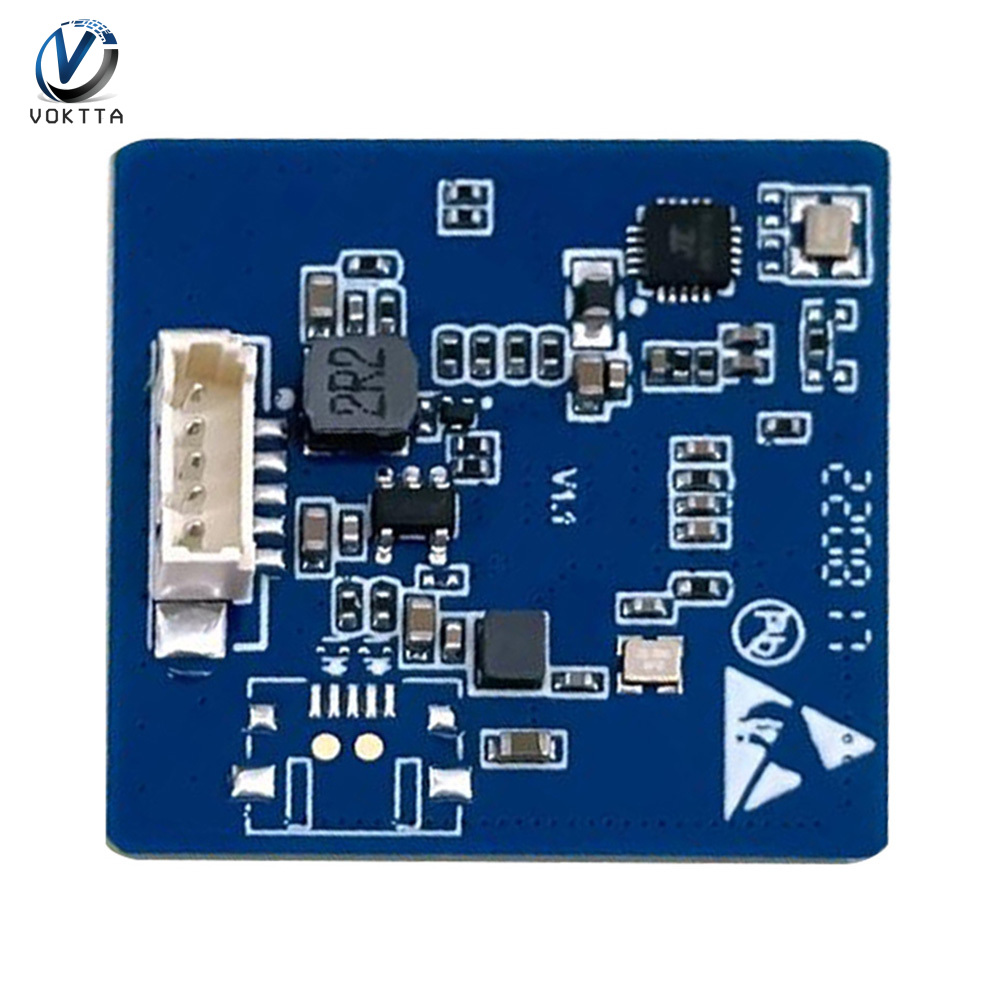

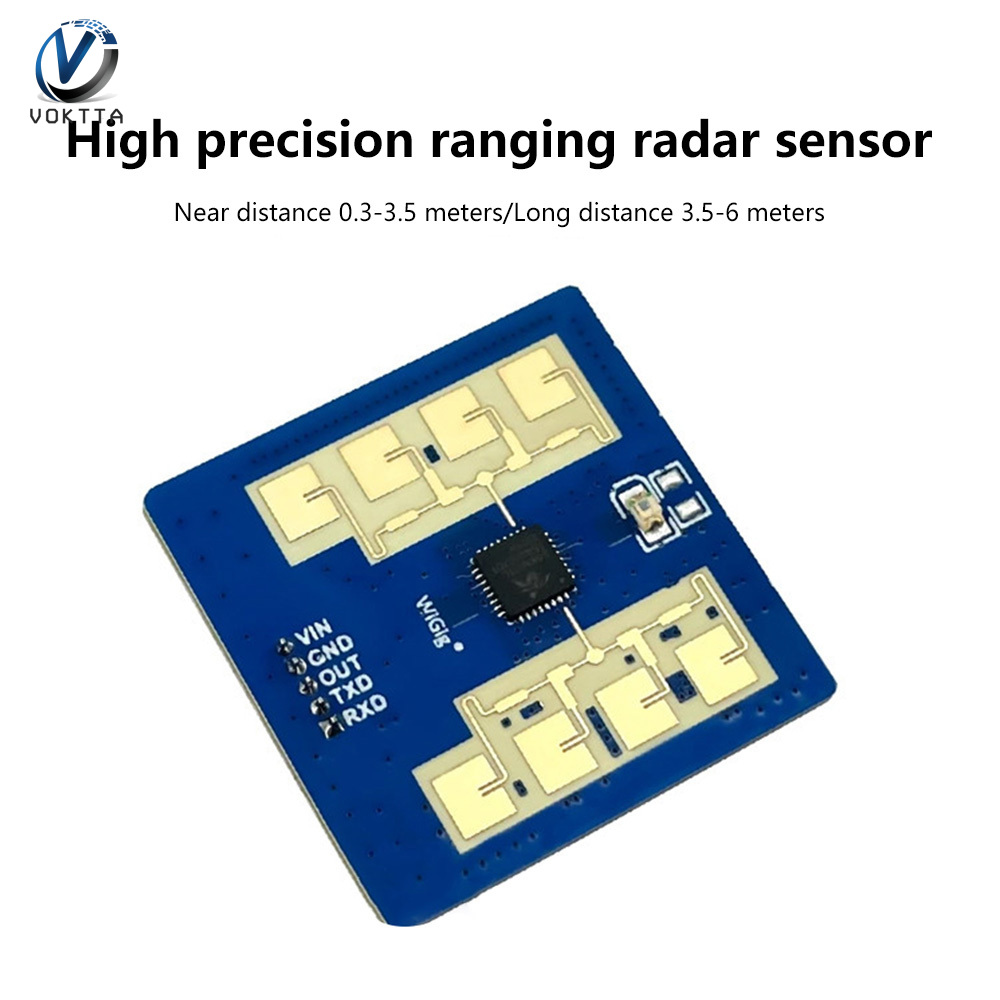

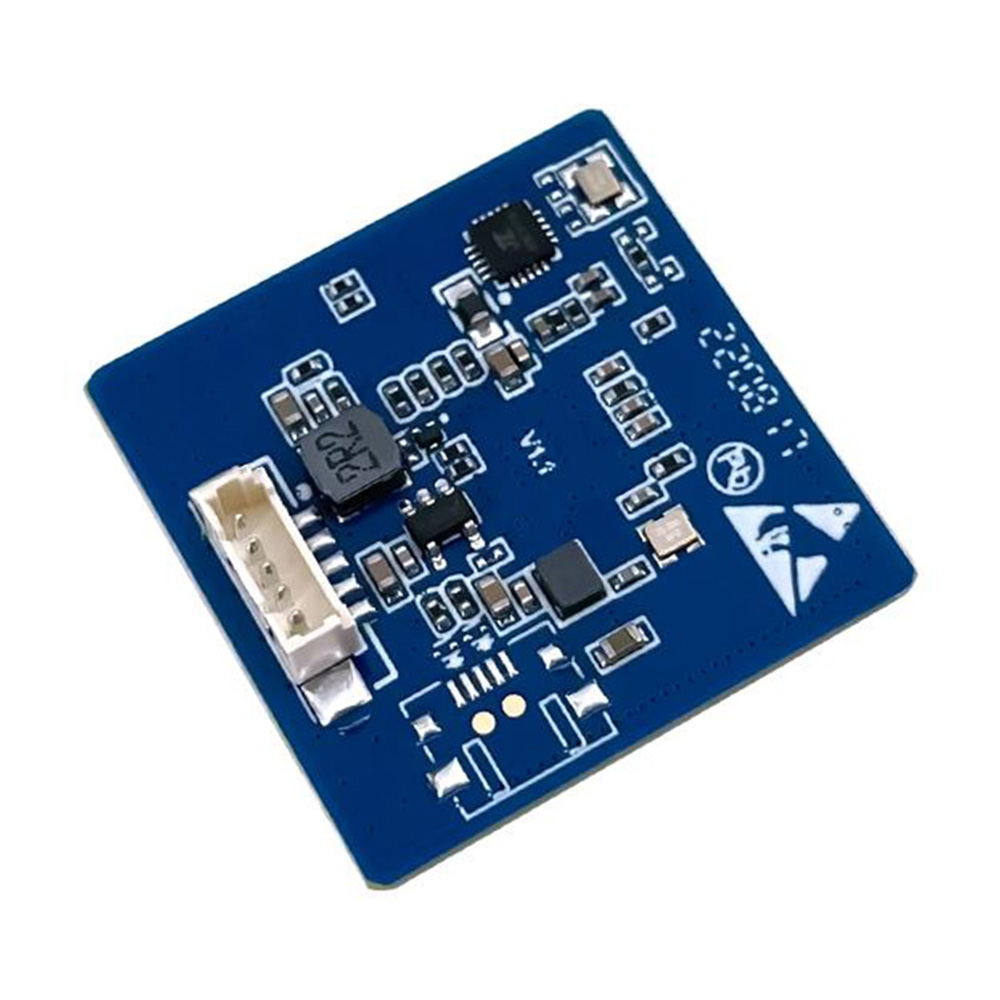

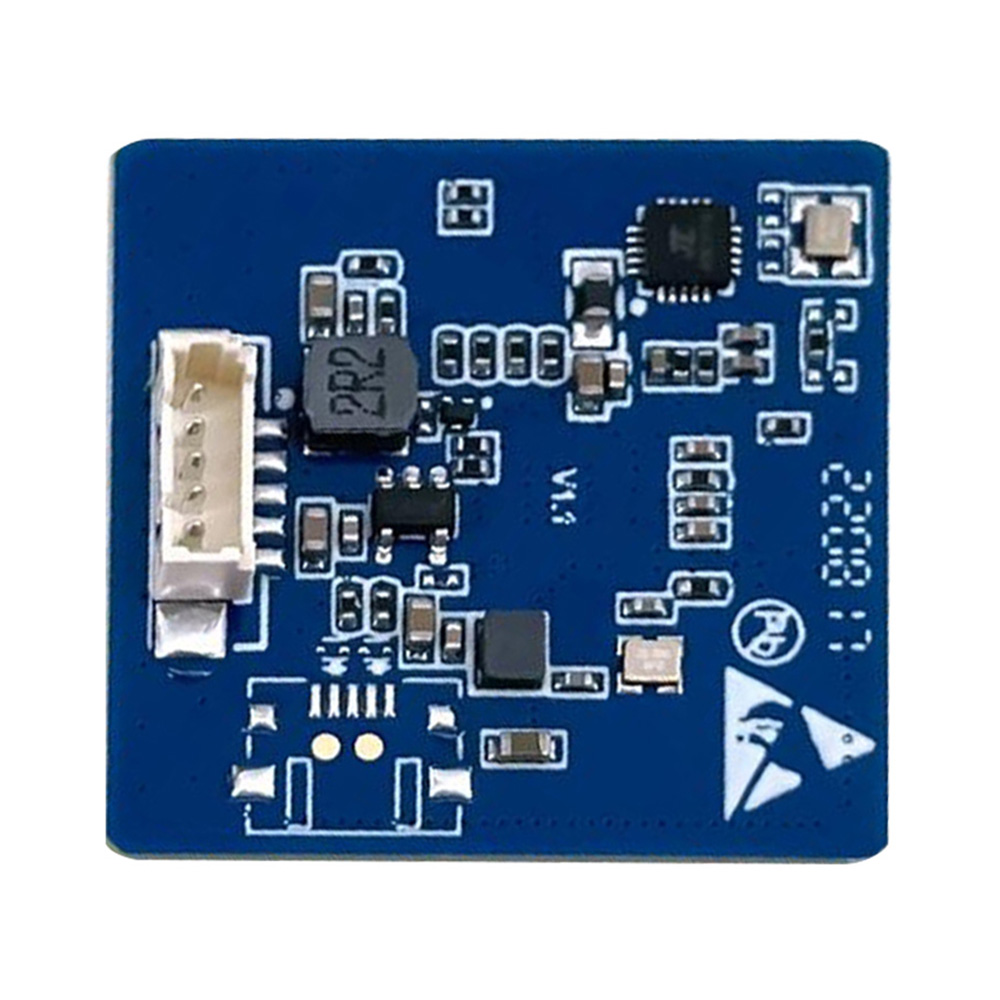

Voktta ld2411s Mô-đun cảm biến HLK-LD2411S sự hiện diện của con người mô-đun Radar cảm biến Mô-đun cảm biến milimet sóng mô-đun Radar cảm biến Mô-đun cảm biến không tiếp xúc 24Ghz

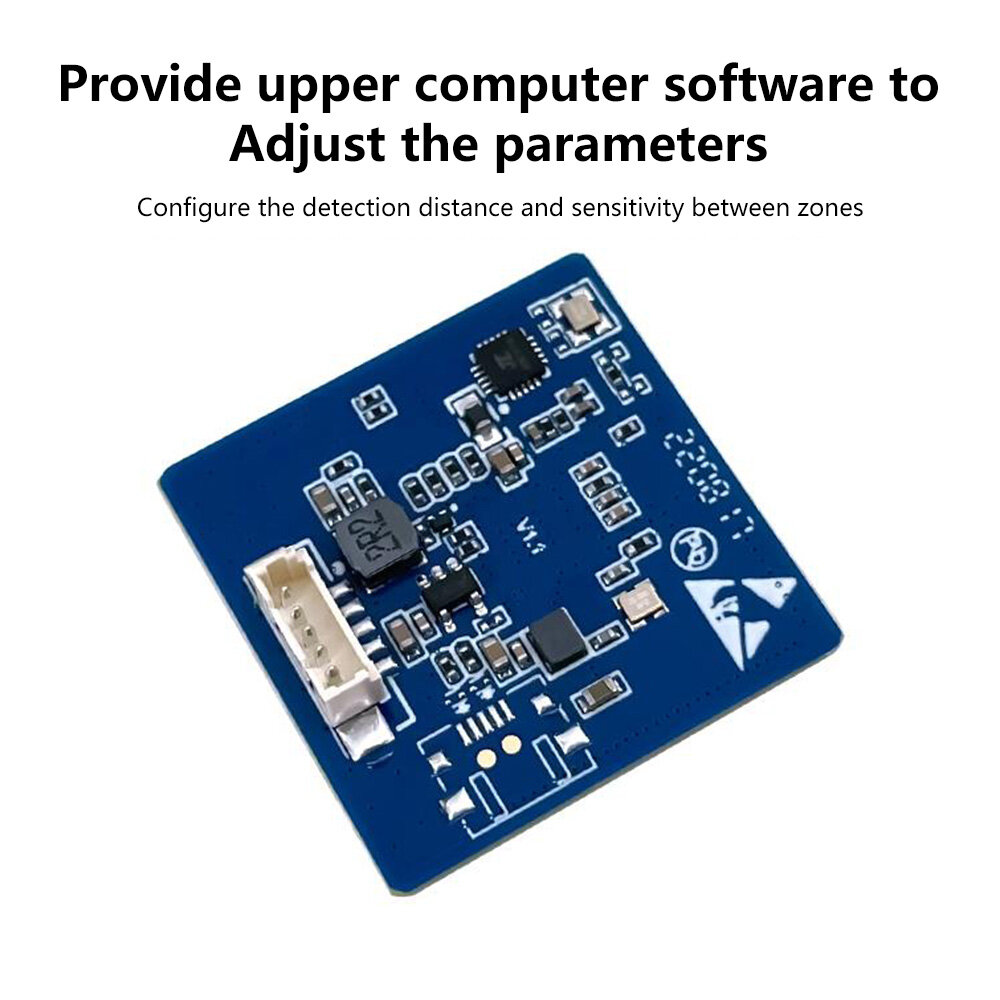

Features: 1.24 GHz ISM radio band 2.Integrate intelligent millimeter wave radar single chip and intelligent algorithm firmware 3.Accurate indoor/outdoor human motion/micro motion sensing and distance detection 4.Continuous working average current 48mA@20 HZ reporting frequency 5.Provide visualization tools that support configuring detection distance intervals and setting sensitivity based on distance gates 6.The maximum distance for human body sensing is 6m, and the maximum distance for micro motion human body sensing is 3.5m 7.High precision ranging: 30~350cm ± 5cm, 350~600cm ± 5%

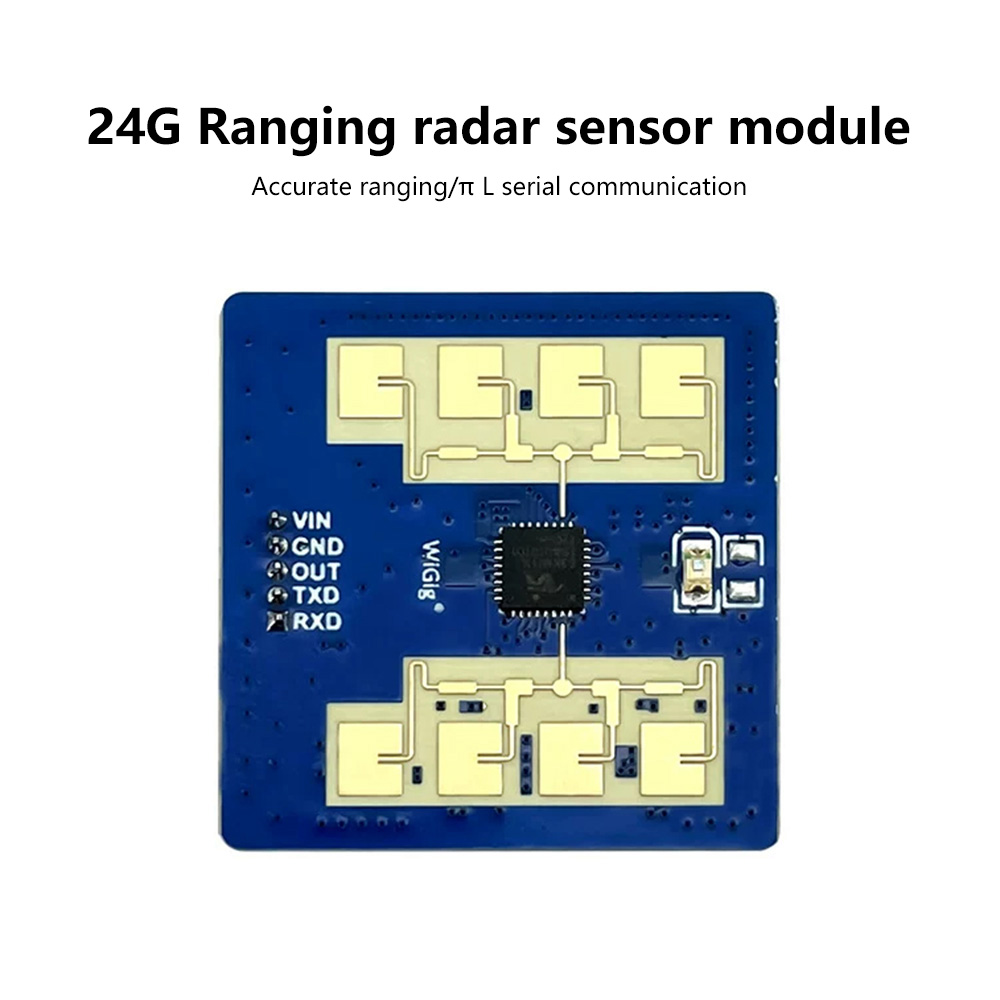

Product Description LD2411S is a 24GHz ranging radar induction module that works by utilizing FMCW frequency modulated continuous wave to set the Target detection, combined with radar signal processing and precise sensing algorithms, accurately senses the distance and status information of micro moving/moving objects. Support micro motion sensing within 0.2-3 meters and movement sensing within 3-6 meters, and output TTL serial port data in real-time. Provide configuration tools to modify sensing distance range, sensing sensitivity, and delay time.

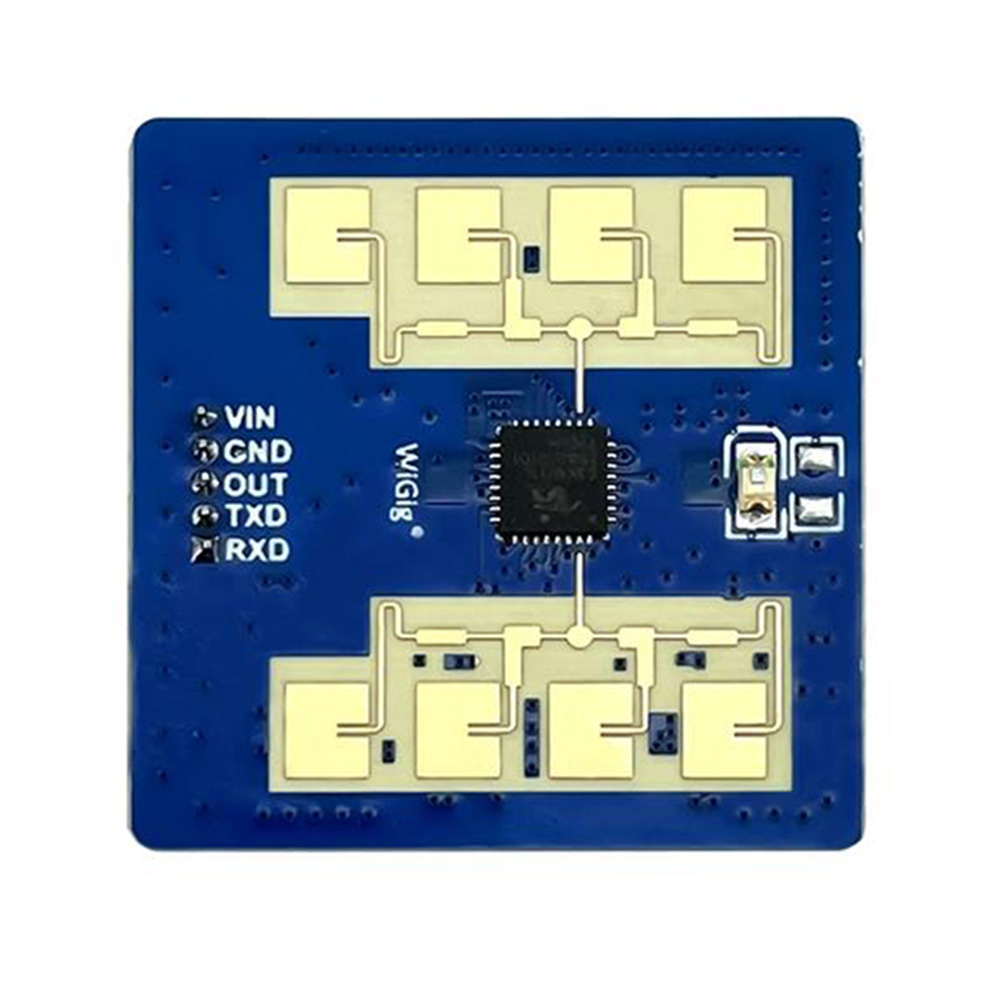

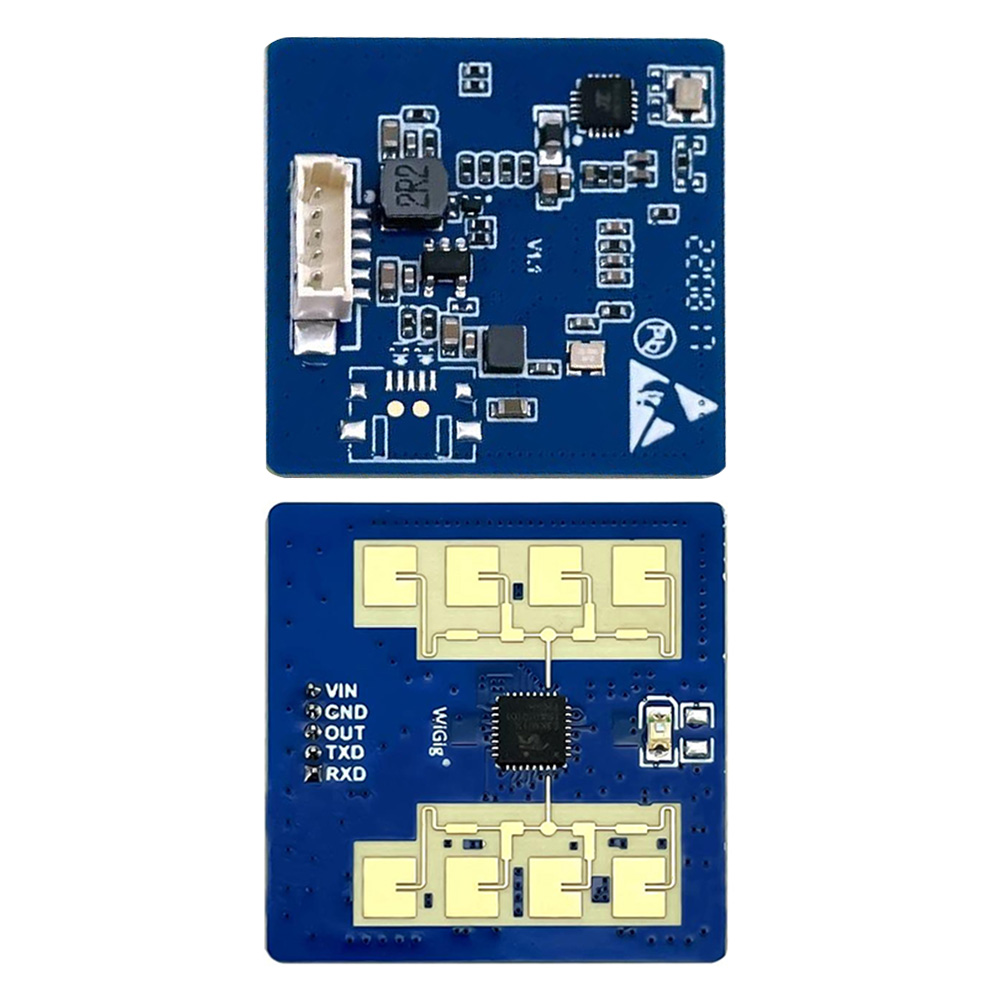

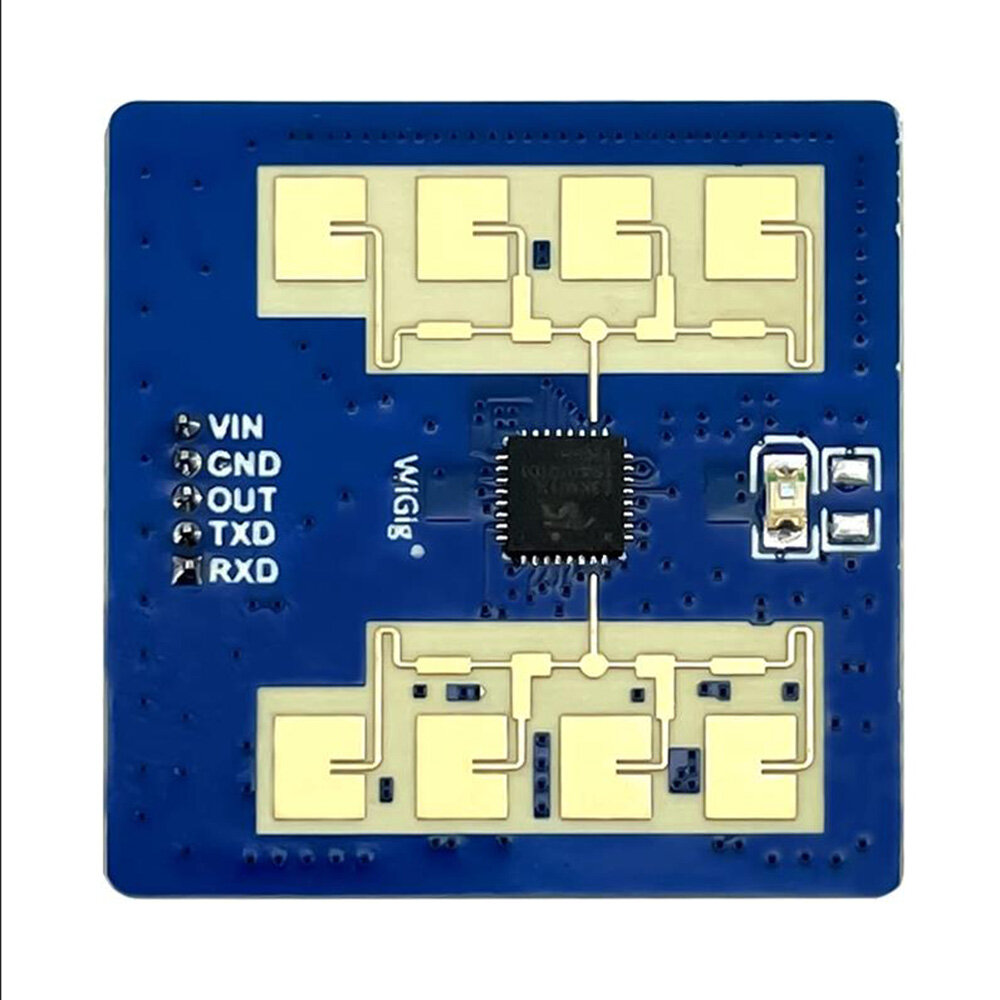

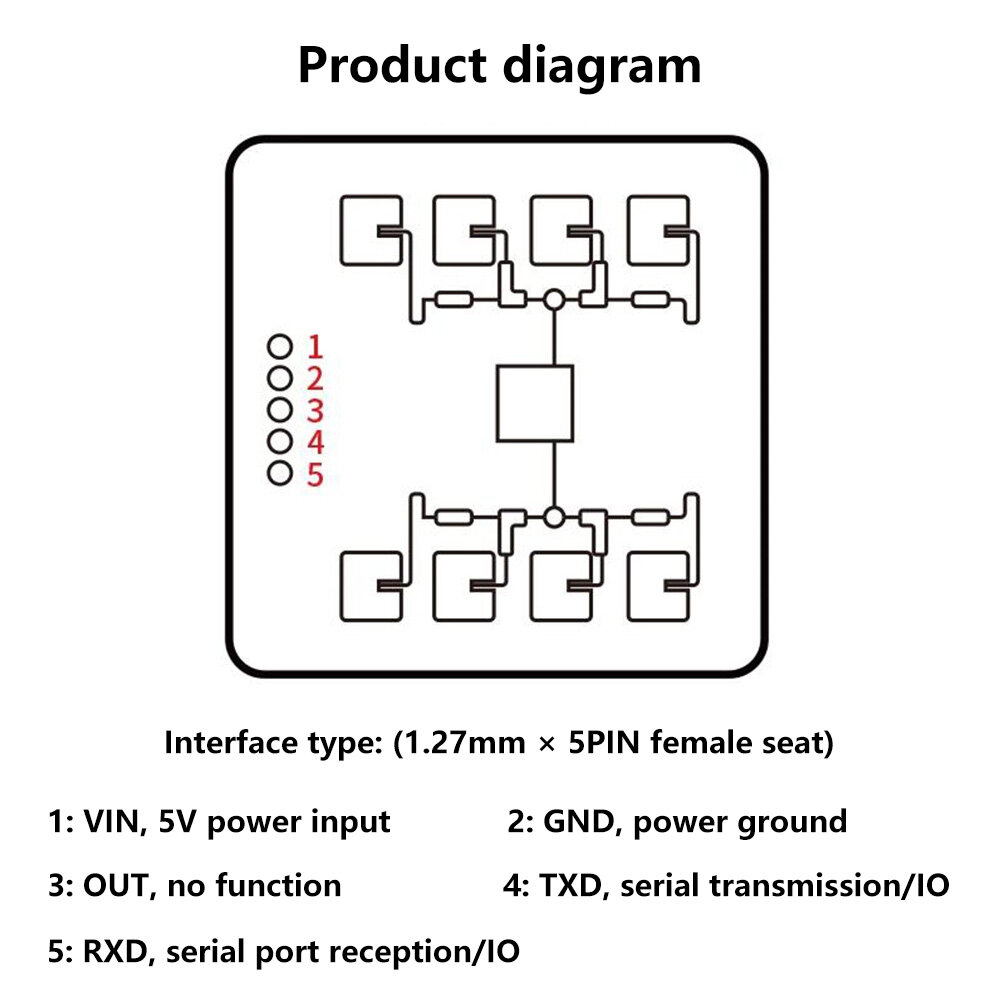

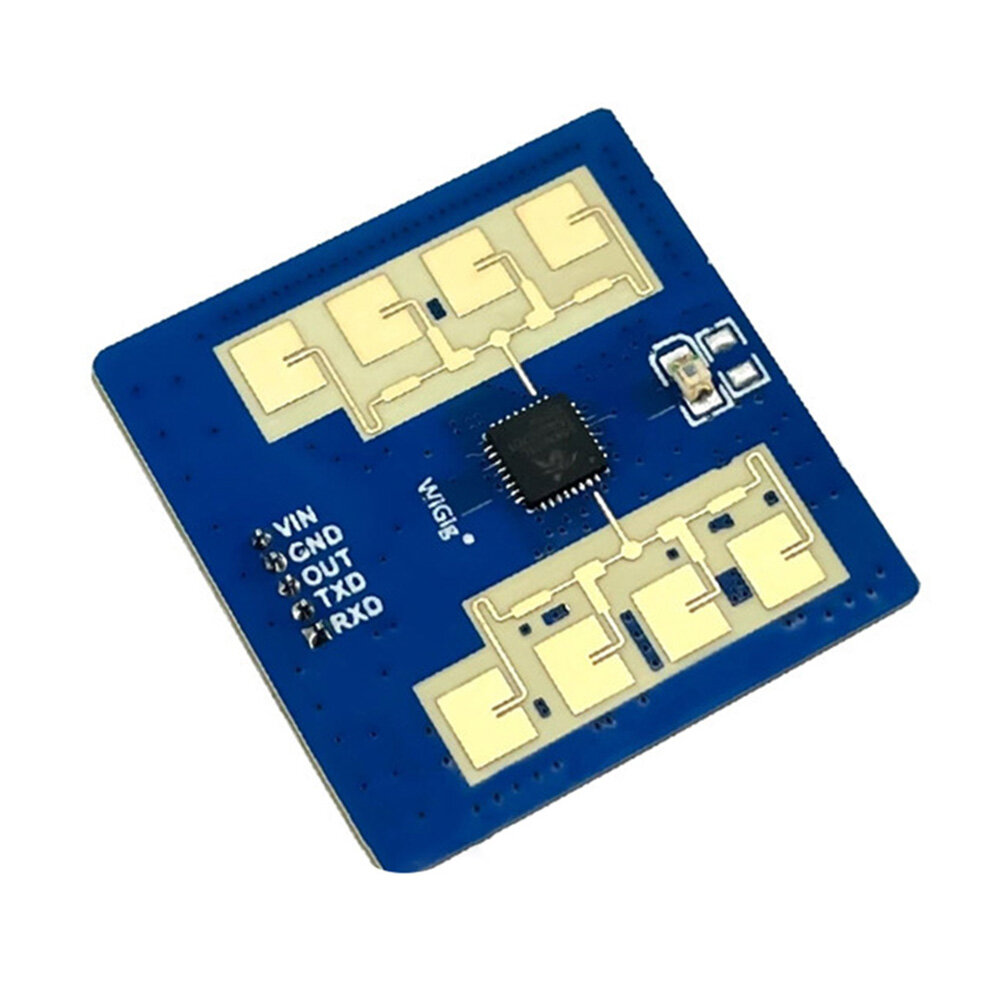

Parameters: Model: HLK-LD2411S Working principle: magnetic sensor Output model category: Digital sensor Sensor category: magnetic sensor Size: 27x27mm Frequency: 24G-24.25GHz Modulation method: FMCW Detection distance: 0.3~3.5m micro motion/0.3~6m motion (adjustable) Detection angle: soil 45 ° (horizontal plane)/soil 20 ° (vertical plane) Power supply: 5V Current:~50mA Maximum Equivalent isotropically radiated power: 16 dBm (Typ.) Sweep bandwidth:~250MHz Environmental temperature: -40 ° C~+85 ° C Data format: ttl serial port Packaging form: default 1.27mm * 5Pin female seat Interface type: (1.27mm X 5PIN pin) 1: VCC, 5V power input 2: GND, power ground 3: OUT, no function 4: TXD, serial transmission/I0 5: RXD, serial port reception/I0

Matters needing attention: If a radar needs to be equipped with a casing, the casing must have good wave transmission characteristics in the 24GHz frequency band and must not contain metals or materials that have a shielding effect on electromagnetic waves 2. This product needs to be installed in a suitable environment. If used in the following environments, the detection effect will be affected 2.1 There are continuously moving non-human objects in the sensing area, such as animals, continuously swinging curtains, and large green plants facing the air vent. 2.2 There is a large area of strong reflection plane in the sensing area, and the strong reflection object directly facing the radar antenna can cause interference. When installing on the wall, external Confounding such as air conditioners and electric fans on the top of the room need to be considered. 3. Precautions during installation 3.1 Try to ensure that the radar antenna is directly facing the area to be detected, and that the surrounding area of the antenna is open and unobstructed. 3.2 To ensure that the installation position of the sensor is firm and stable, the shaking of the radar itself will affect the detection effect. 3.3 Ensure that there is no object movement or vibration on the back of the radar. Due to the penetrability of radar waves, the antenna back lobe may detect moving objects on the back of the radar. Metal shielding covers or metal backplates can be used to shield the radar backplate and reduce the impact of objects on the back of the radar. When there are multiple 24GHz frequency band radars, please do not align the beams and try to install them as far away as possible to avoid possible mutual interference. 3.5 Power precautions: The input voltage of the power supply is 5VDC, and there is no obvious spectral peak within 100 kHz of the power supply ripple. This plan is a reference design, and users need to consider corresponding electromagnetic compatibility designs such as ESD and lightning surge.

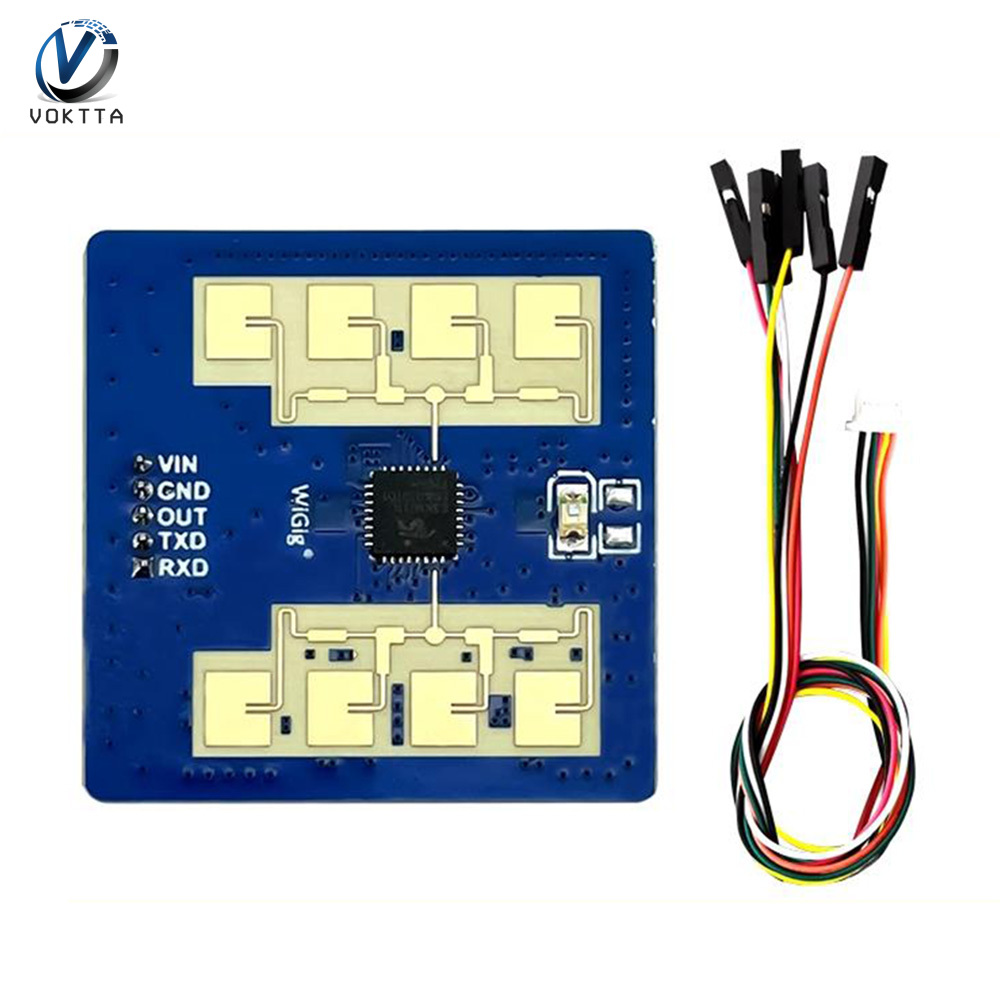

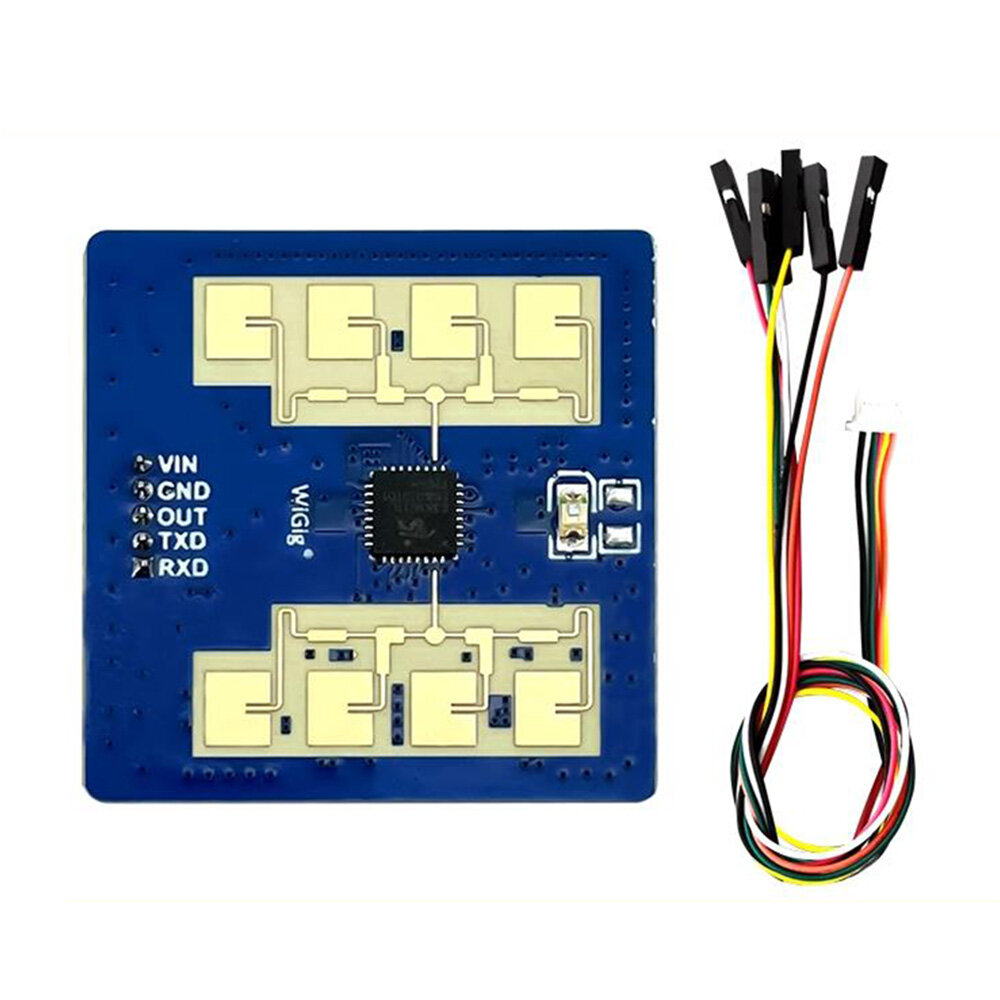

Package include: Package 1: Sensor module * 1 Terminal wire * 1 Package 2: Sensor module * 1
