VOKTTA Rơle tác dụng chậm mô-đun 5V 12V 24V Rơle hẹn giờ 0.01S-999min Hẹn Giờ Kỹ Thuật Số chu kỳ chậm trễ mô-đun chuyển đổi AC 220V Power-off điều khiển

Features:
1.High precision and good stability
2.With automatic memory function
3.Easy to operate and set up
4.Output with LED indicator light, with a large delay range
5.Exquisite appearance, high-definition LCD display screen

Parameters:
Product Name: Digital Display Time Relay

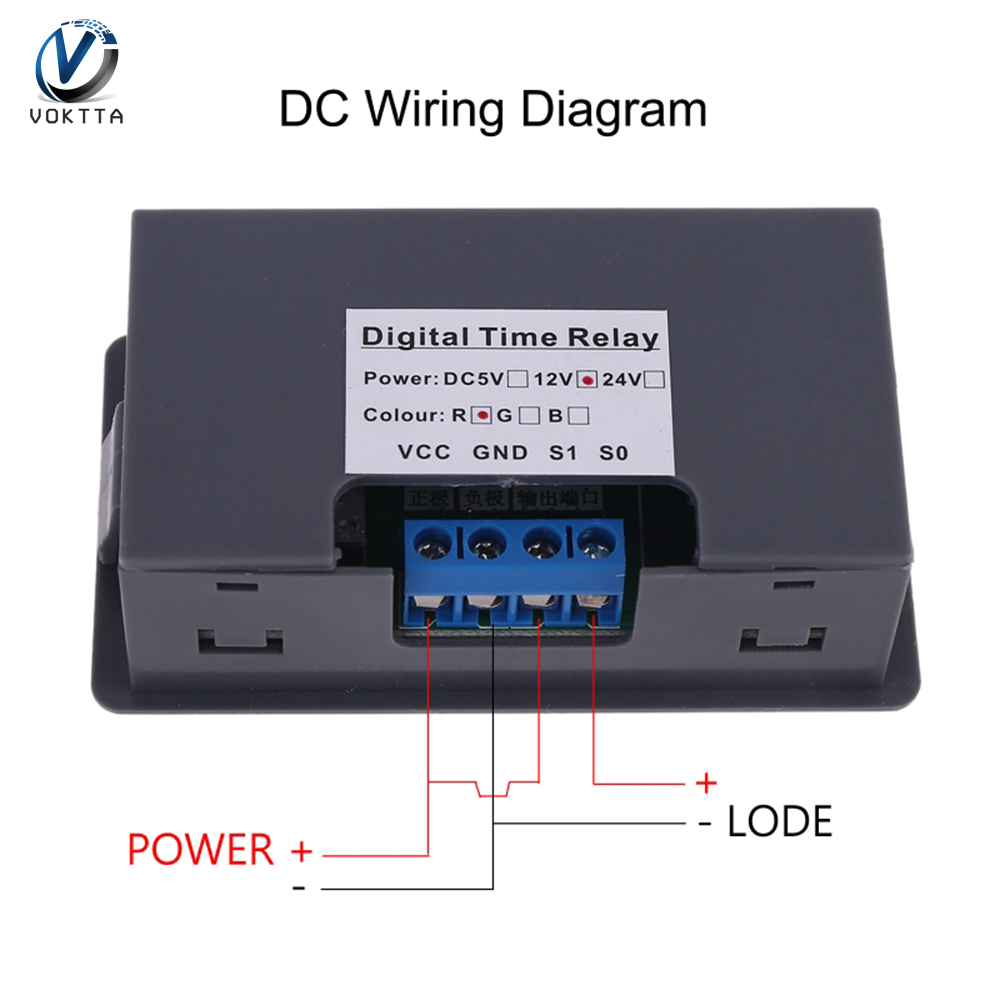

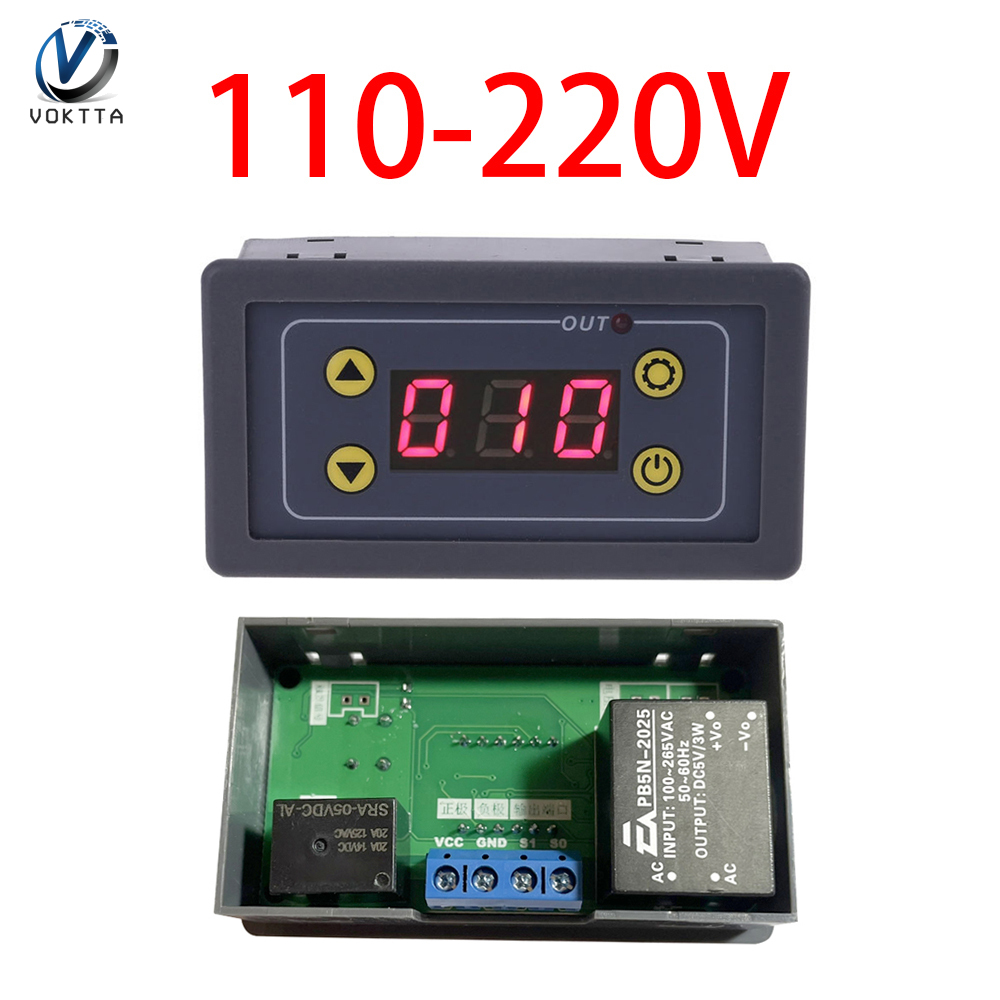

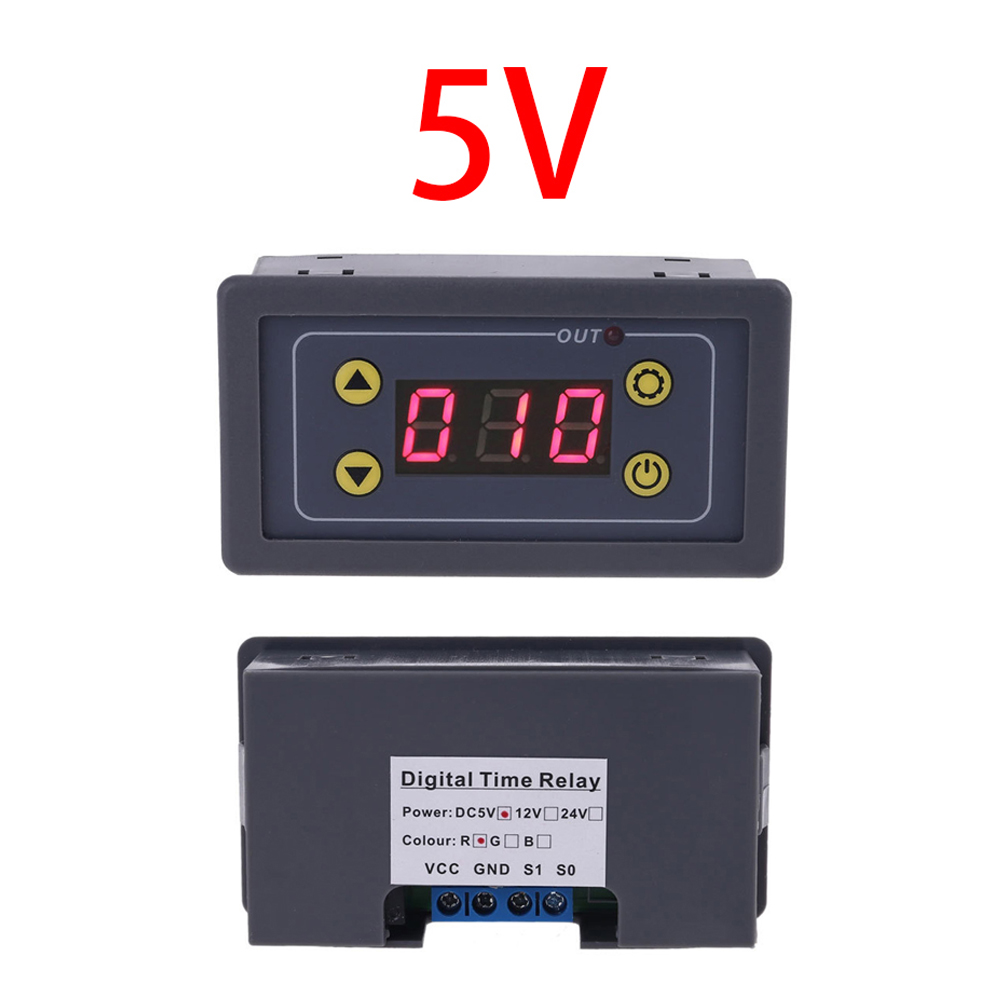

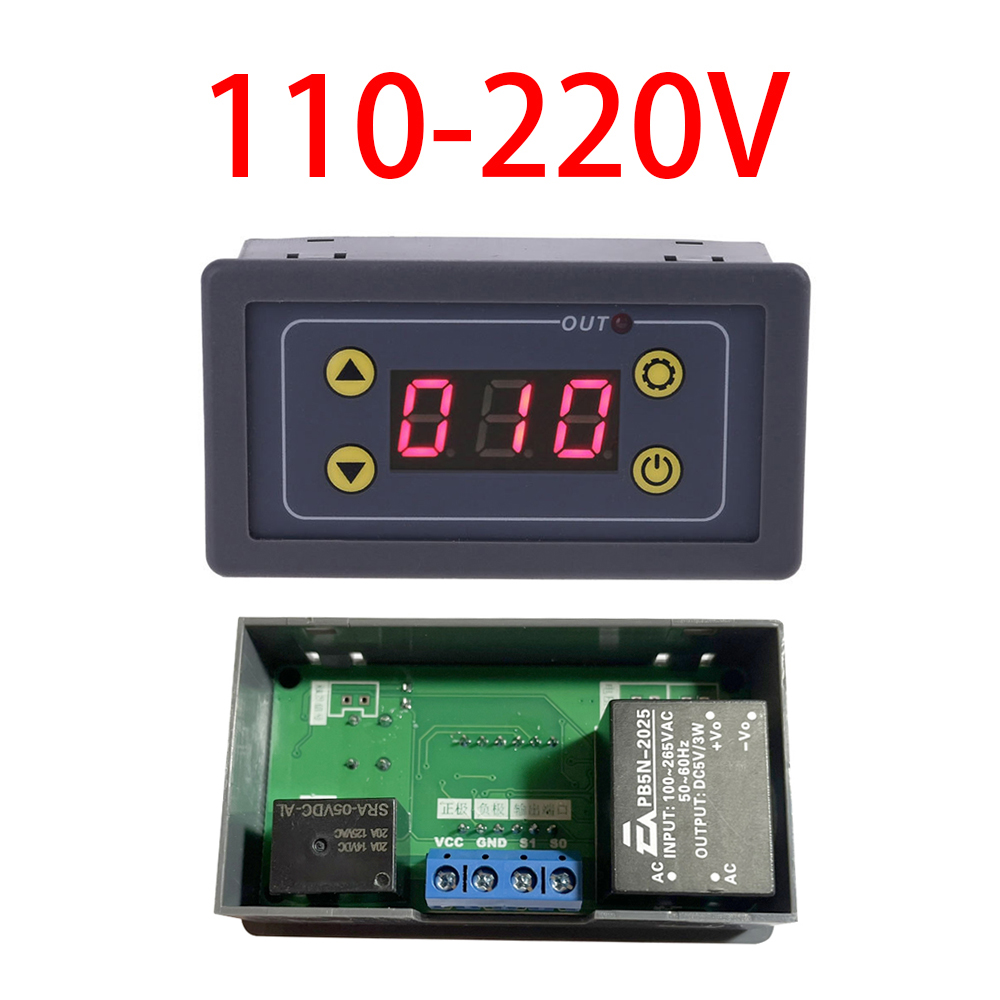

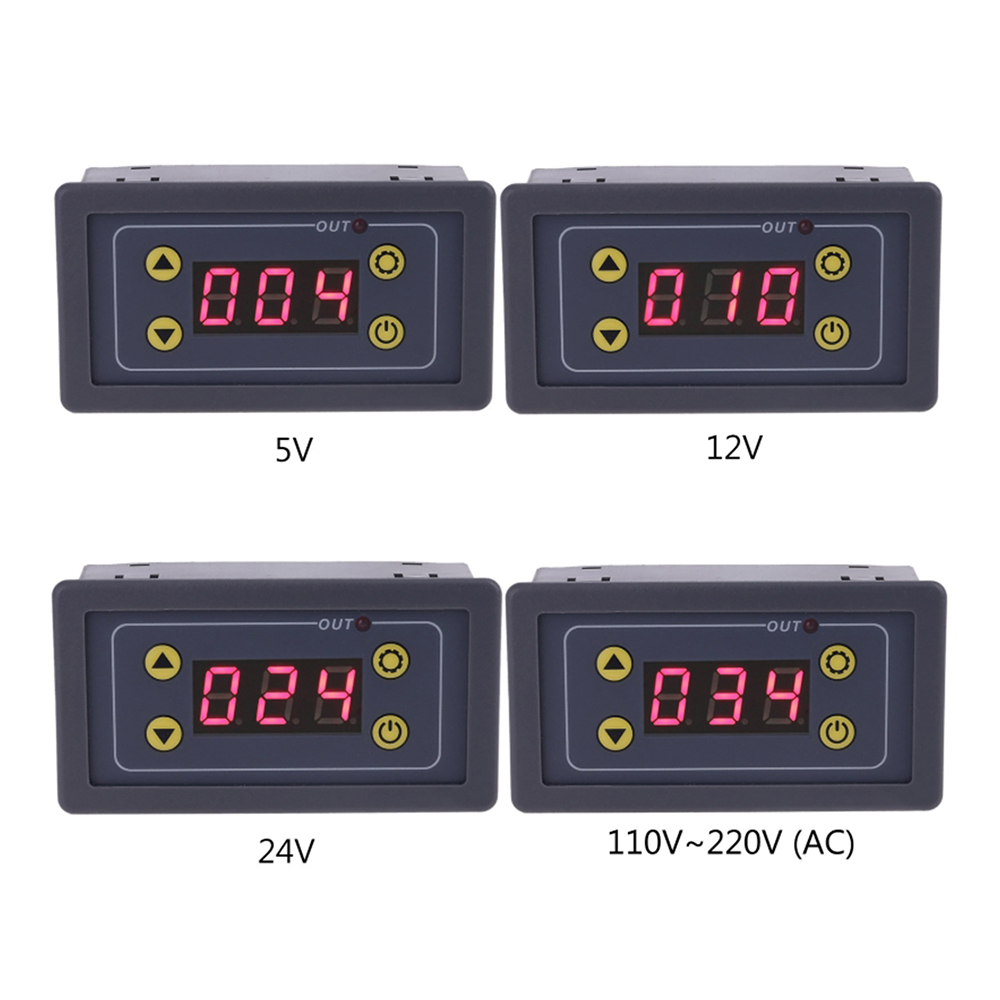

Power supply voltage: DC 5v 12v 24v AC 110-220v
Range selection: 0.01 seconds 1 second, 1 second, 1 minute
Timing range: minimum 0.01 seconds, maximum 999 minutes

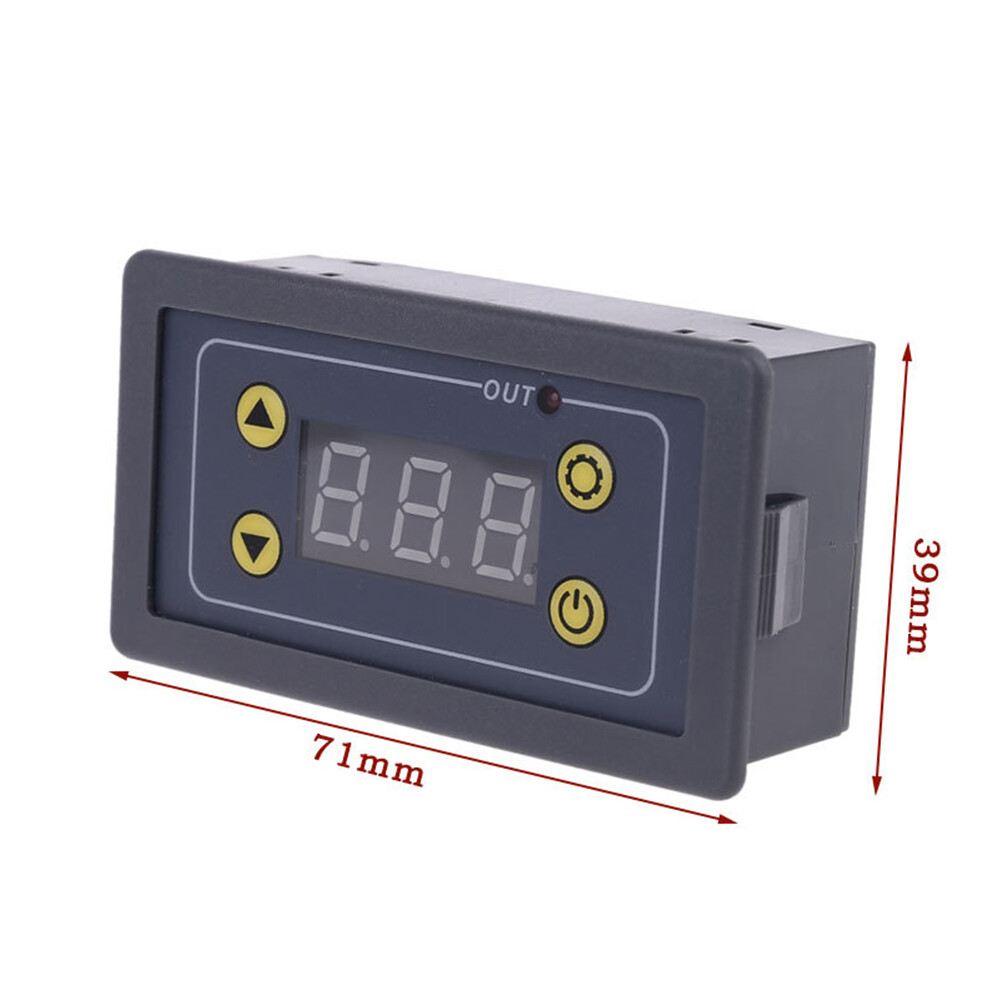

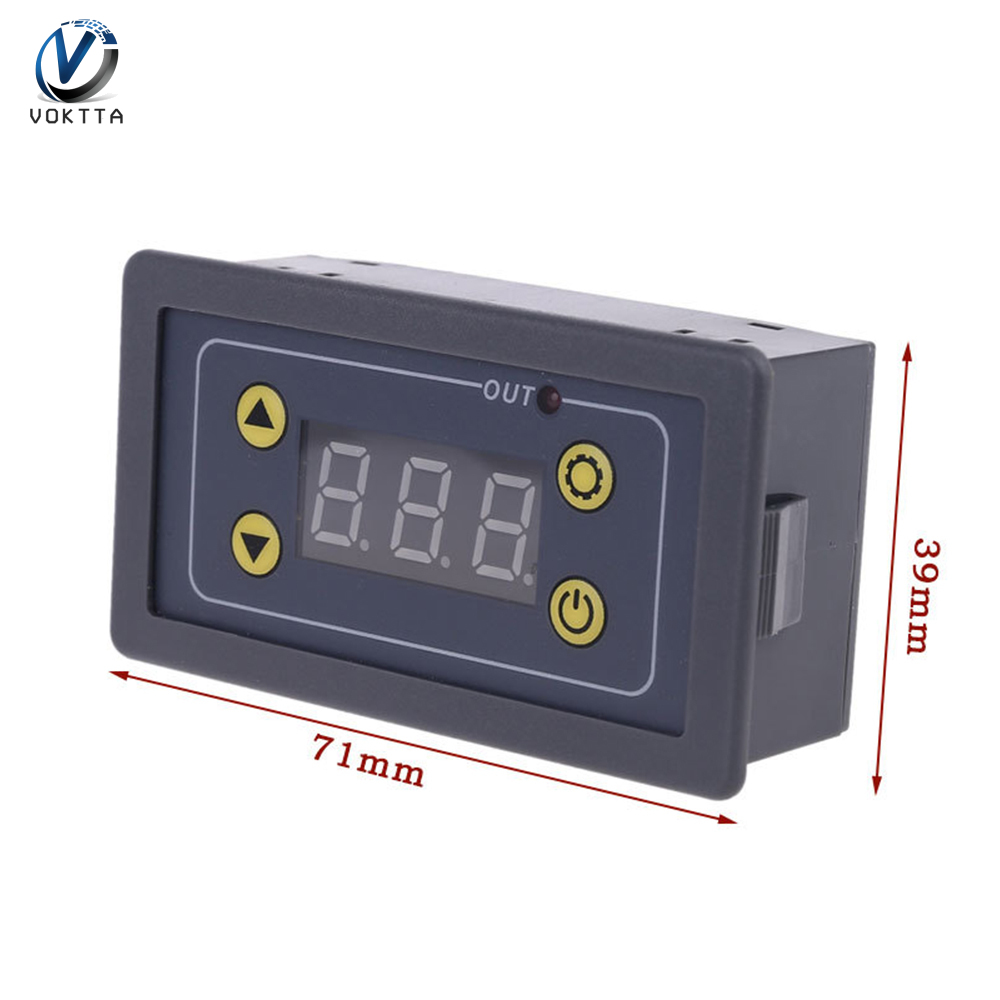

Opening size: 40MM * 74MM
Current: DC max 10A AC max 5A
User Manual

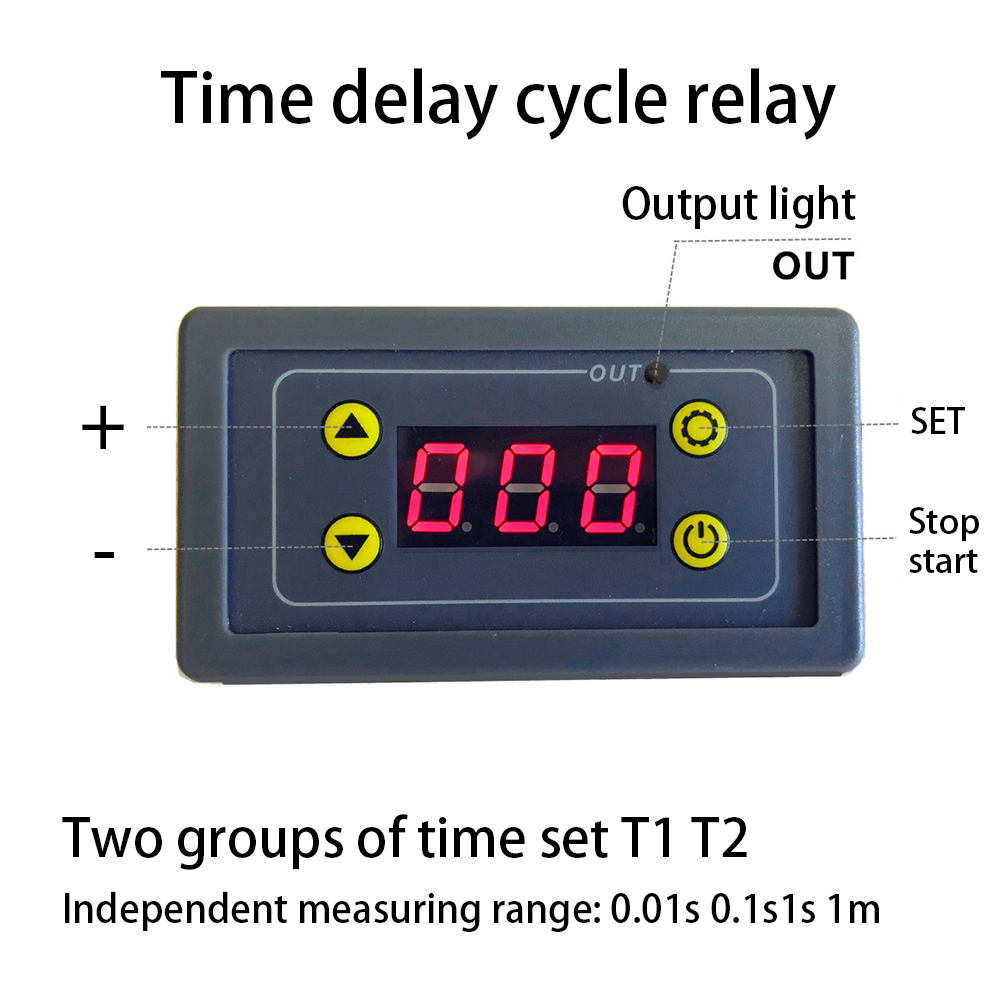

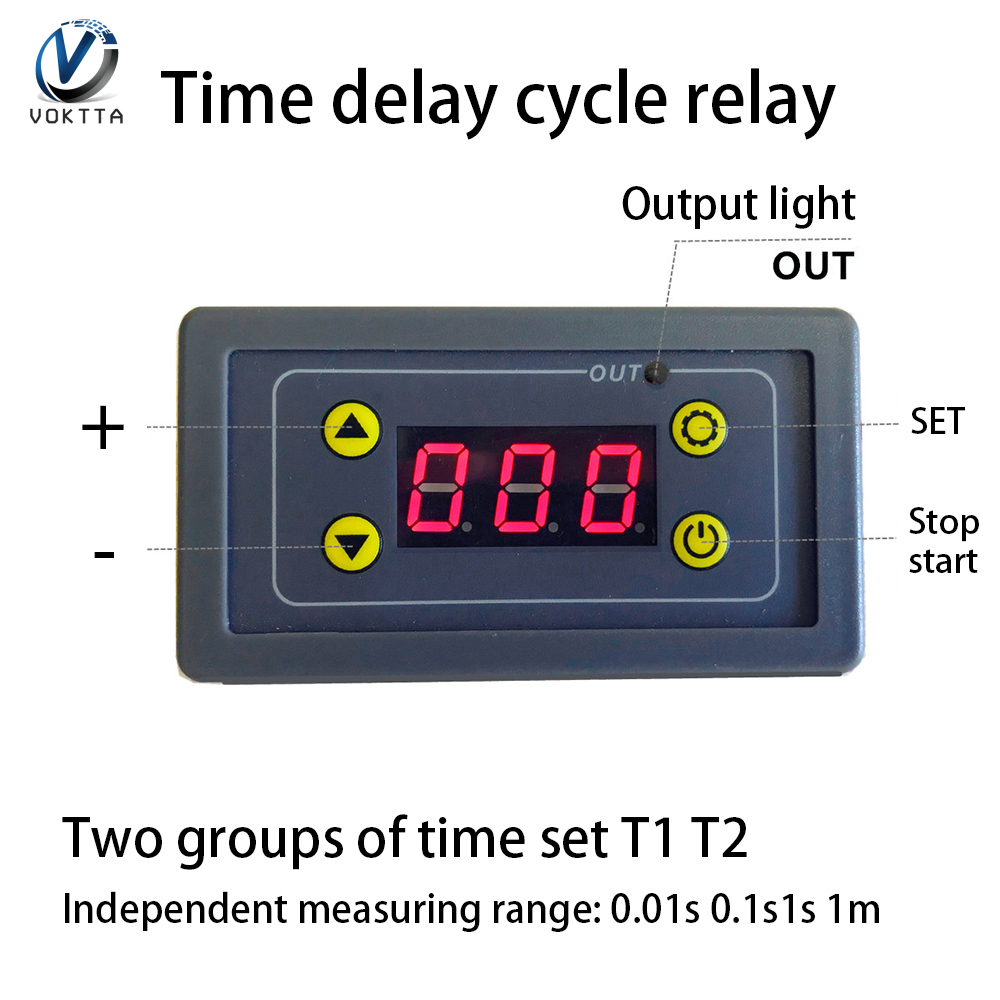

This product has four buttons: button up, button down, set, stop or start. There are two sets of time T1 and T2 for users to set.

Matters needing attention:
1. All parameters of the relay are automatically memorized for 5 seconds,
If it is necessary to stop during operation, pressing the stop button will stop the relay, reset the data, and press the stop button again to trigger again.
3. The normal execution of the relay ends, and pressing the stop button can trigger the start again.
T1 time setting:
Directly press the button to add or subtract to set T1. After 5 seconds of setting, the data will be automatically memorized and the timer will start.
T2 time setting:
Press the setting key briefly, the Nixie tube will flash. At this time, press the key to add or subtract T2, and the automatic memory will start to run 5 seconds after the setting is completed.
Time range: Automatically switch the range. The default range is seconds, the number decreases to 0, and if you continue to press the decrease button, the range will automatically switch to 99.9s; Add the number to 999, continue pressing the button, and the range will automatically switch to 0.0.0
The number format is as follows
X. X X -- Time range 0.01s
X X. X - Time range 0 1s
X X X -- Time range 1s
X. X. X - Time range 1min
For example, if T1=8.88 is set, the controller will countdown at 0.01s, and T2=8 8.8, the controller counts down to 1 minute.
Working mode settings: 6 working modes for users to set.
Long press the setting button to enter the P-0 parameter, and set the desired working mode on the current interface by pressing the plus or minus buttons.
P-0: Relay opens after a delay of T1 time, ending
P-1: The relay closes after a delay of T1 time, ending
P-2: The relay closes after a delay of T1 time, and then opens after a delay of T2 time, ending
P-3: The relay opens after a delay of T1 time and closes after a delay of T2 time, ending
P-4: The relay closes after a delay of T1 time, and then opens after a delay of T2 time, cycling
P-5: Relay opens after a delay of T1 time, closes after a delay of T2 time, and cycles
Typical application: First delay the relay by 4.05 seconds before opening, then close it after a delay of 10 minutes, and set the time first after the end, T1=4 05 T2=0 1.0 Next, set the working mode P-3, and after 5 seconds of setting, it will automatically memorize and start running.

Package include:
Relay module * 1
