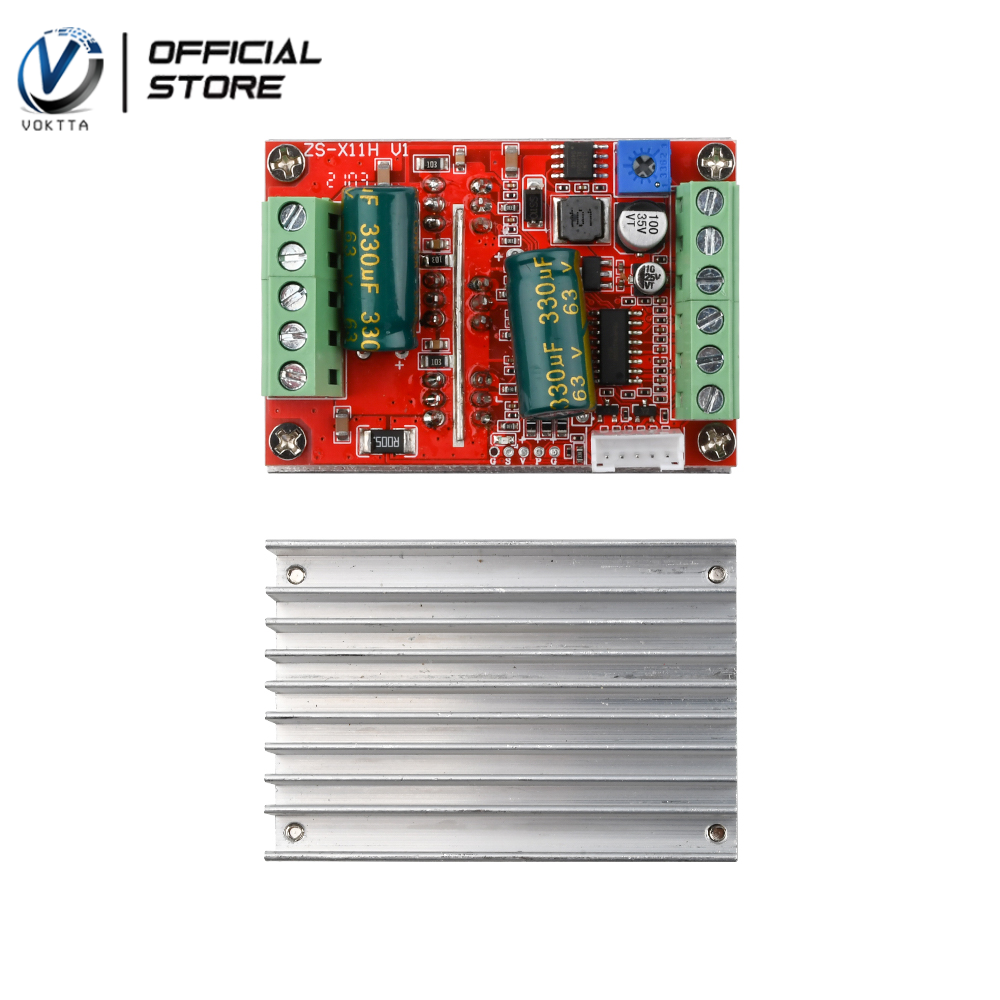

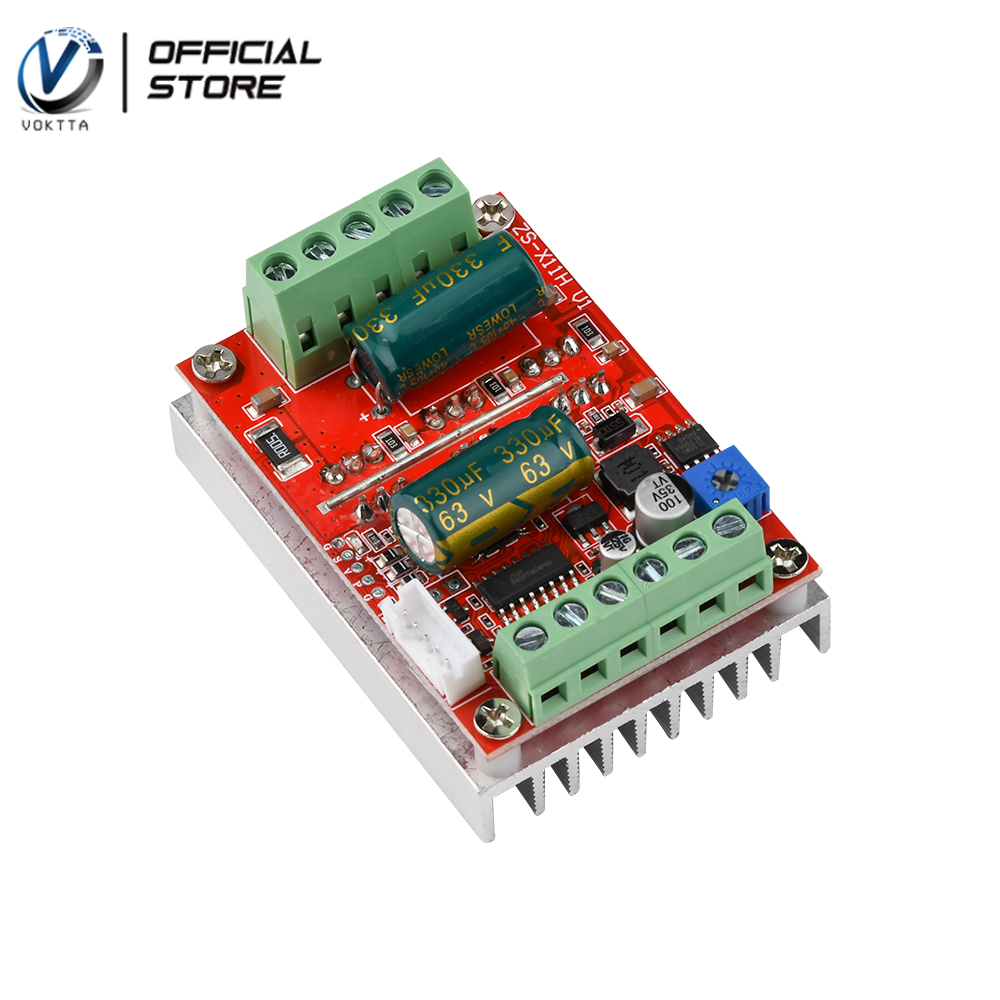

VOKTTA Bo Mạch Điều Khiển Động Cơ DC Không Chổi Than Hiệu Ứng Hall Ba Pha BLDC DC9-60V 400W

Note: This driver is a DC three-phase brushless control board, which requires the motor to have a Hall to work normally. This driver is only suitable for brushless DC Hall motors with an electrical angle of 120 degrees. Newly upgraded BLDC wide voltage 6-60V high power 400W DC three-phase brushless Hall controller, support PLC 0-5V analog control, support PWM control, amplitude 2.5-5V

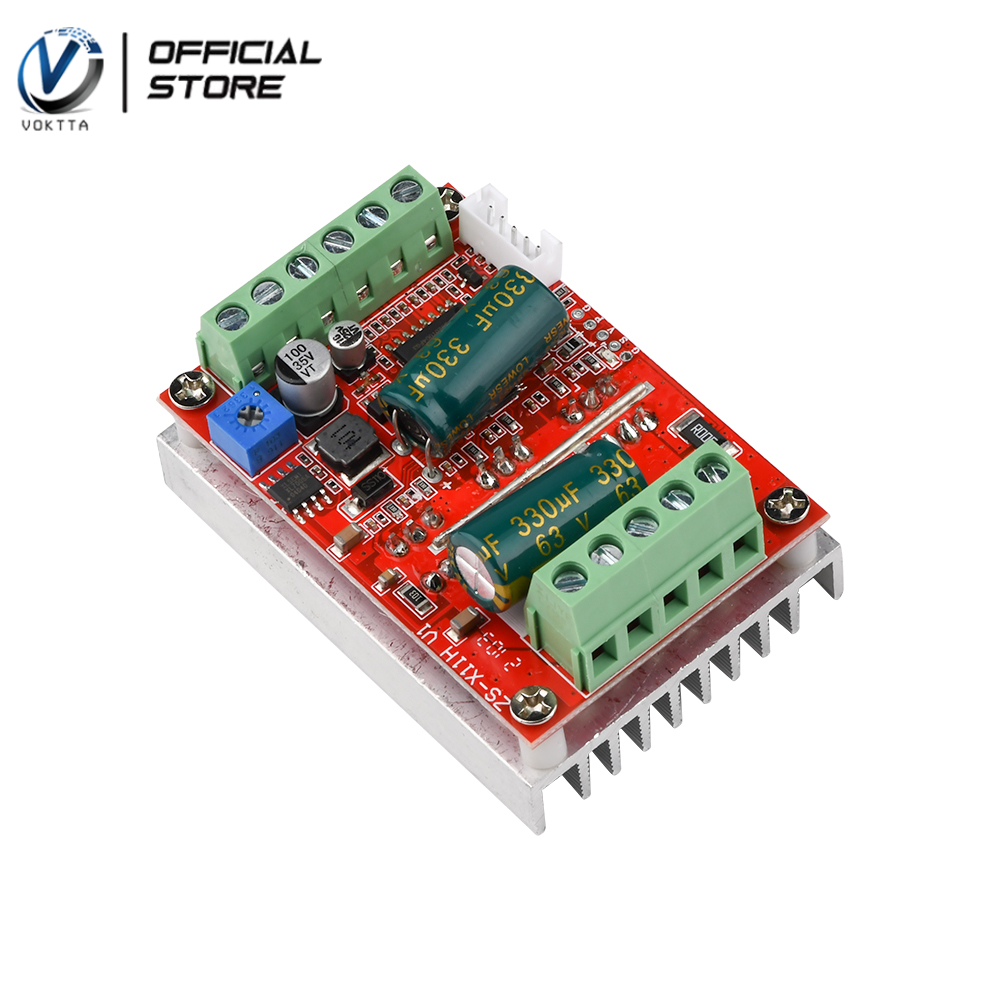

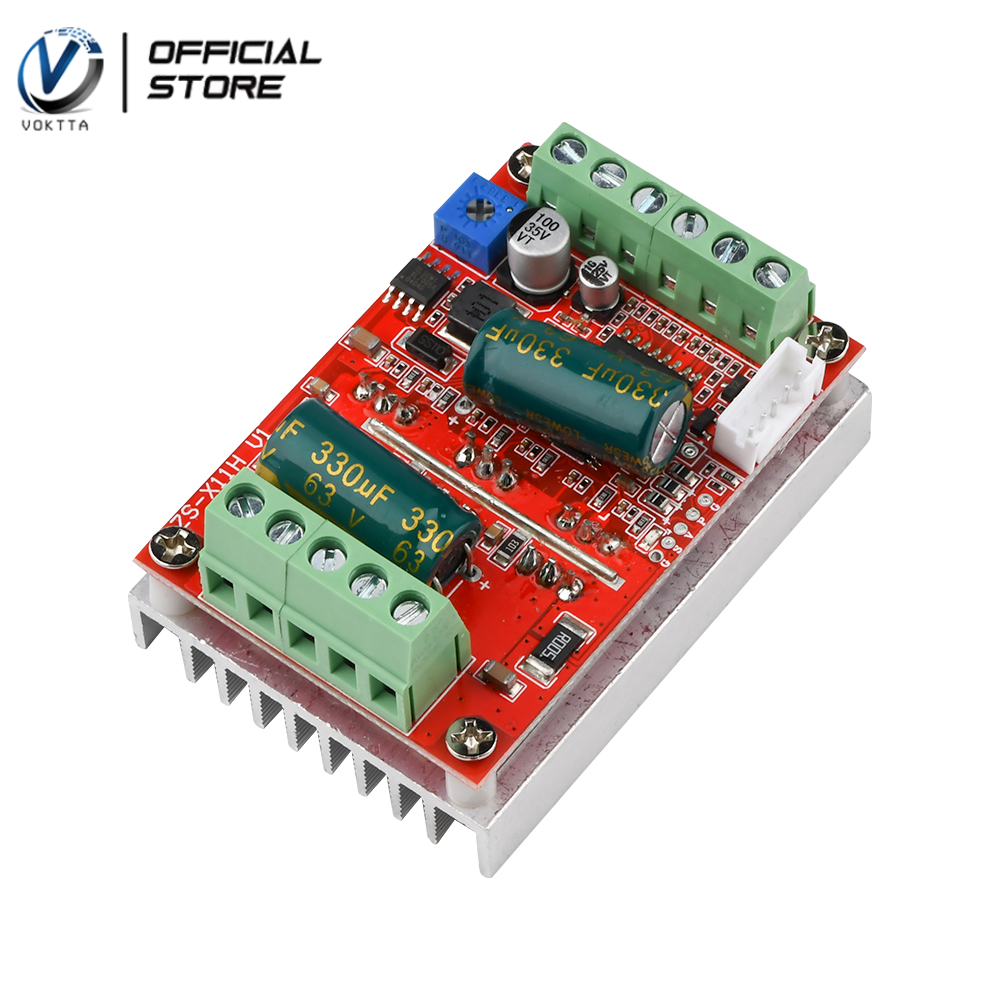

Motherboard Specifications:

Product Name: 400W Brushless Hall DC Motor Driver

Model: ZS-X11H V1

Working voltage: 6-60V

Maximum current: rated 16A peak 20A

Maximum power: 400W

Overcurrent protection: yes

Product size: length 63MM* width 45MM* height 31MM

Weight: about 77g

Precautions:

1. There is no fuse in the power supply circuit on the main board. Jianyi has added it himself. The reverse connection of the positive and negative poles of the power supply will cause permanent damage to some chips on the board (not for a few seconds at high current)

2. There is sampling overcurrent protection at the motor output during normal operation. Since the power and current of the module are very large, please do not artificially short-circuit the module when the module is not working normally. Once the short-circuit is likely to burn the line and burst the tube, test the machine for the first time. Please test with low current and low voltage. After it is ok, then pass high current and high voltage. Because it is a bare board module for sale, pay attention to the insulation of the wiring head. It is strictly forbidden for strong voltage to touch the parts on the board.

3. Do not connect motors that are obviously inconsistent with the voltage, current, and power of the drive module or are far from each other to avoid inexplicable "nonsensical" damage.

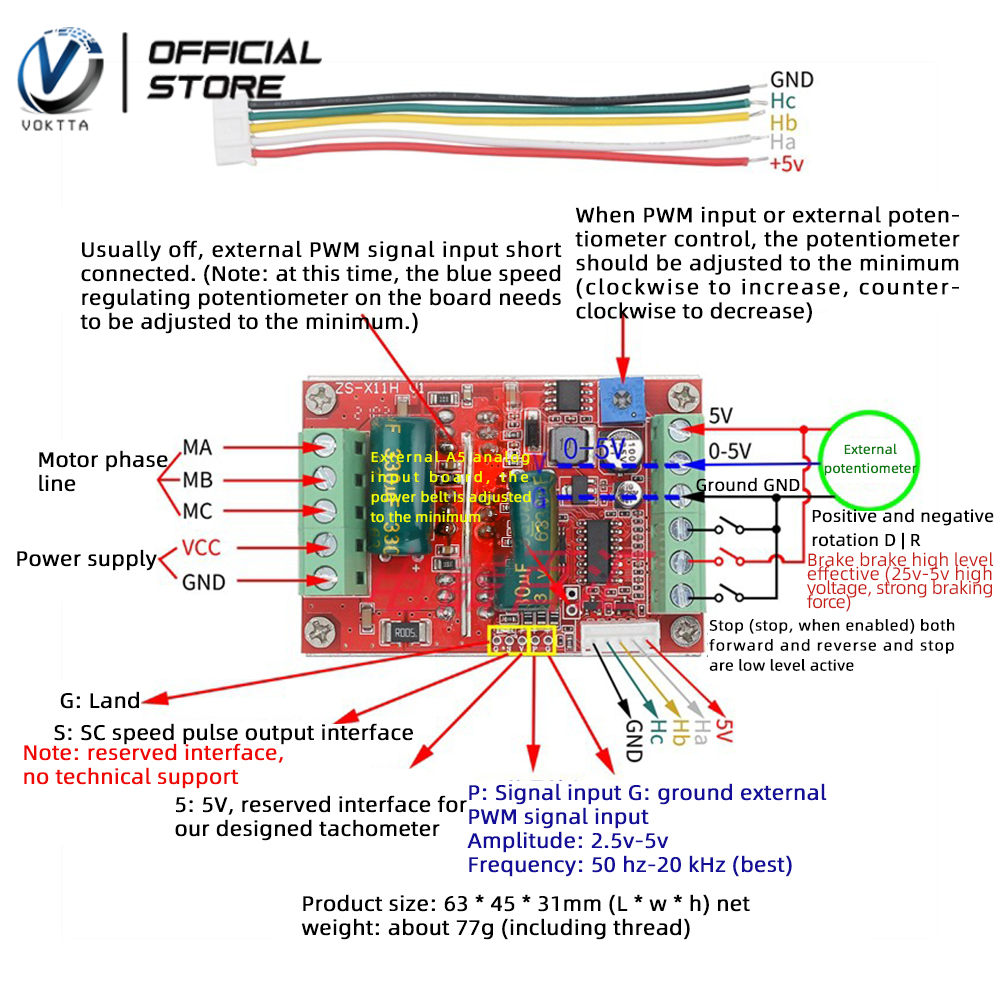

Special instructions for external signal input:

1. When the PWM signal is input from the PG 2 ports of the main board (the potentiometer on the board is adjusted to the minimum, and the short interface on the board is shorted as shown in the diagram above), the amplitude is 2.5-5V, and the frequency is 50HZ-20KHZ.

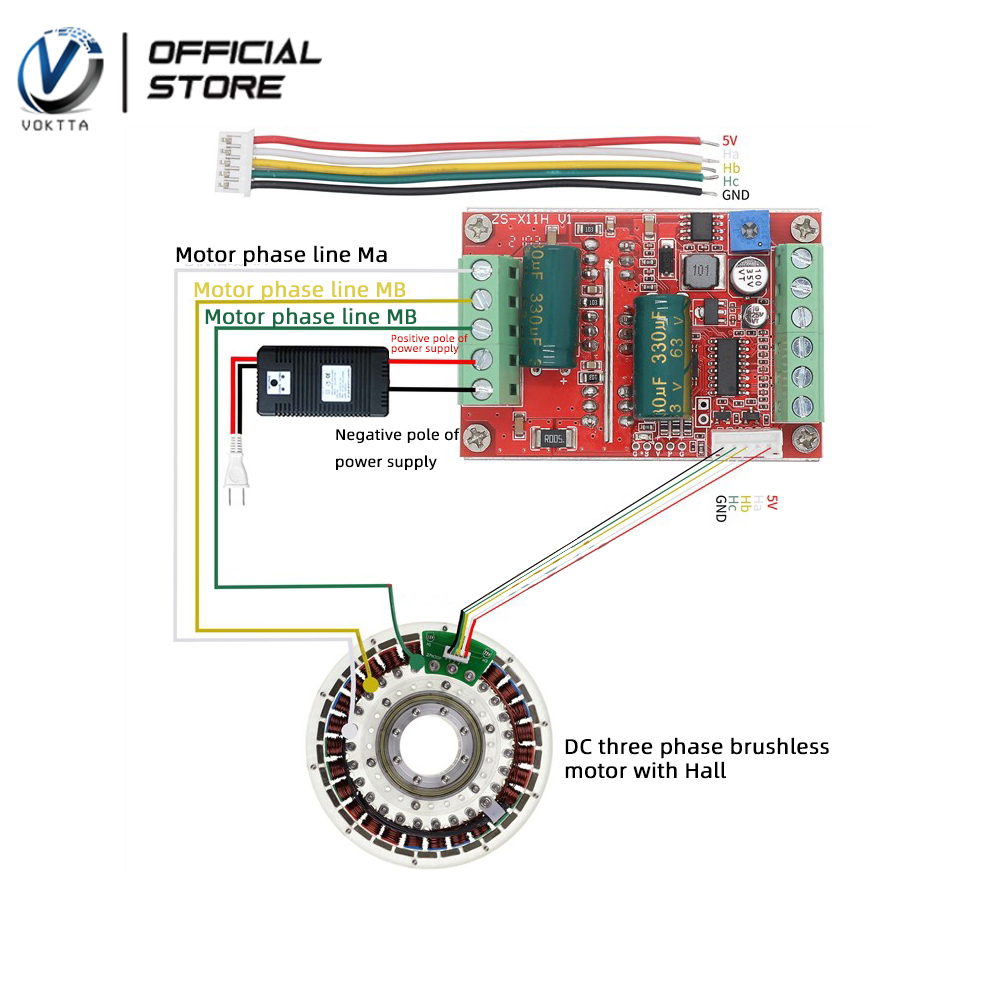

2. When the external analog 0-5V input is input, input from the 2 terminal ports of the main board (the potentiometer on the board is adjusted to the minimum, and the wiring is shown by the dotted line in the figure above)

3. When the external potentiometer is used to adjust the speed, the 3 terminals on the main board should be connected correspondingly (the potentiometer on the board is adjusted to the minimum, and the wiring is shown in the picture of the potentiometer)

4. The forward and reverse rotation and stop are grounded through a switch (0 potential). The low level is active, and the external MCU can also give a low level signal. The brake is connected to a switch and connected to 5V, which is active at high level. The front row of wiring terminals are all weak current signals directly input to the MCU main control, and cannot touch or touch high voltage and strong current.

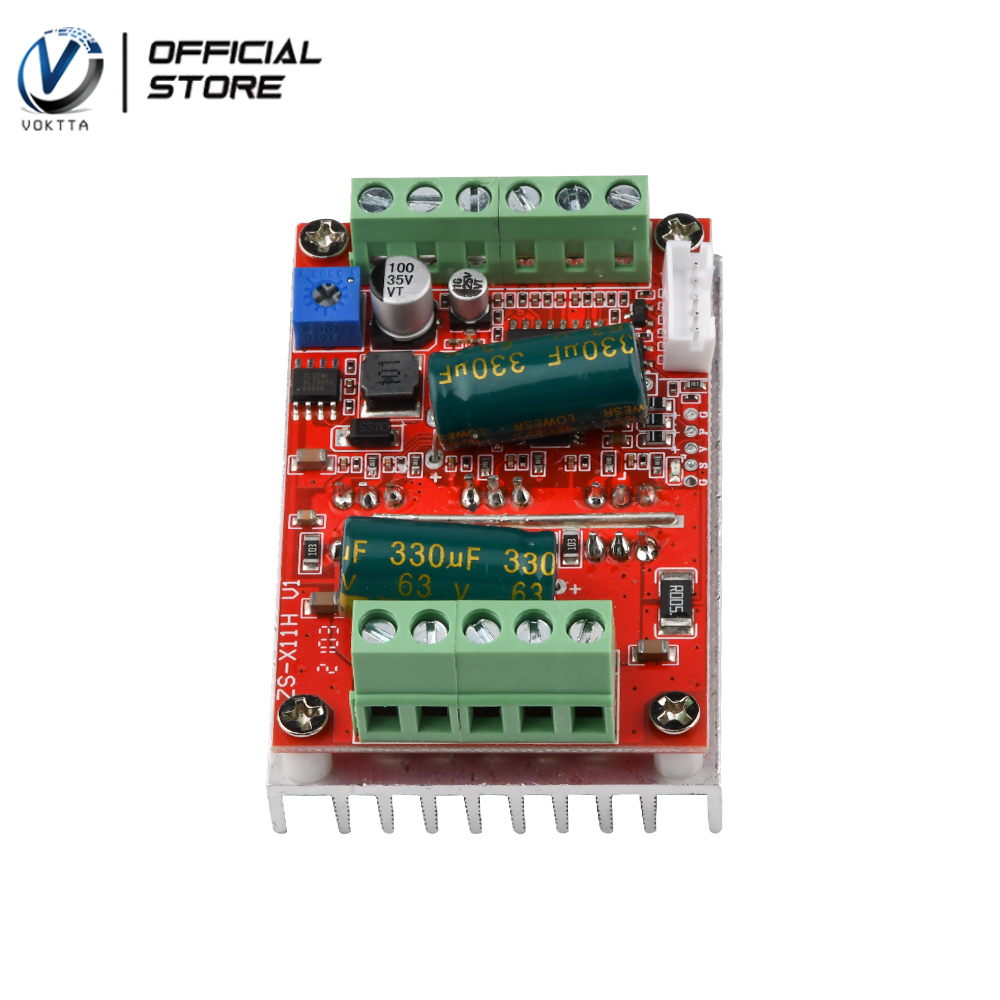

Interface Description:

1. MA MB MC phase line output is connected to the motor

2. 5V GND The motherboard comes with a 5V power supply (the external power supply current does not exceed 50MA)

3. VCC GND main power supply (external DC power supply)

4. SC speed pulse signal output (only the interface is left, no technical support)

5DIR direction control Forward and reverse control interface (active low level can be connected to the ground external switch)

6STOP stop stop control interface (active low level can be connected to the ground external switch)

7BRAKE brake control brake control interface (active high level can be connected to 5V external switch)

8. Speed ​​control and speed control signal input (integrated potentiometer speed control on the board can also be externally connected to 0-5V analog PWM dual-signal input speed control)

9.Ha Hb Hc +5V GND Hall signal power supply input interface, generally motors with Hall have corresponding 5 wires

SMD technology, stable performance after upgrading, with forward and reverse stop and brake function

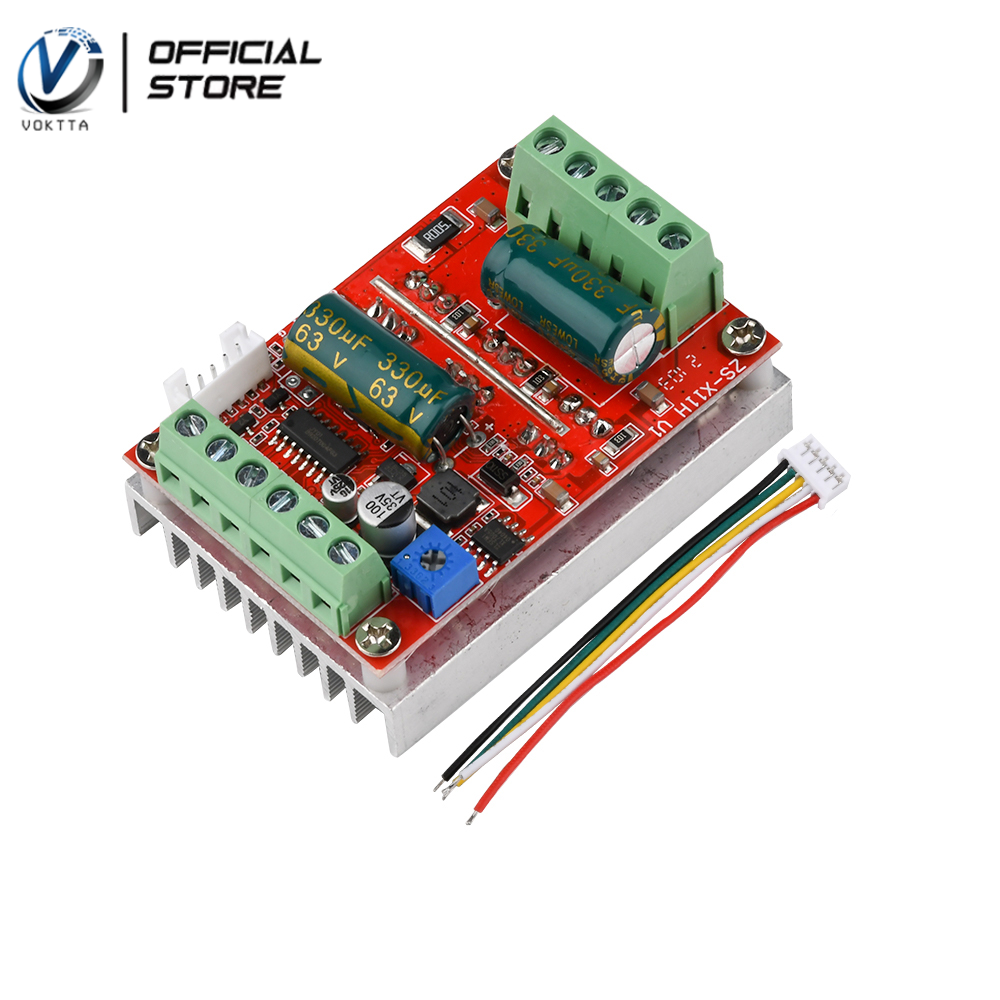

list

1*400W Brushless Hall DC Motor Driver
