VOKTTA Mô-đun Công Tắc Mạch Rơ Le Thời Gian Trễ Hiển Thị Kỹ Thuật Số LCD 5V-30V Công Tắc Độ Trễ Rơ Le Thời Gian Chu Kỳ Có Thể Điều Chỉnh Tự Làm

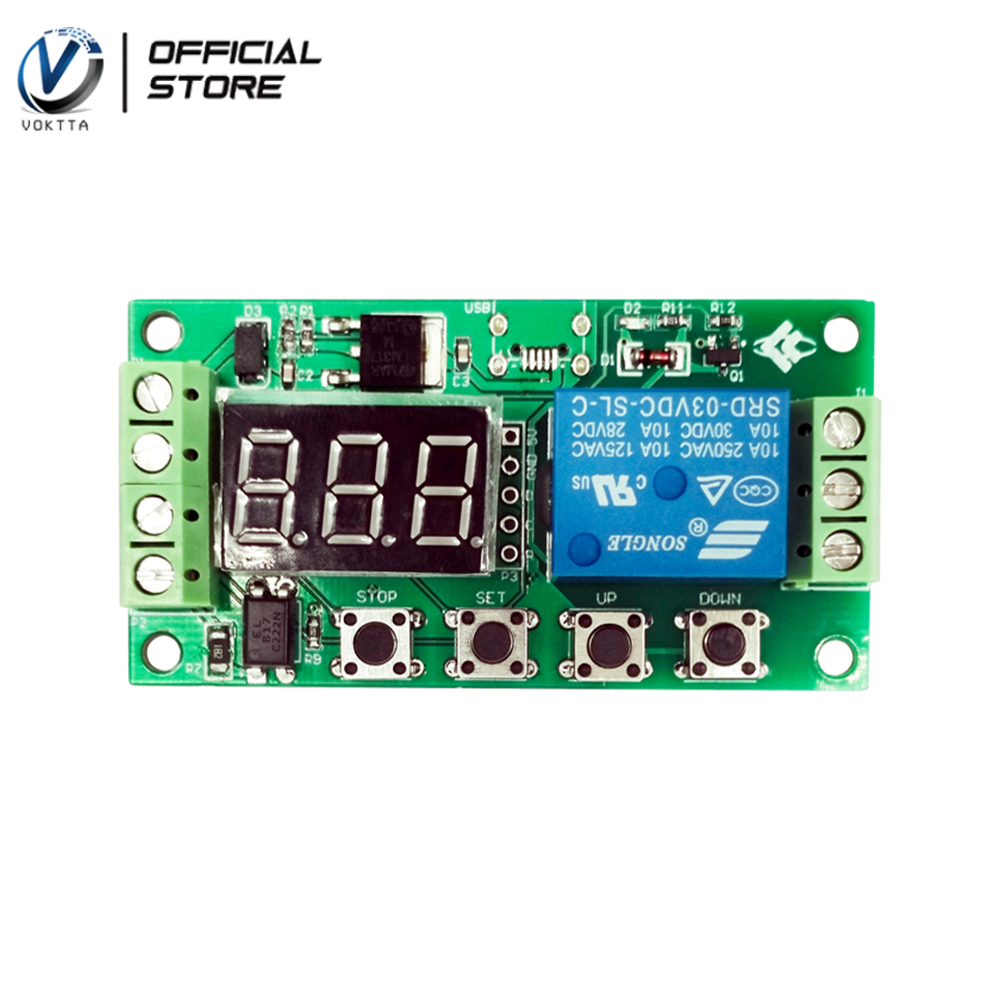

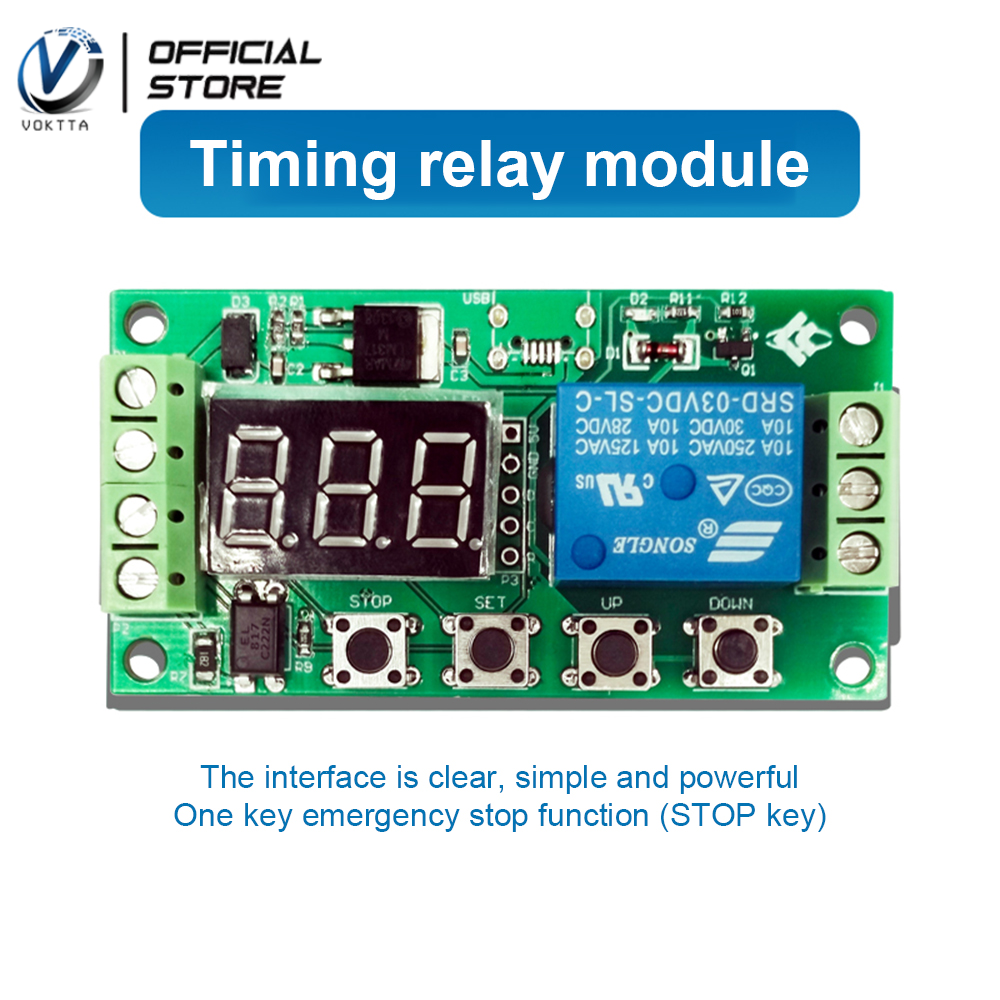

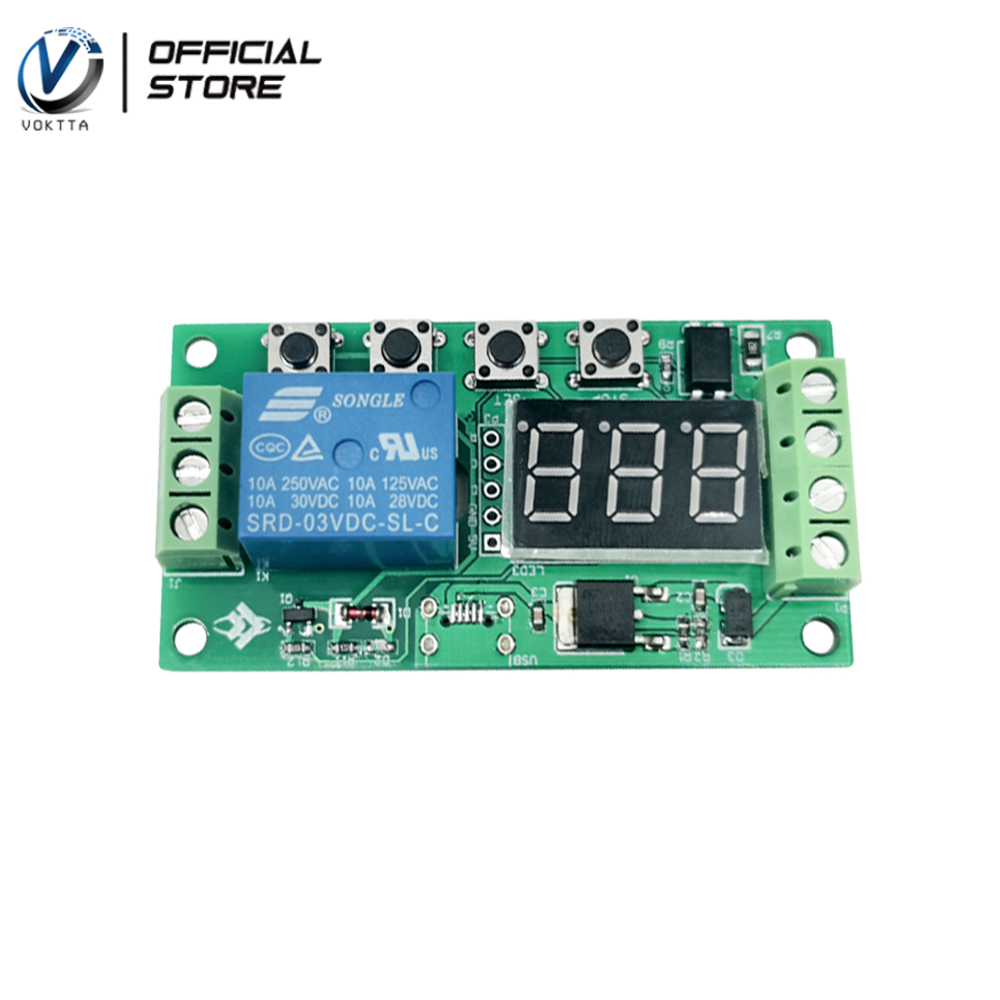

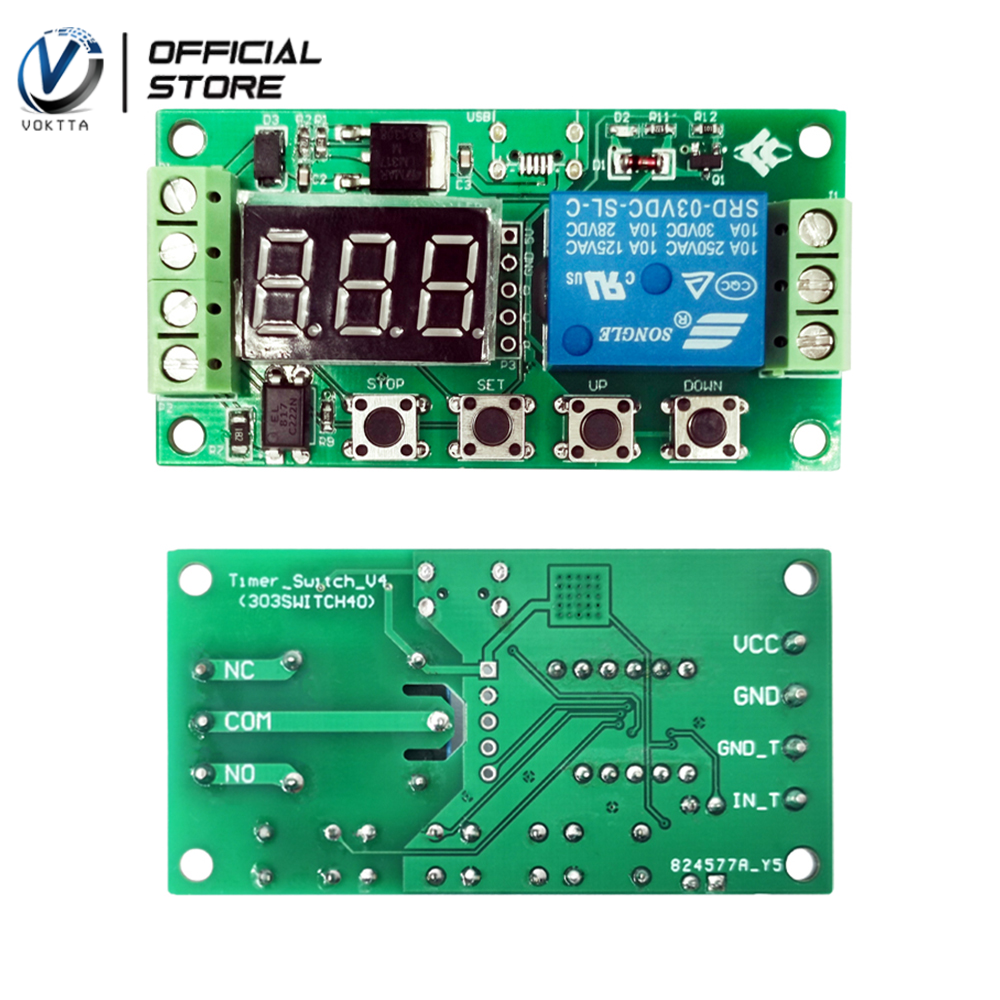

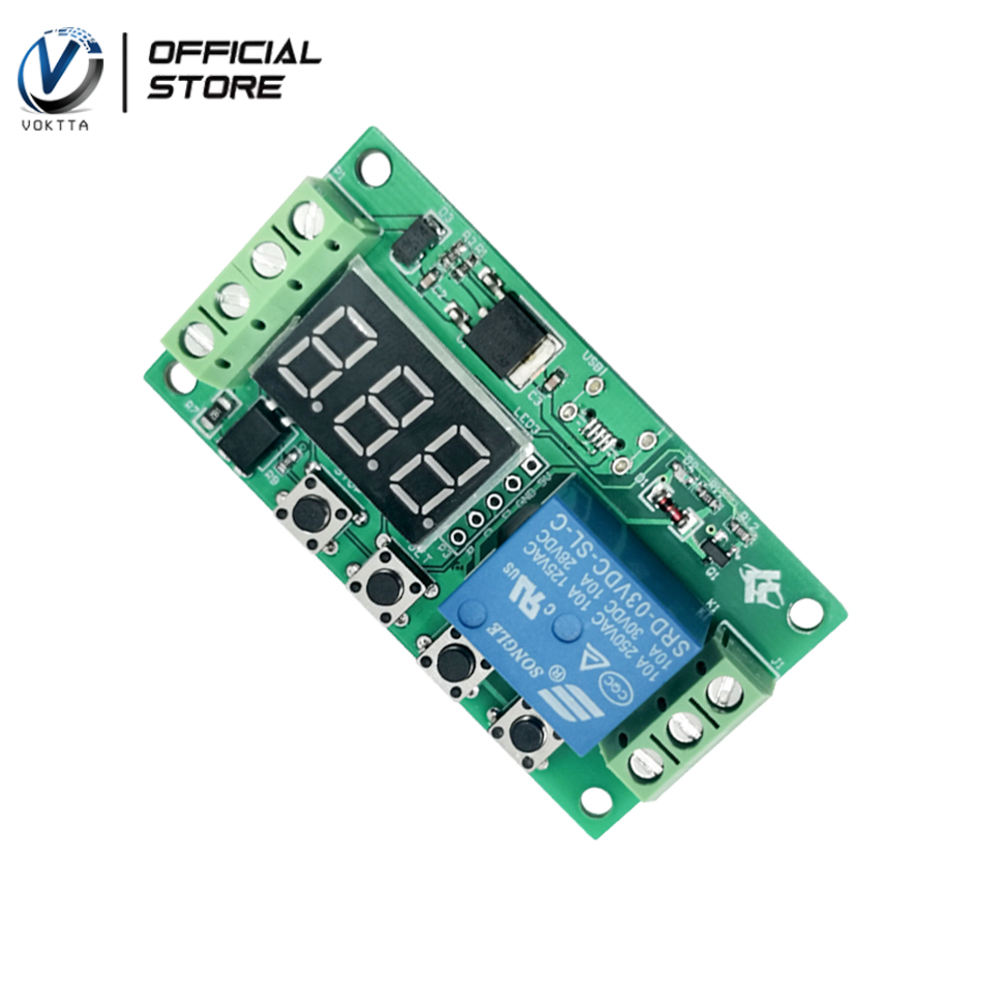

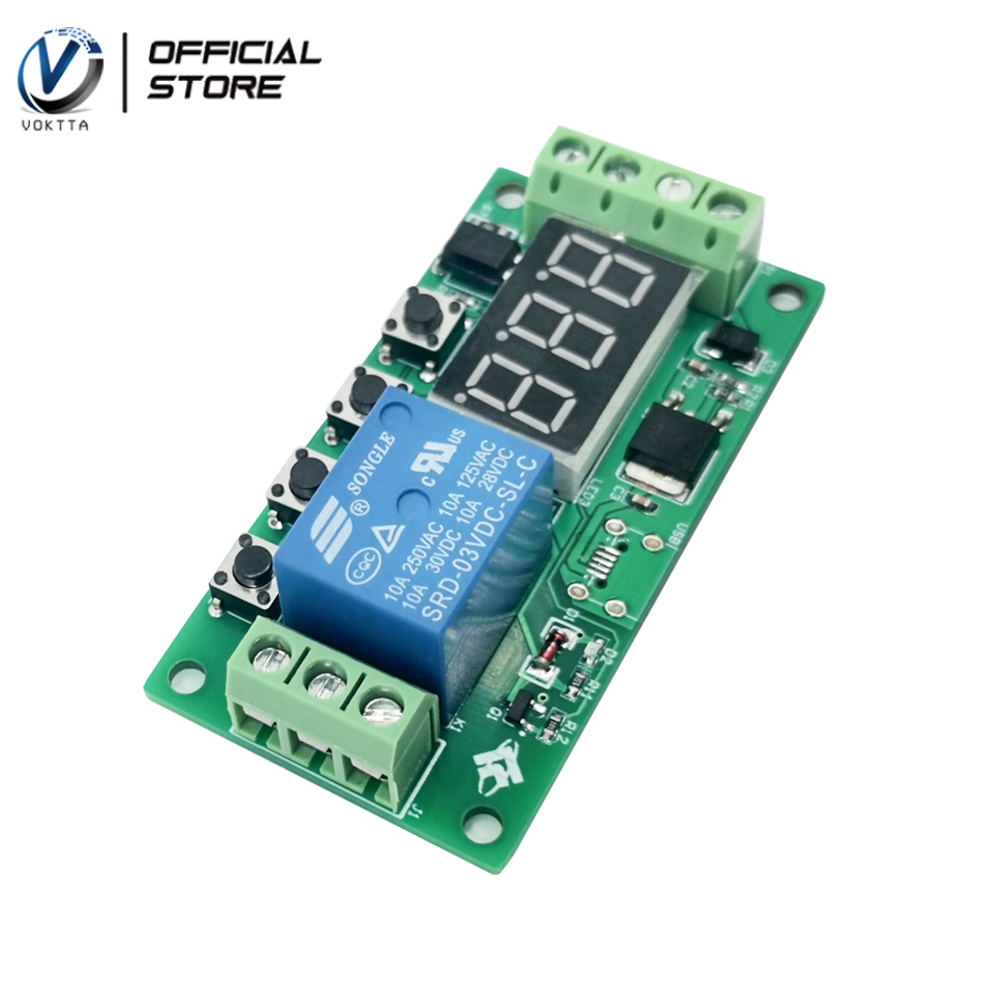

The time delay and timing relay module is equipped with a high-performance 8-bit microprocessor and an on-board 3-bit bright nixie tube, which can display the timing time in real time. The module can be used to control solenoid valves, motors, lamp strips, product aging tests and many other occasions.

Note: the voltage shall not exceed 20V as far as possible, because the linear voltage stabilizing efficiency is low, the pressure difference is large, the temperature will be high, and the poor heat dissipation may be bad.

Specifications:

1. Wide voltage power supply 5 ~ 30V;

2. The interface is clear and simple, powerful and easy to understand, which can meet almost all your needs;

3. It has one key emergency stop function (stop key), with reverse connection protection and reverse connection without burning;

4. Different OP, Cl and Lop parameters can be set. These parameters are independent and saved separately;

5. All setting parameters are automatically saved after power failure;

6. 0.1 second (small) ~ 999 minutes (large) continuously adjustable;

7. Board size: 65 * 34mm weight: 25g

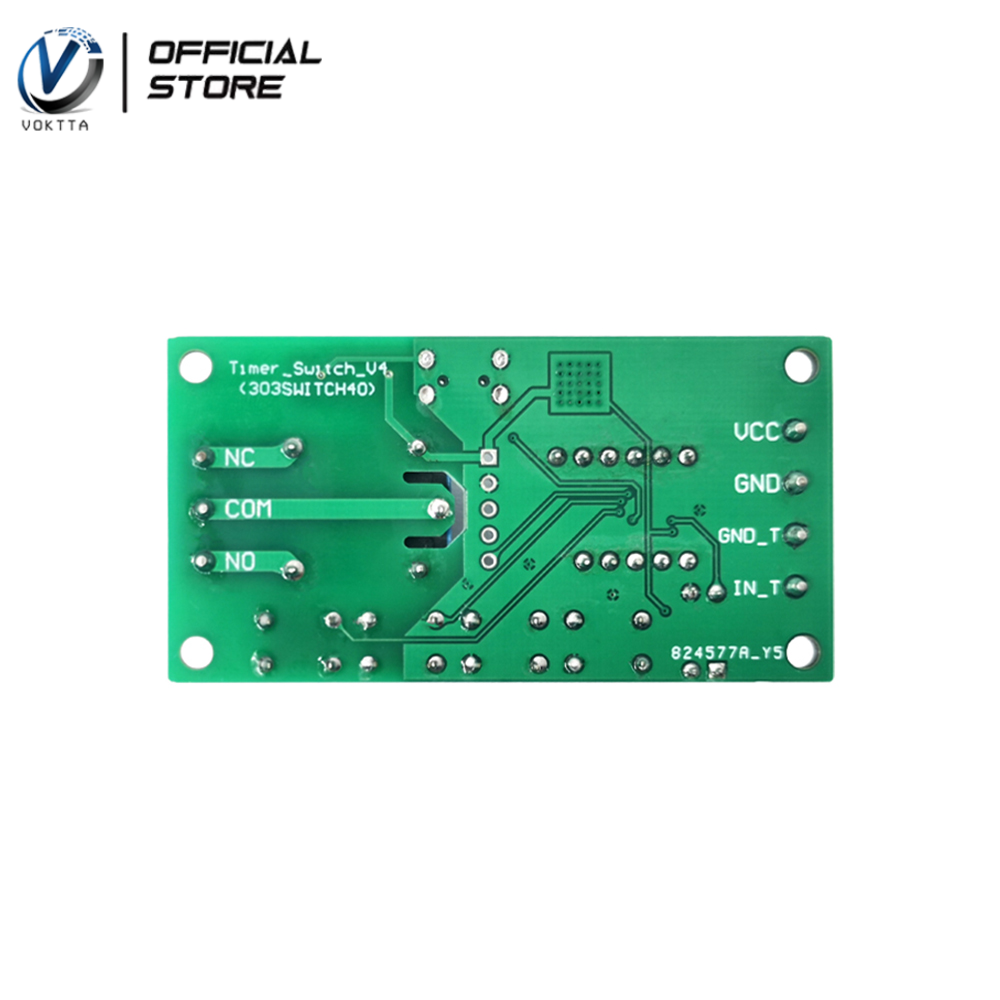

Instructions：

1. Working mode

P1: after the signal is triggered, the relay turns on for op time and then turns off; During OP time, operate as follows:

P1.1: signal re triggering is invalid;

P1.2: the signal triggers re timing again;

P1.3: the signal triggers reset again, the relay is disconnected and the timing is stopped;

P2.1: give the trigger signal. After the relay disconnects CL time, the relay turns on OP time. After the timing is completed, disconnect the relay;

P3.1: give a trigger signal, after the relay is on for op time, the relay disconnects for CL time, then cycle the above actions, give a signal again in the cycle, the relay disconnects and stops timing; The number of cycles (LOP) can be set;

P3.2: after power on, there is no need to trigger signal. The relay turns on OP time and the relay turns off CL time to cycle the above actions; The number of cycles (LOP) can be set;

P4.1: signal holding function if there is a trigger signal, the timing is cleared and the relay remains on; When the signal disappears, disconnect the relay after timing OP; During timing, if there is another signal, the timing will be cleared;

Detailed list:

1 * relay module
