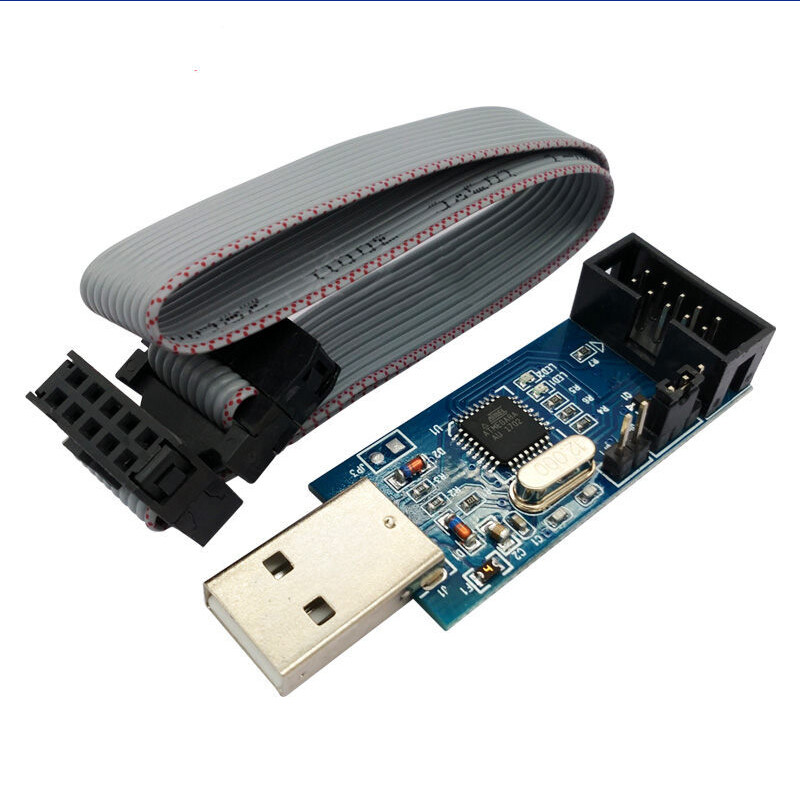

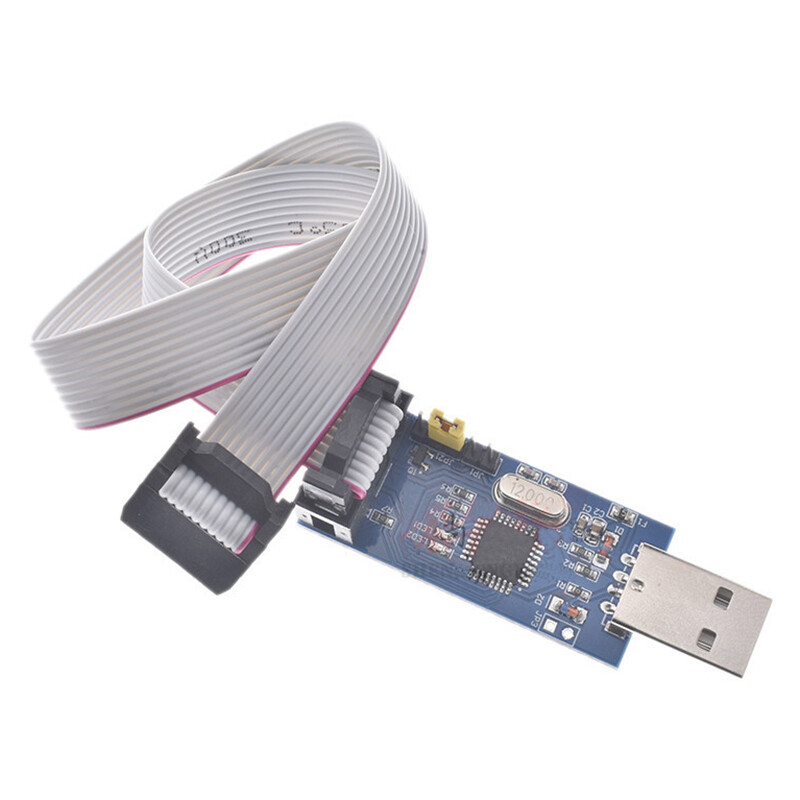

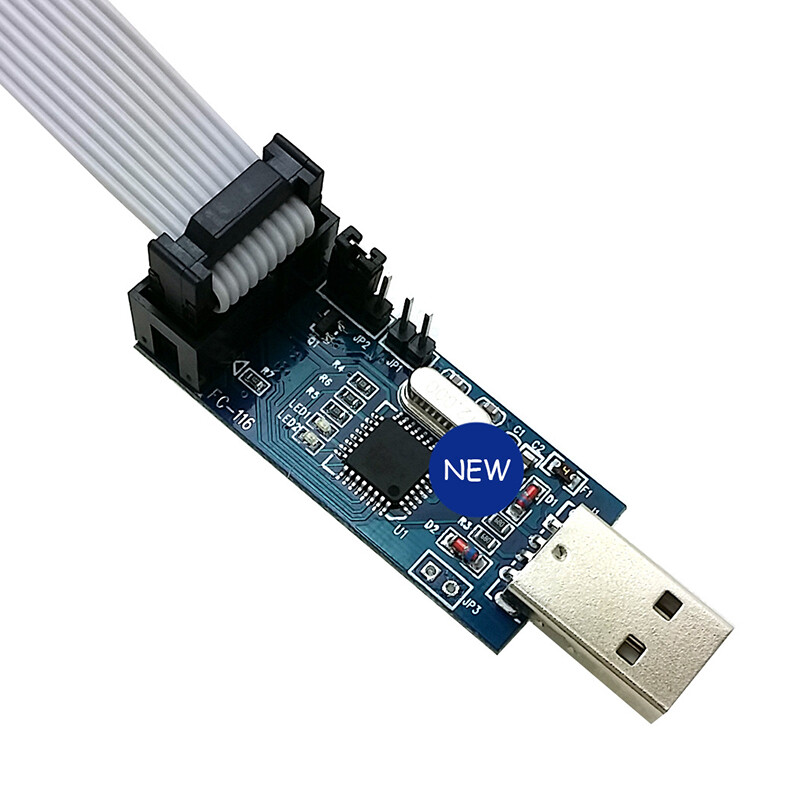

Usbasp USB ISP 3.3V / 5V Bộ lập trình AVR USB atmega8 atmega128 mới + 10pin dây hỗ trợ Win7 64bit

description:

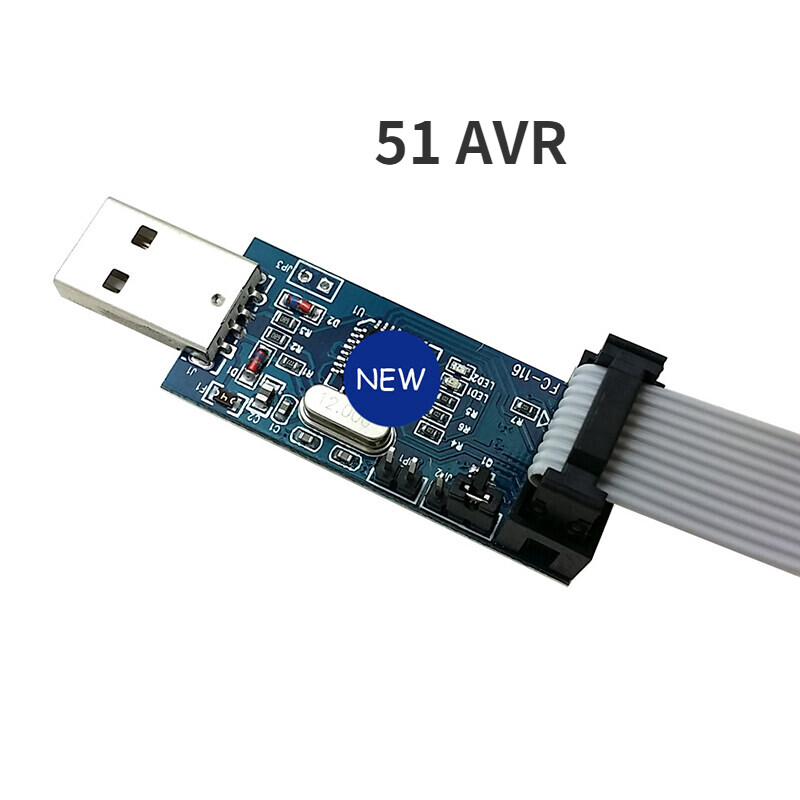

1. Onboard. The new YUAN is equipped with imported ATMega8A-AU chips
2. Two indicator lights with power supply and programming
3. Onboard 500mA overcurrent protection self-recovery fuse
4. Support 5V and 3.3V power supply for the target board

No need to install drivers
New and latest self-applicable automatic speed regulation.
Suitable for WIN8.1/8/7/XP 32-bit/64-bit, system computers.

This product can be directly connected to the computer USB port, a real USB downloader product, through which it is connected to the target board, can download and program the microcontroller, which is easy to use. It is especially suitable for notebook computers and desktop computers to download and debug through USB port programming.

Features of this downloader:
1. Support AT89S51/52 MCU
2. Support all ASP chips of AVR.
3. The output port is ATMEL standard port.
4. There is a USB power supply and the target board supports a target voltage of 5V, which can be selected through the jumper cap connection.
5. AUTOSPEED can automatically adjust the speed of the firmware, the downloader will automatically track the chip frequency to be programmed, and automatically change the speed to achieve automatic speed adjustment.
6. Reserve MOSI, MISO, RET, SCK, VCC, GND. 6PIN interface, convenient for users to connect to the target board as needed.
7. The PROGRAMMING programming interface is reserved, and users can upgrade the downloader firmware by themselves.

Programming software: AVR_fighter, PROGISP1.66, PROGISP1.67, PROGISP1.68 can compile lower or higher software, and burn the film in one go, which is very convenient.

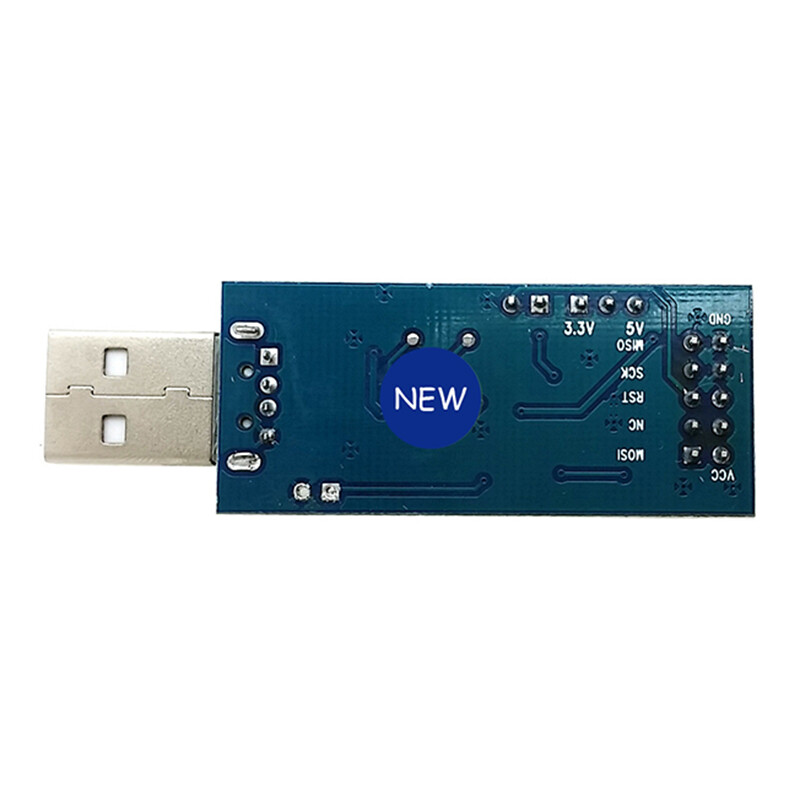

Interface definition:
JTAG interface
AT89S51 and S52 series pin and download line corresponding connection definition:
MOSI——>P1.5
MISO——>P1.6
SCK——>P1.7
/RES——>RST
GND——>GND
5V——>VCC

Chips that support programming:
51 series
AT89S51AT89S52AT89S53 AT89S8253 AT89S2051 AT89S8252 AT89S4051

AVR series
AT90can128 AT90can32 AT90can64, AT90pwm2, AT90pwm3, AT90s1200, AT90s2313, AT90s2323, AT90s2343, AT90s4414, AT90S8515, AT90S8535 AT90usb1286, AT90usb1287

Atmega103, Atmega128, Atmega1280, Atmega1281, Atmega16, Atmega161, Atmega162, Atmega163, Atmega164, Atmega165, Atmega168, Atmega169, Atmega2560, Atmega2561, Atmega32, Atmega323, Atmega324, Atmega325, Atmega3250, Atmega3259, Atmega328, Atmega329, Atmega3290, Atmega48 Atmega64, Atmega640, Atmega644, Atmega645, Atmega6450, Atmega649, Atmega6490, Atmega8, Atmega8515, Atmega8535, Atmega88,

Attiny11,Attiny12,Attiny13,Attiny15,Attiny22,Attiny2313,Attiny24,
Attiny25,Attiny26,Attiny261, Attiny28,Attiny44, Attiny45,Attiny46,
Attiny46,1Attiny84,Attiny85,Attiny861
