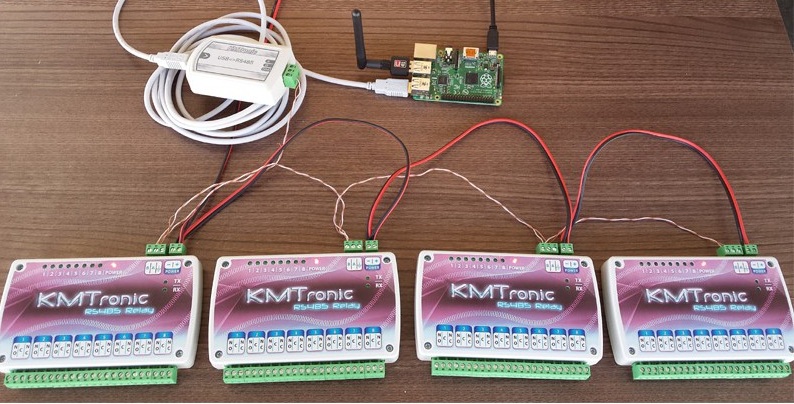

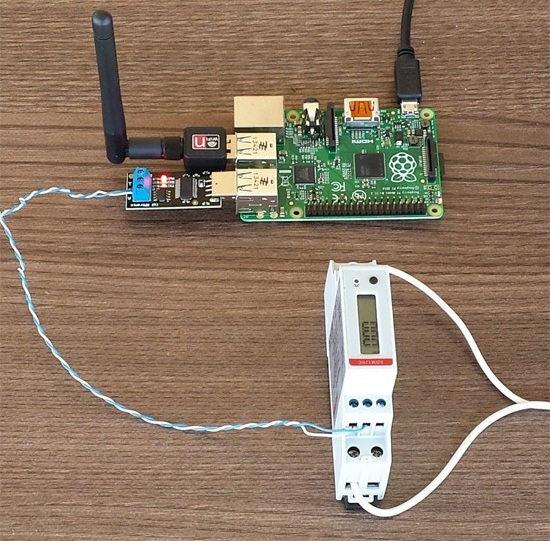

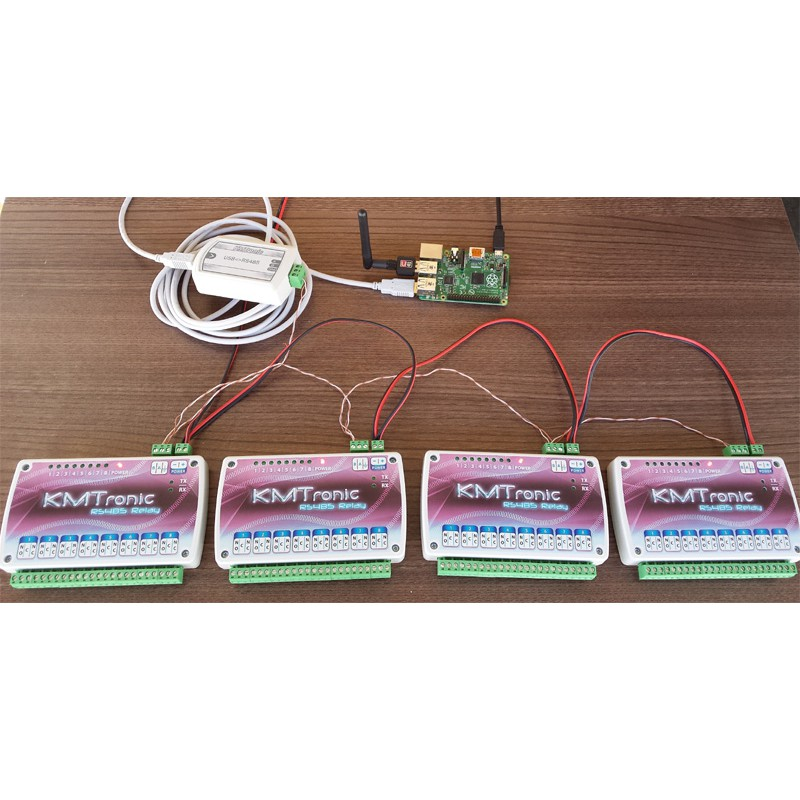

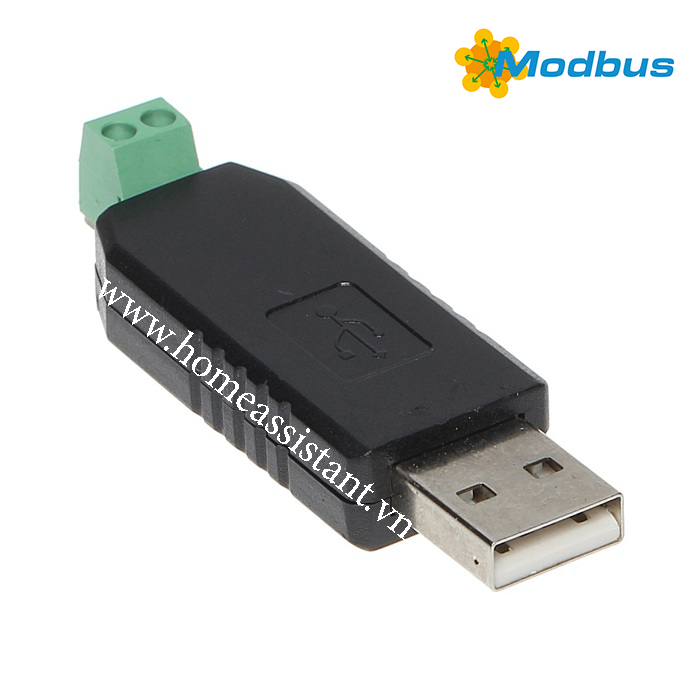

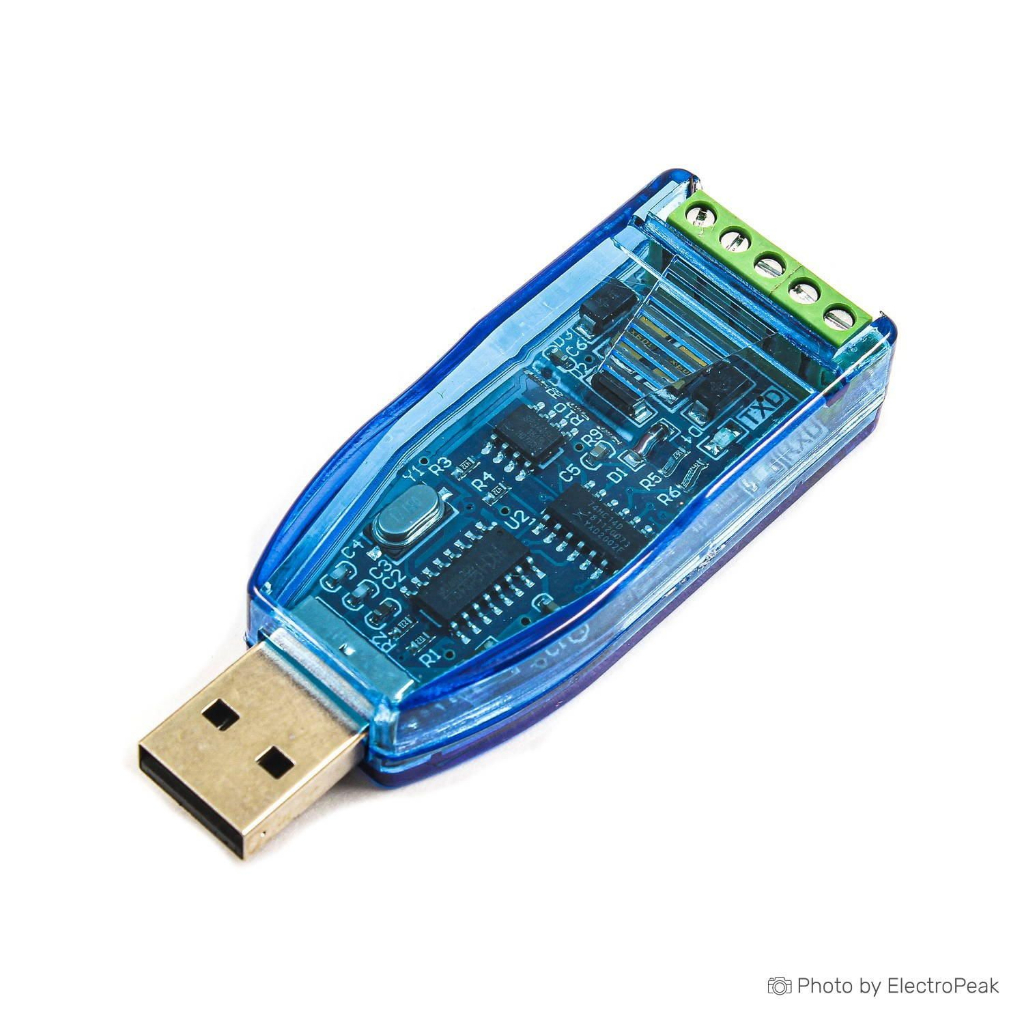

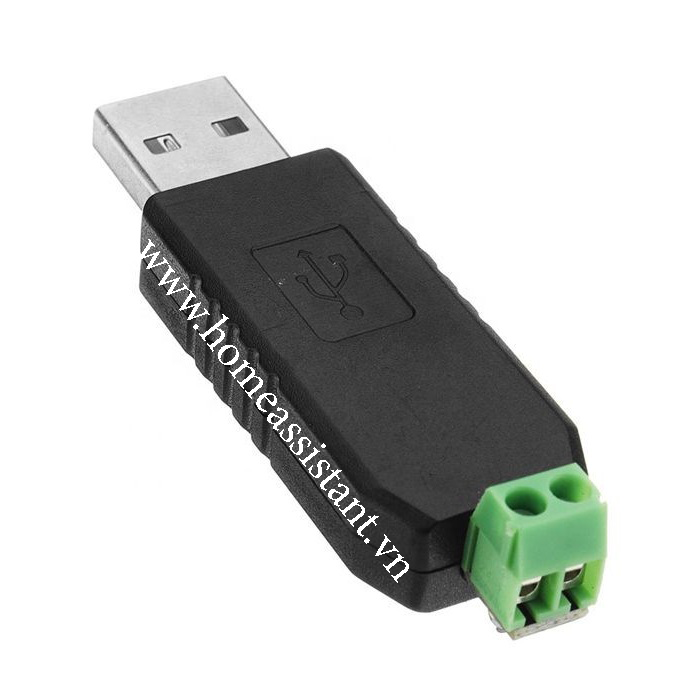

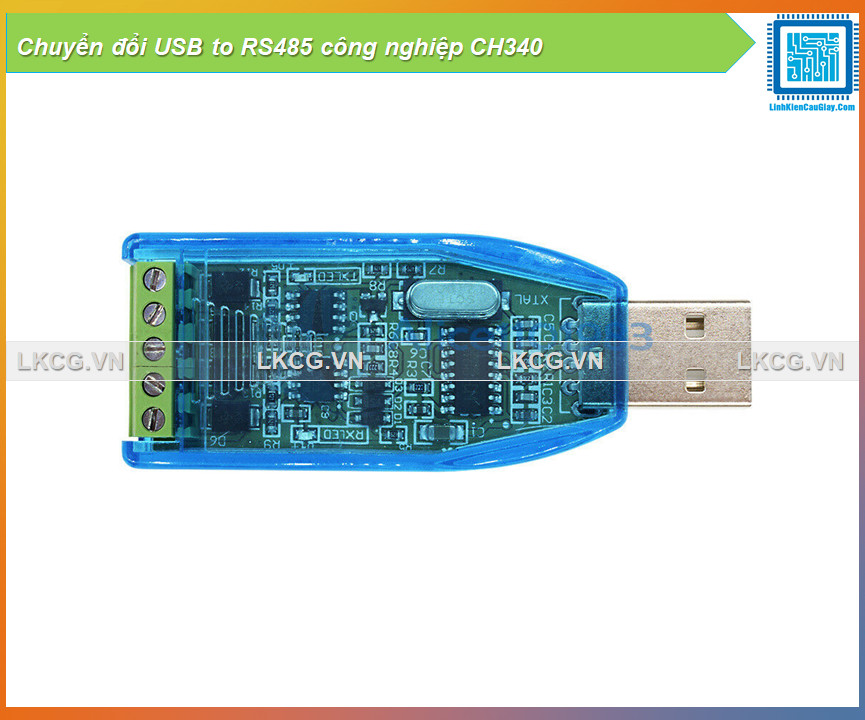

USB to RS485 converter device using CH340 chip is used to connect control and monitor smart devices using Modbus standard on RS485 transmission line. Just plug the USB end of the device into the Raspberry Pi, the other end connects to RS485 communication smart devices via twisted pair cable (up to 32 devices). A PC can be used to communicate and collect data from standard Modbus-RTU RS485 smart devices. Integrated into the smart home system Home Assistant (HASS) controls I/O devices on/off, monitors and collects data from remote sensors, monitors electronic meters, manages via phone anywhere there is a network. The circuit supports the connection of multiple RS485 points (maximum 32 devices) on twisted pair lines with a distance of up to 1.2km, the circuit is designed so that the points can be "hot" without fear of the module dying. without disconnecting the total transmission line.
