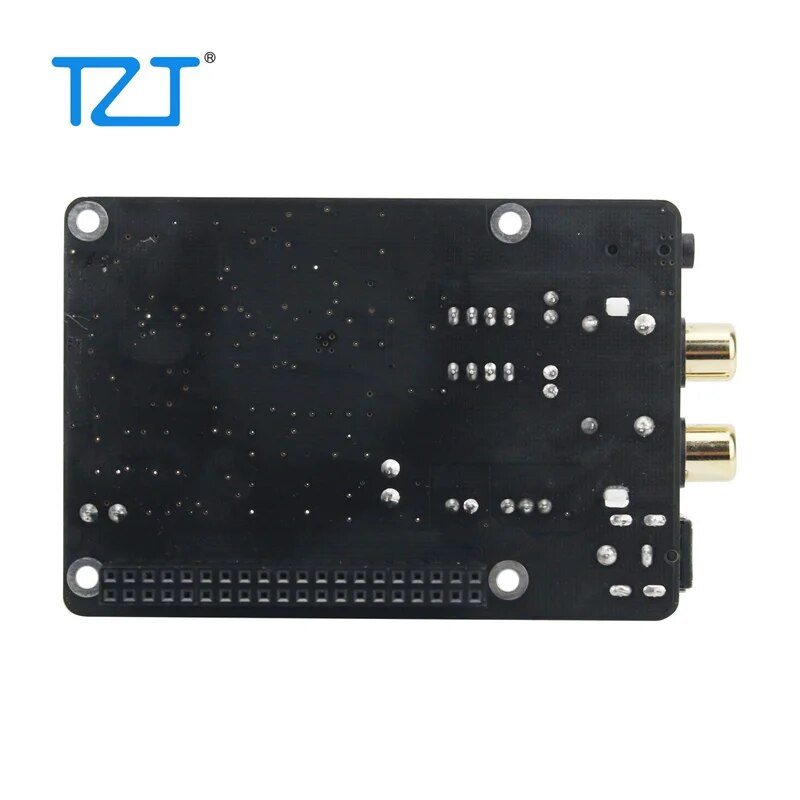

Tzt ustars âm thanh R28 âm thanh kỹ thuật số Bảng Giải mã DAC Board IIS Hifi 384k dsd256 cho Raspberry Pi

• Model Number:Ustars Audio R28
• Compatible Audio & Video Equipment Style:Digital-to-Analog Converter (DAC)
• Type:AUDIO
• Origin:Mainland
• Certification:NONE
• S:73304

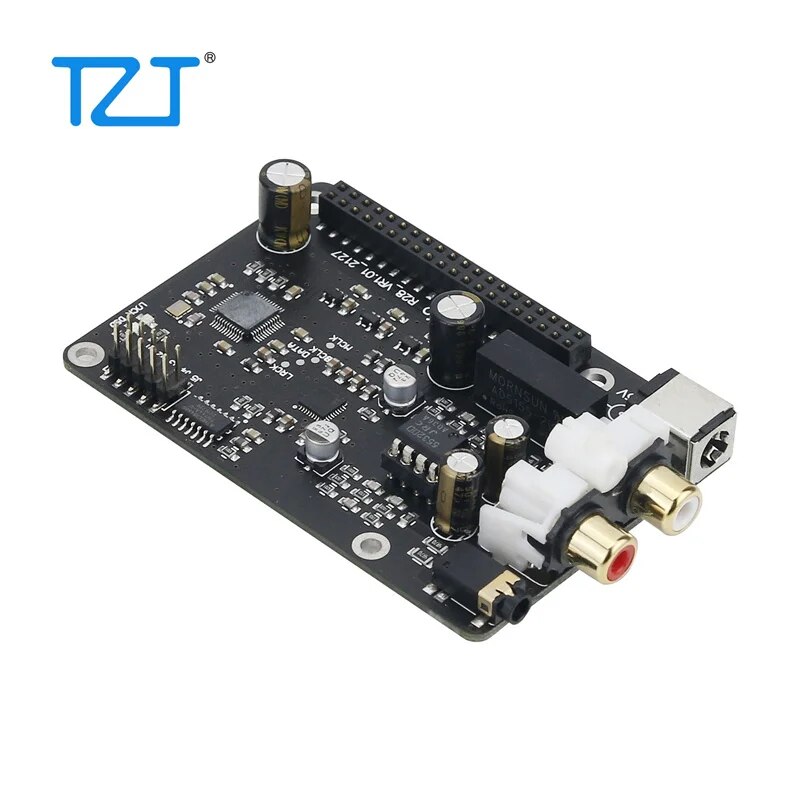

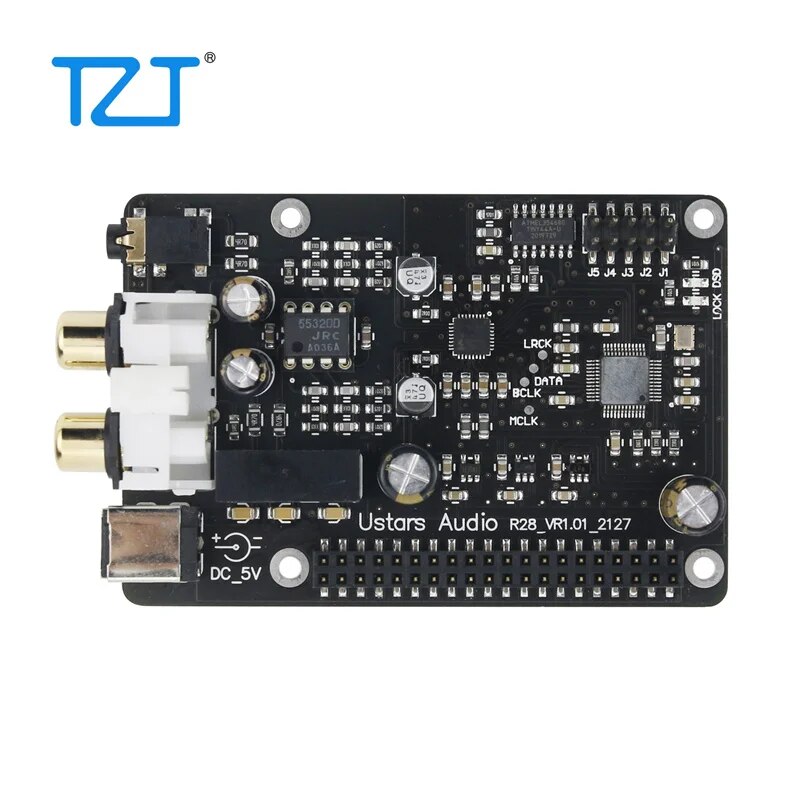

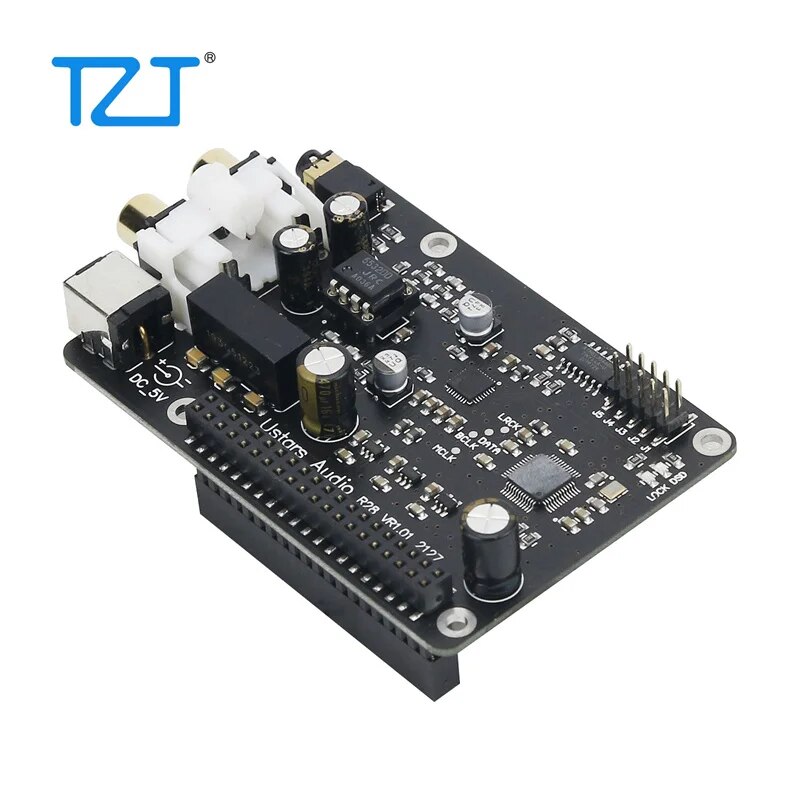

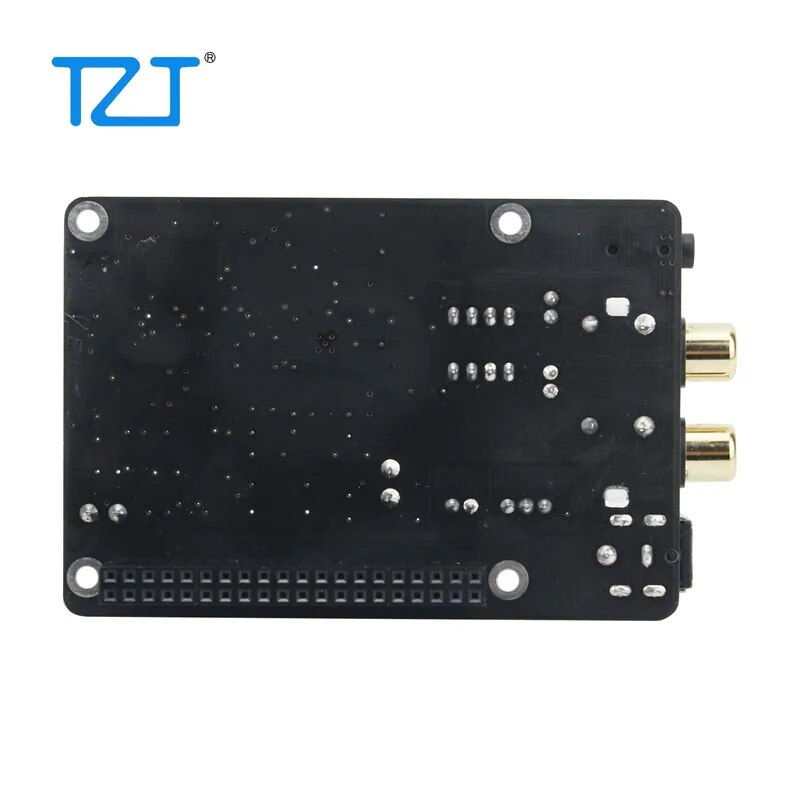

TZT Ustars Audio R28 Digital Audio Decoder Board DAC Board IIS HIFI 384K DSD256 For Raspberry Pi

Read Before Purchasing:
- Hands-on ability and basic knowledge are needed for product installation and using.
- Only fits users for Raspberry Pi and related player software Volumio and Moode.

Features:
1. Professional IIS digital processing solution, support 384K/DSD256

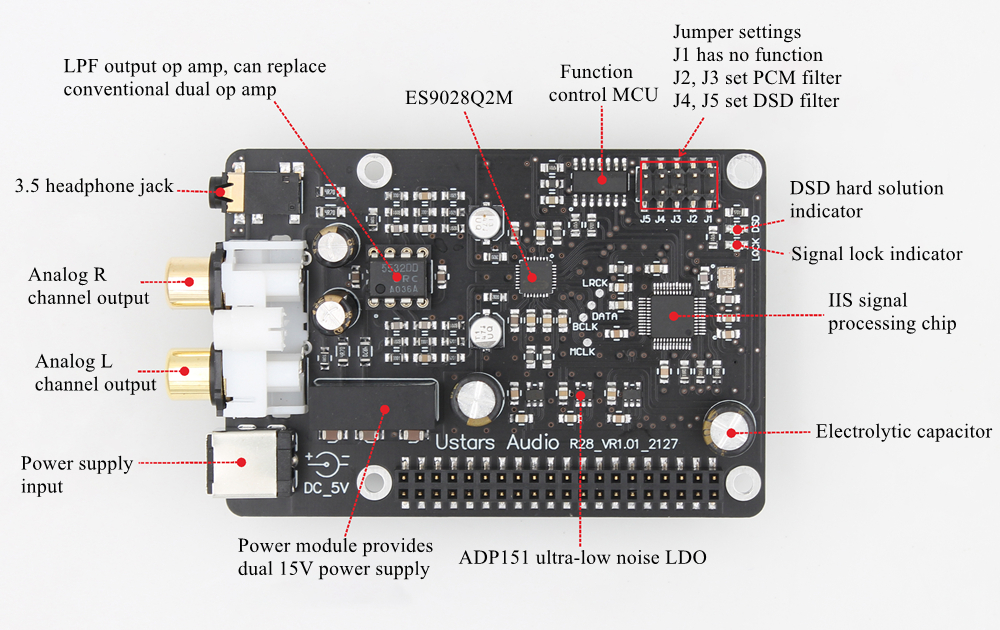

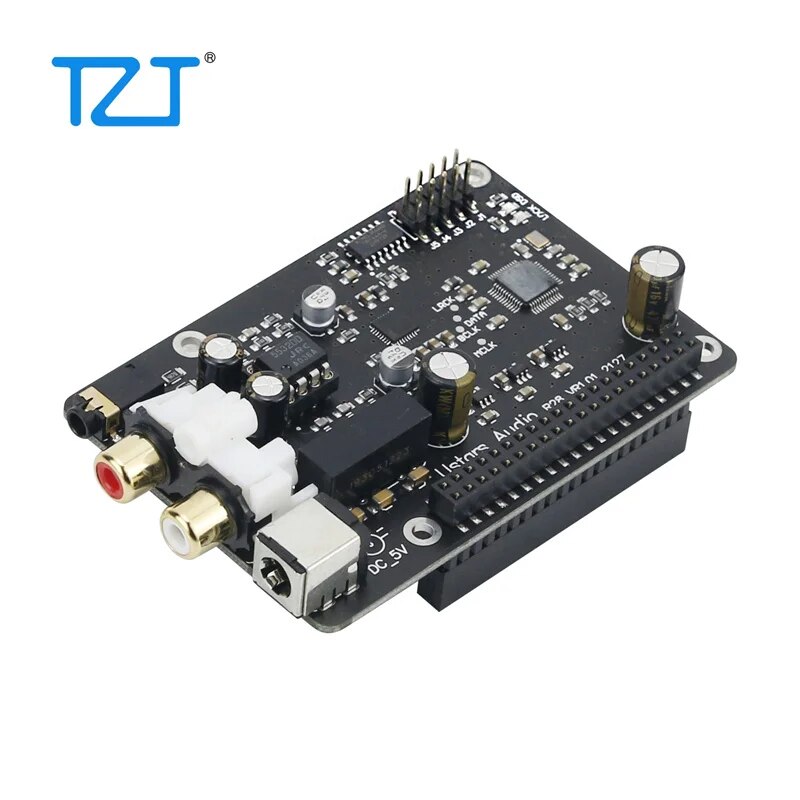

2. Using an ES9028Q2M audiophile decoder chip
3. ES9028 works in synchronous mode and the sound is more durable and delicate
4. Board for Raspberry Pi plays music through the IIS mode, the listening experience is smooth, real and natural
5. Use the general version for VOLUMIO, MoodeAudio. The official version for VOLUMIO can support 44.1-192KHZ, DSD64-DSD128 original code hard decoding. The official version for MoodeAudio can support 44.1-384KHZ, DSD64-DSD128 original code hard decoding
6. No need to set output resampling, just turn off by default, truly original code lossless output
7. The LPF output adopts dual power supply plus op amp mode, equipped with JRC5532 op amp, which can be replaced by a suitable conventional dual op amp. The power supply is plus or minus 15 volts, which effectively exerts the potential of the operational amplifier, which is better than low- or single-supply power supply solutions

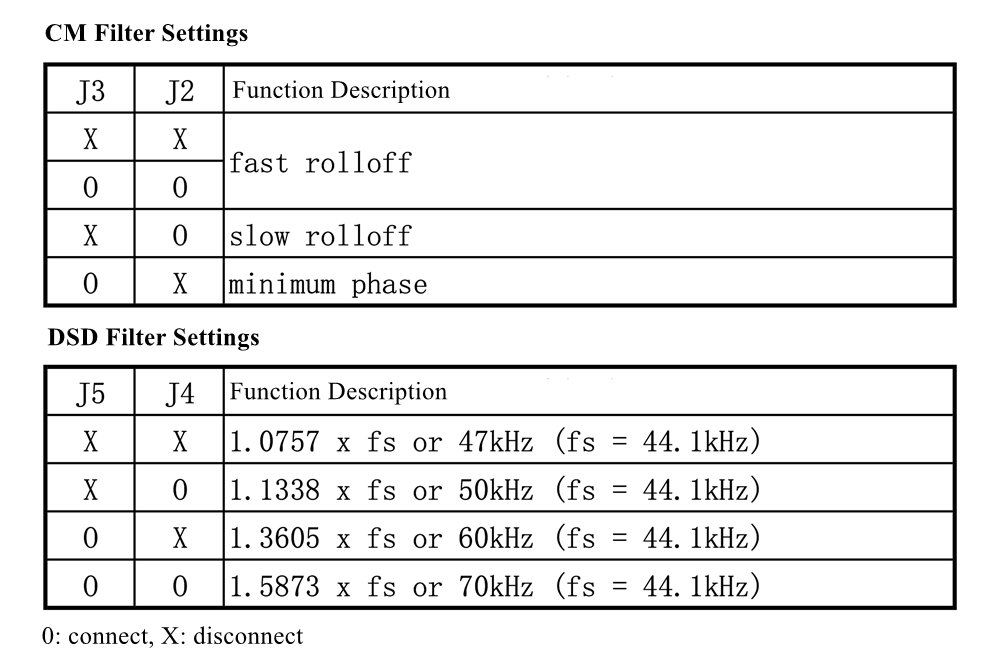

8. Through the combination of jumpers, 4 sets of DSD digital filter coefficients and 3 sets of PCM digital filter coefficients can be set, and you can
experience a variety of different sounds on one board

Parameters:
Analog Output:
- DAC decoding chip: ES9028Q2M. PCM 44.1KHz-384KHz/32Bit, DSD DSD64/128/256 (hard decoding)
- Two-channel RCA output: 2.1Vrms/-0dB
- 3.5 Earphone holder: 2.1Vrms/-0dB
- Attention: Both the headphone holder and the RCA holder are connected to the LPF output. The 3.5 headphone jack is connected to most
headphones and can produce sound. The decoder board itself does not have an amp circuit, if buyers want to connect their headphones to use, they need to equip suitable headphone amplifier to get better drive effect)

Parameter Test Description:
For Raspberry Pi 4B (version 1.2) to install the optimized version for MoodeAudio640. The output setting is: Audiophonics ES9028/9038 DAC,
measured when playing music files on the USB flash drive, there will be differences under other conditions, for example: for MoodeAudio7.01 can
support PCM384KHz /DSD128.

Powered by:
The 5V power supply of the board is directly connected to the 40P inter of the board for Raspberry Pi. There are two ways to supply power as
follows:
a. Directly use micro_usb to power the board for Raspberry Pi, and power the decoder board from the 40P inter of the board for Raspberry Pi
b. Power is supplied from the DC socket input inter of the decoder board, and the decoder board supplies power to the board for Raspberry Pi through the 40P interAttention: Only one of the two power supply methods can be used at the same time, and the two cannot be used at the same time, otherwise it will cause damage to the board, the board for Raspberry Pi or the power supply.

Board Power Supply Inter Input Specifications:
- Power supply : DC stabilized +5V, range: ±5%
- Power inter specifications: 5.5/2.1, inner positive, outer negative
- Suggested power supply : ≥2000MA
- Single board working : <100MA (board for Raspberry Pi not included)
- The pictures on the product introduction are for reference only and are subject to the actual product. As the raw materials supplied by the
market may change, the product is subject to change without notice. Thank you for your understanding!

Compatible Main Boards For Raspberry Pi:
- For Raspberry Pi 2B
- For Raspberry Pi 3B
- For Raspberry Pi 3B+
- For Raspberry Pi 4B

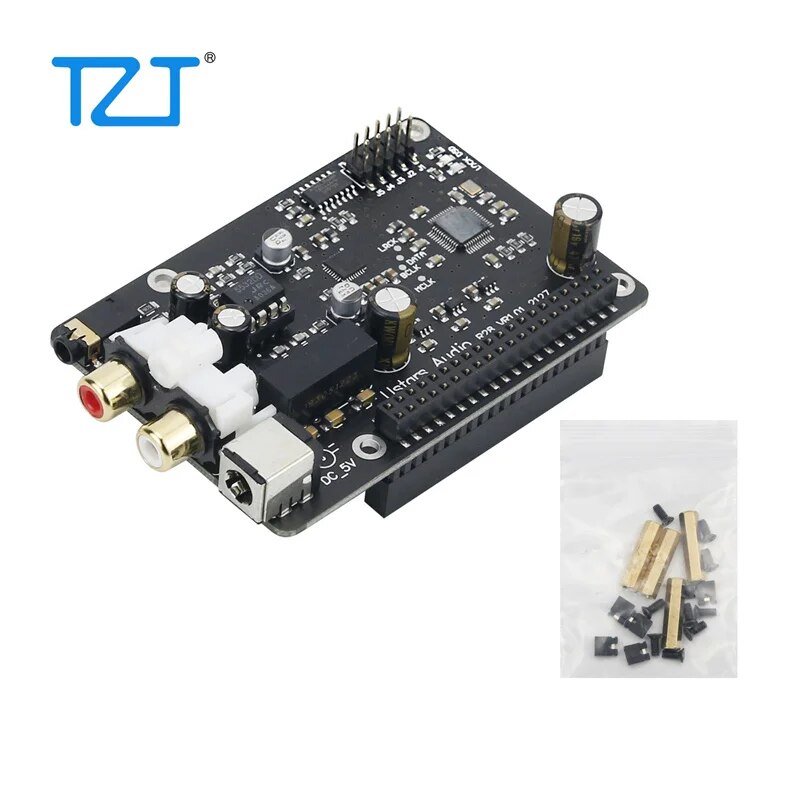

Package Included:
- 1 x Set of Decoder Board

Note:
- Board for Raspberry Pi is not included.
- The optimized version for MoodeAudio640 is only available for Raspberry Pi 4B (version 1.2), Raspberry Pi 3B+ and Raspberry Pi 3B. Most of boards for Raspberry Pi 4B (version 1.4) or above versions ly on the market cannot be used for MoodeAudio640.

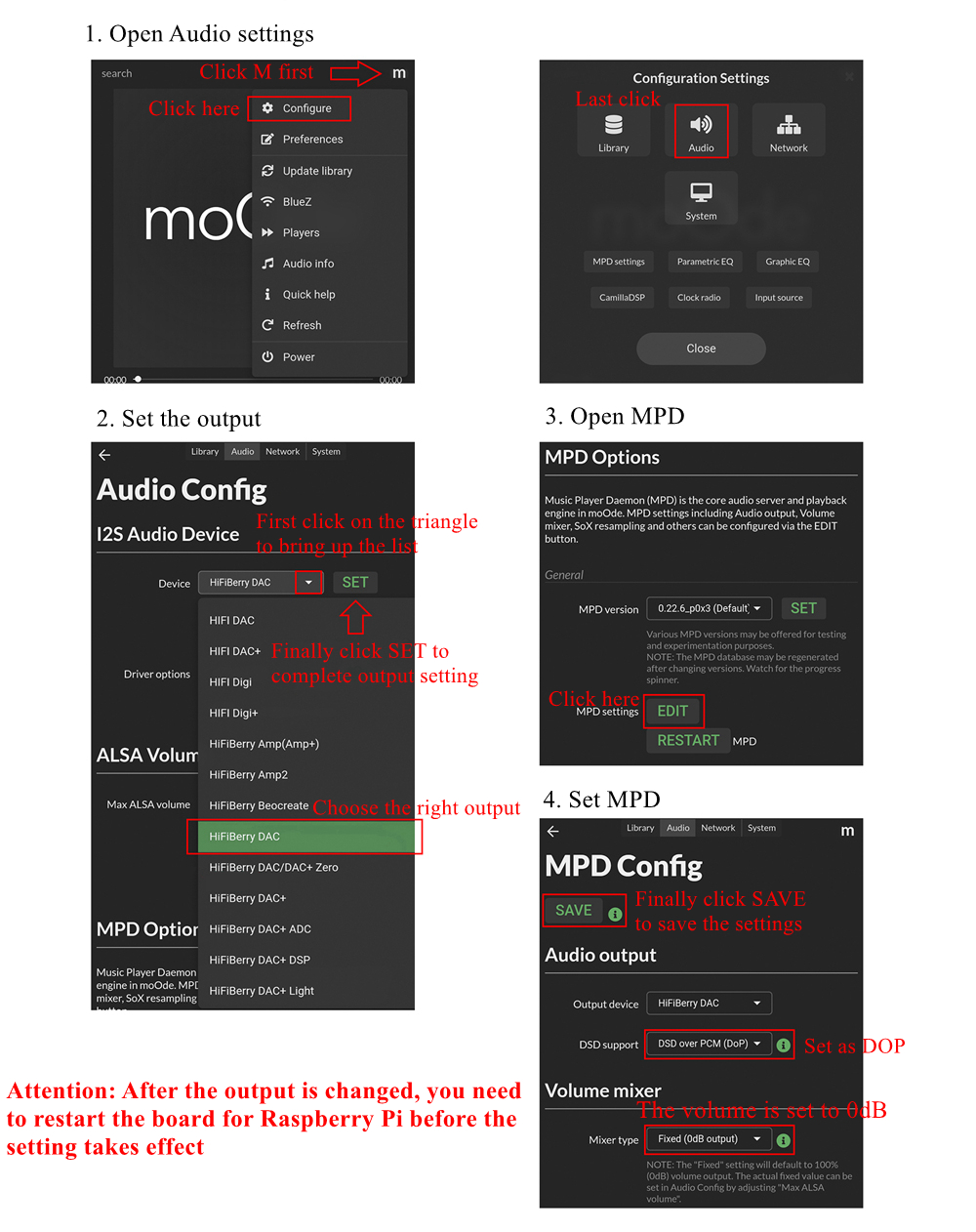

For MoodeAudio Settings:
The setting method uses a mobile phone connection. Take settings for MoodeAudio7.01 as an example. Other versions may have differences. The setting method for VOLUMIO is similar. Please handle the basic operations such as memory card flashing and setting up the network by yourself.
