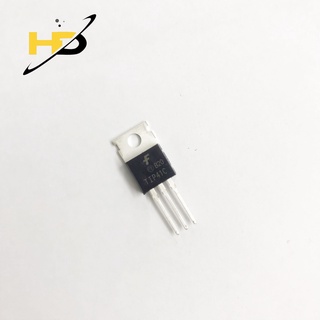

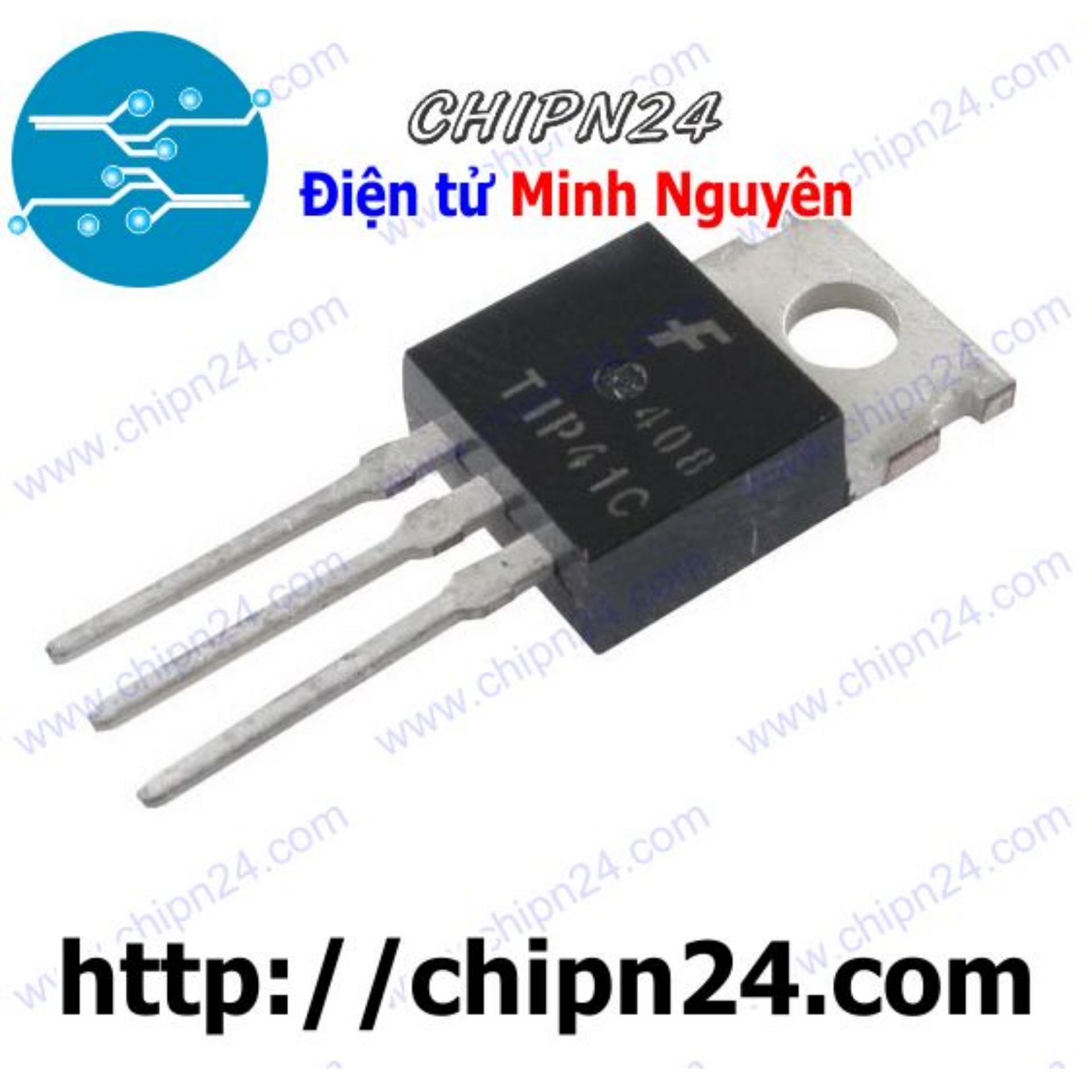

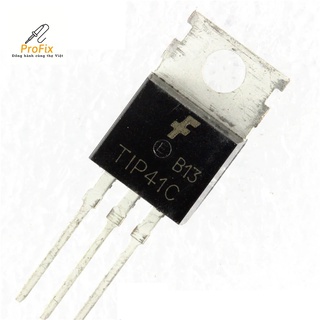

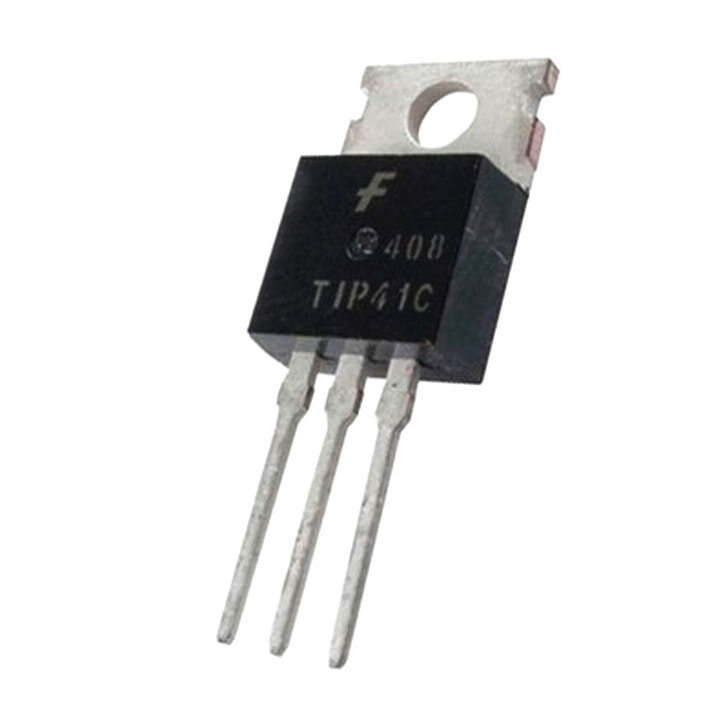

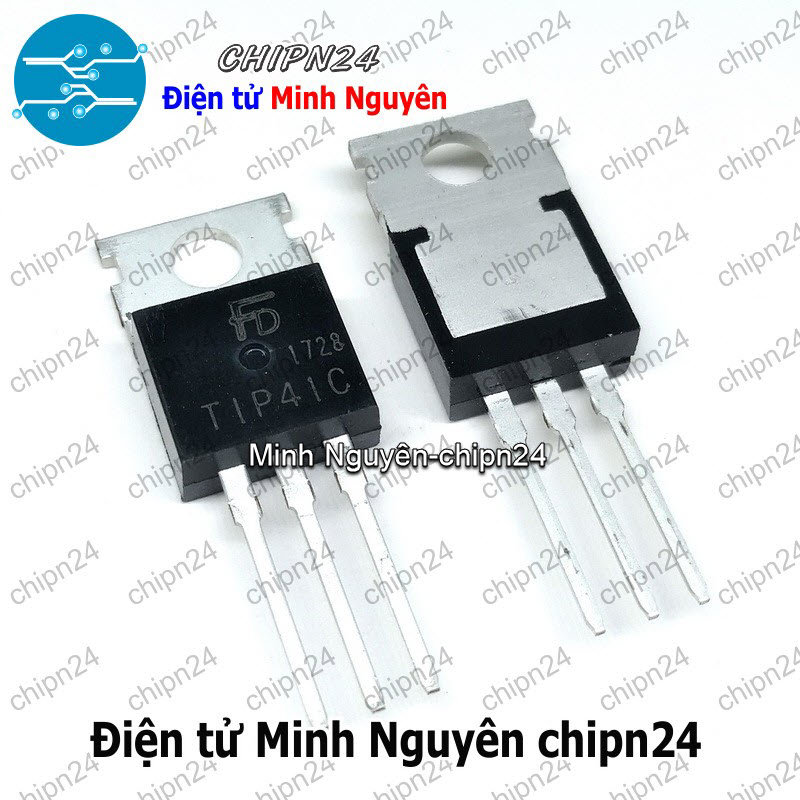

Transistor TIP41 TO-220 NPN 6A 100V (TIP41C)

_x000D_ Transistor TIP41C TO-220 NPN 6A 100V

Mô tả:
- TIP41C - NPN Epitaxial Silicon TransistorDataSheet
- Transistor TIP41C là transistor công suất thuộc loại transistor NPN.
- TIP41C có Uc cực đại = 100V dòng Ic cực đại = 6A
- Hệ số khuếch đại hFEtrong khoảng 15 đến 75.
- Thứ tự các chân từ trái qua phải: B C E

Thông số kỹ thuật:
- Package: Tube
- Part Status: Active
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 0.25
- Voltage - Collector Emitter Breakdown (Max): 100 V
- Vce Saturation (Max) @ Ib, Ic: 1.5V @ 600mA, 6A
- Current - Collector Cutoff (Max): 700µA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 15 @ 3A, 4V
- Power - Max: 65 W
- Frequency - Transition: -
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220

Datasheet:
https://www.st.com/content/ccc/resource/technical/document/datasheet/82/c2/f6/15/8b/d4/49/6a/CD00142950.pdf/files/CD00142950.pdf/jcr:content/translations/en.CD00142950.pdf
